Review HP Pavilion dv9074cl Notebook

Turion CPU. The HP Pavilion dv9074cl's performance is alright. Because of a high clocked AMD Turion CPU and fast memory chips, its performance is comparable to notebooks with lower clocked Intel processors.

HP Pavilion dv9074cl Logo

Case

Following review is provided by notebookcheck.pl, our Polish editor team.

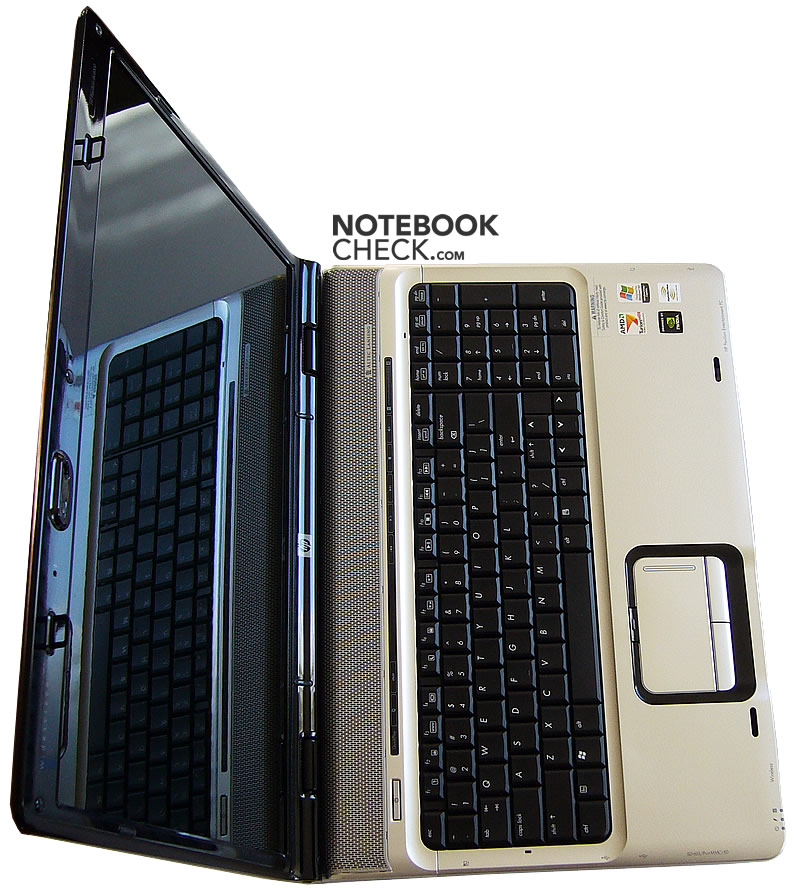

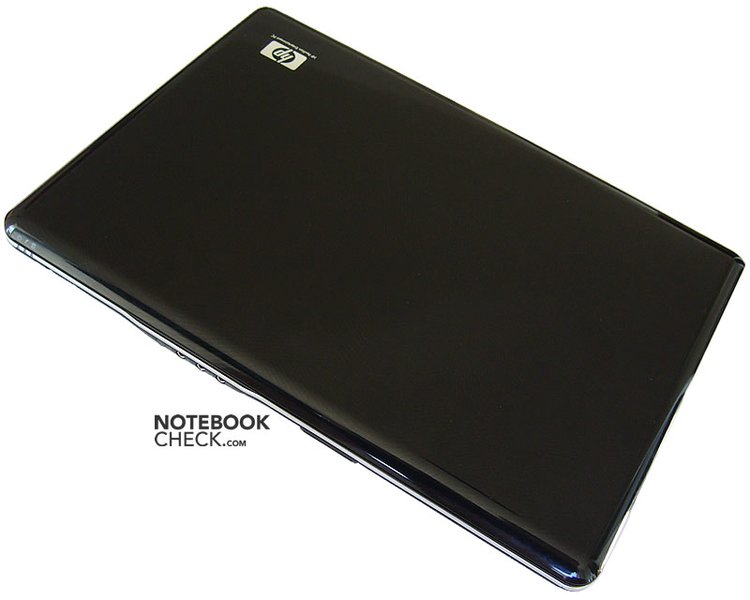

Overall, all notebooks of the dv9000 series have a common design. Also the dv9074cl has a piano coating and shows the already known wave pattern.

Generally, the workmanship of the dv9000 series is alright. However, the panel above the keyboard is not at the same level than the surrounding case.

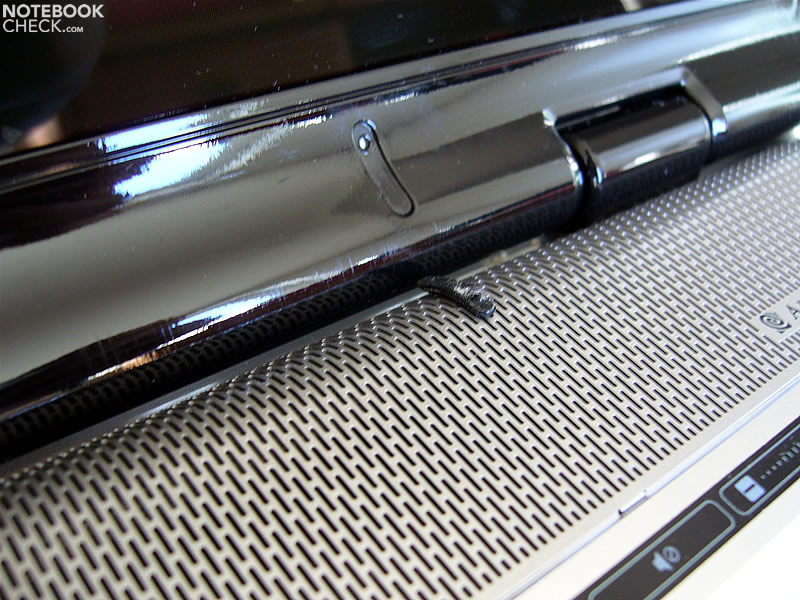

The display cover slightly yields under pressure, but in total it is still rather robust. Tough the hinges are small, they hardly allow any wobbling.

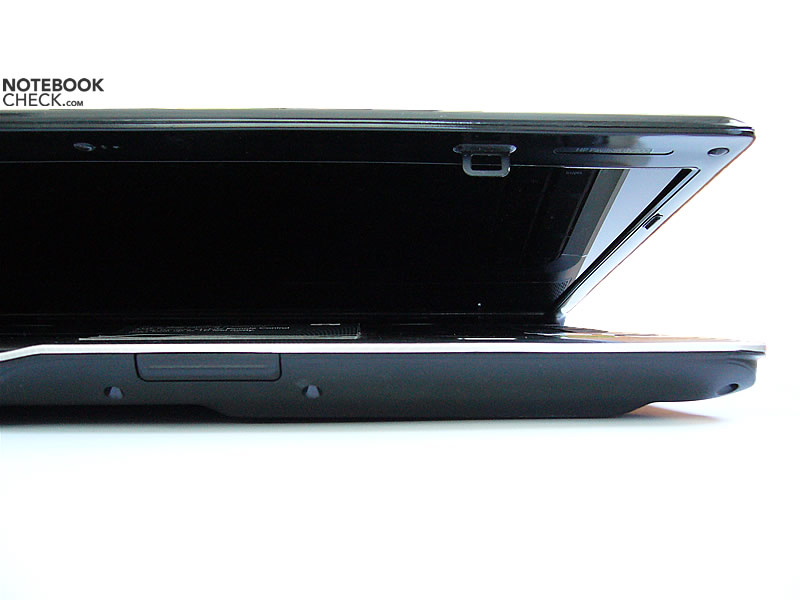

The Pavilion dv9000 series and the dv6000 series mainly differ by their closing mechanism. While the dv6000 notebooks utilize a magnetic locking, the bigger 17 inch dv9000 series provide a standard latch with two bolts.

Because of its design specifics none of the interfaces could be located at the notebook's backside. Besides of the audio ports, the infrared port and the WLan switch, all other interfaces were located left and right of the notebook. Unfortunately, the dv9074cl lacks a HDMI interface. In turn the provided display rates rather good in our test.

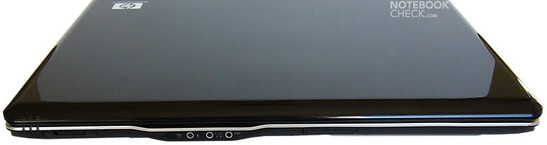

Front Side: IrDA, Audio Ports
HP Pavilion dv9074cl interfaces

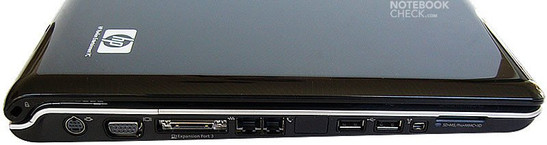

Left Side: S-Video, VGA, Docking Station Port, LAN, Modem, 2x USB, FireWire, Card Reader
HP Pavilion dv9074cl interfaces

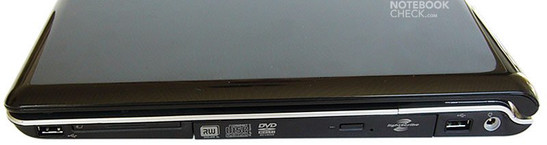

Right Side: USB, ExpressCard, DVD drive, USB, Power Connector
HP Pavilion dv9074cl interfaces

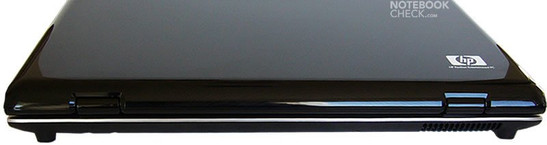

Back Side: No Ports
HP Pavilion dv9074cl interfaces

Input Devices

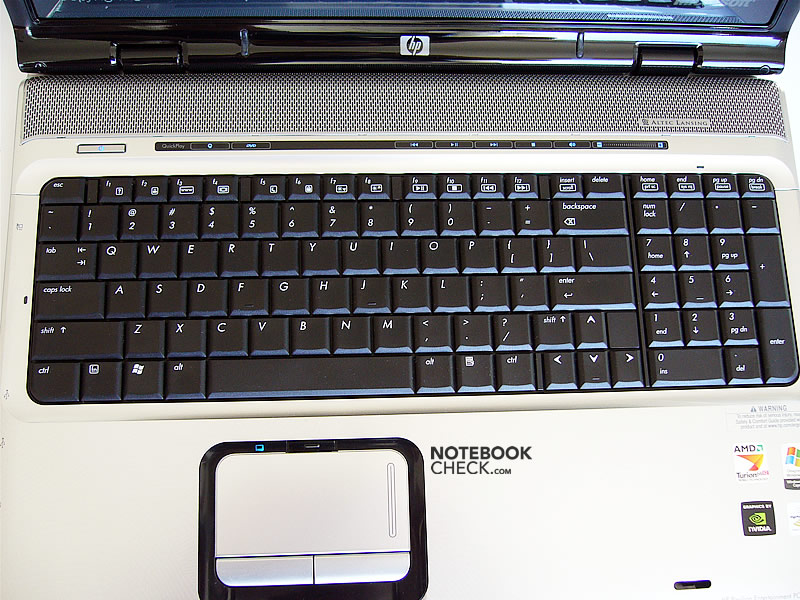

The keyboard of the dv9000 series is basically identical to the one of the Pavilion dv6140ea. It provides a  seperate numerical keypad, however the enter key extends only over one row.

Typing features a short travel and an extremely abrupt stop and is a little bit noisy.

The touchpad is not placed in the center, but a little bit moved to the left. This was not uncomfortable for us, but chances are that the touchpad is accidentally activated by the left wrist. However, it can be deactived by a little button, lit by a small blue LED. The touchpad is the same than the one of the smaller dv6000 series. Its sliding properties are not ideal, and the according buttons not really user-friendly.

Touchpad
HP Pavilion dv9074cl Touchpad
Keyboard
HP Pavilion dv9074cl Keyboard

Display

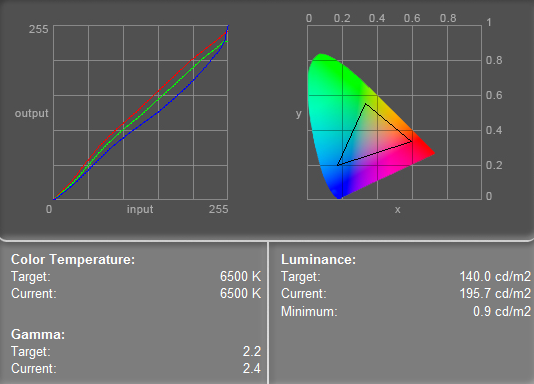

Color Diagram
HP Pavilion dv9074cl Display

The Pavilion dv9074cl is equipped with a 17 inch display with a resolution of 1440x900 pixels made by Quanta. We measured the maximum brightness of 201.2cd/m² in the lower part of the screen. The illumination is also alright and amounts to 80.5%.

161.9
cd/m²
184.9
cd/m²
170.0
cd/m²
169.8
cd/m²
193.7
cd/m²
176.3
cd/m²
180.3
cd/m²
201.2
cd/m²
196.3
cd/m²
Distribution of brightness
Information
Maximum: 201.2 cd/m²
Average: 181.6 cd/m²
Brightness Distribution: 80 %
Black: 0.9 cd/m²
Contrast: 215:1

A black value of 0.9cd/m² gives together with the measured maximum brightness a contrast ratio 224:1.

dv9074cl on the left
HP Pavilion dv9074cl

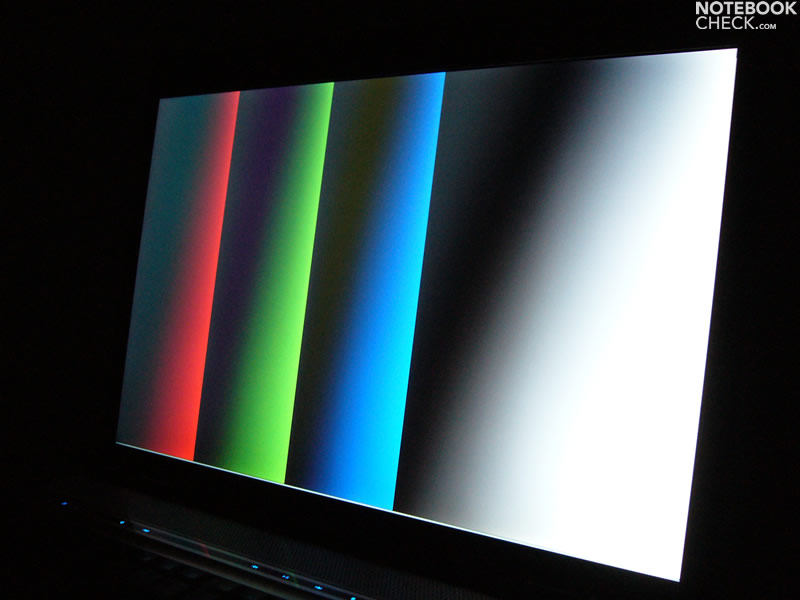

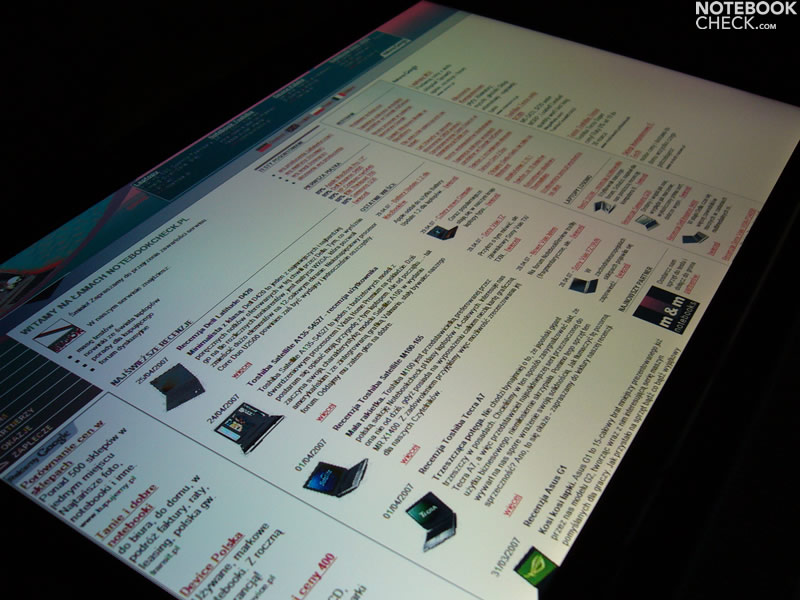

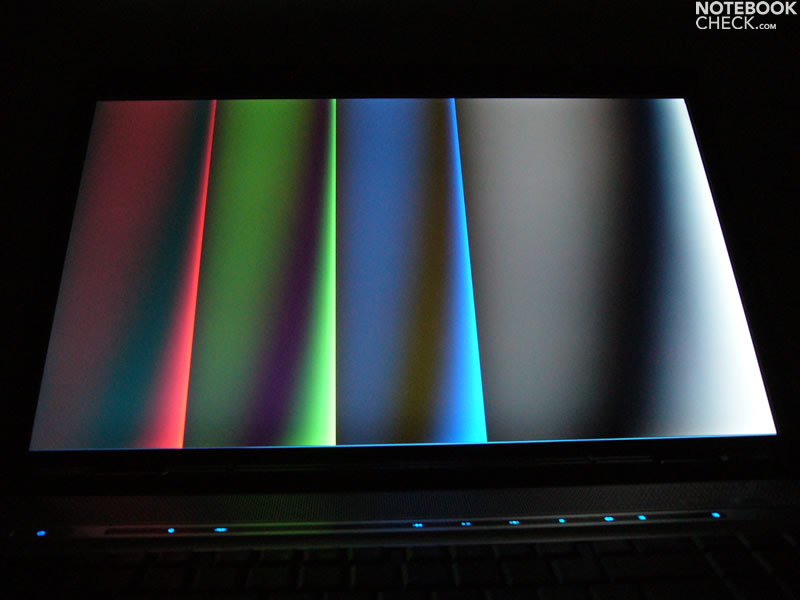

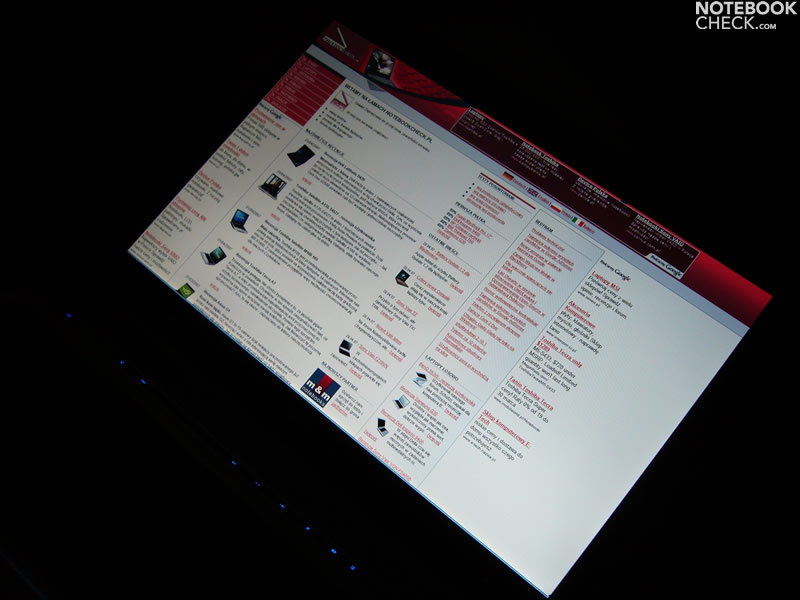

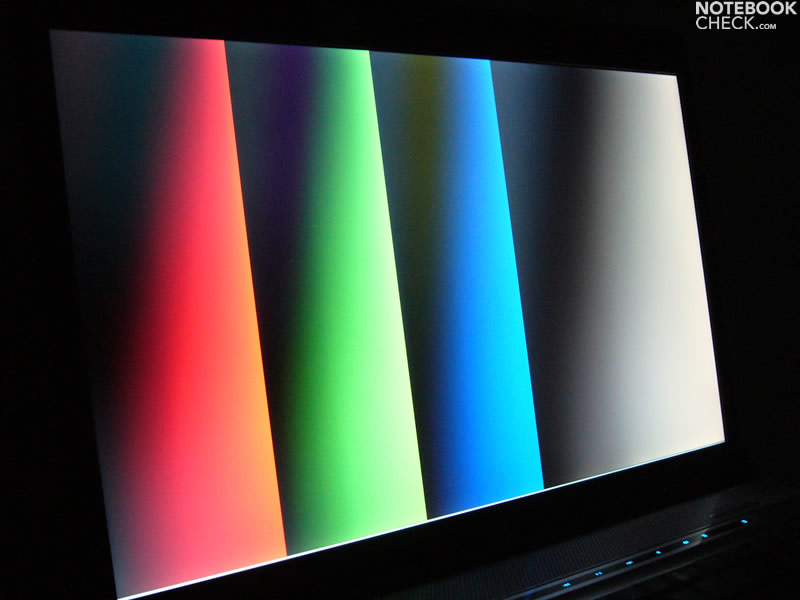

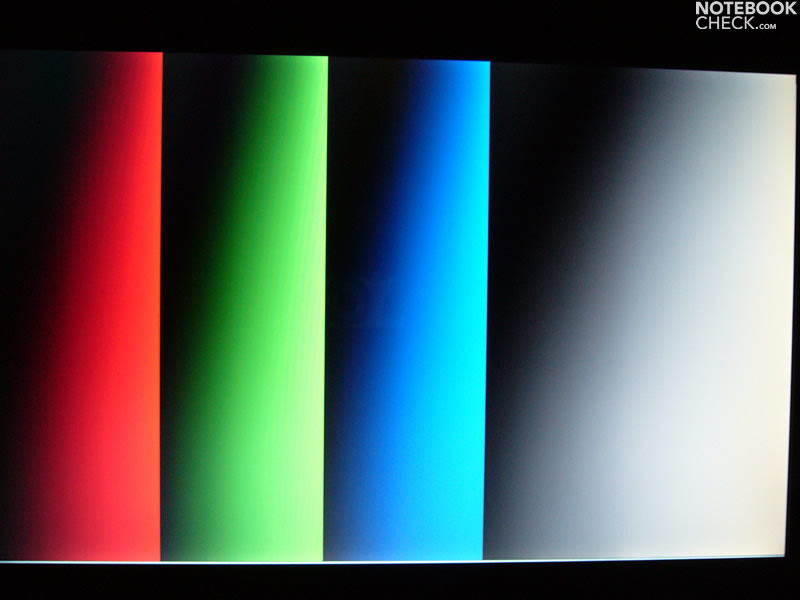

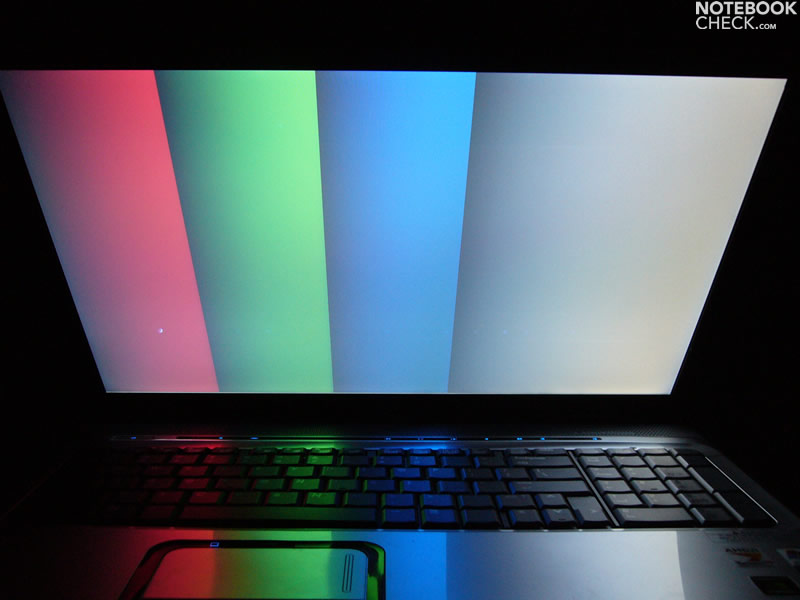

The stability to the vantage point will satisfy the demands on multimedia notebooks.

Stability to the vantage point HP Pavilion dv9074cl
Stability to the vantage point HP Pavilion dv9074cl
Stability to the vantage point HP Pavilion dv9074cl
Stability to the vantage point HP Pavilion dv9074cl
Stability to the vantage point HP Pavilion dv9074cl
Stability to the vantage point HP Pavilion dv9074cl
Stability to the vantage point HP Pavilion dv9074cl
Stability to the vantage point HP Pavilion dv9074cl

Performance

The HP Pavilion dv9074cl is equipped with a dual core AMD Turion 64 X2 TL-56 1.8GHz CPU. Together with two fast 1GB RAMs by Nanya clocked at 667 MHz this notebook's performance was at least equal to the dv9033cl and even outperformed the dv9033cl in some aspects.

A GeForce Go 7600 is responsible for graphics. All together this equipment is fit for office and internet applications and even for some older not so demanding games.

The reviewed notebook came with two 100GB HDDs by Seagate. Their data transfer rate and access time are pretty good.

Further information about the video card can be found  here or in our comparison of mobile video cards. Detailed information about the AMD 64X2 CPU can be found here.

Please also look at our benchmark list of mobile processors or at our benchmark list of mobile video cards, in order to compare this notebook to other configurations.

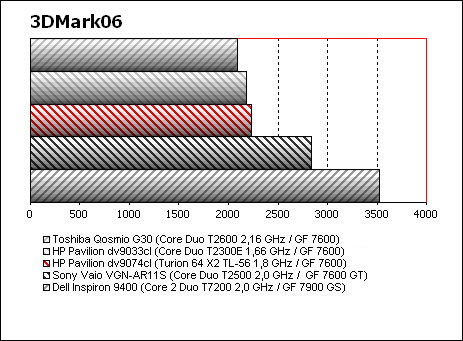

Benchmark Comparison 3DMark
HP Pavilion dv9074cl Benchmark

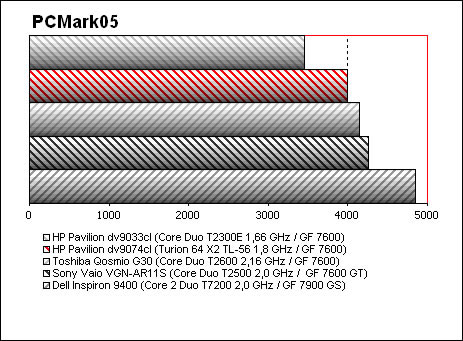

Benchmark Comparison PCMark
3D Mark
3DMark 2001SE16678 points
3DMark 038073 points
3DMark 053588 points
3DMark 06

2230 points
Help
3DMark 06 in comparison
Sony Vaio VGN-FS485B (min)
 740, Graphics Media Accelerator (GMA) 900
54
   ...
Lenovo X121e NWS62GE
 E-300, Radeon HD 6310
2211
Fujitsu Stylistic Q702
 3427U, HD Graphics 4000
2225
HP dv9074cl
 TL-56, GeForce Go 7600
2230
Packard Bell EasyNote TJ65
 T4300, GeForce G 105M
2232
Lenovo ThinkPad X120e
 E-350, Radeon HD 6310
2250
   ...
Clevo Clevo P157SM (max)
 4930MX, GeForce GTX 880M
29955
PC Mark
PCMark 045011 points
PCMark 054001 points
Help
PCMark 05 in comparison
Acer Aspire One 751 (min)
 Z520, Graphics Media Accelerator (GMA) 500
692
   ...
HP 620 WT092EA
 T4500, Graphics Media Accelerator (GMA) 4500MHD
3983
Toshiba Satellite Pro A100 PSAACE-010010GR
 T5500, Mobility Radeon X1600
3992
HP dv9074cl
 TL-56, GeForce Go 7600
4001
Toshiba Satellite P100-102
 T2400, GeForce Go 7600
4027
Toshiba Satellite A100-979
 T5600, GeForce Go 7600
4033
   ...
Fujitsu Celsius H710 WXP11DE (max)
 2820QM, Quadro 1000M
13842
200 GB - 5400 rpm
Transfer Rate Minimum: 20.4 MB/s
Transfer Rate Maximum: 41.7 MB/s
Transfer Rate Average: 32.2 MB/s
Access Time: 15.6 ms
Burst Rate: 104.6 MB/s
CPU Usage: 4.5 %
Core Duo T2300E
Turion 64 X2 TL-56
  HP Pavilion dv9033cl (Core Duo T2300E) HP Pavilion dv9074cl (Turion 64 X2 TL-56)
Windows XP boot up 47s 50s
HP QuickPlay boot up 22s 26s
PCLinuxOS 2007 TR4 boot up 2min29s 2min14s
SLAX Linux (w/o GUI) boot up 50s 36s
loading a saved game HoMM V 21s 21s
MOV to MPEG conversion (on battery, 109MB) 1min18s 1min44s
MOV to DivX conversion (on PSA, 109MB) 1min12s 1min14s
installing .NET Framework 2.0 2min11s 2min21s
Aquamark benchmark 60516points 57197points
x3: Reunion benchmark 29.426fps 29.271fps
WinRAR benchmark 794KB/s 817KB/s

Emissions

Loudness

Under load the fan starts running immediately and reaches a noise level of 38.8dB. With graphic intensive applications the noise level exceeds 41dB.

Also the HDD's head parking is quite audible. The Hitachi-LG DVD drive is generally not too loud. It reaches a noise level of 35.3dB during video playback.

Noise Level

Idle 33.9 / 38.8 / 35 dB(A)
HDD 34.6 dB(A)
DVD 35.3 / dB(A)
Load / 41.2 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:     (15 cm distance)

Temperature

The HP Pavilion dv9074cl too gets quickly hot. The slim case constricts the air flow inside the notebook and, so, leads to higher surface temperature. Furthermore, also the second harddisk contributes to the temperature increase.

Upper side

palmwrist: 43.3°C max: 47.5°C avg: 40.8°C

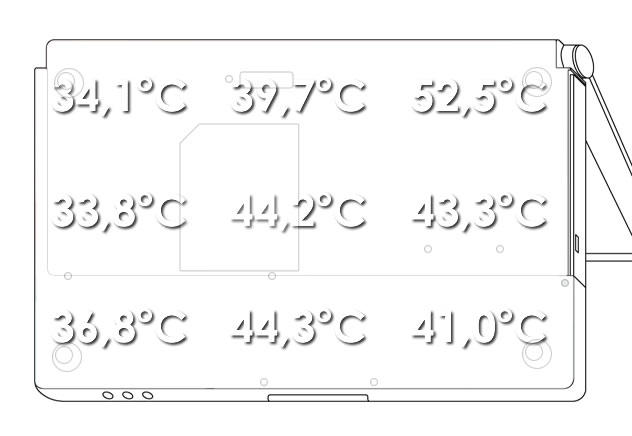

Bottom side

max: 52.5°C avg: 41.1°C

Speakers

The dv9074cl is equipped with Altec Lansing speakers. Despite of low power consumption, their sound is clear and rich, the maximum volume more or less alright.

Battery Runtime

The Pavilion dv9074cl is equipped with an 8-cell battery with a 4400mAh (63Wh) capacity. In practice you can expect a runtime of about two or three hours. Considering it is a DTR with a quite powerful video card, the battery runtime is very good.

Battery Runtime
Idle (without WLAN, min brightness)
3h 03min
DVD
2h 00min
Load (maximum brightness)
2h 08min

Power Consumption

Idle 35 / 39 / 41 Watt
Load 83.8 / 75 Watt

Key: min: , med: , max:

Verdict

Much to our surprise, the Pavilion dv9074 with Turion 64 X2 outperformed the dv9033cl with Intel Core Duo CPU in many aspects.

Furthermore, the dv9074 is quieter, gets less warm, but has a slightly shorter battery run time than the dv9033cl.

Its Quanta display is quite bright, with good illumination and good stability to the vantage point.

Many thanks to our partners of Notebookcheck Polen for this review.

HP Pavilion dv9074cl
HP Pavilion dv9074cl
Reviewed: HP Pavilion dv9074cl
HP Pavilion dv9074cl

Specifications

HP dv9074cl
Graphics adapter
Memory
512 MB
, Nanya DDR2-667 2 GB DDR2 maks. 4 GB
Display
17.1 inch 16:10, 1440x900 pixel, WXGA+ High Definition BrightView (Quanta QD17TL026)
Harddisk
200 GB - 5400 rpm, 200 GB
5400 rpm 2x Seagate Momentus 5400.3 ST9100828AS: 200GB, 5400rpm
Connections
4x USB 2.0, VGA, wej¶cie mikrofonowe, 2x wyj¶cie s³uchawkowe (1x SPDIF), FireWire 1394, RJ-11, RJ-45, S-Video
Size
height x width x depth (in mm): 40 x 385 x 295 ( = 1.57 x 15.16 x 11.61 in)
Weight
3.54 kg ( = 124.87 oz) ( = 0 oz)
Battery
, litowo-jonowy 4400 mAh (64 Wh)
Price
5478 Euro
Additional features
NVIDIA GeForce Go 6100 (C51MV), HDD: 200GB, 5400rpm, 2x Seagate Momentus 5400.3 ST9100828AS, Conexant Cx20549 @ nVIDIA nForce 430 (MCP51) - HD audio, Hitachi-LG HL-DT-ST DVDRAM GSA-4084N,



[+] compare

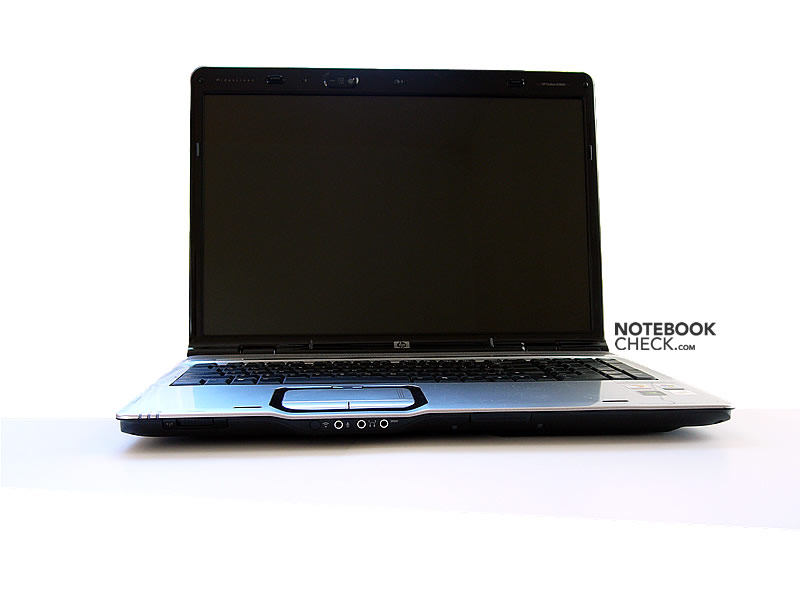

The Pavilion dv9074cl looks good.
Among them an external TV tuner...
There are numerous accessories included.
Despite of not being very capacious, the battery provides a runtime of 2 to 3 hours.
A WLan switch is available.
The opening mechanism of the notebook is not very user-friendly.
The brightness and the stability to the vantage point of the glossy Quanta screen are excellent.
...but a numerical keypad is provided.
The keyboard is very similar to those of the Pavilion dv6000 series...

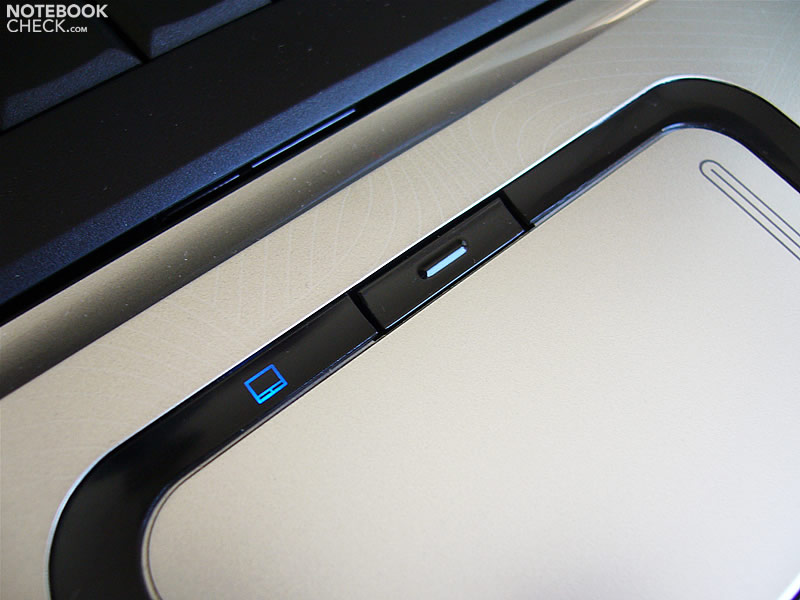

The touchpad can be deactivated by a little button, when needed.

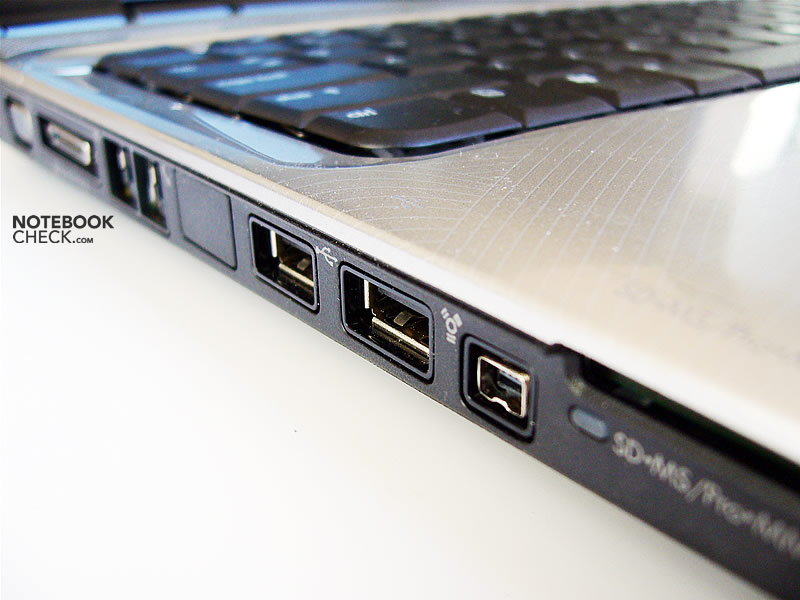

The dv9074cl lacks an HDMI port.
Most of the interfaces are located at the left side.
The slim case is difficult to cool.
The workmanship is not perfect.
Piano coating was used.
...which is ready for use.

Pro

  • Good look
  • Bright picture
  • Broad viewing angles in both aspects
  • Capacious and fast hard drives
  • Long battery run time
  • Accessories
  • Contra

  • Heating of the base unit
  • Workmanship
  • Touchpad
  • No HDMI port
