As a world's first, the desktop GeForce GTX 980 is coming to notebooks with all of its ALUs, VRAM, and clock rates intact.

One year has passed since Nvidia introduced the GM204 architecture and the desktop GeForce GTX 980 last September. The Maxwell GPU then appeared on notebooks a short time later as the GTX 980M, albeit with reduced shader units (1536 vs. 2048) and lower clock rates. The main reason for the reductions is the maximum TDP limit of 100 W in order have the GPU adequately cooled. The desktop GTX 980, for example, is rated for a TDP of 165 W, so corners had to be cut.

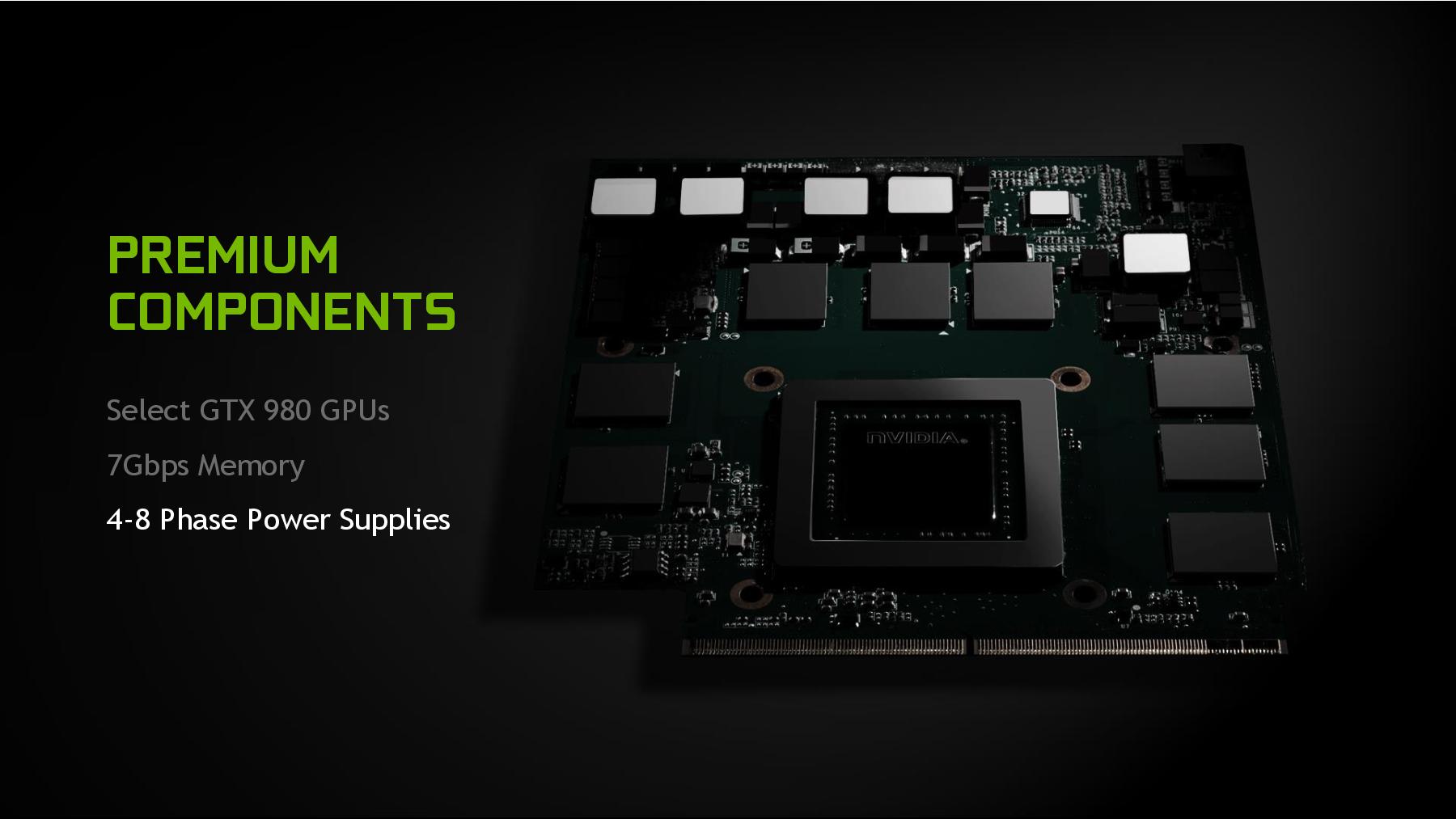

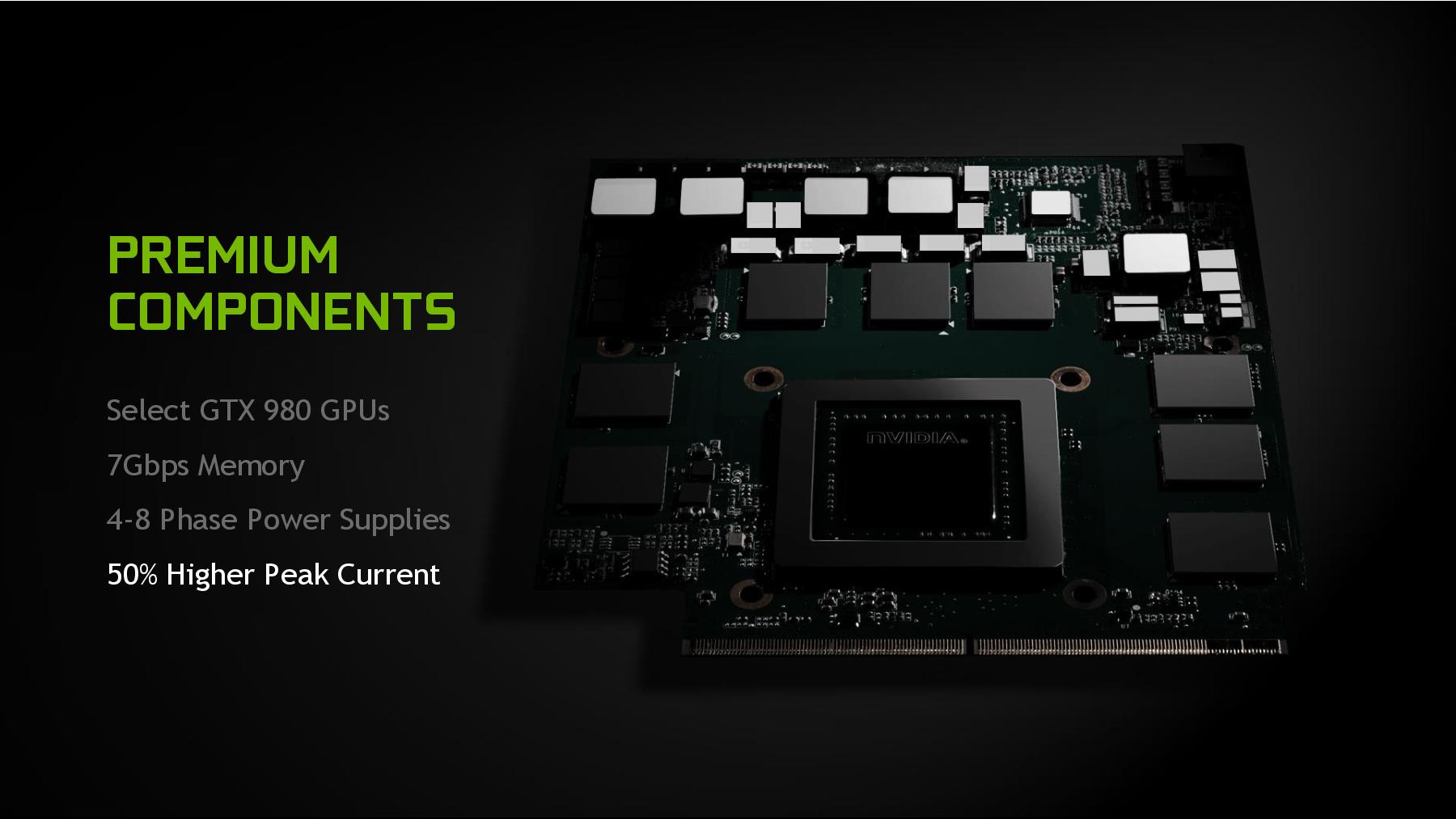

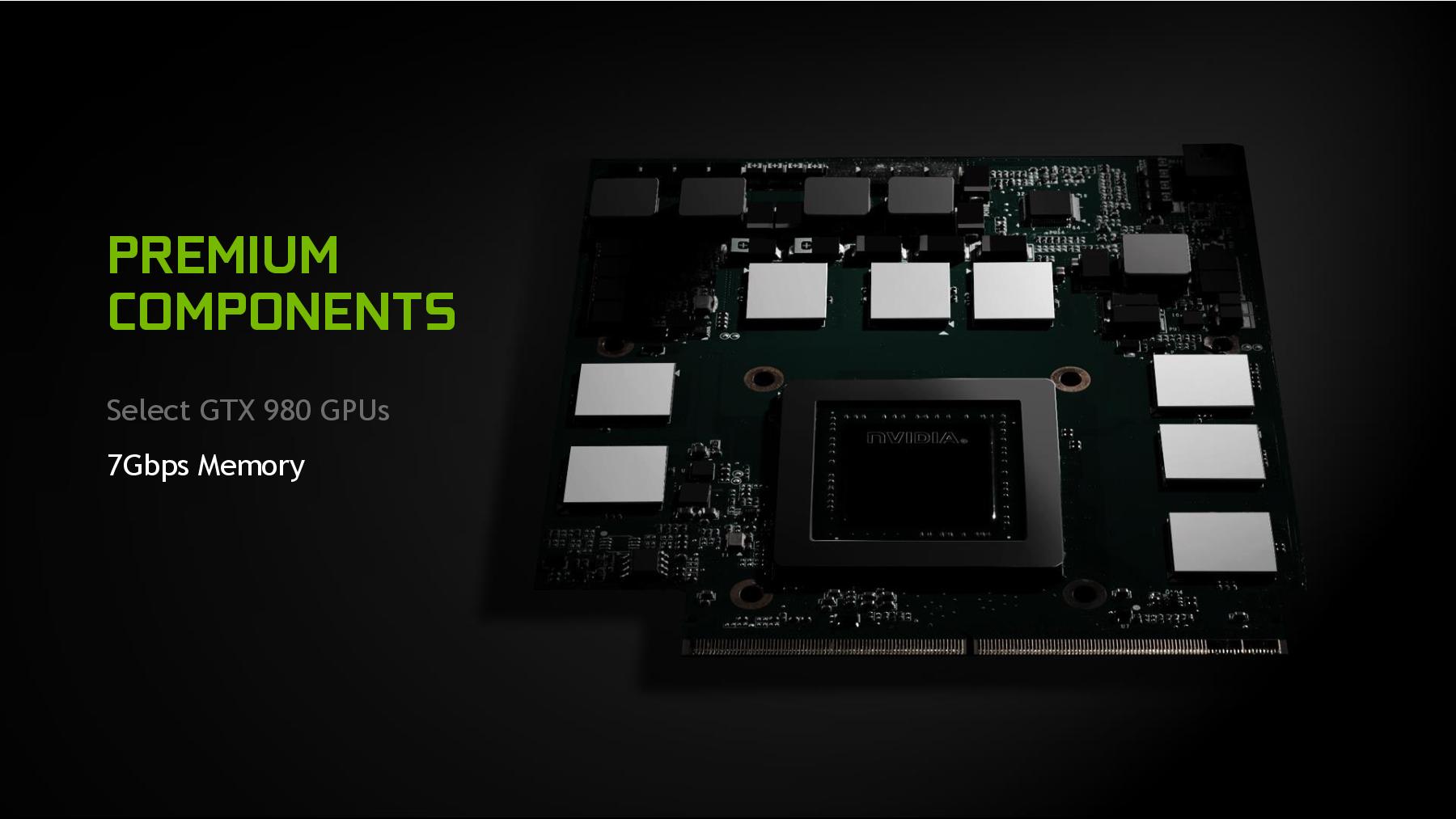

The performance discrepancy between desktop and notebook GPUs may finally be over as Nvidia has announced the GTX 980 for laptops with no name differentiation and almost identical specifications. In short, the new GTX 980 for laptops will have all 2048 shader units, a base clock rate of 1126 MHz (+ Boost), 128 TMUs, 64 ROPs, a 256-bit memory interface, and support for up to 8 GB GDDR5 VRAM. The current reference design uses 4 GB VRAM with the same 1750 MHz (7 GHz effective) memory clock.

GeForce GTX 980M GeForce GTX 970M GeForce GTX 980 (Desktop) GeForce GTX 980 (Notebook)
Process 28 nm 28 nm 28 nm 28 nm
Architecture Maxwell (GM204) Maxwell (GM204) Maxwell (GM204) Maxwell (GM204)
ALUs 1536 1280 2048 2048
Core clock 1038 MHz + Boost 924 MHz + Boost 1126 MHz + Boost 1126 MHz + Boost
Memory interface 256 Bit (GDDR5) 192 Bit (GDDR5) 256 Bit (GDDR5) 256 Bit (GDDR5)
VRAM capacity 4/8 GB 3/6 GB 4 GB 4/8 GB
Memory clock (eff.) 1250 MHz (5000 MHz) 1250 MHz (5000 MHz) 1750 MHz (7000 MHz) 1750 MHz (7000 MHz)
TDP ~100 W (?) ~80 W (?) 165 W <165 W

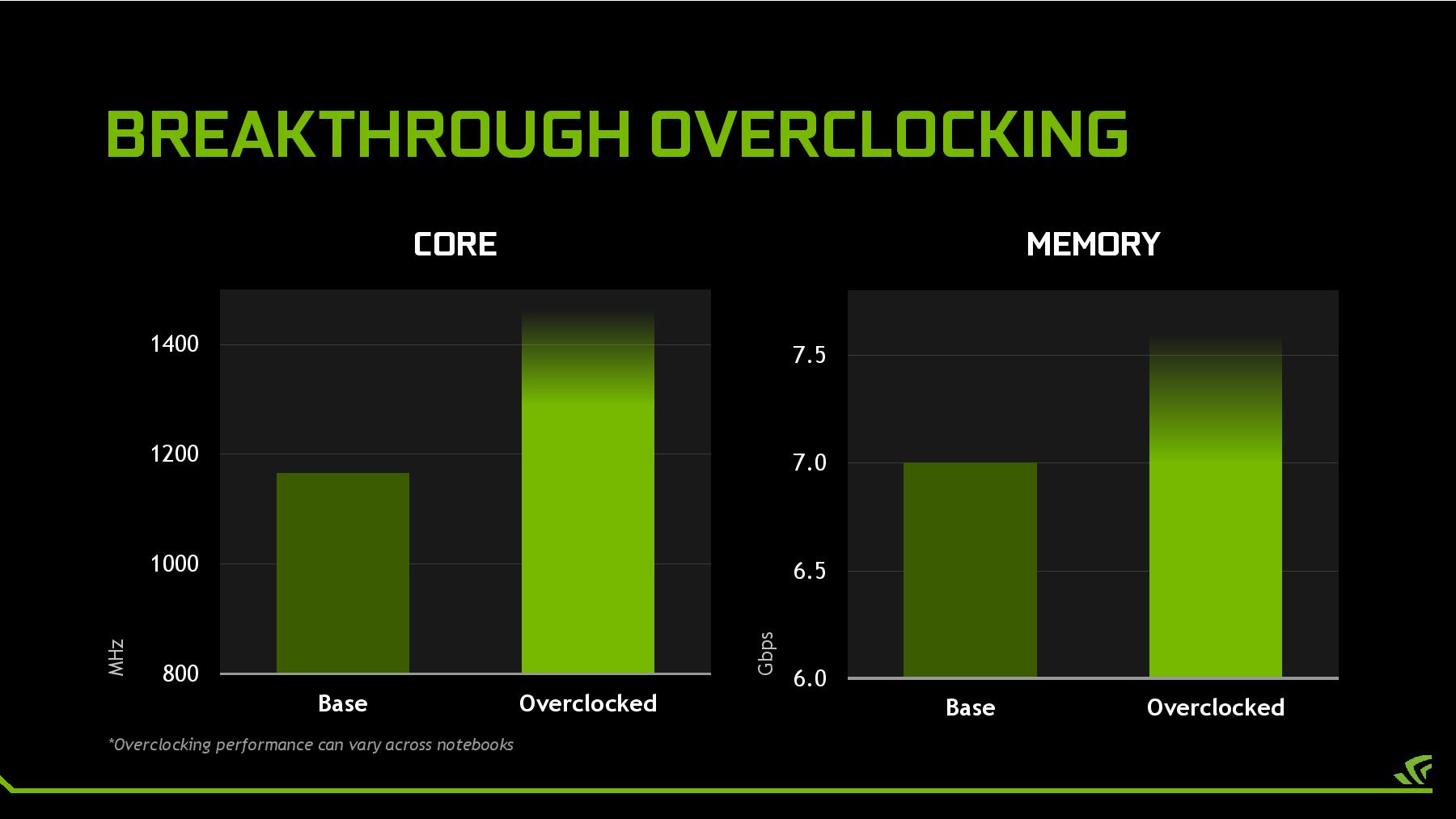

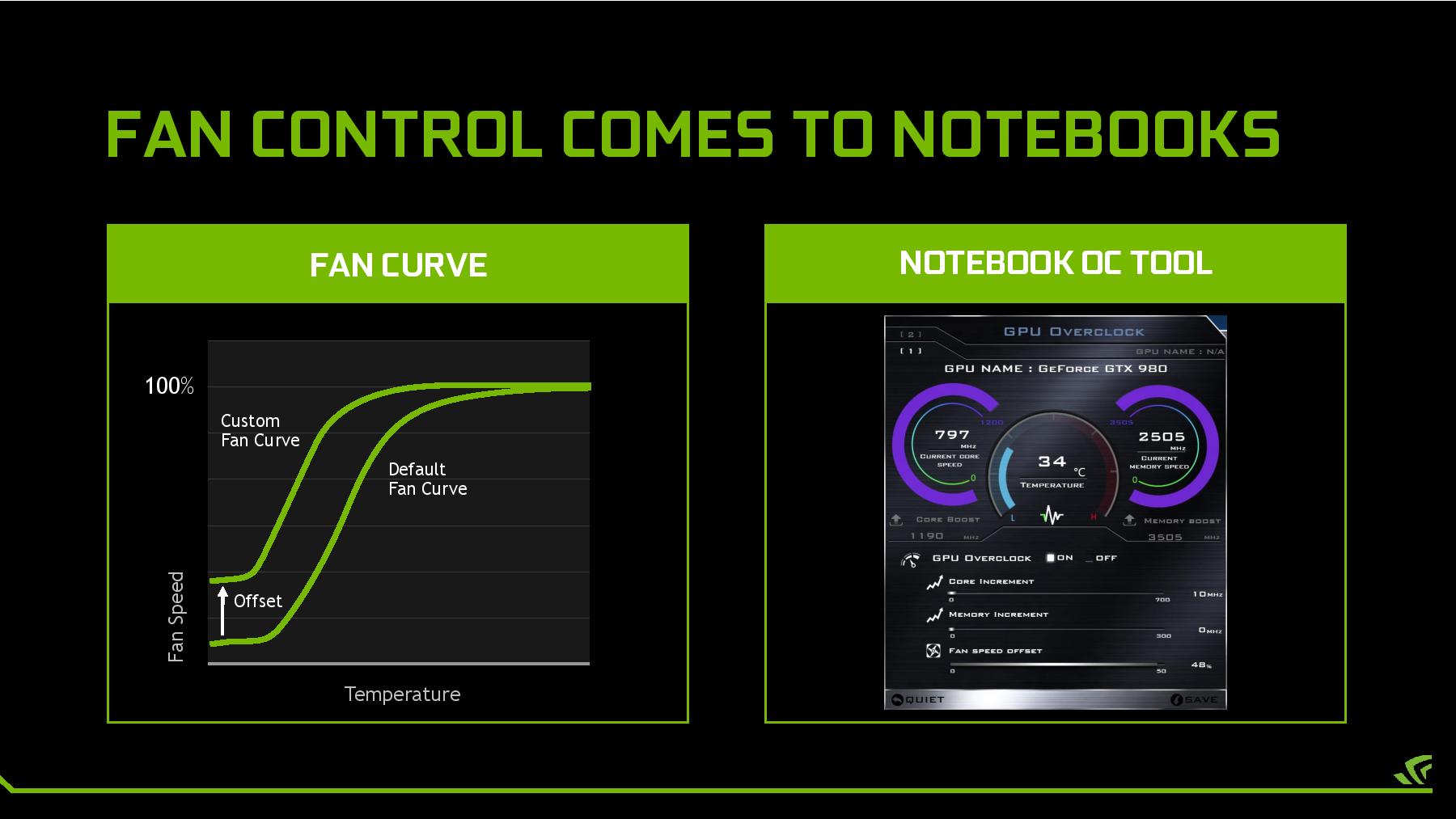

The mobile GTX 980 will have a much more dynamic TDP range to accommodate a wider range of cooling solutions. Thus, TDP will range from at least 150 W up to 165 W, which is already far higher than existing GTX 9xxM-based notebooks. Core clock rates and Boost will adjust accordingly depending on the dynamic TDP. Nvidia is also explicitly allowing overclocking tools to work with the GTX 980.

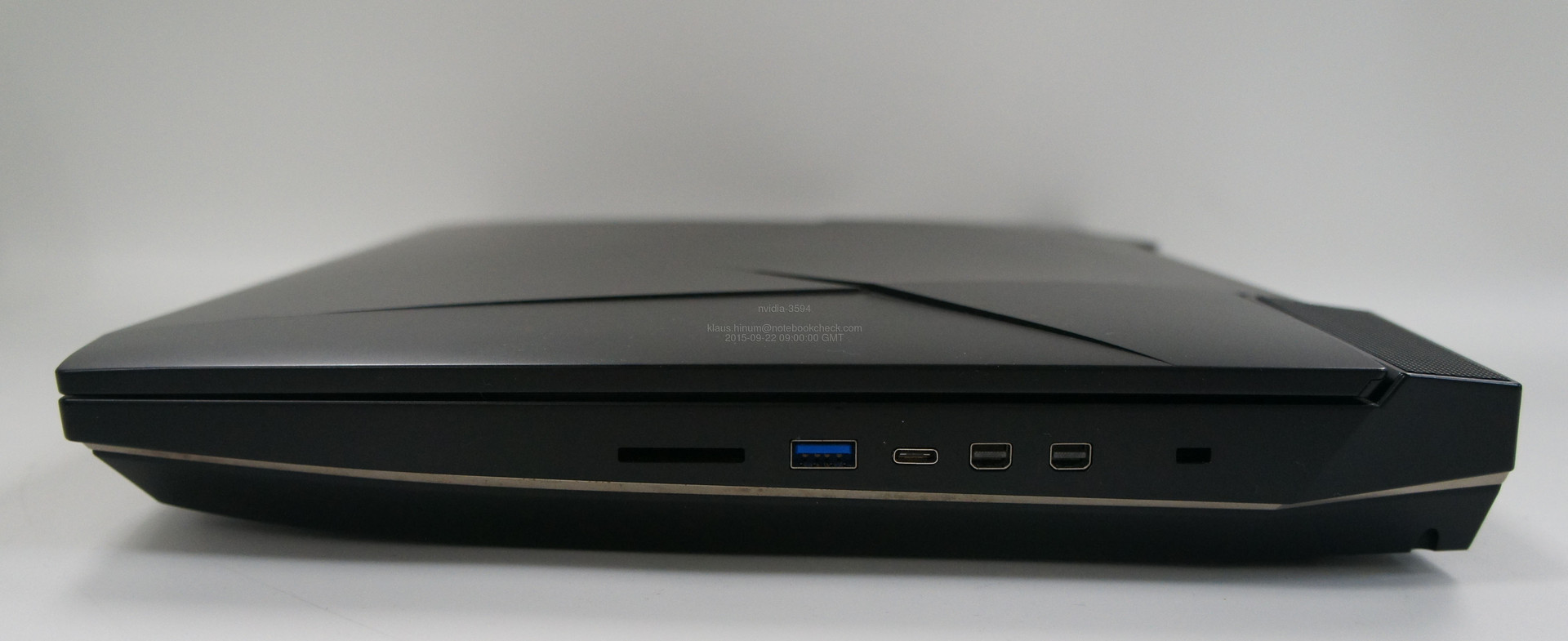

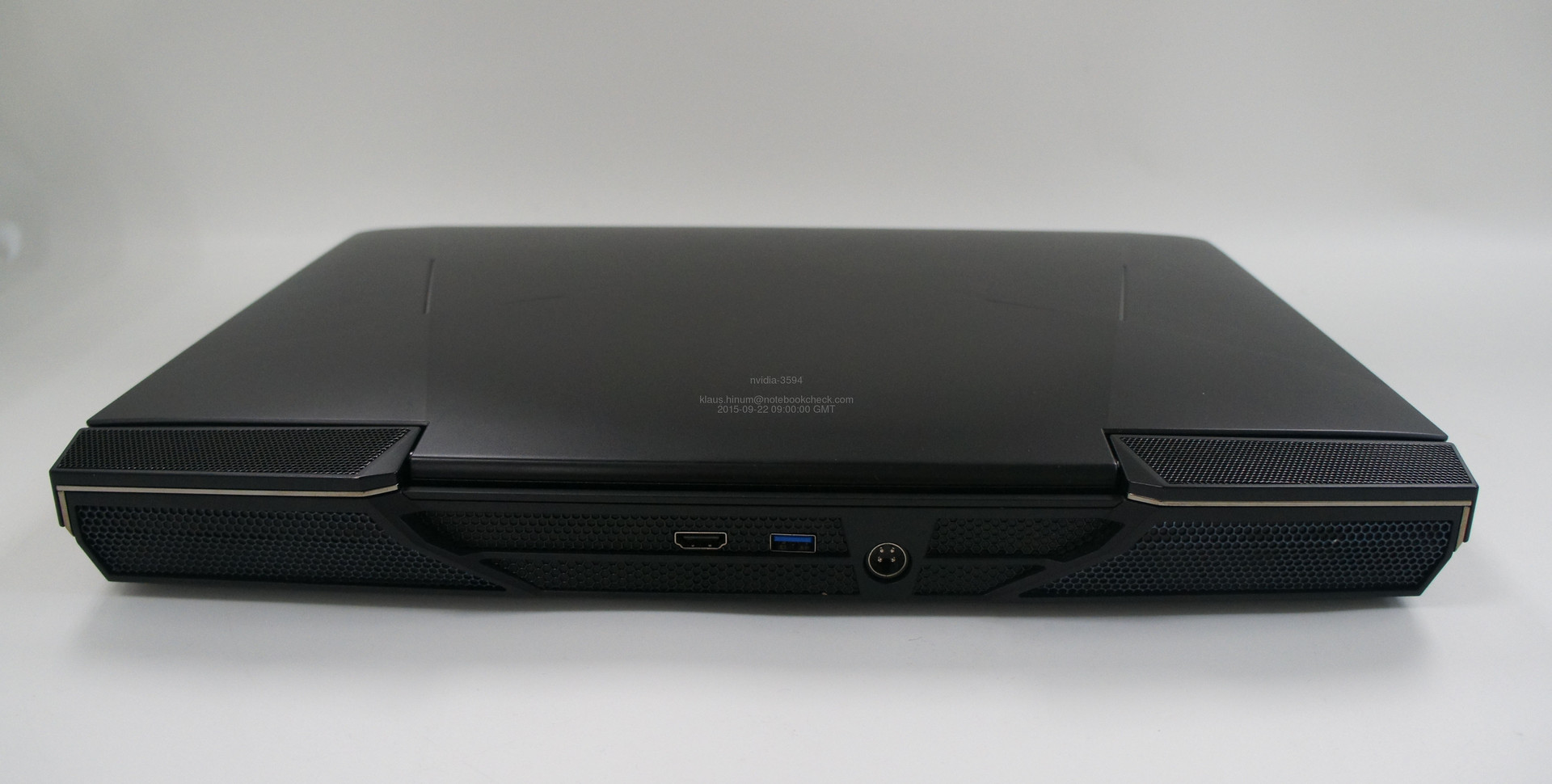

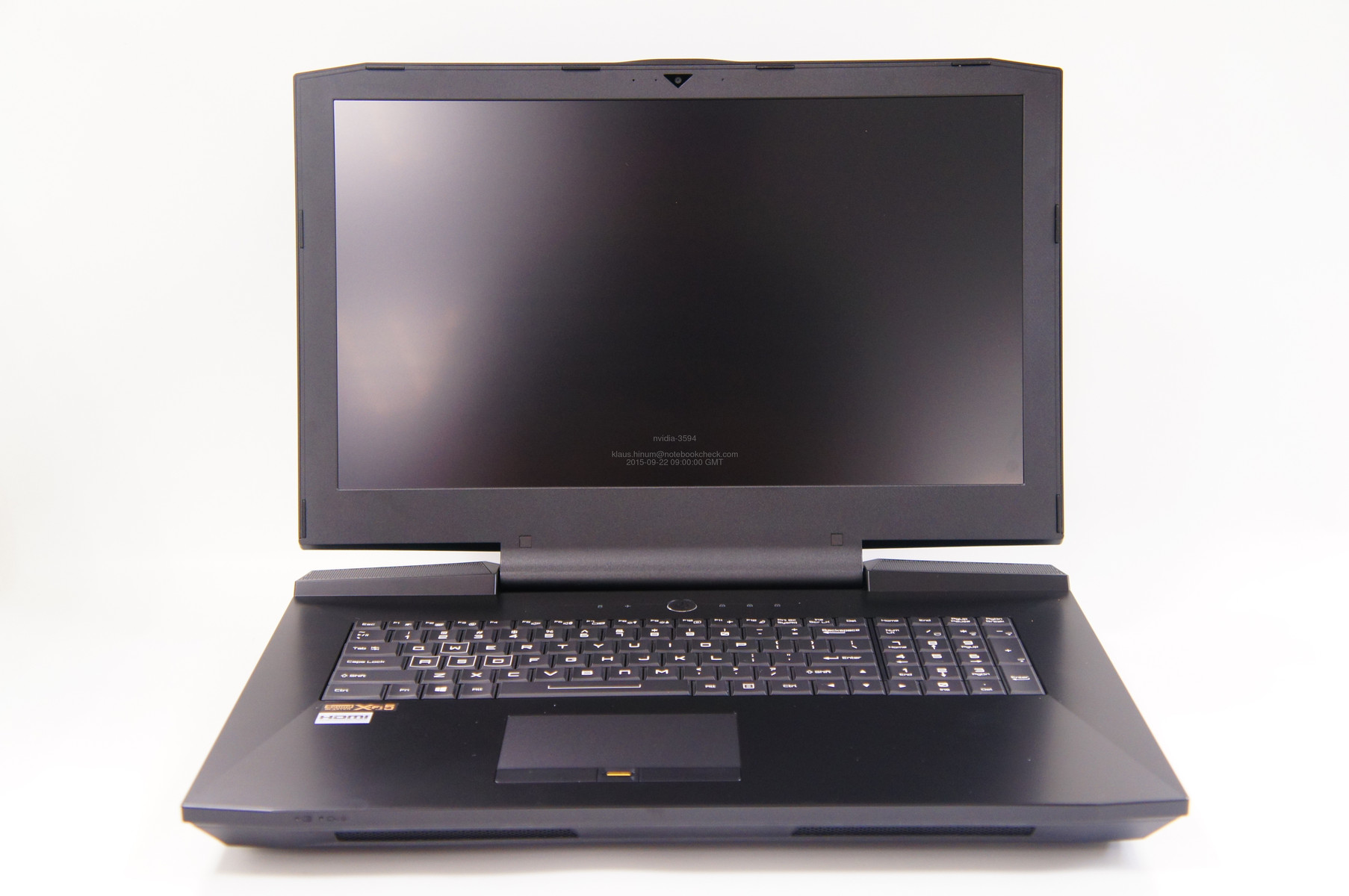

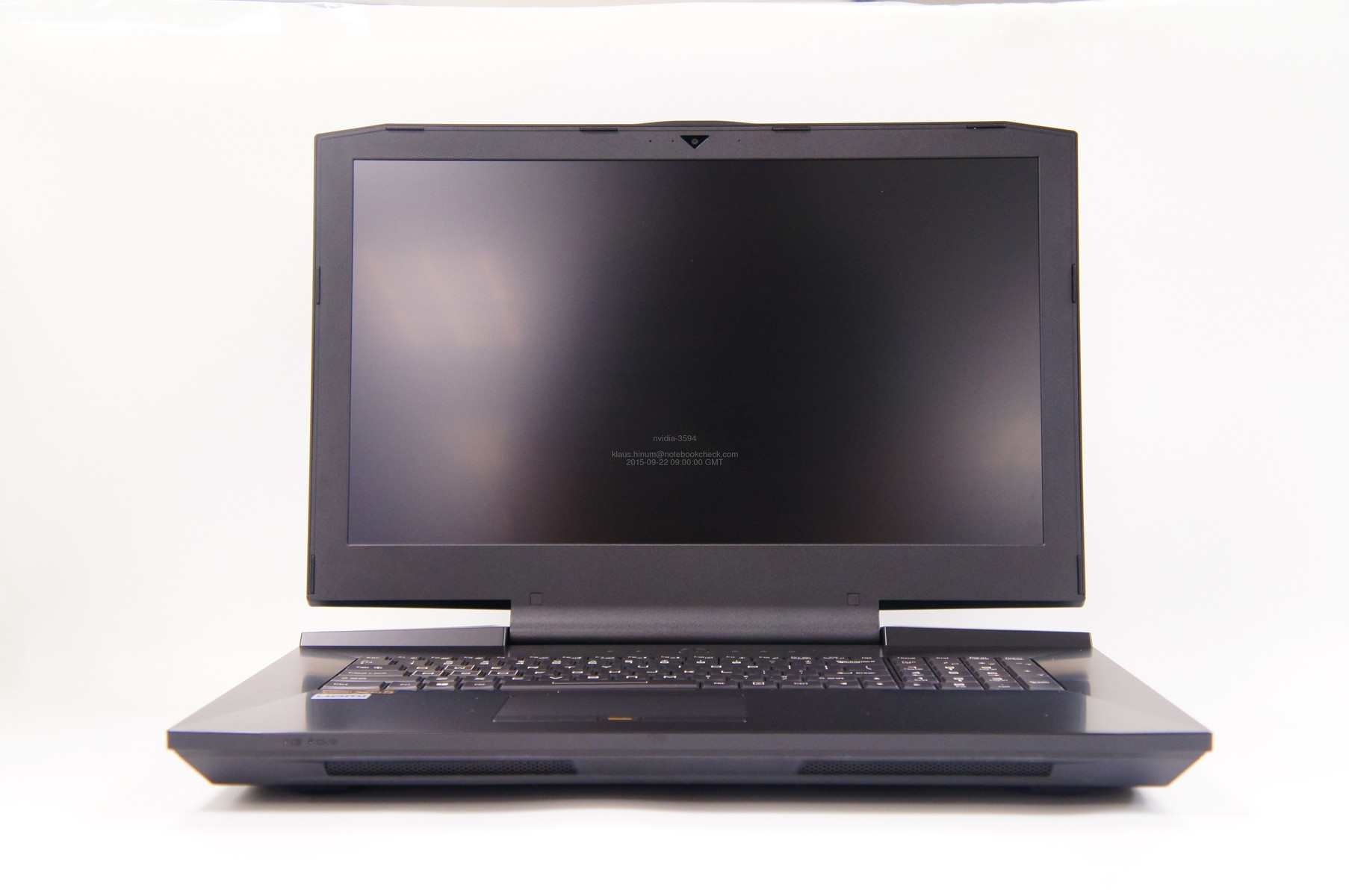

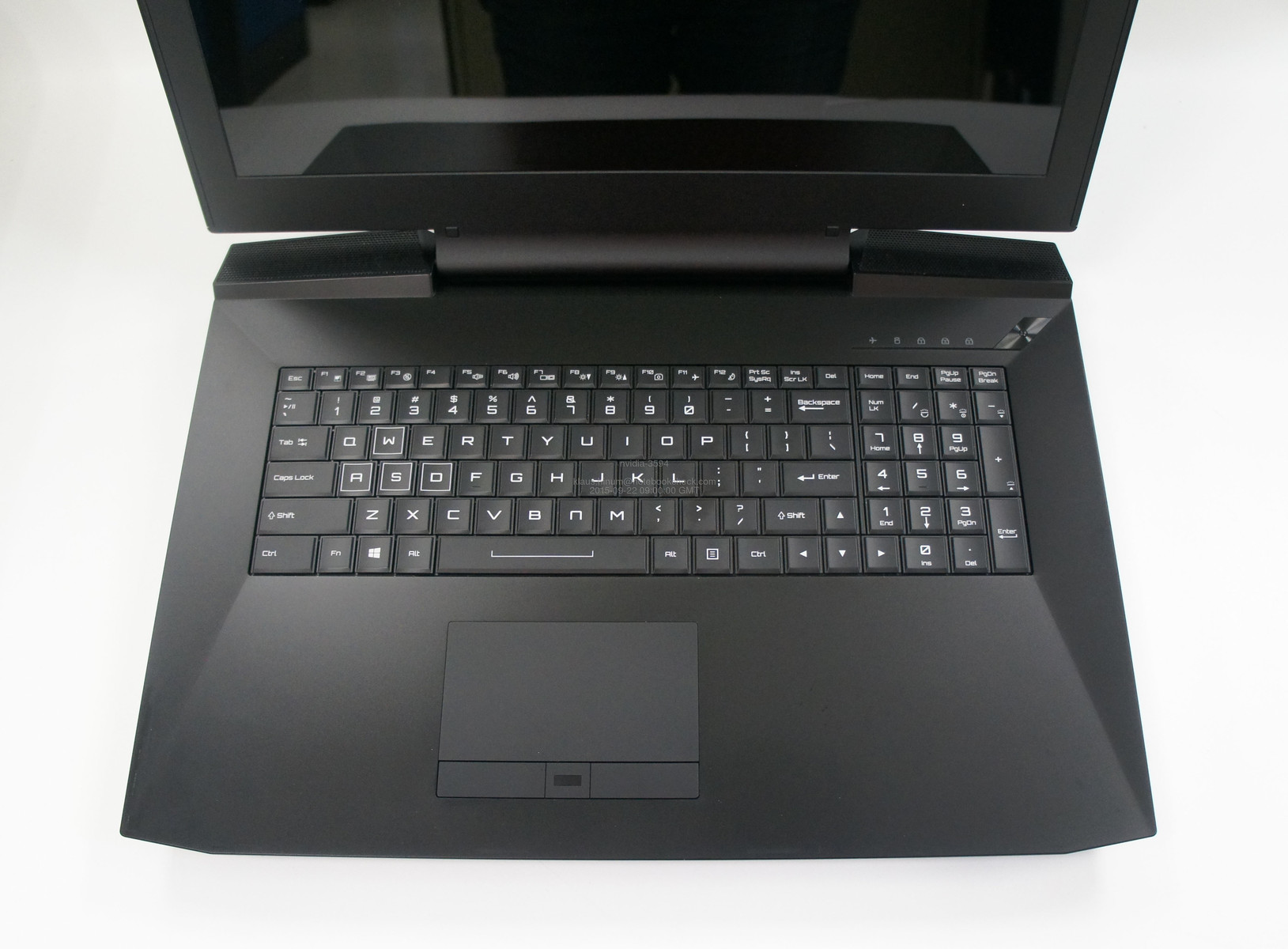

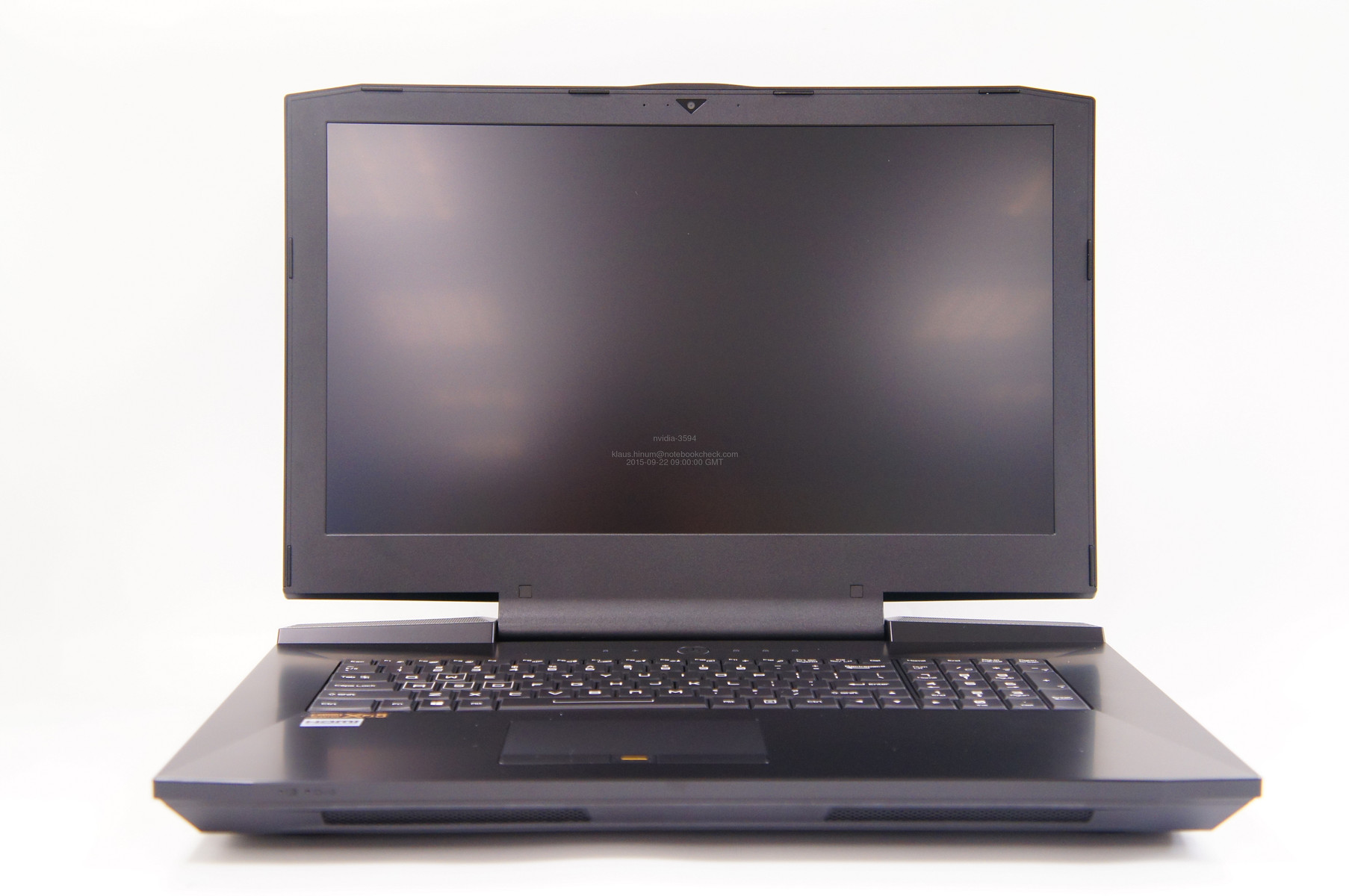

According to preliminary benchmarks, the performance of the mobile GTX 980 reference design on a barebone Clevo P870DM is almost on par with the desktop GTX 980. Only the Boost clock is slightly lower, which reduces the performance by a few percent points. Compared to the previous GeForce GTX 980M, we can observe a notable performance gain of 35 percent. Thus, it comes close to a GTX 970M in SLI (10 to 15 percent lower performance). If you consider the higher frame rate fluctuations and other limitations of multi-GPU systems, then the GTX 980 might even be more attractive than a GTX 980M SLI.

3DMark 11 - 1280x720 Performance GPU (sort by value)
NVIDIA GeForce GTX 980
17512 Points
NVIDIA GeForce GTX 980 (Laptop)
17292 Points
NVIDIA GeForce GTX 980M SLI
21901 Points
NVIDIA GeForce GTX 970M SLI
20447 Points
NVIDIA GeForce GTX 980M
12700 Points
3DMark
1920x1080 Fire Strike Graphics (sort by value)
NVIDIA GeForce GTX 980
13386 Points
NVIDIA GeForce GTX 980 (Laptop)
13340 Points
NVIDIA GeForce GTX 980M SLI
19121 Points
NVIDIA GeForce GTX 970M SLI
15354 Points
NVIDIA GeForce GTX 980M
9881 Points

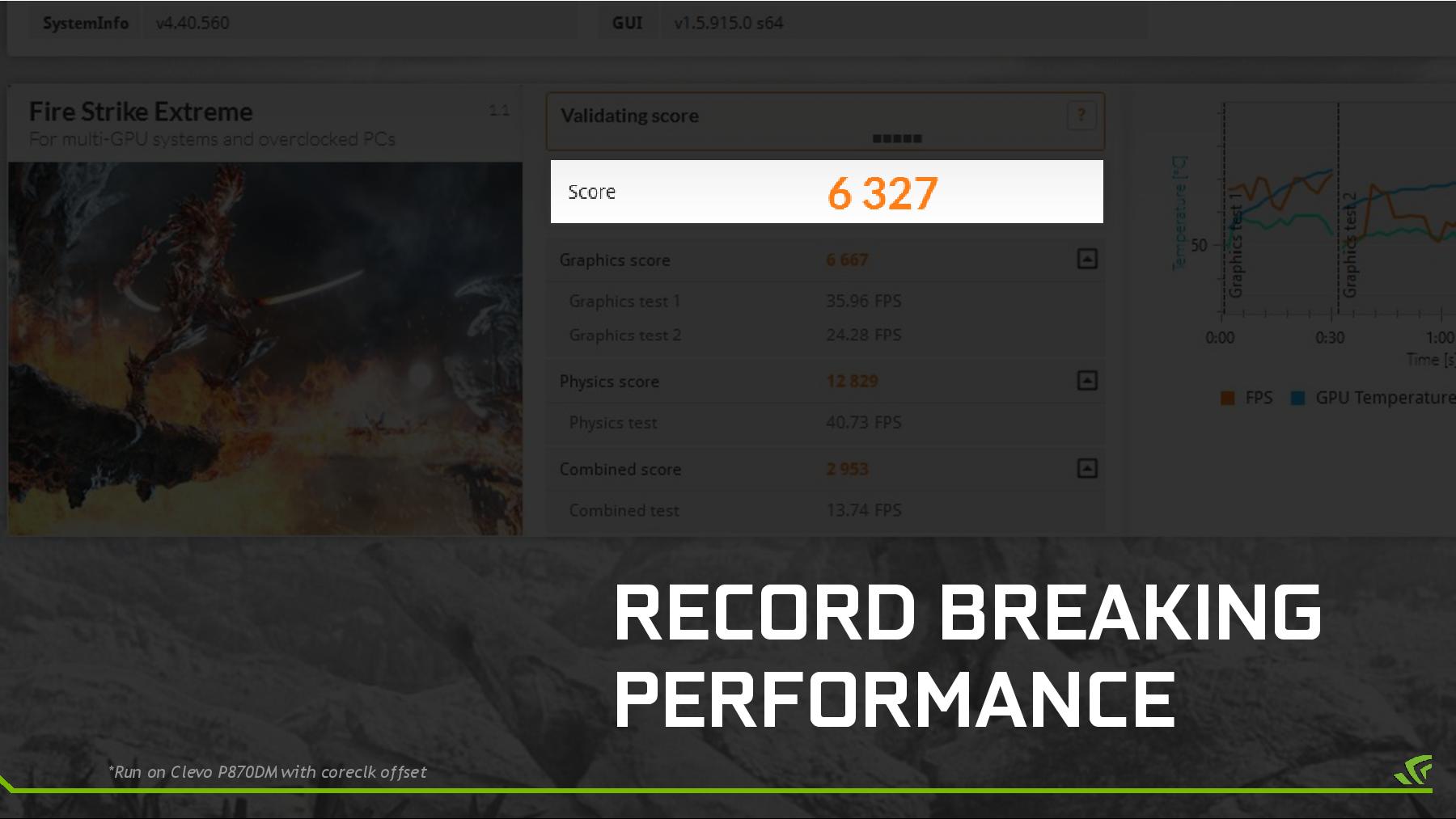

Fire Strike Extreme Graphics (sort by value)
NVIDIA GeForce GTX 980
6184 Points
NVIDIA GeForce GTX 980 (Laptop)
6184 Points
NVIDIA GeForce GTX 970M SLI
7088 Points
NVIDIA GeForce GTX 980M
4578 Points
Unigine Heaven 4.0 - Extreme Preset DX11 (sort by value)
NVIDIA GeForce GTX 980
81.4 fps
NVIDIA GeForce GTX 980 (Laptop)
81.6 fps
NVIDIA GeForce GTX 980M
61.3 fps
Tomb Raider - 1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
NVIDIA GeForce GTX 980
164.4 fps
NVIDIA GeForce GTX 980 (Laptop)
154.2 fps
NVIDIA GeForce GTX 980M SLI
200.8 fps
NVIDIA GeForce GTX 970M SLI
175.1 fps
NVIDIA GeForce GTX 980M
112.2 fps
Metro: Last Light - 1920x1080 Very High (DX11) AF:16x (sort by value)
NVIDIA GeForce GTX 980
92.1 fps
NVIDIA GeForce GTX 980 (Laptop)
91 fps
NVIDIA GeForce GTX 980M SLI
98.9 fps
NVIDIA GeForce GTX 970M SLI
82.6 fps
NVIDIA GeForce GTX 980M
69.1 fps
Middle-earth: Shadow of Mordor - 1920x1080 Ultra Preset (HD Package) (sort by value)
NVIDIA GeForce GTX 980
95.3 fps
NVIDIA GeForce GTX 980 (Laptop)
88.2 fps
NVIDIA GeForce GTX 980M SLI
116.4 fps
NVIDIA GeForce GTX 970M SLI
106.5 fps
NVIDIA GeForce GTX 980M
70.4 fps

Legend


Desktop-PC by NV (GTX 980) Intel Core i7-4770K, NVIDIA GeForce GTX 980,

Clevo P870DM (GTX 980) Intel Core i7-6700K, NVIDIA GeForce GTX 980 (Laptop),

MSI GT80-2QES32SR311BW Intel Core i7-4980HQ, NVIDIA GeForce GTX 980M SLI, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)

MSI GT80 Titan SLI Intel Core i7-5700HQ, NVIDIA GeForce GTX 970M SLI, 4x Micron M600 MTFDDAV512MBF M.2 (RAID 0)

SCHENKER XMG U706 Intel Core i7-6700K, NVIDIA GeForce GTX 980M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

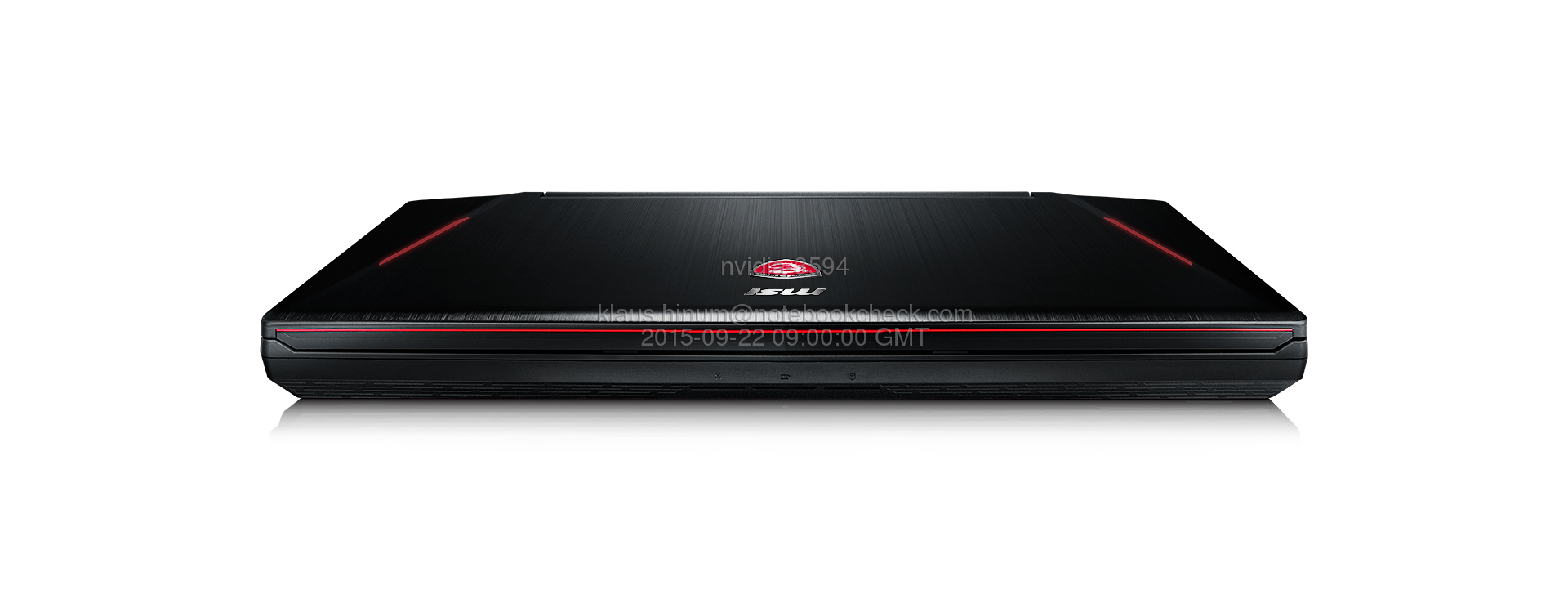

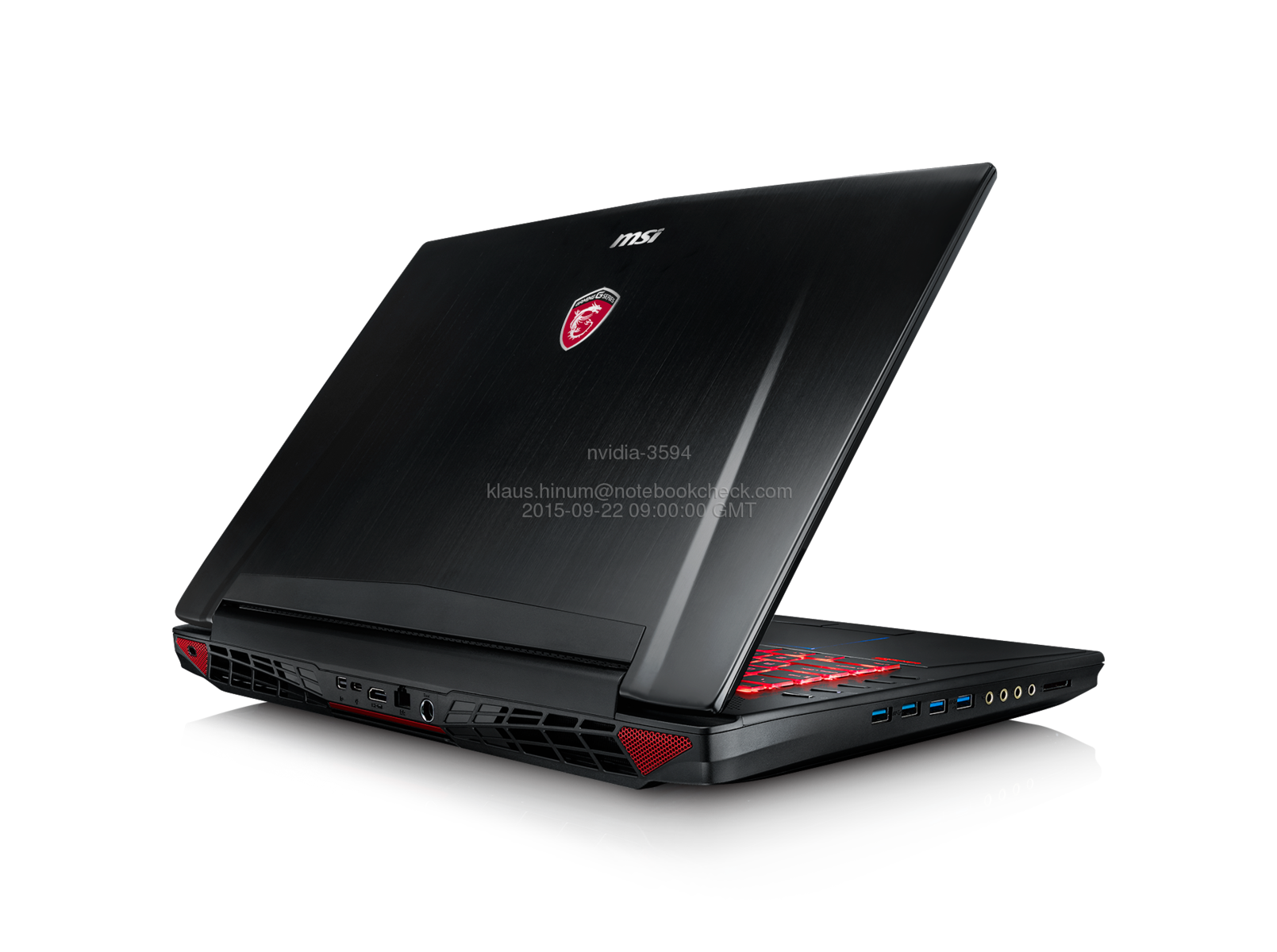

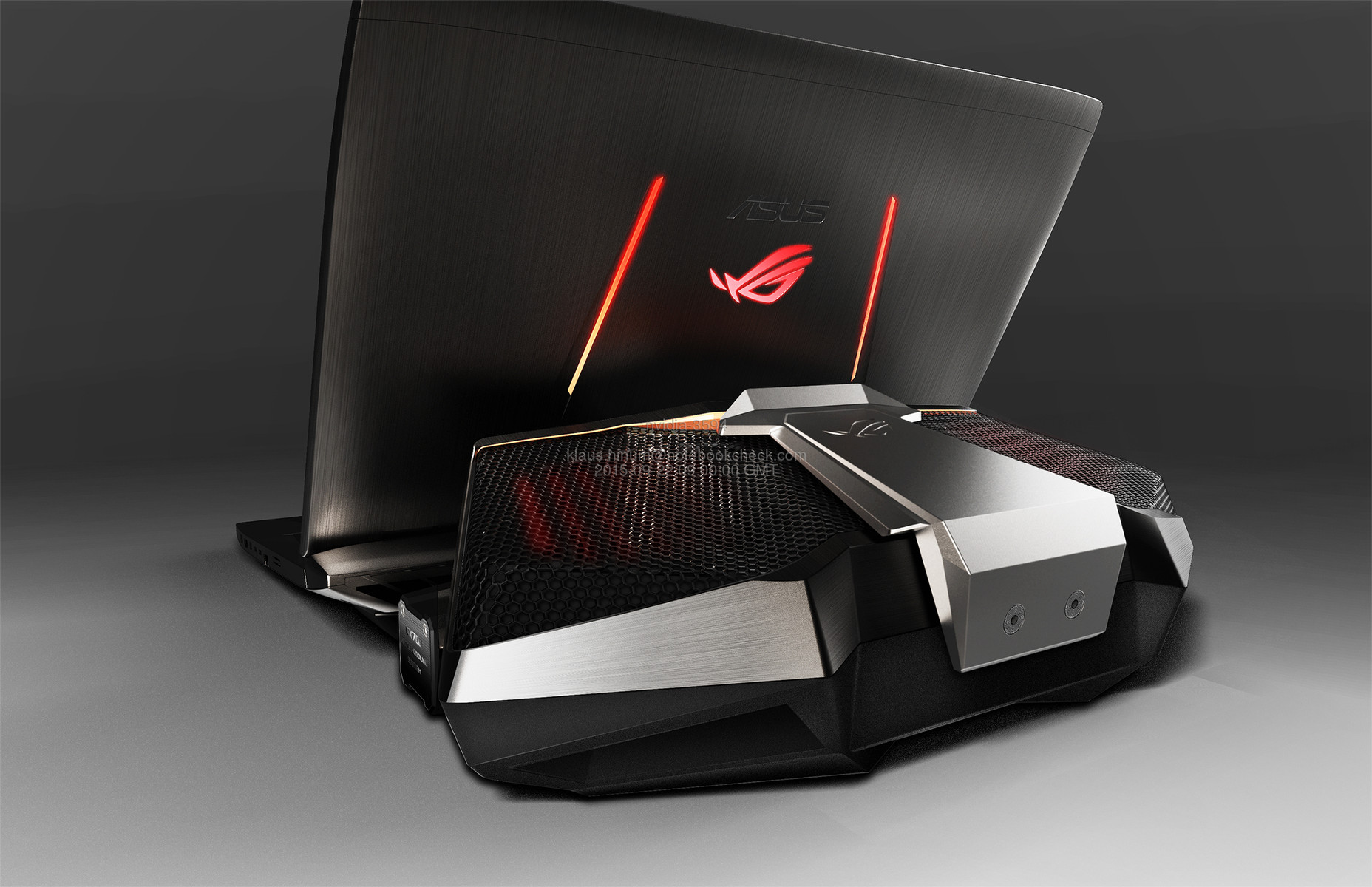

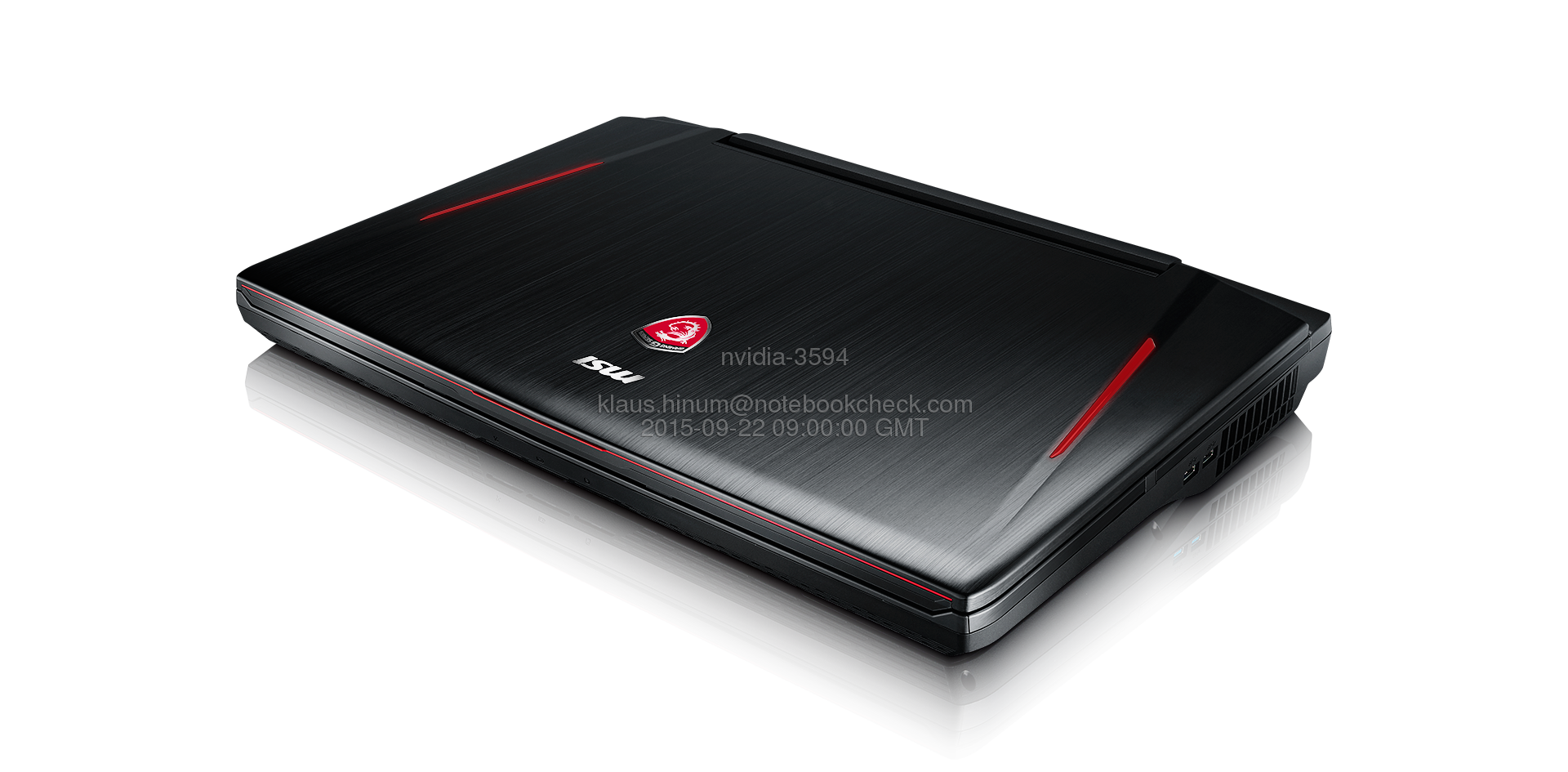

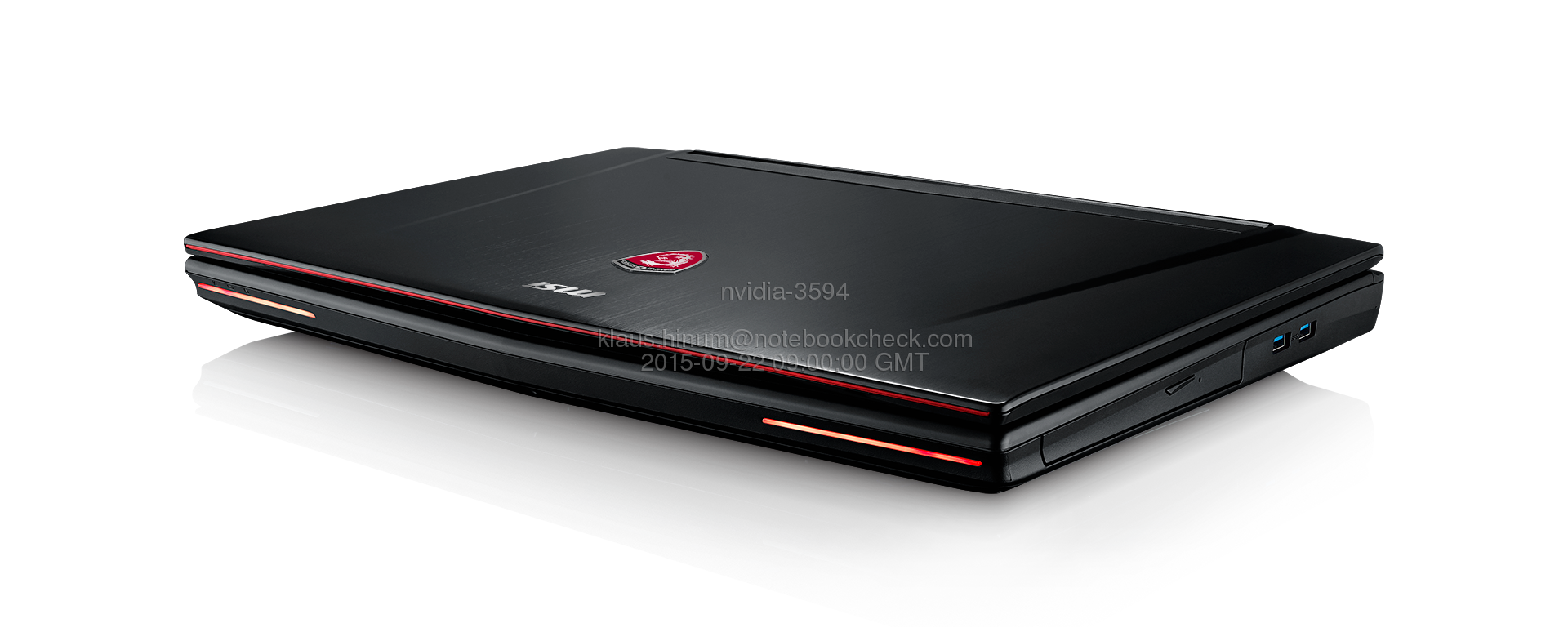

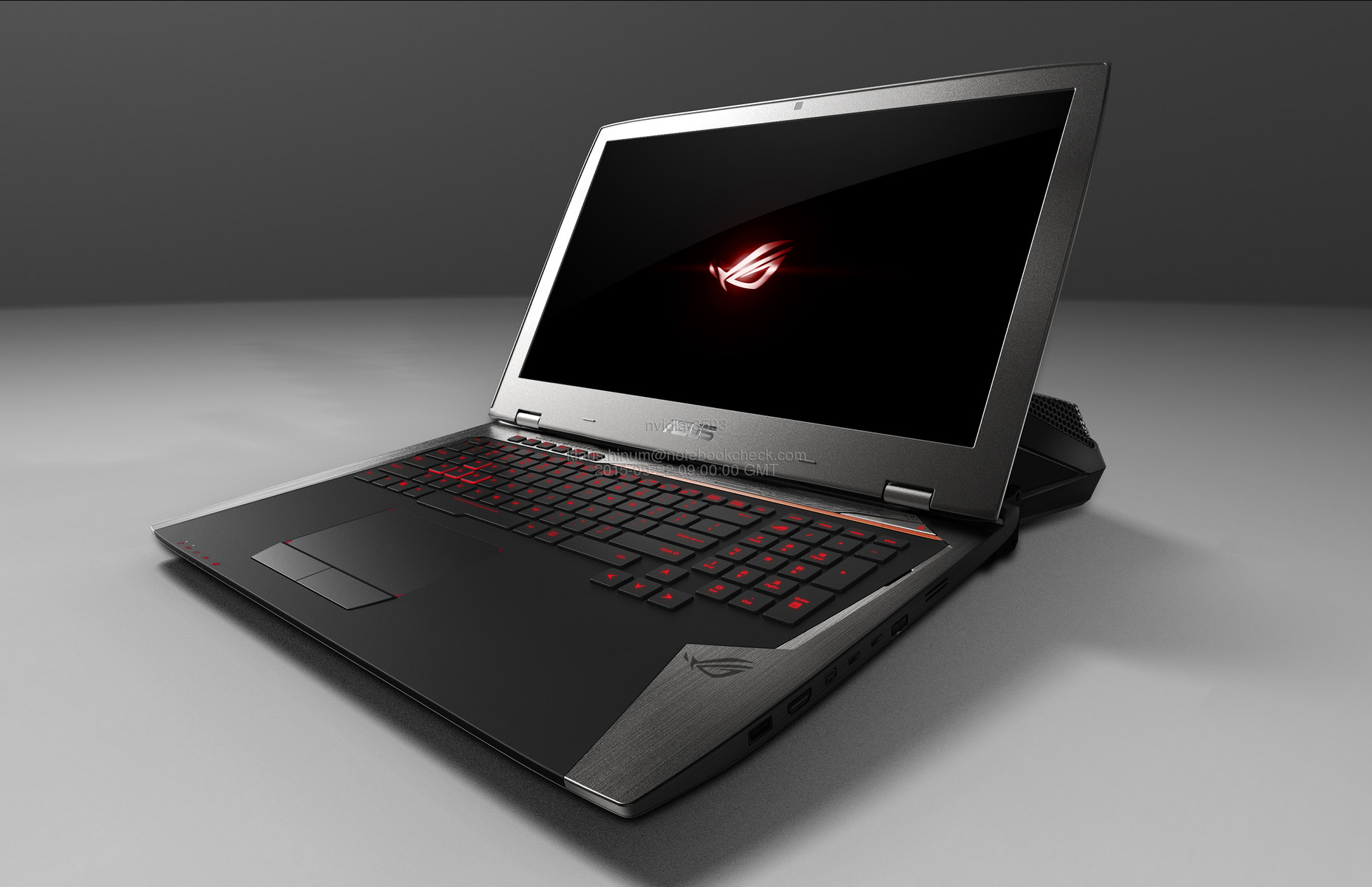

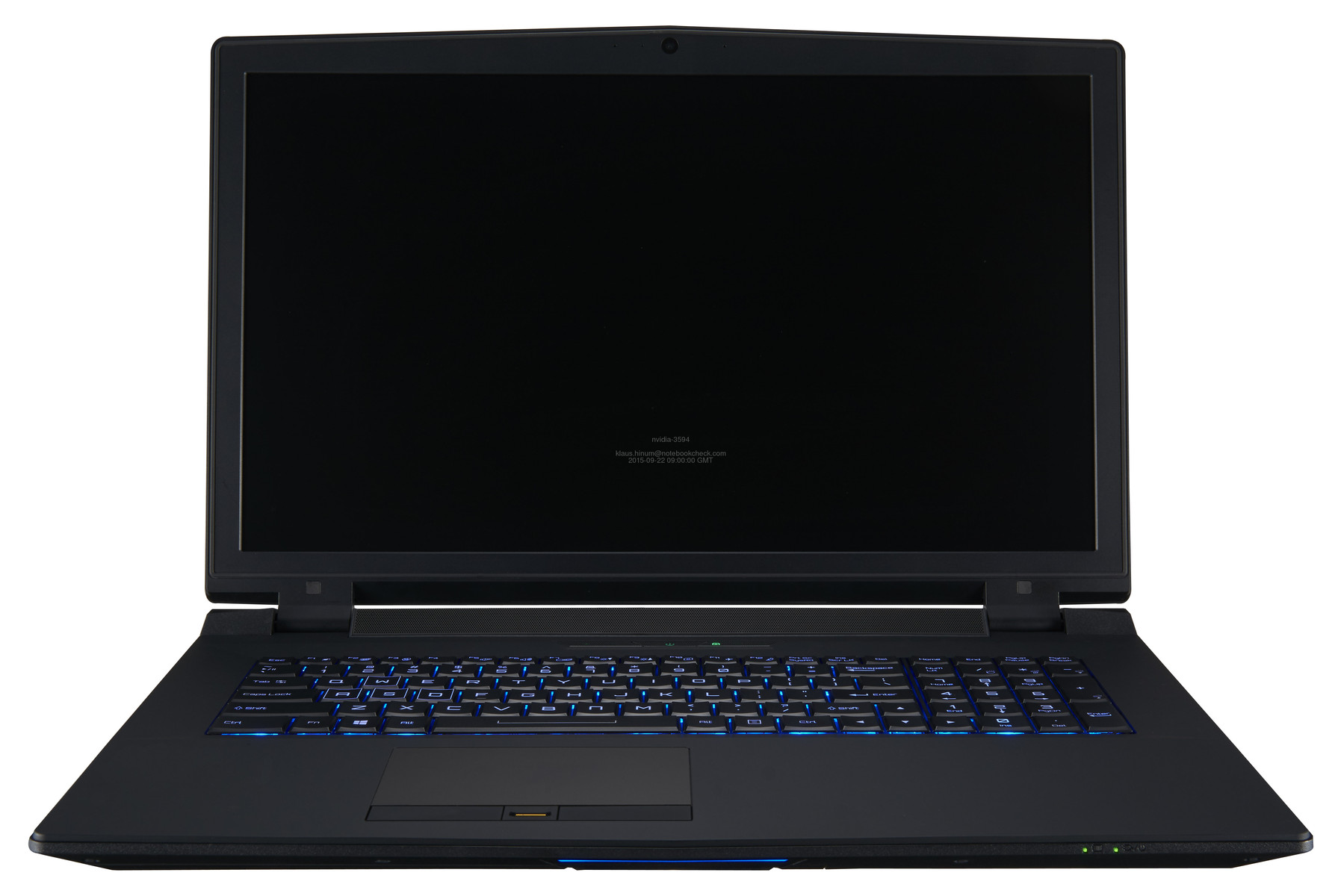

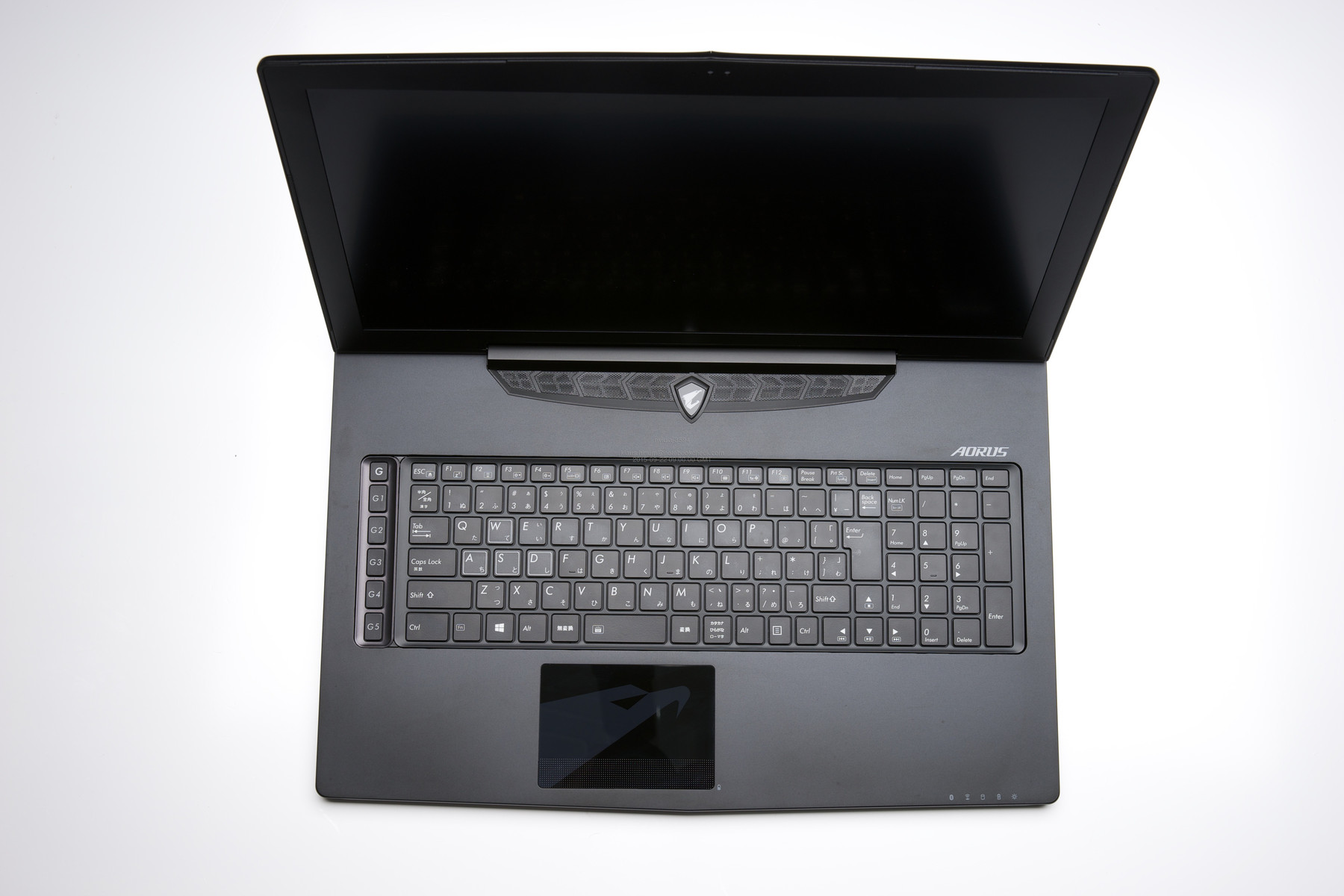

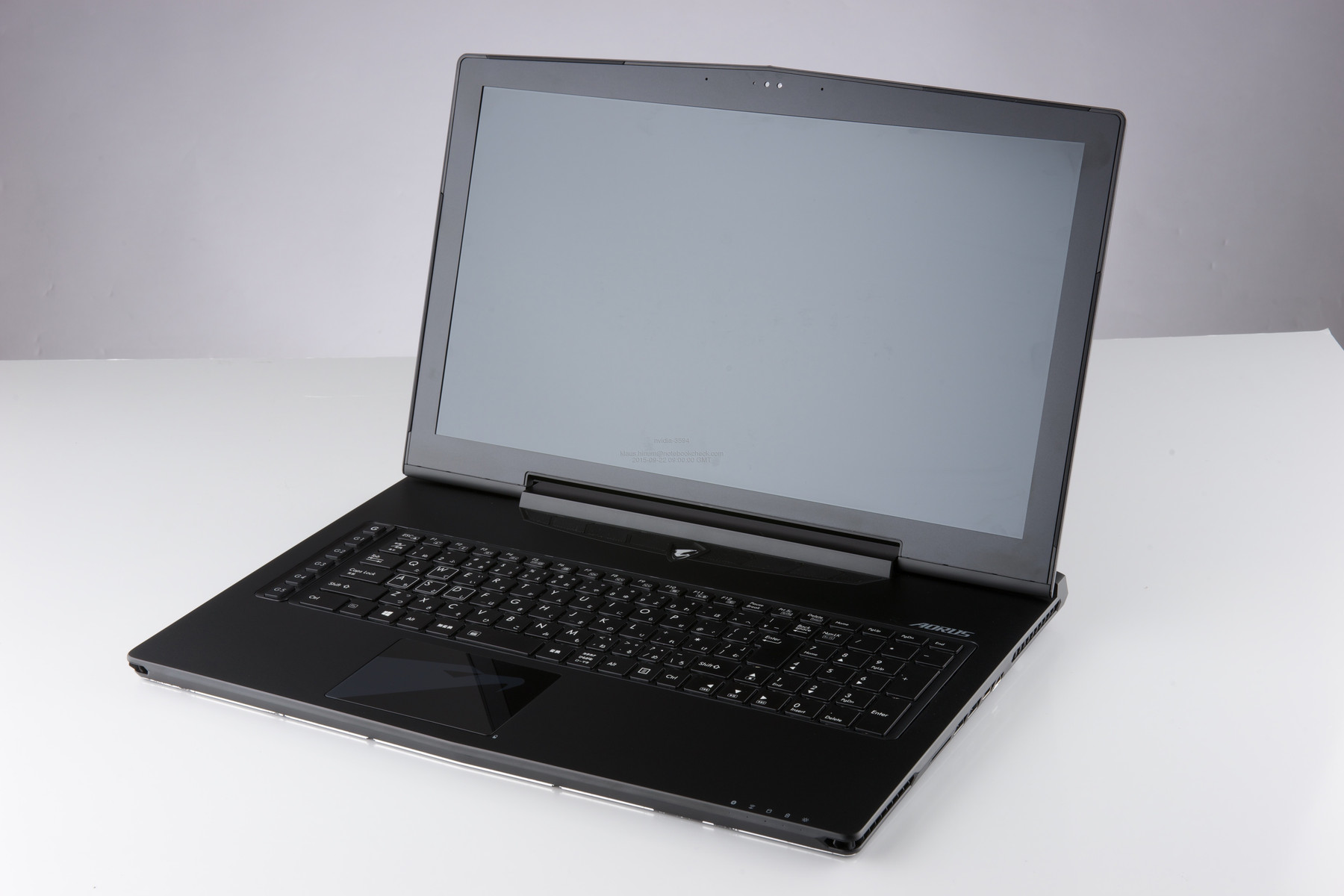

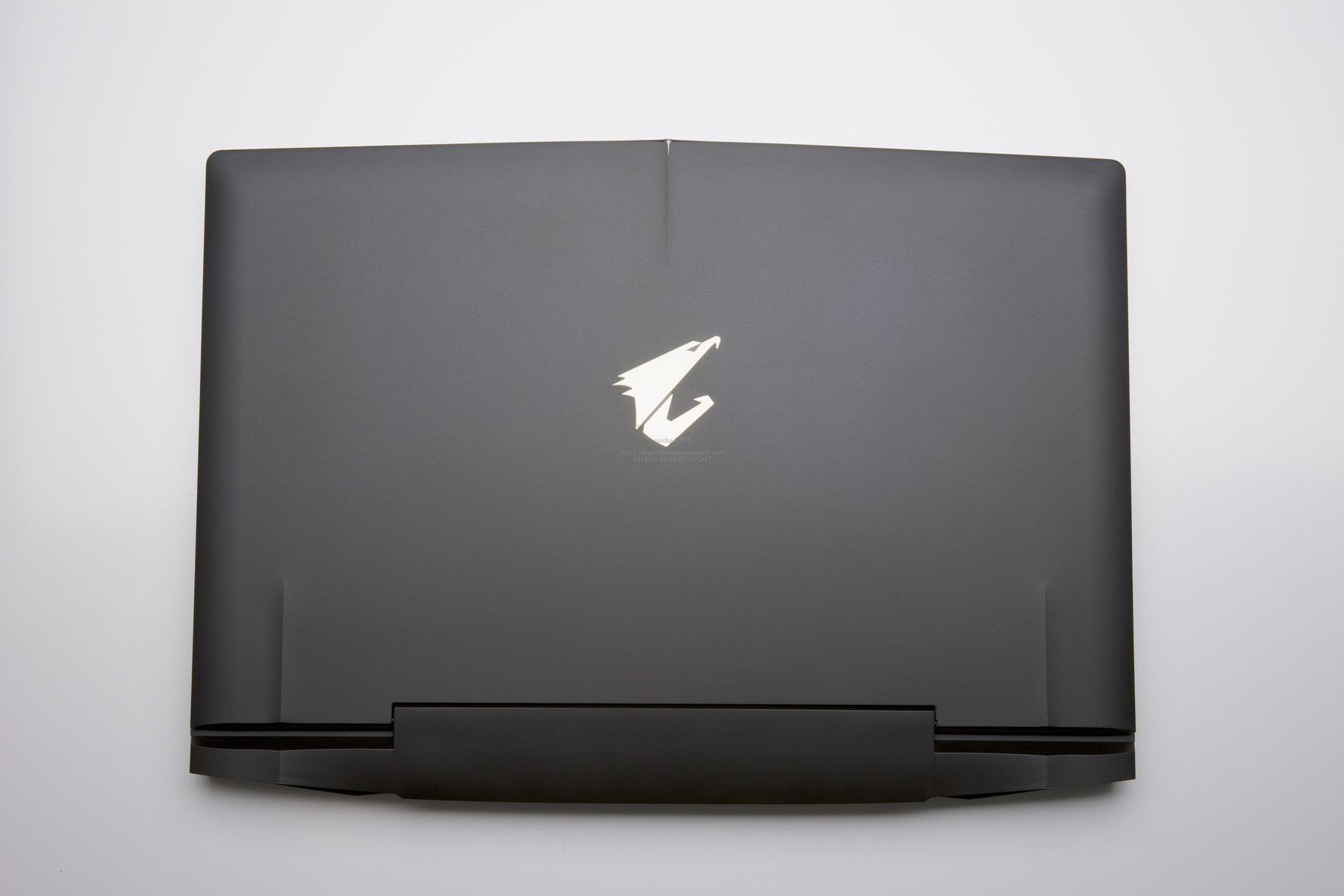

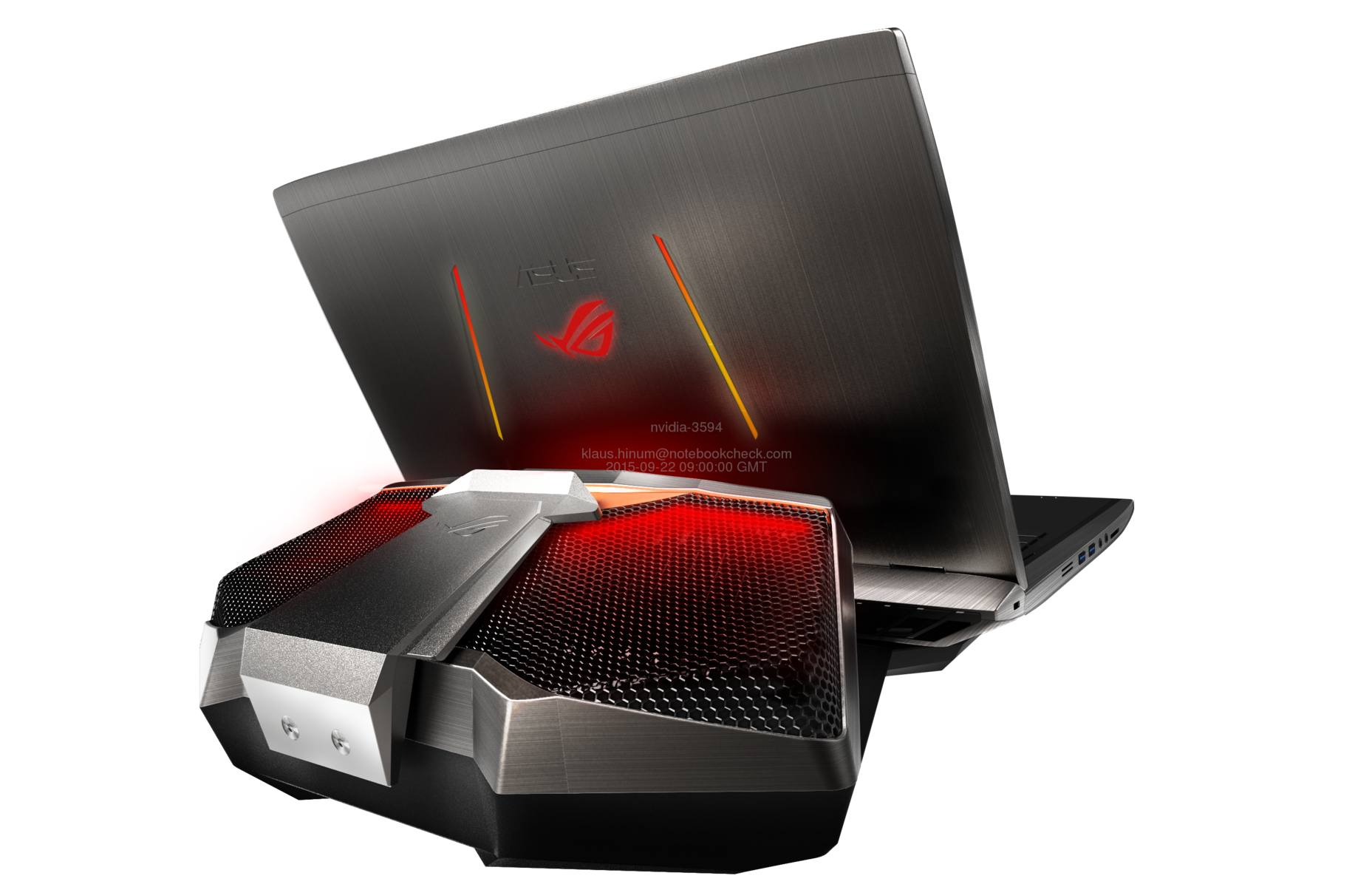

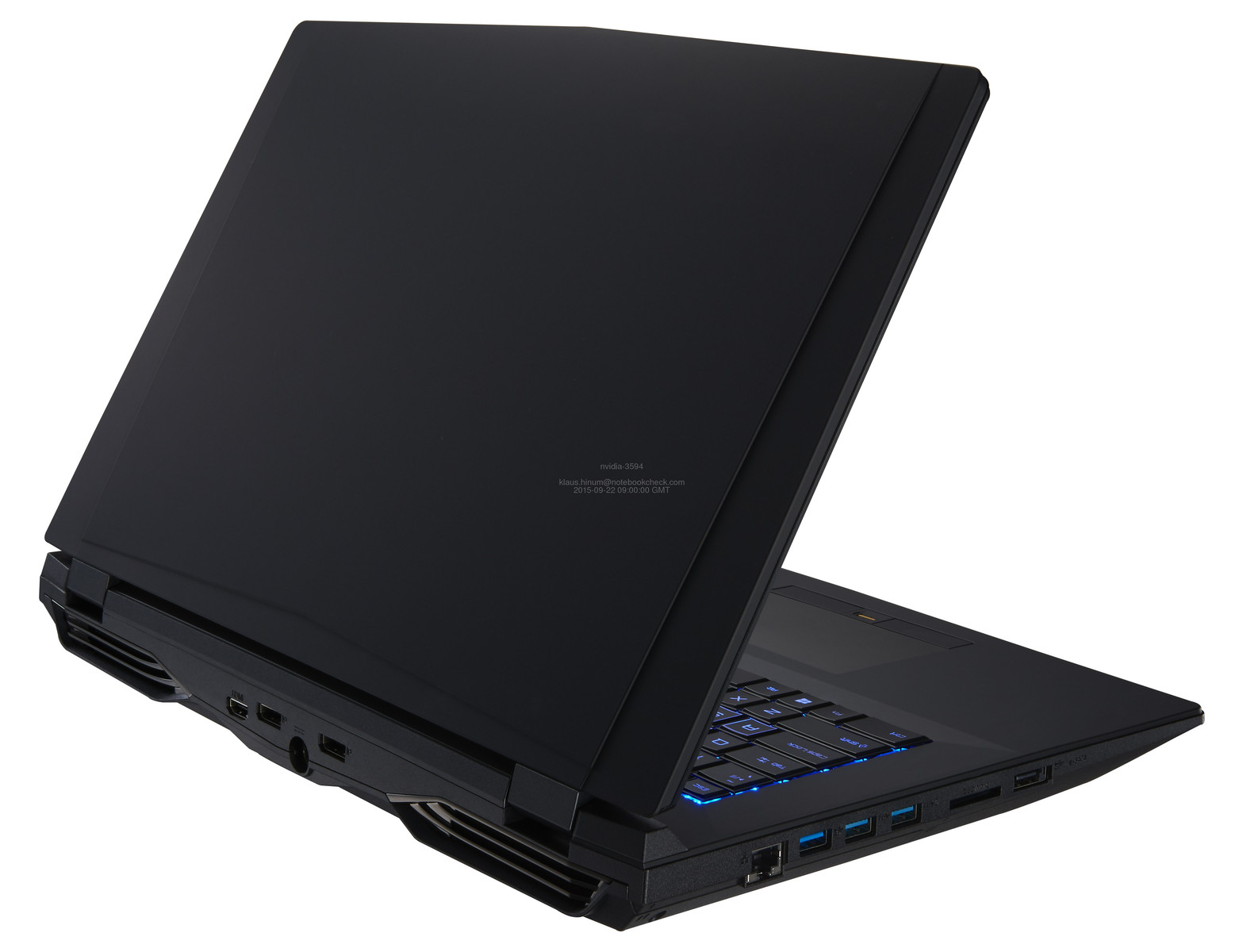

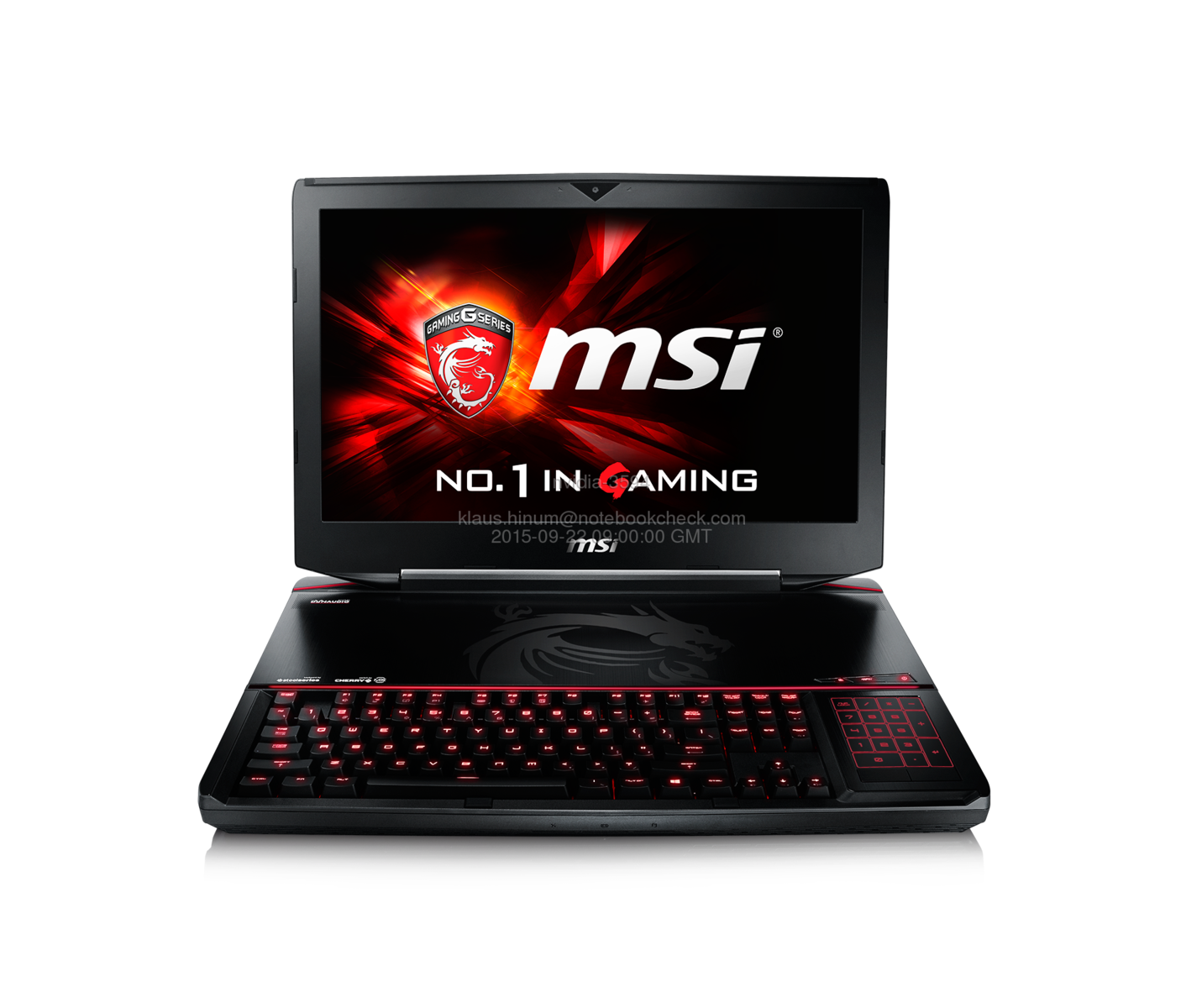

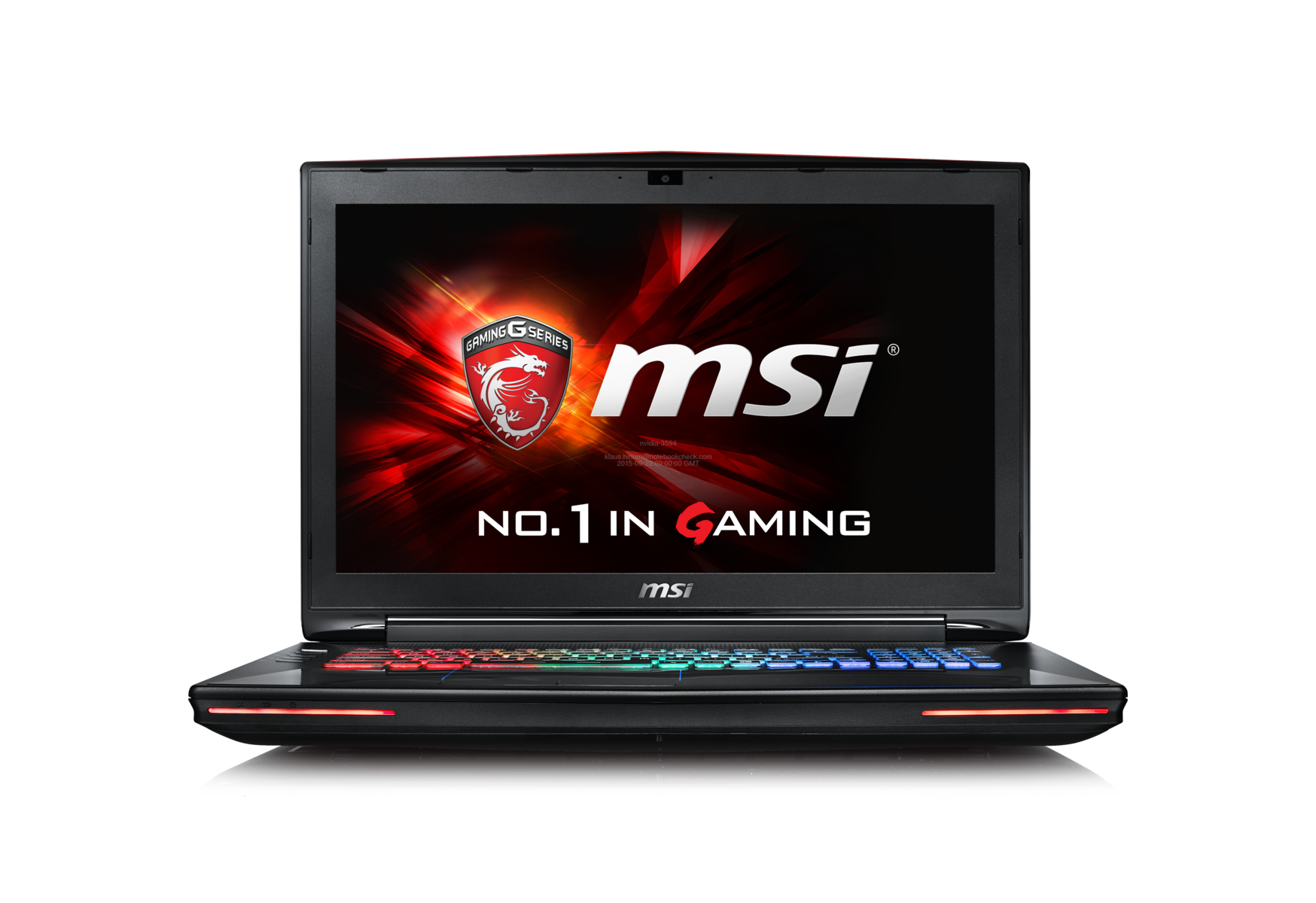

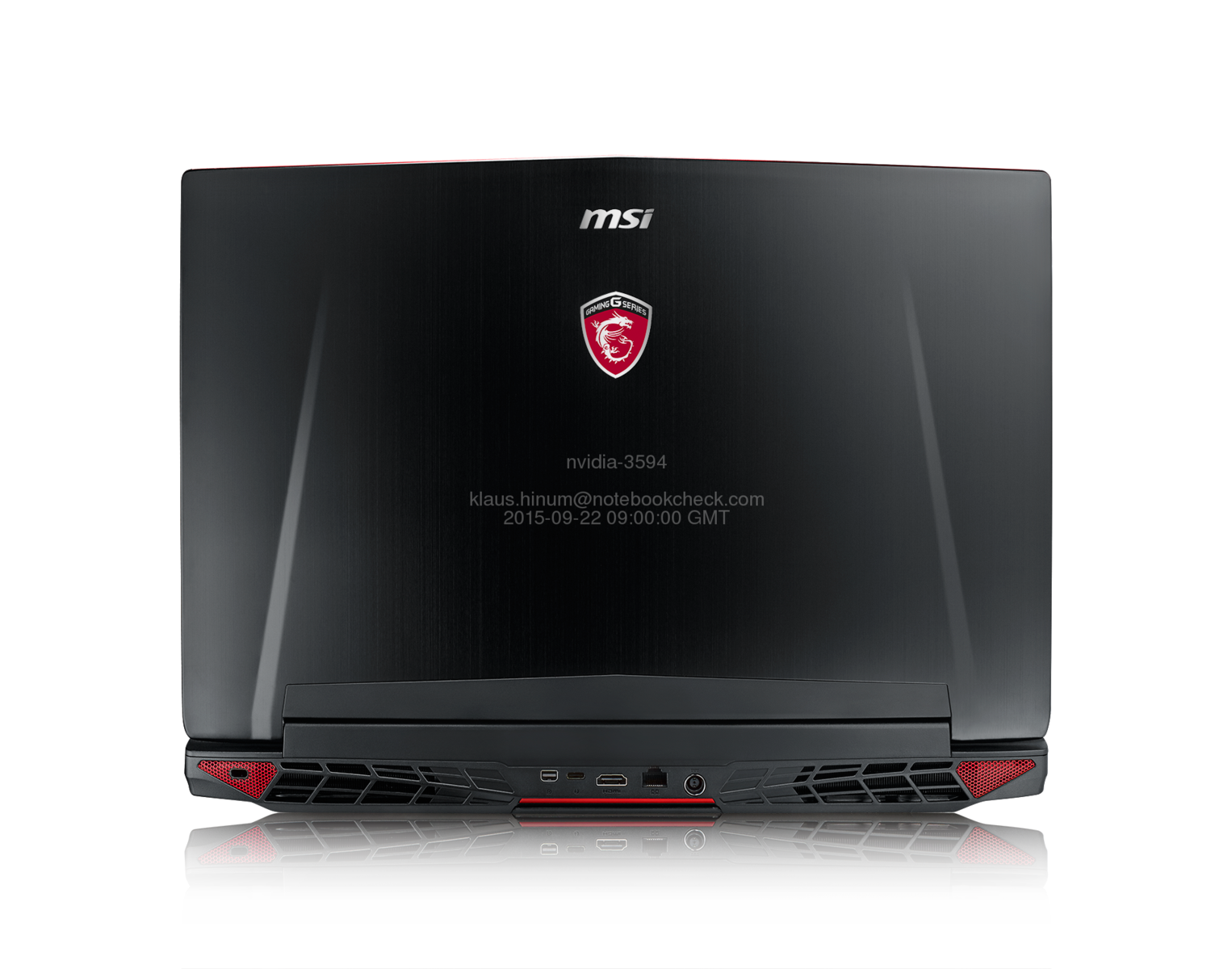

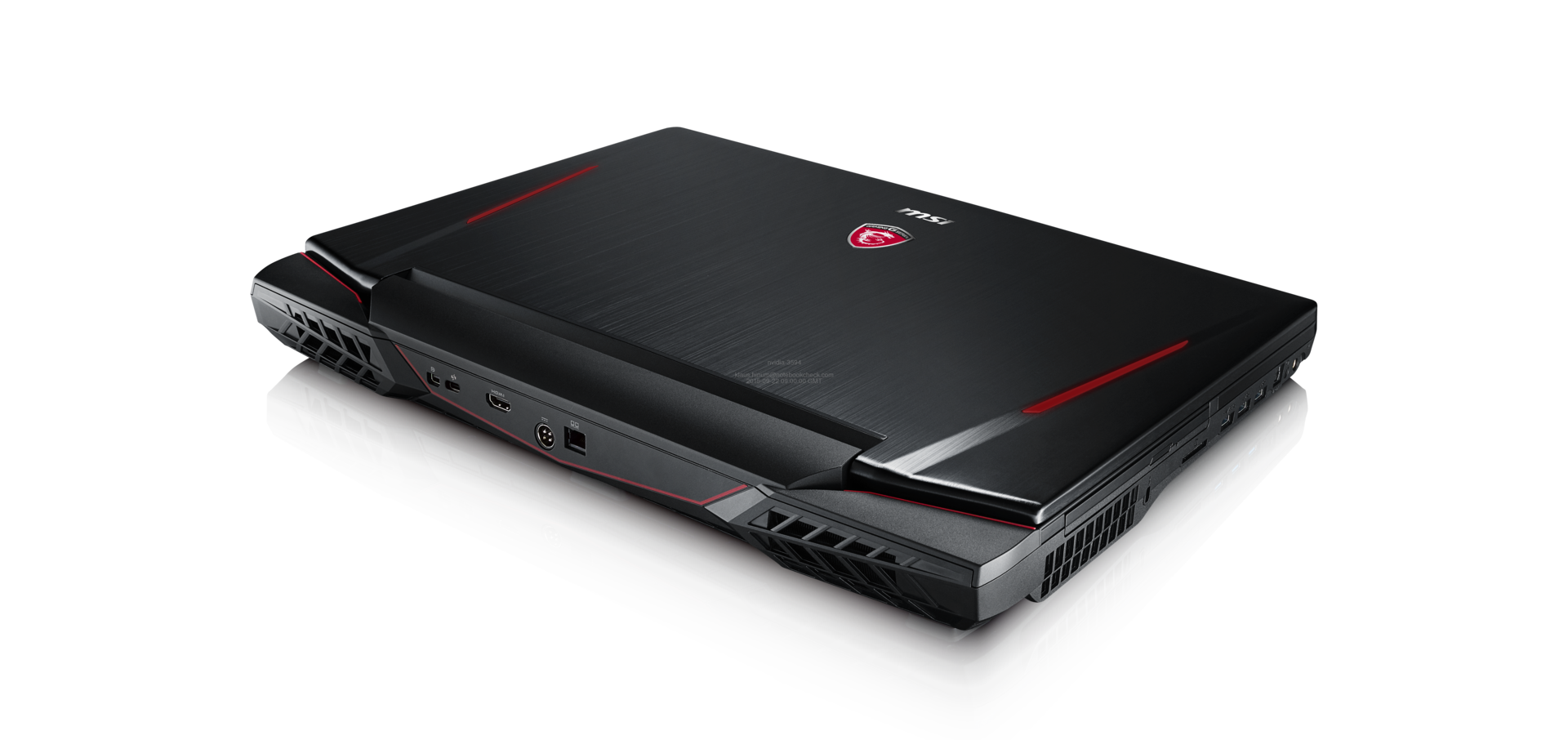

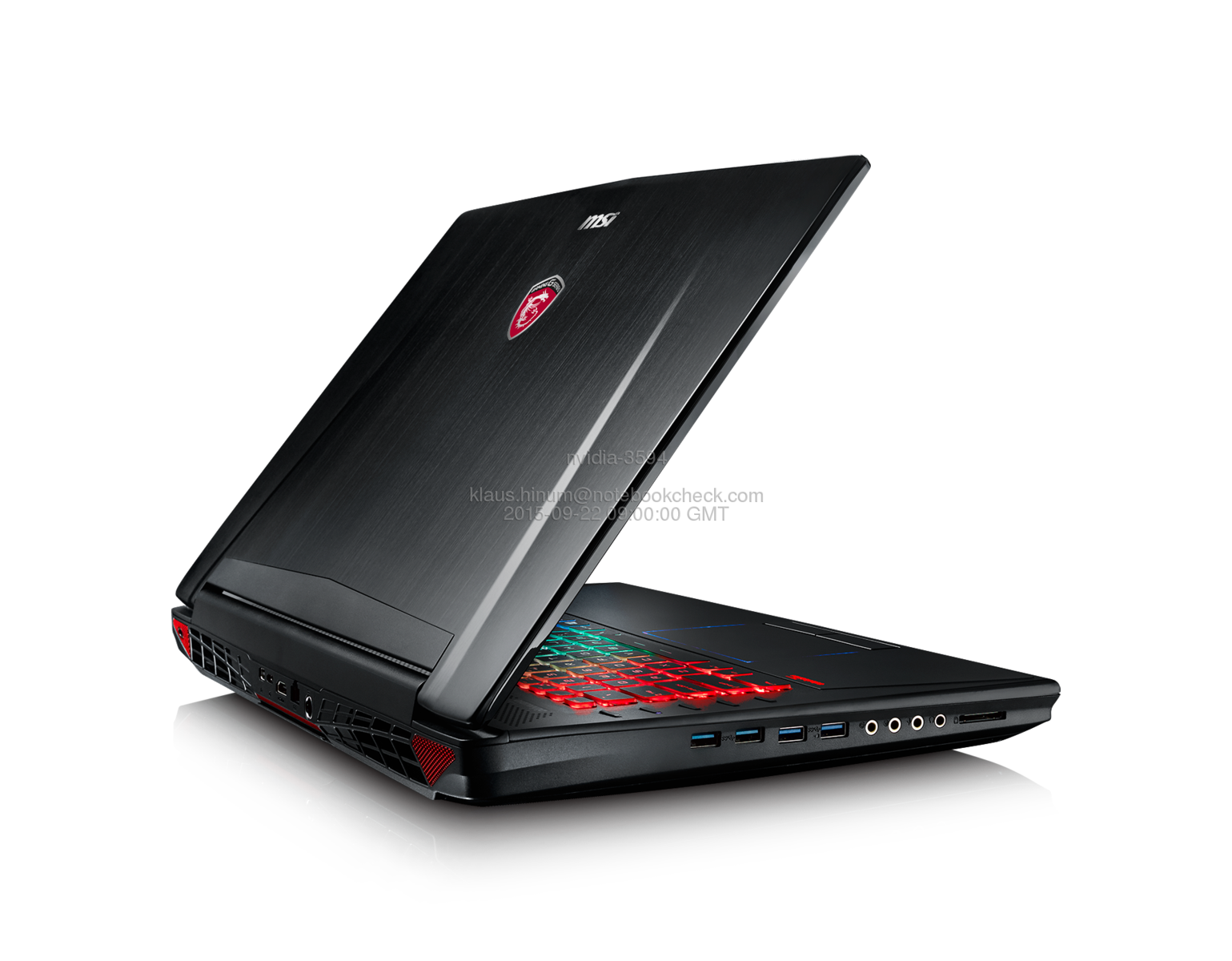

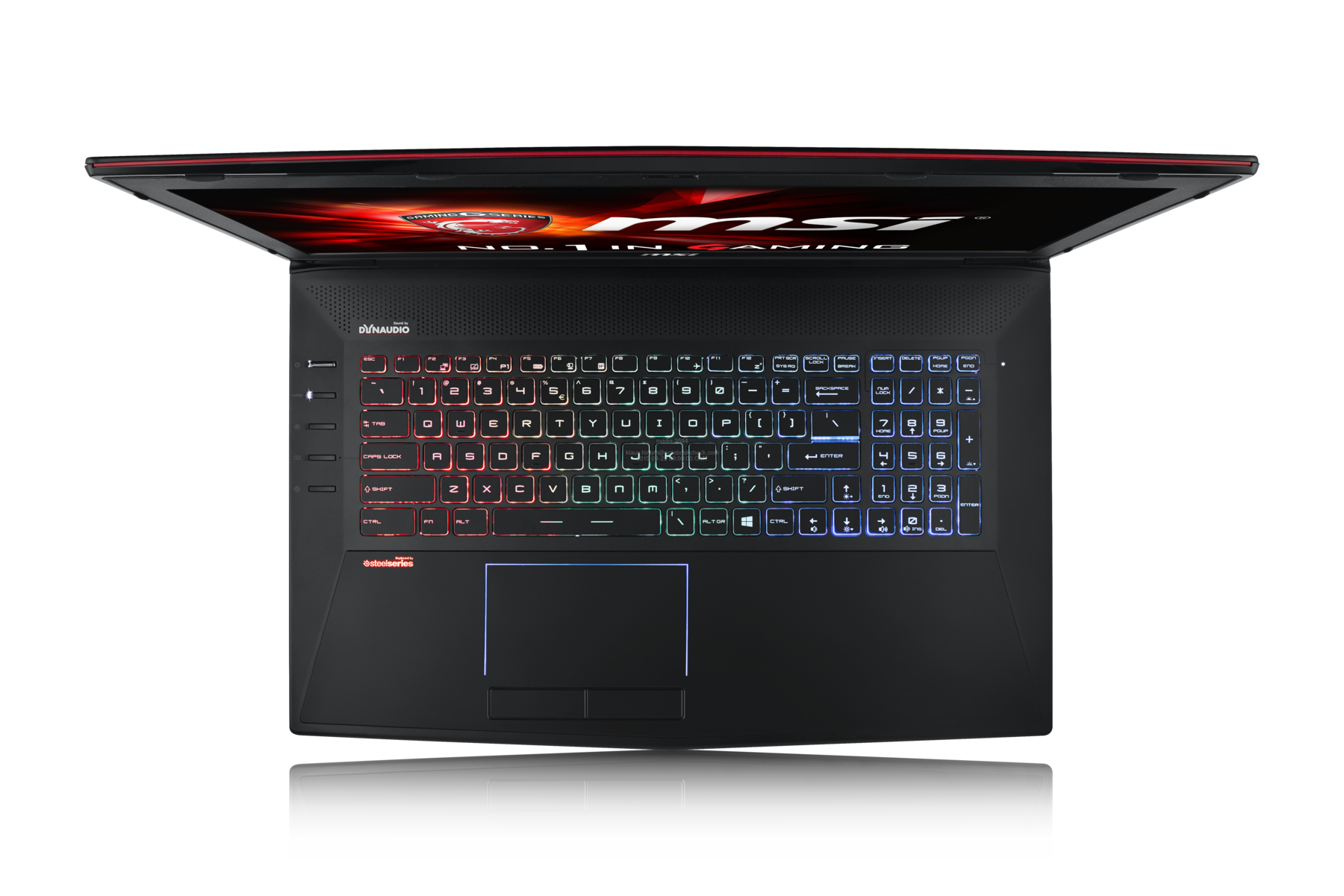

Despite the inevitable high price tag, Nvidia has mentioned a number of OEM partners and designs, including the Gigabyte/Aorus (X7 DT), the Asus (GX700VO), the MSI (GT72, GT80) and the Clevo (P870DM). All models will support G-Sync and no Optimus except for the MSI GT80. In return, this massive MSI model will be the only notebook capable of supporting GTX 980 in SLI. The first notebooks with the GTX 980 GPU will come by the end of this month.
