Sony Vaio VGN-AR11S

Without any doubt, the Sony Vaio VGN-AR11S is a piece of jewelry according form and organization. The occurrence impressed. Also the equipment, owing to Geforce Go 7600GT and Sonys Blu Ray drive assembly work convincingly.

Hint: This test sample is a a sample of pre-series. Deviations from shop models are possible.

Case

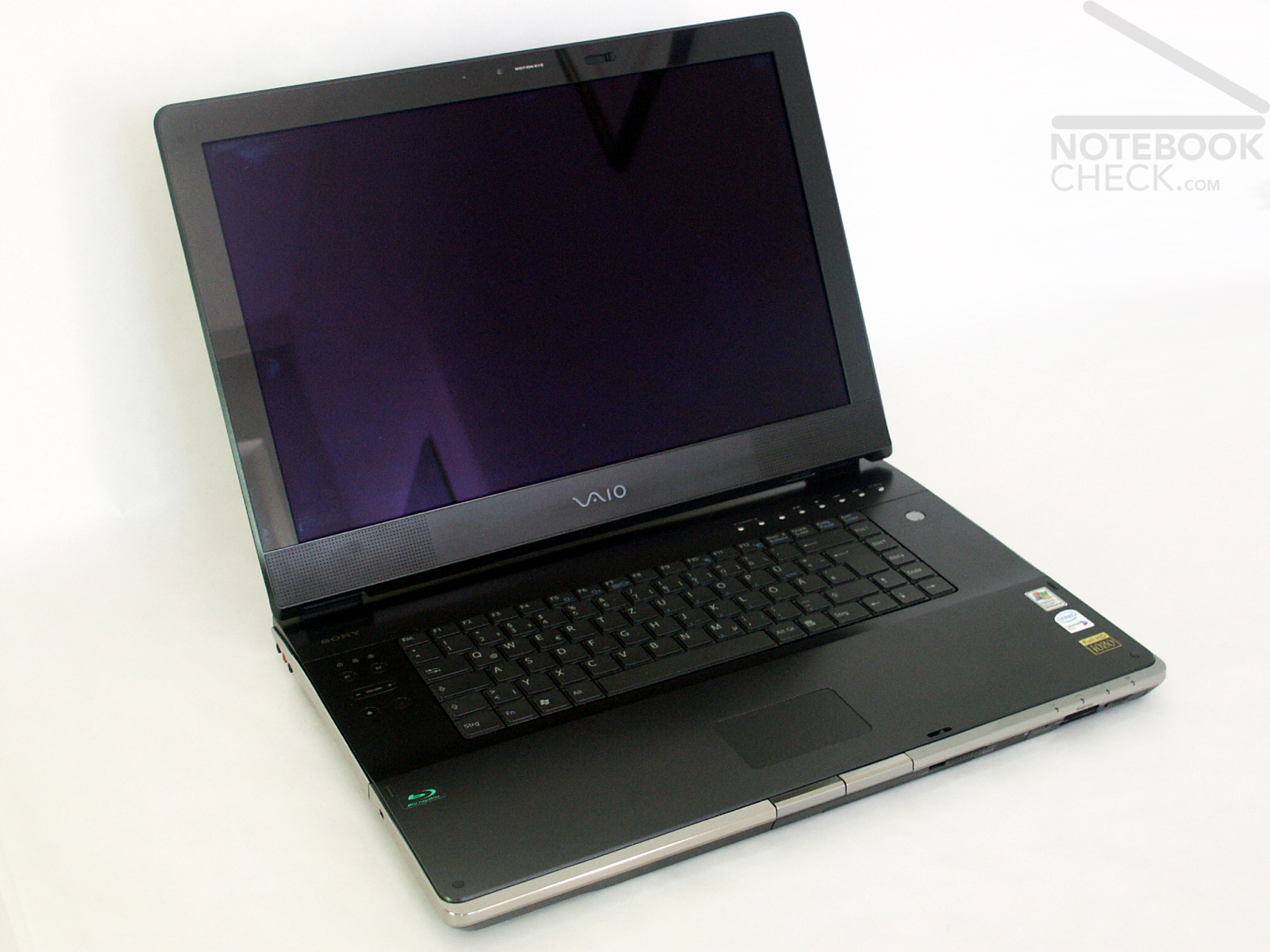

With the design of the Vaio AR11S Sony succeeds clearly its competitors. On the one hand a simple, straight design shapes the layout of keyboard, additional keys and touchpad. Beautifully clearly and to be arranged, numerous functions are offered to the user. On the other hand Sony knows to set decent accents with a gently circulating chrome strip. So the Vaio AR11S looks exclusive.

Only plastics are used as material, but they represent an excellent haptics, and seem to be high-quality. In contrast to the matt hand area and keyboard, the display cover and the display verge is black covered with a high gloss clear lacquer. Thereby, finger marks and dirt traces are pre-programmed, but this is like with a metallic black shining sports car: Who loves its car will polish it!

Despite the fine appearance a few reproaches according workmanship remain: In the range of the hand area crunching noise occurs again and again. Unfortunately, this also means applying the wrists during tapping. Particularly, this happens with the right hand area, obviously because the interfaces here  (PCCard, Expresscard, 2x USB 2,0, SDCard and memory stick reader) weaken its stability. So loud a crunching is forced.

At first, the apparently humble interface equipment surprises. A TV and a HDMI exit misses. Nonetheless, after short time a LAN and a modem connection can be found behind two flaps at the right side, as well as a VGA, the searched HDMI port, s-video in/out, a mini AV entrance and a Firewire 1394 port (400 Mbit/s) exit behind a separate flap.
In addition, at the right side of the case in front two USB 2.0, as well as a ExpressCard and a PCCard Slot are positioned.

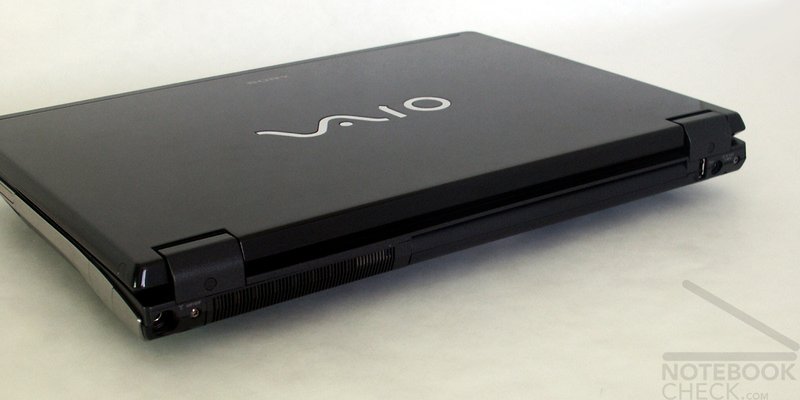

At the back of the case a further USB 2.0 port, an AC adapter as well as an antenna connection (not with our test sample) is to be found beside generous openings for the fan battery.
On the left side in the back the audio connections (microphone, headphones and an optical exit) and in front of it the Blu-Ray drive and a Kensington lock can be found.
In the right half of the front a WLan switch, a reader for the memory stick of Sony and a SDCard reader as well as the infrared port are positioned. Likewise hidden under a flap at the bottom, a docking connection can be found.

Altogether it must be indicated, that the interfaces are scattered around the whole case. Also the accumulation of network and USB interfaces at the right chassis side could reduce the movement radius of the mouse somewhat.

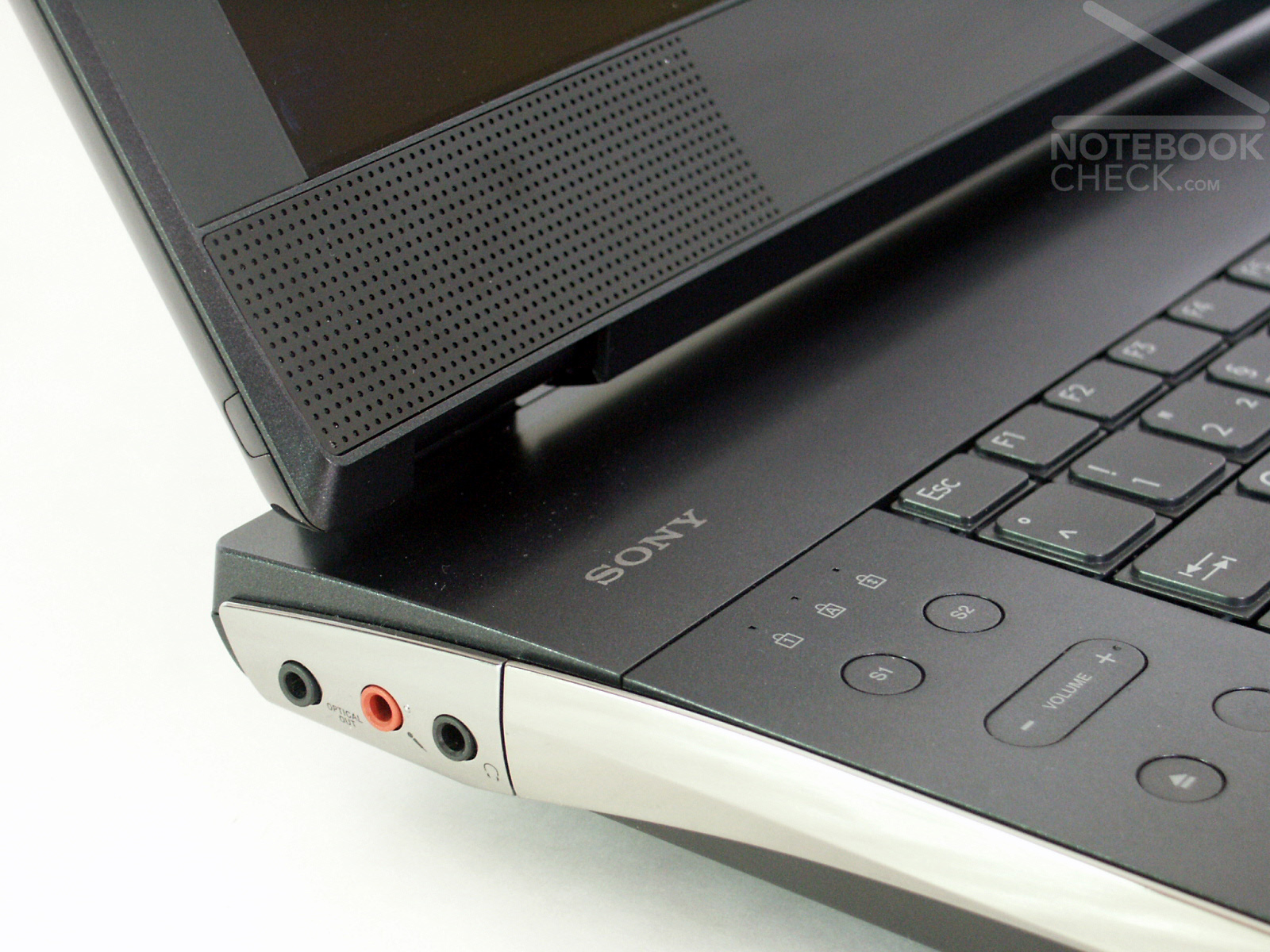

Also regarding the tilting device of the display, the hinges, Sony could elaborate something special: The solid forward curved hinges are fastened to the back of the display, and so hardly can be seen from the front. Apart from their interesting arrangement, they grasp the display firmly despite the wobbling.

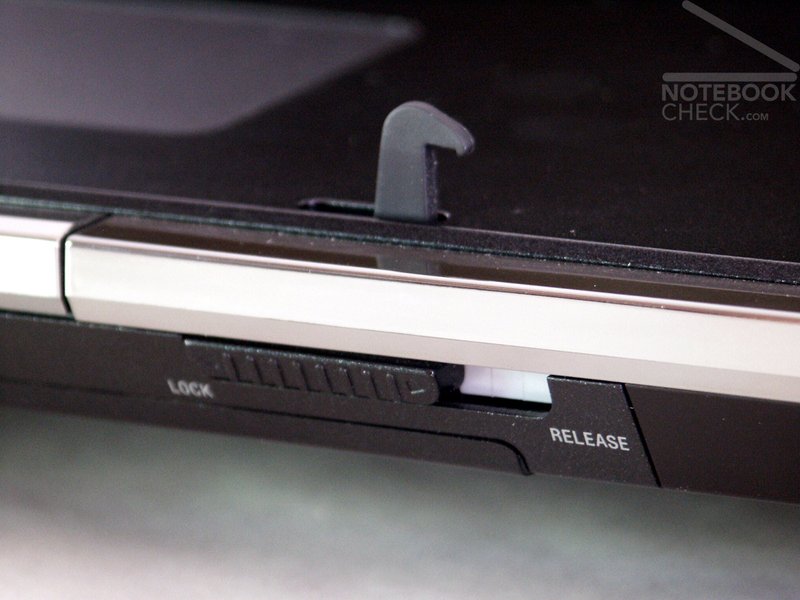

The Vaio VGN-AR11S is equipped with a decentralized simple catch hook, which must be locked and unlocked manually. The mechanism may be innovative, but it could not convince due to its rattly handling. In addition, the catch permits a clear wobbling of the display in closed condition.

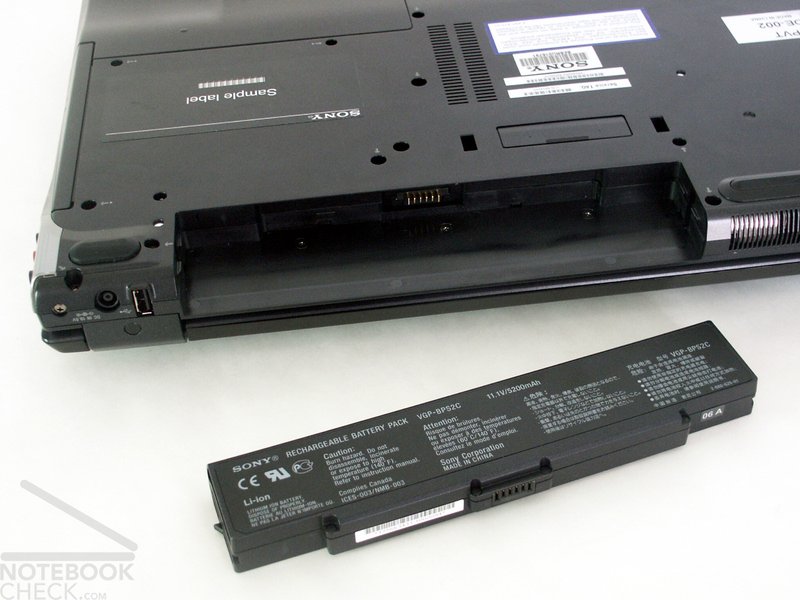

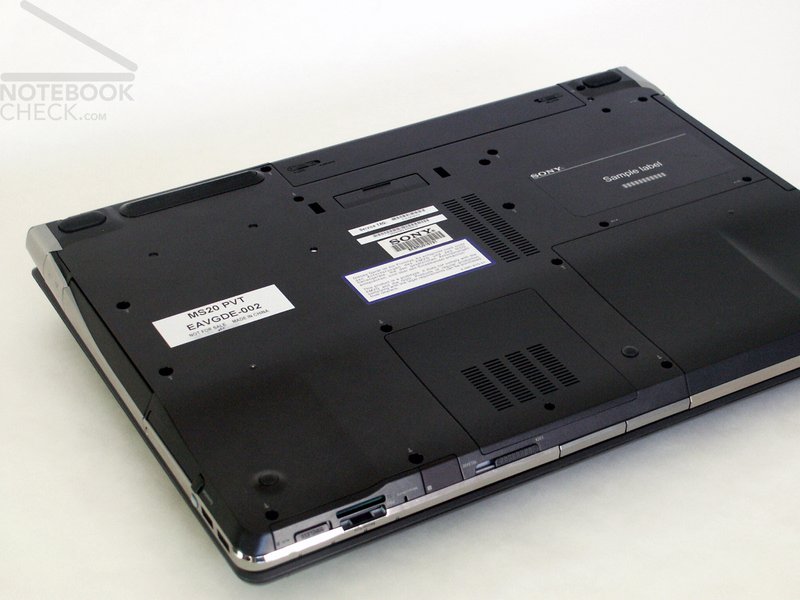

In addition, it was noticeable, that the battery fits quite wobbly in the chassis. The current contact is not interrupted and the mobile computer always remains switched on in battery use, but this wobbly affair impairs somewhat the good impression of that Vaio.

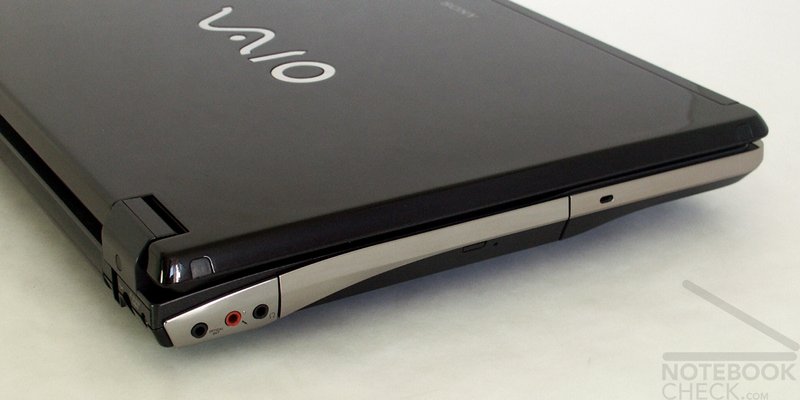

interfaces at the left side
interfaces

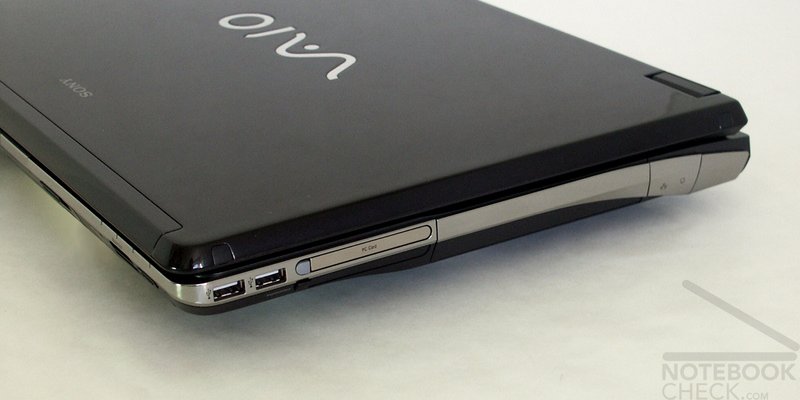

interfaces at the right side
interfaces at the front
interfaces at the back

Input Devices

The AR11S is equipped with a classical Sony keyboard. Gradated keys with square surface and rounded off corners are features of it. The keys are of reasonable size and also the layout appears logical and habitual.

The keyboard unit can be incised in the right half easily, but remains  unspectacular. Also the tapping feeling can be described as "Sony-like". That means a comparatively small pressure resistance with a short but round pressure point and a hard pressure stop. During the handling mistakes and typing error occurred, most of then happened to me again and again by simultaneous tapping of two keys. Reason for that might be the completely flat surface of the keys apart from a necessary acclimatizing time.

The touchpad is quite far in front at the frontal edge of the base unit. Particularly well is, that it is not inserted deeply into the case, so that the end of the pad remains well perceptible, while the verge does not prevent the scrolling unpleasantly. The touchpad responds very well, and has a pleasant surface.
The touchpad keys are integrated directly into the front edge of the base unit and can not be served easily because of a slight disalignment downwards.

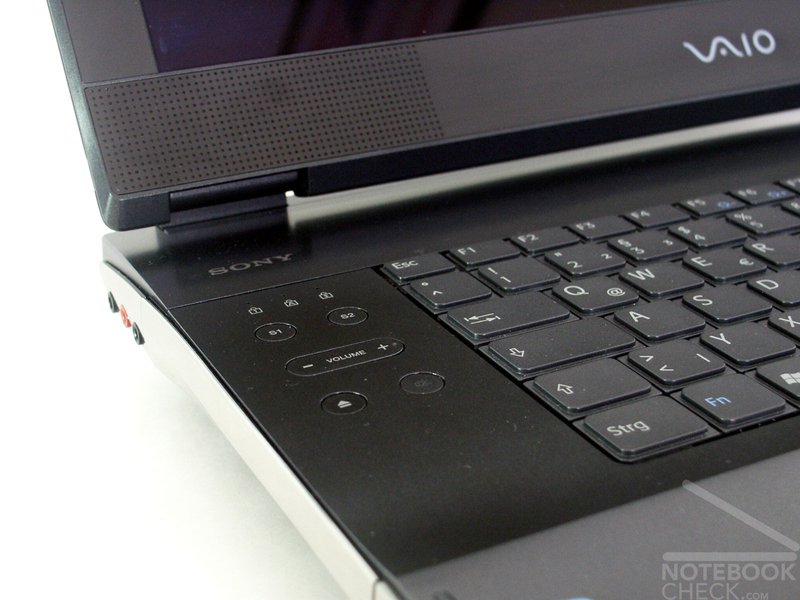

Left beside the keyboard there are some keys, which are completely evenly inserted in the case for the regulation of the volume. There is one more key as a convenient feature to open the drive assembly drawer of the Blu Ray Disc drive. Right above the keyboard there is another border with push-buttons for the controlling of a mediaplayer or TV mode.

Sometimes a disadvantage of the AR11S is, that there is no separate num block, although there is really enough space for it.

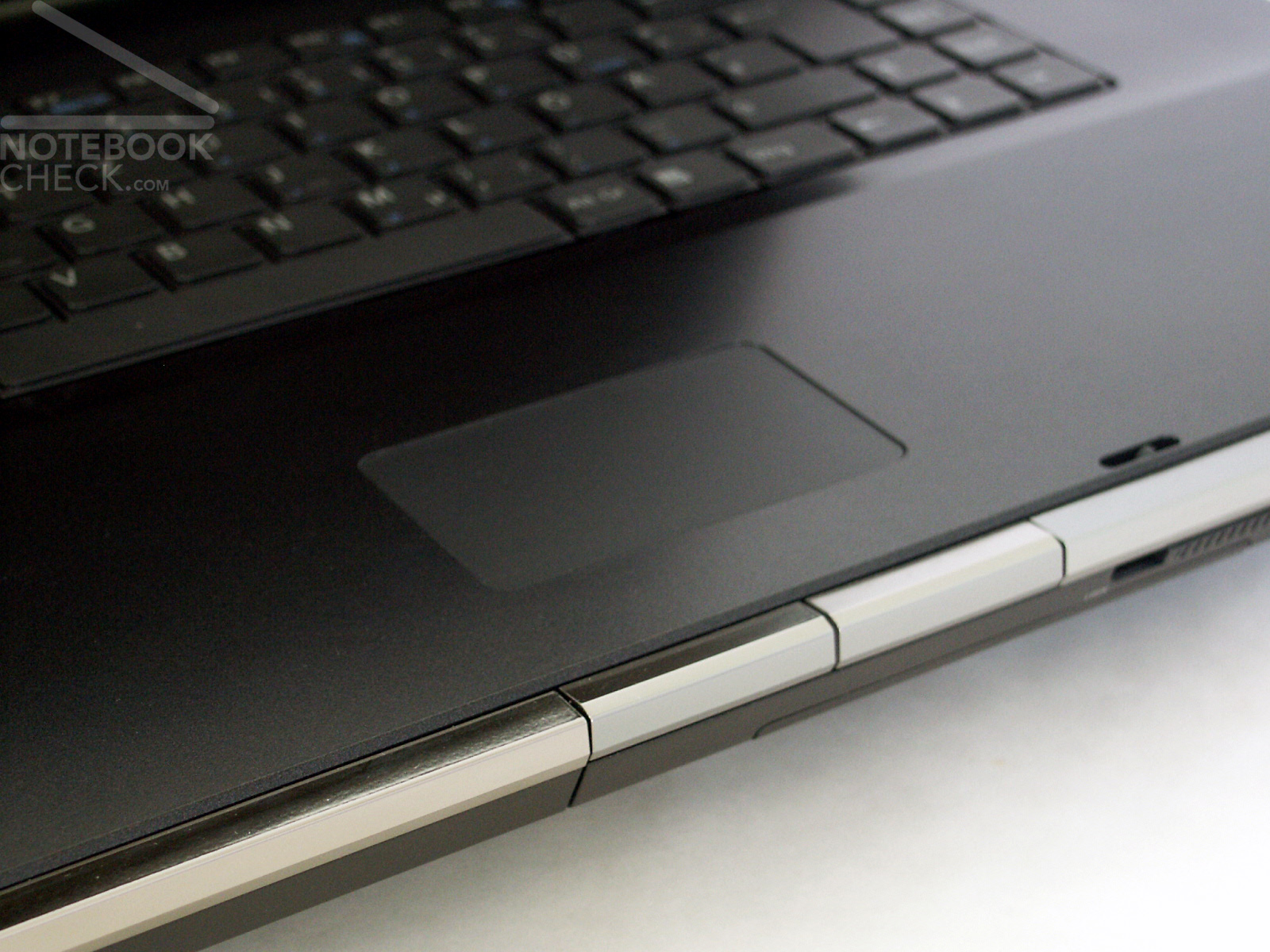

touchpad
keyboard

Display

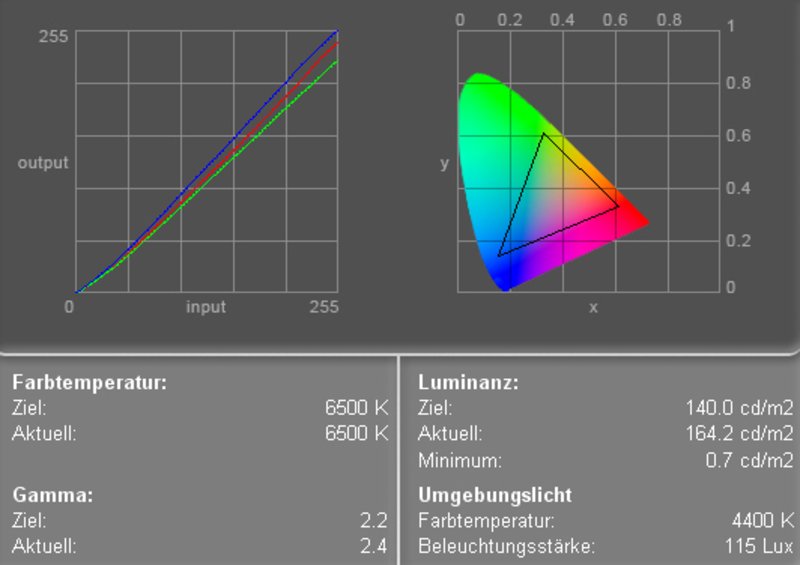

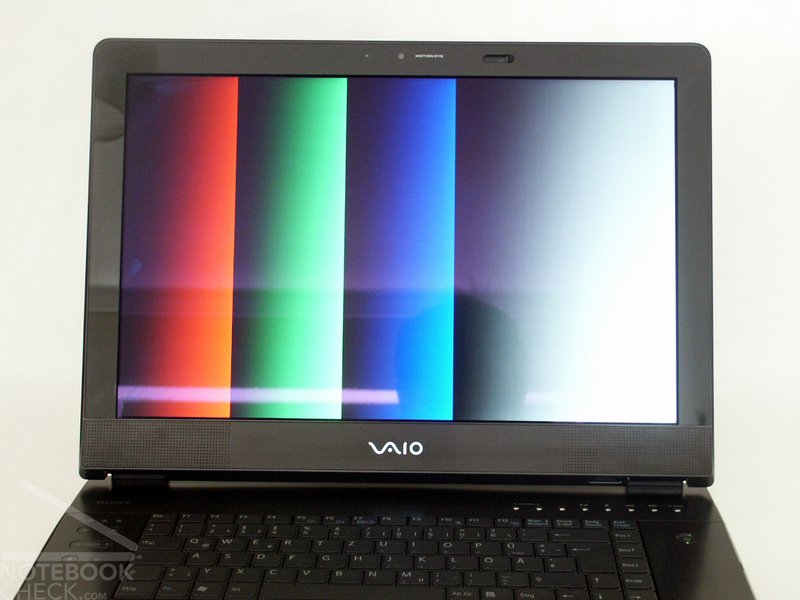

colour diagram

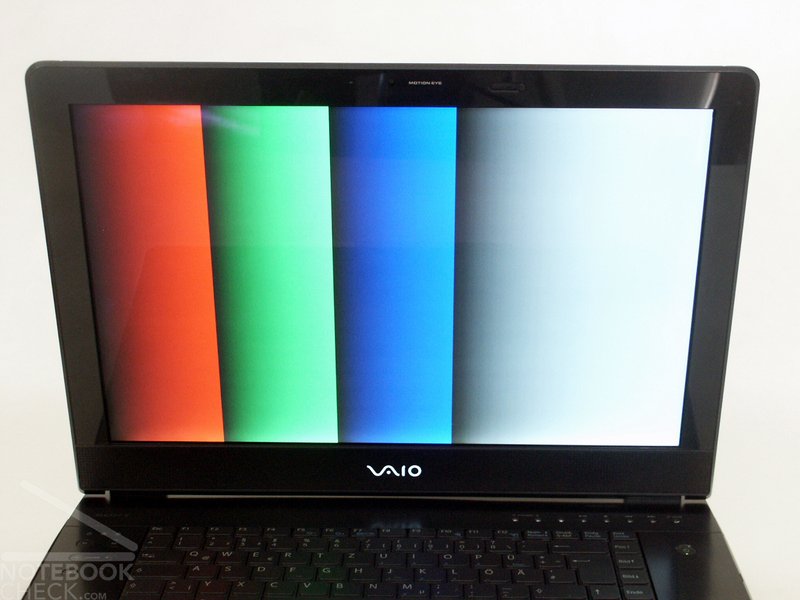

The impressive display with 1920x1200 pixel resolution, which is fully HD suited, seems to be clear, sharp and colortrue. This display is a reflecting panel, with a recognizable violet coating. The Display seems to be sufficiently bright.
In the test a good maximum brightness within the middle upper range of the display with 182.2 cd/m² was measured. Also the color reproduction is recognizably balanced to some extent in the diagram. The maximally possible contrast amounts to 260:1 during our measurement. Particularly the illuminating of the display is not outstandingly well. Due to a strong reduction of the brightness at the right side (120.1 cd/m²) this amounts to only 65.9%.

Concerning the reaction speed we can issue an average certification for notebooks to the Sony VGN-AR11S, because of an achieved level 6 in the Pixperan readability test.

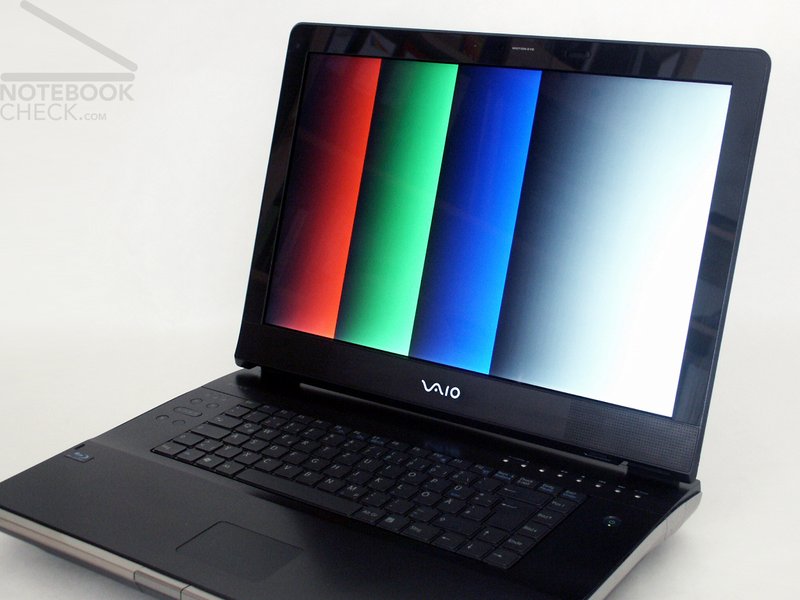

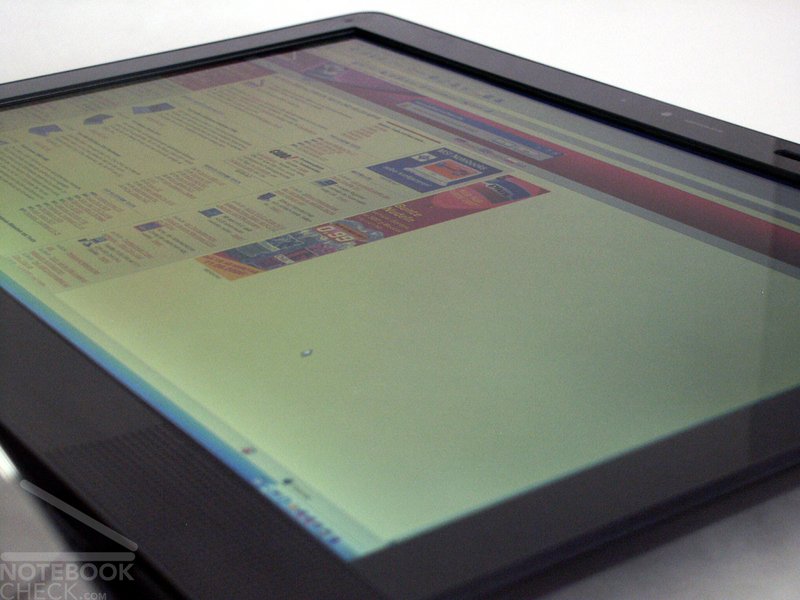

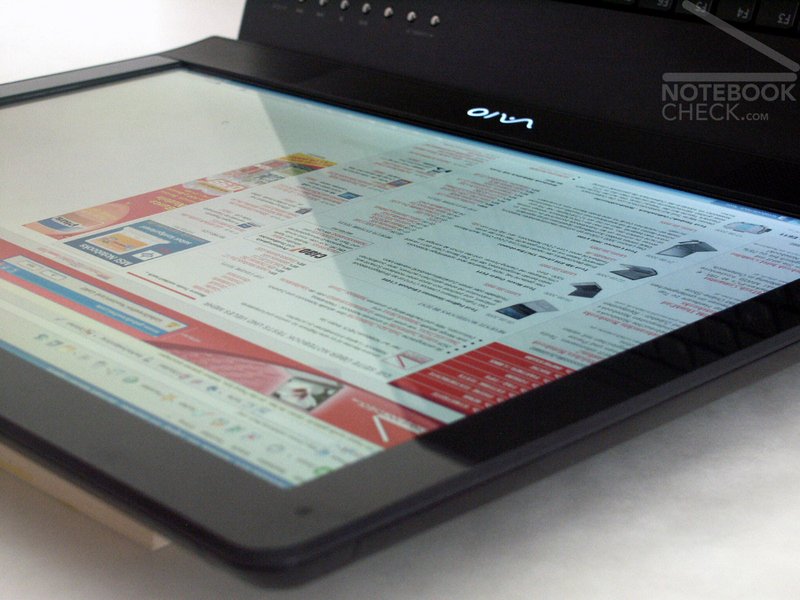

The point of view stability of the display can be called very good within the horizontal range. Also within the vertical range the display makes good figure. A slight darkening and clarification occurs with a strong change of angles in the vertical range, but the legibility remains permanently.

151.2
cd/m²
182.2
cd/m²
120.1
cd/m²
145.3
cd/m²
162.7
cd/m²
127.2
cd/m²
135.5
cd/m²
139.4
cd/m²
126.7
cd/m²
Distribution of brightness
Information
Maximum: 182.2 cd/m²
Average: 143.4 cd/m²
Brightness Distribution: 66 %
Black: 0.7 cd/m²
Contrast: 232:1

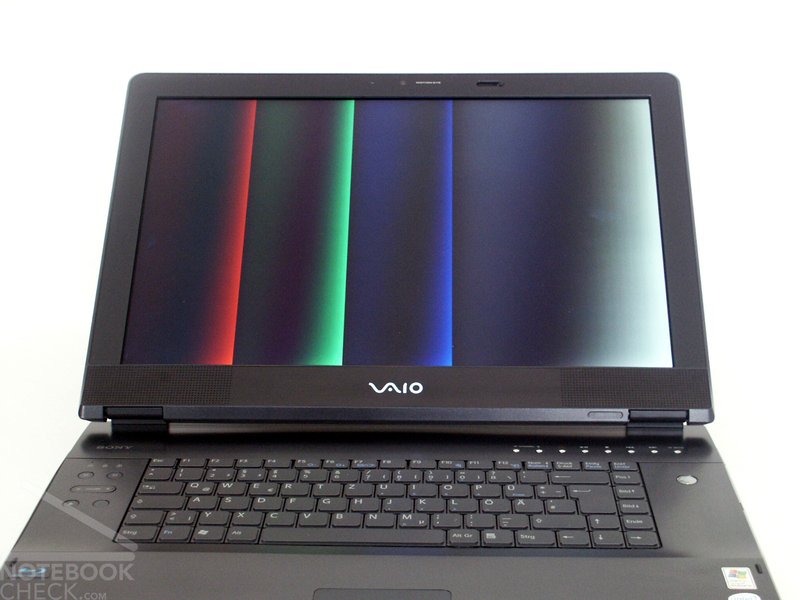

stability with viewing angles

Performance

Good results brought the mating of the T2500 Core Duo processor with 2.0 GHz and the NVidia Geforce Go 7600GT. Thereby, the GT version of the Geforce 7600 is characterised by an increase of the number of pixel pipelines from 8 to 12 and an increase the chip and memory clocking from 450/500 MHz to 500/600 MHz.

As a consequence of these measures the 7600GT leaves its class competitor X1600 of ATI clearly behind itself, and settles behind the colleagues 7800 and 7900GS of NVidia.
Therefore accordingly well are the benchmark results during application use.

With the current game "Call of Duty 2" a framerate between 35 and 50 fps was observed with settings "optimal game settings" (4xAA, Vsync NO, shadows yes) and a resolution of 1024x768. After an increase of the resolution to 1280x1024 this value was reduced to 25-30 fps.

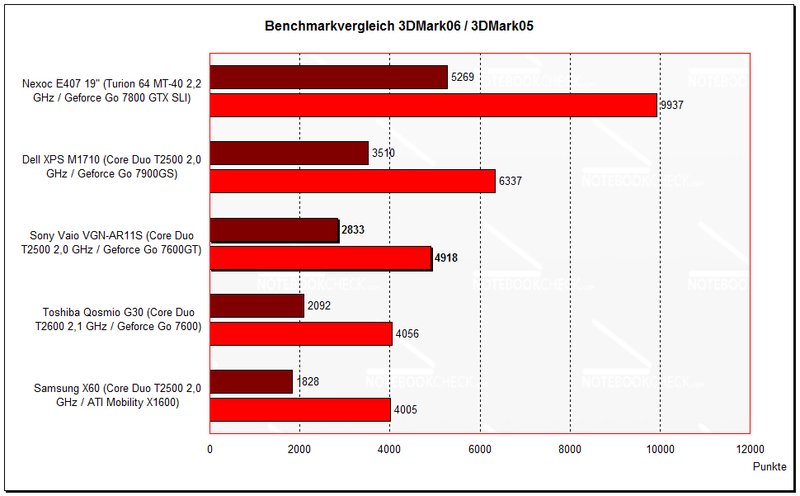

benchmark comparison 3DMark
benchmark comparison

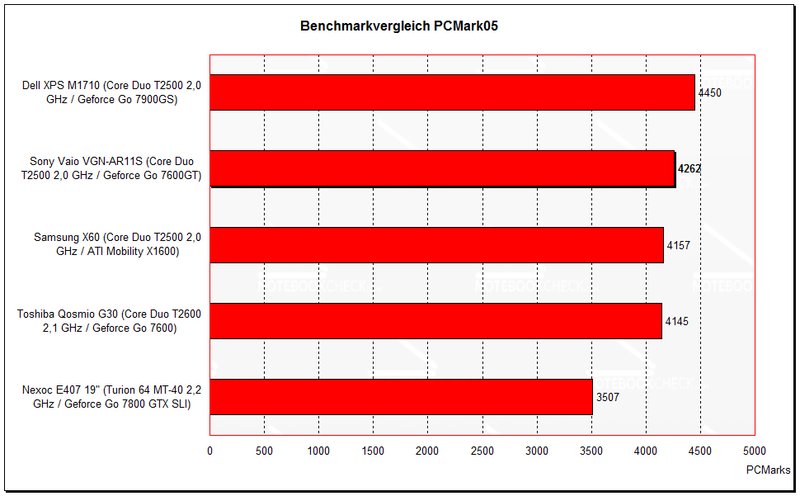

benchmark comparison PCMark
3D Mark
3DMark 2001SE20865 points
3DMark 0311090 points
3DMark 054918 points
3DMark 06
 1280x1024
2833 points
Help
3DMark 06 in comparison
Asus Eee PC 1101HA (min)
 Z520, Graphics Media Accelerator (GMA) 500
68
   ...
Asus V1S
 T7300, GeForce 8600M GT
2809
Asus V1S
 T7300, GeForce 8600M GT
2809
Sony Vaio VGN-AR11S
 T2500, GeForce Go 7600 GT
2833
Asus Pro P53E-SO102X
 2330M, HD Graphics 3000
2855
Toshiba Satellite L830-10F
 2367M, HD Graphics 3000
2859
   ...
Clevo Clevo P157SM (max)
 4930MX, GeForce GTX 880M
29955
PC Mark
PCMark 045337 points
PCMark 054262 points
Help
PCMark 05 in comparison
Acer Aspire One 751 (min)
 Z520, Graphics Media Accelerator (GMA) 500
692
   ...
Asus G2K
 TL-64, Mobility Radeon HD 2600
4242
Fujitsu-Siemens Amilo Sa 3650
 ZM-86, Mobility Radeon HD 3870
4251
Sony Vaio VGN-AR11S
 T2500, GeForce Go 7600 GT
4262
Acer Aspire 5536G
 QL-64, Mobility Radeon HD 4570
4270
Asus F3JM
 T5600, GeForce Go 7600
4281
   ...
Fujitsu Celsius H710 WXP11DE (max)
 2820QM, Quadro 1000M
13842
200 GB - 5400 rpm
Transfer Rate Minimum: 23.2 MB/s
Transfer Rate Maximum: 42.5 MB/s
Transfer Rate Average: 29.9 MB/s
Access Time: 18.1 ms
Burst Rate: 45.1 MB/s
CPU Usage: 7.4 %

Emissions

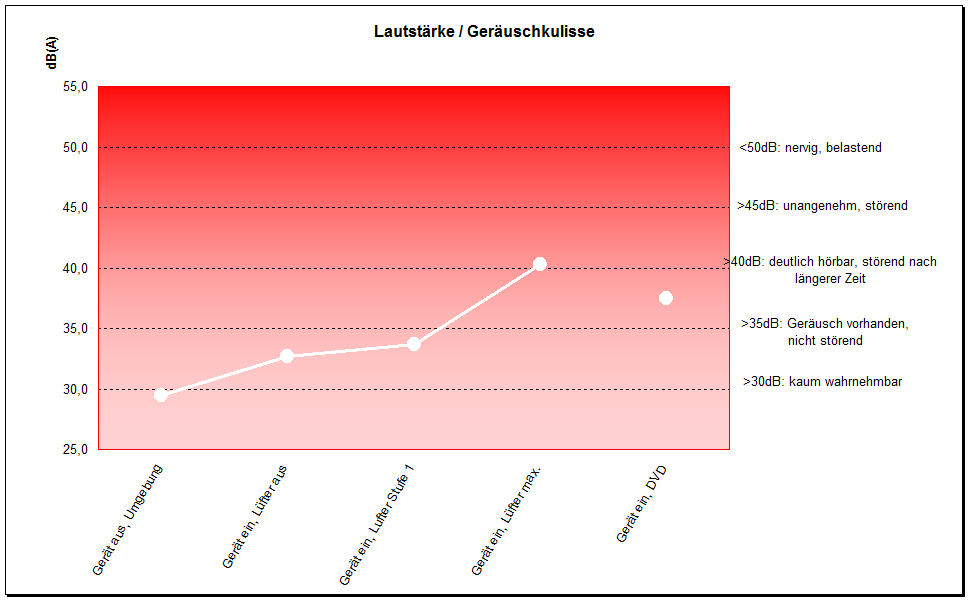

noise development

Volume

Originally, a frequently pulsating fan could be recognized, even in idle operation. A Bios update repaired this problem and reduced the pulsating noise substantially.

Despite the good performance of the AR11S, the notebook remains relatively quiet. In the office operation the fan remains completely switched off or runs only on smallest level and is hardly perceptible. From time to time a short winding up can take place. In operation under load the fan becomes audible, but the noise is not really disturbing, since it sounds like the wind outside the closed windows. The maximum was measured with 40.3 dB.
Somewhat unpleasantly is the Blu Ray drive assembly, which becomes apparently audible with 37.5 dB, when playing DVDs.

Temperature

A heating up on an "operating temperature" of up to 40°C occurs rapidly after switching on the Vaio. Then no considerable temperature increases can be measured with longer high-performance-requirements. The top side remains with a pleasant and inconspicuous temperature particularly in the range of the hand area.

Upper side

palmwrist: 33.4°C max: 38.6°C avg: 35.0°C

Bottom side

max: 42.9°C avg: 38.8°C hotspot: on the right side behind and below the fan

environment: 22.5

Loudspeaker

Comparatively good sound is created by the loudspeakers at the bottom of the display. These speakers can serve even with light basses. The maximum volume can be rated as sufficient.

Battery Runtime

Performance needs energy. Apparently, that applies particularly to the Geforce 7600GT. Under load the Sony Vaio VGN-AR11S reached an hour and 25min battery runtime. The display surely is responsible, too. The maximum running time lay in the test at somewhat more than 2 hours. The Akkubetrieb should be understood therefore rather as emergency solution.
The maximum runtime achieved a little bit more than 2 hourse in the review. Threfore the battery mode is rather an emergency solution.

BatteryEater Classic Test (load):  1h 25min
BatteryEater Readers Test (max. runtime): 2h 10 min

Current Consumption

without load (Idle), min. brightness, without WLAN: 31.1 Watts
+ max. brightness: 42.9 Watts
+ WLAN: 43.7 Watts
full load (+WLAN, max brightness): max. 76.7 Watts

Verdict

The Sony Vaio VGN-AR11S is quite successful. Owing to Geforce 7600GT this notebook also offers good performance for games. This is not a feature of most Sony notebooks, which are rather weakly equipped concerning graphics.

Particularly well is the design of the Vaio, which is really respectable. Straight lines instead of ornamental art nevertheless for clearness and a sleekly elegant lateral border.

Nonetheless there are minor faults of workmanship. A wobbly battery, crunching hand areas and a low rigidity against torsions are not necessary for a laptop of that price class.

The input devices, in particular the keyboard, turn out to be somewhat habituation needy for a Sony newbee, but surely are suited for demanding office applications, too.

The high resolution HD capable display in well-known Sony style can quite inspire. Image definition, color representation and stability with viewing angles are impressing. Nevertheless we could determine illumination weaknesses particularly on the right side of the display.

As already mentioned, the Sony Vaio VGN-AR11S is quite well equipped also regarding the available performance. Core Duo CPU and Geforce 7600GT guarantee fun in the multimedia sector.
Unfortunately, the maximum battery runtime unfortunately suffers somewhat from the sumptuous hardware equipment: the maximum battery runtime of the AR11S is scarcely between an hour and somewhat more than two hours.

A large plus of the AR11S is the good emission-mangagement. Both, the measurement of the temperature and the noise emissions by the fan are very positively.

Sony Vaio VGN-AR11S
reviewed: Sony Vaio VGN-AR11S

Specifications

Sony Vaio VGN-AR11S

:: Processor
Intel Core Duo T2500 2 GHz (Intel Core Duo)
:: Memory
1024 MB, DDR2 SDRAM, PC4300, max. 2048MB, 2x512MB
:: Graphics adapter
:: Display
17 inch 16:10, 1920x1200 pixel, WUXGA X-Black LCD mit Doppellampe, glossy: yes
:: Harddisk
200 GB - 5400 rpm, 200 GB 5400 rpm 2x 100GB RAID 0/1: 200GB, 5400rpm
:: Connections
PCI Express Card, PCMCIA Card, IEEE1394 Firewire, Mic-In, Kopfhörer, opt.out, 3x USB 2.0, VGA out, S-Video in/out, HDMIout, Mini AVin, Kensington Lock, Antenne, Modem, LAN
:: Size
height x width x depth (in mm): 34 x 416 x 300
:: Weight
3.77 kg
:: Battery
, 5200 mAh Lithium Ionen Akku
:: Price
3199 Euro
:: Additional features
Intel 945GPM, HDD: 200GB, 5400rpm, 2x 100GB RAID 0/1, Intel High Definition Audio, Blu-Ray Supermulti (Double Layer) Matshita BD-MLT UJ-210S,

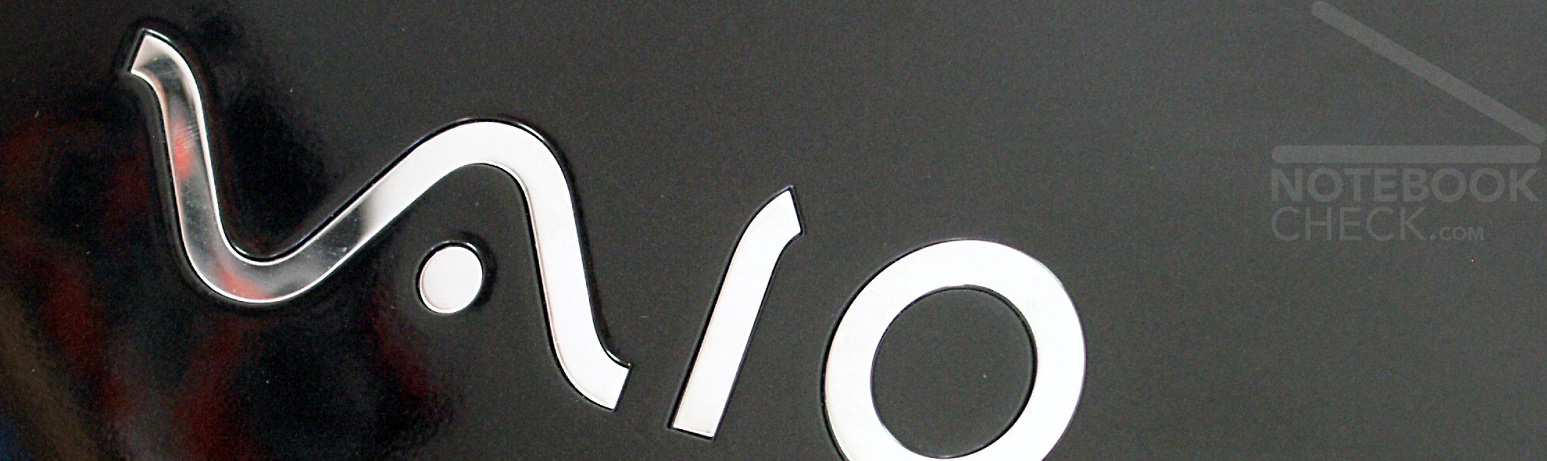

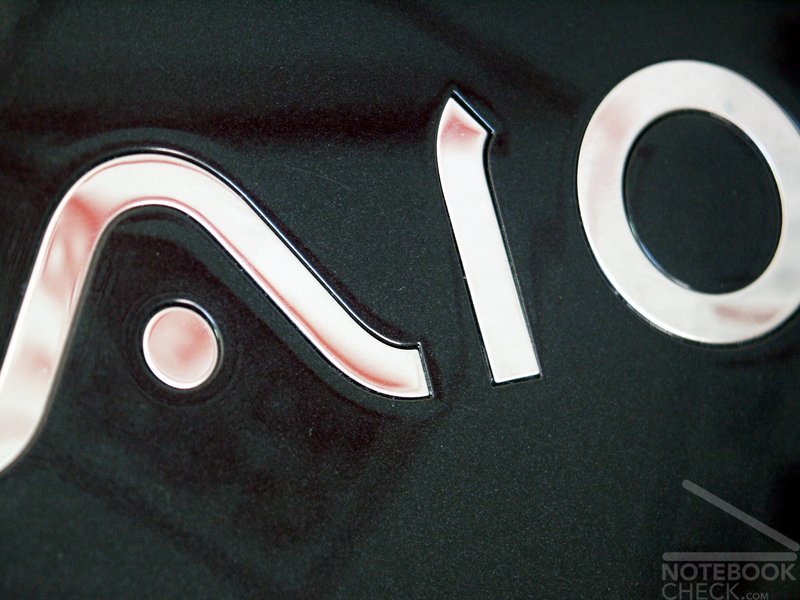

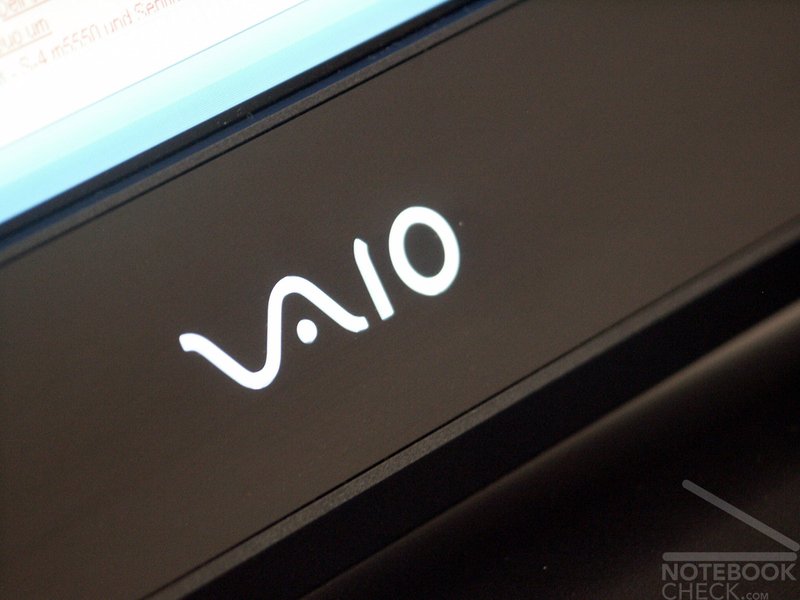

The brand Vaio...
Despite moderate performance values, the temperature of the AR11S remains acceptable.

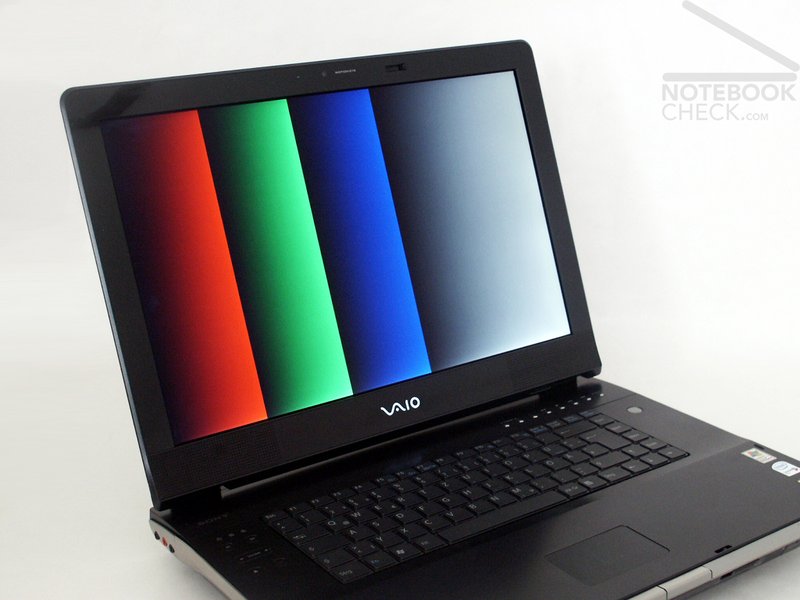

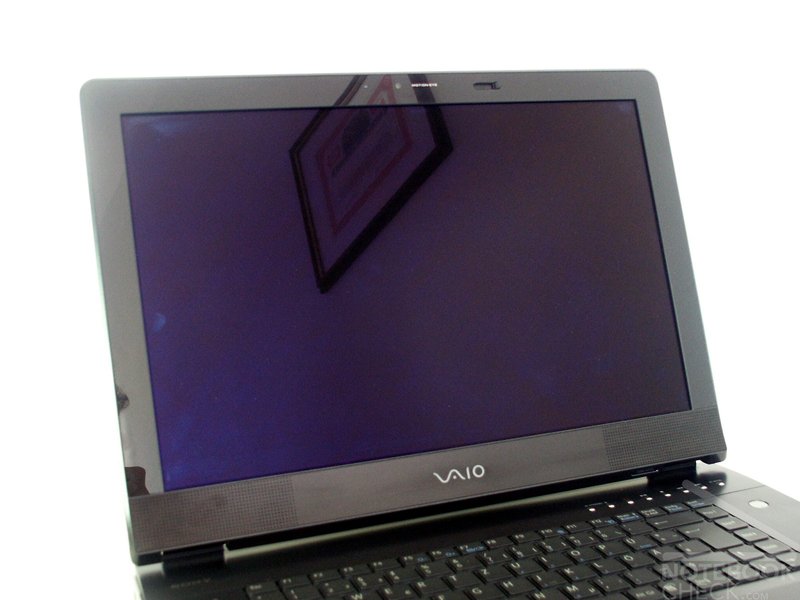

Brillant, but not perfect: high resolving HD-capable display with the typical violett Sony coating.

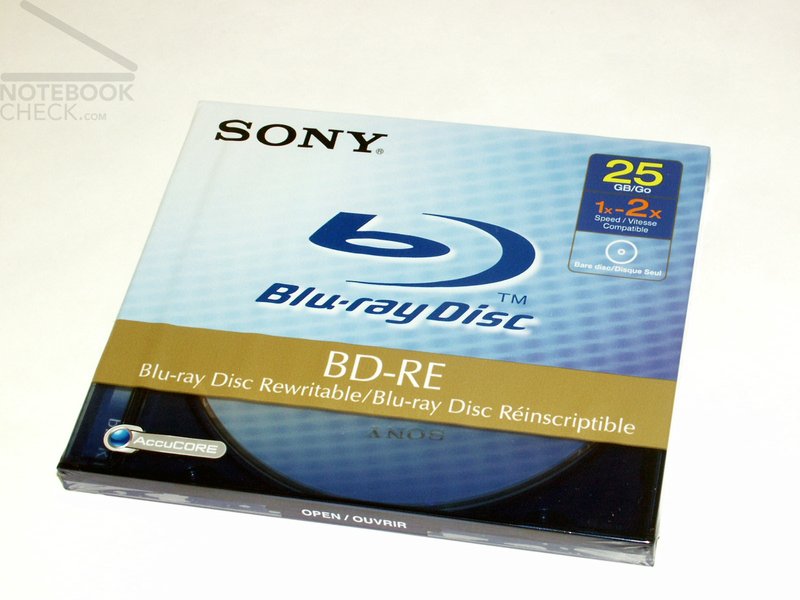

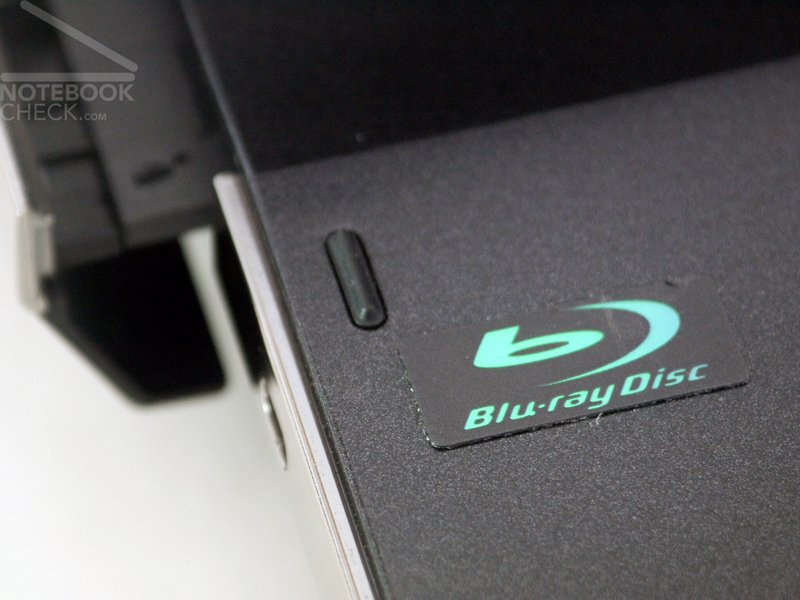

...writes up to 25 GB on suited Blu-Ray disks.
The drive, which can be recognized by two lenses...

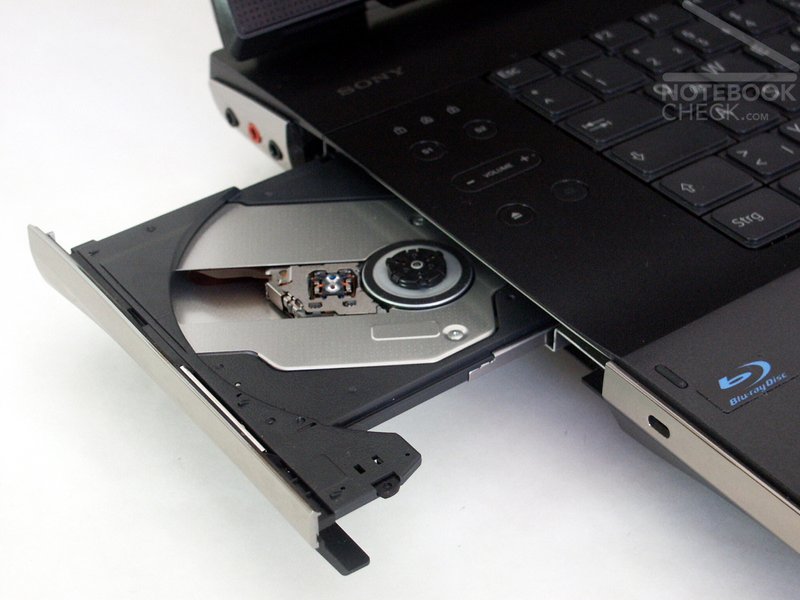

The response of Sony to HD-DVD: the Blu-Ray drive.

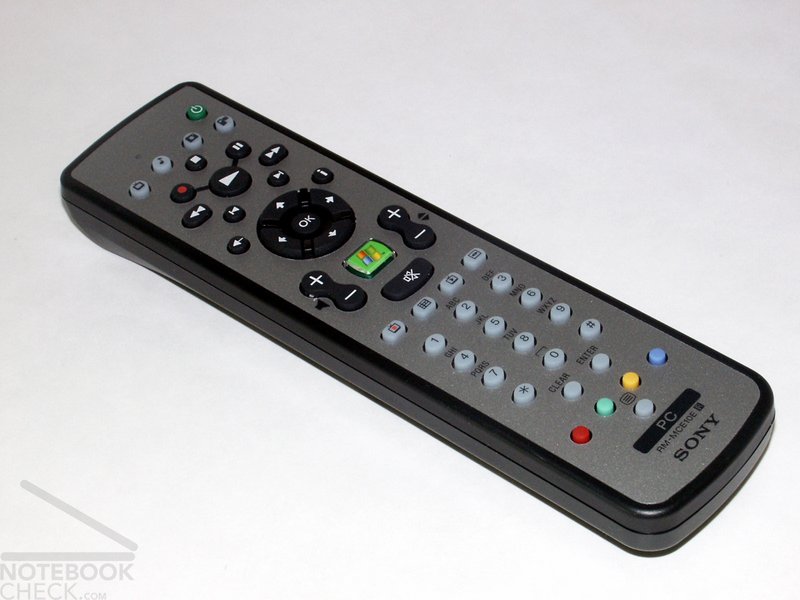

The remote maintanance is part of a multimedia mobile computer like the Vaio AR11S.

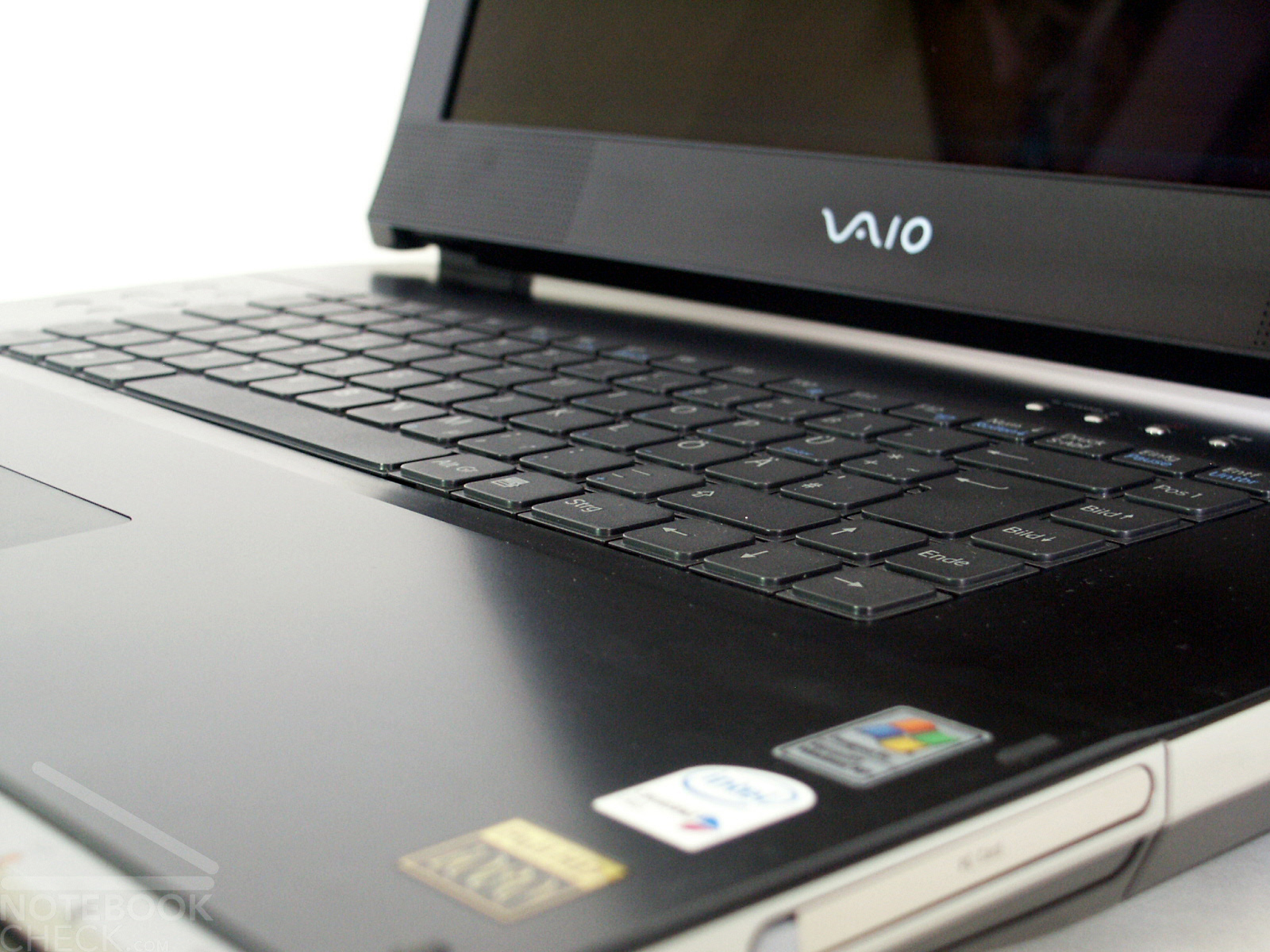

Elegant: the keyboard and also the additional keys have a flat surface and are inserted evenly into the case.

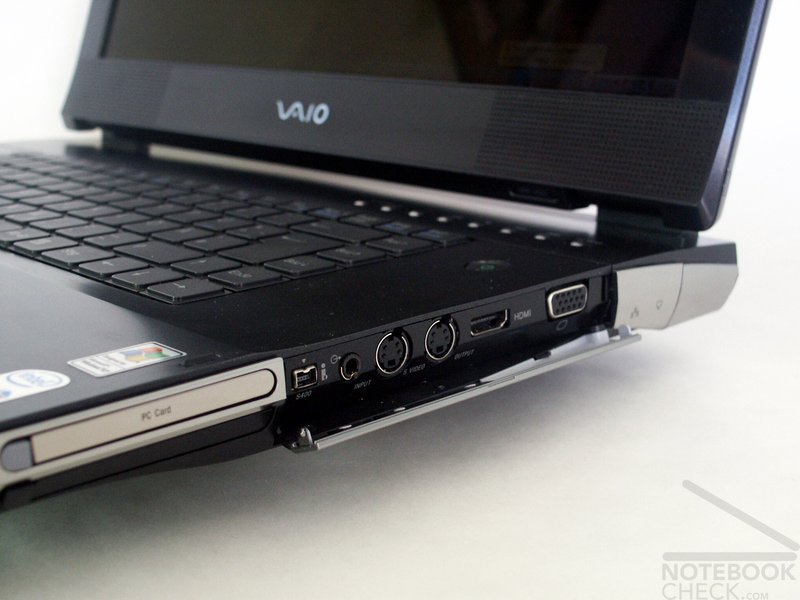

AR11S offers S-Video in/out, HDMI exit, VGA port for the connection of an external monitor and much more.

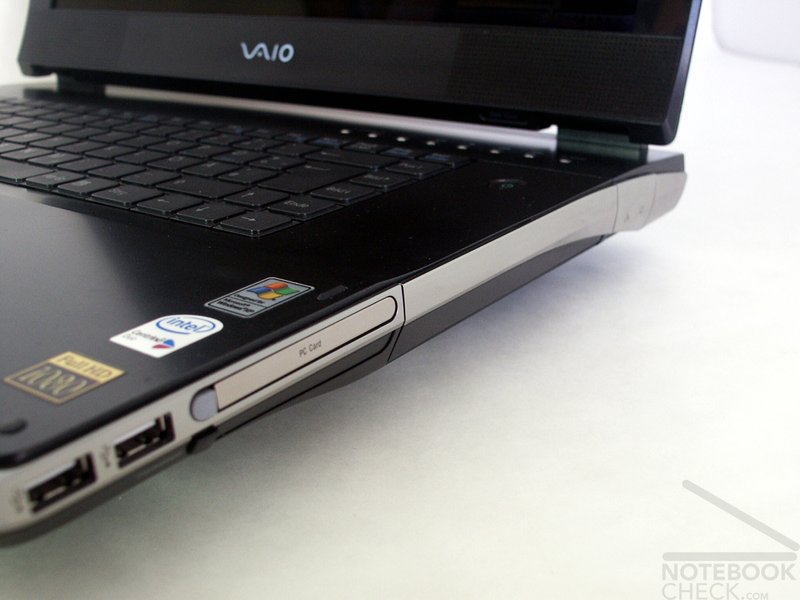

...nicely hidden connections at the right side of the case.
...an innovative, but wobbly catch hook system...
...like well designed hinge solutions,...
Further, Sony Vaio AR11S convinces with interesting solutions...

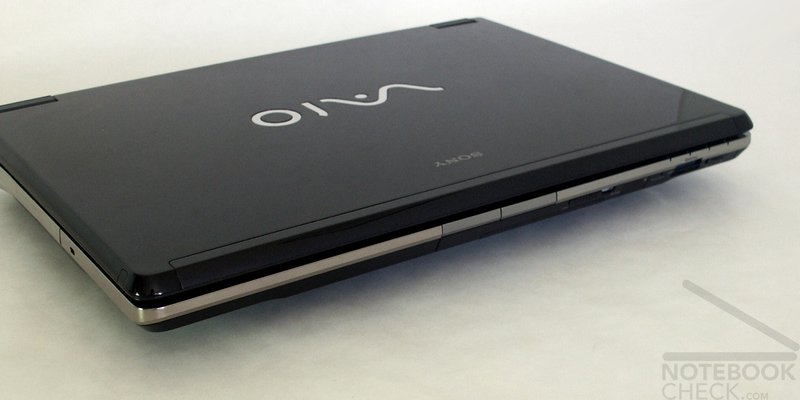

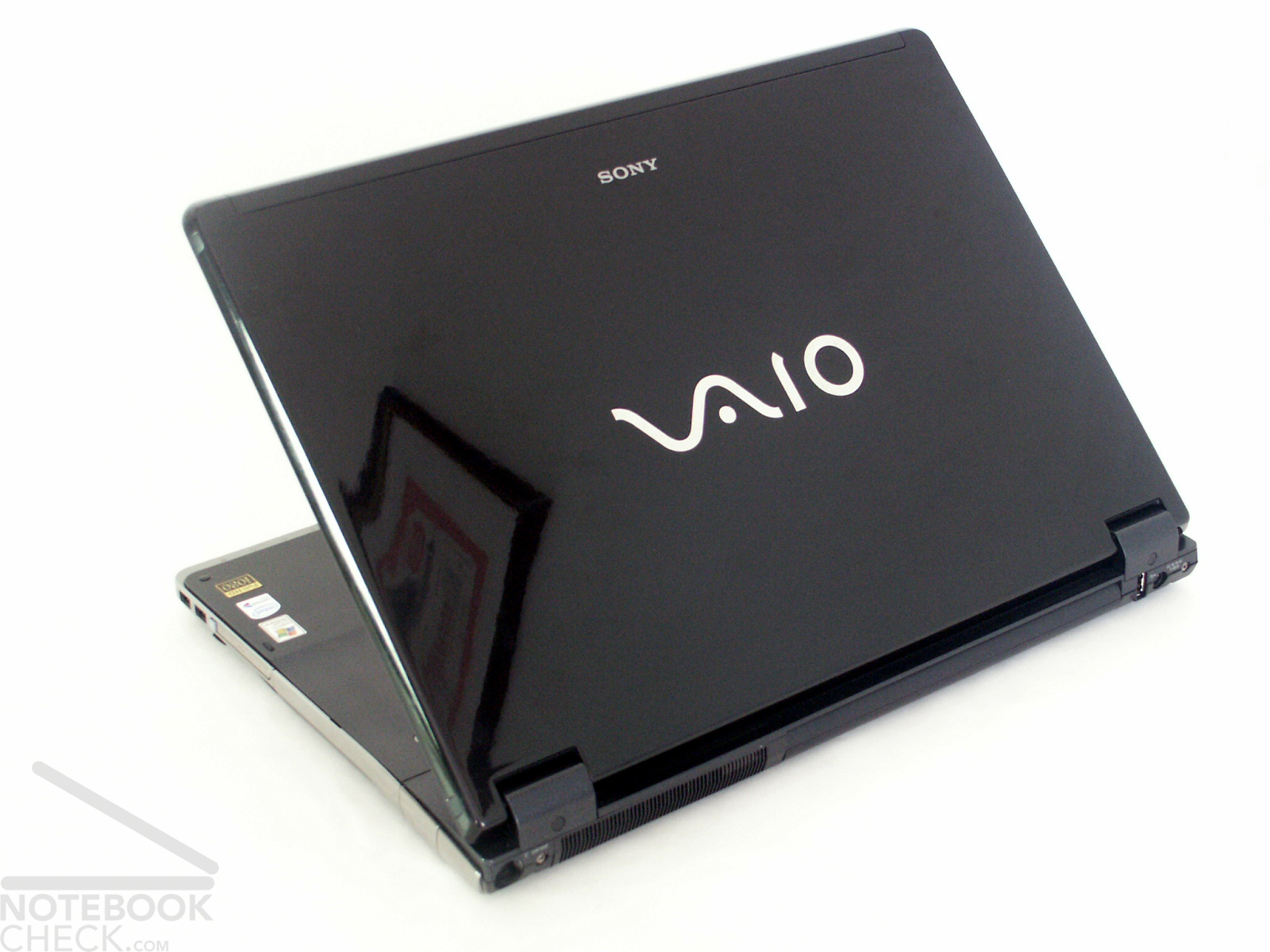

...and souvereign appearance.

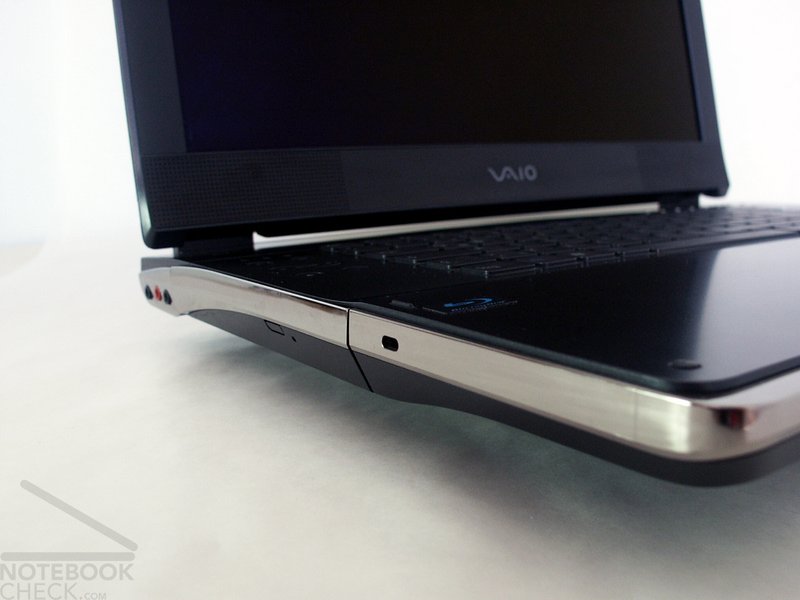

...grants good design...
Fits somewhat loose: The 5200 mAh battery is sufficient for about one up to two hours in battery mode.

Pro

  • good design
  • highly resolving HD fähiges Display
  • good performance in the multimedia sector
  • low temperature and noise emissions
  • Blu-Ray drive (25 GB/disc)
  • good interface equipment (S-Video In/Out, HDMI,...)
  • 2x 100GB hard disk for RAID 0/1
  • Contra

  • partially mediocre rigidity against torsions, crunching noise possible
  • mediocre illumination of the display
  • low battery runtime
  • wobbly battery
  • Similar Laptops

    Rating

    Sony Vaio VGN-AR11S
    08/31/2007
    J. Simon Leitner

    Chassis
    80%
    Keyboard
    84%
    Pointing Device
    86%
    Connectivity
    90%
    Weight
    59%
    Battery
    60%
    Display
    88%
    Games Performance
    92%
    Application Performance
    92%
    Temperature
    70%
    Noise
    90%
    Add Points
    92%
    Average
    82%
    86%
