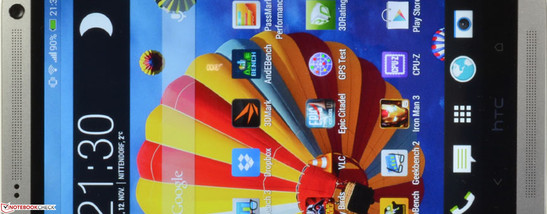

Review HTC One Max Smartphone

Big brother. Step one: Take HTC's successful One smartphone and blow it up to a gigantic 5.9-inches with Full HD resolution. Step two: Add a swift Qualcomm Snapdragon 600 quad-core with an integrated Adreno 320 graphics card. Step three: Blend in 2 GB of RAM, 16 GB of storage, a big 3300 mAh battery and a fingerprint scanner. HTC's new One Max is complete. Is this recipe enough for a podium placement in the phablet category?

For the original German review, see here.

"...more everything" is how the Taiwanese manufacturer self-confidently captions its new HTC One Max on the product webpage. The Asian producer is not resting on the success of its previously launched HTC One and HTC One Mini models and completes its One family with a phablet dubbed One Max. HTC treats it to a bright, 5.9-inch SuperLCD 3 screen with a resolution of 1920x1080 pixels (Full HD). The One Max is powered by a cutting-edge Qualcomm Snapdragon 600 APQ 8064T quad-core SoC that clocks with 1.7 GHz alongside a big 2 GB DDR2 working memory. The integrated Adreno 320 GPU takes care of graphics. Besides that, a 16 GB flash memory (net: 11 GB) is also installed. The latest Android version 4.3 runs on the One Max. HTC pairs it with its own Sense 5.5 interface. A 3300 mAh lithium battery ensures long runtimes despite the large screen. Like in HTC's One, front-facing stereo speakers provide decent sound. A fingerprint scanner located below the camera increases security.

The HTC One Max radiates premium flair, which the recommended price of 699 Euros (~$943) also underlines. Our in-depth review reveals whether this interesting idea will spark and how the review sample fares against contenders like Huawei's Ascend Mate, Samsung's Galaxy Mega, Sony's Xperia Z Ultra and the current leader in our Top Ten of November 2013, Samsung's Galaxy Note 3.

Case

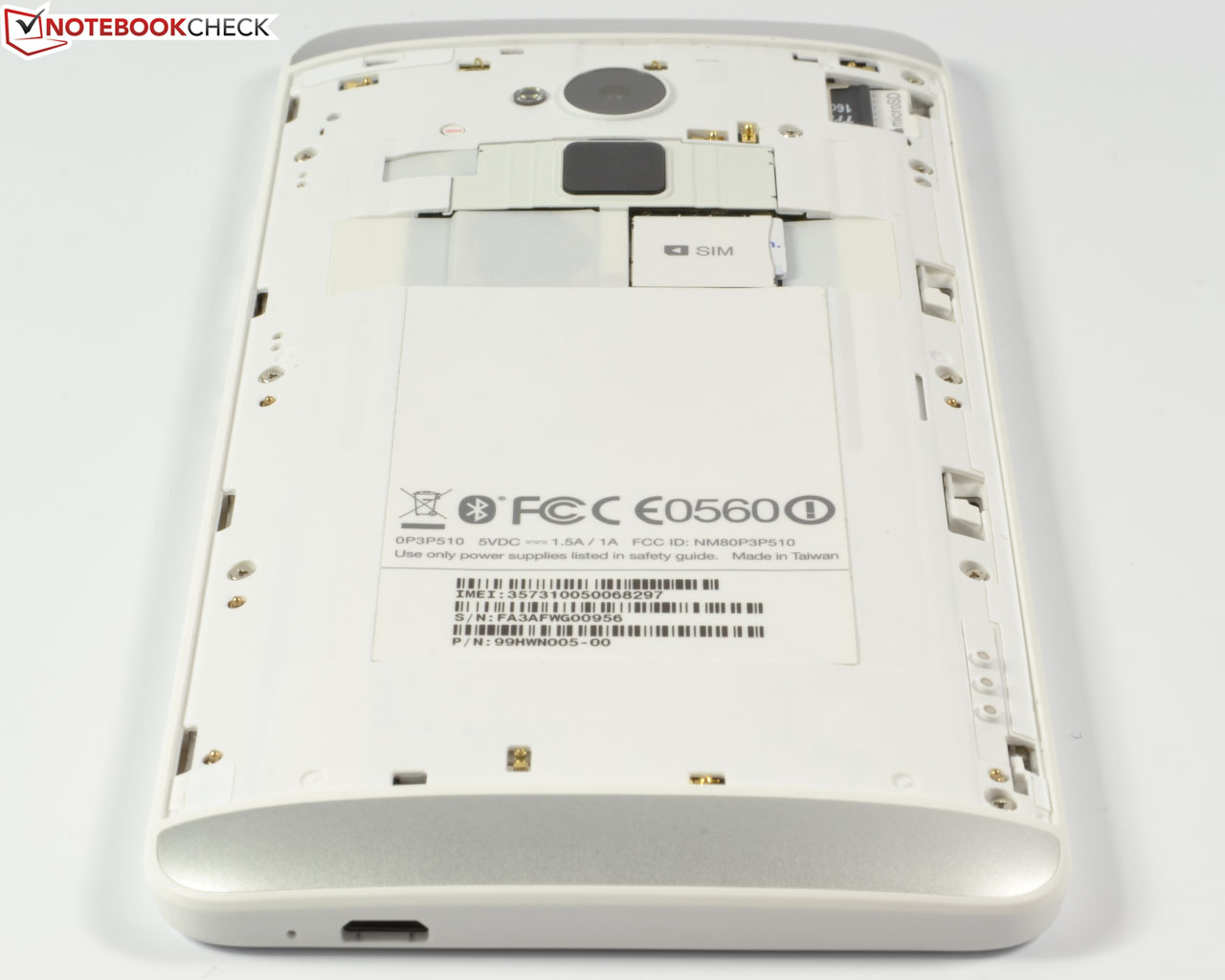

HTC's One Max does not have...
HTC's One Max does not have...
...a unibody chassis like HTC's One featured.
...a unibody chassis like HTC's One featured.
This  leads to some uneven...
This leads to some uneven...
...gaps in the build.
...gaps in the build.

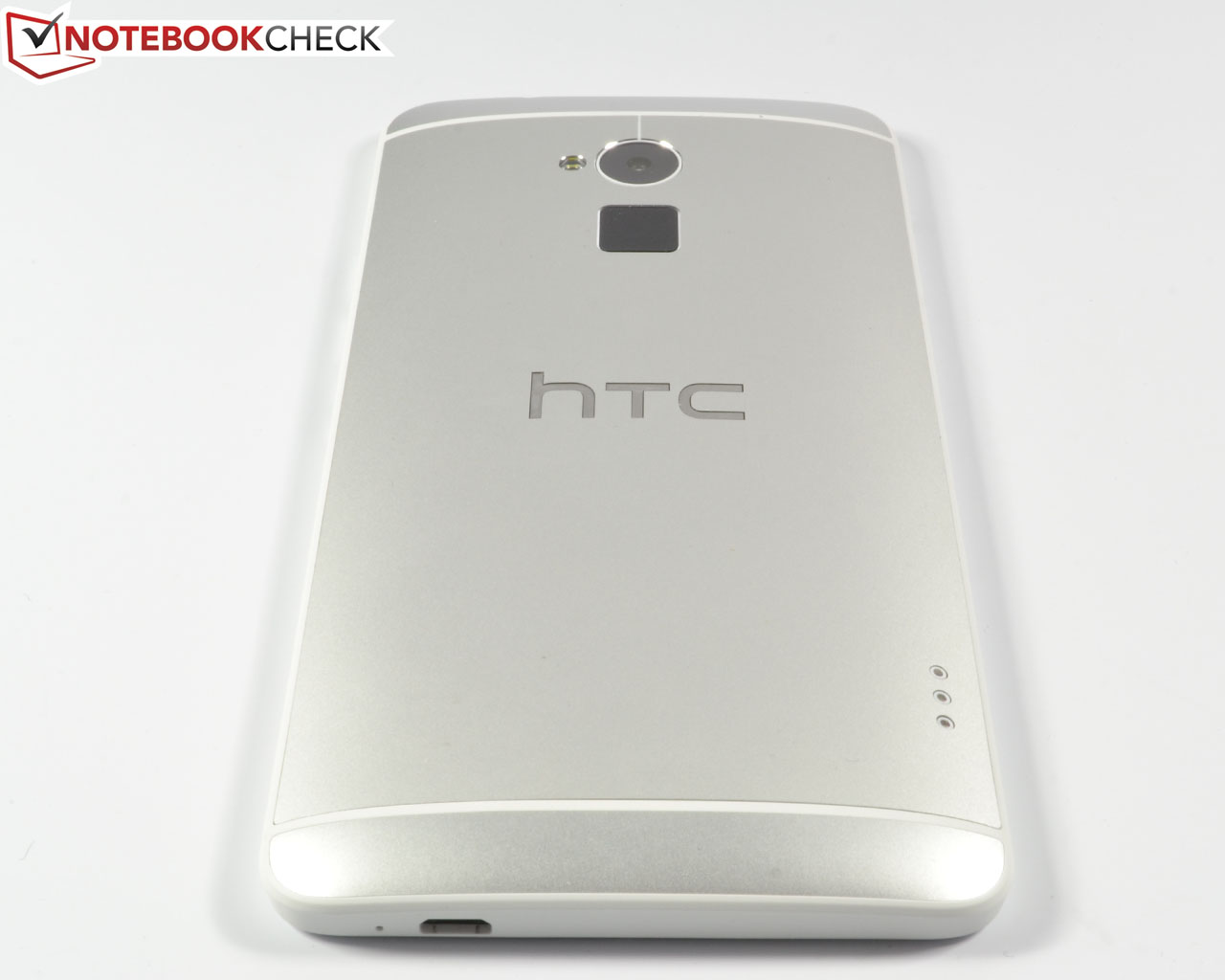

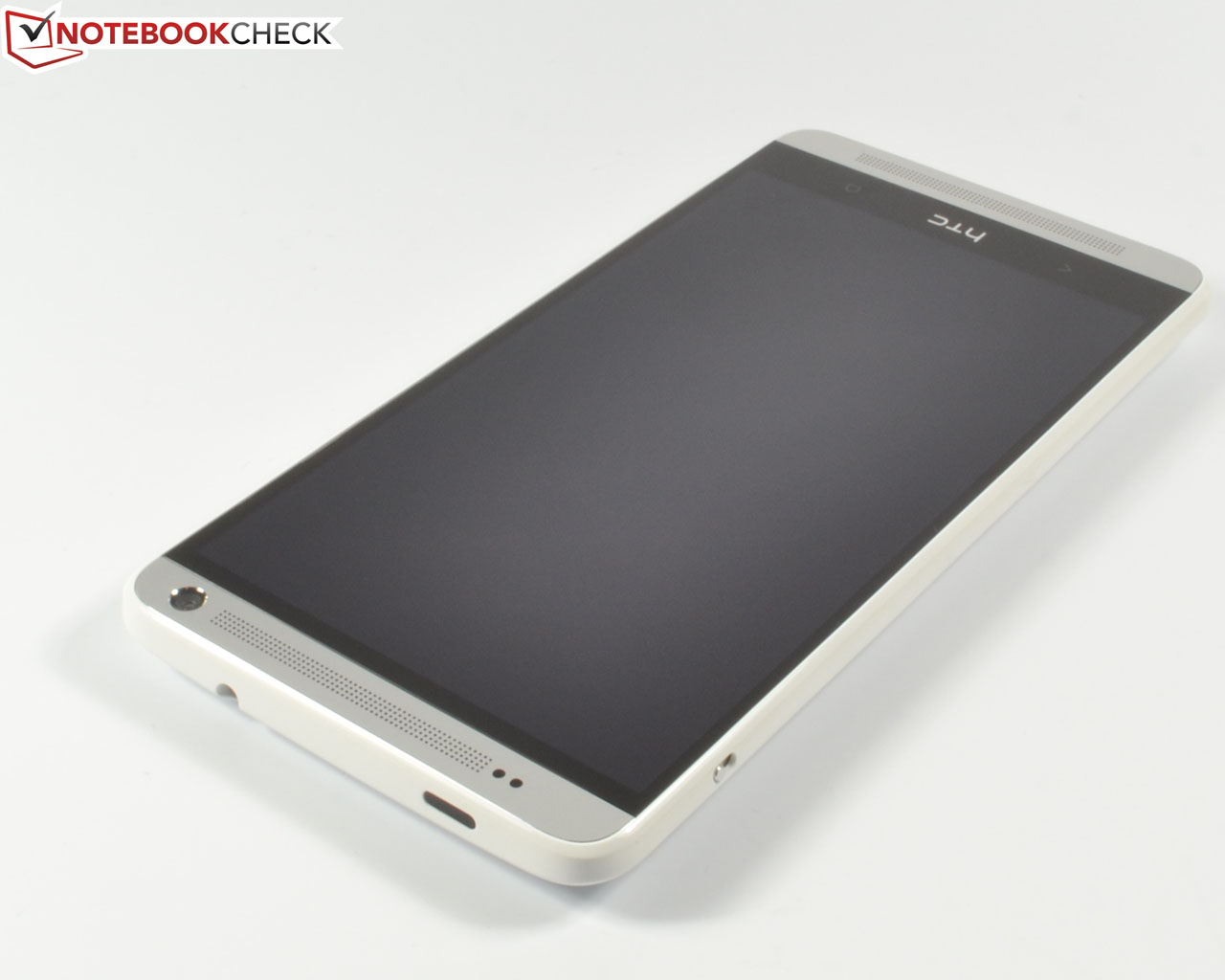

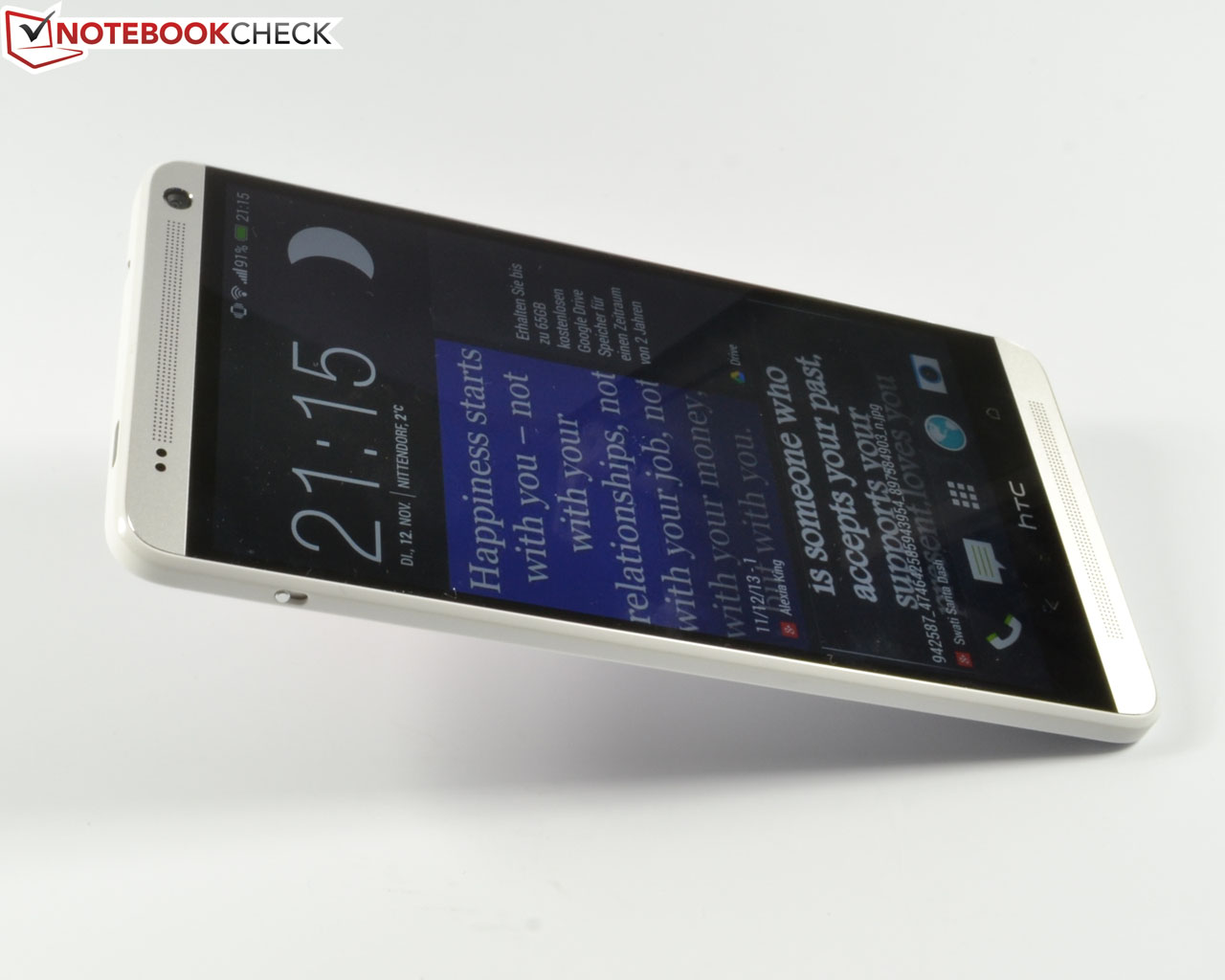

The gigantic phablet, made of elegant aluminum, gleams at us from its box right after its unboxing. But wait: Like HTC's One Mini, the buyer will not find the aluminum unibody of HTC's One in the One Max. Instead, only the speakers' cover and the rounded back are comprised of this solid material in the review sample. The chassis' frame is made of white polycarbonate that, unlike the One Mini, is matte and makes a somewhat handier impression. The high build quality of HTC's One is not quite achieved. A few uneven gaps are found between the aluminum and plastic parts. Particularly the lower speaker cover does not fit quite flush in the polycarbonate frame and protrudes marginally. However, the processing is extremely rigid and accurate for a back cover, and the lid barely yields even under stronger pressure. The casing is generally very rigid and robust. Although the plastic frame does not look quite as elegant as the diamond-cut aluminum unibody of HTC's One, the device copes better with smaller drops and is not bruised right away. The device is only available in Glacial Silver, so a silvery-white.

The large, 5.9-inch screen is noticed in the dimensions of 164.5 x 82.5 mm and a thickness of 10.29 mm. Besides that, the phablet also belongs to the heaviest of its kind with a total weight of 220 grams. For comparison: Samsung's Galaxy Note 3 is a whole 52 g lighter, but it also has a marginally smaller screen and a plastic casing. Despite its size, HTC's One Max is pleasant to hold and can be used surprisingly well with one hand. Users with smaller hands will have a slightly harder time though.

Connectivity

There is not much news in this category. HTC's One Max features the same ports as HTC's One in form of an MHL-capable micro-USB 2.0 port that also allows connecting a micro-HDMI cord via an adapter, a 3.5 mm audio jack, and an infrared sensor for remote controlling a TV. The volume rocker and power button are again located on the casing's right side.

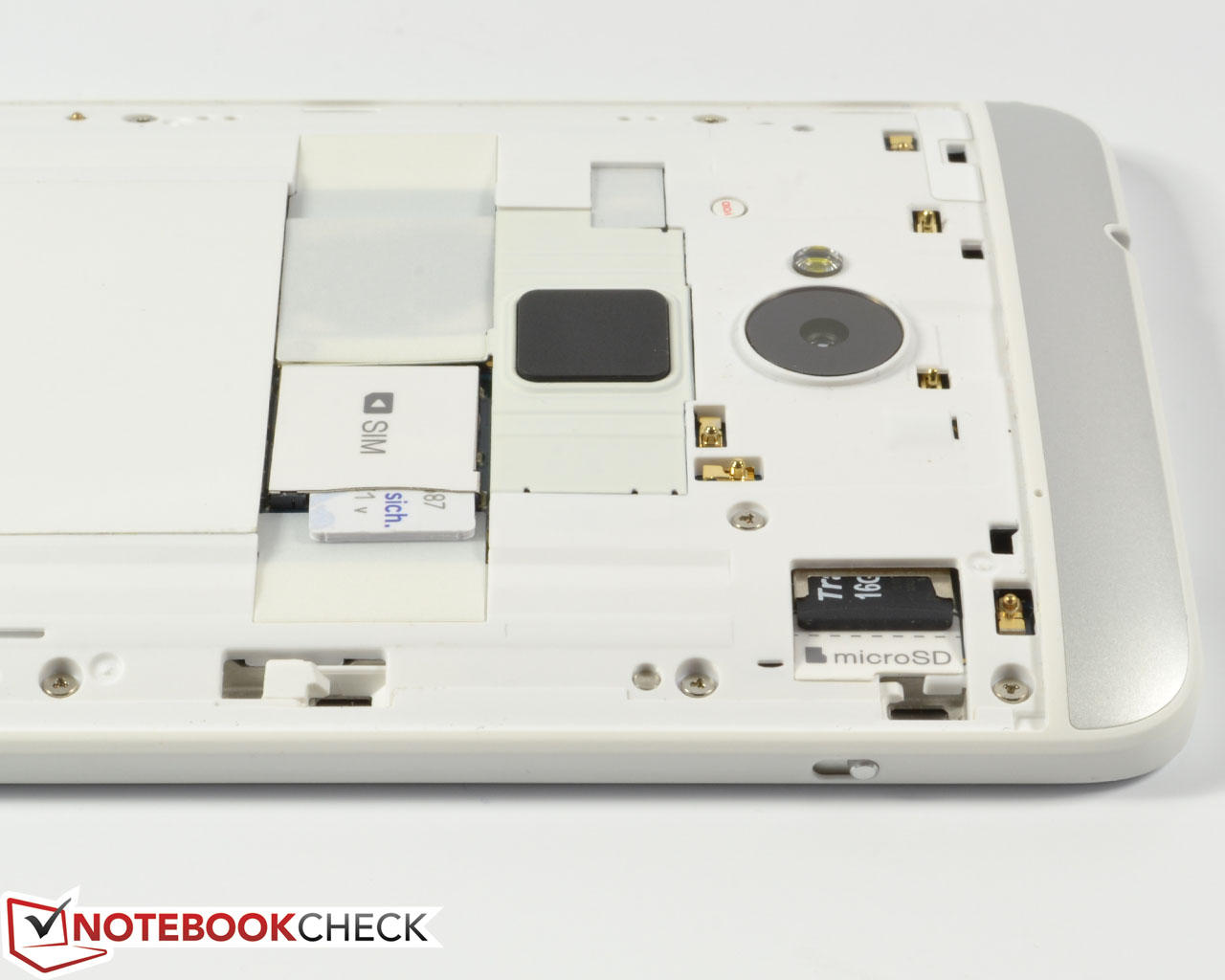

The review sample additionally features a fingerprint scanner and a three-pin "Pogo Pin" port on the back. The latter, for example, connects to docking stations or battery covers via sprung contacts. Also new, a slider on the left of HTC's One Max releases the back cover. Underneath this, slots for a micro-SIM card and a micro-SD card with up to 64 GB of storage, and the non-removable lithium-polymer battery with a capacity of 3300 mAh are found. The internal storage capacity is 16 GB, but only approximately 11 GB is available. HTC states that there are no models with a higher storage capacity planned. The flash memory can be expanded either via a micro-SD card or a free 25 GB Dropbox storage.

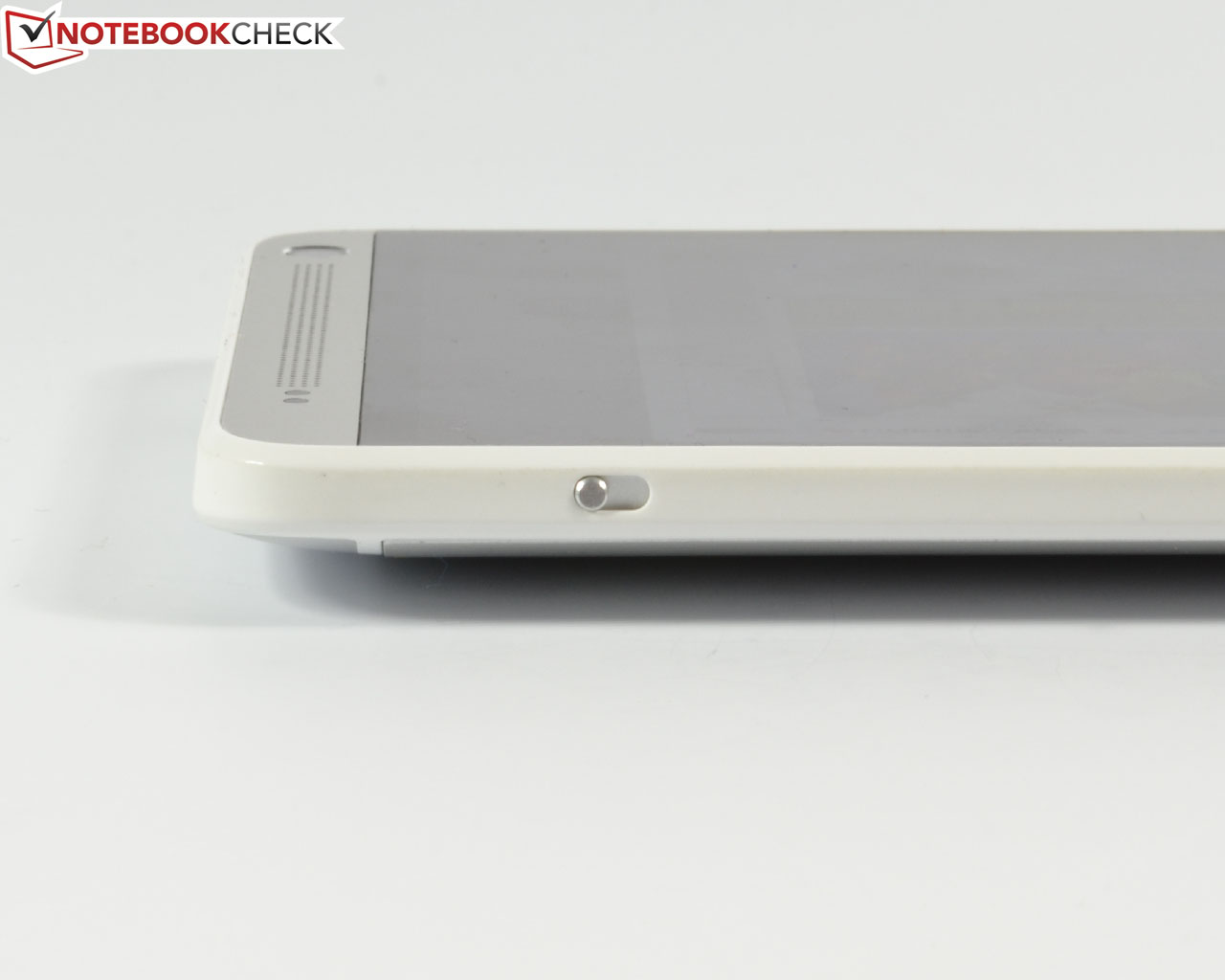

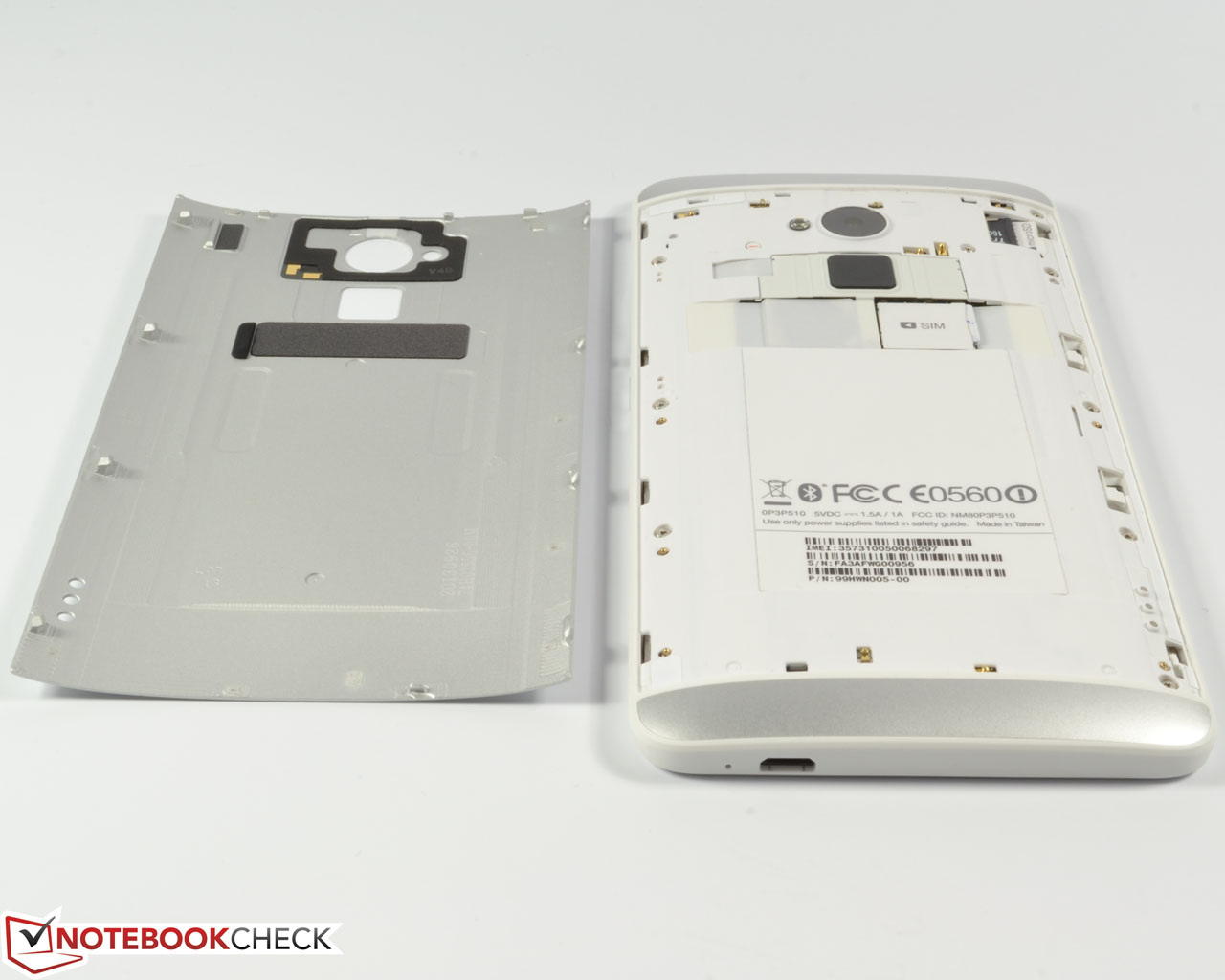

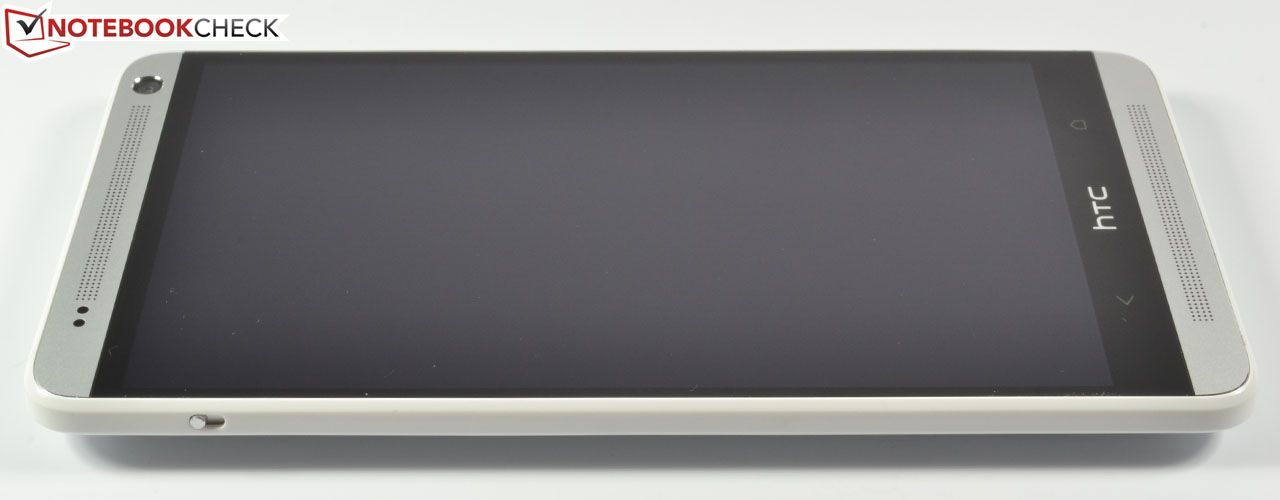

Left: Back cover lock release
Left: Back cover lock release

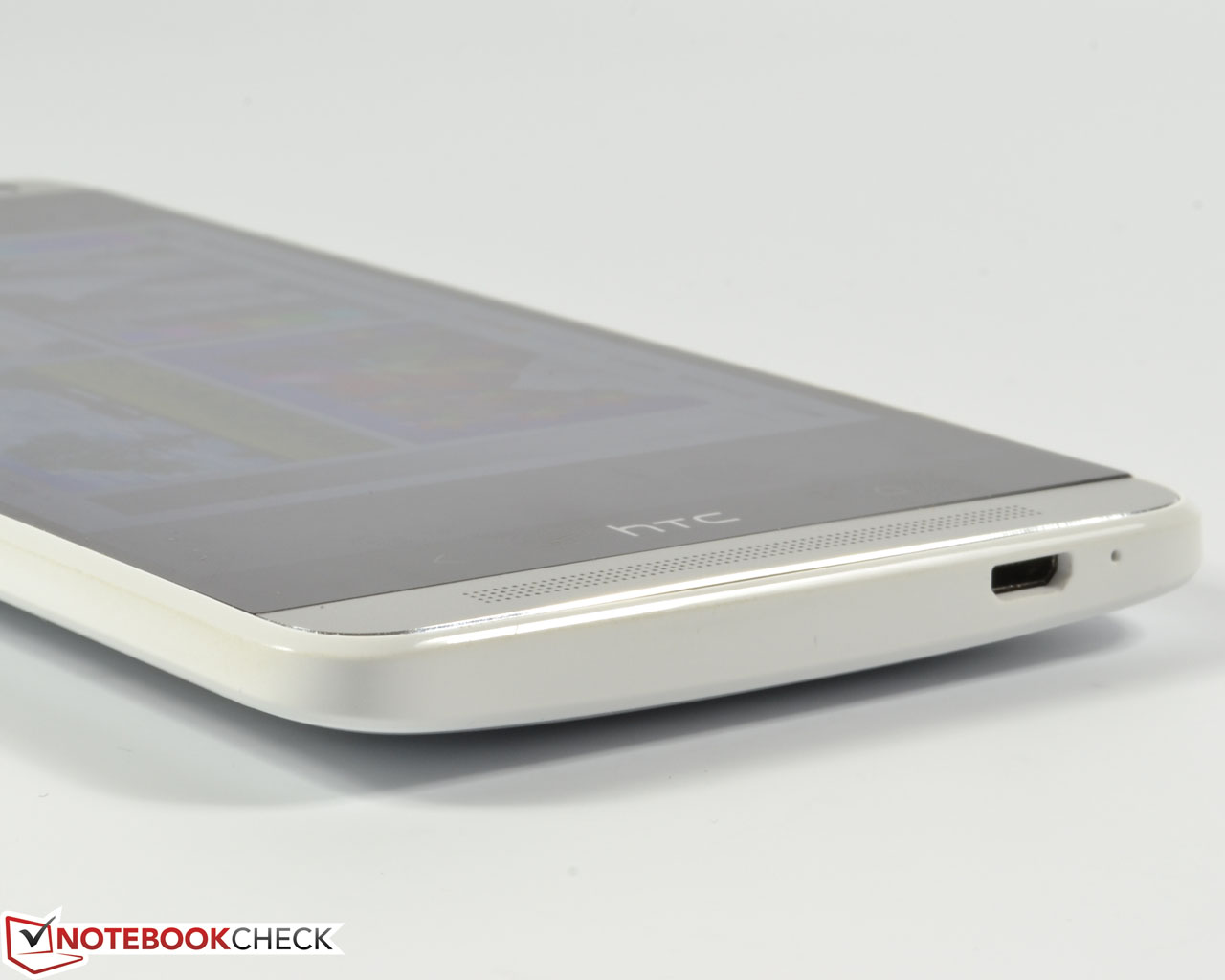

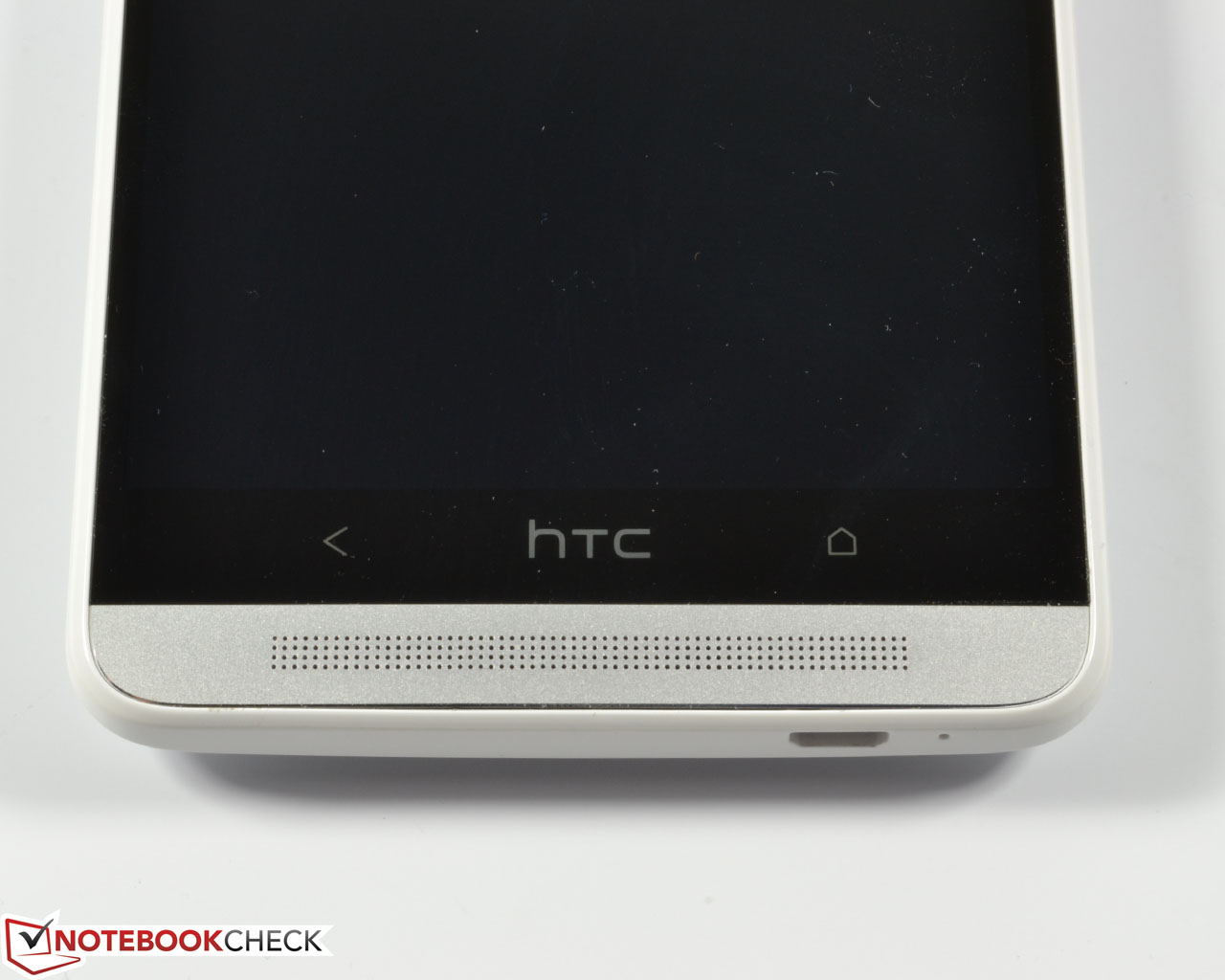

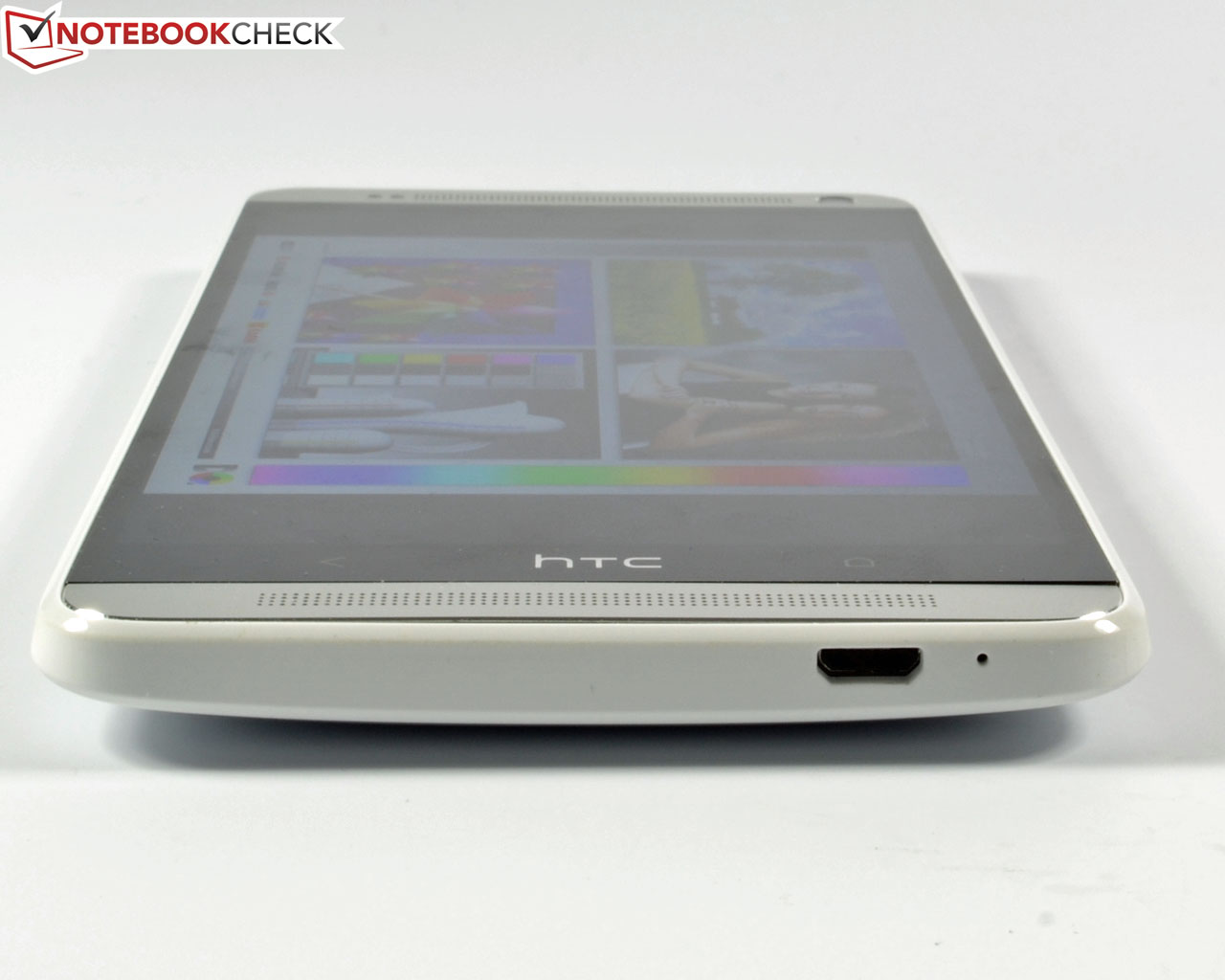

Bottom: Micro-USB 2.0, microphone
Bottom: Micro-USB 2.0, microphone

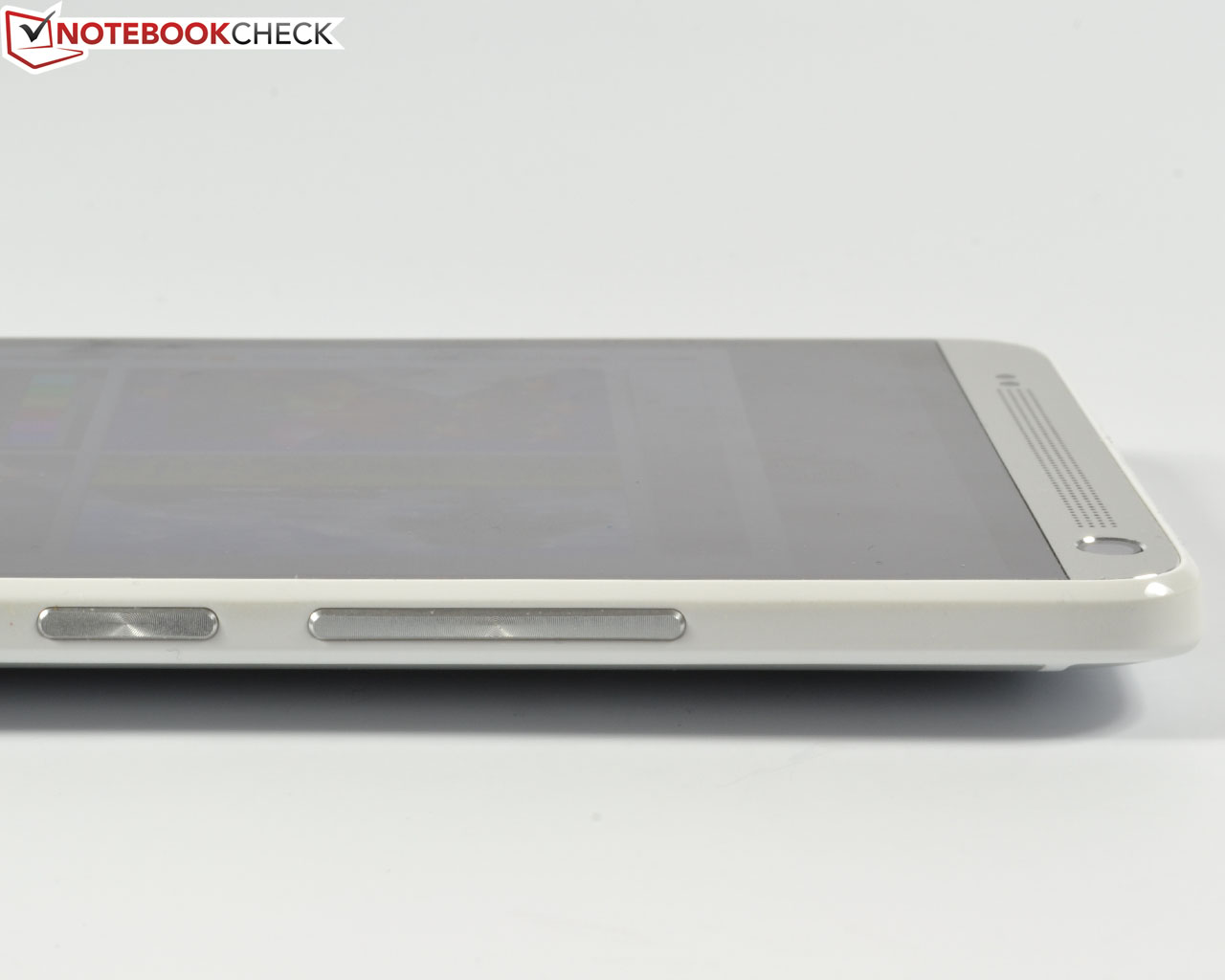

Right: Power button, volume rocker
Right: Power button, volume rocker

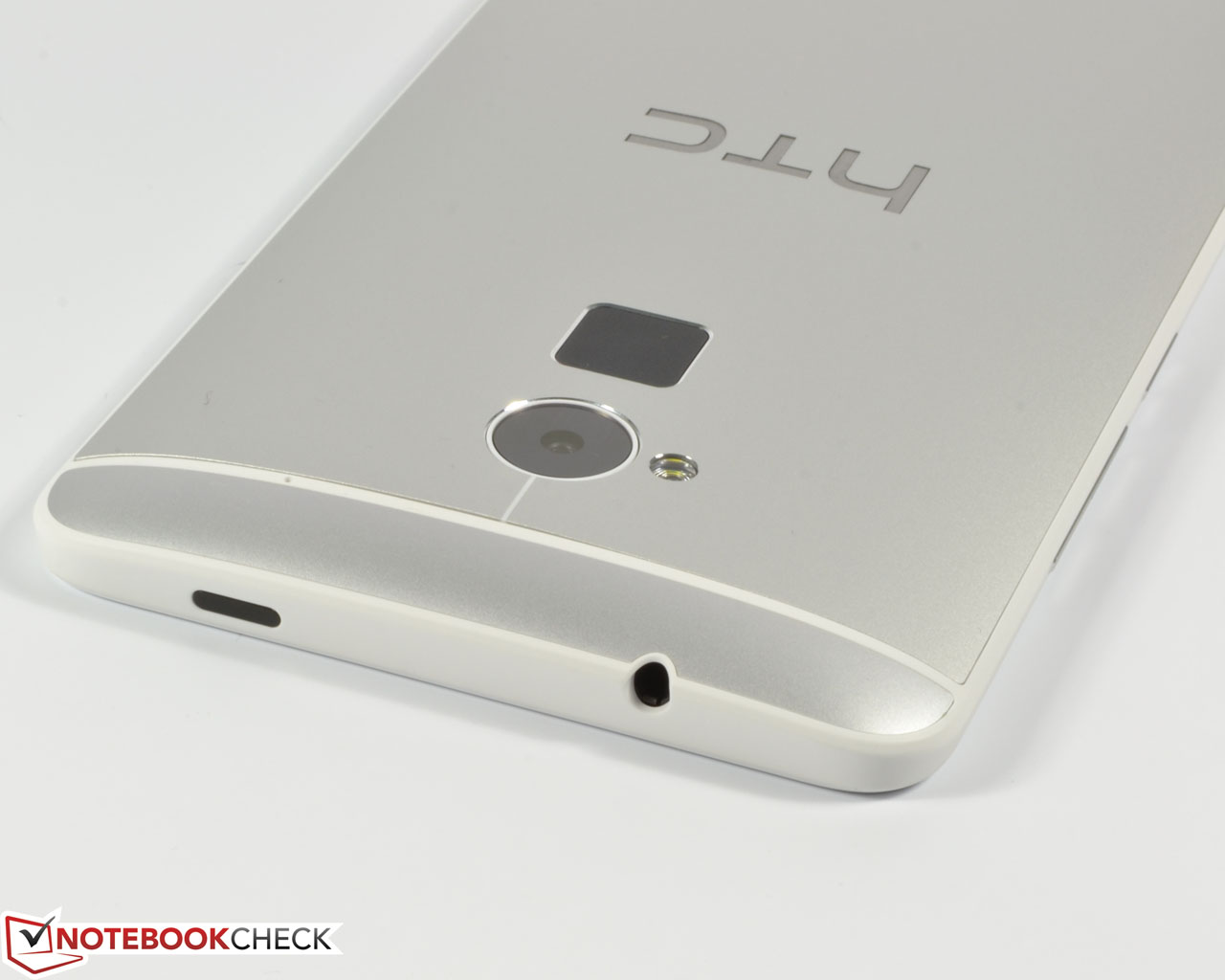

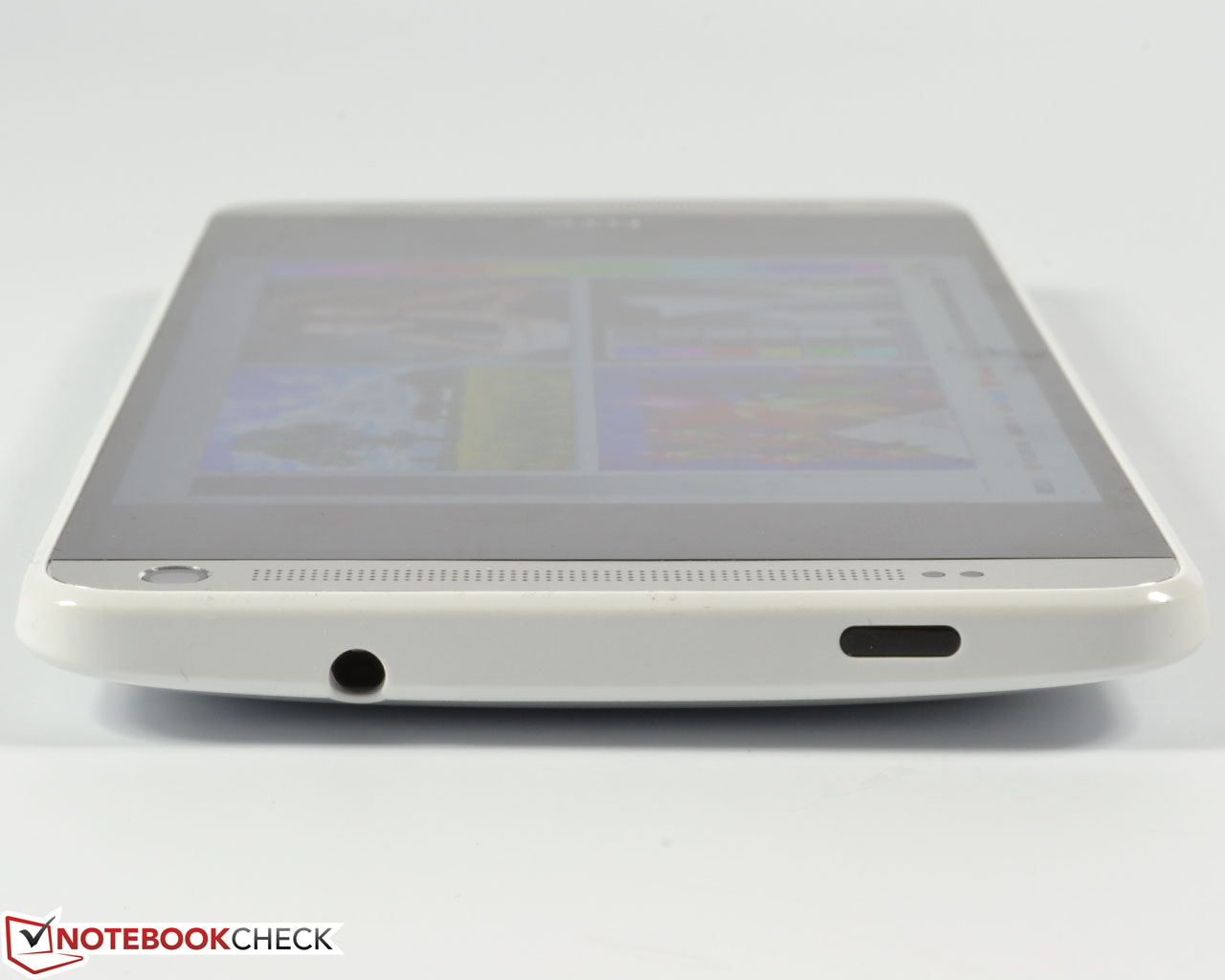

Top: Audio jack, infrared sensor
Top: Audio jack, infrared sensor

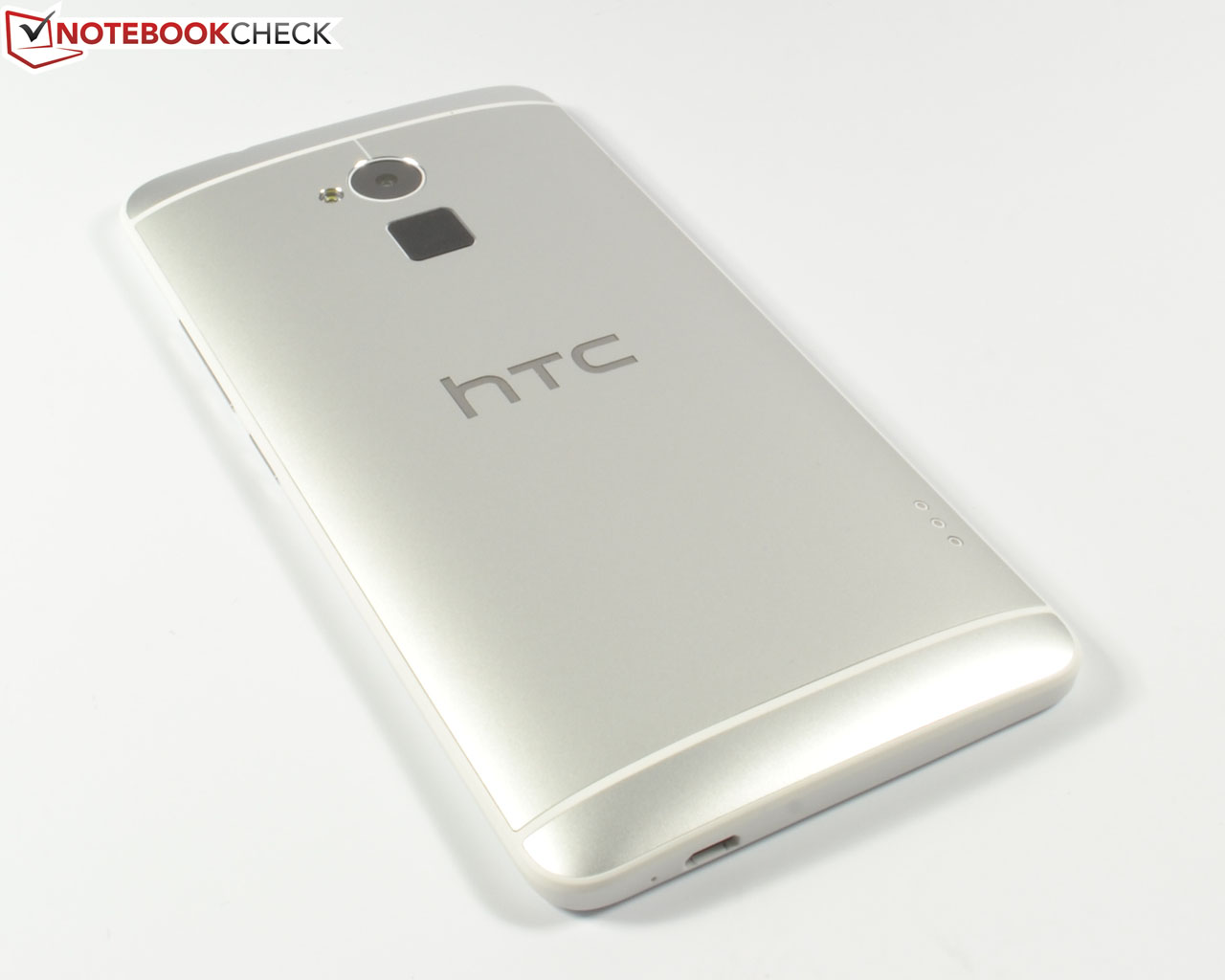

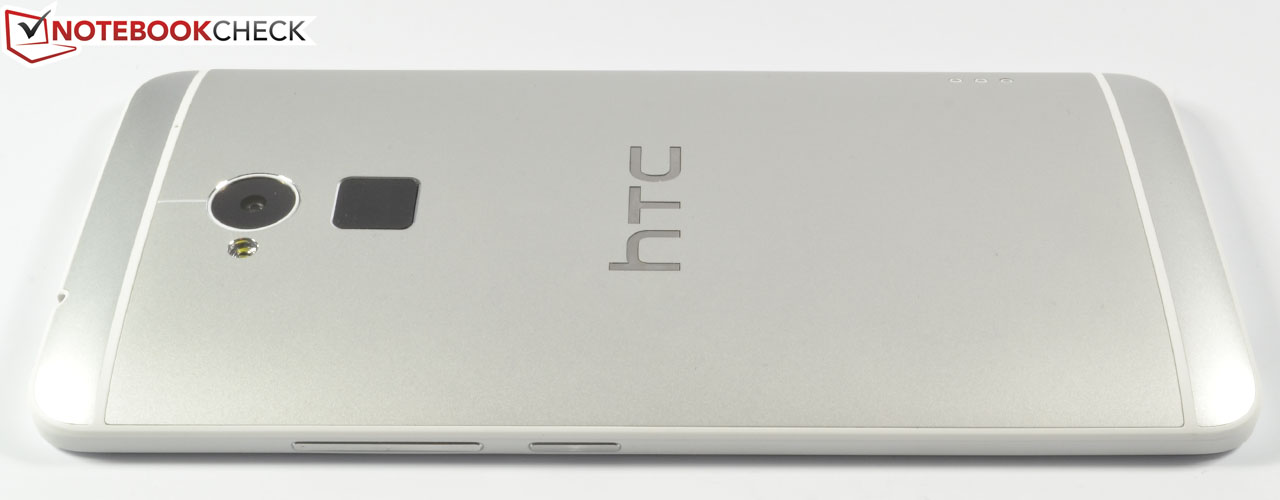

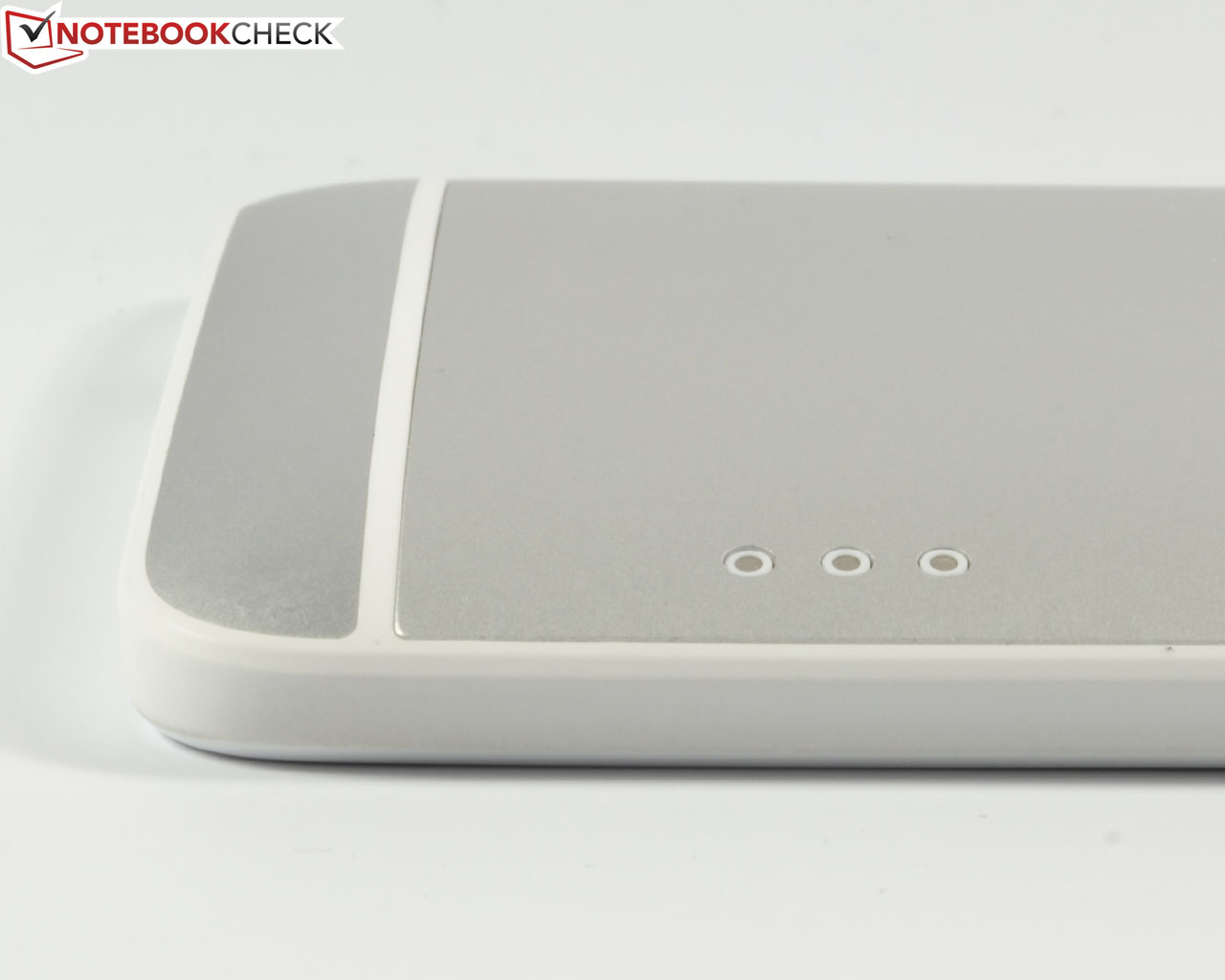

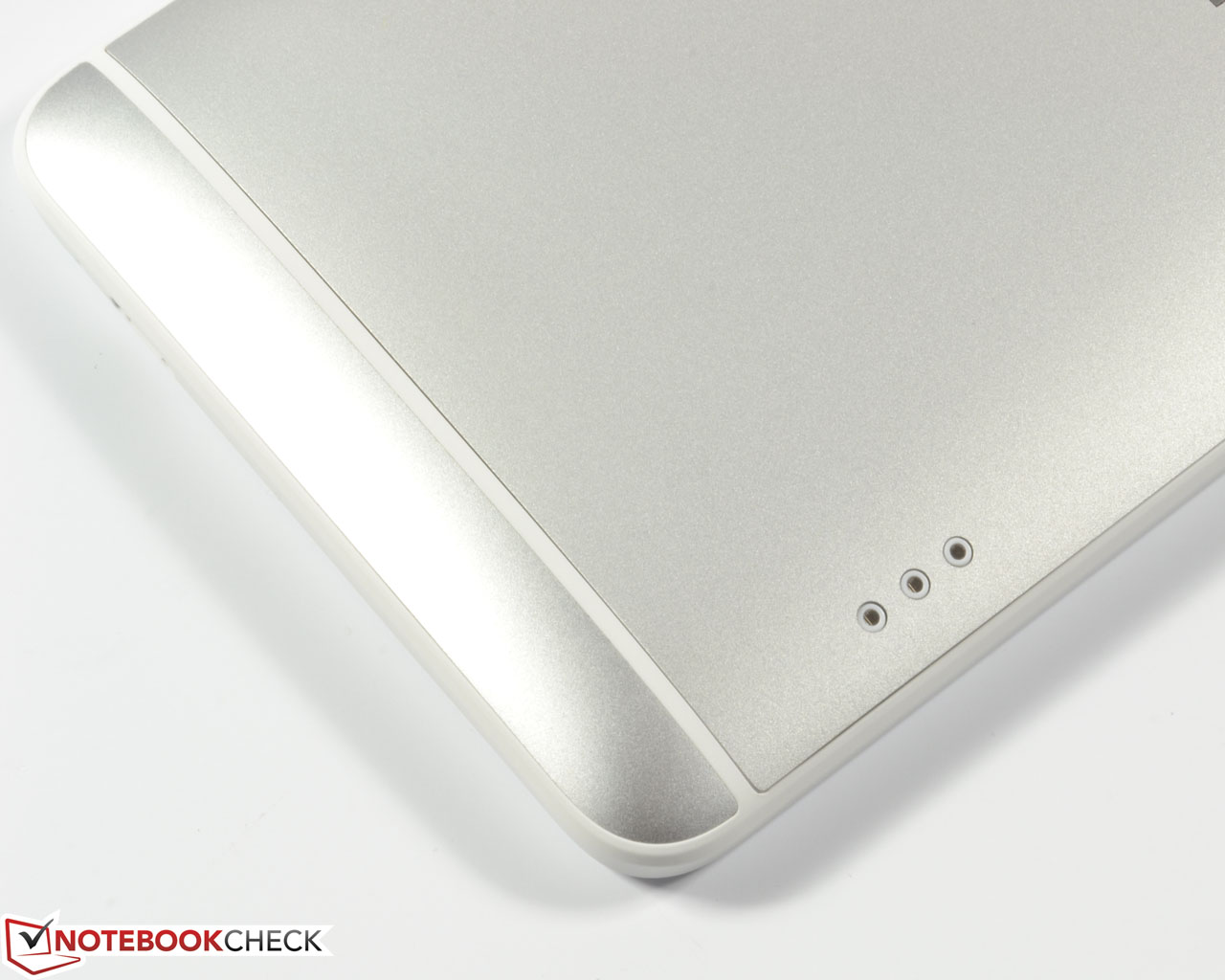

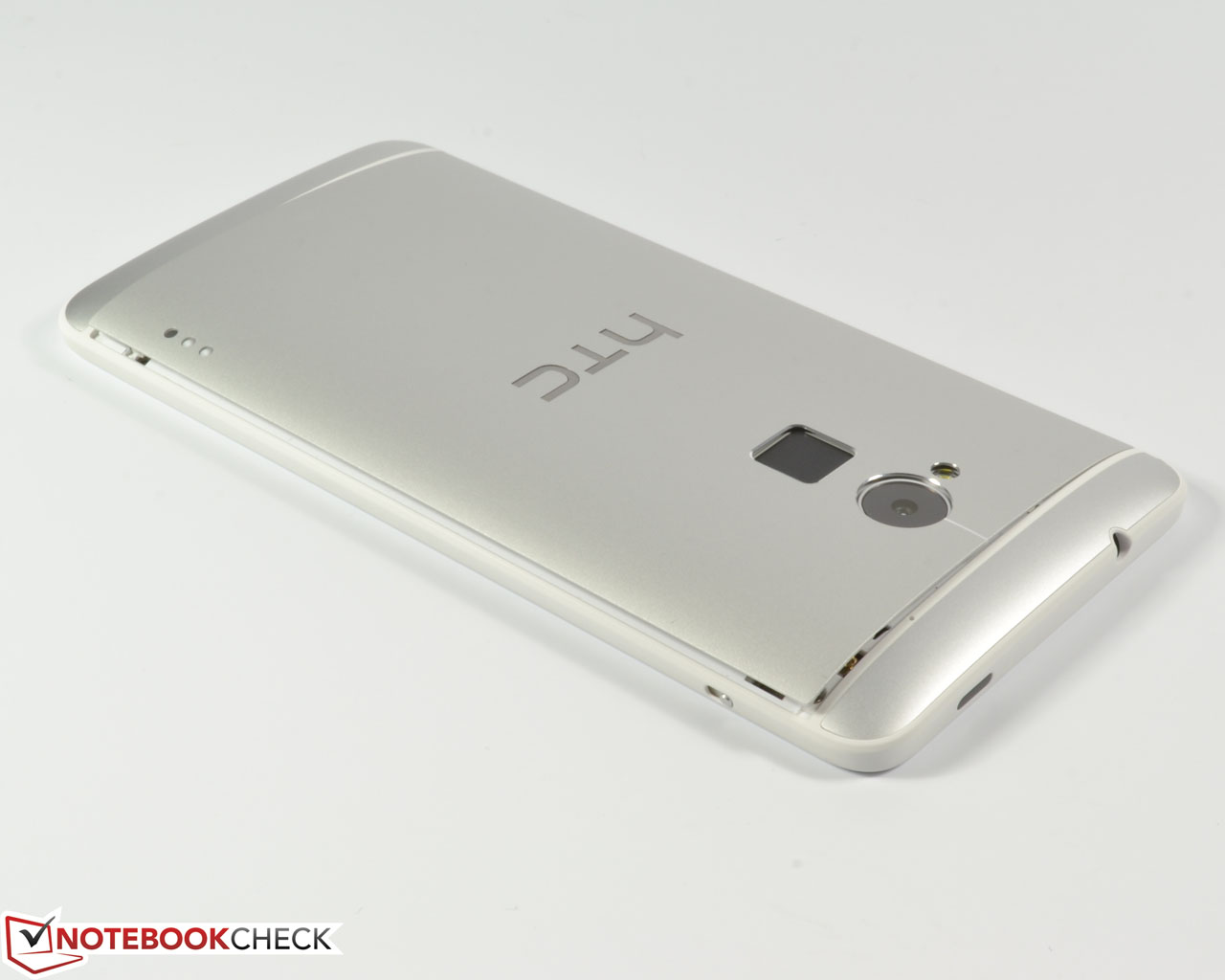

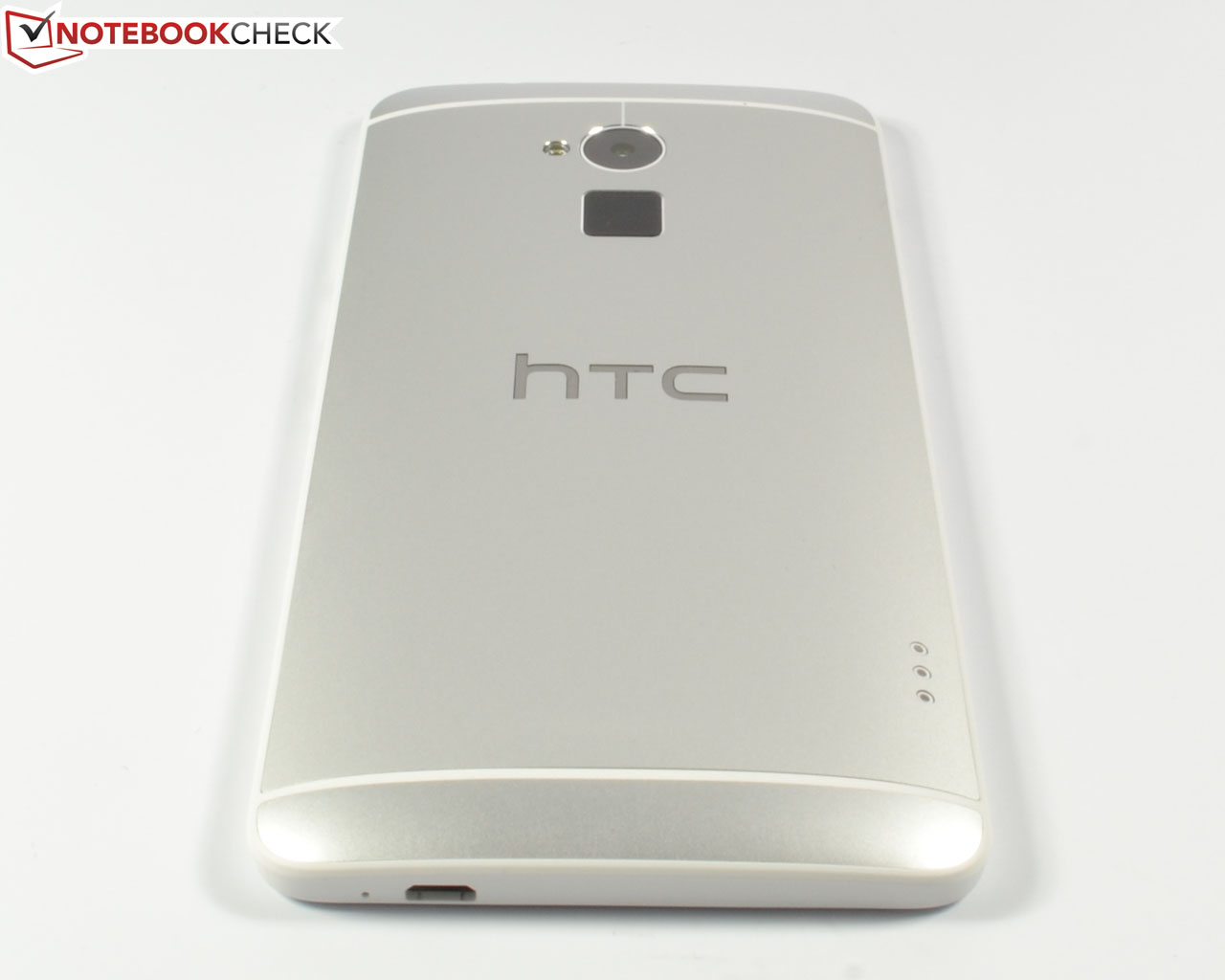

Back: Pogo pin...
Back: Pogo pin...

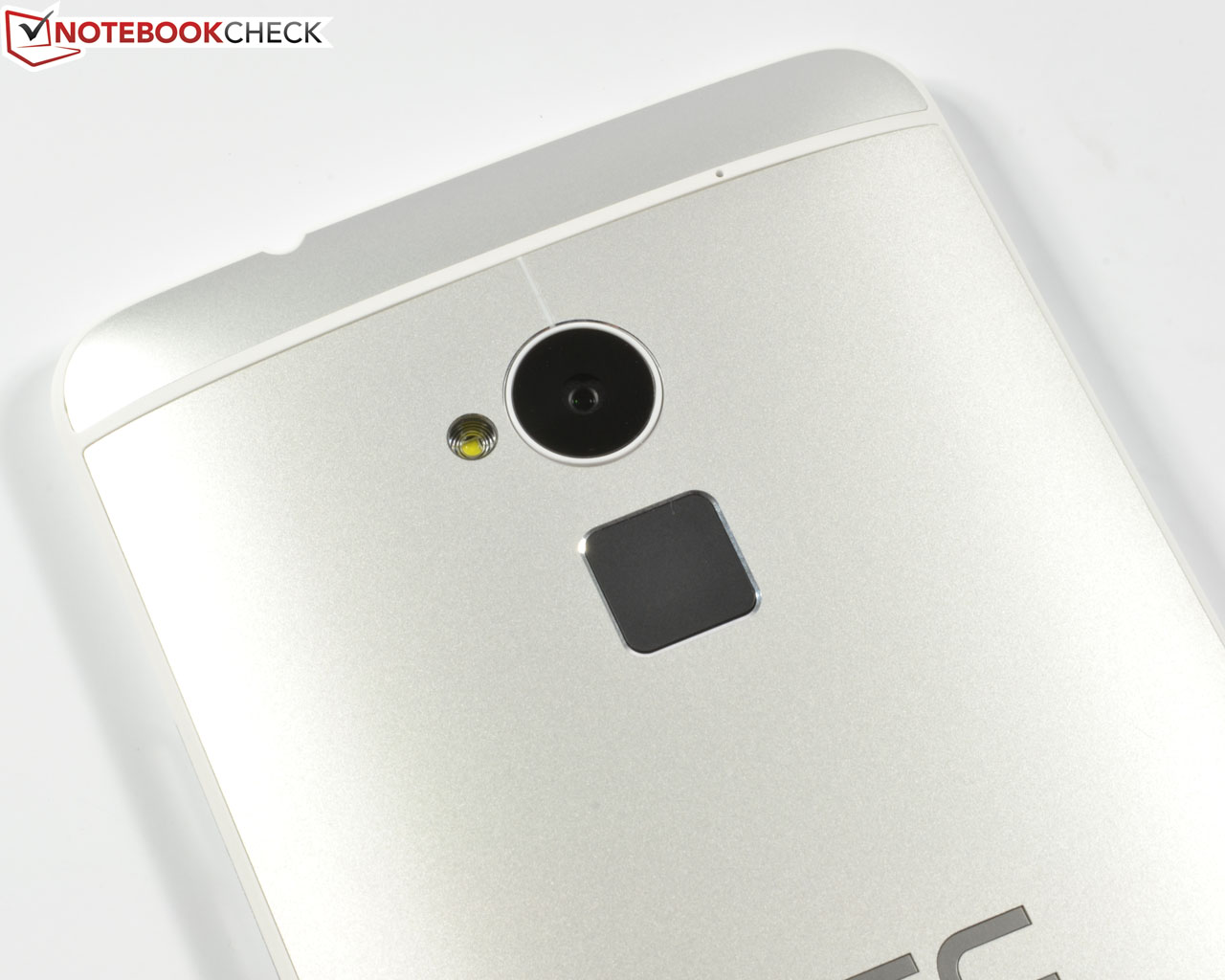

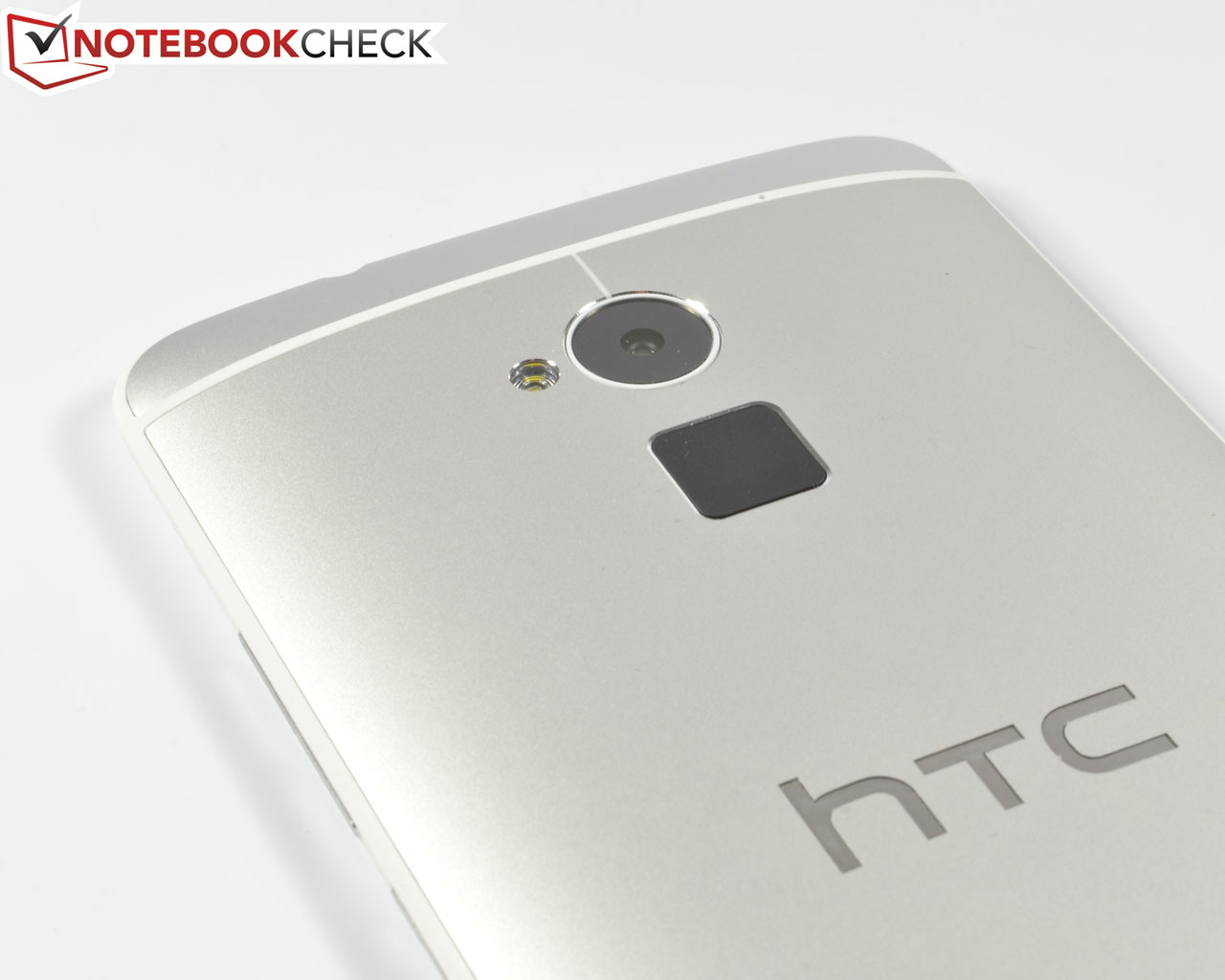

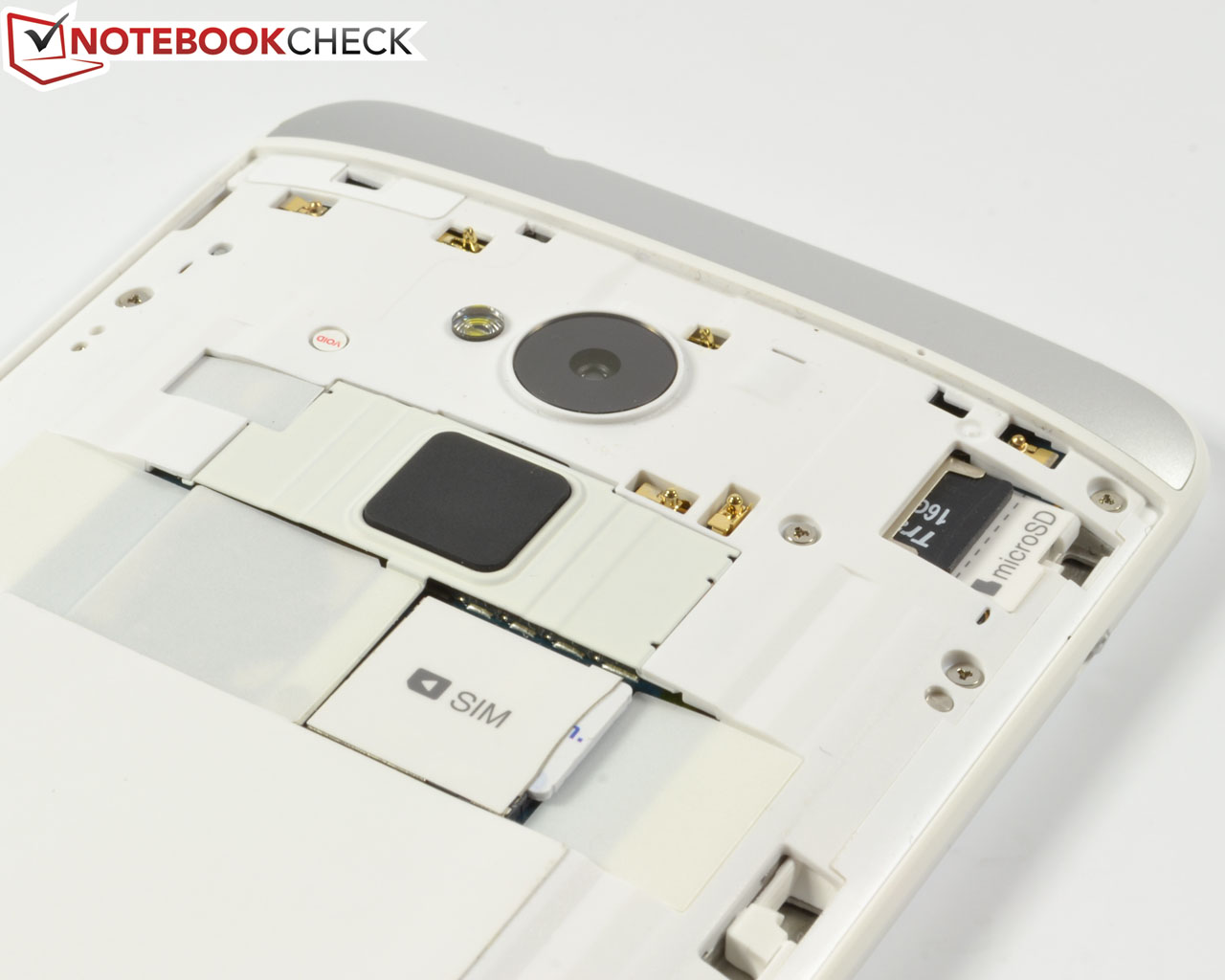

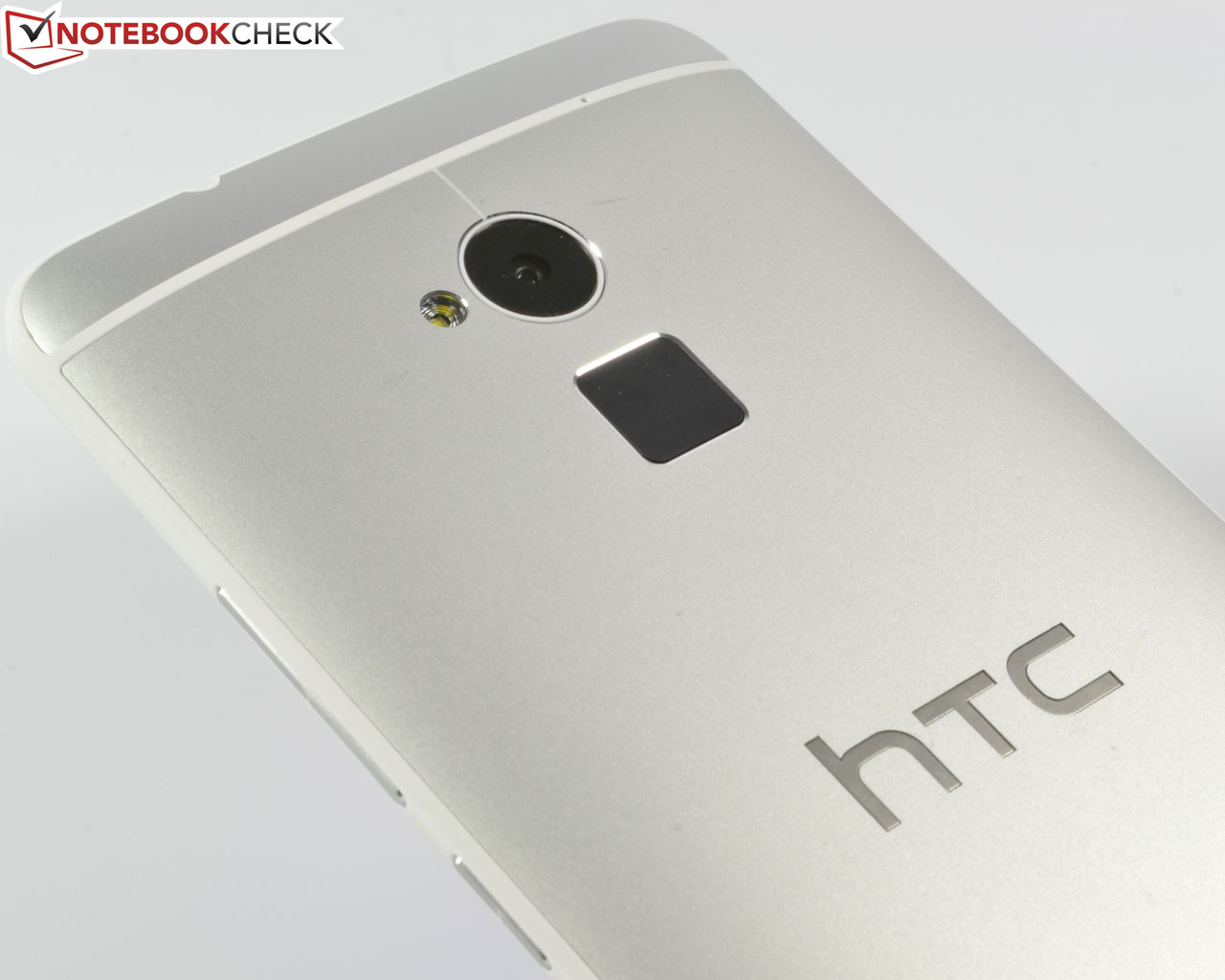

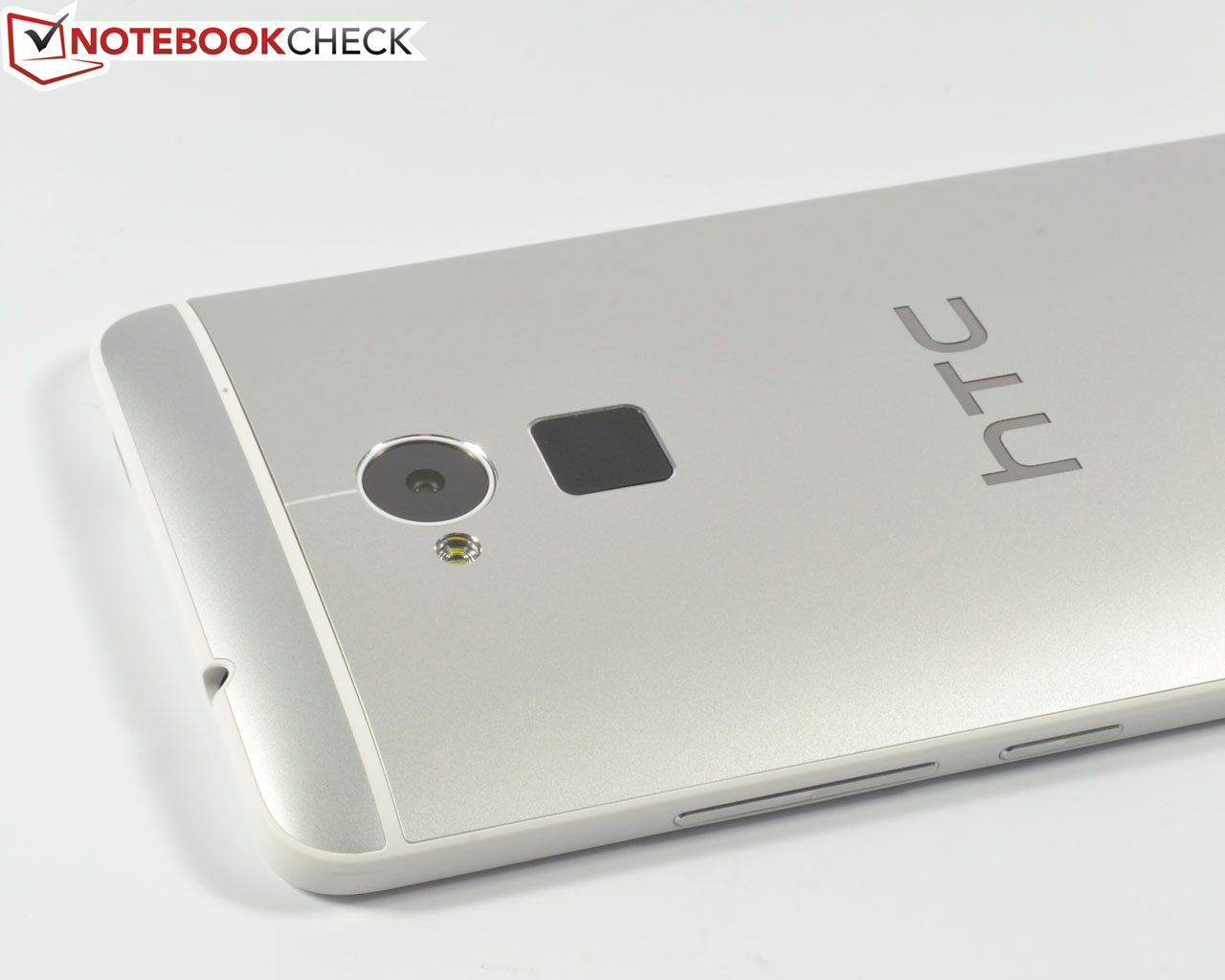

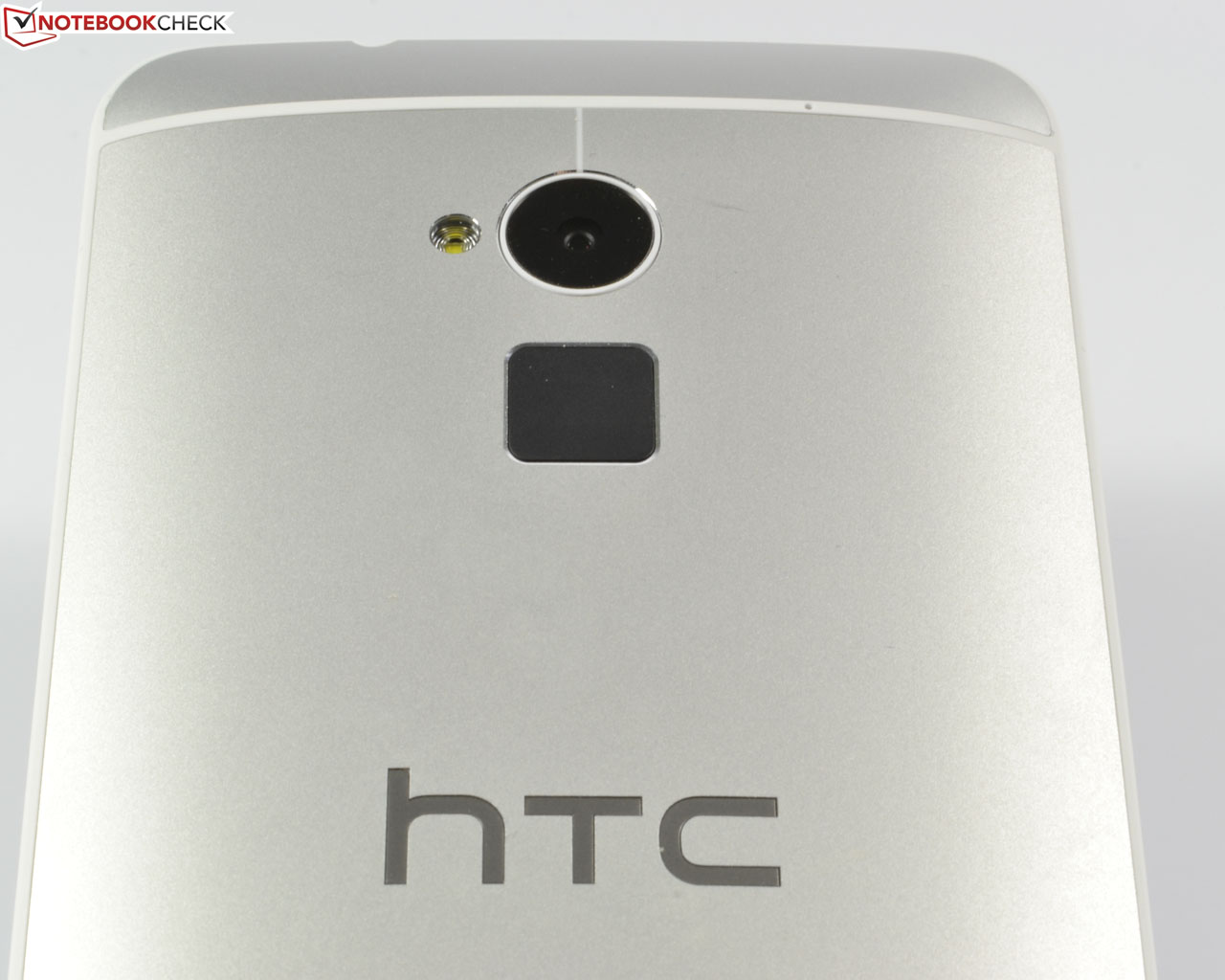

...and fingerprint scanner
...and fingerprint scanner

Software

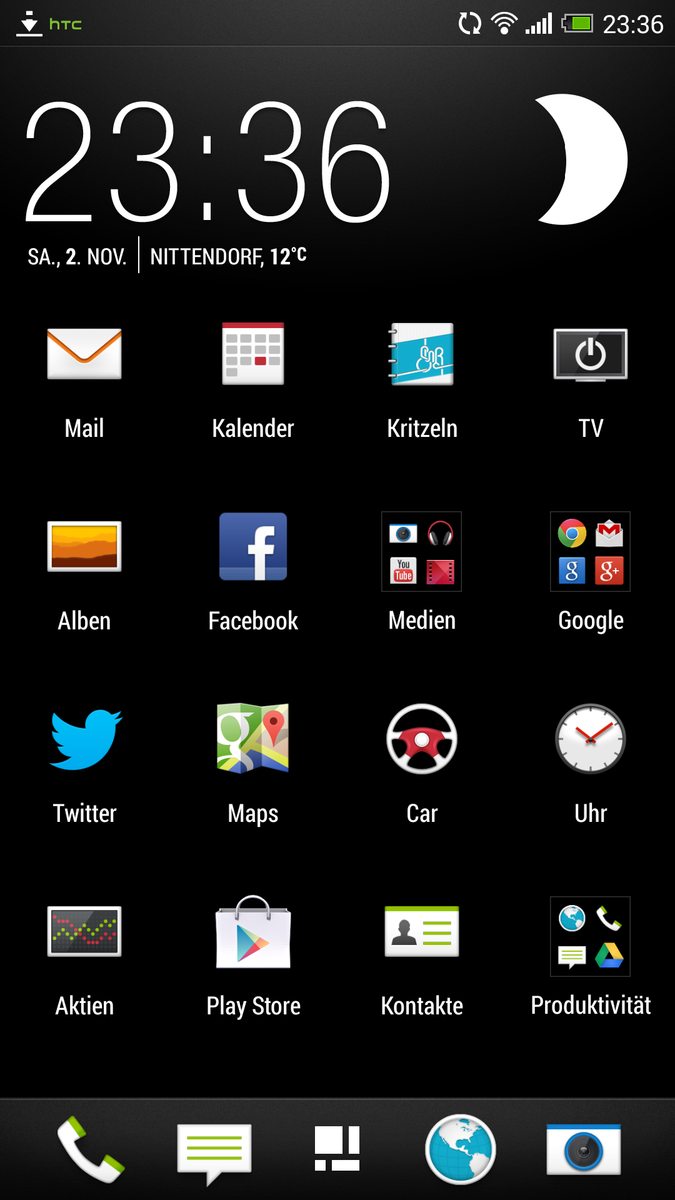

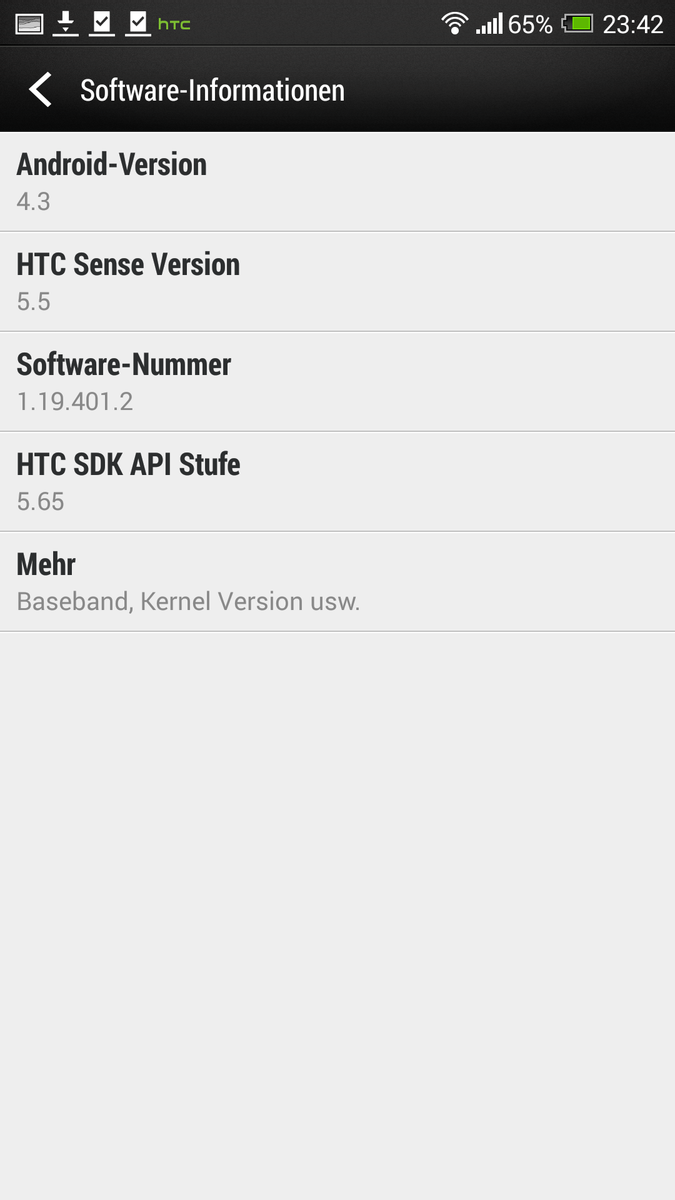

Unlike HTC's One and HTC's One Mini, the One Max is delivered with Android 4.3 (Jelly Bean). According to HTC, an update to the new Android 4.4 KitKat is coming in the first quarter of 2014. HTC also installs its new Sense 5.5 interface on the phablet. The user interface looks good and can be used instinctively. The modifications go beyond the Home screen and reach deep into the system settings. Like in the smaller models, the One Max can use HTC BlinkFeed and HTC Zoe. More information about these programs and other proprietary software can be found in the review of HTC's One. The larger screen enables displaying five apps beside each other; only four were possible on the One. Besides that, a maximum rate can be determined in the automatic screen brightness options.

Communication & GPS

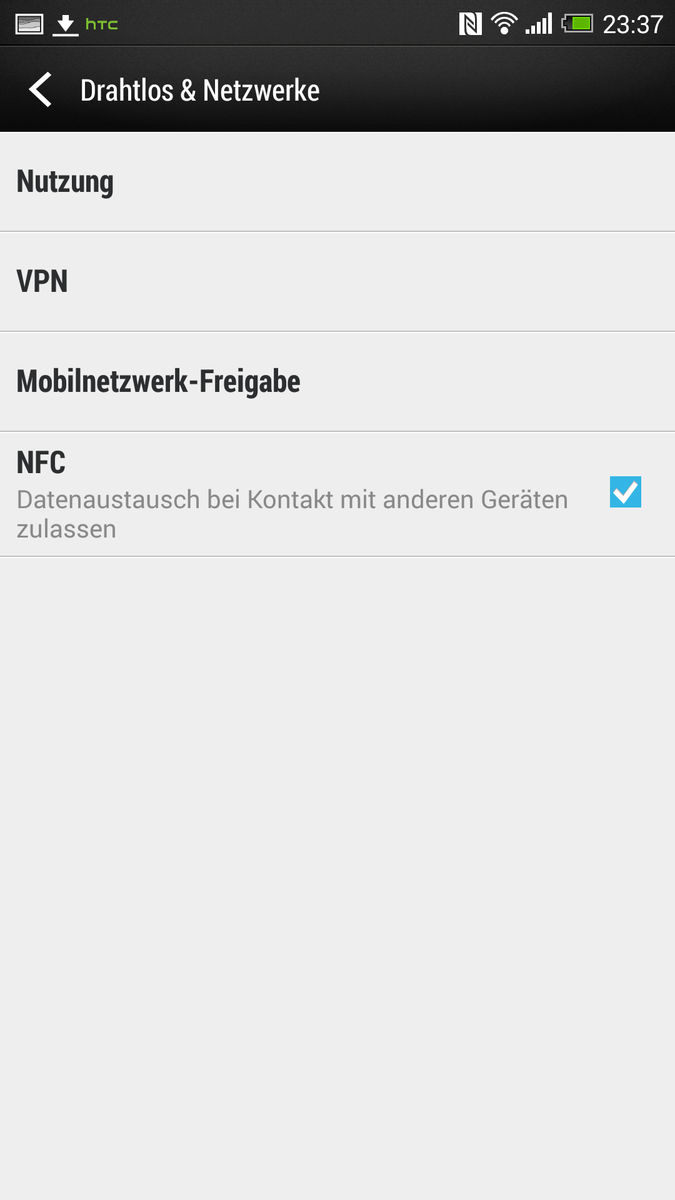

Like HTC's One, the One Max features near-field communication (NFC) and an infrared port. The other communication modules are also the same as in HTC's One flagship. The LTE module transmits in 800/1800/2600 MHz, and HSPA+ (850/900/1900/2100 MHz) is also available. Beyond that, the One Max supports Wi-Fi 802.11 a/ac/b/g/n and Bluetooth 4.0 for local data sharing. The device can also transmit multimedia content via DLNA.

The integrated aGPS module (including GLONASS) locates HTC's One Max quite swiftly even indoors when standing close to a window, and works reliably and accurately. We additionally performed our navigation comparison test using a Garmin Edge 500. For this, we cycled along a predefined test route, which was partly densely wooded and had many different regional conditions. The review sample displayed larger deviations from the actual route in the area of a bridge. HTC's One Max tended to show zigzag-like shortcuts and frequently presumed that we were off the test route. Even the forest trail was only detected inaccurately. The One Max did not display any major tracking deviations on open and straight roads. The differences were very clear in the overall distance, where the review sample displayed about one kilometer less than the Garmin navigation system. The One Max is on par with the Samsung Galaxy Note 3 and Sony Xperia Z Ultra contenders, but cannot compete with the category leader Apple iPhone 5s. Nevertheless, the accuracy is overall acceptable.

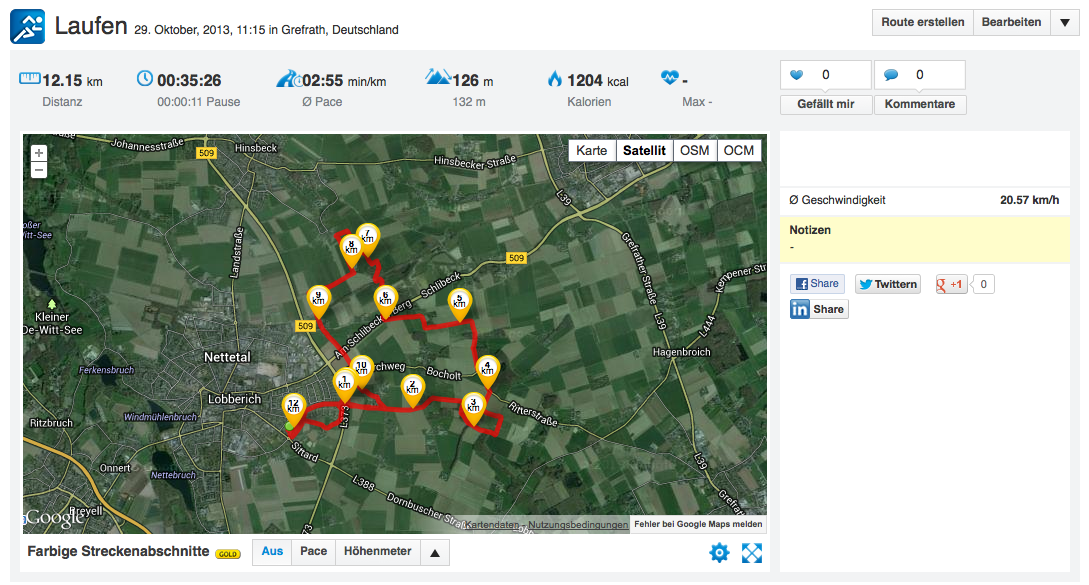

Garmin Edge 500 overview
Garmin Edge 500 overview

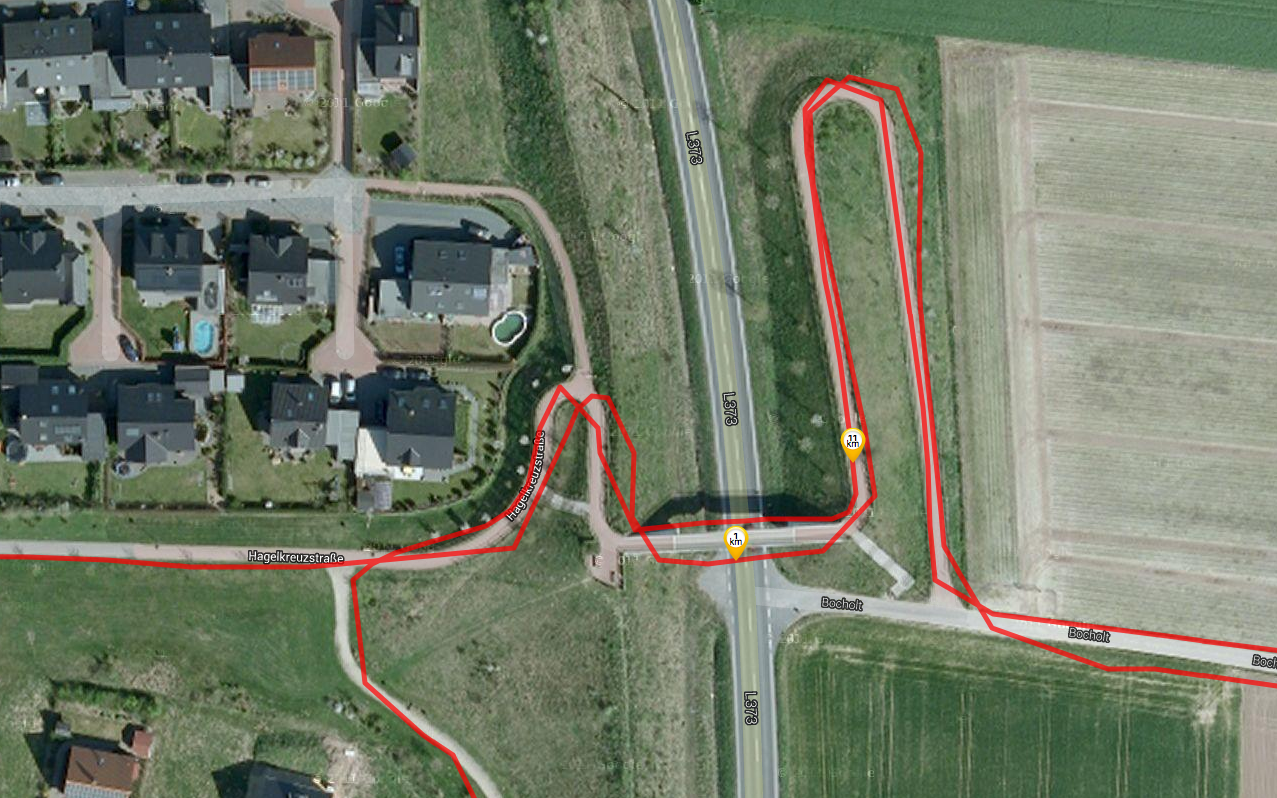

Garmin Edge 500 bridge
Garmin Edge 500 bridge

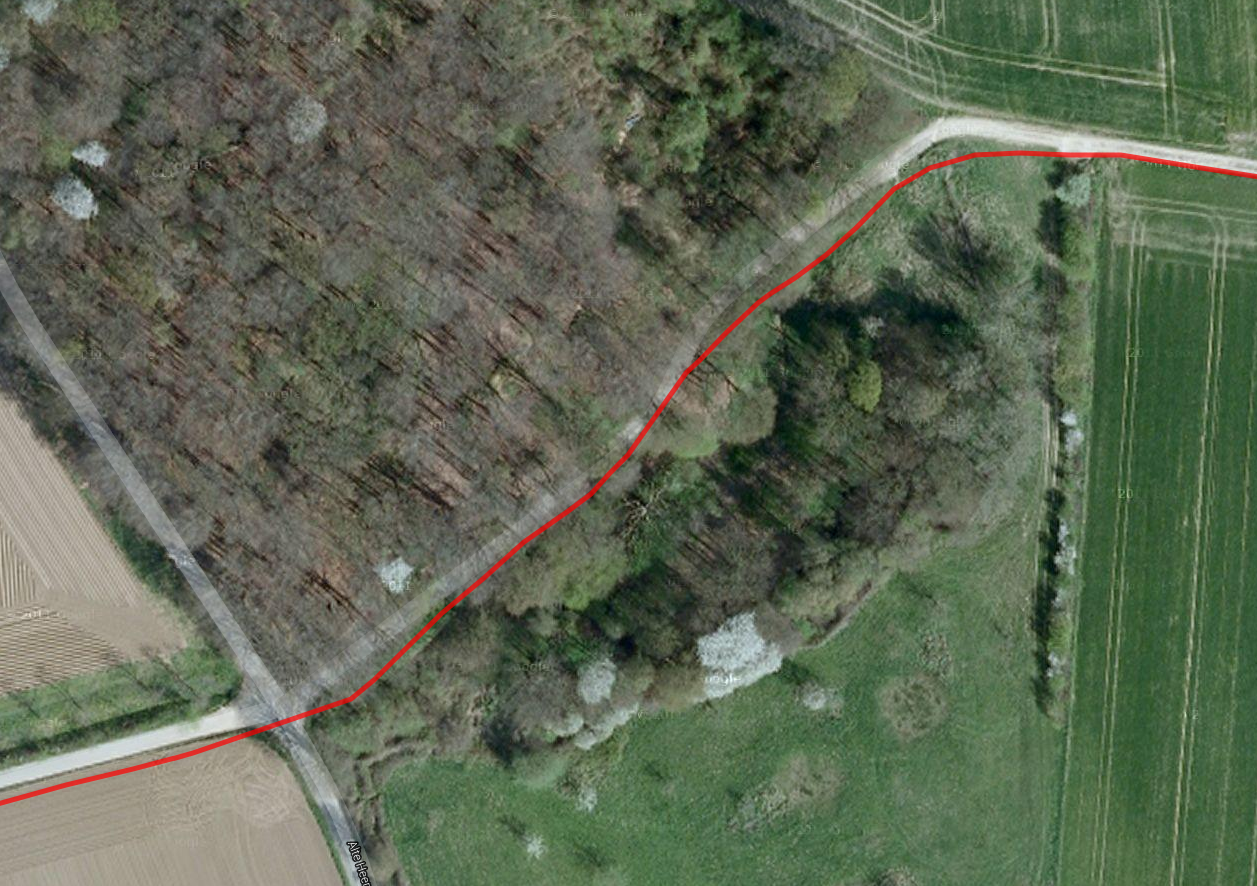

Garmin Edge 500 woods
Garmin Edge 500 woods

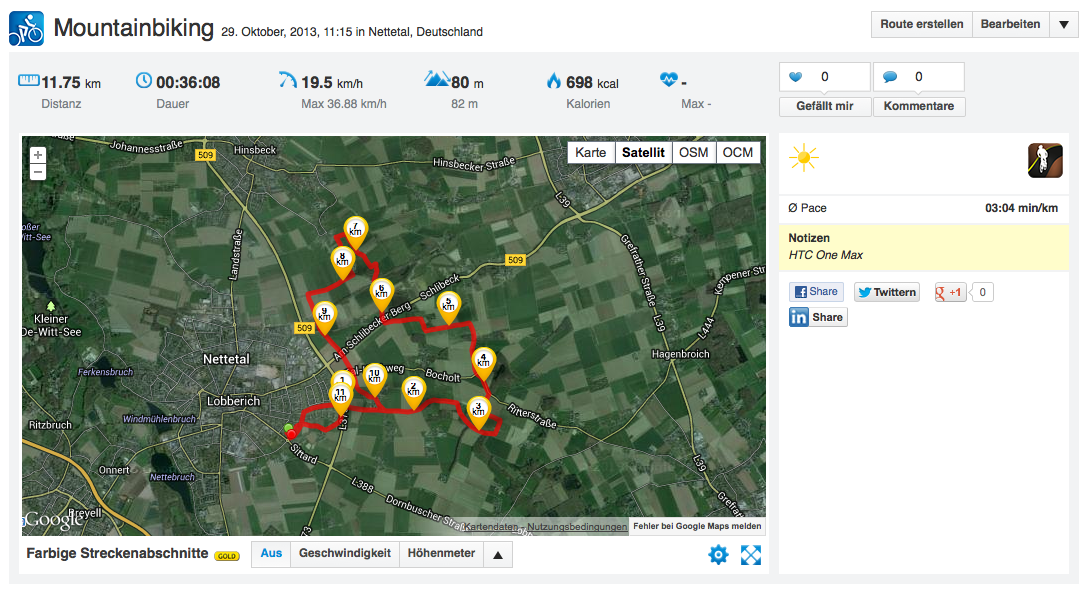

HTC One Max overview
HTC One Max overview

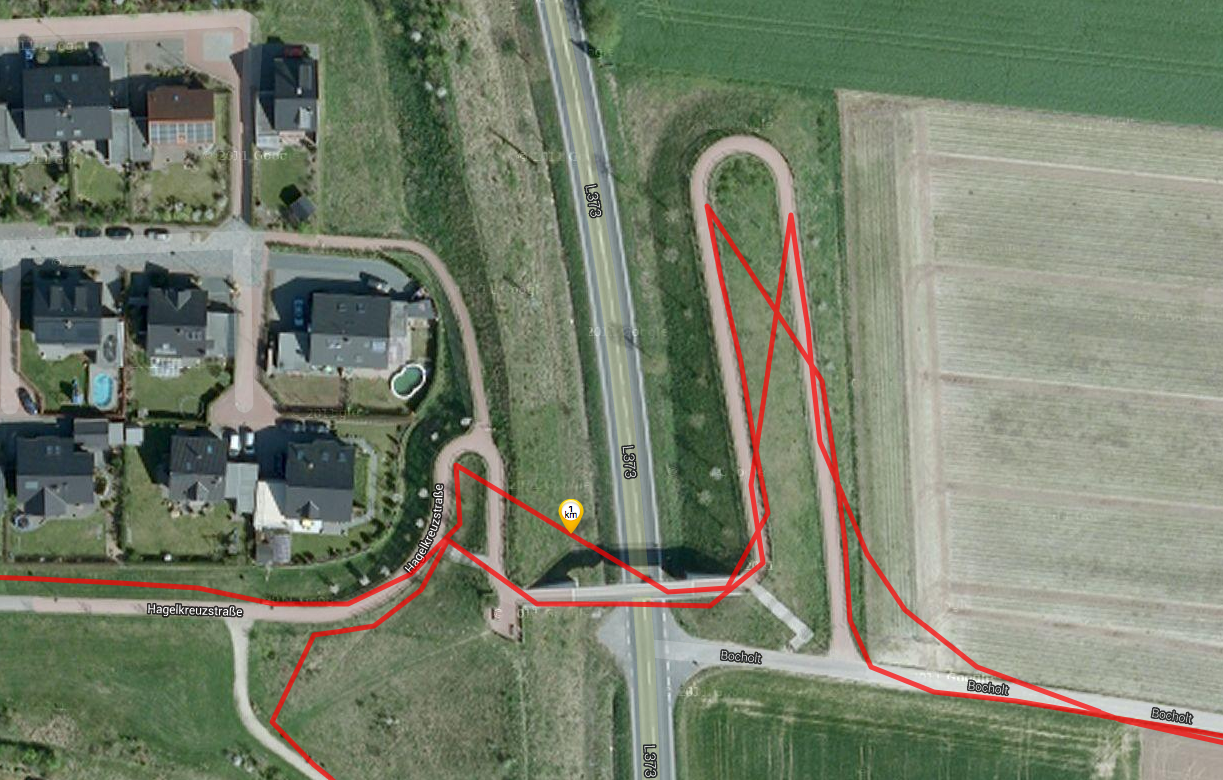

HTC One Max bridge
HTC One Max bridge

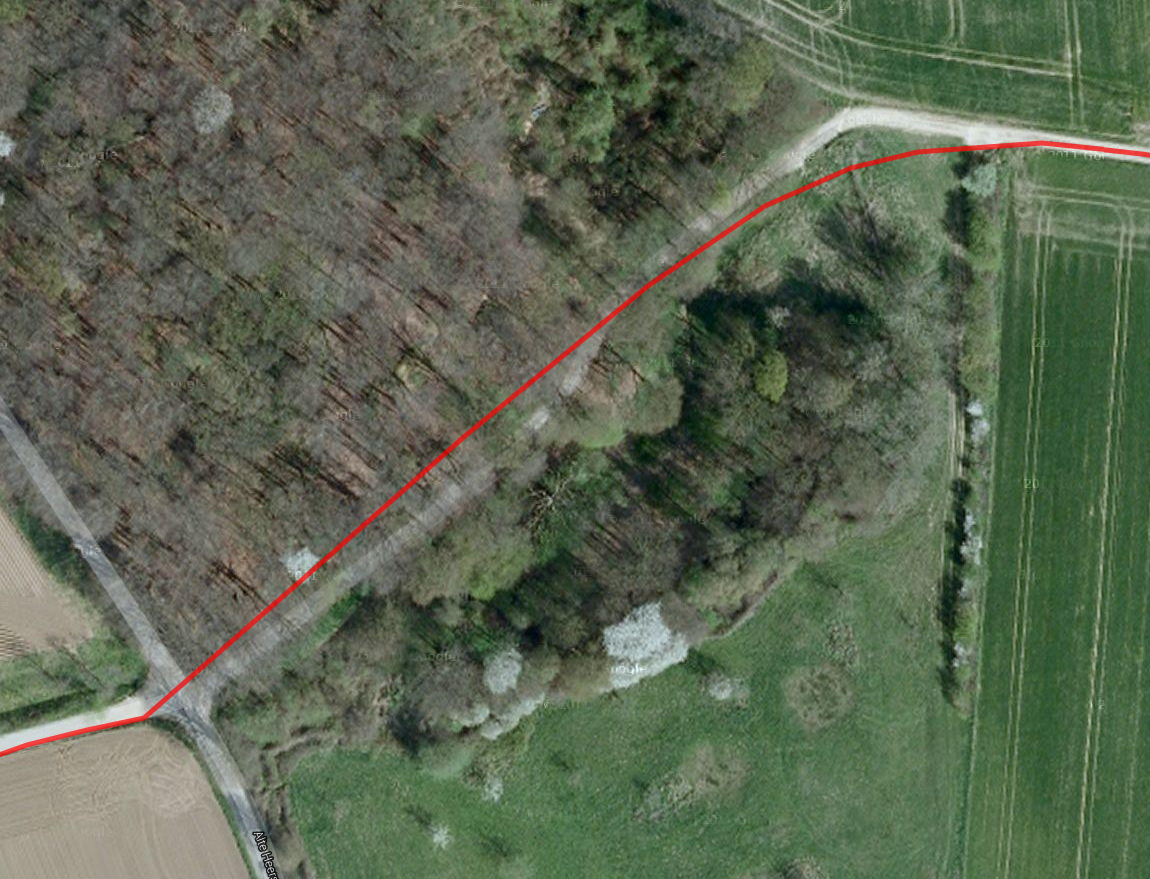

HTC One Max woods
HTC One Max woods

Telephony and Speech Quality

The telephone function under Android 4.3 looks a bit different due to HTC's Sense 5.5 interface, but does not contain any surprises. Its use is instinctive.

The speech and audio quality during calls is good. Test calls were loud and clear. The front speaker excels in hands-free mode and offers a sufficiently loud and very good reproduction. The included headset is almost just as decent.

Cameras and Multimedia

The camera modules from HTC's One and HTC's One Mini have been adopted without modifications. The rear-facing UltraPixel camera still has a resolution of 4 megapixels (2688x1520 pixels) and features a 1/3" BSI sensor, an f/2.0 aperture, and a 28 mm lens. Like HTC's One, the single pixels are considerably larger and allow capturing more light. Thus, a lower megapixel resolution can be applied. The five level Smart Flash is again installed, just like the 2.1 megapixel front-facing camera and a wide-angle lens (88 degrees). Videos are recorded in 1080p (1920x1080 pixels), and the primary camera features an HDR function. Solely the optical image stabilizer (OIS) has been omitted.

We shot several test pictures for comparison with the contenders. Although the camera sensor has a marginally higher luminosity, it cannot implement that convincingly in photos. Compared with the competition, the pictures look a bit darker, and lack both focus and color fidelity. The photos generally seem to struggle with a light color cast. The low maximum resolution sometimes results in blurry details, which is particularly evident when zooming in on image sections. Immediate contenders, such as Samsung's Galaxy Note 3, are clearly in the lead here.

Apple iPhone 5
Apple iPhone 5
Apple iPhone 5
Apple iPhone 5
Apple iPhone 5
Apple iPhone 5
HTC One Max
HTC One Max
HTC One Max
HTC One Max
HTC One Max
HTC One Max
Nokia Lumia 920
Nokia Lumia 920
Nokia Lumia 920
Nokia Lumia 920
Nokia Lumia 920
Nokia Lumia 920
Samsung Galaxy S4
Samsung Galaxy S4
Samsung Galaxy S4
Samsung Galaxy S4
Samsung Galaxy S4
Samsung Galaxy S4
Reference: Sony Alpha A57
Reference: Sony Alpha A57
Reference: Sony Alpha A57
Reference: Sony Alpha A57
Reference: Sony Alpha A57
Reference: Sony Alpha A57

Accessories

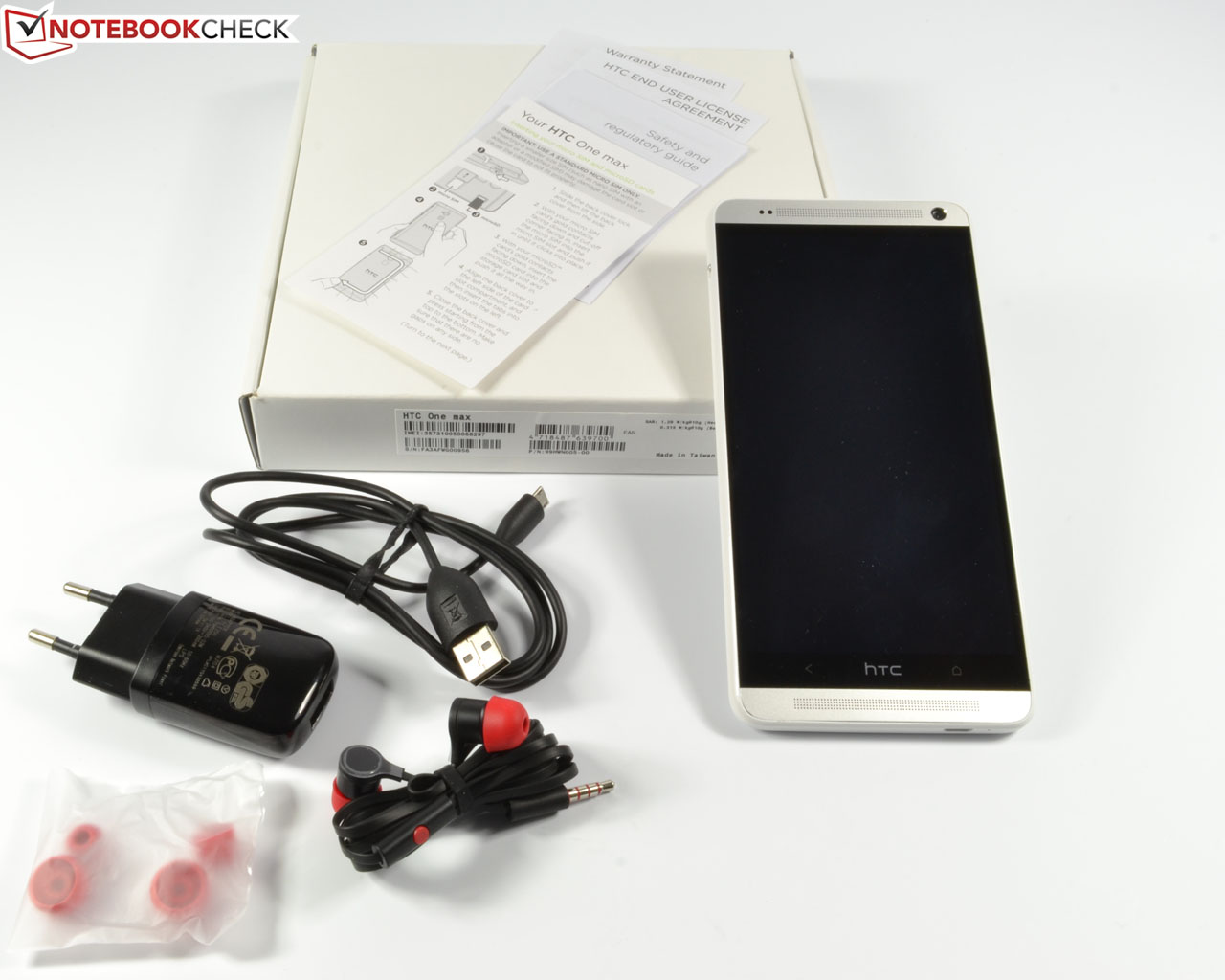

HTC's phablet comes with a modular power supply alongside a 1 m long USB cord, as well as the in-ear headset known from HTC.

In addition to styli, the BoomBass sound cube and various other accessories, a Power Flip Case is also optionally available. Besides its protective and stand functionality, the telephone cover also includes a 1150 mAh battery. It is connected to the phablet via the Pogo pin, and is automatically recharged via the device's micro-sub interface.

Warranty

HTC's One Max includes a 24 month warranty. The battery and accessories are only covered for 12 months.

Input Devices and Controls

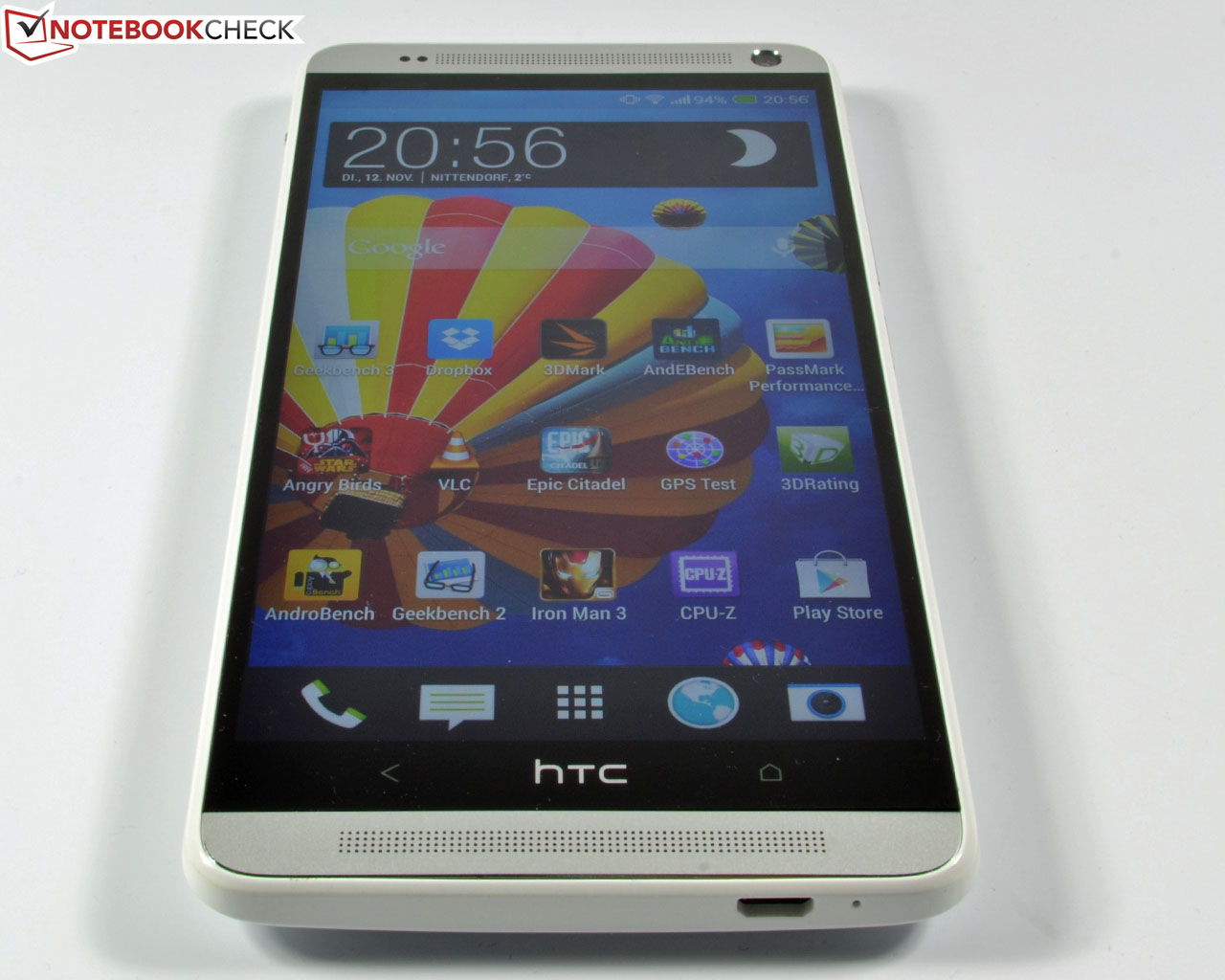

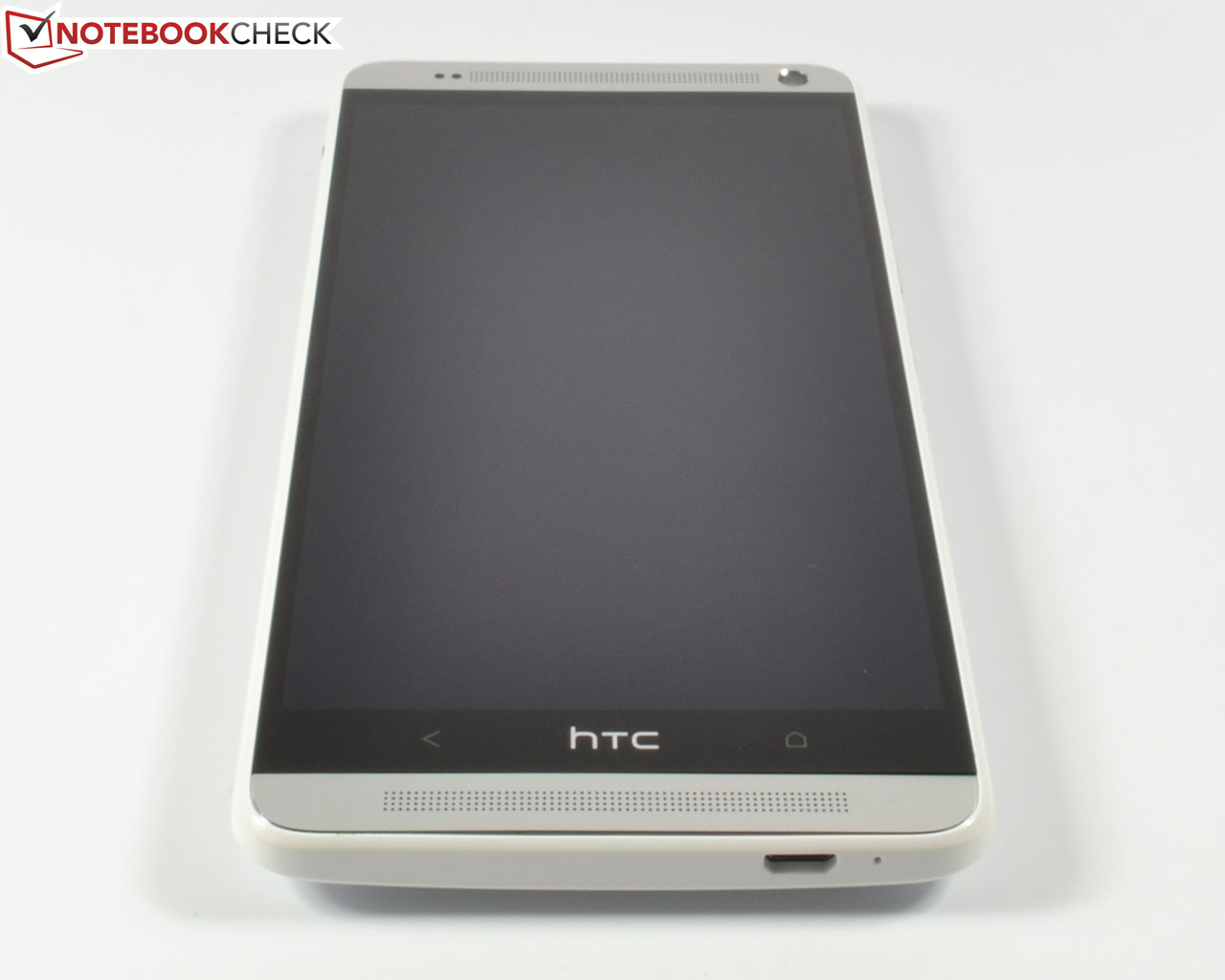

5.9-inch IPS SuperLCD 3 display
5.9-inch IPS SuperLCD 3 display
Fingerprint scanner, activated via swiping
Fingerprint scanner, activated via swiping

The fingerprint scanner is the only new feature compared with the input devices known from HTC's One and One Mini. It is located on the device's back, directly below the camera and supports up to three different fingerprints. Unlike the iPhone 5s, it cannot be used for shopping in the PlayStore. However, a total of three default applications or other installed apps can be mapped with three different fingers. For example, the right index finger can be used for unlocking the screen, another finger starts the camera and a third finger opens the internet browser. The finger is not placed on the sensor, but has to be swiped over it for identification. However, the phablet first has to be reactivated from standby before the sensor can be used. The sensor's positioning and a slight cavity on the back cover make its use instinctive and easy. The camera is sometimes unintentionally fingerprinted because the sensor is located directly below it.

The central input device, i.e. the capacitive 5.9-inch screen, detects all inputs precisely and implements them swiftly. The screen's 90° rotation is also fast. Multi-touch gestures make even more sense on a bigger screen and they function flawlessly.

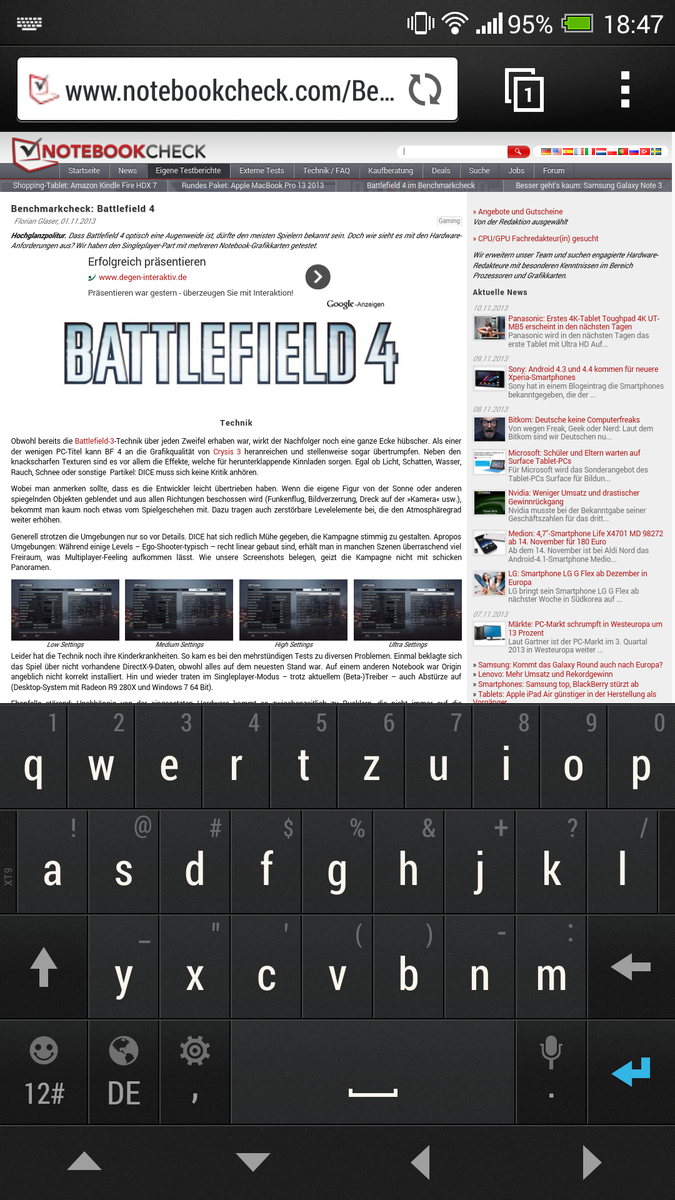

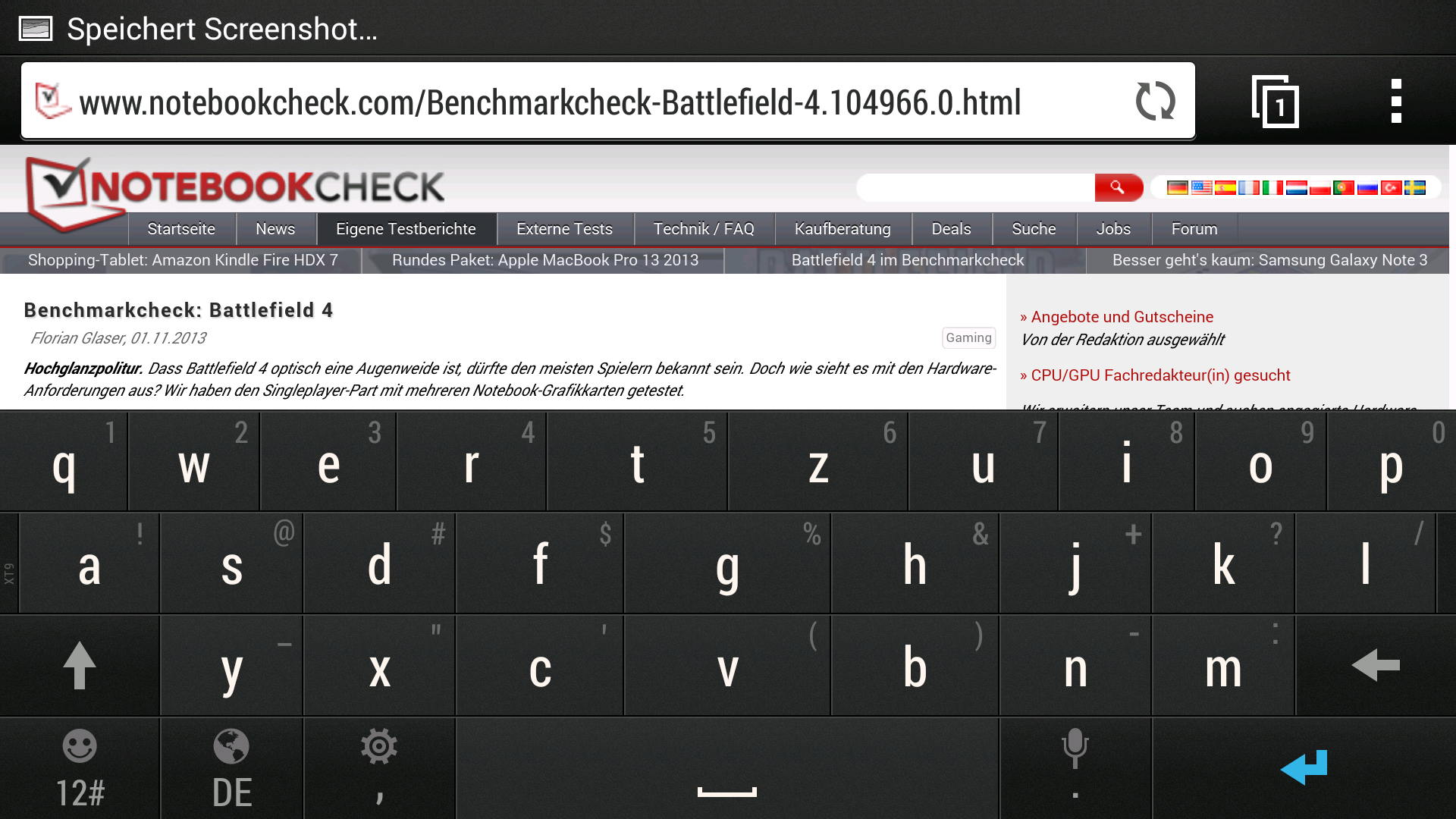

The screen's large diagonal also facilitates typing on the virtual QWERTY keyboard, which reserves less than half the screen in portrait mode. The keys take up about 50% of the screen in landscape mode, which still provides enough view of the website above it.

Display

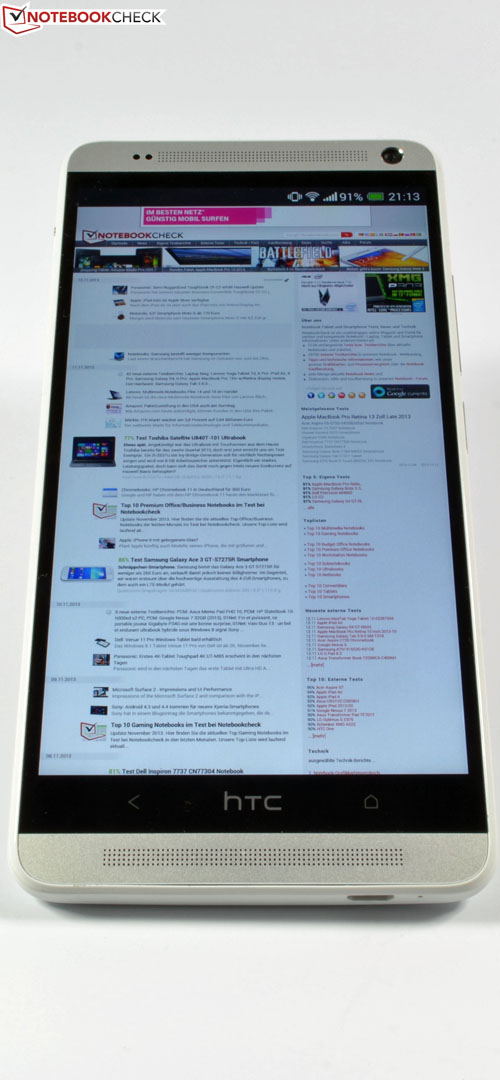

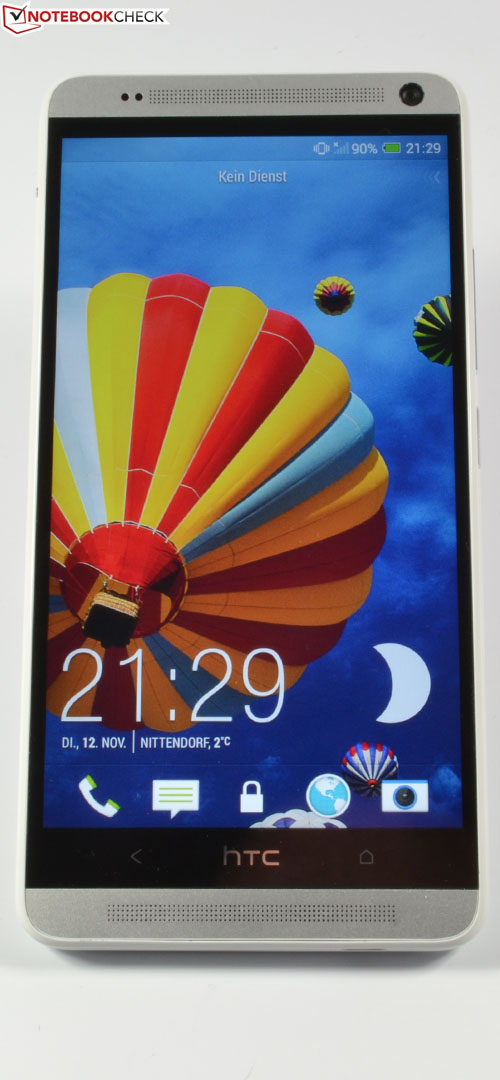

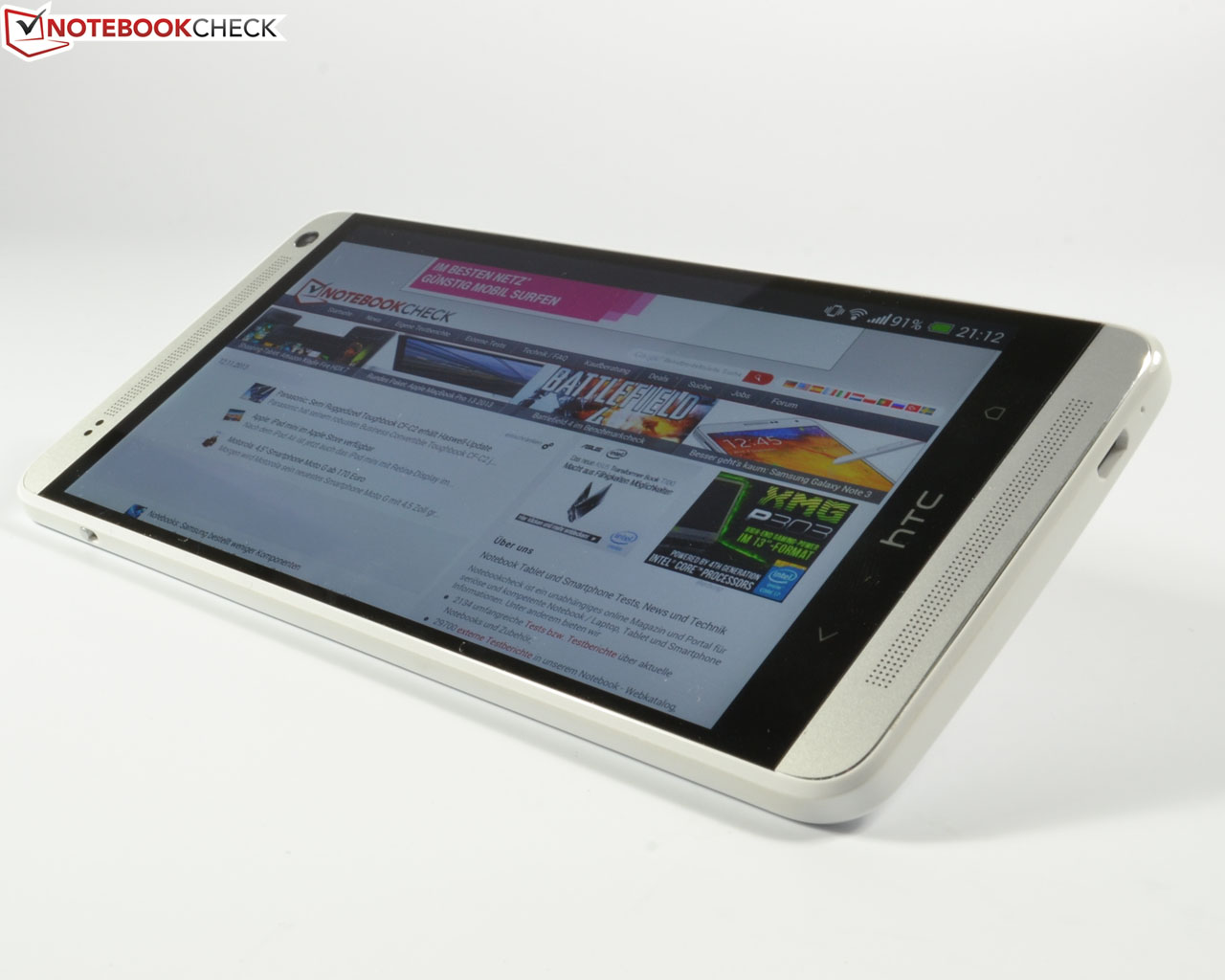

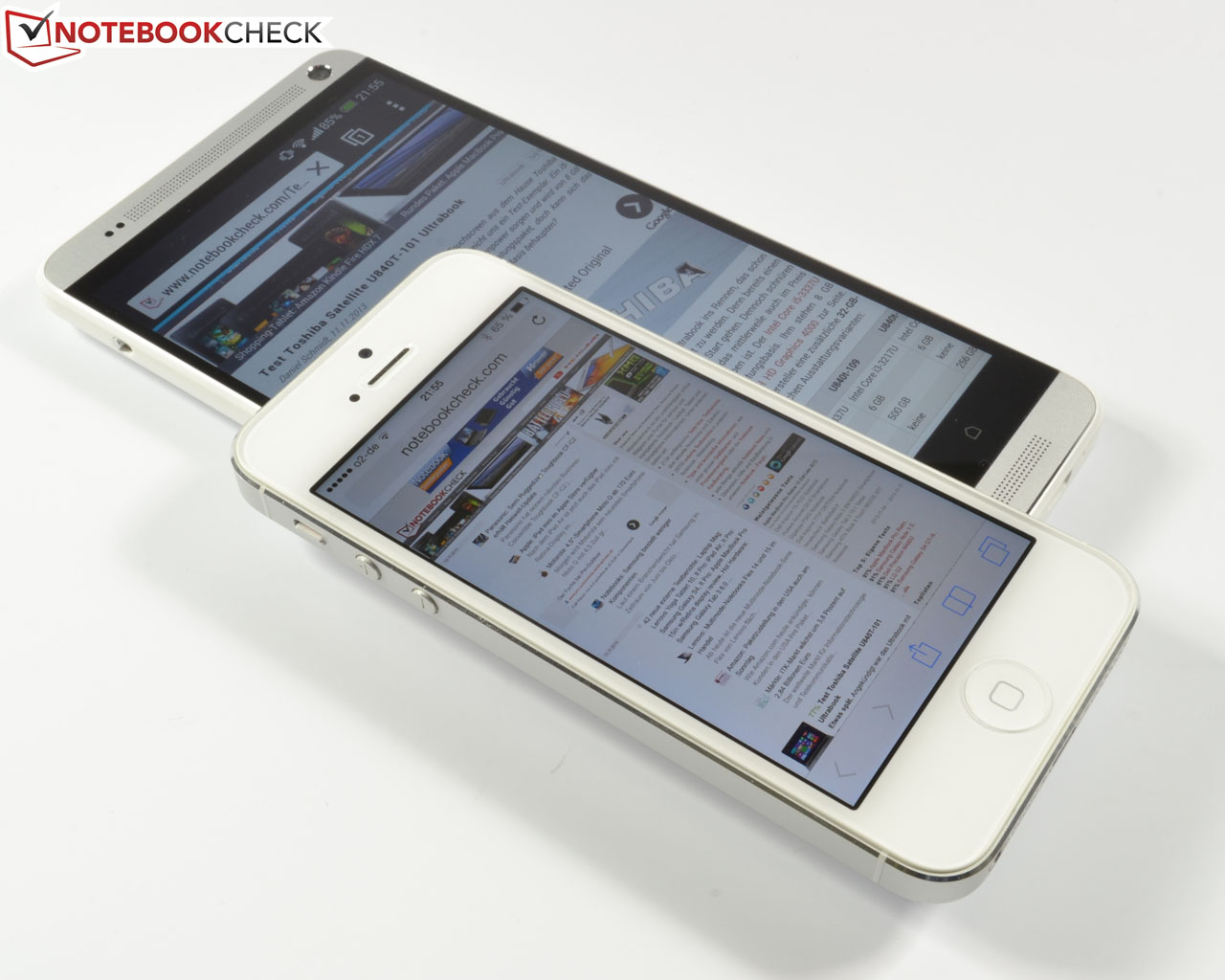

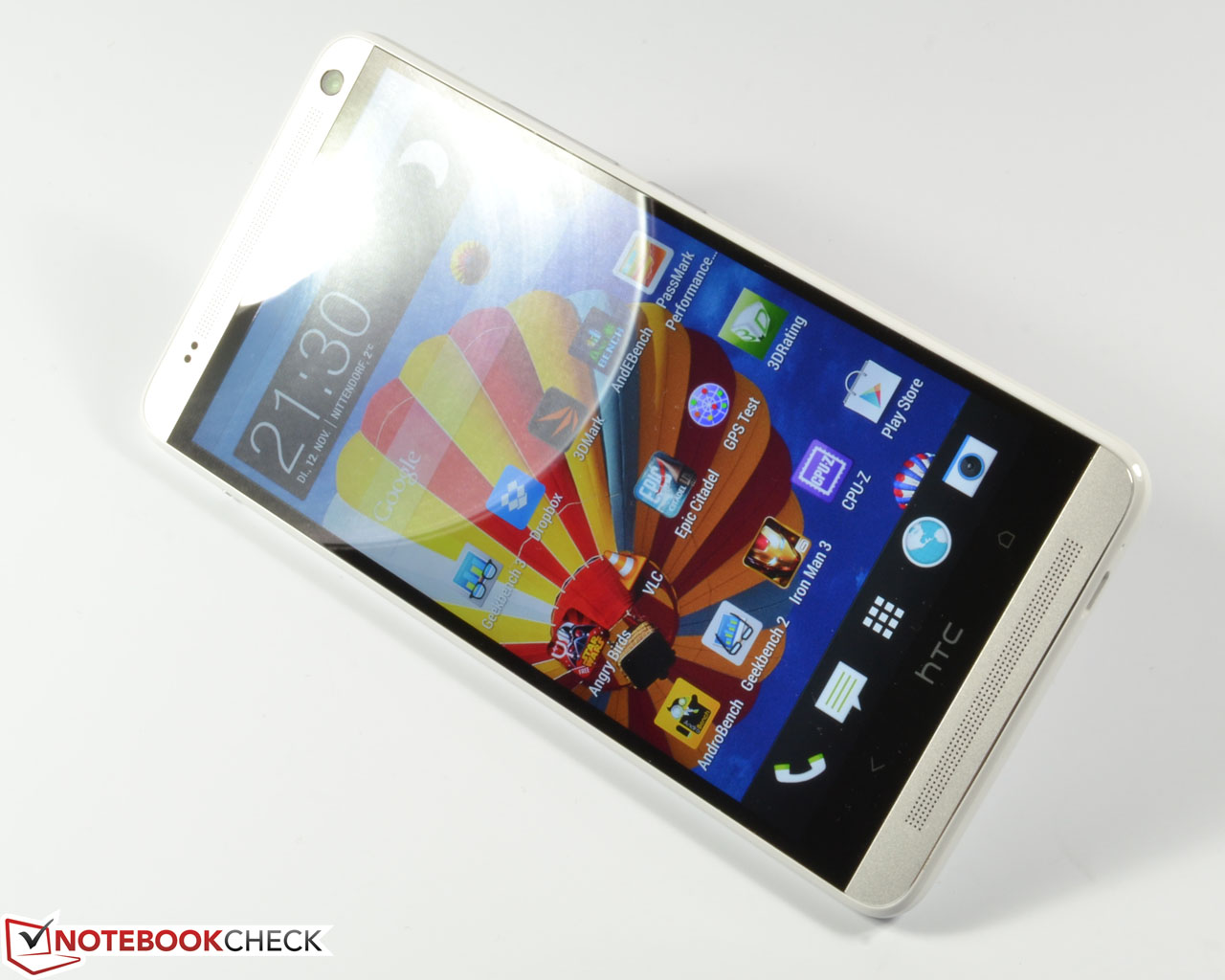

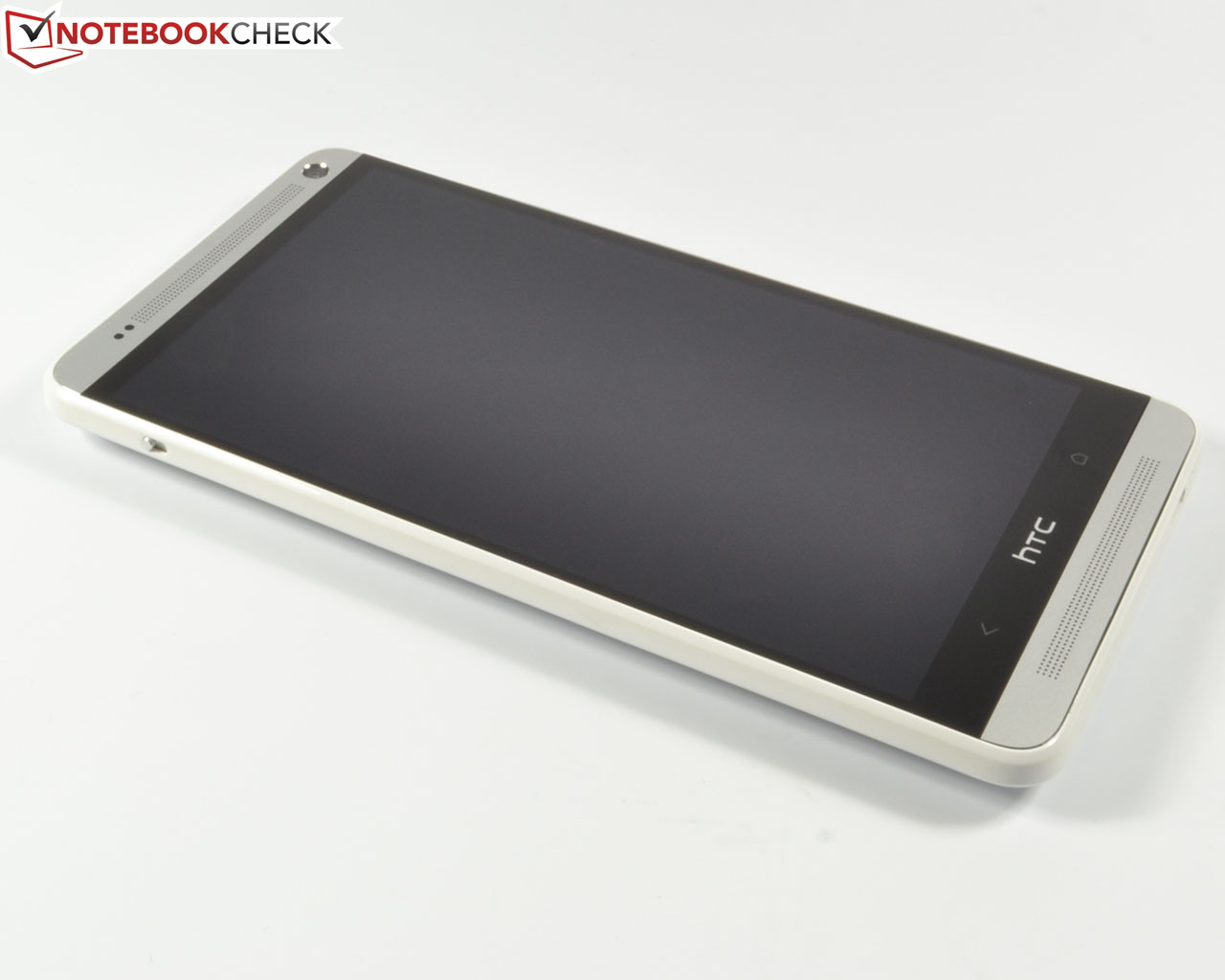

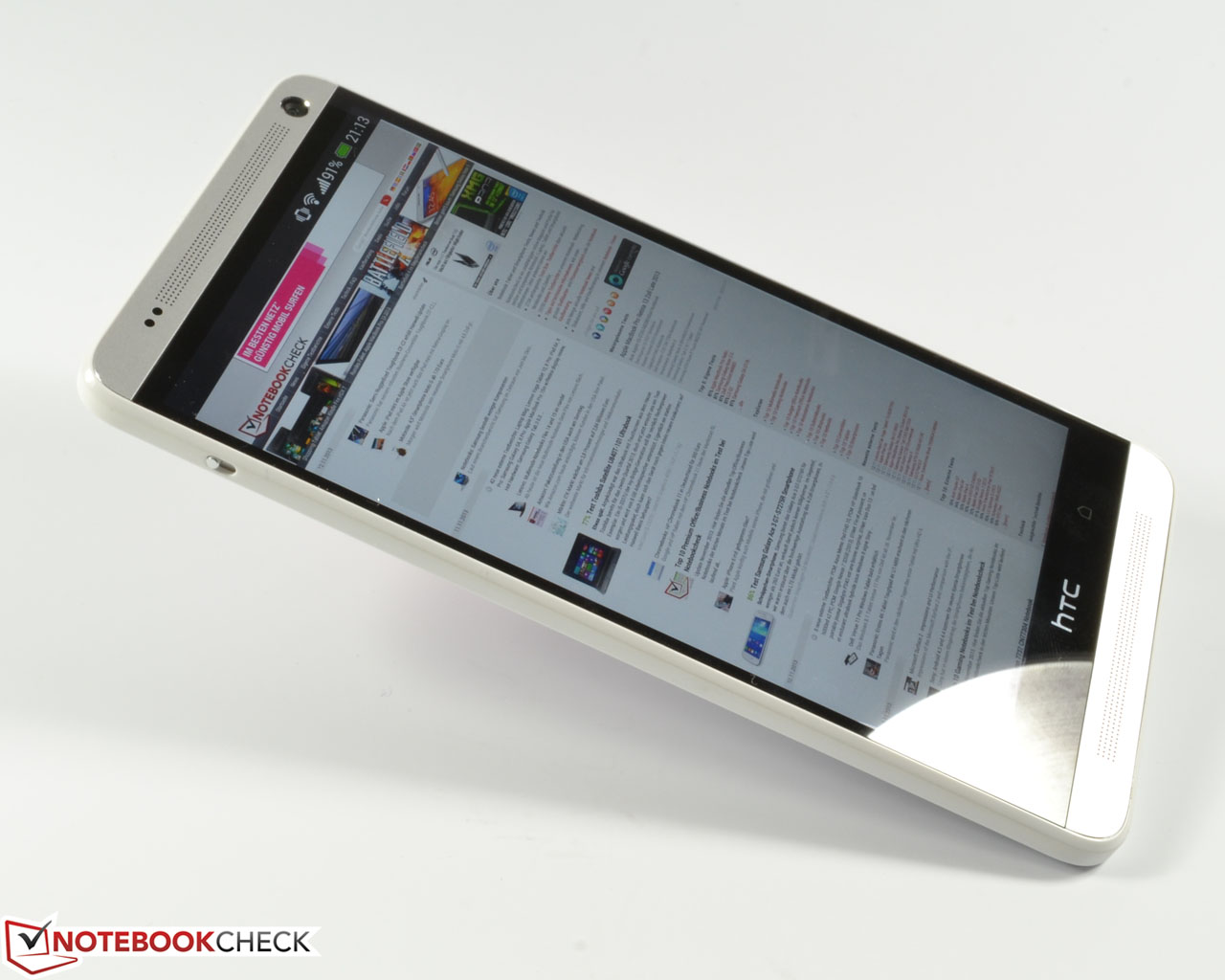

HTC One Max Phablet
HTC One Max Phablet

Now we come to the actual highlight: HTC's One Max dishes up a gigantic-looking 5.9-inch, SuperLCD 3, IPS, LED screen with a Full HD resolution (1920x1080 pixels). Its pixel density is thus 373 ppi. Samsung's Galaxy Note 3 is a bit smaller with 5.7-inches, but compared with giants like Sony's Xperia Z Ultra featuring a size of 6.44-inches, the One Max looks almost small.

Using the X-Rite i1Pro 2, we measured the screen's other rates. The review sample's average brightness is 449.8 cd/m². HTC's One managed a whole 488.9 cd/m² and HTC's One Mini still achieved 466.1 cd/m². However, the LCD screen scores with a very homogeneous illumination of 95%.

Compared with the competition, the One Max has a very good placing. Samsung's Galaxy Note 3 only manages 342.2 cd/m² with an illumination of 81% due to its AMOLED screen; both Sony's Xperia Z Ultra with 441.9 cd/m²/81% and Samsung's Galaxy Mega with 443.7 cd/m²/90% are close behind our review sample. Solely Huawei's Ascend Mate just surpasses the One Max with 470.7 cd/m², but also only offers an illumination of 89%.

With a very decent black value of 0.43 cd/m² and a great contrast of 1035:1, HTC's One only has to bow to Samsung's Galaxy Note 3 and its AMOLED screen for technology-related reasons. Only Samsung's Galaxy Mega is on par. However, HTC's One Max cannot compete with the LCD's top rates in HTC's One.

441
cd/m²
445
cd/m²
454
cd/m²
447
cd/m²
445
cd/m²
456
cd/m²
445
cd/m²
452
cd/m²
463
cd/m²

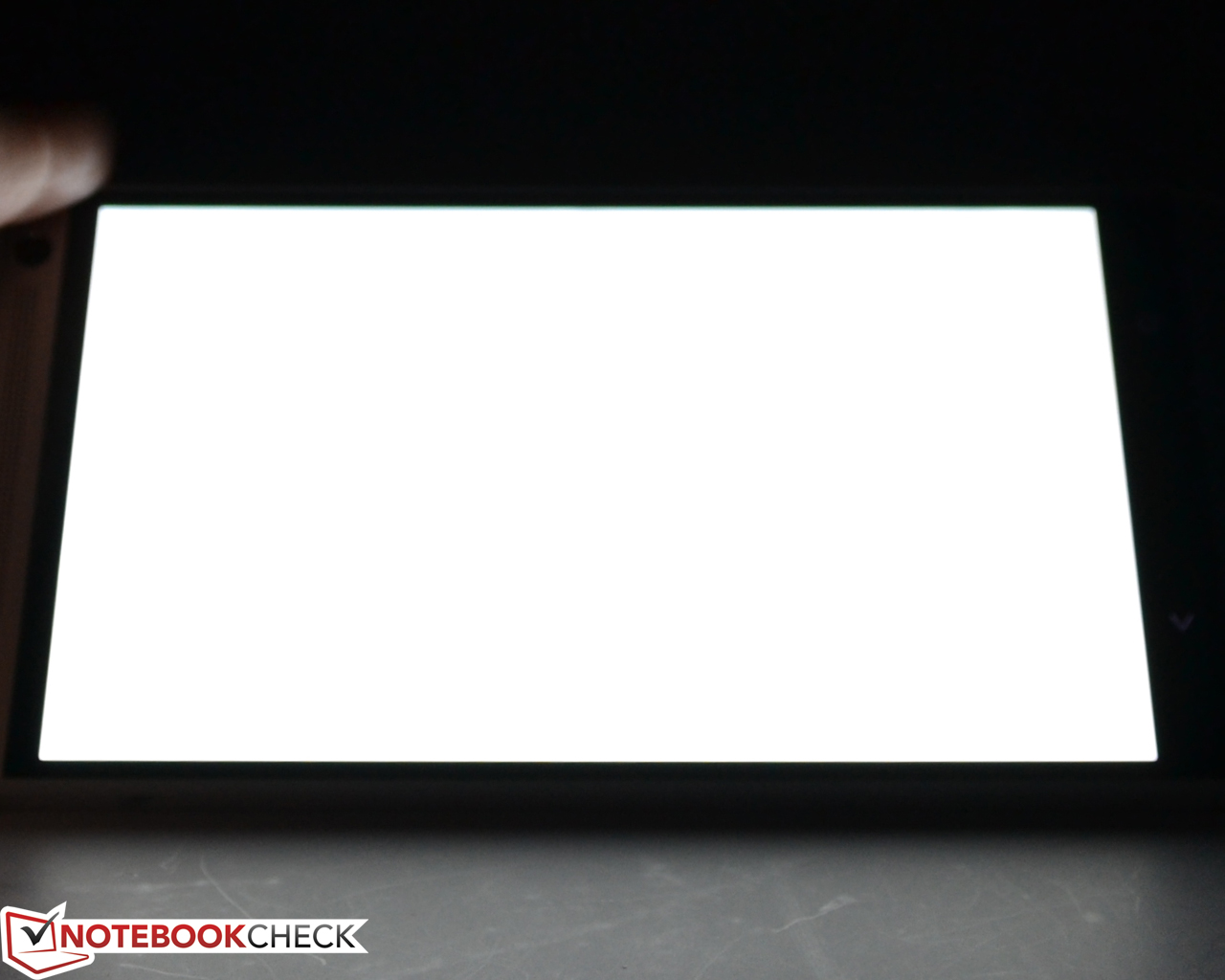

Distribution of brightness
tested with X-Rite i1Pro 2
Maximum: 463 cd/m² (Nits) Average: 449.8 cd/m²
Brightness Distribution: 95 %
Center on Battery: 445 cd/m²
Contrast: 1035:1 (Black: 0.43 cd/m²)
ΔE Color 4.89 | 0.5-29.43 Ø5
ΔE Greyscale 4.82 | 0.57-98 Ø5.3
Gamma: 2.41

We checked color accuracy, grayscale reproduction and color saturation using CalMAN software. Unlike HTC's One or One Mini, the One Max no longer exhibits such an intense blue shift. However, red is a bit weaker. The color saturation nevertheless shows an evident blue deficit. The grayscale gradient first clearly deviates from the ideal at approximately 70%, which lets white look a bit too pale. However, this is not visible in routine use, as the untainted white image proves. The reproduction and sharpness subjectively make a very good impression.

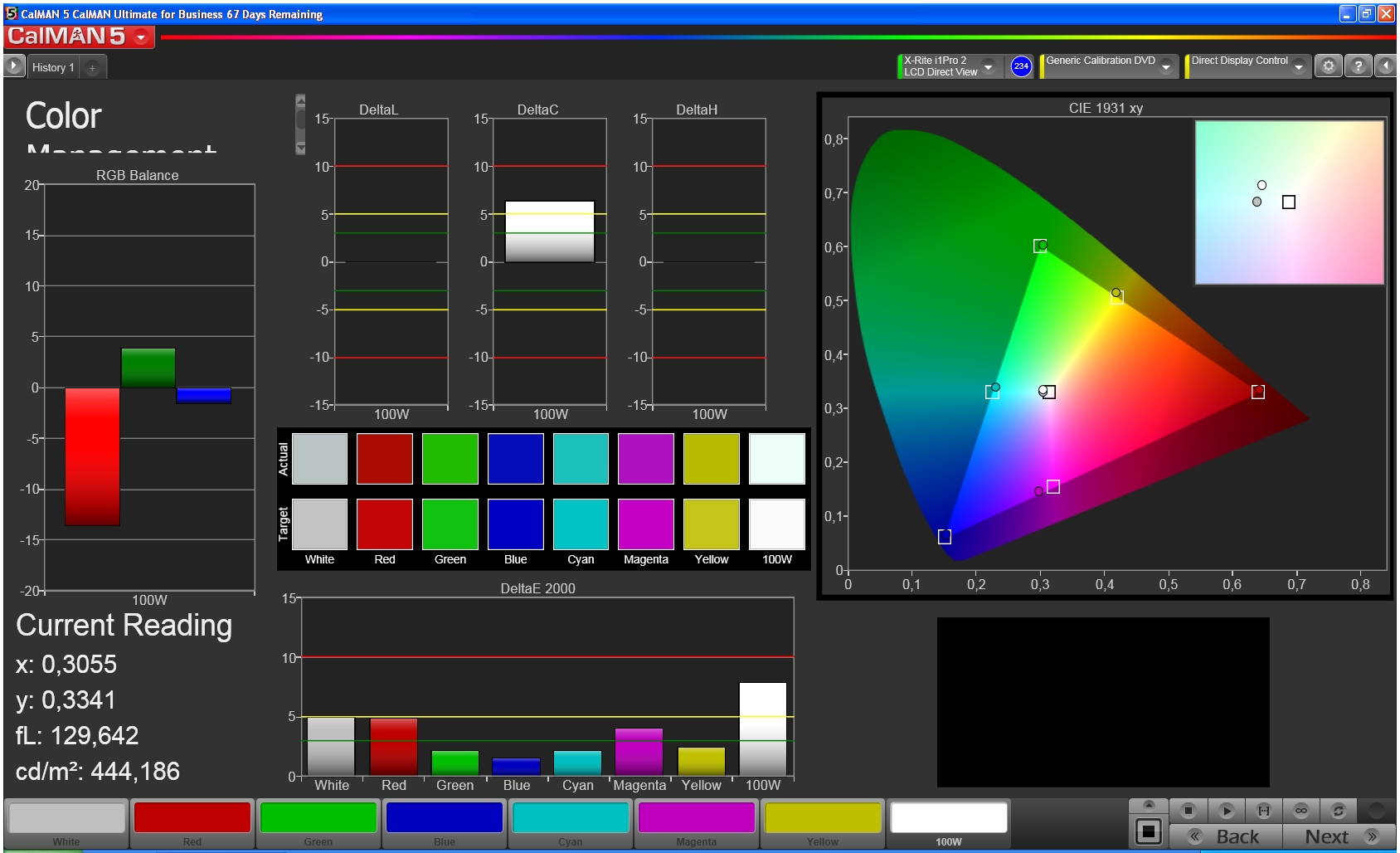

Color accuracy
Color accuracy

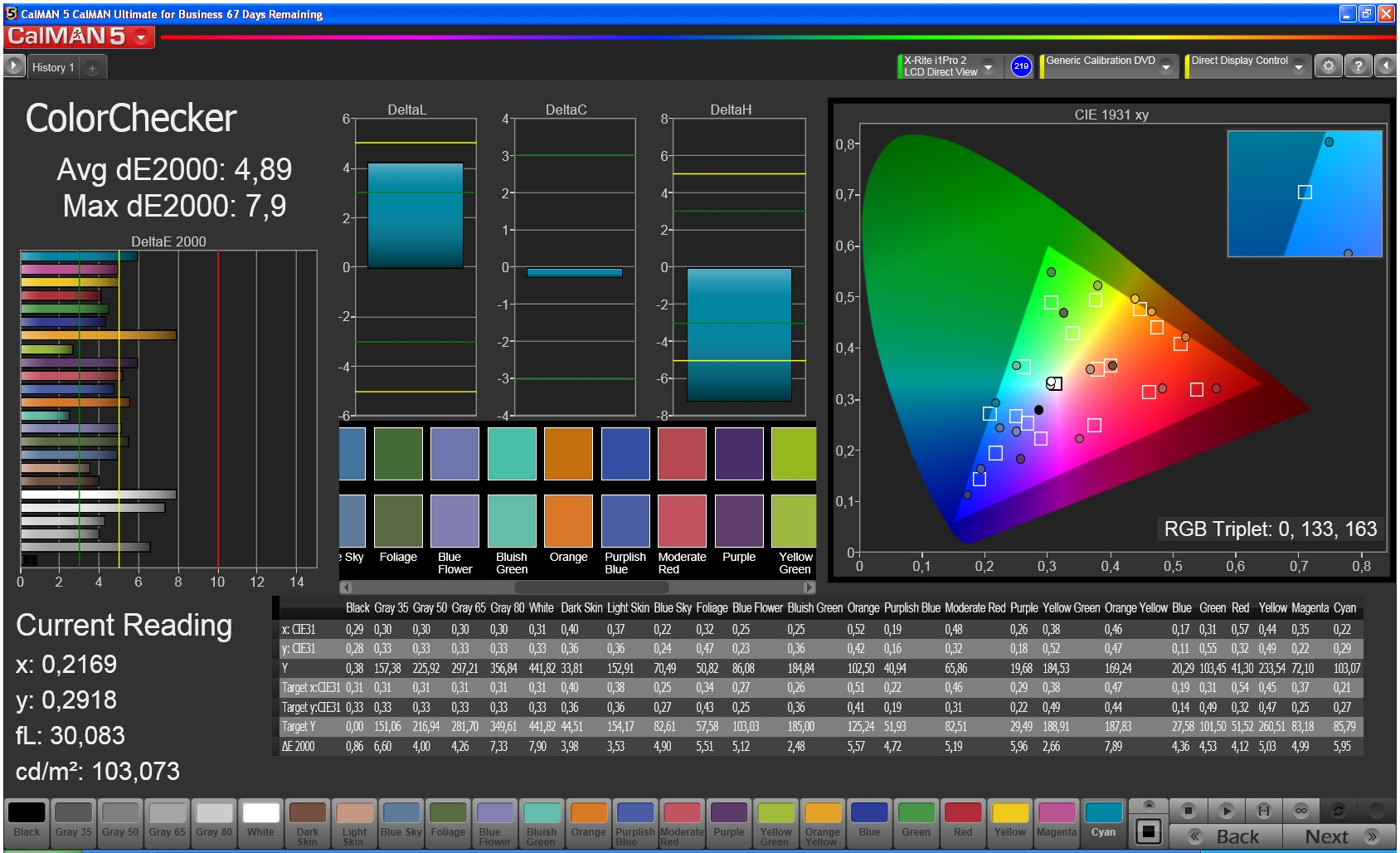

ColorChecker
ColorChecker

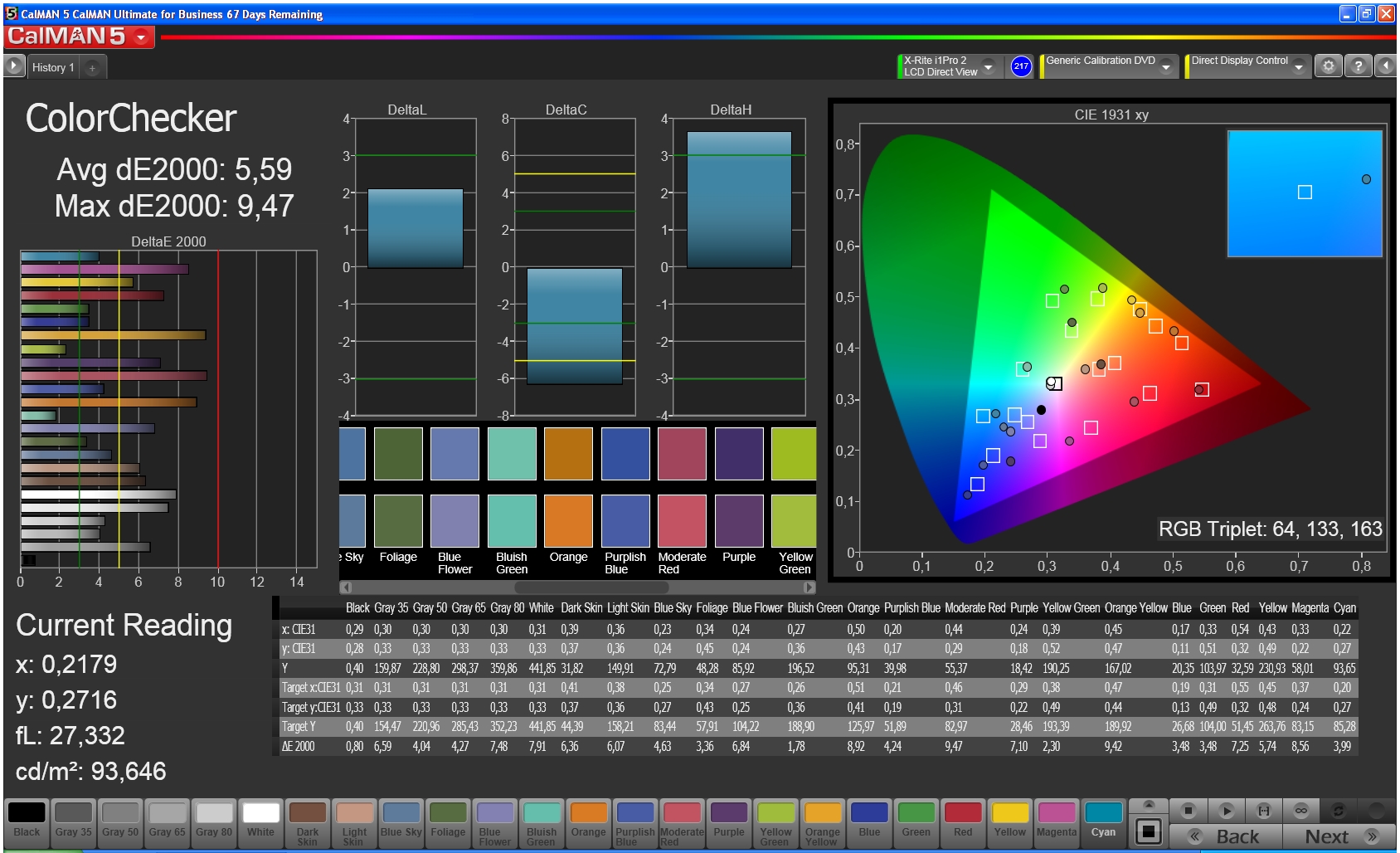

ColorChecker AdobeRGB
ColorChecker AdobeRGB

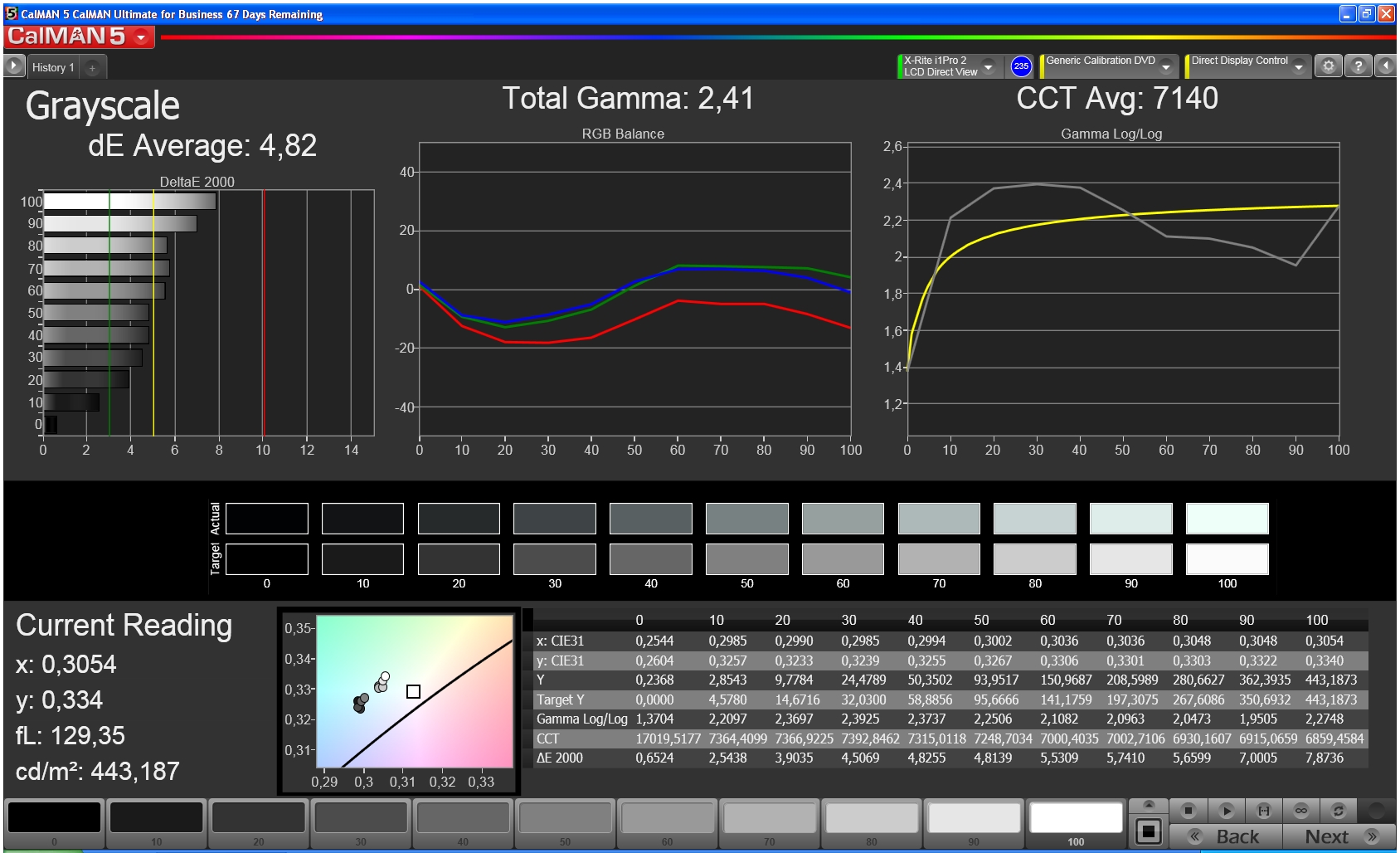

Grayscale
Grayscale

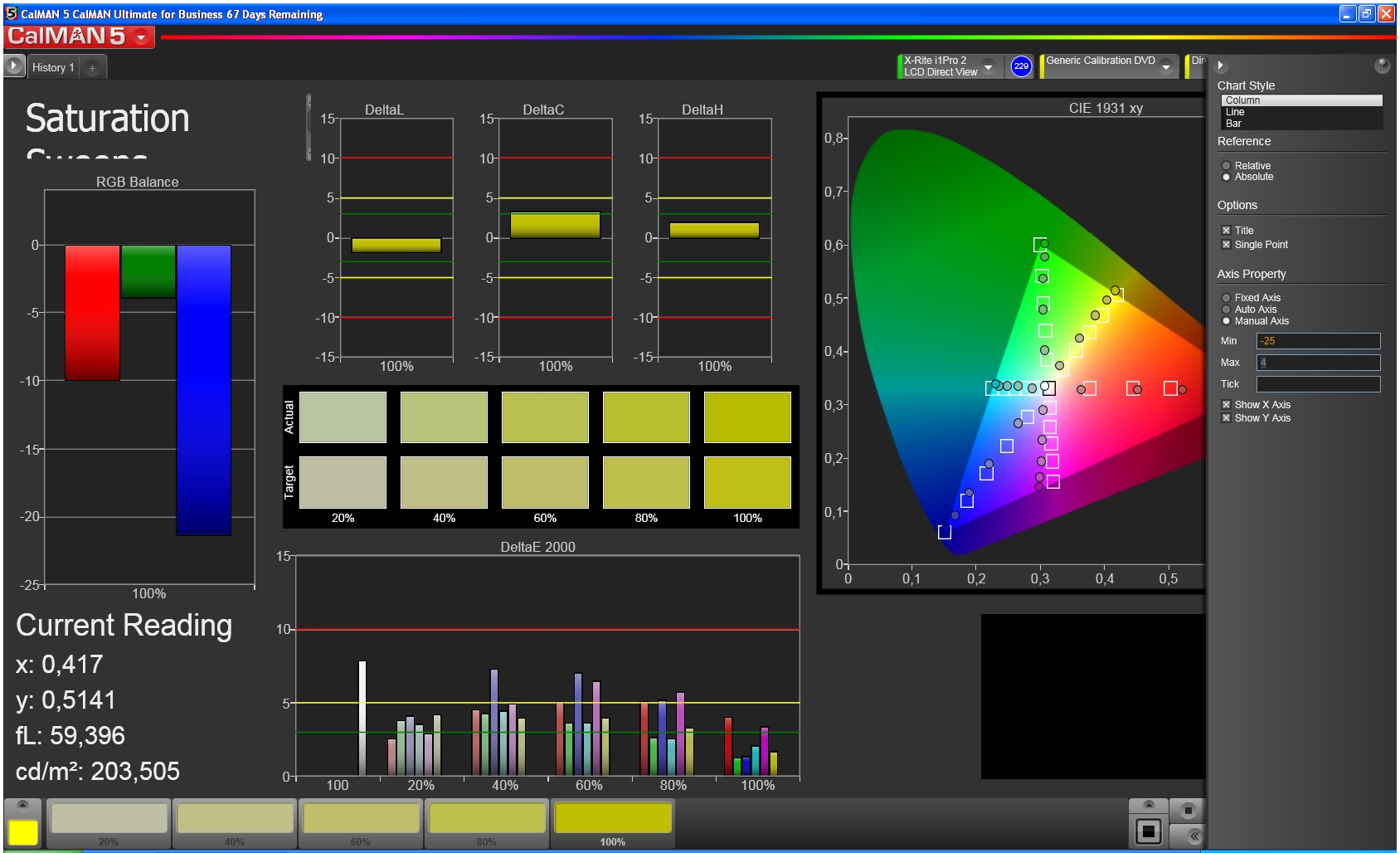

Saturation Sweeps
Saturation Sweeps

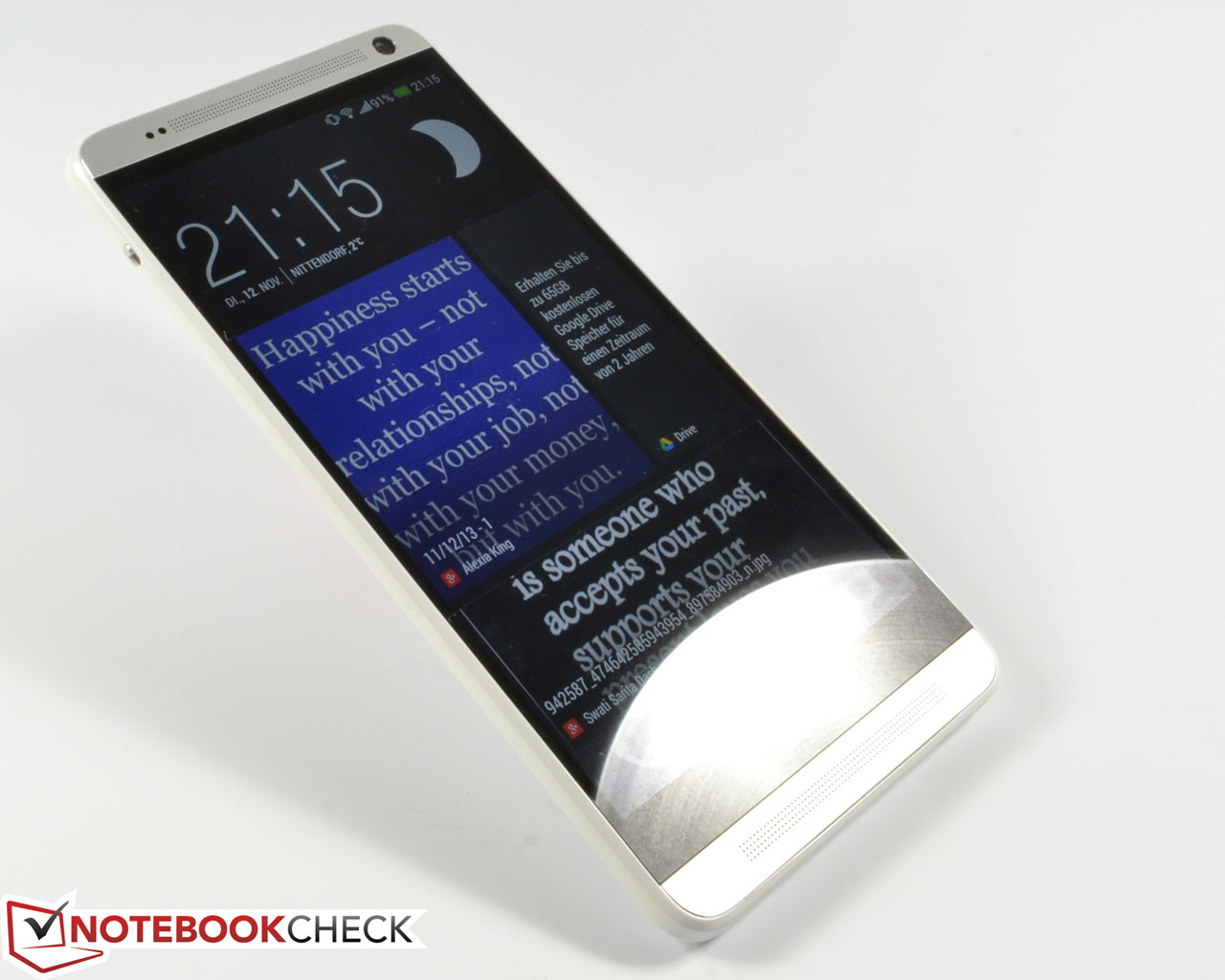

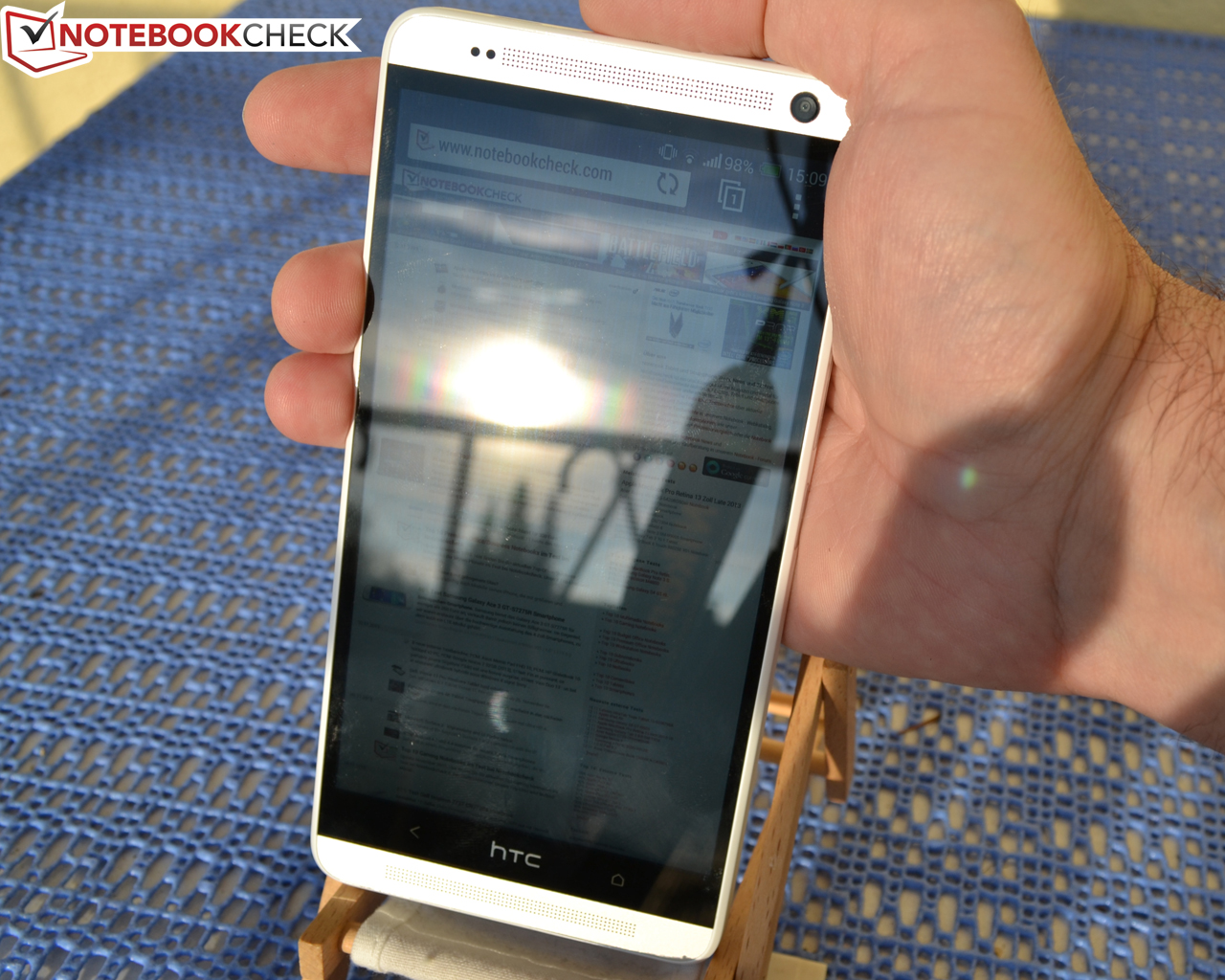

Outdoors
Outdoors

HTC's One Max is impressive in outdoor use owing to its high contrast and bright screen. However, the screen's automatic brightness control should be disabled in unfavorable light in order to achieve maximum brightness. The One Max cannot defy direct sunlight very well due to its reflective screen surface. A third-party, matte screen protector could help here.

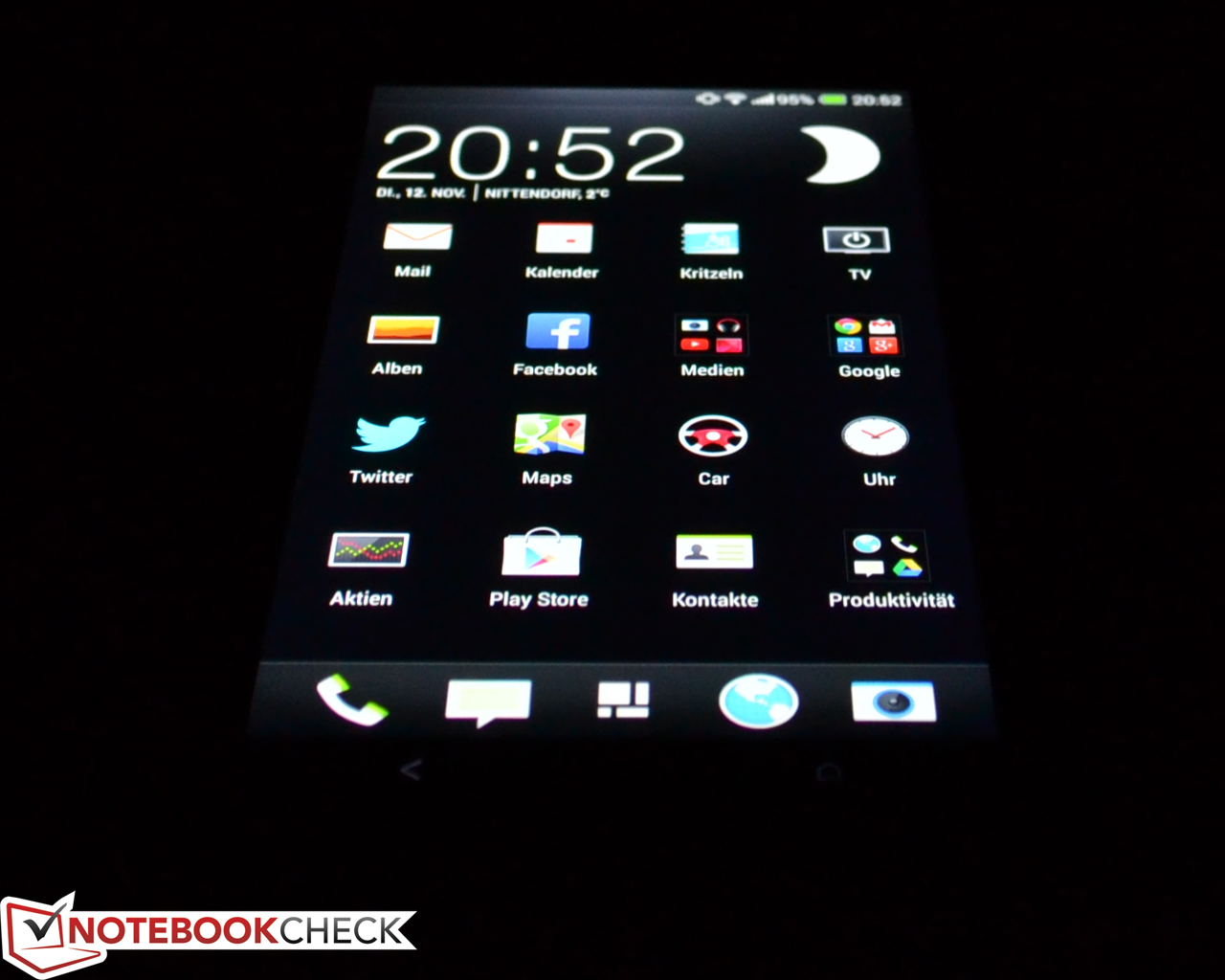

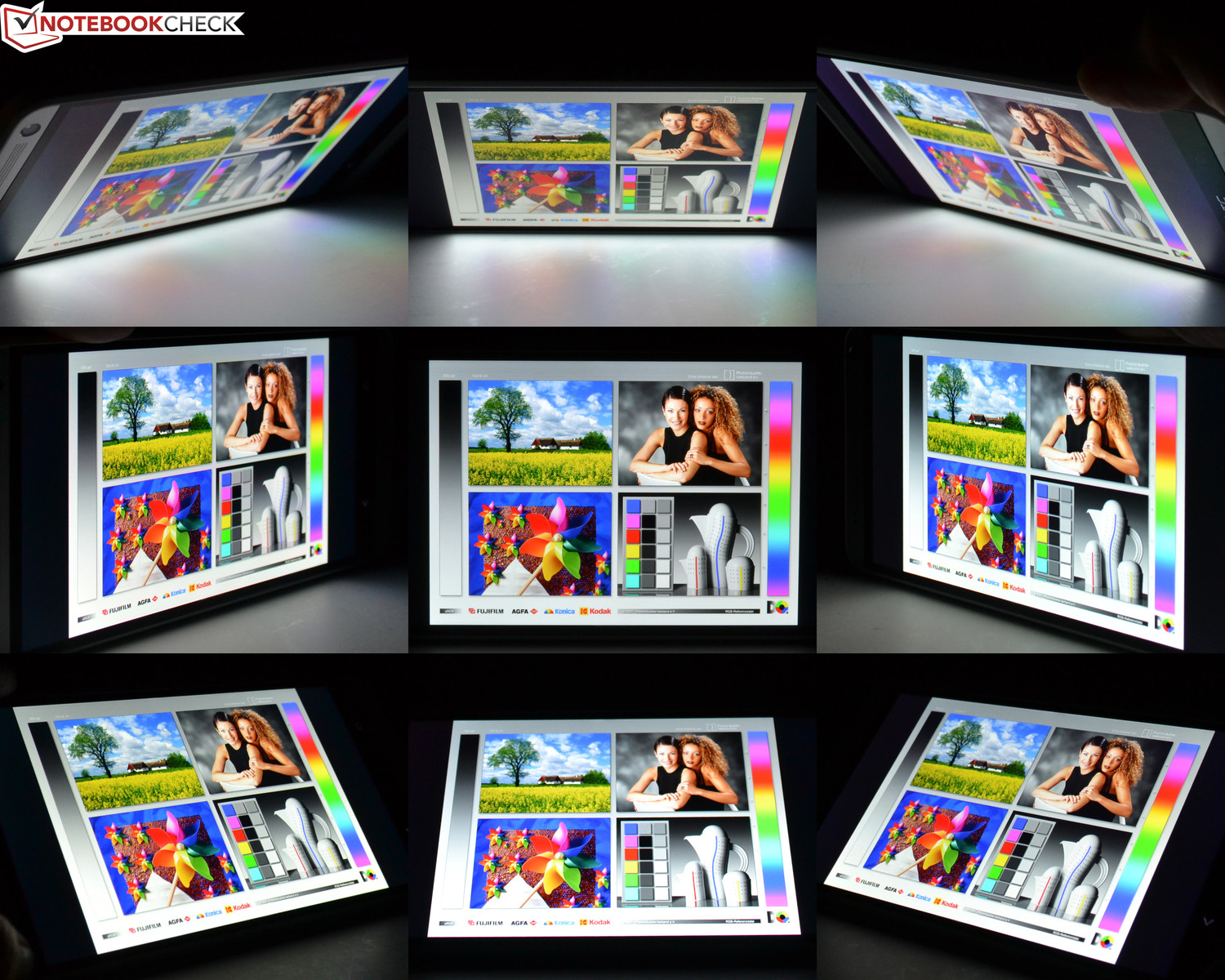

Viewing angles: HTC One Max
Viewing angles: HTC One Max

The One Max scores in this category due to the underlying IPS technology. The screen exhibits high stability even from extreme viewing angles; the brightness first decreases marginally at a very late point. However, the color reproduction is always good.

Performance

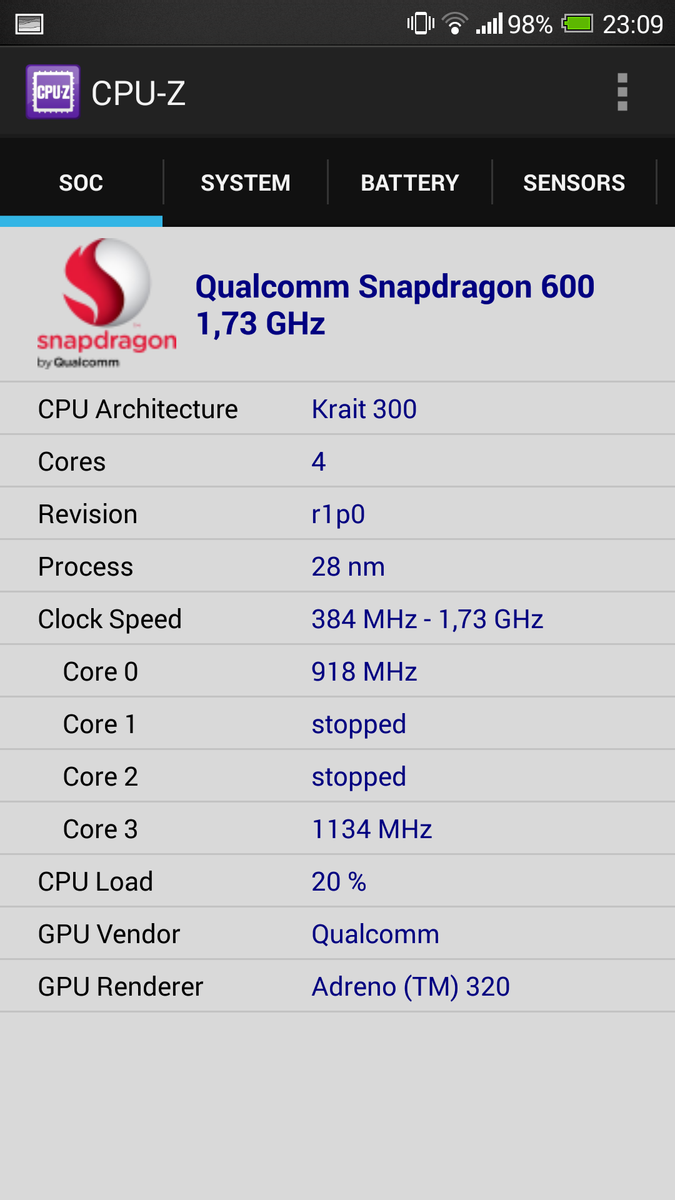

CPU-Z SoC info
CPU-Z SoC info

Like in HTC's One, our review sample is powered by a Qualcomm Snapdragon 600 quad-core SoC with a clock rate of 1.7 GHz and integrated Adreno 320 graphics card. 2 GB of LPDDR2 RAM are also installed although the SoC could cope with a faster LPDDR3 RAM. 16 GB of internal storage is available.

Some contenders have more to offer here. Samsung's Galaxy Note 3 and Sony's Xperia Z Ultra boast with Qualcomm's Snapdragon 800 quad-core SoC with a clock rate of 2.3 GHz; the Samsung even sports a whole 3 GB of LPDDR3 memory. Nevertheless, the quad-core in HTC's One Max provides more than enough power. Besides, a wireless module with Bluetooth 4.0 and Wi-Fi 802.11 a/ac/b/g/n found their way into the slim casing.

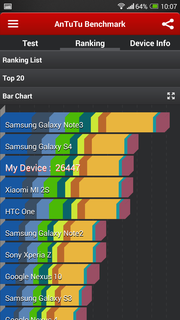

HTC's One Max has to show its qualities in our extensive benchmark course. The cutting-edge chip faces the competition in AnTuTu Benchmark v4. With 26447 points, HTC's One Max achieves 20 to 24% less than Samsung's Galaxy Note 3 and Sony's Xperia Z Ultra. This superiority continues through all benchmarks. Our review sample can only surpass Samsung's Galaxy Mega in GFXBench 2.7; the other contenders outpace it. However, the One Max scores with an up to 84% better result than its competition in the Smartbench 2012 and Linpack for Android tests - with exception of both above named powerhouses.

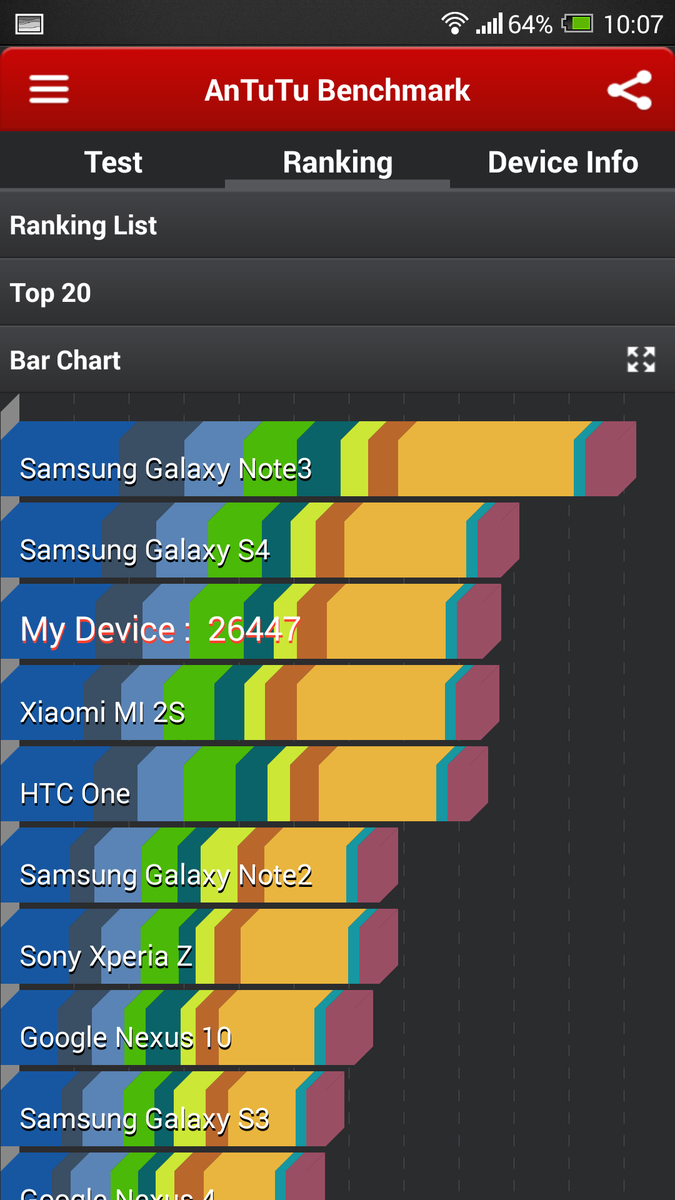

AnTuTu v4 - Total Score (sort by value)
HTC One Max
26447 Points
Samsung Galaxy Note 3 SM-N9005
31725 Points +20%
Sony Xperia Z Ultra
32872 Points +24%
GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
HTC One Max
14 fps
Samsung Galaxy Mega 6.3 I9200
10 fps -29%
Samsung Galaxy Note 3 SM-N9005
25 fps +79%
Sony Xperia Z Ultra
22 fps +57%
Huawei Ascend Mate
35 fps +150%
1920x1080 T-Rex Offscreen (sort by value)
HTC One Max
14 fps
Samsung Galaxy Mega 6.3 I9200
6.2 fps -56%
Samsung Galaxy Note 3 SM-N9005
24 fps +71%
Sony Xperia Z Ultra
21 fps +50%
Huawei Ascend Mate
22 fps +57%
Smartbench 2012 - Productivity Index (sort by value)
HTC One Max
7117 points
Samsung Galaxy Mega 6.3 I9200
4922 points -31%
Samsung Galaxy Note 3 SM-N9005
9930 points +40%
Sony Xperia Z Ultra
9158 points +29%
Huawei Ascend Mate
4850 points -32%
HTC One
6850 points -4%
Linpack Android / IOS - Multi Thread (sort by value)
HTC One Max
746 MFLOPS
Samsung Galaxy Mega 6.3 I9200
298.5 MFLOPS -60%
Samsung Galaxy Note 3 SM-N9005
986 MFLOPS +32%
Sony Xperia Z Ultra
958 MFLOPS +28%
Huawei Ascend Mate
117.2 MFLOPS -84%
HTC One
733 MFLOPS -2%
AndEBench
Java (sort by value)
HTC One Max
358 Iter./s
Samsung Galaxy Note 3 SM-N9005
653 Iter./s +82%
Sony Xperia Z Ultra
552 Iter./s +54%
Native (sort by value)
HTC One Max
7402 Iter./s
Samsung Galaxy Note 3 SM-N9005
15850 Iter./s +114%
Sony Xperia Z Ultra
13864 Iter./s +87%
Geekbench 3
32 Bit Multi-Core Score (sort by value)
HTC One Max
1965 Points
Samsung Galaxy Note 3 SM-N9005
2771 Points +41%
Sony Xperia Z Ultra
2641 Points +34%
32 Bit Single-Core Score (sort by value)
HTC One Max
637 Points
Samsung Galaxy Note 3 SM-N9005
914 Points +43%
Sony Xperia Z Ultra
908 Points +43%

Legend


HTC One Max Qualcomm Snapdragon 600 APQ8064T, Qualcomm Adreno 320, 16 GB iNAND Flash

Samsung Galaxy Mega 6.3 I9200 Qualcomm Snapdragon 400 8930AB, Qualcomm Adreno 305, 8 GB SSD

Samsung Galaxy Note 3 SM-N9005 Qualcomm Snapdragon 800 MSM8974, Qualcomm Adreno 330, 32 GB SSD

Sony Xperia Z Ultra Qualcomm Snapdragon 800 MSM8974, Qualcomm Adreno 330, 16 GB SSD

Huawei Ascend Mate HiSilicon k3v2 Hi3620, Vivante GC4000, 8 GB SSD

HTC One Qualcomm Snapdragon 600 APQ8064T, Qualcomm Adreno 320, 32 GB SSD

The AndroBench 3 benchmark analyzes the write and read speeds of the internal storage. HTC's One Max still has reserves here. With 57 MB/s in sequential read, the review sample beats Samsung's Galaxy Mega and Huawei's Ascend Mate and is almost on par with HTC's One and Sony's Xperia Z Ultra, but it cannot keep up with the swift Samsung Galaxy Note 3. The same power ratio is seen in sequential read of 256 KB blocks with a speed of 11.14 MB/s.

It looks similar in writing 4 KB blocks, although contenders like Samsung's Galaxy Note 3 are partly three times as fast.

These speed differences are barely noticed in routine use. Subjectively, HTC's One Max works very fast here.

AndroBench 3-5
Random Write 4KB (sort by value)
HTC One Max
0.57 MB/s
Samsung Galaxy Mega 6.3 I9200
0.38 MB/s -33%
Samsung Galaxy Note 3 SM-N9005
2.21 MB/s +288%
Sony Xperia Z Ultra
1.1 MB/s +93%
Huawei Ascend Mate
0.5 MB/s -12%
HTC One
1.19 MB/s +109%
Random Read 4KB (sort by value)
HTC One Max
7.65 MB/s
Samsung Galaxy Mega 6.3 I9200
9.3 MB/s +22%
Samsung Galaxy Note 3 SM-N9005
16.05 MB/s +110%
Sony Xperia Z Ultra
13.37 MB/s +75%
Huawei Ascend Mate
6.75 MB/s -12%
HTC One
11.83 MB/s +55%
Sequential Write 256KB (sort by value)
HTC One Max
11.14 MB/s
Samsung Galaxy Mega 6.3 I9200
7.48 MB/s -33%
Samsung Galaxy Note 3 SM-N9005
29.08 MB/s +161%
Sony Xperia Z Ultra
17.22 MB/s +55%
Huawei Ascend Mate
7.43 MB/s -33%
HTC One
16.37 MB/s +47%
Sequential Read 256KB (sort by value)
HTC One Max
56.8 MB/s
Samsung Galaxy Mega 6.3 I9200
49.79 MB/s -12%
Samsung Galaxy Note 3 SM-N9005
107.5 MB/s +89%
Sony Xperia Z Ultra
66.1 MB/s +16%
Huawei Ascend Mate
35.25 MB/s -38%
HTC One
58.8 MB/s +4%

Our review sample completed the browser-based tests, performed with the device's browser, very nicely. It achieved 2479 points in Browsermark 2.0 and leaves HTC's One behind. Samsung's Galaxy Note 3 and Sony's Xperia Z Ultra achieve about 20% more. Both contenders clearly perform better in Google's Google V8 Ver. 7 and Octane V1 benchmarks. The review sample missed Samsung's Galaxy Note 3 by one little percentage point, and Sony's Xperia Z Ultra "only" achieves 14% more in the Peacekeeper benchmark. The One Max even finished both Sunspider tests 25 to 28% faster than Samsung's Galaxy Note 3. Sony's Xperia Z Ultra wins by a hair with 6 and 2%.

HTC's One Max can partly keep the other contenders at a clear distance in all browser benchmarks. As always, much better results can sometimes be achieved with alternatives like Google Chrome.

Browsermark - --- (sort by value)
HTC One Max
2479 points
Samsung Galaxy Note 3 SM-N9005
2977 points +20%
Sony Xperia Z Ultra
2989 points +21%
HTC One
2152 points -13%
Google V8 Ver. 7 - Google V8 Ver. 7 Score (sort by value)
HTC One Max
2394 Points
Samsung Galaxy Mega 6.3 I9200
2304 Points -4%
Samsung Galaxy Note 3 SM-N9005
3912 Points +63%
Sony Xperia Z Ultra
4245 Points +77%
Huawei Ascend Mate
1502 Points -37%
HTC One
1899 Points -21%
Octane V1 - Total Score (sort by value)
HTC One Max
2463 Points
Samsung Galaxy Mega 6.3 I9200
2169 Points -12%
Samsung Galaxy Note 3 SM-N9005
3743 Points +52%
Sony Xperia Z Ultra
4105 Points +67%
Huawei Ascend Mate
1373 Points -44%
HTC One
1986 Points -19%
Sunspider
1.0 Total Score (sort by value)
HTC One Max
783 ms *
Samsung Galaxy Mega 6.3 I9200
1090 ms * -39%
Samsung Galaxy Note 3 SM-N9005
1003 ms * -28%
Sony Xperia Z Ultra
764 ms * +2%
Huawei Ascend Mate
1610 ms * -106%
0.9.1 Total Score (sort by value)
HTC One Max
867 ms *
Samsung Galaxy Note 3 SM-N9005
1087 ms * -25%
Sony Xperia Z Ultra
812 ms * +6%
Huawei Ascend Mate
1540 ms * -78%
HTC One
1138 ms * -31%
Peacekeeper - --- (sort by value)
HTC One Max
726 Points
Samsung Galaxy Mega 6.3 I9200
608 Points -16%
Samsung Galaxy Note 3 SM-N9005
731 Points +1%
Sony Xperia Z Ultra
828 Points +14%
Huawei Ascend Mate
495 Points -32%
HTC One
683 Points -6%

* ... smaller is better

Videos and Games

HTC's One Max scores in this category with its big screen and powerful components. Full HD trailer videos are no problem for the SoC and look fantastic on the Full HD screen, perfectly accentuated by the good stereo speakers. The SoC cannot decode Ultra HD videos. This is reserved for stronger contenders, such as Sony's Xperia Z Ultra or Samsung's Galaxy Note 3.

Currently there is no game in the PlayStore that would be too much for the hardware. The preinstalled role-playing game Zenonia 4 runs just as smoothly as the action hit Iron Man 3. Of course, 2D games like Angry Birds Star Wars bare no exception. Control via touchscreen, and position and accelerometer always worked accurately and lag-free.

The graphically sophisticated benchmark Epic Citadel verifies the high gaming power. Both stronger Sony Xperia Z Ultra and Samsung Galaxy Note 3 can first take the lead in the ultra-high quality setting. HTC's One Max otherwise keeps its contenders at bay.

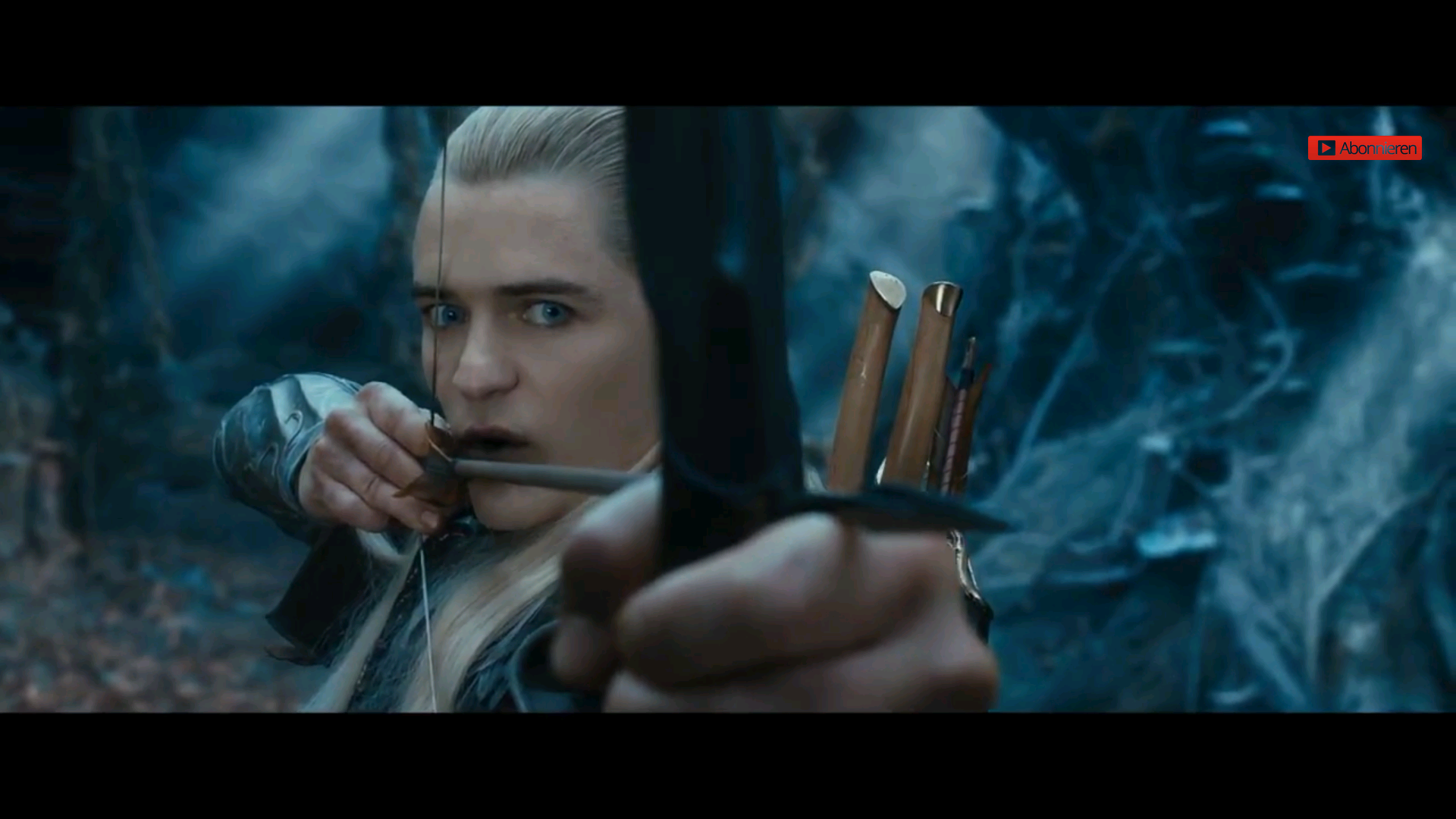

The Hobbit - video trailer in Full HD
The Hobbit - video trailer in Full HD

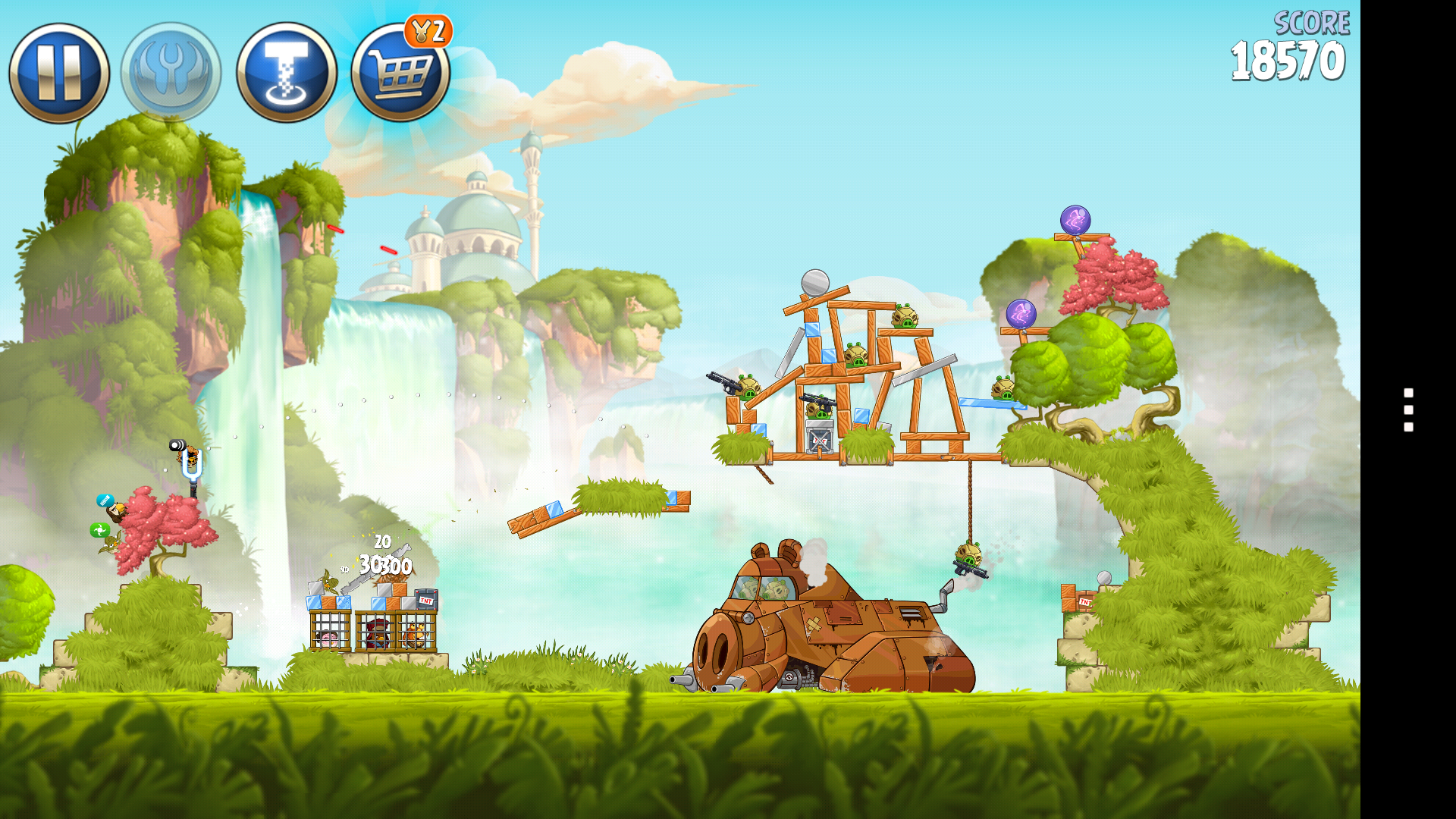

Angry Birds Star Wars
Angry Birds Star Wars

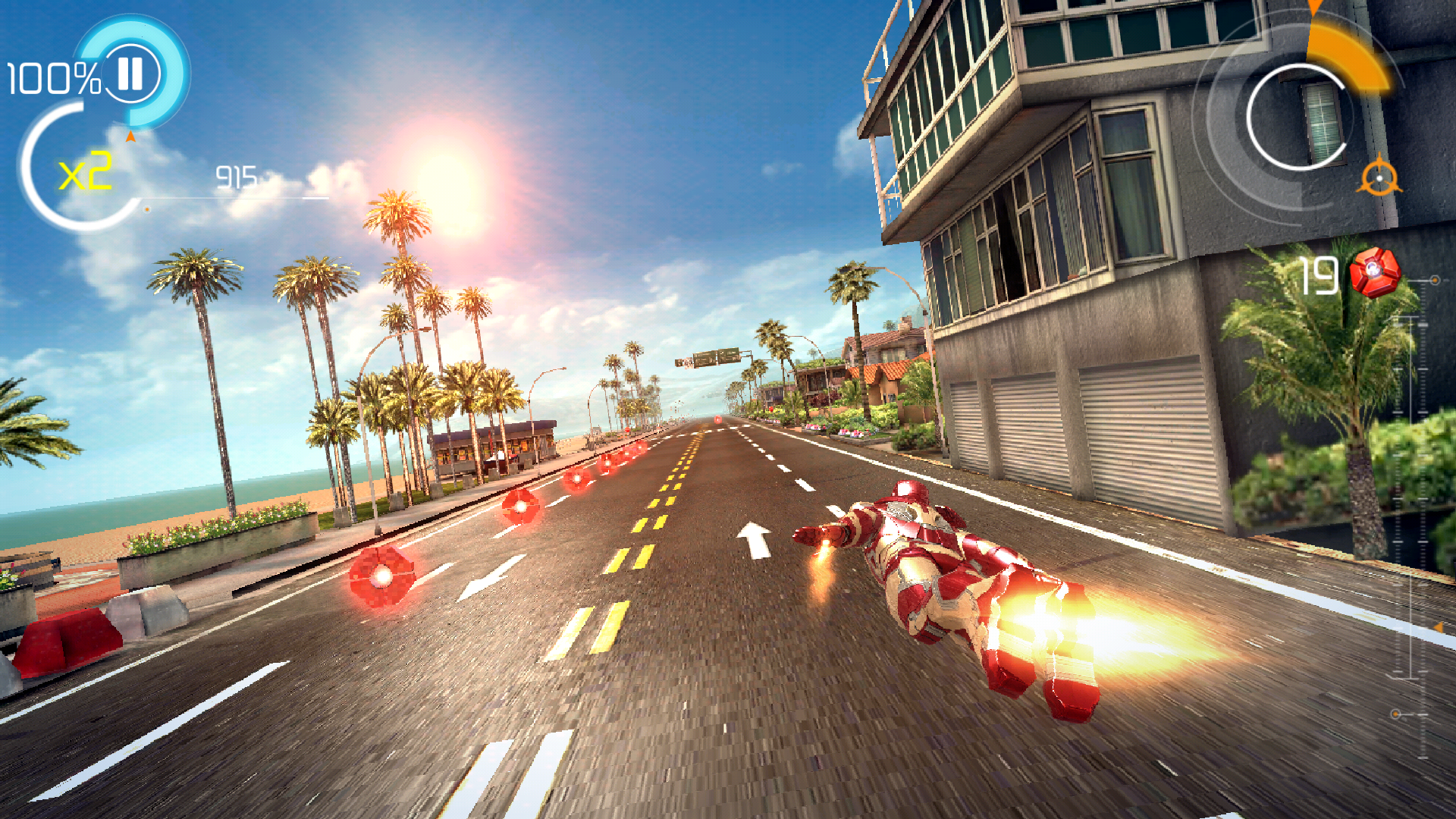

Iron Man 3
Iron Man 3

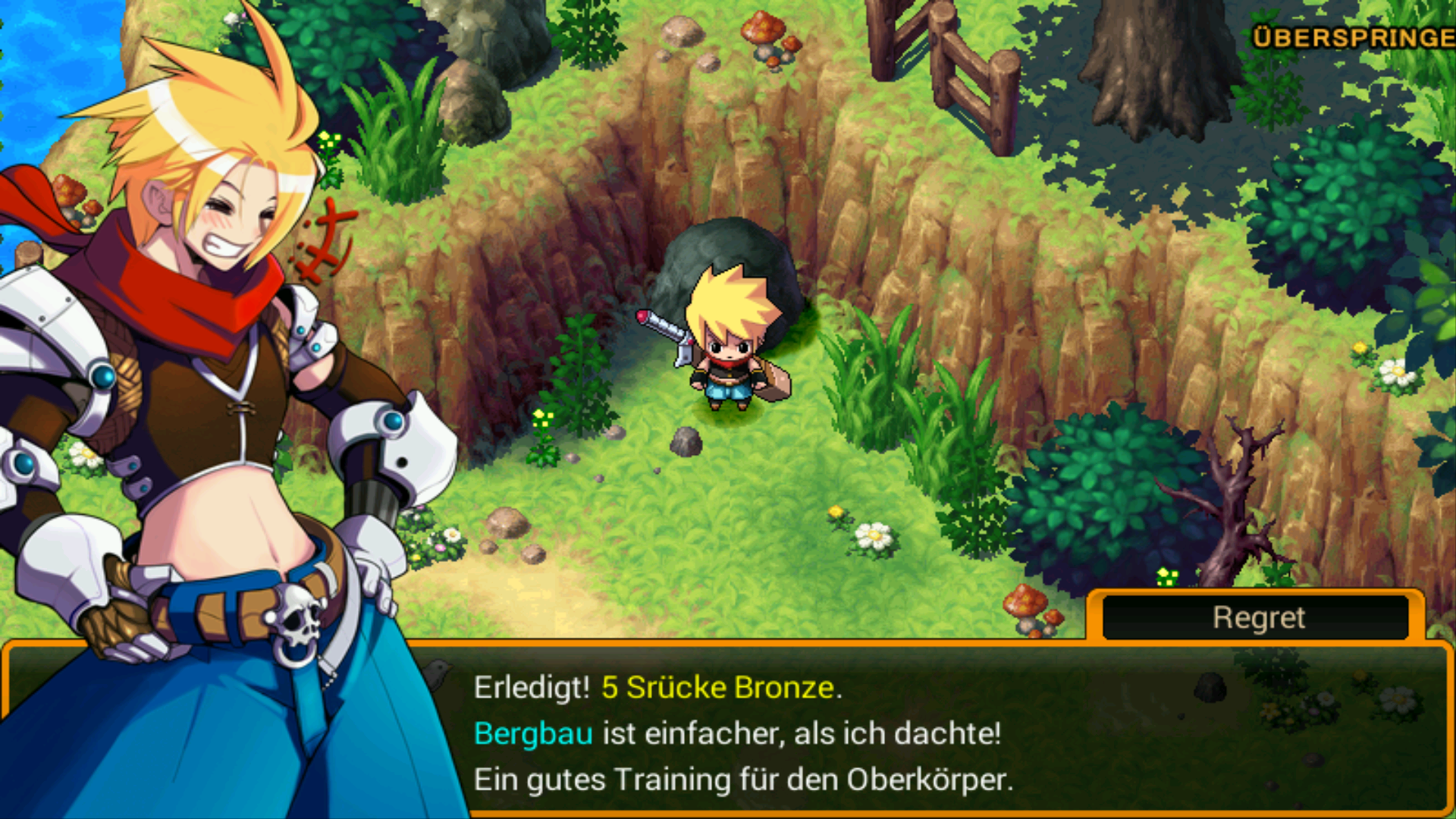

Zenonia 4
Zenonia 4
Epic Citadel
High Performance (sort by value)
HTC One Max
60.6 fps
Samsung Galaxy Mega 6.3 I9200
56.7 fps -6%
Samsung Galaxy Note 3 SM-N9005
59.7 fps -1%
Sony Xperia Z Ultra
59.8 fps -1%
Huawei Ascend Mate
40.5 fps -33%
HTC One
57.5 fps -5%
High Quality (sort by value)
HTC One Max
59.5 fps
Samsung Galaxy Mega 6.3 I9200
55.8 fps -6%
Samsung Galaxy Note 3 SM-N9005
58.9 fps -1%
Sony Xperia Z Ultra
59.6 fps 0%
Huawei Ascend Mate
38.6 fps -35%
HTC One
57.1 fps -4%
Ultra High Quality (sort by value)
HTC One Max
36.1 fps
Samsung Galaxy Note 3 SM-N9005
49.9 fps +38%
Sony Xperia Z Ultra
54.9 fps +52%

Emissions

Speakers

Everything we said in the review of HTC's One applies here, although the collaboration with Beats Audio has been discontinued. The speakers produce the best sound currently found in a phablet. Bass naturally benefits when the device is placed on a table during playback. Overall, a balanced, rich sound that conveys real stereo to the user.

Temperature

The bigger casing has a positive effect in this category. HTC's One Max barely heats up when idling and remains 2 °C below the cool HTC One with a maximum of 32 °C. The phablet even remains significantly cooler than its smaller sister model during permanent full load, ascertained in the stress test via the Stability Test app over several hours. A maximum of 35.5 °C was reached selectively on the front; the aluminum back stayed below that with at most 34 °C. We measured an average of 33.4 and 32.4 °C, which are truly low temperatures in view of the high-performance components.

Max. Load
 31.8 °C
89 F
33 °C
91 F
34.1 °C
93 F

 32.5 °C
91 F
33.7 °C
93 F
35.5 °C
96 F

 32.1 °C
90 F
33.8 °C
93 F
34.5 °C
94 F

Maximum: 35.5 °C = 96 F
Average: 33.4 °C = 92 F
32.2 °C
90 F
32.5 °C
91 F
31.2 °C
88 F
31.1 °C
88 F
32.5 °C
91 F
32.2 °C
90 F
33.7 °C
93 F
34 °C
93 F
32.3 °C
90 F
Maximum: 34 °C = 93 F
Average: 32.4 °C = 90 F
Room Temperature 22 °C = 72 F | Voltcraft IR-350
(±) The average temperature for the upper side under maximal load is 33.4 °C / 92 F, compared to the average of 32.7 °C / 91 F for the devices in the class Smartphone.
(+) The maximum temperature on the upper side is 35.5 °C / 96 F, compared to the average of 35 °C / 95 F, ranging from 21.9 to 56 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 34 °C / 93 F, compared to the average of 33.8 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 27.8 °C / 82 F, compared to the device average of 32.7 °C / 91 F.

Energy Management

Power Consumption

Owing to an optional energy-saving mode, the power consumption of HTC's One Max is pleasantly restrained. It is within a good range in the category comparison with idle rates between 0.5 and 1.9 watts. Samsung's Galaxy Note 3 consumes a bit less with 0.4 to 1.4 watts and Sony's Xperia Z Ultra requires considerably more with 0.8 to 2.5 watts.

The review sample's consumption ranged from 3.0 to 5.3 watts during full load. Contenders like Samsung's Galaxy Note 3 with an equally sized screen or Sony's Xperia Z Ultra with a 0.54-inch bigger display drain considerably more from the outlet with 6.5 and 6.1 watts respectively. To be fair, we have to note that both also sport a stronger SoC.

Power Consumption
Off / Standbydarklight 0 / 0.2 Watt
Idledarkmidlight 0.5 / 1.4 / 1.9 Watt
Load midlight 3.9 / 5.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime

The non-removable battery has a capacity of 3300 mAh (12.54 Wh) and is a bit stronger than that of Samsung's Galaxy Note 3 and Samsung's Galaxy Mega (both with 3200 mAh/12.16 Wh), or Sony's Xperia Z Ultra (3000 mAh/11.6 Wh). However, HTC's One Max cannot compete with the 4050 mAh battery in Huawei's Ascend Mate.

Owing to the review sample's moderate power consumption, it can place itself at almost the top of the phablet category with a good idle runtime of 25 hours and 43 minutes. Only Samsung's Galaxy Note 3 runs away with an awesome 36.5 hours. HTC's One Max lasted for approximately 14 hours in the Wi-Fi test, ascertained with the screen's brightness set to half and a script that alternately opens various websites. Here again, only Samsung's Galaxy Note 3 lasts longer. The review sample reached a still good 5 hours during load and maximum brightness and thus two HD movies on the go should not be a problem. No contender could beat HTC's One Max in this test.

Battery Runtime
Idle (without WLAN, min brightness)
25h 43min
WiFi Surfing
14h 04min
Load (maximum brightness)
5h 03min

Verdict

In review: HTC One Max
In review: HTC One Max

We can only answer the question asked at the beginning of this review, whether the concept of HTC's One Max can succeed, with a clear "Yes". HTC's slogan "...more everything" is true. Except for the omitted image stabilizer, HTC's One Max is a blown up version of the great HTC One, but with a micro-SD slot and decently implemented fingerprint scanner.

The big 5.9-inch, bright IPS touchscreen is compelling and reproduces content with high contrasts and crisp colors. Browsing, watching movies and games on the go are really fun with it. The well-sounding stereo speakers on the front decisively add to that. All the cutting-edge wireless technologies and the 16 GB flash memory round off the good configuration. The software excels with its instinctive user interface, HTC Sense 5.5 and a few useful, preinstalled apps.

Additionally, the phablet scores with long battery runtimes and a good application performance. The quad-core SoC with a clock rate of 1.7 GHz and 2 GB of working memory will provide enough power even for the future. However, we would have hoped for the stronger Snapdragon 800 MSM8974 and a faster LPDDR3 RAM in the new flagship. Contenders like Samsung's Galaxy Note 3 or Sony's Xperia Z Ultra already feature this. Besides that, the UltraPixel camera did not completely convince us. Also, if the back cover can be taken off, it should have been possible to implement a removable battery.

All in all, HTC has designed a very good phablet with the One Max. It has a few shortcomings and many advantages. However, its present price is approximately 660 Euros (~$890, RRP: 699 Euros, ~$943). The contenders, such as Samsung's Galaxy Note 3, are available for a current street price of about 550 Euros (~$742); Sony's Xperia Z Ultra costs 560 Euros (~$755).

Read all 2 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!

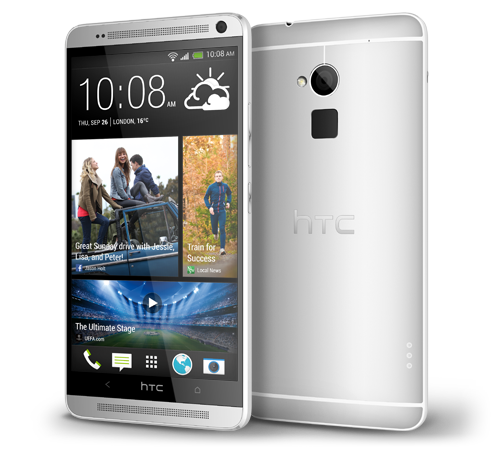

In Review: HTC One Max Smartphone, courtesy of HTC.
In Review: HTC One Max Smartphone, courtesy of HTC.

Specifications

HTC One Max (One Series)
Processor
Qualcomm Snapdragon 600 APQ8064T 4 x 1.7 GHz, Krait-300
Graphics adapter
Memory
2048 MB
, DDR2
Display
5.90 inch 16:9, 1920 x 1080 pixel, Super LCD3, IPS, glossy: yes
Storage
16 GB iNAND Flash, 16 GB
, 11 GB free
Connections
1 USB 2.0, 1 Infrared, Audio Connections: 3.5 mm audio jack, Card Reader: microSDXC max. 64 GB, 1 Fingerprint Reader, Sensors: A-GPS, Glonass, digital compass, gyroscope, accelerometer, ambient light sensor & proximity sensor, micro-USB 2.0 (MHL)
Networking
802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0, HSPA/WCDMA: 850, 900, 1.900 & 2.100 MHz, GSM/GPRS/EDGE: 850, 900, 1800 & 1900 MHz, LTE: 800, 1800 & 2600 MHz, NFC, DLNA
Size
height x width x depth (in mm): 10.29 x 82.5 x 164.5 ( = 0.41 x 3.25 x 6.48 in)
Battery
13 Wh Lithium-Polymer, 3300 mAh, 3.8 V, non-removable, Talk time 2G (according to manufacturer): 28 h, Talk time 3G (according to manufacturer): 25 h, Standby 2G (according to manufacturer): 393 h, Standby 3G (according to manufacturer): 585 h
Operating System
Android 4.3
Camera
Webcam: Rear: 4 MP (2688 x 1520), UltraPixel, 1/3" BSI Sensor, HTC ImageChip 2, HDR and Flash, Front: 2.1 MP (1080p video)
Additional features
Speakers: stereo, HTC BoomSound, Beats Audio, Keyboard: virtual, Keyboard Light: yes, USB cord, in-ear headset w/ various plugs, 2 NFC tags, SIM tool, documentation, HTC Sense UI 5, HTC BlinkFeed, HTC Zoe, 24 Months Warranty
Weight
220 g ( = 7.76 oz / 0.49 pounds), Power Supply: 40 g ( = 1.41 oz / 0.09 pounds)
Price
699 Euro



In review: The HTC One Max phablet.
In review: The HTC One Max phablet.
HTC's One Max comes with standard accessories: Quick-start guide, a modular charger including USB cord and in-ear headphones.
HTC's One Max comes with standard accessories: Quick-start guide, a modular charger including USB cord and in-ear headphones.
Its elegant exterior and high-quality feeling materials are appealing.
Its elegant exterior and high-quality feeling materials are appealing.
In a direct comparison...
In a direct comparison...

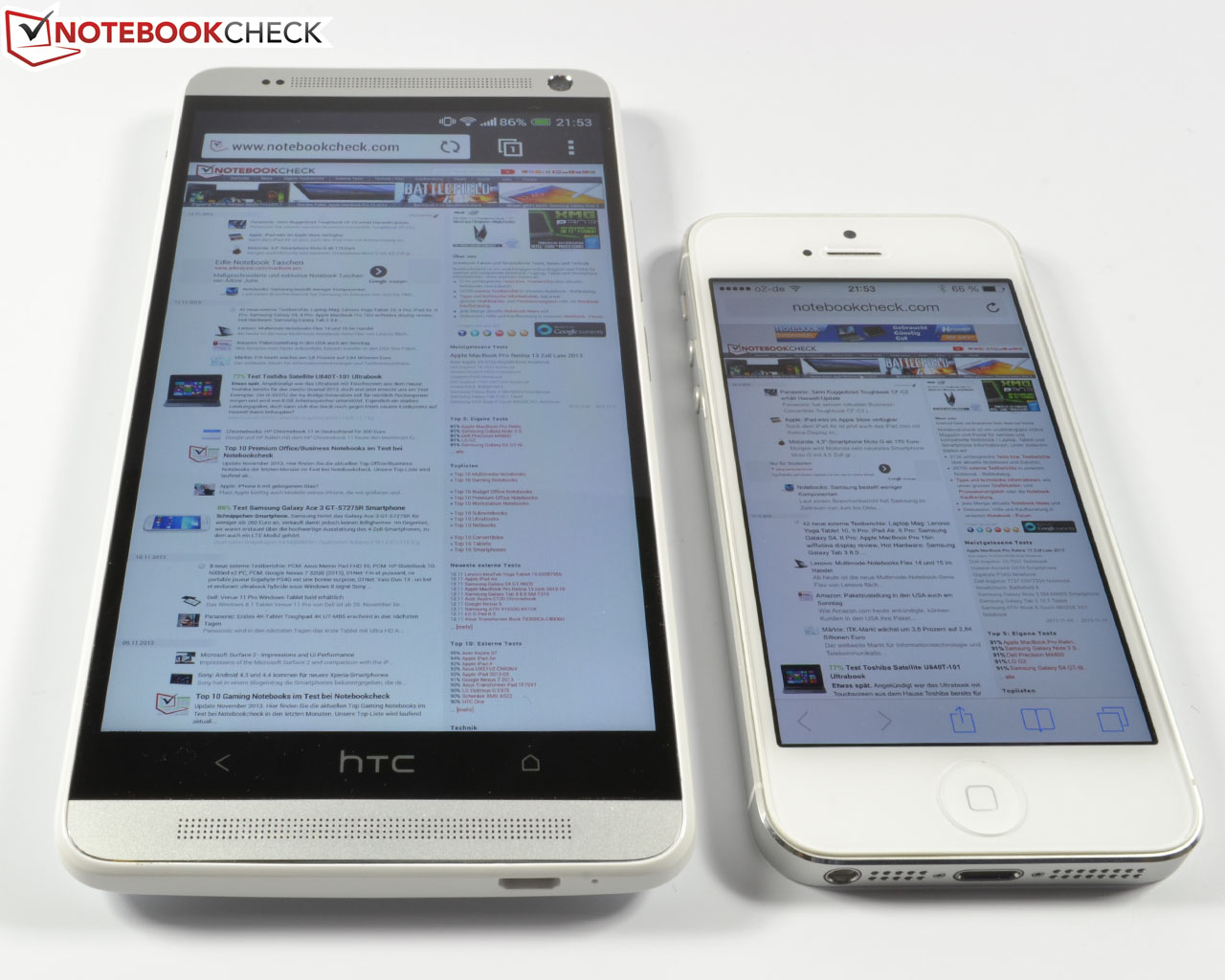

...with Apple's iPhone 5,...
...with Apple's iPhone 5,...

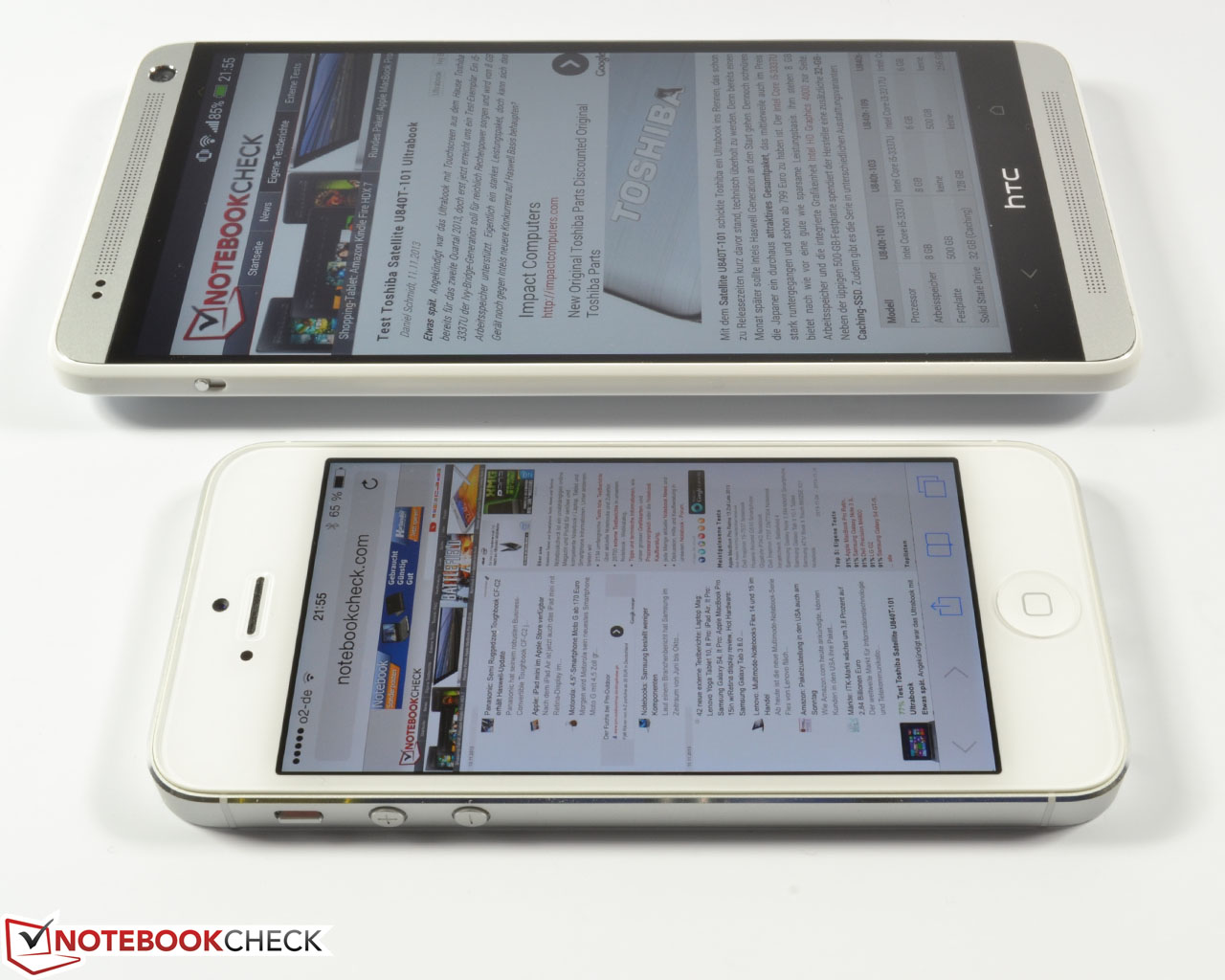

...HTC's One Max looks gigantic.
...HTC's One Max looks gigantic.
The large touchscreen is fast and reliable.
The large touchscreen is fast and reliable.
The virtual keyboard only needs a little room in portrait mode;...
The virtual keyboard only needs a little room in portrait mode;...
...but needs about half the screen in landscape mode.
...but needs about half the screen in landscape mode.
The IPS screen reproduces content with high contrasts and brilliant colors.
The IPS screen reproduces content with high contrasts and brilliant colors.
The glossy surface causes intense reflections in direct light.
The glossy surface causes intense reflections in direct light.
There is a lot of room for apps on the gigantic screen.
There is a lot of room for apps on the gigantic screen.

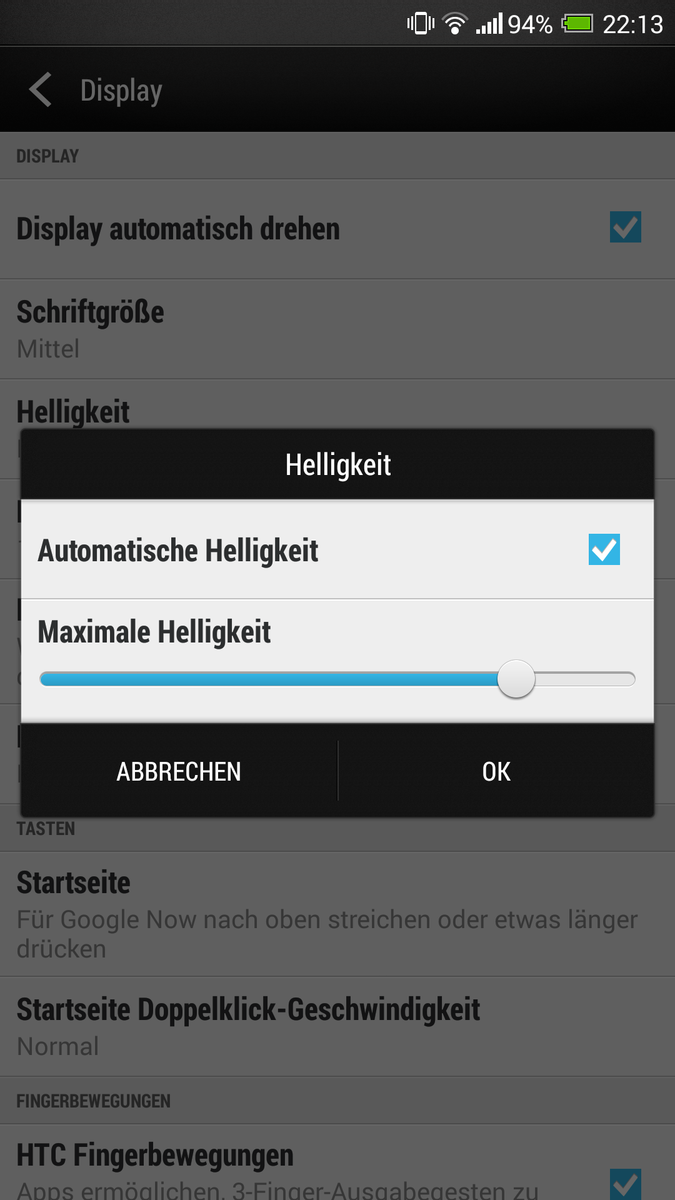

The automatic brightness control can be adjusted.
The automatic brightness control can be adjusted.
The white image does not exhibit any discoloration.
The white image does not exhibit any discoloration.
The camera modules are the same as in HTC's One but the One Max does not have an image stabilizer.
The camera modules are the same as in HTC's One but the One Max does not have an image stabilizer.
A five-level LED flash lights up darker surroundings.
A five-level LED flash lights up darker surroundings.
The phablet features all necessary interfaces and is well-equipped.
The phablet features all necessary interfaces and is well-equipped.
Even an infrared interface for controlling a TV or stereo system has found its way into HTC's One Max.
Even an infrared interface for controlling a TV or stereo system has found its way into HTC's One Max.
NFC is also installed.
NFC is also installed.
The stereo speakers really rock. Considering their size, there is currently nothing better.
The stereo speakers really rock. Considering their size, there is currently nothing better.
We noticed marginally uneven gaps on the lower speaker cover in our review sample.
We noticed marginally uneven gaps on the lower speaker cover in our review sample.
The removable cover also sometimes causes irregularities.
The removable cover also sometimes causes irregularities.
Unlocking the back cover reveals...
Unlocking the back cover reveals...
...even more interfaces.
...even more interfaces.
Besides a micro-SIM slot,...
Besides a micro-SIM slot,...
...there is a micro-SD port for expanding the internal storage.
...there is a micro-SD port for expanding the internal storage.
The 3300 mAh/12.54 Wh battery is strong enough, but unfortunately not removable. Wasted potential.
The 3300 mAh/12.54 Wh battery is strong enough, but unfortunately not removable. Wasted potential.
The phablet's back remains relatively cool despite the high-performance components from Qualcomm - even during full load.
The phablet's back remains relatively cool despite the high-performance components from Qualcomm - even during full load.
Android system information.
Android system information.
The AnTuTu v4 benchmark verifies the One Max's very good performance.
The AnTuTu v4 benchmark verifies the One Max's very good performance.
Useful apps like YouTube, Facebook or Twitter now belong to today's must-haves. Google Chrome can be used should the Android browser become too sluggish.
Useful apps like YouTube, Facebook or Twitter now belong to today's must-haves. Google Chrome can be used should the Android browser become too sluggish.

Similar Devices

Similar devices from a different Manufacturer

Devices from a different Manufacturer and/or with a different CPU

Review ZTE Grand Memo LTE Smartphone
Adreno 320, Snapdragon S4 Pro APQ8064A

Devices with the same GPU

Review Yota Devices Yotaphone Smartphone
Adreno 320, Snapdragon MSM8960T, 4.30", 0.146 kg
BlackBerry Z30 Smartphone Review
Adreno 320, Snapdragon MSM8960T, 5.00", 0.17 kg
Review Motorola Moto X Smartphone
Adreno 320, Snapdragon S4 Pro MSM8960DT, 4.70", 0.13 kg
Review HTC Droid DNA (Butterfly) Smartphone
Adreno 320, Snapdragon S4 Pro APQ8064A, 5.00", 0.137 kg
Review Samsung Galaxy S4 Active GT-I9295 Smartphone
Adreno 320, Snapdragon 600 APQ8064T, 5.00", 0.151 kg

Links

Compare Prices

Pros

+Infrared interface for TV remote control
+Extensive communication equipment
+Bright and high-contrast, 5.9 inch screen with Full HD resolution (SLCD3)
+Good application and graphics performance
+Speech and recording quality
+Superb stereo loudspeakers on the front
+Power consumption & battery runtime
+Fingerprint scanner
+micro-SD card reader


Cons

-Non-removable battery
-Inferior camera
-No unibody aluminum chassis

Shortcut

What we like

The big, bright screen and the great stereo sound. Also, the long battery runtimes and micro-SD slot.

What we'd like to see

A removable battery and black as an optional color would be appreciated. Besides that, the latest Snapdragon 800 SoC.

What surprises us

How handy the phablet is despite its gigantic size and how soon we got used to it.

The competition

Samsung Galaxy Mega, Samsung Galaxy Note 3, Sony Xperia Z Ultra, Huawei Ascend Mate.

Rating

HTC One Max - 04/01/2014 v4(old)
Michael Moser

Chassis
89%
Keyboard
65 / 75 → 87%
Pointing Device
94%
Connectivity
45 / 60 → 75%
Weight
88%
Battery
95%
Display
86%
Games Performance
57 / 63 → 90%
Application Performance
35 / 70 → 50%
Temperature
89%
Noise
100%
Audio
86 / 91 → 95%
Camera
71%
Average
77%
85%
Smartphone - Weighted Average
Michael Moser, 2013-11-16 (Update: 2018-05-15)
