Dell Latitude 11 3150 Notebook Review

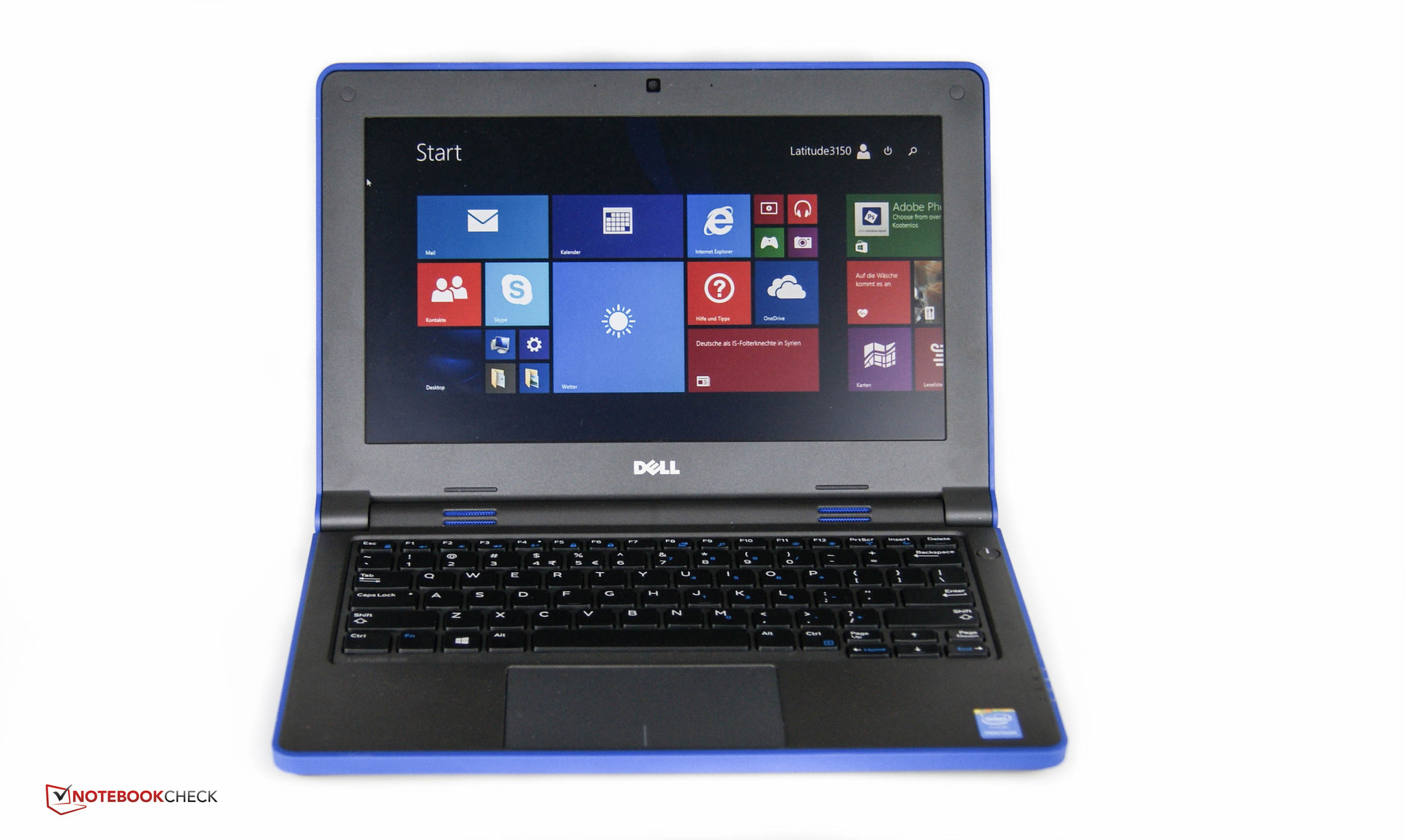

School's calling. Rigid, ready-to-go and enduring is how Dell presents its new Education lineup. The combination of these key specs quite convinced us in the test, and thus Dell's Latitude 11 is also eligible for the classic office environment.

For the original German review, see here.

Dell presents an 11-inch laptop that is to fulfill the demands of everyday school life with its Latitude 3150. That also means that it needs a certain degree of rigidness, security and input device quality. The convenient size is ideal for mobile use. We put the laptop or netbook equipped with a frugal Intel Pentium N3540 quad-core processor, 4 GB of working memory and a 128 GB SSD through its paces. The present review sample currently costs 560 Euros (~$626). Other configurations can be found on the manufacturer's website. The lowest-priced configuration for 490 Euros (~$548) does not sport a non-volatile SSD, and the buyer has to be satisfied with a 250 GB HDD and weaker dual-core CPU instead.

Acer's TravelMate focuses on some other key specs for 420 Euros (~$469). Instead of using a viewing-angle dependent TN screen from AU Optronics, it relies on a higher-quality IPS screen. Only a slow HDD was installed in our review sample. However, the large hard drive capacity of 500 GB was an advantage. We will closely examine just what other differences exist in the crucial features in form of build and input devices.

Dell Latitude 11 3150 (Latitude 3189 Series)
Processor
Intel Pentium N3540 4 x 2.2 - 2.7 GHz, Bay Trail-M, 4 Kerne
Graphics adapter
Intel HD Graphics (Bay Trail), Core: 860 MHz, 10.18.10.3958
Memory
4 GB
, single-channel
Display
11.00 inch 16:9, 1366 x 768 pixel, AU Optronics AUO235C B116XTN CGVHX, TN, glossy: no
Storage
Samsung SSD PM851 128 GB MZ7TE128HMGR, 128 GB
Soundcard
Intel Valleyview SoC - HD Audio Controller
Connections
1 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: combo audio, Card Reader: SD
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wireless-AC 7265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth Bluetooth 4.0
Size
height x width x depth (in mm): 22.9 x 301 x 212 ( = 0.9 x 11.85 x 8.35 in)
Battery
40 Wh Lithium-Ion, 3 cells
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 720p
Additional features
Speakers: stereo speakers, Keyboard: chiclet, Keyboard Light: no, 12 Months Warranty
Weight
1.35 kg ( = 47.62 oz / 2.98 pounds) ( = 0 oz / 0 pounds)
Price
560 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Case & Connectivity

Small, fun and robust
Small, fun and robust

The casing of the Education Latitude is exclusively made of plastic components. A blue, red or plain black rubber rim adorns the casing of Dell's laptop depending on personal preferences. At the same time, it protects the device against smaller bumps. The rough surfaces provide enough grip for transportation. We barely found any shortcomings in the build. The gap between the base unit and the border has been resolved nicely, and only the display's edge has a somewhat larger spacing to the bezel. Unfortunately, the display's back is a bit too easy to dent. Students who prefer browsing on the Internet rather than paying attention in class will soon be discovered because an LED lights up on the display's back when the network is active. Dell not only considers inattentive students, but clumsy ones as well. According to the manufacturer, the keyboard and trackpad are sealed, and thus they defy accidentally spilled fluids. Overall, the small, 1.3 kg review sample makes a robust and prepared impression. However, only permanent use in school routine will first be really conclusive. At least the manufacturer does everything right with the casing in view of the starting price of 490 Euros (~$548).

Only the standard interface diversity for the review sample's size is found. Unfortunately, only one of the two USB ports supports the 3.0 standard. Since not all schools have projectors, etc. with an HDMI port, it would have been nice to see a VGA out.

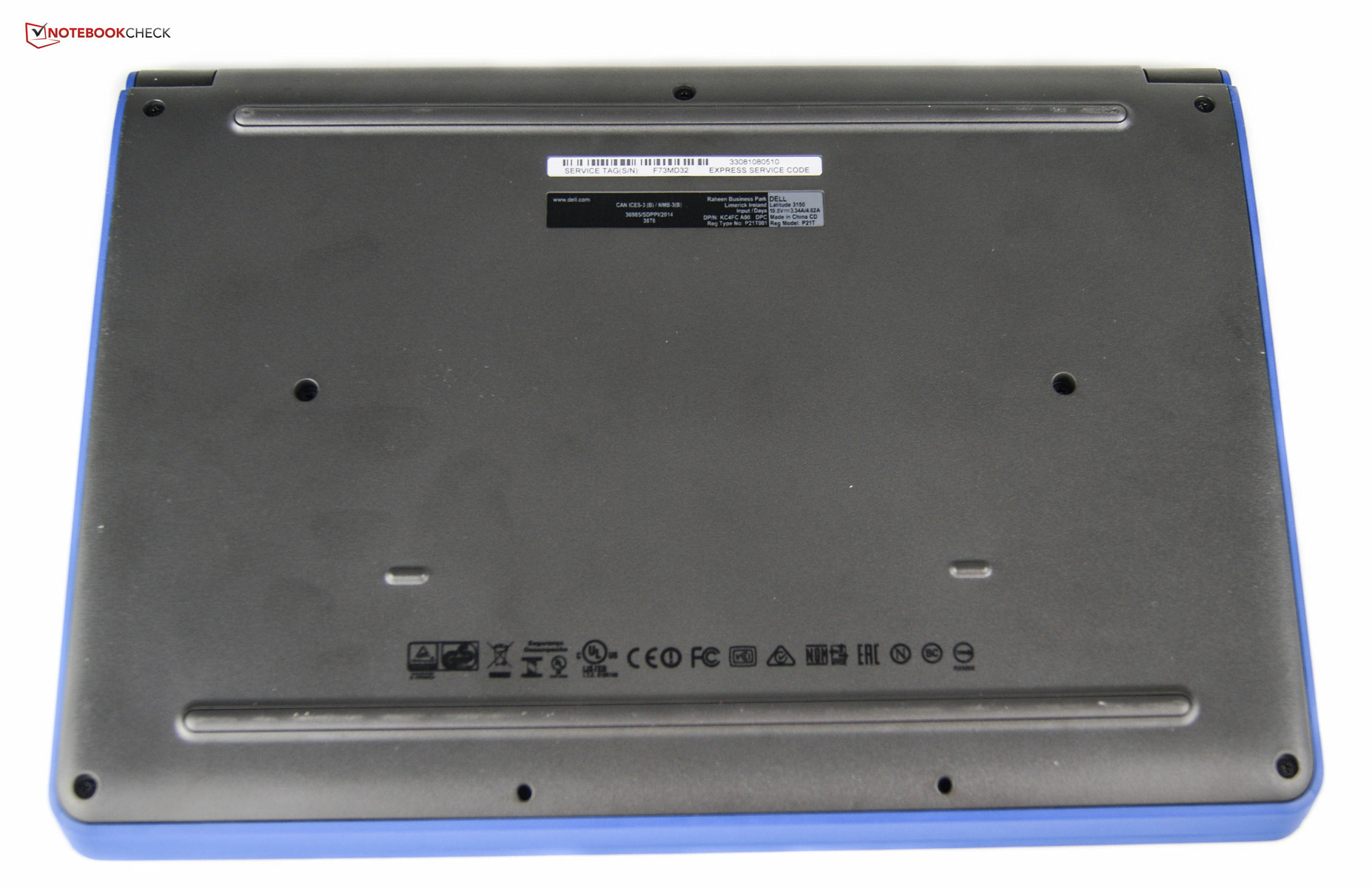

The base tray has to be removed for maintenance work. That is possible after releasing seven screws. Two notches help removing the tray without damage. It is consequently possible to access the storage device, battery, Wi-Fi module, working memory and even the inactively cooled (fan-less) CPU without many problems. It is not possible to simply expand the 4 GB working memory with an additional module because only one memory bank is available. That excludes dual-channel mode at the same time.

The manufacturer offers a computer cart for storing several Latitudes. It recharges as many as 30 devices simultaneously and has a lock mechanism for safe storage. Thus, freshly recharged laptops can be taken out at the beginning of class. This mechanism is available as managed and unmanaged. The former includes an Ethernet network switch for simultaneously maintaining connected laptops.

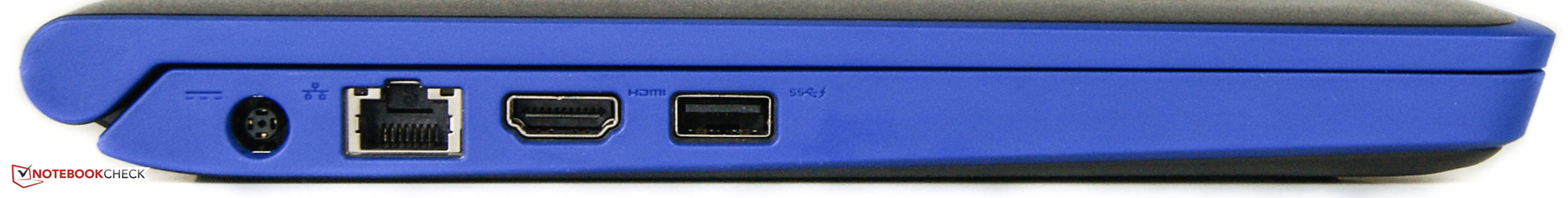

Left: power socket, Ethernet port, HDMI-out, 1x USB 3.0
Left: power socket, Ethernet port, HDMI-out, 1x USB 3.0

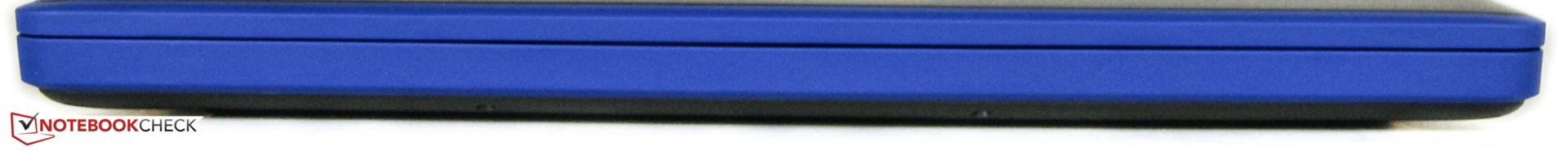

Front
Front

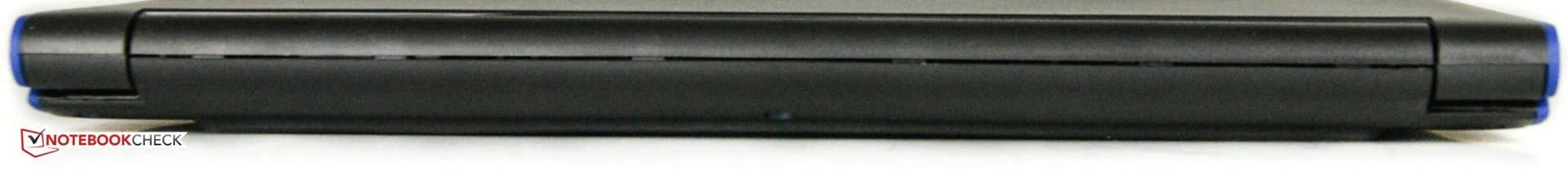

Rear
Rear

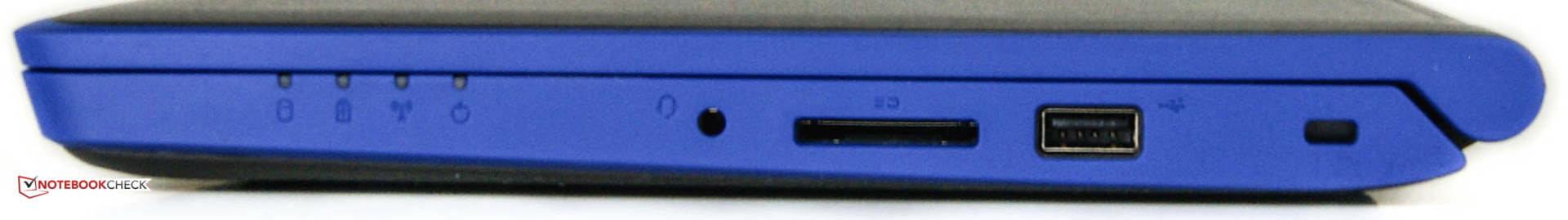

Right: combo audio, SD-card reader, 1x USB 2.0, Kensington lock
Right: combo audio, SD-card reader, 1x USB 2.0, Kensington lock

Input Devices

The keyboard is compelling
The keyboard is compelling

Fortunately, the keyboard of the little laptop features standard dimensions, and students do not have to get used to a small keyboard size. Its responsiveness is crisp, and it has a medium drop. The space bar responds a bit faster than the other keys, which needs some familiarization. The keyboard will please touch-typists. The roughened keys provide the necessary grip and the lettering has a sufficient size. The keyboard unit in the Latitude is even suitable for longer typing sessions.

Unfortunately, only the trackpad's size and surface is pleasing. Its size of 10.6 x 6.1 cm and its sleekness find our approval, but we would have hoped for more accuracy when inputting. Not only the corners and edges are the problem zones. Even precise and slow inputs are only detected inaccurately if at all. Gestures, such as scrolling through websites, usually function smoothly.

Display

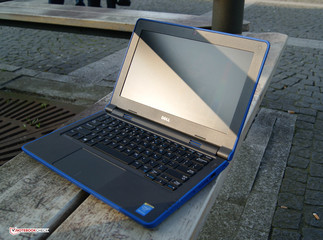

Avoiding direct sunlight
Avoiding direct sunlight
makes outdoor use thinkable.
makes outdoor use thinkable.

Dell treats its little 11-inch Latitude to a matte TN screen with a resolution of 1366x768 pixels. The manufacturer does not offer any alternatives in its laptop configurator. The average brightness of 219 cd/m² is sufficient in most cases and also slightly higher than that of the rival from Acer. The brightness difference between the screen's lower right and upper left area is very striking. A minor screen bleeding thus becomes visible in darker surroundings. The contrast of 290:1 and the resulting black level of 0.81 cd/m² are not enough for either a rich black or decent grayscale levels. Although the 11-inch contender only has an average brightness of approximately 180 cd/m², its higher contrast of 744:1 and better black level of 0.27 cd/m² are pleasing.

234
cd/m²
229
cd/m²
209
cd/m²
247
cd/m²
235
cd/m²
202
cd/m²
239
cd/m²
197
cd/m²
179
cd/m²
Distribution of brightness
AU Optronics AUO235C B116XTN CGVHX tested with X-Rite i1Pro 2
Maximum: 247 cd/m² (Nits) Average: 219 cd/m²
Brightness Distribution: 72 %
Center on Battery: 237 cd/m²
Contrast: 290:1 (Black: 0.81 cd/m²)
ΔE Color 9.67 | 0.5-29.43 Ø5
ΔE Greyscale 11 | 0.57-98 Ø5.3
37% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.23% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.5% sRGB (Argyll 2.2.0 3D)
38.93% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.2
Dell Latitude 11 3150
HD Graphics (Bay Trail), N3540, Samsung SSD PM851 128 GB MZ7TE128HMGR
Acer Travelmate B115-MP-C2TQ
HD Graphics (Bay Trail), N2930, Seagate Momentus Thin ST500LT012-1DG142
MSI S12T-3MA441
Radeon HD 8330, A4-5000, Hynix HFS128G3AMNB
Display
17%
8%
Display P3 Coverage
38.93
45.43
17%
42.06
8%
sRGB Coverage
58.5
67.7
16%
63
8%
AdobeRGB 1998 Coverage
40.23
46.94
17%
43.49
8%
Screen
46%
17%
Brightness middle
235
201
-14%
182
-23%
Brightness
219
182
-17%
176
-20%
Brightness Distribution
72
85
18%
76
6%
Black Level *
0.81
0.27
67%
0.32
60%
Contrast
290
744
157%
569
96%
Colorchecker dE 2000 *
9.67
3.51
64%
9.48
2%
Greyscale dE 2000 *
11
2.61
76%
10.37
6%
Gamma
2.2 100%
2.53 87%
2.64 83%
CCT
11769 55%
6372 102%
12303 53%
Color Space (Percent of AdobeRGB 1998)
37
43
16%
40
8%
Total Average (Program / Settings)
32% / 38%
13% / 14%

* ... smaller is better

Our review sample does not allow peeking either because a very viewing-angle dependent TN screen is installed. The slightest tilt changes brightness and colors extremely. In contrast, Acer's device relies on a higher-quality IPS screen that prevents these problems. However, Dell permits a tilt angle of up to 180° for an always suitable work position.

The high DeltaE shift in colors and grayscale levels are also typical for this model type. These differences lead to a heavy bluish cast particularly in gray colors.

A matte screen model is predestined for outdoor use. The Latitude's low brightness ruins outdoor suitability, though. Only dim and shaded places are feasible work environments. However, direct light sources in classrooms are not as distracting.

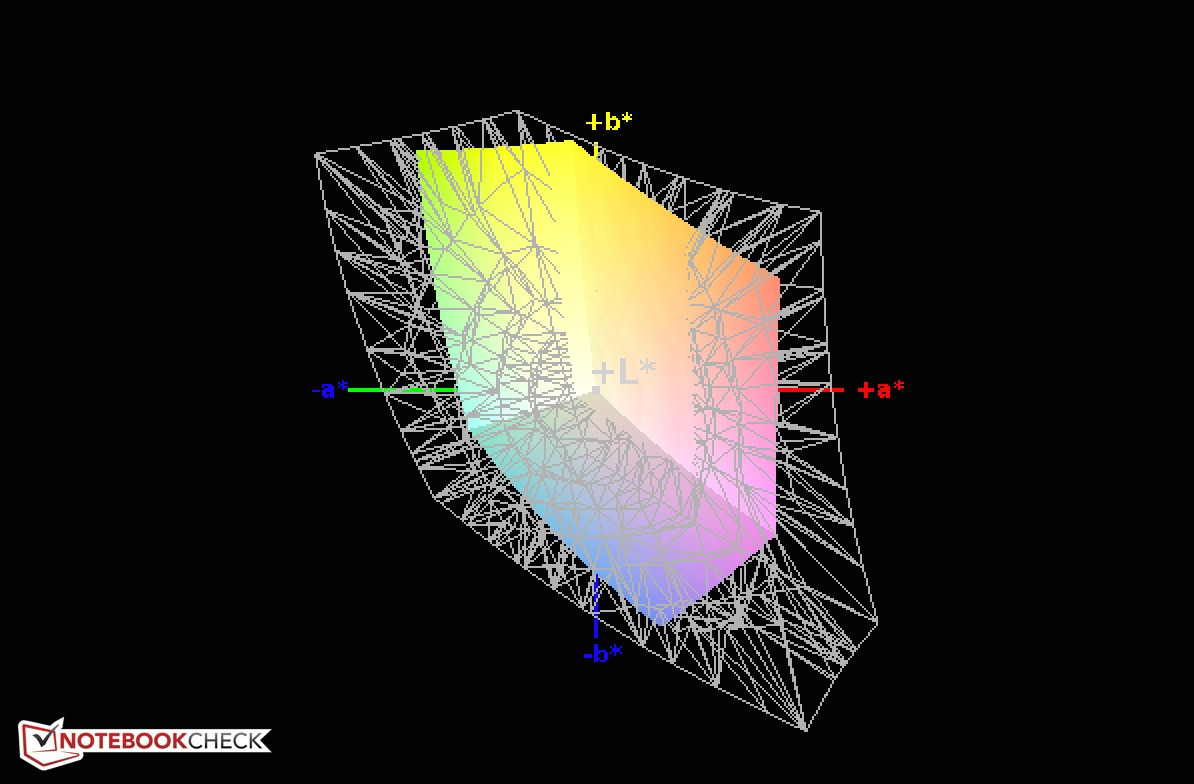

sRGB color space coverage
sRGB color space coverage

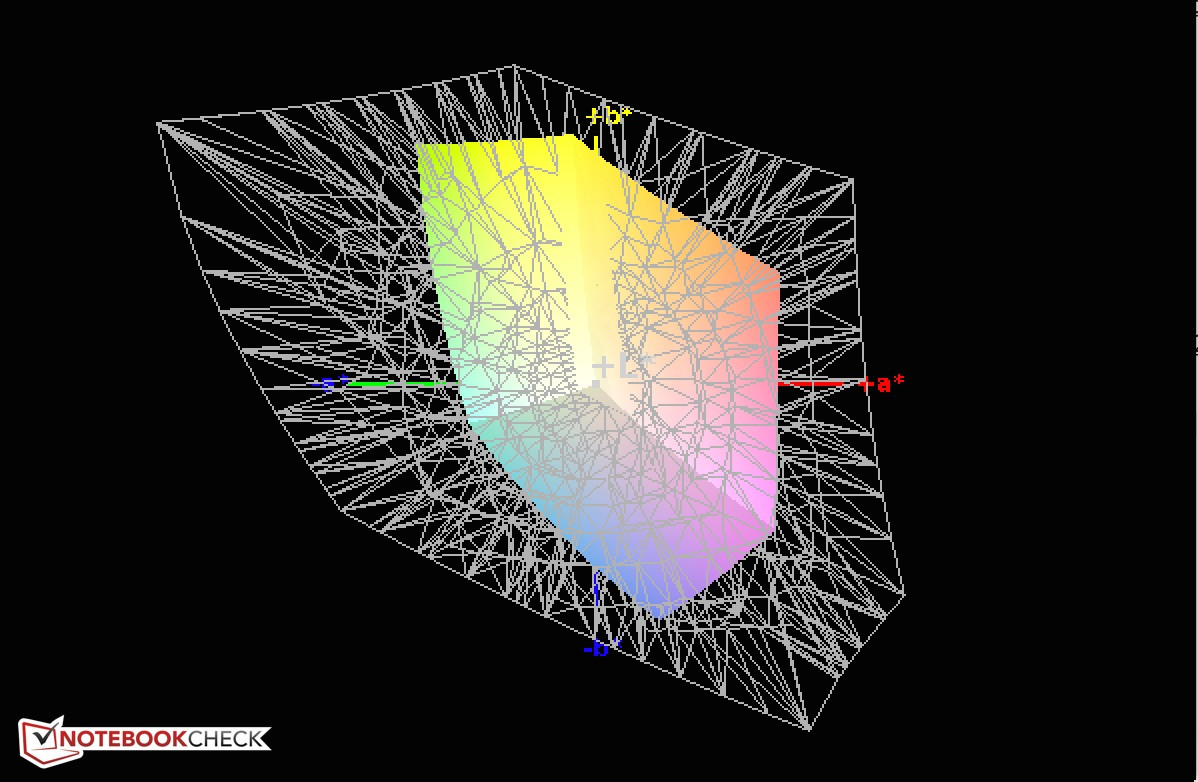

AdobeRGB color space coverage
AdobeRGB color space coverage
CalMAN: Saturation Sweeps
CalMAN: Saturation Sweeps
CalMAN: ColorChecker
CalMAN: ColorChecker
CalMAN: Grayscale
CalMAN: Grayscale

Performance

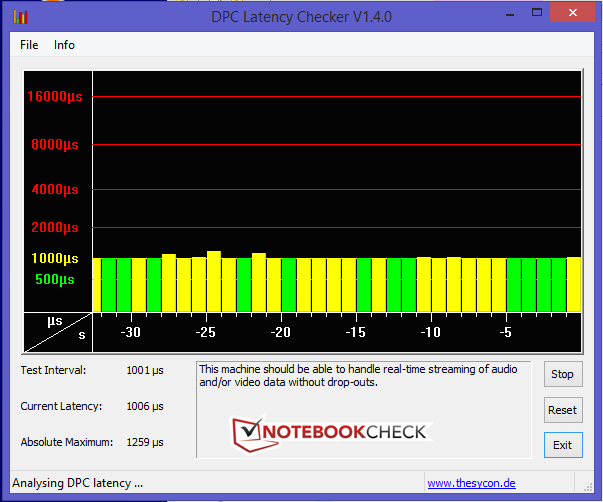

DPC Latency Checker
DPC Latency Checker

Dell's Education lineup is made for the office, Internet and multimedia world. We cannot expect more from the installed components. Intel's Pentium N3450 has enough performance reserves for the listed application fields - but not much more. The integrated 4 GB working memory operates in single-channel mode and can be upgraded to 8 GB. However, there is only one memory bank available. An additional 4 GB costs approximately 60 Euros (~$67) extra in the configurator. The SSD is to make working with the laptop fast. Our present Latitude 3150 is sold for 560 Euros (~$626). Other configurations can be found on the manufacturer's website.

Processor

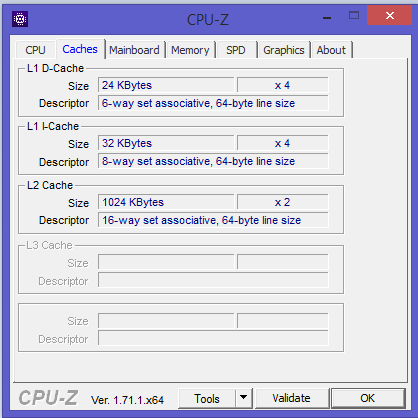

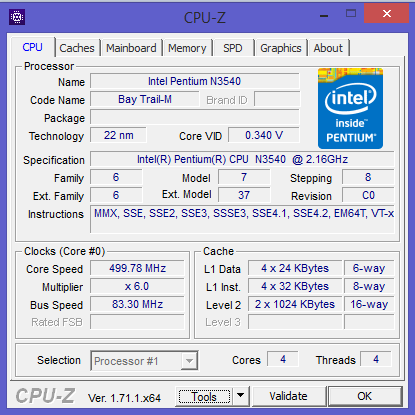

A frugal Intel Pentium 3540 at a base speed of 2.16 GHz calculates inside our Latitude. The installed CPU is based on Intel's Silvermont architecture and features Turbo mode that enables clock rates of up to 2.66 GHz. The 20-Euro (~$22) cheaper model sports an Intel Celeron N2840. Intel specifies a maximum power dissipation of a low 7.5 watts in its spec sheet.

A look at the benchmarks reveals that the Latitude scores better than its rival from Acer. The difference to the TravelMate in the Cinebench R15 multi-core test is 15%. The advantage increases to 26% in the R11 version. The contending laptop is based on an Intel Celeron N2930 and clocks at 1.83 to 2.16 GHz, which is significantly lower than the review sample.

The Turbo clock rate remained stable during the Cinebench R15 benchmarks. We could not undercut the clock rate even after some repetitions. There is no performance loss in battery mode, either. The same results are achieved here according to Cinebench R15.

Cinebench R10
Rendering Single 32Bit (sort by value)
Dell Latitude 11 3150
1339 Points
Acer Travelmate B115-MP-C2TQ
1133 Points -15%
Rendering Multiple CPUs 32Bit (sort by value)
Dell Latitude 11 3150
4496 Points
Acer Travelmate B115-MP-C2TQ
3862 Points -14%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Dell Latitude 11 3150
0.49 Points
Acer Travelmate B115-MP-C2TQ
0.41 Points -16%
CPU Multi 64Bit (sort by value)
Dell Latitude 11 3150
1.89 Points
Acer Travelmate B115-MP-C2TQ
1.39 Points -26%
Cinebench R15
CPU Single 64Bit (sort by value)
Dell Latitude 11 3150
41 Points
Acer Travelmate B115-MP-C2TQ
35 Points -15%
CPU Multi 64Bit (sort by value)
Dell Latitude 11 3150
152 Points
Acer Travelmate B115-MP-C2TQ
129 Points -15%

Legend


Dell Latitude 11 3150 Intel Pentium N3540, Intel HD Graphics (Bay Trail), Samsung SSD PM851 128 GB MZ7TE128HMGR

Acer Travelmate B115-MP-C2TQ Intel Celeron N2930, Intel HD Graphics (Bay Trail), Seagate Momentus Thin ST500LT012-1DG142
Cinebench R10 Shading 32Bit
2175
Cinebench R10 Rendering Multiple CPUs 32Bit
4496
Cinebench R10 Rendering Single 32Bit
1339
Cinebench R11.5 OpenGL 64Bit
6.55 fps
Cinebench R11.5 CPU Multi 64Bit
1.89 Points
Cinebench R11.5 CPU Single 64Bit
0.49 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
6.55 fps
Cinebench R15 CPU Multi 64Bit
152 Points
Cinebench R15 CPU Single 64Bit
41 Points
Help

System Performance

The combination of an SSD and a CPU predestined for office and Internet applications ensure a pleasant and responsive workflow. The system runs smoothly in total - as long as we restrict ourselves to the named fields of use. PCMark 7 confirms this sooner subjective impression. Acer's TravelMate B115-MP-C23C, with a marginally higher performance than our contender owing to the Intel Celeron N2940 and with an identical configuration otherwise, reaps in a 42% worse score than the Latitude from the Education lineup. The SSD storage plays an important role for this outcome; our reviewed Acer only had an HDD.

PCMark 7 - Score (sort by value)
Dell Latitude 11 3150
2855 Points
Acer TravelMate B115-MP-C23C
1647 Points -42%

Legend


Dell Latitude 11 3150 Intel Pentium N3540, Intel HD Graphics (Bay Trail), Samsung SSD PM851 128 GB MZ7TE128HMGR

Acer TravelMate B115-MP-C23C Intel Celeron N2940, Intel HD Graphics (Bay Trail), Seagate Momentus Thin ST500LT012-1DG142
PCMark 7 Score
2855 points
Help

Storage Device

An SSD from Samsung's SM851 lineup is installed in our present review sample. The 2.5-inch non-volatile storage has a capacity of 128 GB and is not included in the basic configuration. A 250 GB HDD is in the Latitude's basic configuration. The extra charge for the swifter storage is 42 Euros (~$46). CrystalDiskMark shows us that the SSD storage achieves faster write / read speeds and response times than an HDD, but also that it does not score very well.

Dell Latitude 11 3150
HD Graphics (Bay Trail), N3540, Samsung SSD PM851 128 GB MZ7TE128HMGR
Acer Travelmate B115-MP-C2TQ
HD Graphics (Bay Trail), N2930, Seagate Momentus Thin ST500LT012-1DG142
MSI S12T-3MA441
Radeon HD 8330, A4-5000, Hynix HFS128G3AMNB
CrystalDiskMark 3.0
-78%
52%
Read Seq
251.5
109.8
-56%
425.8
69%
Write Seq
124.4
102.6
-18%
310
149%
Read 512
229.2
23.87
-90%
360.4
57%
Write 512
124.8
39.98
-68%
279.4
124%
Read 4k
13.5
0.427
-97%
19.26
43%
Write 4k
39.21
0.749
-98%
38.6
-2%
Read 4k QD32
117.4
0.971
-99%
109
-7%
Write 4k QD32
98.6
0.733
-99%
84
-15%
Samsung SSD PM851 128 GB MZ7TE128HMGR
Sequential Read: 251.5 MB/s
Sequential Write: 124.4 MB/s
512K Read: 229.2 MB/s
512K Write: 124.8 MB/s
4K Read: 13.5 MB/s
4K Write: 39.21 MB/s
4K QD32 Read: 117.4 MB/s
4K QD32 Write: 98.6 MB/s

Graphics Card

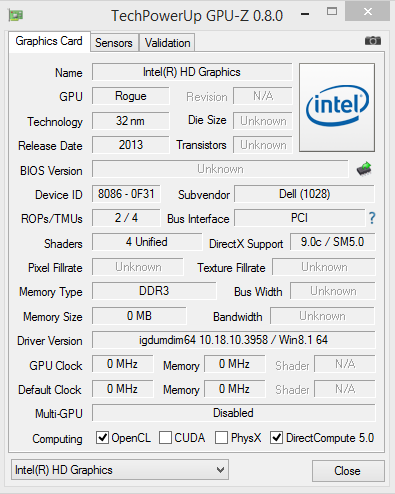

A processor-integrated graphics card takes care of video output. Intel's HD Graphics (Bay Trail) has a core clock of 860 MHz. Due to the fact that the Latitude has one working memory module maximum, the review sample does not support dual-channel memory. Acer's TravelMate features the same graphics unit and thus both laptops achieve identical scores in 3DMark 11.

Using the laptop without its charger is often the case particularly in schools during classes. Like under the Processor chapter, there is no need to fear performance losses. 3DMark 11 achieved the same score in battery mode.

3DMark 11 Performance
264 points
3DMark Ice Storm Standard Score
20505 points
3DMark Cloud Gate Standard Score
1525 points
Help

Gaming Performance

The combination of a frugal CPU and integrated GPU prevent the Latitude from entering the gaming world. Even BioShock: Infinite released in 2013 did not manage smooth frame rates. The gaming faction that limit themselves to classic games will likely be happy with some older games. Which games might possibly function can be found in our article "Gaming Performance of recent laptop graphic cards."

low med. high ultra
BioShock Infinite (2013) 14.24 7.08 6.16

Emissions

System Noise

Rather than a monotonous sounding fan in computer class, the user will not hear anything at all from Dell's Latitude 3150 thanks to its passive cooling strategy.

Temperature

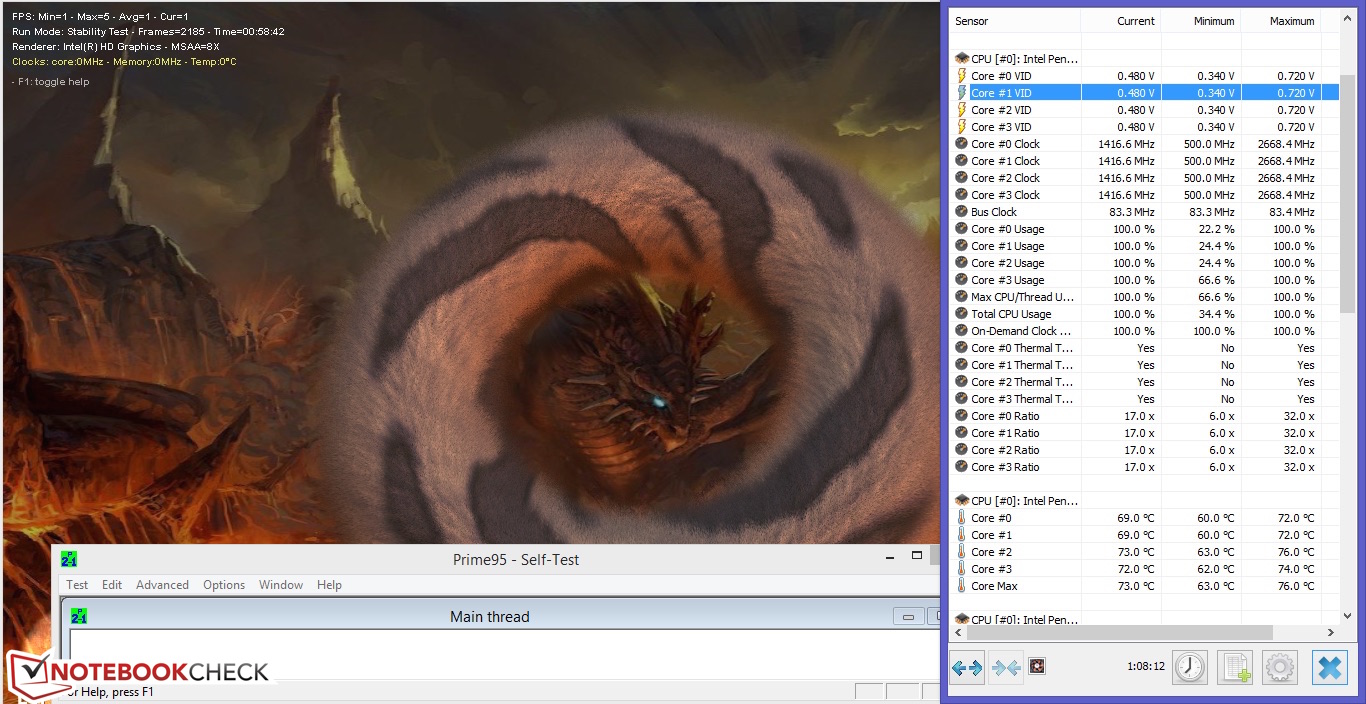

Stress test
Stress test
Good maintenance options
Good maintenance options

2 hours of idling in energy-saving mode did not lead to an unpleasant temperature increase in our review sample. However, load operation is interesting. The fan-less design exhibited a somewhat deficient behavior locally. The hot spot reached approximately 44 °C, found on the underside in the display area. It was considerably cooler around the hot spot, though. Our Acer review sample also uses a fan-less design and reaches peak rates of 46.5 °C.

The power supply of our review sample never reached disconcerting temperatures. We ascertained a maximum of just 33 °C, which is 3 °C warmer than in idle.

We observed the CPU's behavior under extreme conditions in a stress test. That is achieved using the programs Furmark and Prime95. The CPU maintained its maximum clock rate of 2.66 GHz for the first few minutes. The clock speed fluctuated between 1.4 and 2.6 GHz after five minutes. The clock rate varied even more in the next hour and recurrently reached its Turbo rate for a short period. The core temperatures reached a maximum of 74 °C using this strategy.

 25.8 °C
78 F
26.2 °C
79 F
25.2 °C
77 F

 25.1 °C
77 F
25.1 °C
77 F
24.6 °C
76 F

 23 °C
73 F
22.4 °C
72 F
23.7 °C
75 F

Maximum: 26.2 °C = 79 F
Average: 24.6 °C = 76 F
25.6 °C
78 F
29.1 °C
84 F
27.6 °C
82 F
24.1 °C
75 F
25.2 °C
77 F
23.2 °C
74 F
25 °C
77 F
23 °C
73 F
22.7 °C
73 F
Maximum: 29.1 °C = 84 F
Average: 25.1 °C = 77 F
Power Supply (max.)  29.7 °C = 85 F | Room Temperature 21.9 °C = 71 F | Voltcraft IR-360
(+) The average temperature for the upper side under maximal load is 31.2 °C / 88 F, compared to the average of 29.8 °C / 86 F for the devices in the class Netbook.
(+) The maximum temperature on the upper side is 36.1 °C / 97 F, compared to the average of 33.1 °C / 92 F, ranging from 21.6 to 53.2 °C for the class Netbook.
(±) The bottom heats up to a maximum of 44.6 °C / 112 F, compared to the average of 36.6 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.6 °C / 76 F, compared to the device average of 29.8 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.8 °C / 82 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 29.3 °C / 84.7 F (+1.5 °C / 2.7 F).
Dell Latitude 11 3150
HD Graphics (Bay Trail), N3540, Samsung SSD PM851 128 GB MZ7TE128HMGR
Acer Travelmate B115-MP-C2TQ
HD Graphics (Bay Trail), N2930, Seagate Momentus Thin ST500LT012-1DG142
MSI S12T-3MA441
Radeon HD 8330, A4-5000, Hynix HFS128G3AMNB
Heat
-10%
0%
Maximum Upper Side *
36.1
40.1
-11%
31
14%
Maximum Bottom *
44.6
46.5
-4%
35
22%
Idle Upper Side *
26.2
29.8
-14%
34.3
-31%
Idle Bottom *
29.1
32
-10%
30.6
-5%

* ... smaller is better

Speakers

Small dogs bark loudest. That could be the motto that describes the volume of both stereo speakers. Although a real sound spectrum is not audible and songs sometimes sound a bit randomized, the volume is convincing especially in video calls or occasional YouTube videos.

Energy Management

Power Consumption

As to be expected from the installed components, the review sample was never exceedingly guzzling. The idle consumption ranged from 2.8 to 5 watts. Acer's laptop demands 3 watts more here. However, this behavior changes in load where peak rates of 15.8 watts were reached. The power consumption varied between 10.4 and 15.8 watts in our stress test, which can be explained with the CPU's fluctuating clock rate. Acer's device consumes a bit less here with rates ranging from 10 to 13.7 watts.

Power Consumption
Off / Standbydarklight 0.1 / 0.2 Watt
Idledarkmidlight 2.8 / 4.8 / 5 Watt
Load midlight 12.6 / 13.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime

Dell equips the Latitude 3150 from the Education lineup with a 3-cell battery. The manufacturer specifies a capacity of 38 Wh (40.3 Wh read out).

We simulated Internet browsing in our real-life scenario using the balanced Windows plan and a brightness of 144 cd/m². The Latitude first shut down to standby after almost 10 hours. Acer's TravelMate had to give up three hours sooner. That not only makes the little Latitude interesting for everyday school life but also as a portable office device. It will easily last a whole workday.

Battery Runtime - WiFi Websurfing (sort by value)
Dell Latitude 11 3150
HD Graphics (Bay Trail), N3540, Samsung SSD PM851 128 GB MZ7TE128HMGR
591 min

Pros

+ Stiffness
+ Keyboard
+ Battery life
+ Matte screen

Cons

- Price
- Gaps

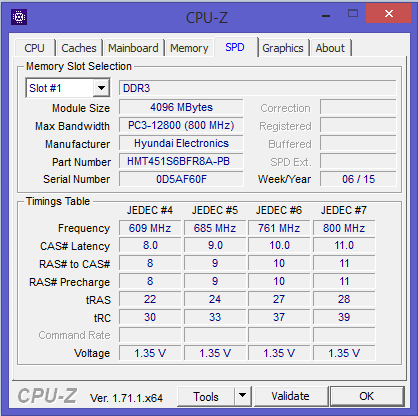

- Only one working memory module possible
- SSD's read and write rates

Verdict

Dell's Latitude 3150 is to be durable according to scholastic demands. However, some interesting features for the "normal" user were discovered in our test. Although the casing is exclusively made of plastic, the rubber rim defies some rougher bumps. Furthermore, the keyboard and trackpad are sealed against penetrating fluids. The Latitude does not have a maintenance cover, but the base tray can be easily removed, making it possible to access the largest part of the hardware. We only ascertained minor shortcomings in build regarding the display lid's stiffness and the gaps. The input devices are particularly important for office laptops. The review sample also convinced with its good keyboard here, although the trackpad could be a bit more accurate in use. After that, we looked at the screen which is ideally matte. The TN screen is very viewing-angle dependent even for its model type. In sum, the display is sufficient for office work. The high color shifts, the low contrast and the bluish cast prevent using it for professional graphics editing.

However, the review sample's system performance is good. The combination of a frugal processor and SSD ensures smooth workflow. We cannot say how well the other configurations without an SSD and a weaker CPU would score at this point. The selected components allow the manufacturer to use a fan-less design. The involved temperature development also remains within limits. The Latitude achieves a real-life battery runtime of up to 10 hours thanks to its energy-efficient components. Consequently, Dell's little 11.5-inch device will manage even longer school and office days.

Overall, Dell's combination of input devices, screen model, system performance and battery life is balanced. Thus, the Latitude 3150 is a decent workhorse for school, university and the workplace.

Dell Latitude 11 3150 - 04/16/2015 v4(old)
Nino Ricchizzi

Chassis
79 / 98 → 81%
Keyboard
77%
Pointing Device
69%
Connectivity
56 / 80 → 70%
Weight
71 / 35-78 → 84%
Battery
92%
Display
72%
Games Performance
40 / 68 → 59%
Application Performance
59 / 87 → 68%
Temperature
92 / 91 → 100%
Noise
100%
Camera
42 / 85 → 49%
Average
71%
79%
Netbook - Weighted Average

Pricecompare

Read all 2 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
Nino Ricchizzi, 2015-04-30 (Update: 2018-05-15)
