User-Review BenQ Joybook 5200G

Our forum moderator Jan alias Deichgraf investigated the favorable notebook for beginners - the BenQ Joybook 5200G. The Notebook, which is already available for less than 800 Euro is called by BenQ "wireless pleasure on silent feet". Whether Jan shares this opinion is you can read in the following review.

Case

Pleasing Case

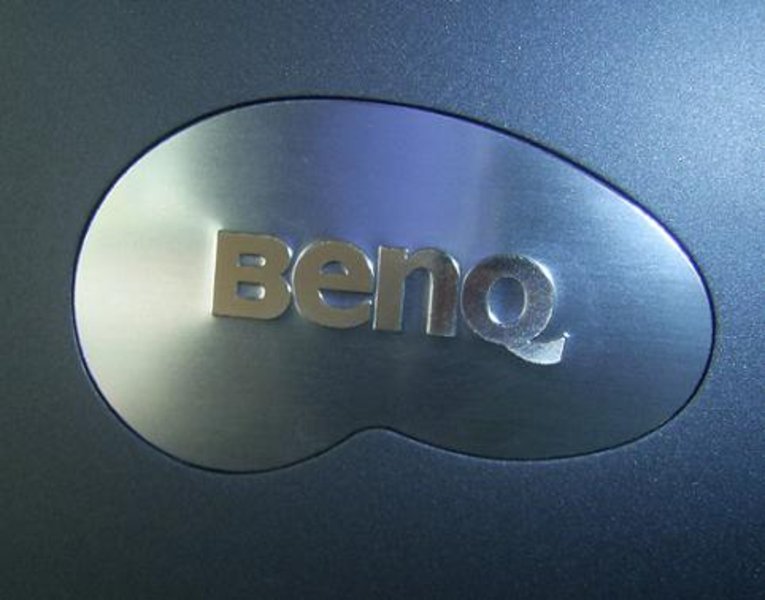

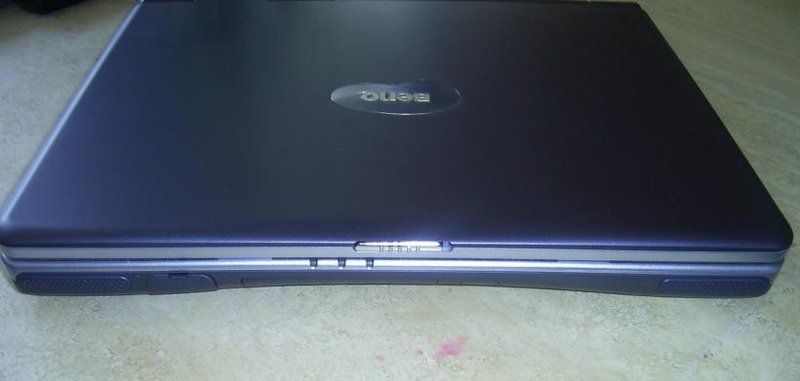

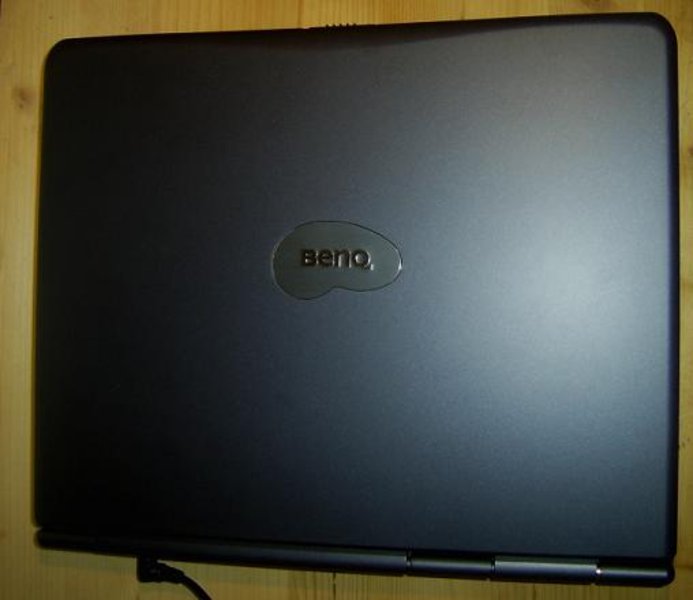

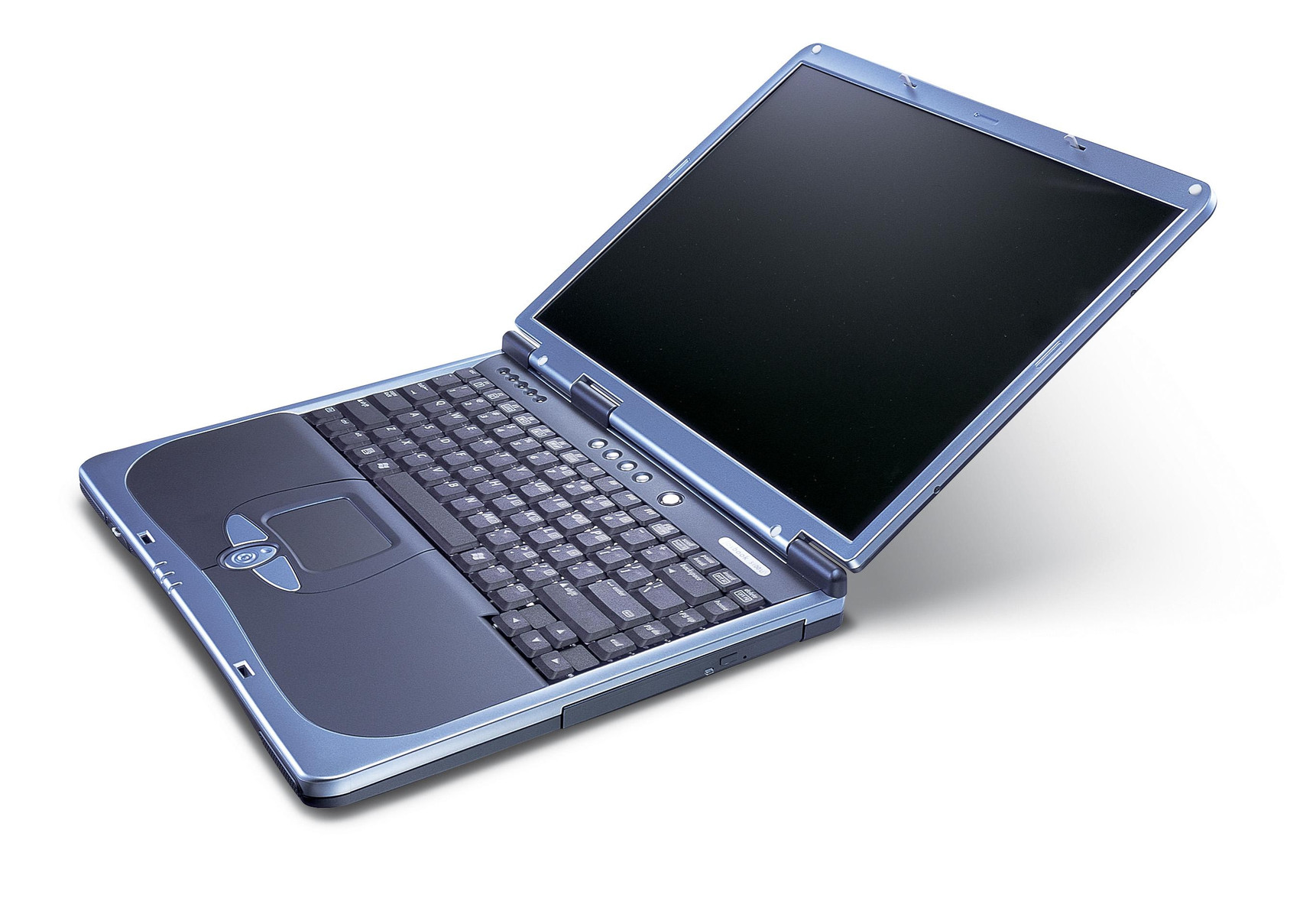

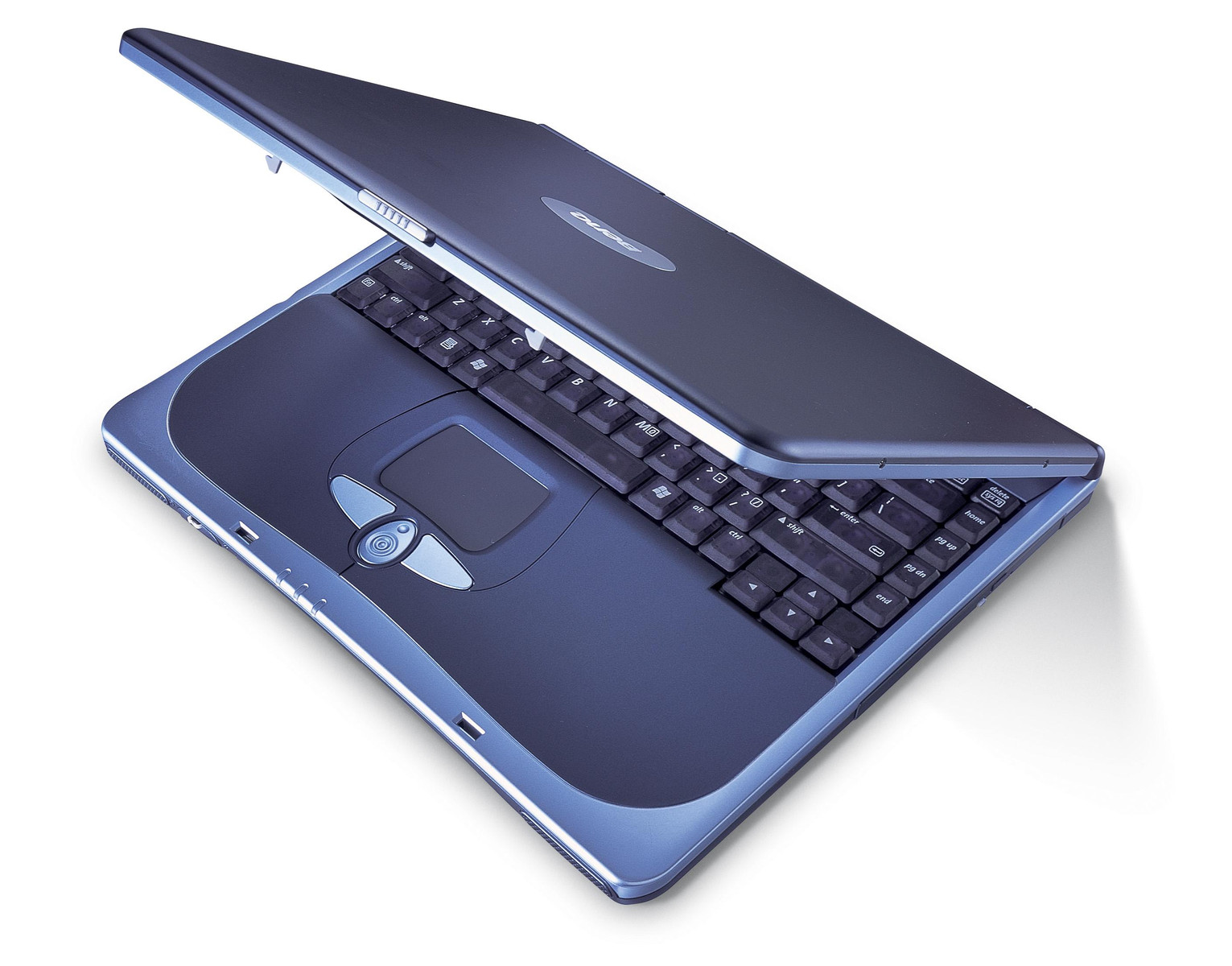

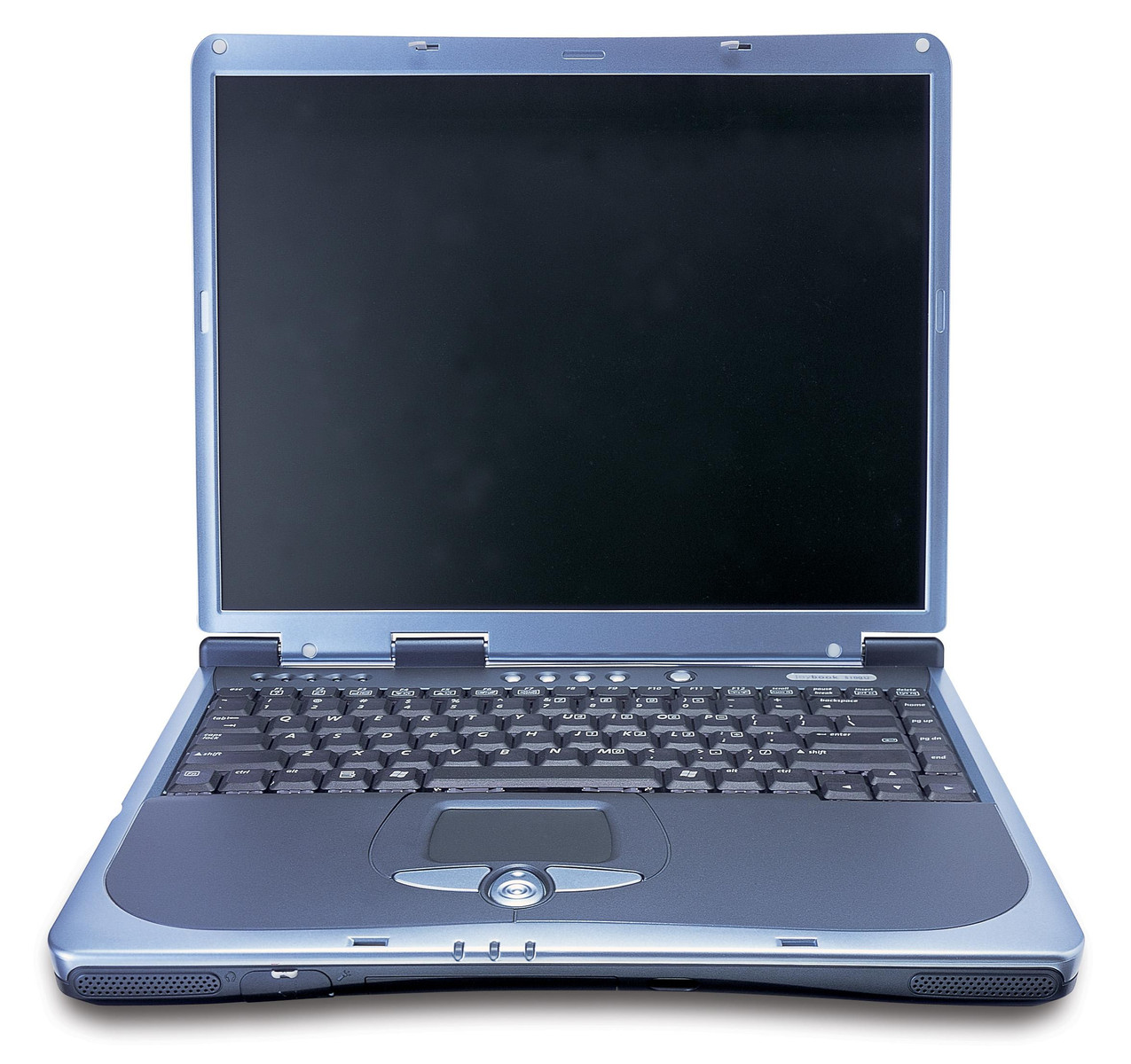

The stably seeming cover gleams in dark blue metallic. At the upper cover edge of the BenQ Joybook 5200 G is a chrome-colored plastic slide for the unblocking of the cover. Many parts of the Joybook 5200 G are dominated by plastic parts. Workmanship and quality of the used plastic material is acceptable. Overall the notebook is stiff against torsions. Four additional keys shining in chrome allow the fast access to the favored internet-browser and the preferred application of email, two further keys can be used for individual functions by the user.

Features

Of course the BenQ Joybook 5200 G can offer a lot of respective communication and interface equipment. Nonetheless nowadays a 100-MBit-LAN port, a modem adapter and W-LAN are the standard-equipment of (nearly) every notebook. The WLAN-module can be switched on/off fast by a combination of keys. However, the BenQ Joybook 5200 G does not offer Bluetooth or infrared. Who would like to attach cordless terminals (mouse, headset) or to adjust data with the mobile telephone will have to use either a Bluetooth Dongle or a data cable.

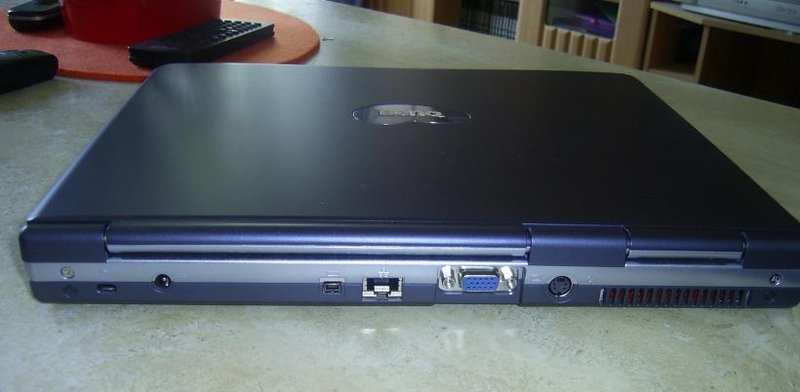

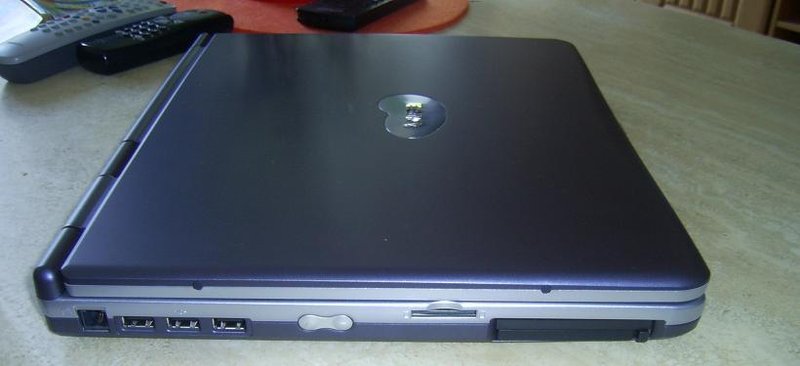

On the other side Joybook 5200 G offers interfaces for FireWire, microphone, headphone/SPDIF (optical), line-in, monitor, S-video as well as a PCMCIA slot. 3 USB 2.0-ports and a 3in1-cardreader, who is able to reade flash memory of the formats MemoryStick (MS), MultiMediaCard (MMC) and SecureDigital (SD) complete the connection options.

Connections

Input Devices

The black keyboard of the BenQ Joybook 5200G is not colored completely. Owing to the easily transparent keys you can recognize the wire-sub-construction beneath the keys with bright skylight well - surely some people won't like it. The key heads are rounded off, sit firm upon the sub-construction and provide a good finger contact owing to the rough surface. The pleasant keys of the BenQ Joybook 5200 G work with short stroke and hardly fit with springs.

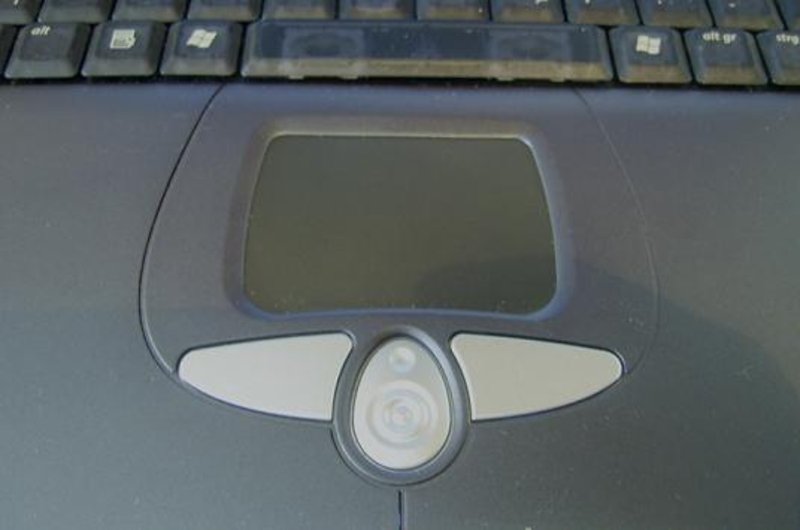

The black touchpad of the BenQ Joybook 5200 G offers a navigation surface of 6,5 x 4.5 centimeters (width x height). Owing to the rough surface sweating fingers hardly might lose the contact to the surface. The Pad works precisely and makes the navigation very easy.

Display

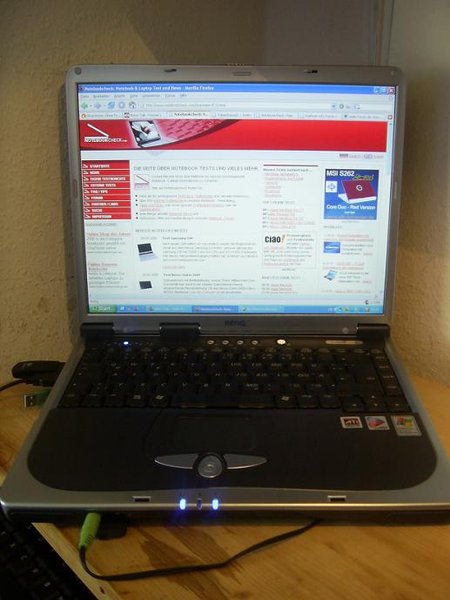

The BenQ Joybook 5200 G offers a 15 inch non-reflecting 4:3 display with a conservative resolution of 1024 x 768 pixels. The LCD impresses by a smooth non morroring display surface. In addition the display convinces with a successful brightness.  Surprisingly the color-saturation achieves high values for  a conventional display. The colors seem well colored, the color of the skin of portrait-photos is naturally. Overall, the display of the BenQ Joybook 5200 G scores with good ergonomics and a good quality of image representation.

Performance



Although the very cheap price of less than 800 Euro, there is a plenty of technical equipment. On Intels current Alviso-chipset i915PM a Intel Pentium M 740 with 1.73 GHz clock frequency is inserted. Two DDR memory modules (PC-2700) with an overall capacity of 512 MByte, which work in the performance-promoting dual-channel operation, provide a high memory throughput. However the user acquires this performance advantage with a minor problem: for upgrading at least one of the modules must removed and thus become an occasion for Ebay.

The video card of the BenQ Joybook 5200 G is a ATI Mobility Radeon X300 with 64 MByte own video memory. Nevertheless must be said clearly, that the X300 is an outdated and comparatively favorable chip. It can't be compared with the often implemented X700 or powerful Nvidia video cards. Nonetheless the X300 is undoubtedly better than every in the chipset integrated graphics core. Here BenQ saves some Euro, which instead are used for a good processor. This might be a good decision, because the BenQ Joybook 5200 G has no chance to be a notebook for gamers and anyway does not want to be. Most applications receive advantages by better RAM and processor than by a faster video card.

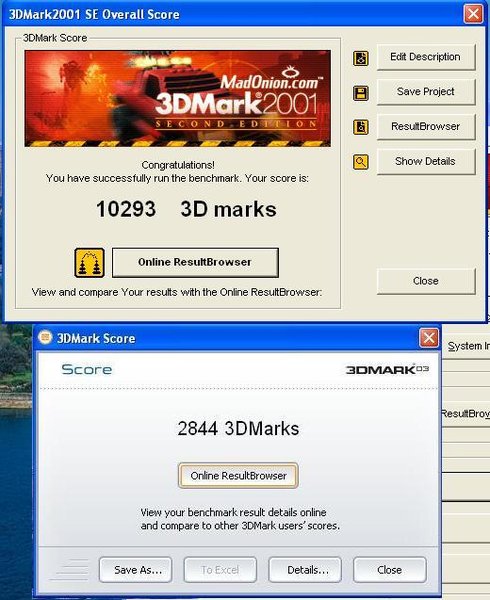

Apart from a pleasing performance in usual office and multimedia applications the BenQ Joybook 5200 G results in good values in the 3D-tests owing to the X300. In the 3DMark03 of Futuremark the Joybook 5200 G reaches 2844 points; in the 3DMark05 still 1088 points. Owing to a high performance hard disk the users may try modern and current game titles. Restriction: games, which demand very high graphics performance and main storage capacity, only can be played with reduced resolution and less details.

The fast hard disk MHV2060AH of Fujitsu surely contributes to the good total output of the BenQ Joybook 5200 G. The 60 GByte Ultra-ATA/100-hard disk works with a rotation speed of 5.400 U/min.

BenQ Joybook 5200 G offers an optical drive assembly of the type Hitachi LG DT ST DVD RW GWA-4082N as a further mass storage. The DVD burner with 8x burning speed also permits the use of the high-capacitive double-layer media with a storage volume of up to 8.5 GByte.

3D Mark
3DMark 2001SE10293 points
3DMark 032844 points
3DMark 051088 points
Help
3DMark 05 in comparison
Nokia Booklet 3G (min)
 Z530, Graphics Media Accelerator (GMA) 500
120
   ...
Sony Vaio VGN-BZ26M
 T7250, Graphics Media Accelerator (GMA) 4500MHD
1052
Samsung E251 T4200 Esilo
 T4200, Graphics Media Accelerator (GMA) 4500MHD
1086
Benq Joybook 5200G.G02
 740, Mobility Radeon X300
1088
Lenovo G550
 T4200, Graphics Media Accelerator (GMA) 4500M
1090
Lenovo IdeaPad U160
 520UM, Graphics Media Accelerator (GMA) HD Graphics
1093
   ...
Alienware M18x R2 (max)
 3920XM, Radeon HD 7970M Crossfire
36878
PC Mark
PCMark 043527 points
PCMark 052413 points
Help
PCMark 05 in comparison
Acer Aspire One 751 (min)
 Z520, Graphics Media Accelerator (GMA) 500
692
   ...
HP 550
 550, Graphics Media Accelerator (GMA) X3100
2363
Sony Vaio VGN-N11M
 T2050, Graphics Media Accelerator (GMA) 950
2408
Benq Joybook 5200G.G02
 740, Mobility Radeon X300
2413
Samsung X120
 SU7300, Graphics Media Accelerator (GMA) 4500M
2440
Toshiba Portégé R500-12P
 U7700, Graphics Media Accelerator (GMA) 950
2460
   ...
Fujitsu Celsius H710 WXP11DE (max)
 2820QM, Quadro 1000M
13842
60 GB - 5400 rpm
Transfer Rate Minimum: 10.6 MB/s
Transfer Rate Maximum: 34.5 MB/s
Transfer Rate Average: 26.7 MB/s
Access Time: 18.6 ms
Burst Rate: 66.3 MB/s
CPU Usage: 5.8 %

Emissions

The noise and temperature emissions of the BenQ Joybook 5200 G are to be good evaluated. For the power and fan management the user can use the system utility BenQ Qpower. Apart of maximum performance, normal and maximum battery life it allows 7 further pre-defined performance modes. Besides, individual parameters can be adapted to the personal needs in the configuration menu of BenQ Qpower. With the setting max. performance the fan operates without any load or while simple office operations clearly perceptibly or switches itself on/off frequently during writing pauses. However the noise of the fan remains altogether on an average level. The air discharge opening completely in the back is optimal.

Straight with higher power output a perceptible heating of the touchpad and other areas in front of the keyboard can be noticed.

The two small implemented loudspeakers are not convincing and are only suitable for system sounds.

Battery Runtime

The users is allowed to expect a good average according the battery runtime of the BenQ Joybook 5200 G. With W-LAN the Joybook 5200 G runs over 2 hours in battery mode, while office work is surely 3 hours and more are possible.

Verdict

BenQ Joybook 5200G

The BenQ Joybook 5200 G surprises with attractive optics, solid input devices, fast total performance and a pleasing display. The plastic chassis of the Joybook 5200 G is cleanly processed and proves as quite torsionally stiff. Also the keyboard pleases with an accommodable write feeling, the touchpad offers enough place for a comfortable navigating and works precisely.
The 15 inch not reflecting XGA display can prevent from annoying light reflections. Besides, the display of the BenQ Joybook 5200 G scores with advantages of ergonomics and color representation. According the background brightness the LCD is positioned on the average, but with the viewing angle the user must tolerate weaknesses particularly in the vertical view.
Altogether the BenQ Joybook 5200 G is quite suitable as inexpensive, fast, solid allround-notebook for everyone.

tested: BenQ Joybook 5200G

Specifications

Specifications

Benq Joybook 5200G.G02

:: Processor
Intel Pentium M 740 1.73 GHz
:: Memory
512 MB, DDR PC2700, 166Mhz, max. 2048MB, 2x256MB Dual-Channel
:: Graphics adapter
:: Display
15 inch 4:3, 1024x768 pixel, XGA, 200cd/m², glossy: no
:: Harddisk
60 GB - 5400 rpm, 60 GB 5400 rpm Fujitsu MHV2060AH: 60GB, 5400rpm
:: Connections
3x USB 2.0 Port, Firewire, Infrarot, PCMCIA , VGA, RJ-11 Modem, Mikrophoneingang, Kopfhörerausgang/SPDIF shared line out ,Stromanschluss, Kensington Lock, 3in1 Cardreader (SD/MMC/MS)
:: Size
height x width x depth (in mm): 32 x 328 x 266
:: Weight
2.7 kg
:: Battery
, Batterie 8 Zellen Lithium-Ionen Akku-Laufzeit bis zu 3,5 Stunden
:: Price
800 Euro
:: Additional features
Intel i915PM, HDD: 60GB, 5400rpm, Fujitsu MHV2060AH, Realtek ALC250 @ Intel 82801FBM ICH6-M - AC'97 Audio Controller, Hitachi-LG-DT-ST DVD-RW GWA-4082N; auch DVD+R DL und DVD-RAM fähig,



Pro

  • bright display
  • good keyboard
  • useful supplements
  • optics
  • workmanship
  • good performance data
  • price/value
  • Contra

  • weak loudspeakers
  • sample laptop had pixel error
  • very hot touchpad
