Max Payne 3 Benchmarked

Lord of Bullet Time. After a perceived eternity, Max Payne returns to our home computer screens. The third part was not developed by Remedy, but by GTA studio Rockstar. Aside from strengths and weaknesses, this article illuminates game performance with various notebook GPUs.
Max Payne 3

In previous installments, the Max Payne series set itself apart from other games with its dark, film noir style, a stark contrast to mainstream Hollywood kitsch. Instead of bright colors, cheery characters, and embarrassing humor, a dark and rainy New York filled with all manner of shady characters dominated the scenery.

Deviating from standard practice amongst action games, first priority was given to the games’ story lines. As a cost-cutting measure, Remedy used stylish cartoon storyboard sequences to tell a rich story about hate, betrayal, drugs, and greed. The eponymous protagonist Max Payne is a cynical, pessimistic loner who is tortured by disturbing nightmares. James McCaffrey, the voice actor who portrays Max Payne, lends his deep voice to the story sequences to create a scary, artistic atmosphere that has remained unsurpassed by most any other game.

The series features many memorable and highly specific details. We fondly recall the amusing TV series, Address Unknown, featured the game world. Anyone familiar with the series will recall its famous use of “Bullet Time”, a slow motion effect made famous by the Matrix movie trilogy.

Not a game for minors.
Not a game for minors.
Max Payne ends up in Sao Paulo.
Max Payne ends up in Sao Paulo.
Every once in a while, different perspectives are imposed.
Every once in a while, different perspectives are imposed.

Background

The third installment of the Max Payne series was recently released by Rockstar Studios. While Rockstar retained many of the virtues of the first two games in the series which were published by Remedy Entertainment, it broke tradition in other areas. Diehard fans, for example, may find the new surroundings in Sao Paulo, Brazil to be out of character for the series. Max Payne 3 opens with the alcohol-dependent Max and his colleague Raul Passos working security for the powerful Branco family. When the wife of Rodrigo, the family patriarch, is kidnapped, the Branco family naturally turns to Max Payne to rescue her.

While the previous two installments in the game told the story primarily in nighttime sequences, the third game in the series offers considerably more variation, including daytime missions. This opens the door for fans to debate whether Max Payne 3 still fits the film noir genre but it is obvious that nothing has changed regarding the protagonist’s grim countenance.

Well dressed, the fine gentleman
Well dressed, the fine gentleman
Better look for cover in case of enemy contact.
Better look for cover in case of enemy contact.
Raul Passos is Max' new side kick.
Raul Passos is Max' new side kick.

Strengths

We played four of the fourteen chapters of the game and are pleased to state that Rockstar succeeds at balancing the tradition of Max Payne with a fresh, modern approach to expanding the series. We were first and foremost impressed with the visuals and the sound. From the start, the player is immersed in a rich audio-visual experience that we found bewitching. The top-notch visuals proved to be excellent and did not require the use of other action highlights as employed in games like Battlefield 3 and Crysis 2. At times, we did find the squalls of visual effects to be overdone. Textures, shadows, lighting, animations, and reflections were all state-of-the-art for 2012 and Rockstar specifically tuned the PC version to give it the latest DirectX 11 support.

While the visuals were outstanding in their own right, they were supported by a grandiose musical selection which added much to the dense atmosphere. The soundtrack, which ranges from driving beats in a discotheque in Chapter 2 to melancholy timbres during a flashback sequence in Chapter 4, was perfectly matched to every situation. Rockstar chose to sacrifice stylish cartoon sequences in favor of videos produced by the game’s graphical engine, often portraying multiple perspectives simultaneously. We found this change to be acceptable even though longtime fans may disagree. The series’ trademark Bullet Time is back and produced spectacular moments. At times, the game even switched to rather impressive camera rides, though their merit is arguable in light of the high degree of violence.

We found that the controls were sticky in a few places such as Max Payne 3’s new cover system, reminiscent of Mafia 2. Nonetheless, we still considered the controls to be decent. Both believable and impractical at the same time, Max Payne seems to only be able to carry one large weapon at a time in this installment. We were positively surprised with the AI whose flanking maneuvers and surrounding tactics are rarely offered in action games.

Rockstar integrated many cool scripted sequences
Rockstar integrated many cool scripted sequences
The attention to detail is noticeable everywhere.
The attention to detail is noticeable everywhere.
In spite of limited freedom of movement, the level design is convincing.
In spite of limited freedom of movement, the level design is convincing.

Weaknesses

Of course, the strengths of the game do not imply that the game is perfect. We found that Rockstar overdid things in many ways after Chapter 3. As is common for many American movie and game productions, the protagonist is often confronted by swarms of enemies, something we found both unrealistic and often unfair. Max Payne died hundreds of times, even on normal difficulty, due to brutal trial and error sequences.

We found Rockstar’s choice to remove manual game saving to be quite annoying. This is compounded by the fact that the save points are often placed poorly. In some cases, the player is forced to repeat long sections due to surprise ambush attacks two meters away from the save point. In the same vein, we found that some levels were simply too long. While we enjoy long and engrossing games, some sequences such as the stadium in Chapter 3 felt artificially long, as if the developer lacked restraint or was attempting to intentionally drag things out.

Other than the above, we found very few points of criticism in the first four chapters. In Max Payne 3, Rockstar has released an excellent third-person action shooter which effortlessly matches its predecessors in terms of depth of character, presentation, and storytelling.

The story picks up speed quickly.
The story picks up speed quickly.
Every chapter has its eye candy.
Every chapter has its eye candy.
The pike jumps are perfectly animated.
The pike jumps are perfectly animated.

Benchmarks

For benchmarking, we chose an extremely demanding sequence – the second checkpoint in Chapter 2. We measured performance immediately after the loading process with Max running toward a pane of glass to protect Marcelo Branco from an attacker (see video below). Max shatters the glass with the opponent and drops to the floor, in slow motion, to avoid a hail of bullets. As soon as Max touches the dance floor, we ended our Fraps recording.

The entire sequence lasted 15 seconds and delivered very consistent scores. We chose this sequence due to the fact that most of the game runs smoother than this sequence and our benchmark represents a minimum expected performance. This implies that when a GPU in our benchmark table achieves over 20 frames per second (fps) in this sequence, Max Payne 3 should be pleasantly playable from start to finish. As a result, the red and yellow sections in the table can be somewhat deceiving in this test.

Settings

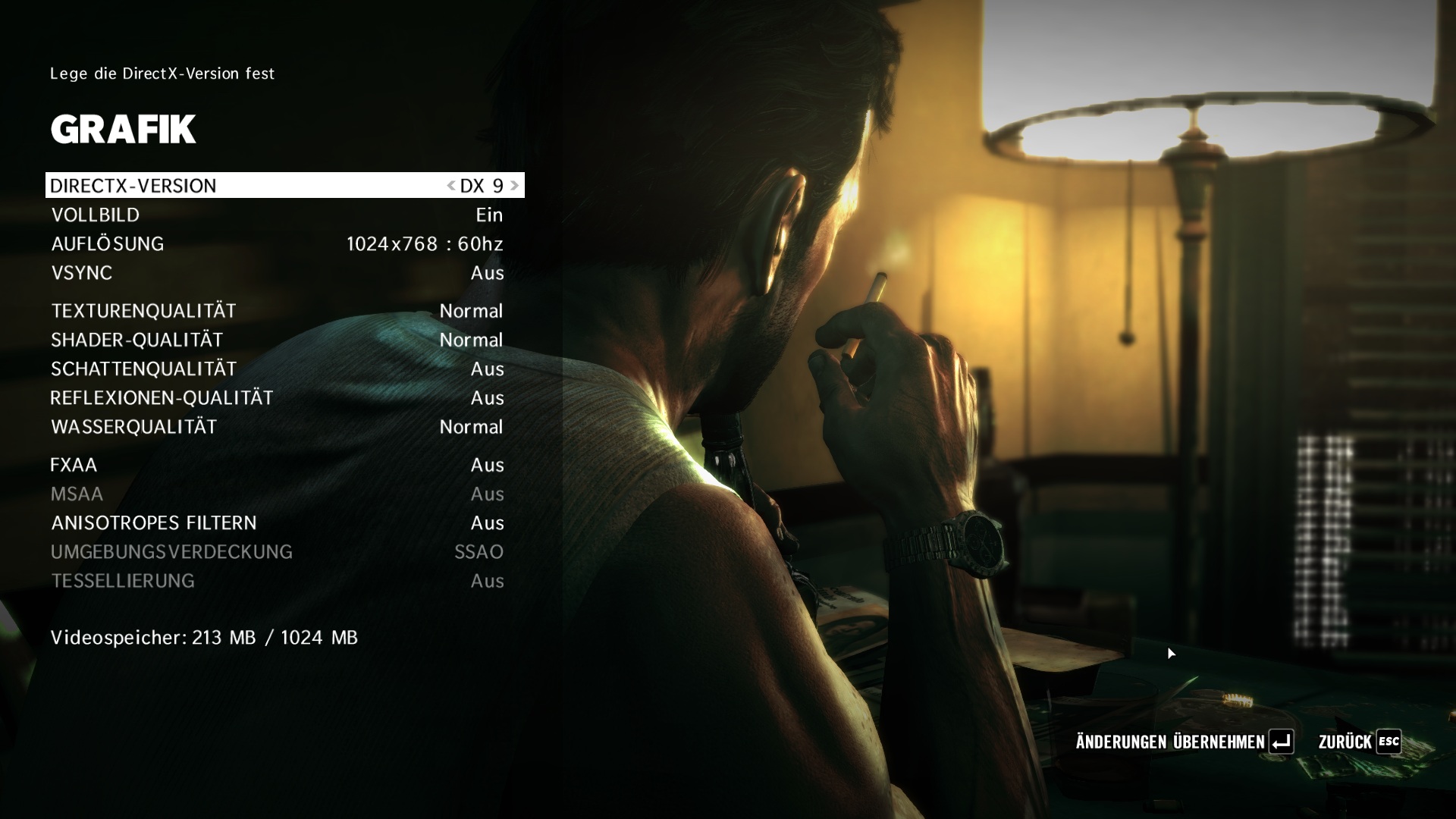

14 options await in the GPU menu.
14 options await in the GPU menu.

The graphics options include a diverse range of settings. The range of options includes DirectX modes, texture qualities, and image improvements such as Anti-Aliasing (AA) and Anisotropic Filtering (AF). Since Max Payne 3 contained no global presets, it was challenging picking appropriate settings.

For the low end, we decided upon a 1024x768 resolution, minimum details (all options set to off or normal), and DirectX 9. For the midrange, we used a 1366x768 resolution, medium details (FXAA through tessellation deactivated), and DirectX 10. The third level, targeting higher performance multimedia and gaming notebooks, used a 1366x768 resolution, high details (including FXAA, tessellation, and 4x texture filtering), and DirectX 11. Our highest level used a maximum resolution of 1920x1080, very high details (including FXAA, tessellation, and 8x AF), and of course DirectX 11. For all scenarios, VSync and Multisample Anti-Aliasing (MSAA) were disabled and ambient light occlusion was always set to Horizon-Based Ambient Occlusion (HBAO).

Interestingly, we found that Nvidia’s shader-based edge-smoothing FXAA also worked with AMD GPUs. From the benchmarks where AMD GPUs tended to be faster, we could not tell if FXAA worked perfectly in AMD cards but we subjectively noticed a substantial image improvement. All screenshots were taken with a Radeon HD 5850.

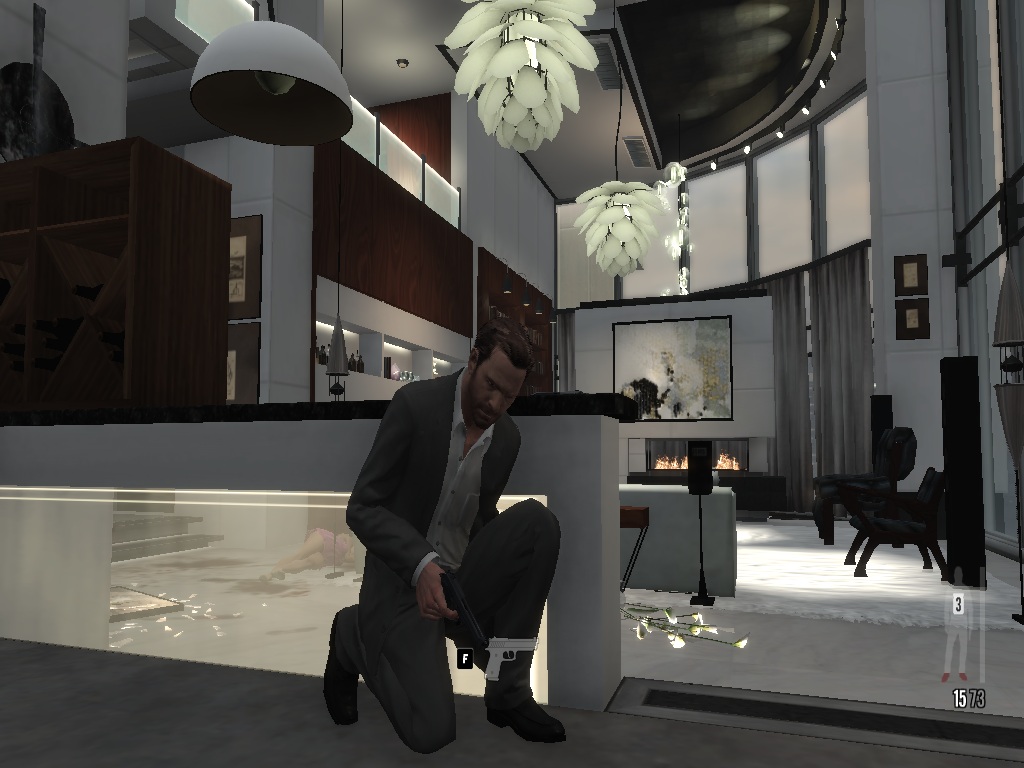

Low-Setting
Low-Setting

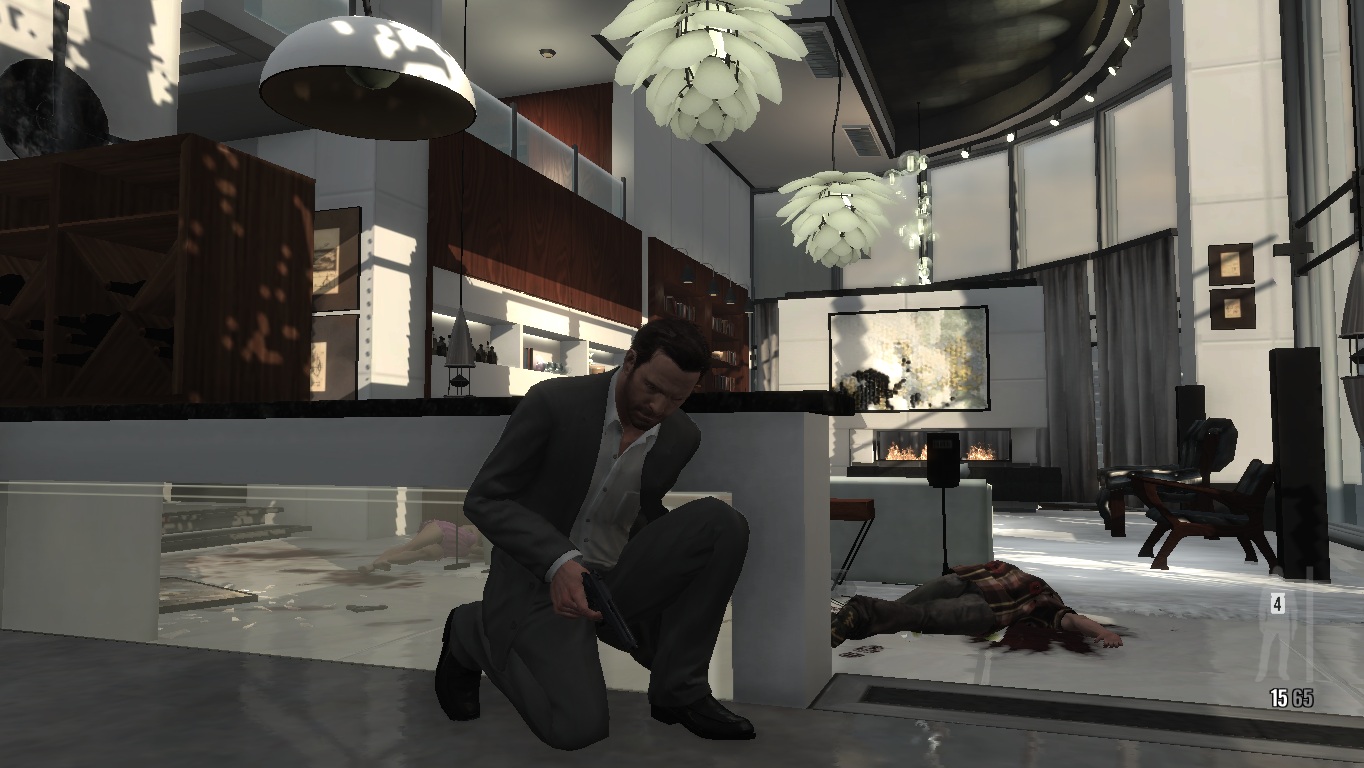

Medium-Setting
Medium-Setting
High-Setting
High-Setting
Ultra-Setting
Ultra-Setting

During the course of our testing, we found ourselves cursing time and time again due to various quirks of the Max Payne 3 settings system. Changing certain options required a complete game restart, a time consuming process. We also discovered that Max Payne 3 uses VRAM as its basis for assessing performance capabilities. We found no way to override VRAM detection and the game simply disabled certain settings. This was particularly problematic when Max Payne 3 detected the wrong amount of VRAM. It tended to show less than the true amount of VRAM for GPUs that utilize NVidia Optimus, showing 512 MB instead of 2048 MB for a particular GPU. On the other hand, it often counted system RAM as part of the VRAM for integrated GPUs such as the Intel HD Graphics 4000 and showed VRAM exceeding 1.5 GB.

As a result of these quirks, only low settings and DirectX 9 were possible on some systems. While it should be possible to circumvent automatic VRAM detection by editing the graphics.xml file in the user’s documents folder, we were unable to bypass VRAM detection. Anyone using a notebook with automatic GPU switching may want to wait for the first series of patches from Rockstar. We have no idea why Rockstar chose to use such a method for detecting performance levels as it is common knowledge that VRAM size has no relevance to performance in modern GPUs. After all, some GPUs with 512 MB VRAM may outperform other models with 2048 MB VRAM.

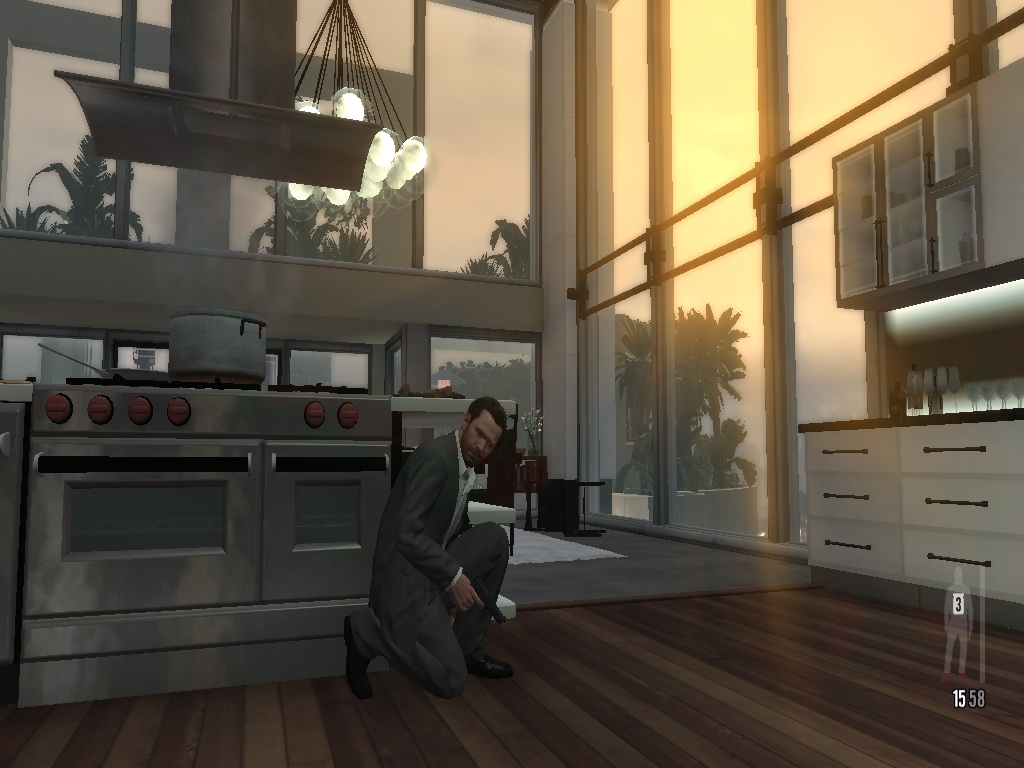

Low-Setting
Low-Setting
Medium-Setting
Medium-Setting
High-Setting
High-Setting
Ultra-Setting
Ultra-Setting

Besides these, we observed no technical problems worth mentioning. However, many users are currently complaining about crashes, error messages, and performance drops specifically as they pertain to MSAA, and difficulties with the Rockstar Games Social Club which is required for game installation. As well, the game itself is enormous. The Steam version is 30 GB. The retail box version includes four DVDs and is receiving bad publicity due to issues with DVDs failing cyclic redundancy checks (CRC). The fact that some antivirus programs detect Max Payne 3 to be malware or a virus is the proverbial icing on the cake. After the derailed launch of Grand Theft Auto IV, it is a bit surprising that Rockstar Games is once again involved in another launch disaster. Some companies never learn.

Low-Setting
Low-Setting
Medium-Setting
Medium-Setting
High-Setting
High-Setting
Ultra-Setting
Ultra-Setting

Results

Due to its use of the latest in graphical software technology, Max Payne 3 requires fairly powerful hardware. While the game is playable with low-end GPUs such as the Intel HD Graphcis 4000, this is only possible when using the lowest possible settings. Mid-range GPUs like the GeForce GT 630M can easily run the game in normal quality.

Those seeking to play the game in high detail will require an upper-middle class GPU such as the GeForce GT 640M, provided they are willing to sacrifice tessellation which drained a lot of performance in our testing. If tessellation is a must, one should use a system with a high-end GPU such as the GeForce GTX 660M. For maximum details and a full HD 1920x1080 resolution, one will want to use a GeForce GTX 670M or higher.

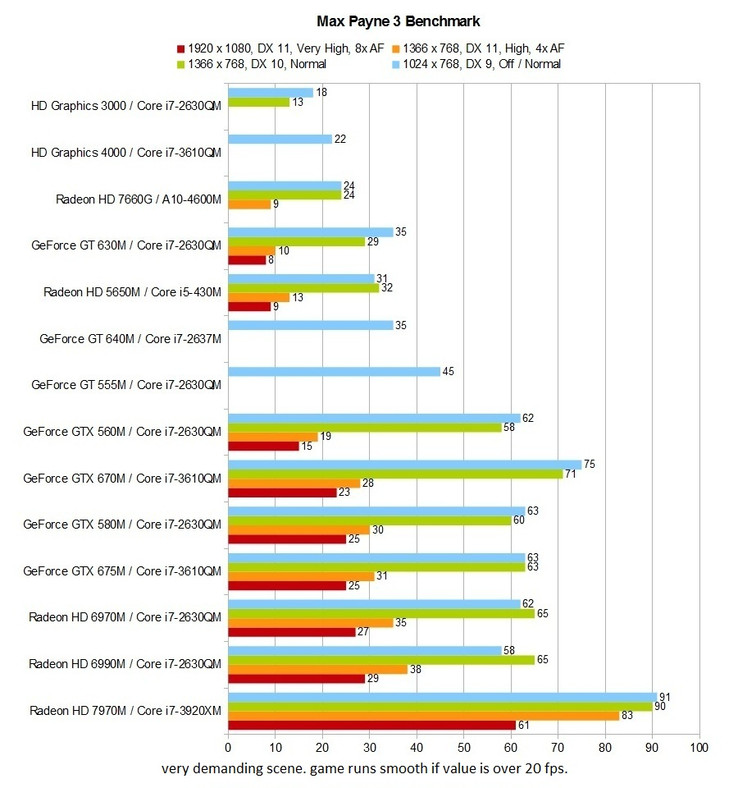

Benchmark table
Benchmark table

Test systems

The games articles are mostly realized with notebooks from the company Schenker:

  • XMG P502 (Core i7-3610QM, GeForce GTX 675M, GTX 670M & HD Graphics 4000, 8 GB RAM)
  • XMG P501 (Core i7-2630QM, GeForce GTX 580M, GTX 560M, Radeon HD 6990M & HD 6970M, 8 GB RAM)
  • XMG A501 (Core i7-2630QM, GeForce GT 555M, 8 GB RAM)
  • Xesia M501 (Core i7-2630QM, GeForce GT 630M & HD Graphics 3000, 8 GB RAM)

The XMG P502 is our newest acquisition and will serve as our test bed for high end GPUs in the future. The Radeon HD 7970M and the GeForce GTX 680M should show up here in the next few weeks.

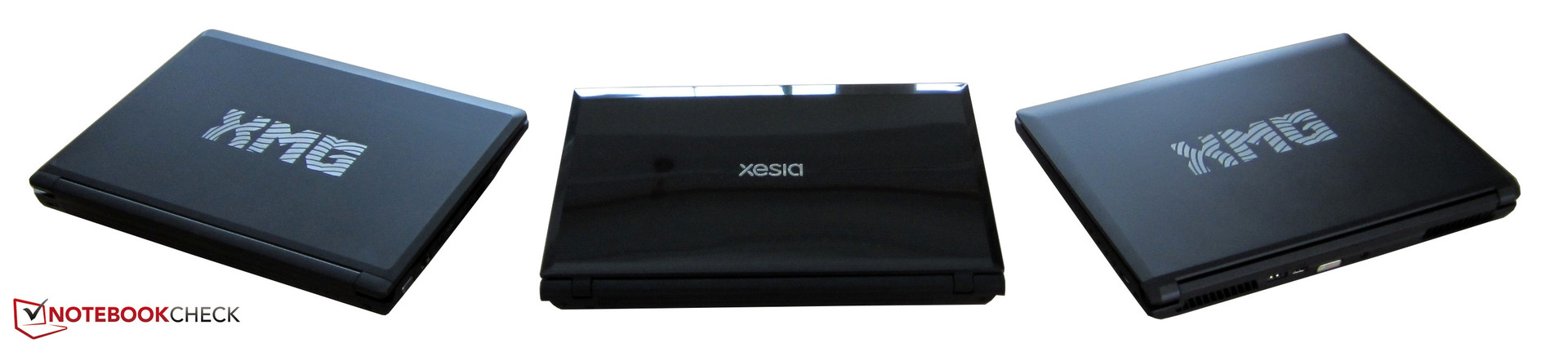

From left to right: Schenker XMG A501, Xesia M501 & XMG P501 / P502
From left to right: Schenker XMG A501, Xesia M501 & XMG P501 / P502

You are interested in other games? Our games list contains further gaming benchmarks.

Show Restrictions
PosModel< PrevNext >Max Payne 3
 Max Payne 3 (2012)
low
1024x768
Off / Normal, DX9
med.
1366x768
Normal, DX10
high
1366x768
High, DX11
4xAF High FXAA
ultra
1920x1080
Very High, DX11
8xAF Very High FXAA
NVIDIA GeForce GTX 780M SLI
88.4
86.4
82.1
AMD Radeon HD 8970M Crossfire
82
78.5
77.3
NVIDIA GeForce GTX 680M SLI
85.4
78
69.9
AMD Radeon HD 7970M Crossfire
85.1
87.1
86.2
84.6
NVIDIA GeForce GTX 680
80
78
72
65
AMD Radeon HD 7970
74.9
72.9
69.7
67.8
NVIDIA GeForce GTX 660 Ti
71.2
69.6
63.1
56.6
NVIDIA GeForce GTX 780M
85.5
86.9
67.7
54.25n2
AMD Radeon HD 7870
75.1
74.2
71.7
62.5
AMD Radeon HD 8970M
73.9
72.4
50.3n2
45.95n2
NVIDIA GeForce GTX 765M SLI
91.3
90.3
74
55.3
NVIDIA GeForce GTX 680M
74.8
81.5
53.5n2
42.2n3
AMD Radeon HD 7970M
90.7
90
83.2
55.8n3
NVIDIA GeForce GTX 670MX SLI
76.5
77.7
60.4
47.7
NVIDIA GeForce GTX 770M
84.3
82.8
48.3
37.1
NVIDIA GeForce GTX 860M
80.2
64.8
46.4
NVIDIA GeForce GTX 675MX
77.3
39.4
30.5
NVIDIA GeForce GT 750M SLI
65.6
39.3
31.6
NVIDIA GeForce GTX 850M
52.8
39
PosModel< PrevNext >Max Payne 3
low med. high ultra
AMD Radeon HD 6870
36
NVIDIA GeForce GTX 470
84
84
53
41
NVIDIA GeForce GTX 765M
80.9
77.8n2
38.9n4
29.5n4
ATI Radeon HD 5850
72.1
73
51.1
37.9
NVIDIA GeForce GTX 675M
63.1
63.3
30.8
25
NVIDIA GeForce GTX 580M
62.7
60.1
30
24.6
AMD Radeon HD 6990M
58.3
65.1
38.4
29.2
AMD Radeon HD 7770
73.6
74.1
39.2
28.8
NVIDIA GeForce GT 650M SLI
74.8
71.6
33.1
26.1
NVIDIA GeForce GTX 670MX
72.4
70
32.85n2
24.9n2
NVIDIA GeForce GTX 760M
73
40
NVIDIA GeForce GTX 670M
75.2
70.7n2
29.8n2
23n2
AMD Radeon HD 6970M
61.9
64.7
35.1
26.7
AMD Radeon HD 8870M
45.3
31.2
28.5
25.1
NVIDIA GeForce GTX 660M
58.3n2
55.05n2
24.4n3
18.9n3
NVIDIA GeForce GT 750M
54.1
52.1
24.7
17.4
NVIDIA GeForce GT 650M
55.1
50.9
22.3n2
17.6n2
NVIDIA GeForce 840M
41.8
41.55n2
30.4n2
NVIDIA GeForce GT 745M
49.2
47.6
21.2
15.4
NVIDIA GeForce GTX 560M
62.1
58.4
18.8
15
PosModel< PrevNext >Max Payne 3
low med. high ultra
NVIDIA GeForce GT 740M
46.85n2
39.15n2
27.25n2
10.3
NVIDIA GeForce GT 735M
39.2
35.4
15.5
NVIDIA GeForce GT 730M
41
36
34
22
NVIDIA GeForce GT 645M
44.8
44.4
17.7
13.3
AMD Radeon HD 8750M
42.7
26.8
25.6
16.5
AMD Radeon R7 M265
26.98
24.78
NVIDIA GeForce GT 640M
35
34
18
13
NVIDIA GeForce GT 640M LE
33.3
30.9
13.3
10.4
AMD Radeon HD 8730M
37
35
NVIDIA GeForce GT 555M
45.3
41.9
12.6
9.9
AMD Radeon HD 8650G + HD 8670M Dual Graphics
29.3
29
20.4
AMD Radeon HD 8550G + HD 8670M Dual Graphics
25.2
23.4
18.7
AMD Radeon HD 7520G + HD 7670M Dual Graphics
16.4
15.2
10.8
8.2
AMD Radeon HD 7670M
40.2
37.4
10.2
7.9
NVIDIA GeForce GT 630M
36.1n2
33.15n2
11.35n2
8.8n2
NVIDIA GeForce 820M
34.5
32.3
15
NVIDIA GeForce GT 720M
33.2
28.9
13.4
AMD Radeon HD 8450G + Radeon HD 8570M Dual Graphics
9.4
9.2
AMD Radeon HD 8550M
11.2
10.5
10
Intel HD Graphics 4600
19.4
PosModel< PrevNext >Max Payne 3
low med. high ultra
NVIDIA NVS 5400M
40
37
13
AMD Radeon HD 7660G
24
24
9
ATI Mobility Radeon HD 5650
31.4
32.1
12.7
8.9
Intel HD Graphics 4400
17.6
14.5
AMD Radeon HD 7550M
25.5
25.4
8
Intel HD Graphics 4000
22.3
AMD Radeon HD 6450 GDDR5
34
29
5
AMD Radeon HD 8450G
9.8
9.8
AMD Radeon HD 7520G
13.5
12.3
7.3
AMD Radeon HD 8330
15.1
14.2
AMD Radeon HD 7420G
12
11
8
Intel HD Graphics 3000
17.6
12.7
(-) * Smaller values are better. / n123 Number of benchmarks for this median value / * Approximate position



Legend
5Stutters – This game is very likely to stutter and have poor frame rates. Based on all known benchmarks using the specified graphical settings, average frame rates are expected to fall below 25fps
May Stutter – This graphics card has not been explicitly tested on this game. Based on interpolated information from surrounding graphics cards of similar performance levels, stutters and poor frame rates are expected.
30Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 25fps
40Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 35fps
60Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 58fps
May Run Fluently – This graphics card has not been explicitly tested on this game. Based on interpolated information from surrounding graphics cards of similar performance levels, fluent frame rates are expected.
?Uncertain – This graphics card experienced unexpected performance issues during testing for this game. A slower card may be able to achieve better and more consistent frame rates than this particular GPU running the same benchmark scene.
Uncertain – This graphics card has not been explicitly tested on this game and no reliable interpolation can be made based on the performances of surrounding cards of the same class or family.
The value in the fields displays the average frame rate of all values in the database. Move your cursor over the value to see individual results.
