Intel Atom Z3480 vs Intel Atom Z3460

Intel Atom Z3480

► remove from comparison Intel Z3480

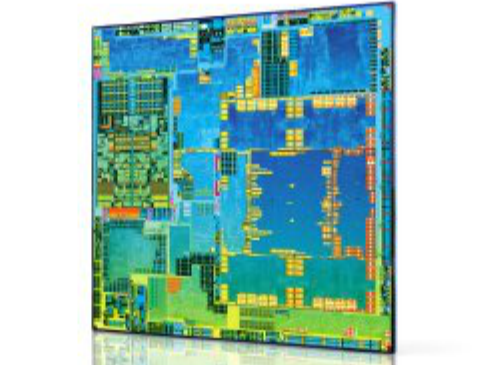

The Intel Atom Z3480 is a power efficient dual-core SoC for (mainly) Android tablets and smartphones. It is clocked at up to 2.13 GHz (Burst) and part of the Merrifield platform. Thanks to the specially optimized 22 nanometer low-power process (P1271) with tri-gate transistors, performance and energy efficiency have been significantly improved compared to its predecessor. Besides the CPU cores, the SoC integrates a PowerVR G6400 GPU as well as a Dual-Channel LPDDR3-1066 memory controller (max. 4 GB, 8.5 GB/s).

Architecture

The processor cores are based on the new Silvermont architecture, which is an out-of-order design for the first time. The increased utilization of the pipeline and many other improvements (optimized branch prediction, increased buffers, enhanced decoders) have increased the performance per clock by about 50 percent. At the same time, however, the Hyper-Threading feature of the previous Intel Atom generation has been removed. Other major changes are the support for new instruction set extensions such as SSE 4.1 and 4.2 as well as AES-NI (depending on the model).

Performance

Compared to other smartphone and tablet SoCs, the Z3480 offers a relatively high performance per clock. In some cases, the chip even beats high-end SoCs like the Qualcomm Snapdragon 800. However, the Z3480 has only 2 CPU cores, so the (less important) multithreading performance is quite a bit lower.

Graphics

The integrated GPU has not been developed by Intel itself, but licensed from Imagination Technologies. The PowerVR G6400 is very similar to the G6430 in Apple's A7, but clocked somewhat higher at 457 - 533 MHz. Compared to other mobile graphics solutions, the G6400 performs similar to or better than the Snapdragon 800/Adreno 330 or the ARM Mali-T628 MP6. Therefore, even the most demanding Android games of 2014 will run fluently in high resolutions.

Power Consumption

According to its performance and specifications, the chip should have a medium-high power consumption. Intel claims, the SoC is suitable for tablets as well as smartphones.

Intel Atom Z3460

► remove from comparison Intel Z3460

The Intel Atom Z3460 is a power efficient dual-core SoC for (mainly) Android tablets and smartphones. It is clocked at up to 1.6 GHz (Burst) and part of the Merrifield platform. Thanks to the specially optimized 22 nanometer low-power process (P1271) with tri-gate transistors, performance and energy efficiency have been significantly improved compared to its predecessor. Besides the CPU cores, the SoC integrates a PowerVR G6400 GPU as well as a Dual-Channel LPDDR3-1066 memory controller (max. 4 GB, 8.5 GB/s).

Architecture

The processor cores are based on the new Silvermont architecture, which is an out-of-order design for the first time. The increased utilization of the pipeline and many other improvements (optimized branch prediction, increased buffers, enhanced decoders) have increased the performance per clock by about 50 percent. At the same time, however, the Hyper-Threading feature of the previous Intel Atom generation has been removed. Other major changes are the support for new instruction set extensions such as SSE 4.1 and 4.2 as well as AES-NI (depending on the model).

Performance

Compared to other smartphone and tablet SoCs, the Z3460 offers a relatively high performance per clock. In some cases, the chip even competes with high-end SoCs like the Qualcomm Snapdragon 800. However, the Z3460 has only 2 CPU cores, so the (less important) multithreading performance is only at the level of cheaper Cortex-A7 quad cores.

Graphics

The integrated GPU has not been developed by Intel itself, but licensed from Imagination Technologies. The PowerVR G6400 is very similar to the G6430 in Apple's A7, but clocked slightly higher at 400 - 457 MHz. Compared to other mobile graphics solutions, the G6400 performs similar to the Snapdragon 800/Adreno 330 or the ARM Mali-T628 MP6. Therefore, even the most demanding Android games of 2014 will run fluently in high resolutions.

Power Consumption

According to its performance and specifications, the chip should have a medium-high power consumption. Intel claims, the SoC is suitable for tablets as well as smartphones.

Intel Atom Z3480Intel Atom Z3460
Intel AtomIntel Atom
MerrifieldMerrifield
Series: Atom Merrifield
» Intel Atom Z34802.13 GHz2 / 2
Intel Atom Z34601.6 GHz2 / 2
Intel Atom Z34802.13 GHz2 / 2
» Intel Atom Z34601.6 GHz2 / 2
2133 MHz1600 MHz
1 MB1 MB
2 / 22 / 2
22
90 °C
PowerVR G6400 GPU (457 - 533 MHz), 2x 32 Bit LPDDR3-1066 (max. 4 GB), Wireless DisplayPowerVR G6400 GPU (400 - 457 MHz), 2x 32 Bit LPDDR3-1066 (max. 4 GB), Wireless Display
iGPUPowerVR G6400 (457 - 533 MHz)PowerVR G6400 (400 - 457 MHz)
Architecturex86
Intel Atom Z3480Intel Atom Z3460

Benchmarks

3DMark - 3DMark Ice Storm Extreme Physics
100%
1 Z3460 +
6059 Points (6%)
3DMark - 3DMark Ice Storm Unlimited Physics
100%
1 Z3460 +
6797 Points (7%)
Geekbench 2 - 32 Bit - Geekbench Stream
100%
1 Z3460 +
1697 Points (14%)
Geekbench 2 - 32 Bit - Geekbench Memory
100%
1 Z3460 +
1739 Points (16%)
Geekbench 2 - 32 Bit - Geekbench Floating Point
100%
1 Z3460 +
1624 Points (3%)
Geekbench 2 - 32 Bit - Geekbench Integer
100%
1 Z3460 +
1076 Points (2%)
Geekbench 2 - 32 Bit - Geekbench Total Score
100%
1 Z3460 +
1462 Points (4%)
Geekbench 3 - Geekbench 3 32 Bit Multi-Core
100%
1 Z3460 +
1174 (2%)
Geekbench 3 - Geekbench 3 32 Bit Single-Core
100%
1 Z3460 +
704 (14%)
Linpack Android / IOS - Linpack Multi Thread
100%
1 Z3460 +
297 MFLOPS (10%)
Linpack Android / IOS - Linpack Single Thread
100%
1 Z3460 +
180 MFLOPS (18%)
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
100%
1 Z3460 +
6960 ms (12%)
Sunspider - Sunspider 1.0 Total Score *
100%
1 Z3460 +
866 ms (9%)
Sunspider - Sunspider 0.9.1 Total Score *
100%
1 Z3460 +
907 ms (9%)
Octane V2 - Octane V2 Total Score
100%
1 Z3460 +
5114 Points (7%)
Vellamo 3.x - Vellamo 3.x Metal
100%
1 Z3460 +
1078 Points (29%)
Vellamo 3.x - Vellamo 3.x Multicore Beta
100%
1 Z3460 +
1158 Points (26%)
Vellamo 3.x - Vellamo 3.x Browser
100%
1 Z3460 +
2709 Points (36%)
Quadrant Standard Edition 2.0 - Quadrant Standard 2.0 Total Score
100%
1 Z3460 +
10339 points (24%)
AnTuTu v4 - AnTuTu v4 Total Score
100%
1 Z3460 +
24471 Points (57%)
AndEBench - AndEBench Java
100%
1 Z3460 +
474 Iter./s (15%)
AndEBench - AndEBench Native
100%
1 Z3460 +
7542 Iter./s (25%)
PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile CPU Tests
100%
1 Z3460 +
9112 Points (1%)

Average Benchmarks Intel Atom Z3460 → NAN% n=

- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation
