 3D Mark01
15201 points
 3D Mark03
5613 points
 3D Mark05
2164 points
 PCMark 04
3448 points
 PCMark 05
2495 points






Doom 3
In the test Doom 3 could be played in the higher resolution 1024x786 pixel with the settings "high" without problems.

low: 75,8 fps

normal: 74,9 fps

high: 54,6 fps

ultra: 27,1 fps

Quake 3 Arena
The meanwhile aged OpenGL based game perfectly can be played in highest resolutions and settings.
244,6 fps in the FOUR.DM_68 time demo

HD Tune:
The implemented Seagate Momentus showed a data transmission rate below the average with the HD Tune bench mark. As the curve in the diagram shows, apparently the chipset is the limiting factor.
Transfer rate minimum: 19,0 MB/sec
Transfer rate maximum: 25,8 MB/sec
Transfer rate average: 24,9 MB/sec
Access time: 16,8 ms (12 ms according to the data sheet)
Burst rate: 73,5 MB/sec
CPU Usage: 4.6%

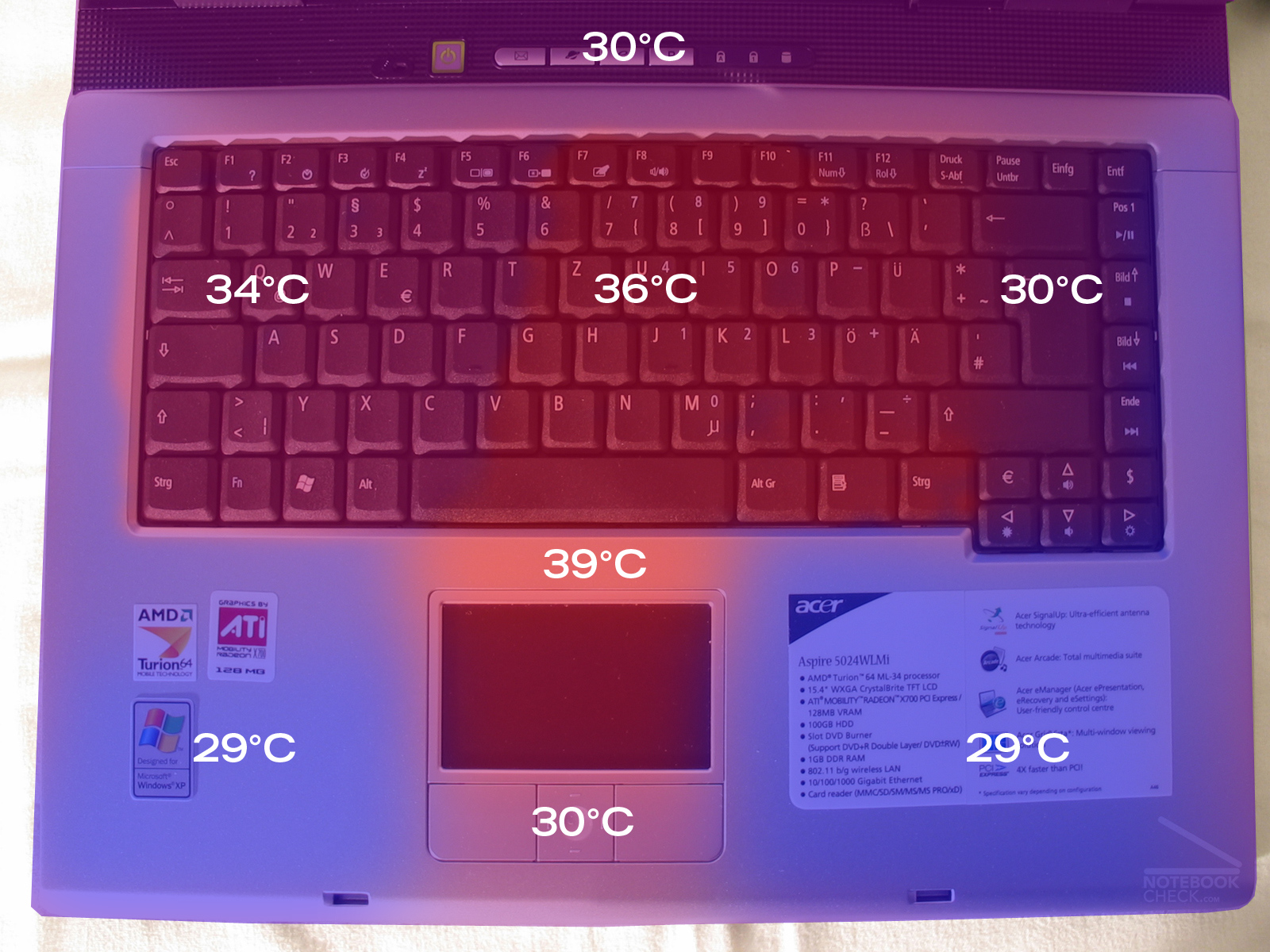

temperature at the top side
temperature

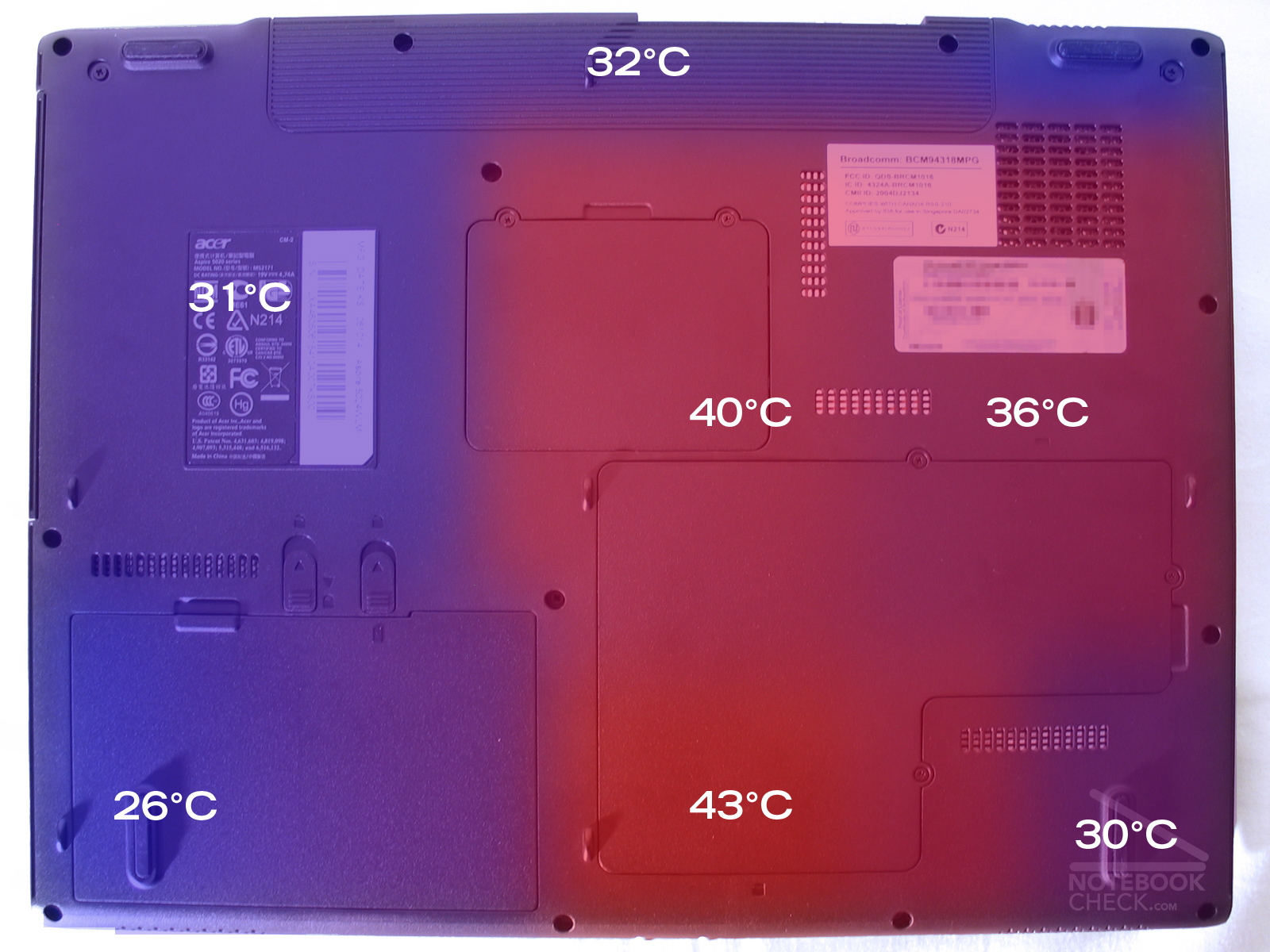

temperature at the lower surface

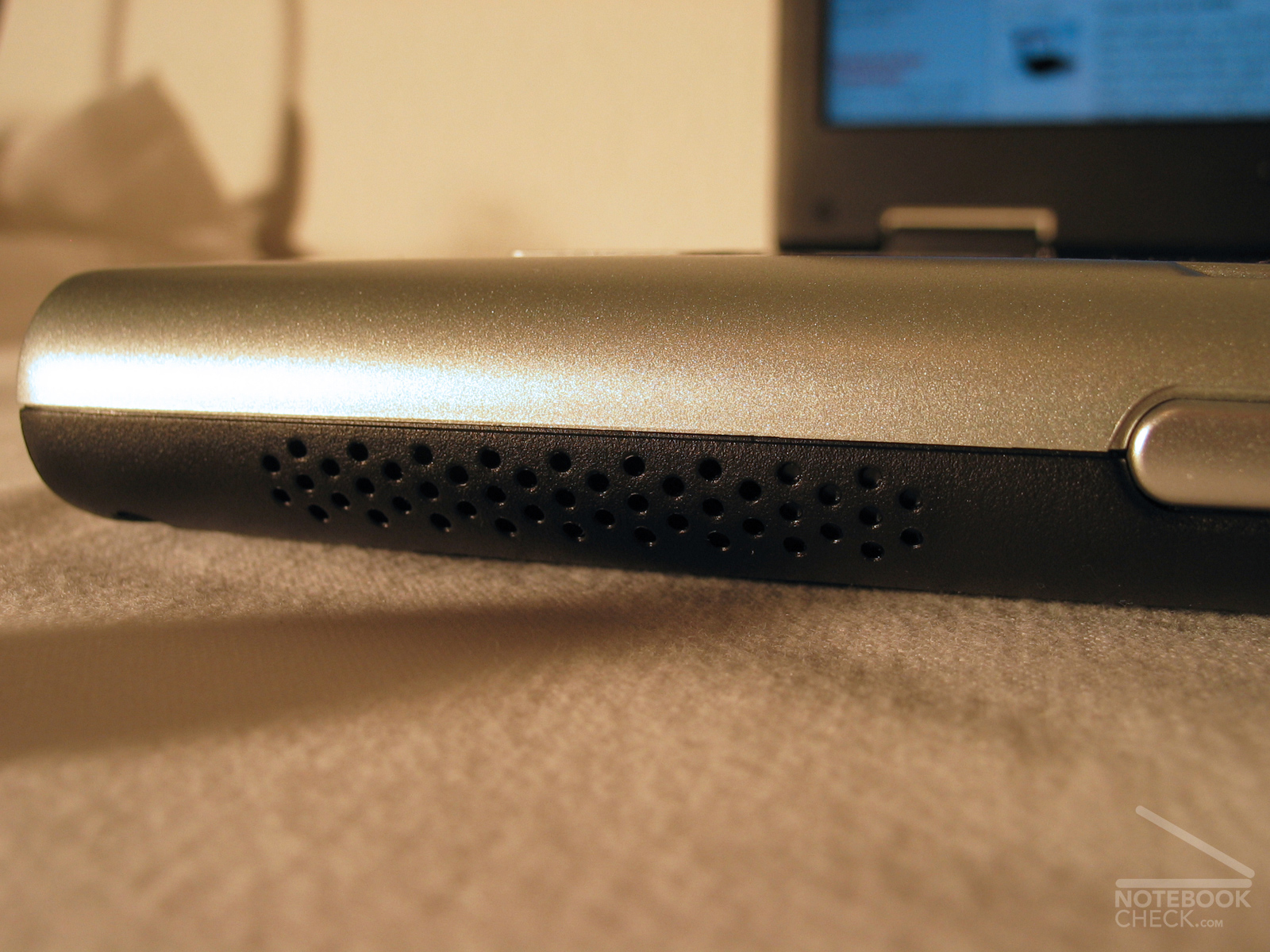

The small loudspeakers sound also "small"
The small loudspeakers sound also "small"

Loudspeaker
Unfortunately the 2 small loudspeakers at the front side miss any basses. Because of their position they are covered by the human arms using the keyboard, whereby the sound is absorbed. In summary one can say that the loudspeakers sound as small as they look.

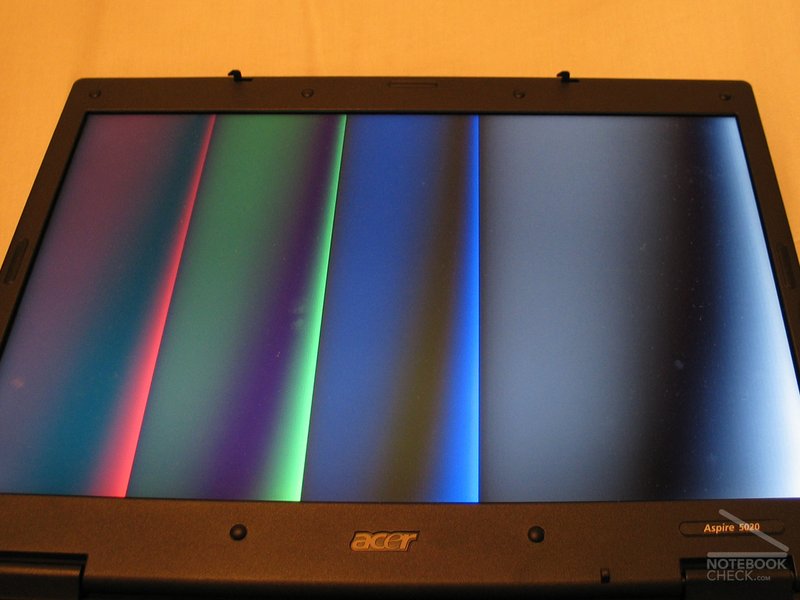

The creation of cloudy stains was not remarkably bad and we did not notice problems during the test.

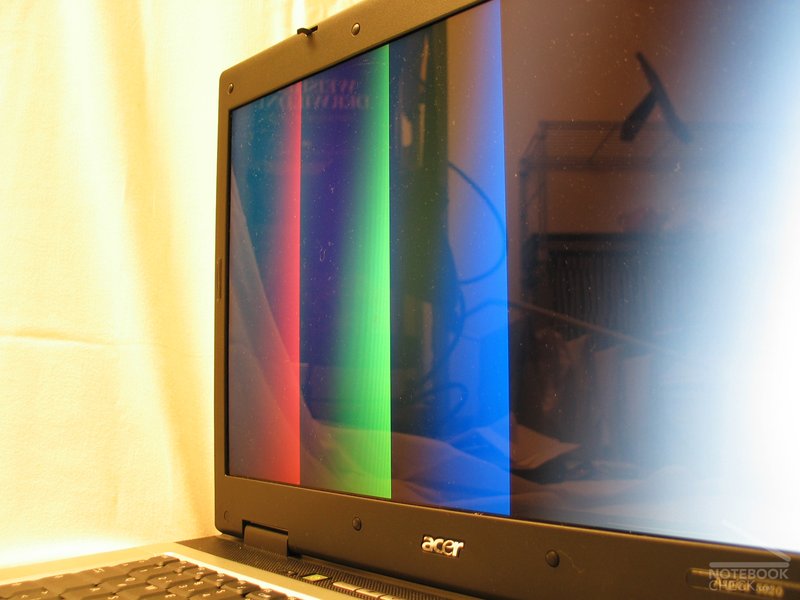

The point of view ranges are moderate for a widescreen display. With the view from above and/or below the panel loses relatively fast the colors. The lateral view shows less color distortions.

result

Acer Aspire 5024WLMi
Acer Aspire 5024WLMi

The well equipped Acer Aspire 5024WLMi convinces with good performance data at an appropriate price. The reflecting display is comfortable bright, but does not convince with different viewing angles.

battery run time

The battery delivered energy only for a short time of an hour under full load.
The battery delivered energy only for a short time of an hour under full load.

Battery Eater ' 05 pro

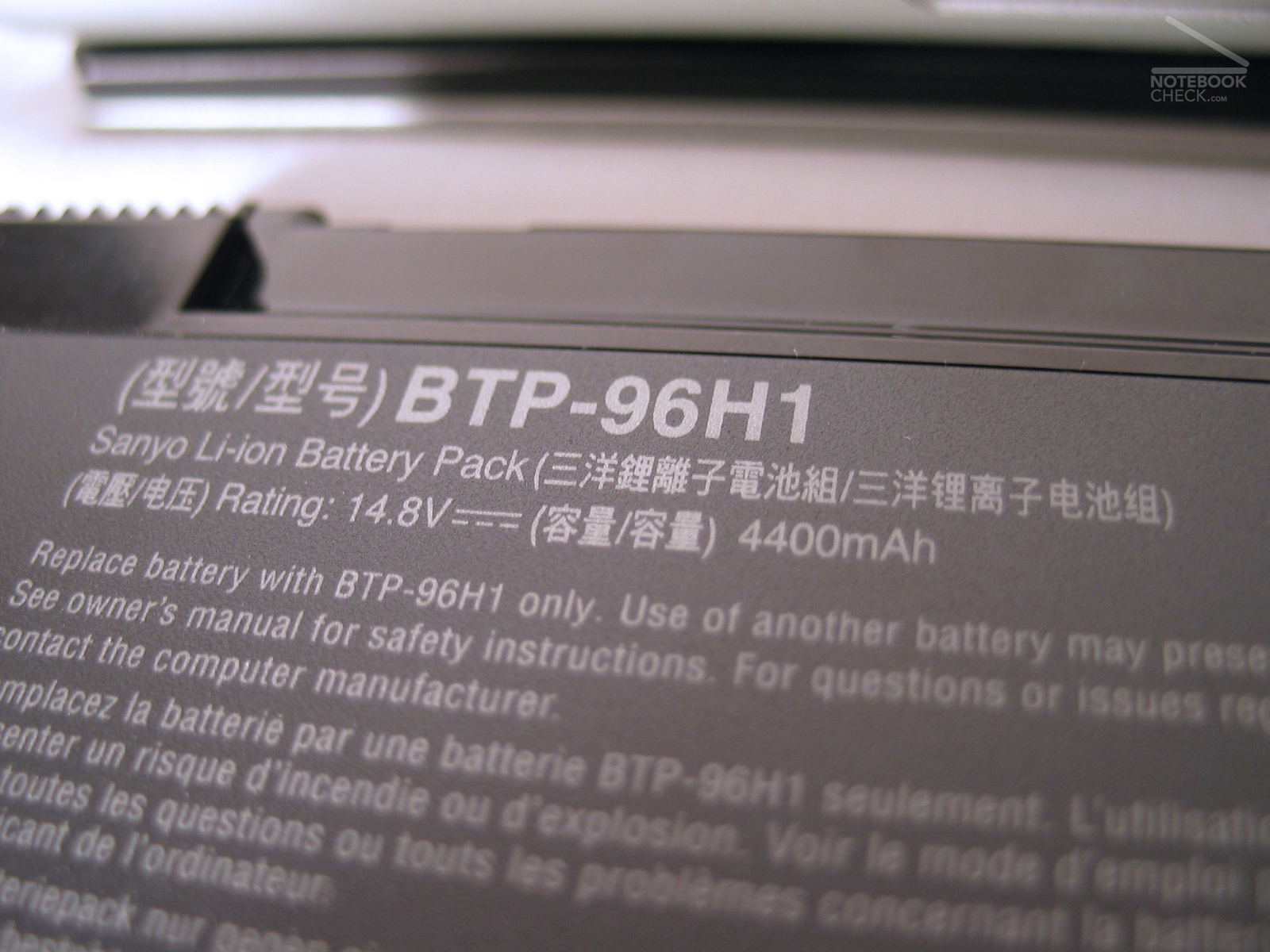

In the Reader test (text reading with minimum brightness, no WLAN and maximum current savings functions of the video card) the 4400mAh large Akku worked 3h40min (scarce over the average).

Surfing in the internet over a WLAN connection the laptop suffered a lack of energy after 2h14 min.

Under full load the Aspire 5024WLMi functioned only short 62 minutes. In the first test it was remarkable, that the laptop needed a hardware reset after 45 minutes.

Current consumption
The minimum current consumption was 29 watts (Powerplay on "maximum battery run time, minimum brightness, no WLAN, without load). Powerplay alone e.g. brought 6 watts energy saving (with losses in the unnecessary 3D performance). WLAN costs about 2 watts additionally.

With maximum brightness without load the notebook needed 40 watts (an optical mouse 1-1.5 watts cost).

Under full load the Acer needed above average 79 Watts from the plug socket. This also explains the short battery run times with full load.

reference image
point of view stability

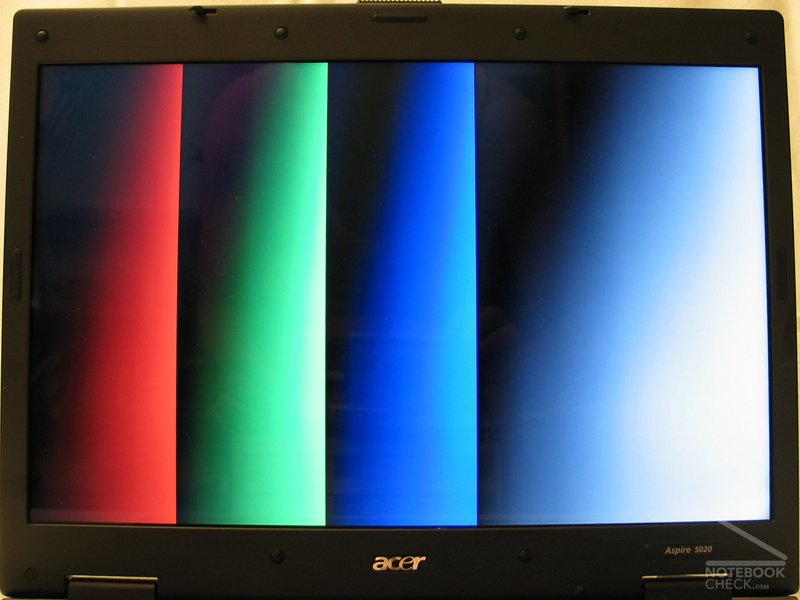

frontal view
falsified colors
falsified colors

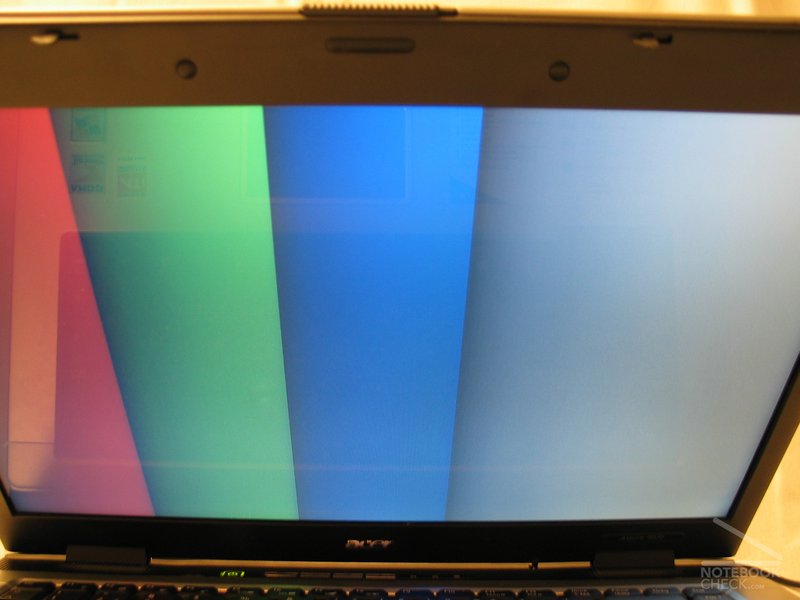

laterally still good colors
laterally still good colors

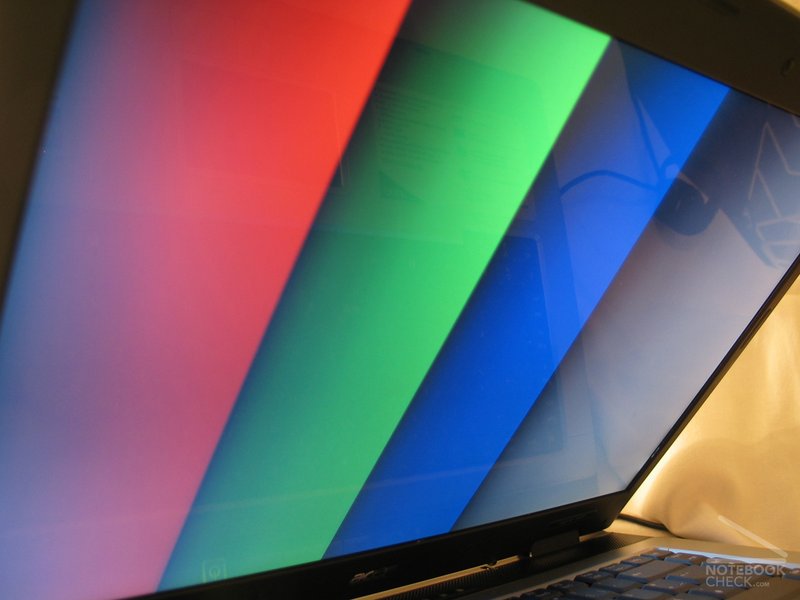

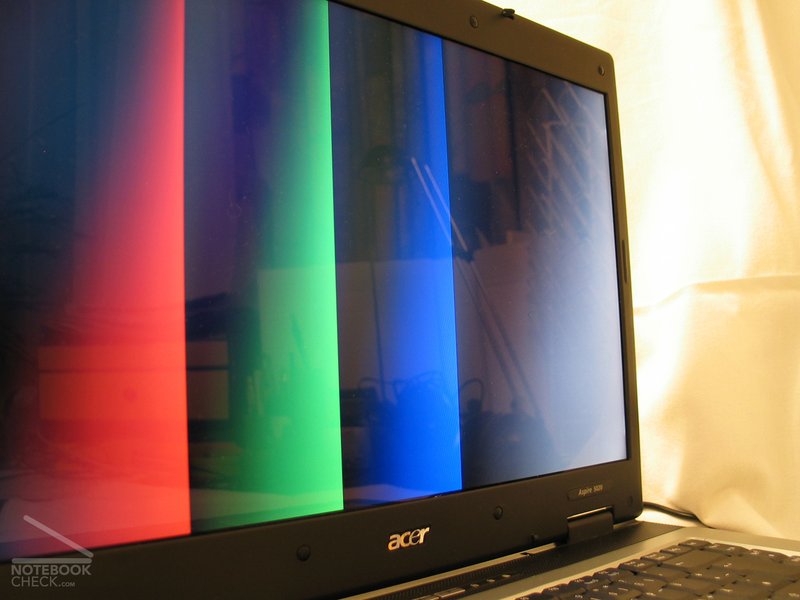

extrem point of view


performance

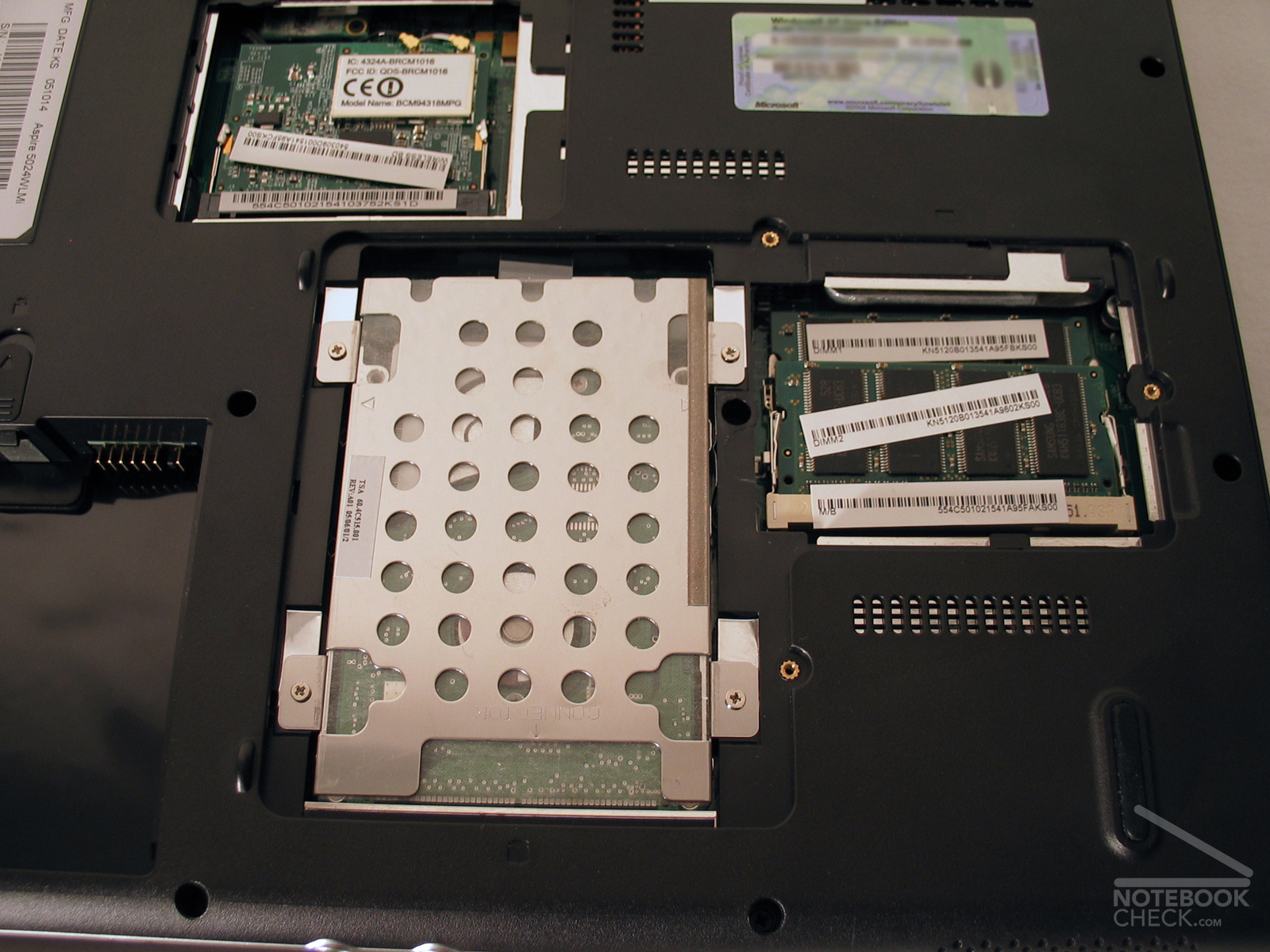

easy accessability of memory, hard disk and WLAN
easy accessability of memory, hard disk and WLAN

The Acer notebook demonstrates in all bench marks a good performance which (very similarly to the MSI Megabook M635 only somewhat faster owing to the higher clocked processor). The Turion ML-34 processor combined with the ATI Radeon Mobility X700 video card allows to represent current games (with a few restrictions). High-end players rather should choose a laptop with a video card of the performance class 1, but for normal users the performance surely is sufficient.

emissions

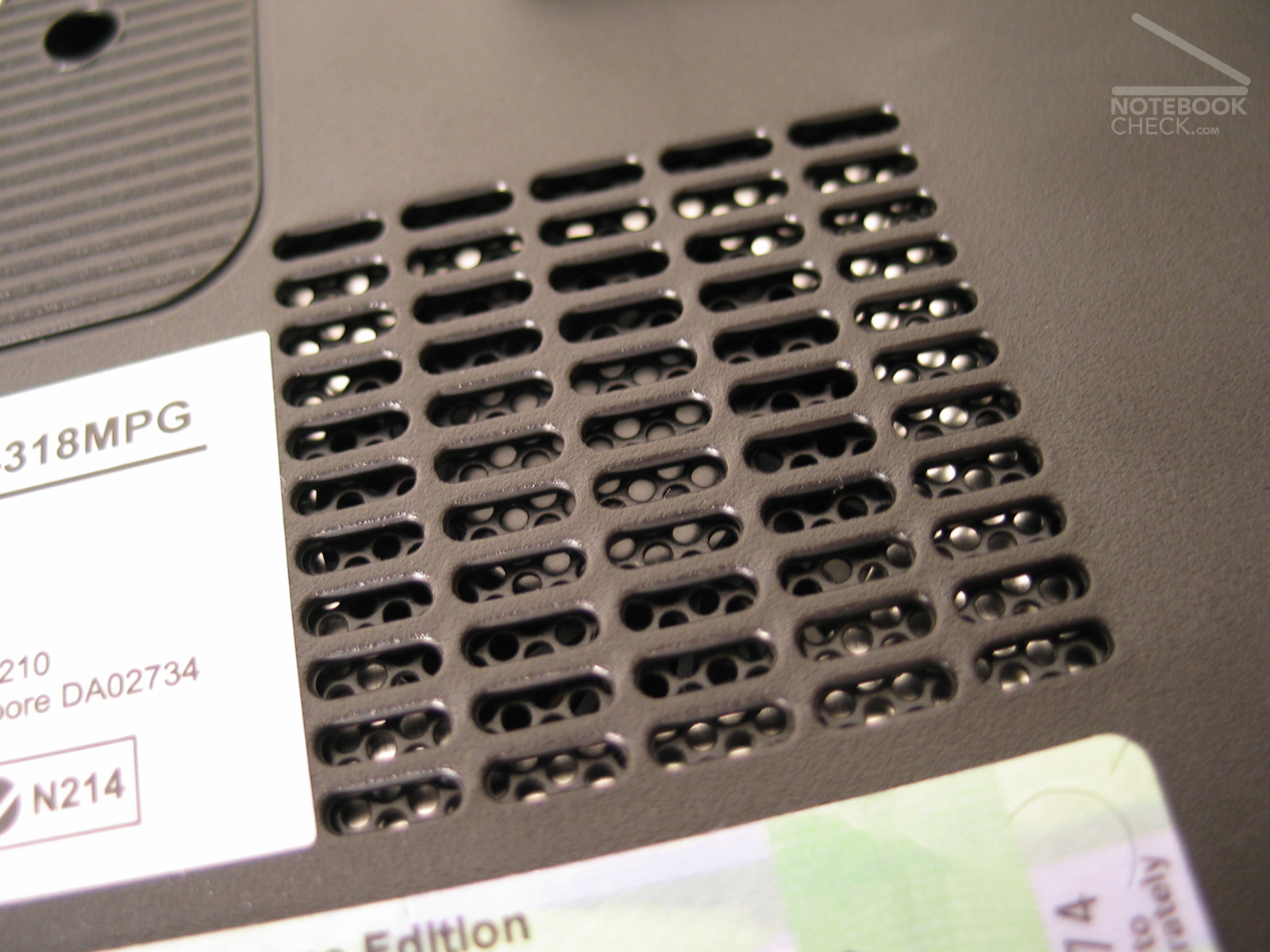

The openings of the exhausts unfortunately are on the lower surface
The openings of the exhausts unfortunately are on the lower surface

Volume
Unfortunately that moderately loud ventilator (38.5 dB on lowest level) runs permanently. Also without load it switches on fast. Surfing in the internet, the Acer Aspire 5024 sometimes switches to level 2, which is with 44,3 dB noticeably louder. With full load the exhaust winds up to 46 dB (average of all tested notebooks was 47 dB).

Warmth
Interesting is, that the measured temperatures only differ slightly between full load and idle condition. One reason is the continuously running ventilator. The surface heats up to a maximum of 39°C. However the palm areas remain below 32°C (skin temperature). The lower surface heats up to a maximum of 43°C. That causes an unpleasant feeling.

Display

The very good maximal brightness of 169,9 cd/m² would allow the usage of the 16:10 15.4" screen with 1280x800 pixel resolution under sun exposure too. However the reflecting screen is a problem.

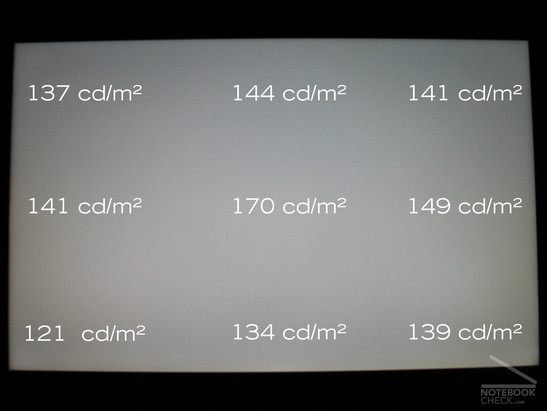

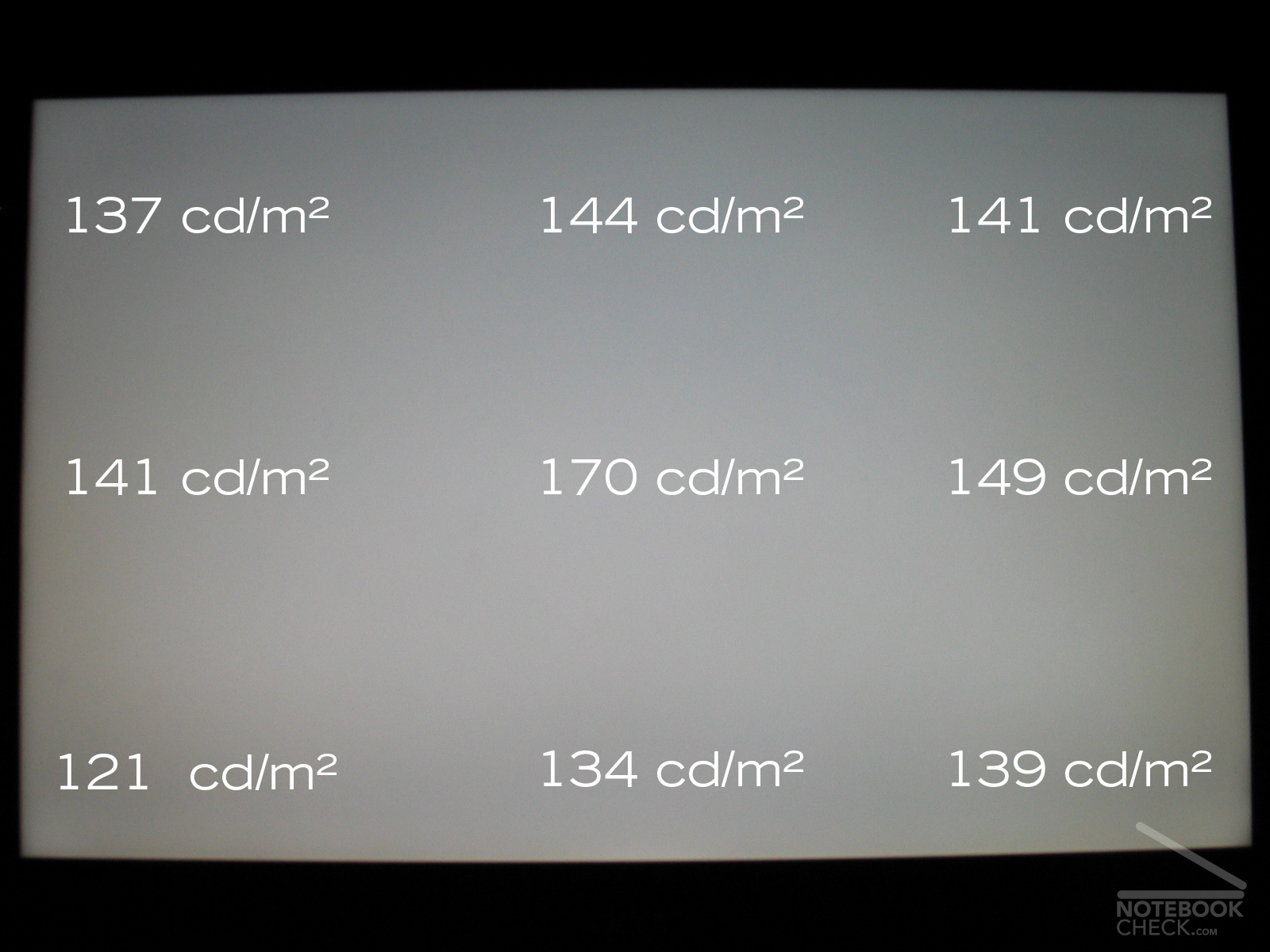

The illumination of 81,2 % is a little bit better than the average.

The illumination of 81% is average.
The illumination of 81% is average.

input devices

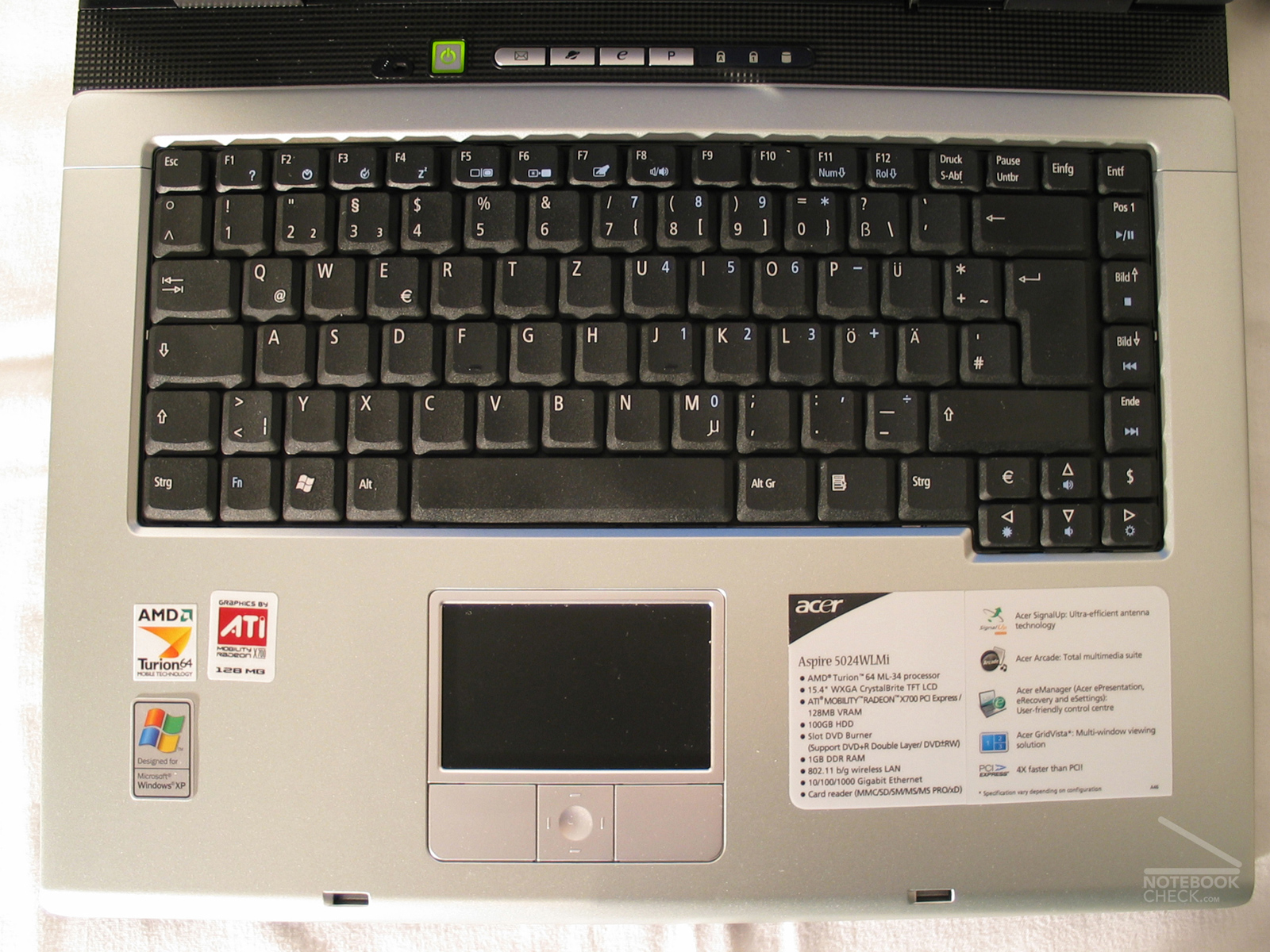

The keyboard tortions easily.
Keyboard & Touchpad

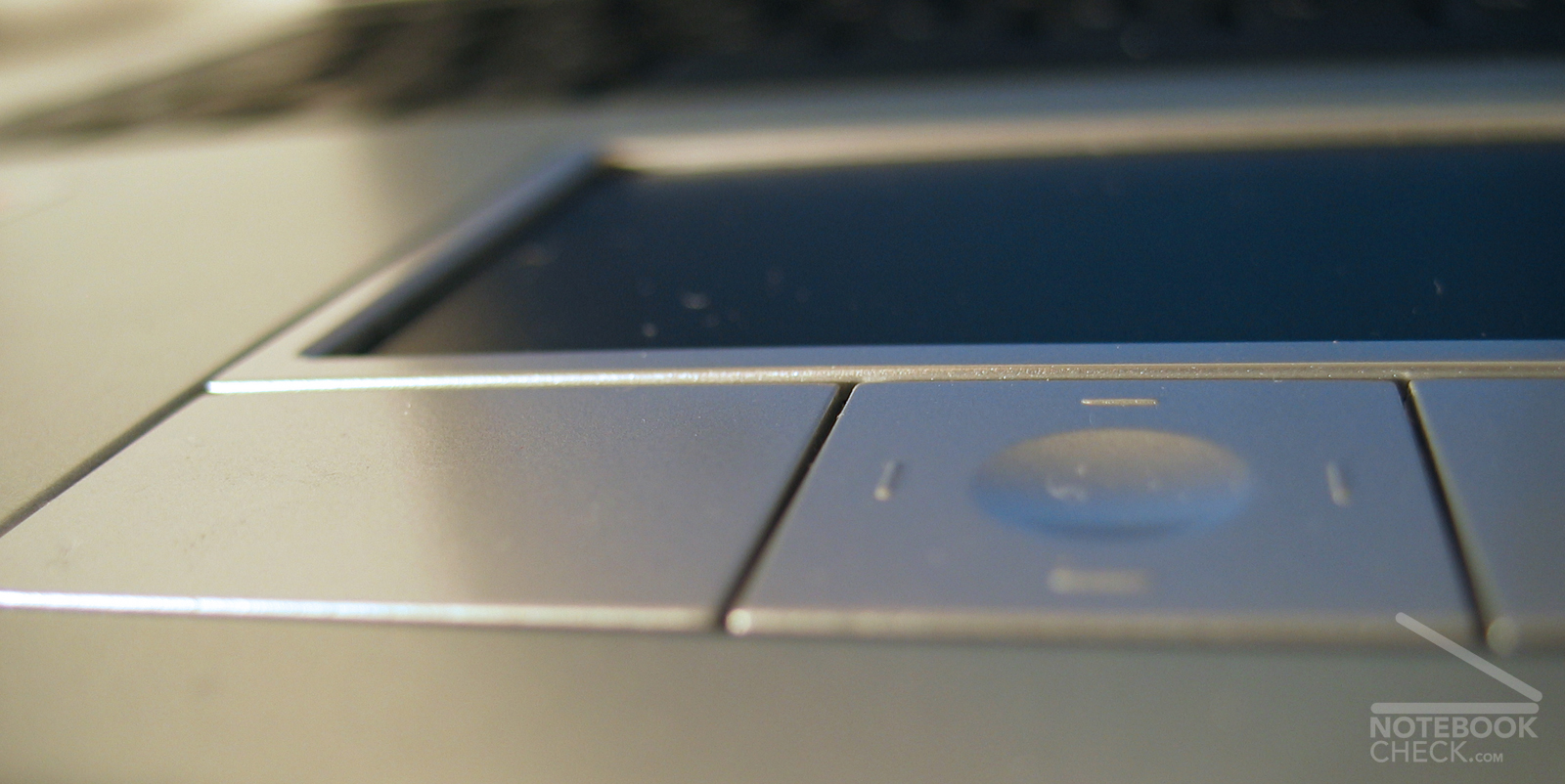

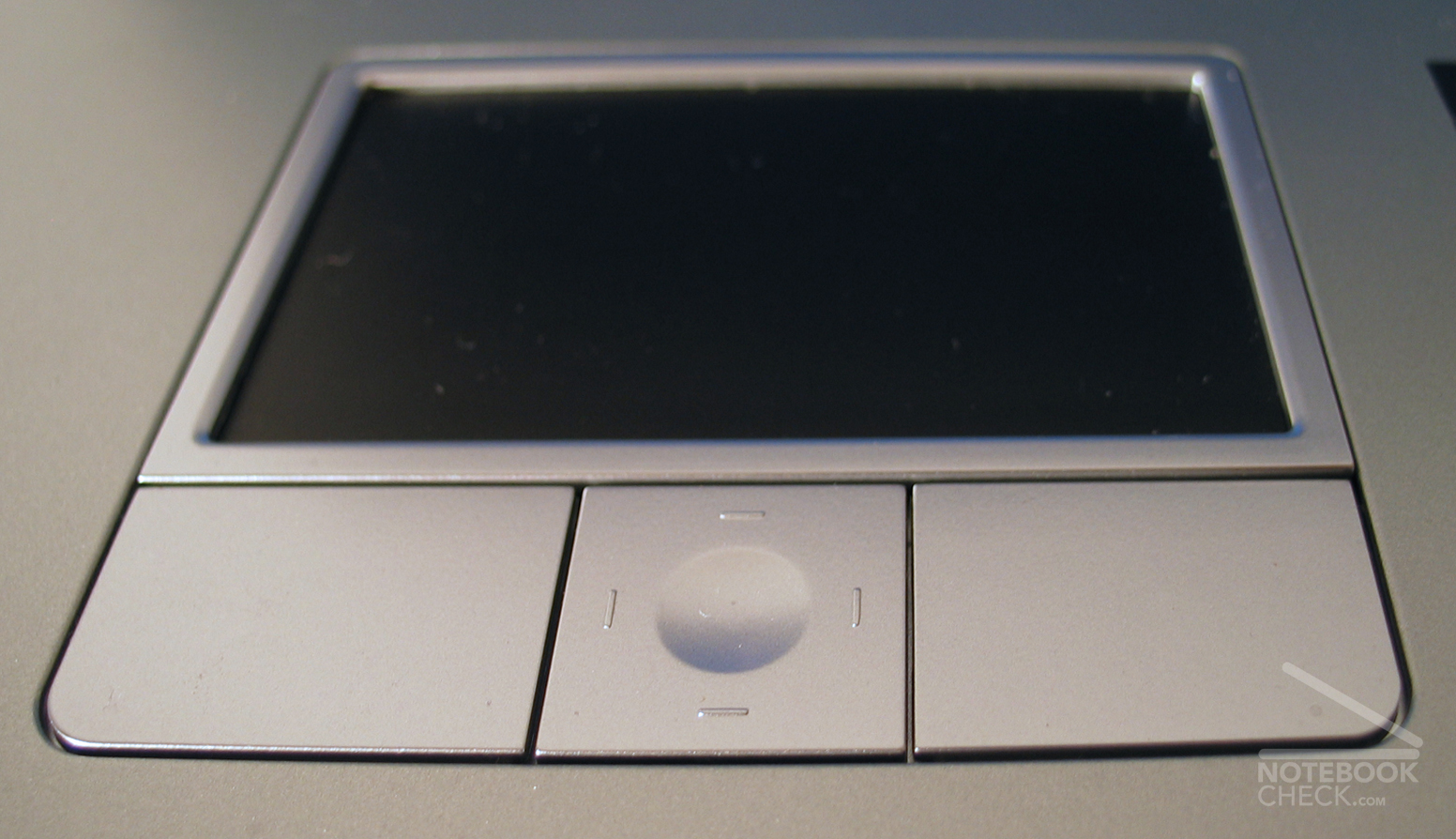

The Touchpad functions perfectly.

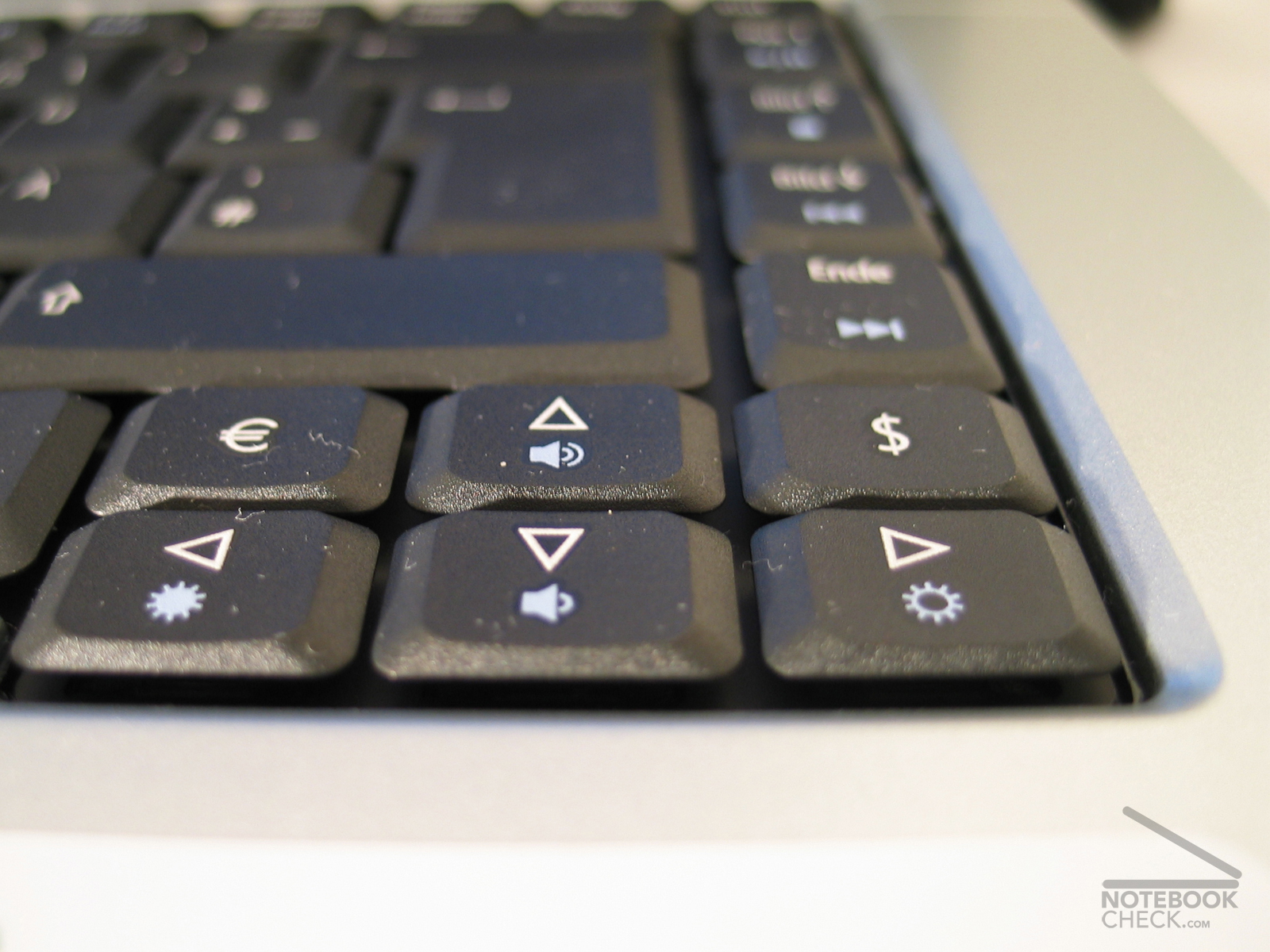

The keyboard of the Acer Aspire 5024WLMi has keys of normal notebook-size and offers a good layout. Only few current mobile computers offer an enter key of normal size and well placed "pos 1" and "end" keys. However the keyboard can be tortioned easily in the center and at the right edge. In addition the keys cracked on contact. Nevertheless the keyboard was pleasant for us to serve.

Also the keys of the touchpads, which is built in widescreeen format, crunched when using and are inserted somewhat wobbly in the case.

The Acer offers WLAN and a Bluetooth switch at the front and 4 high-speed keys (for Mail, InterNet, eManager and one free for definition).





On the left side are the remaining interfaces.
interfaces

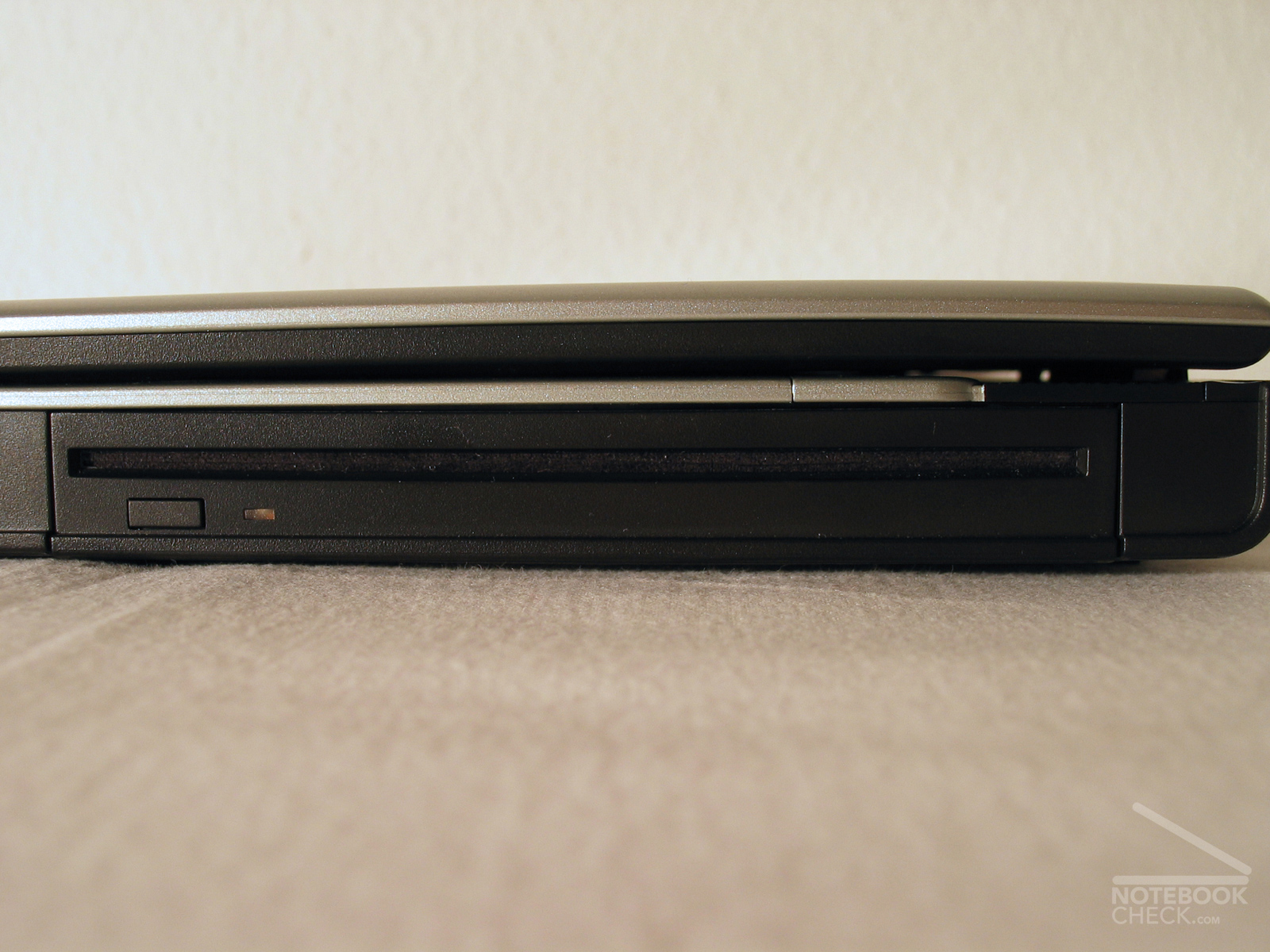

On the right side there is only the DVD drive assembly.

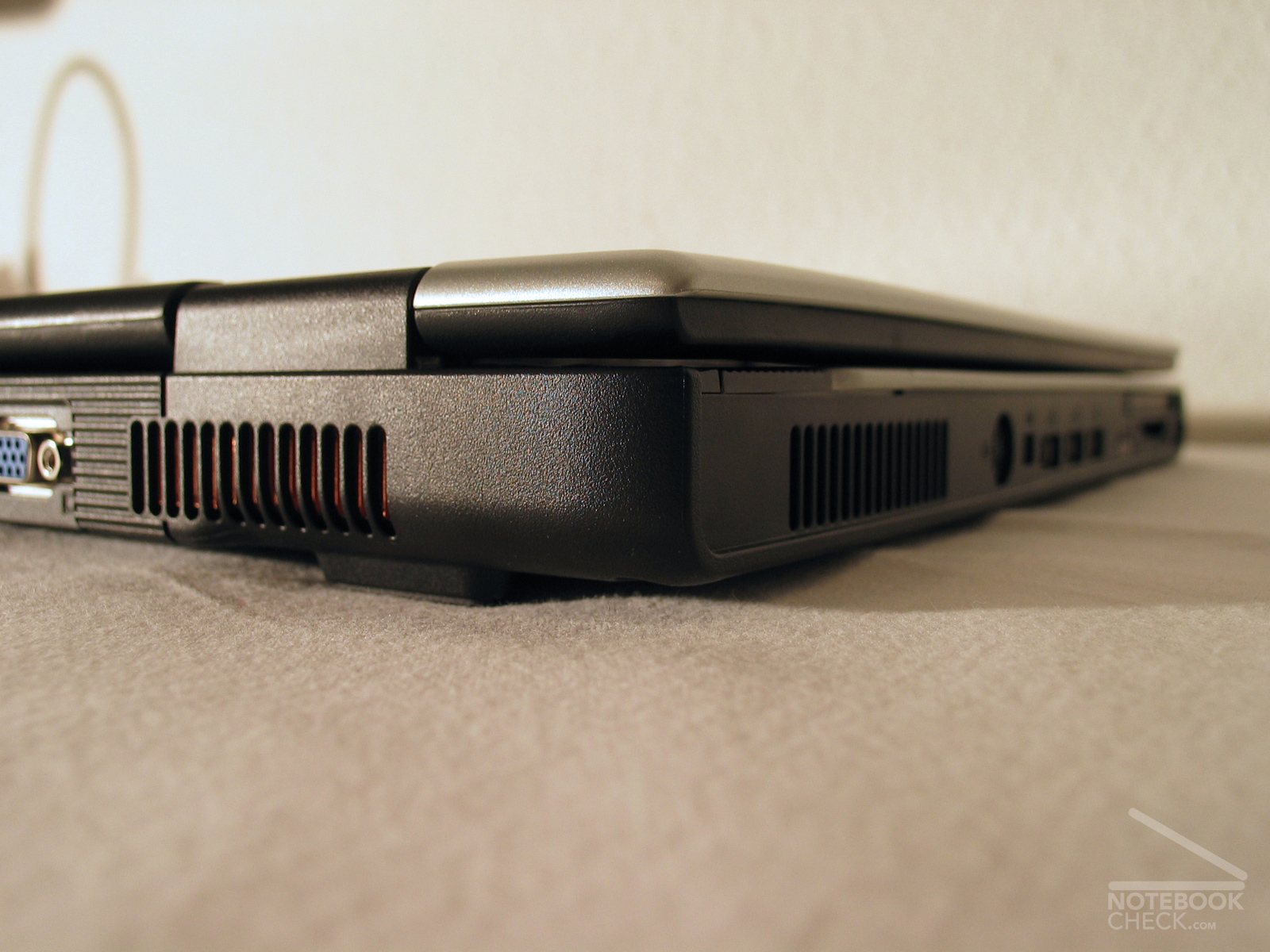

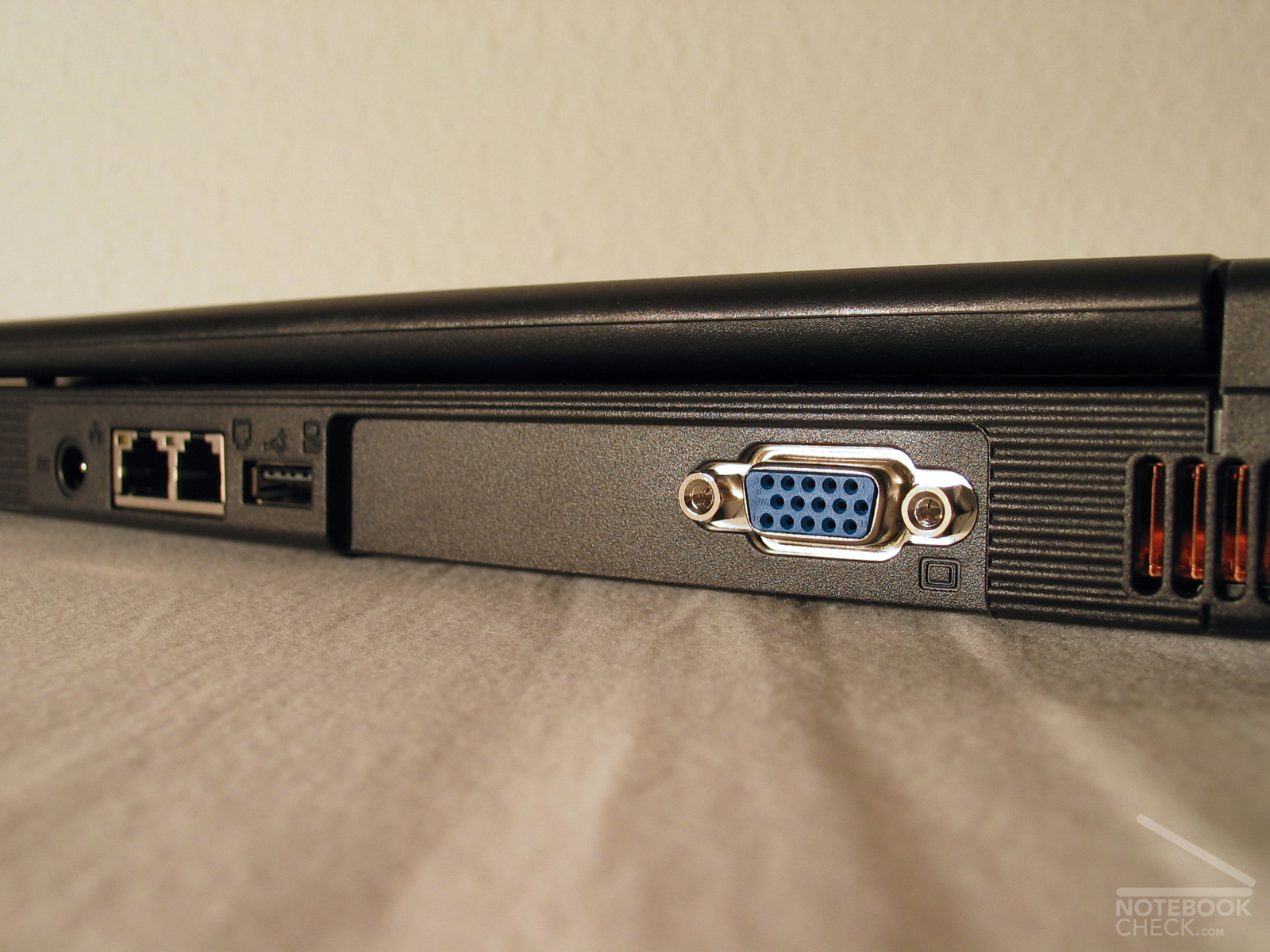

In the back there are the most needed interfaces.

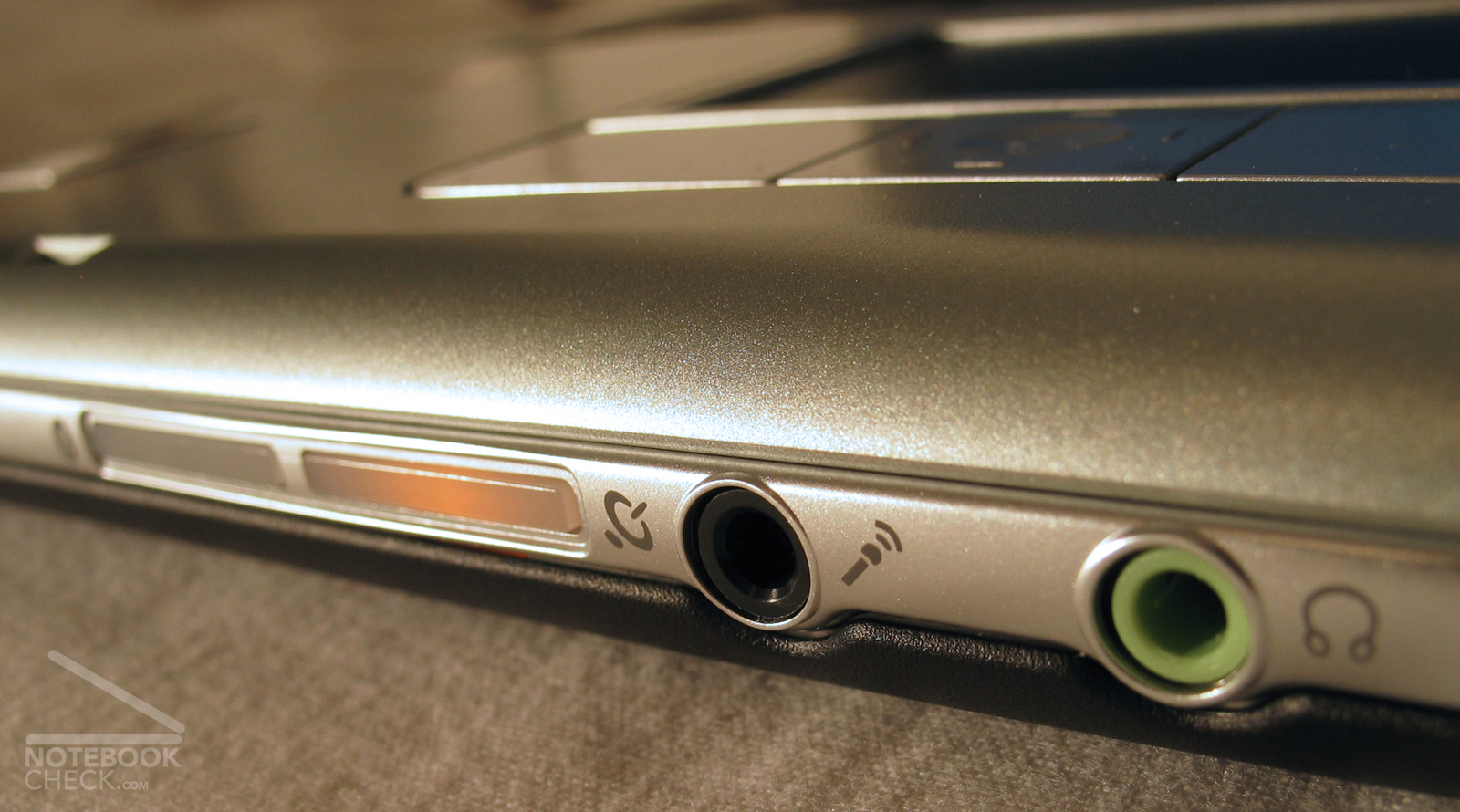

In front there are the WLAN button and the audio interfaces.

Case

The relatively solid chassis crunches hardly and the design seems modern. The workmanship is ok for that price-segment. Only on the left back the plastic cover could be raised a little bit.

Most connections are (useful for righthanded people) on the left side of the notebook. Only the two audio connections (entrance and exit) are on the front. For headphones this is useful, but for a long connection of external boxes surely disturbing. It is positive that the laptop offers 4 USB connections (3 right, 1 in the back).

Generally the series Acer Aspire 5020 offers all connections from Firewire to s-video exit, which are usual in this price segment.

Review Acer Aspire 5024WLMi (LX.A4605.061)

The Acer Aspire 5024WLMi convinces with strong 64 bit performance and a moderate price. However unfortunately the Turion and the X700 empty the battery very fast and often demand the ventilator activity. How the Crystal Brite Display worked in the test and much more you can read in our review...

rating

Acer Aspire 5024WLMi
workmanship
79%
keyboard
70%
input device
70%
connectivity
88%
weight
74%
battery run time
67%
display
75%
game performance
87%
application performance
83%
temperature
75%
volume
74%
impression
82%
average
77%

78%

MULTIMEDIA *
weighted rating

* rating multimedia notebook:
workmanship 8%, keyboard 8%, input device 6%, connectivity 8%, weight 6%, battery runtime 8%, display 10%, game performance 10%, application performance 10%, temperature 8%, volume 8%, impression 10%

ventilators are permanently active
the performance is according to the data well
Acer Aspire 5024WLMi
under full load the Aspire works about an hour

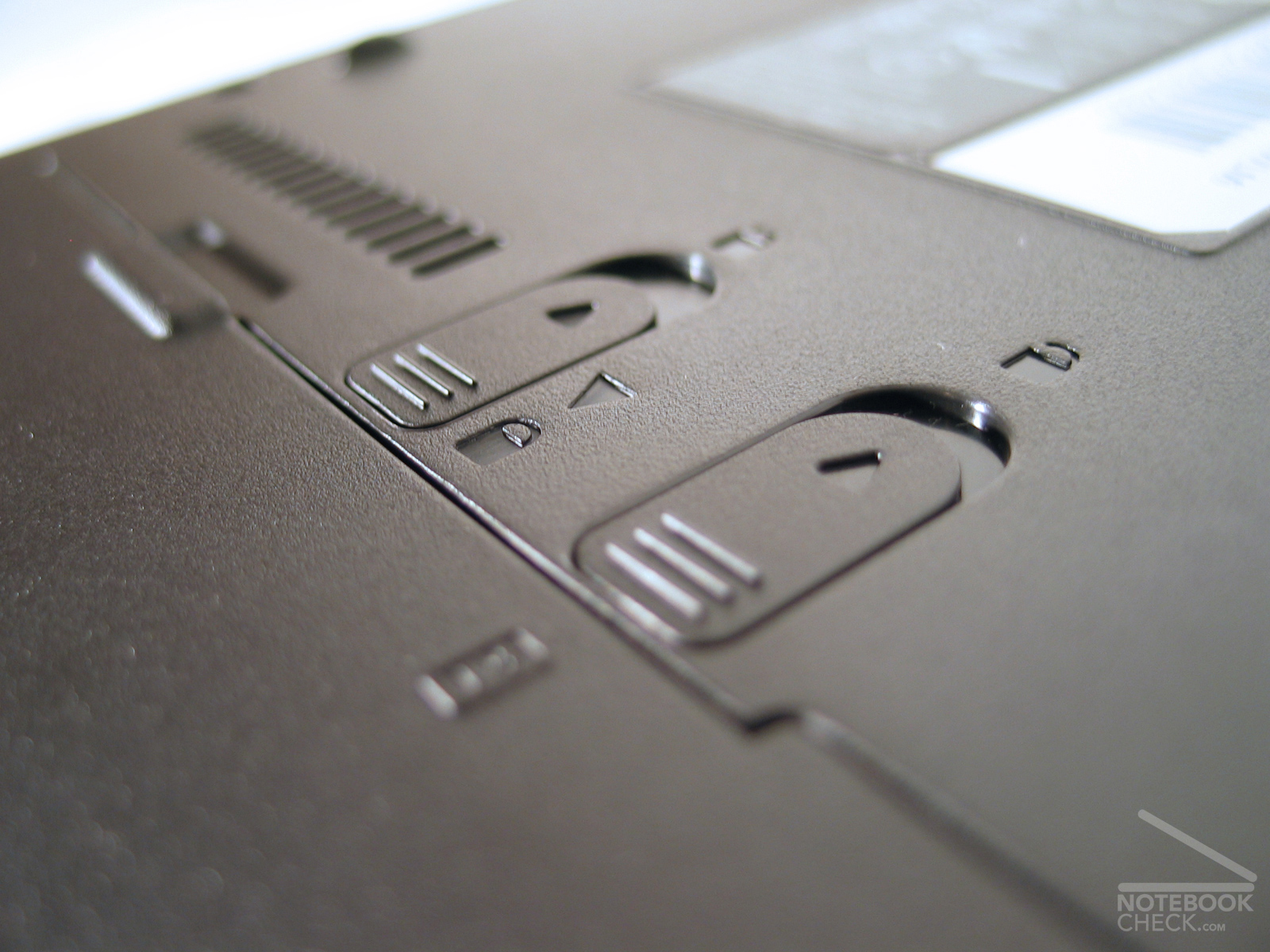

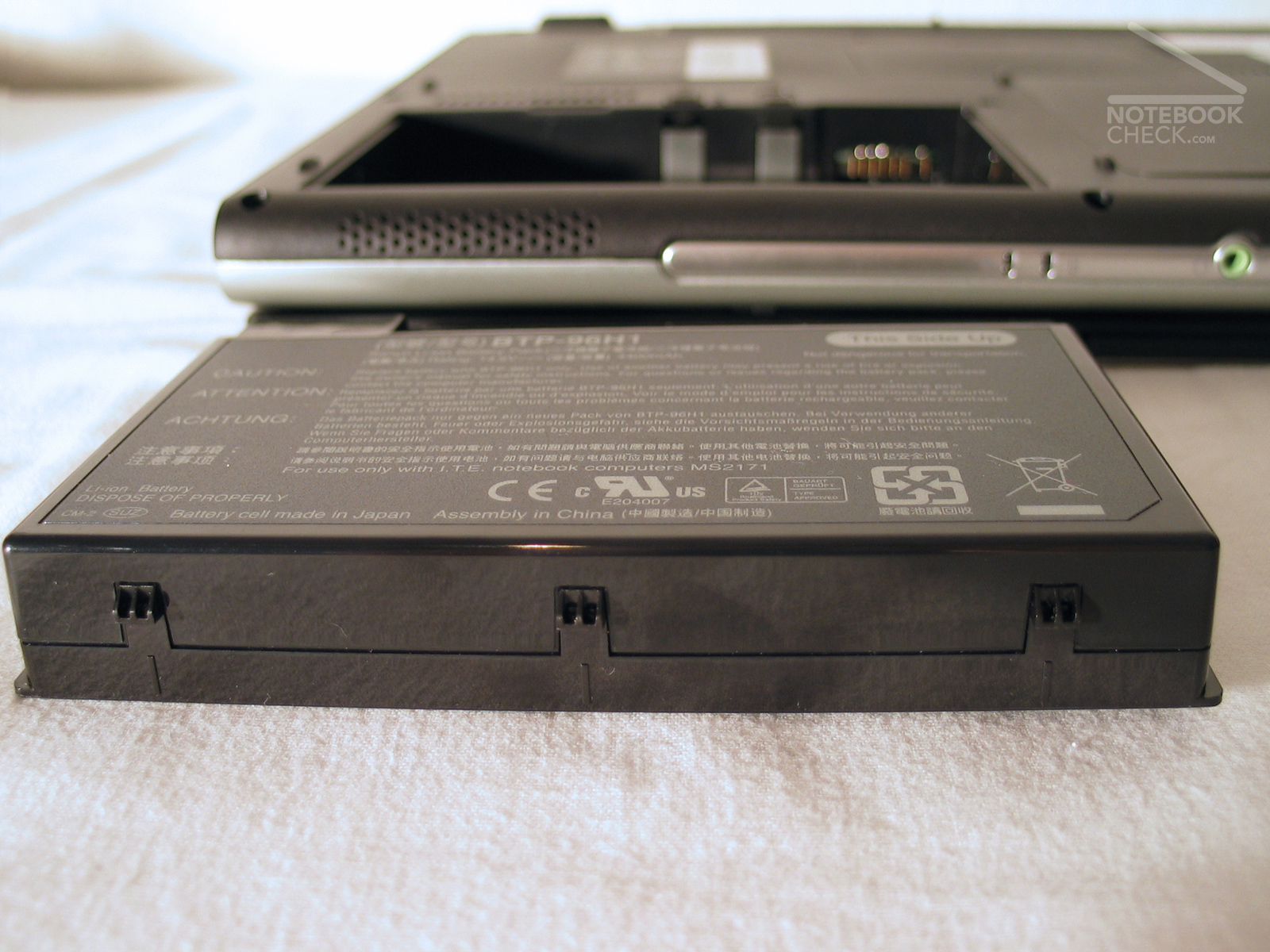

the battery can be fixed

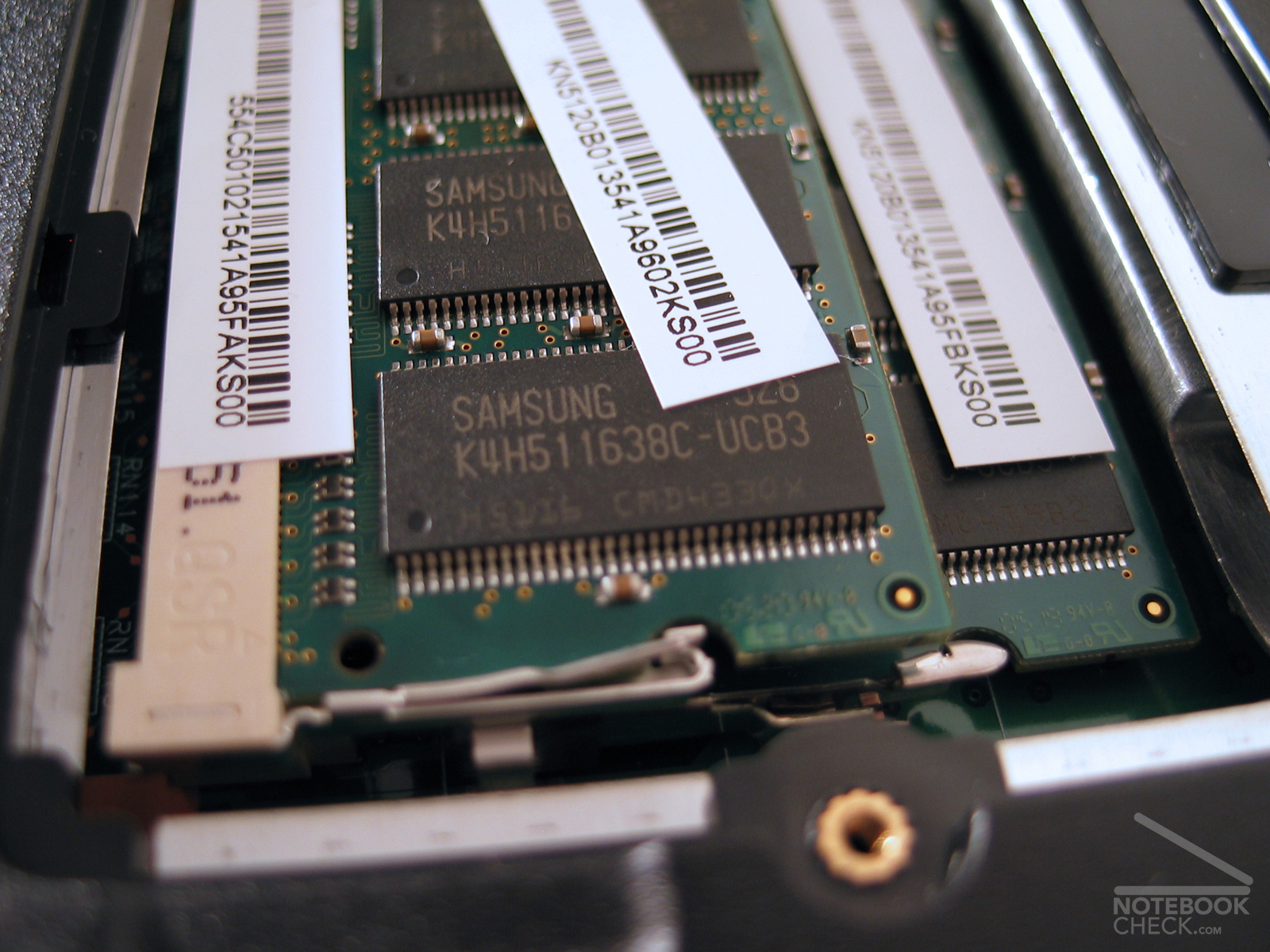

inserted Samsung memory chips

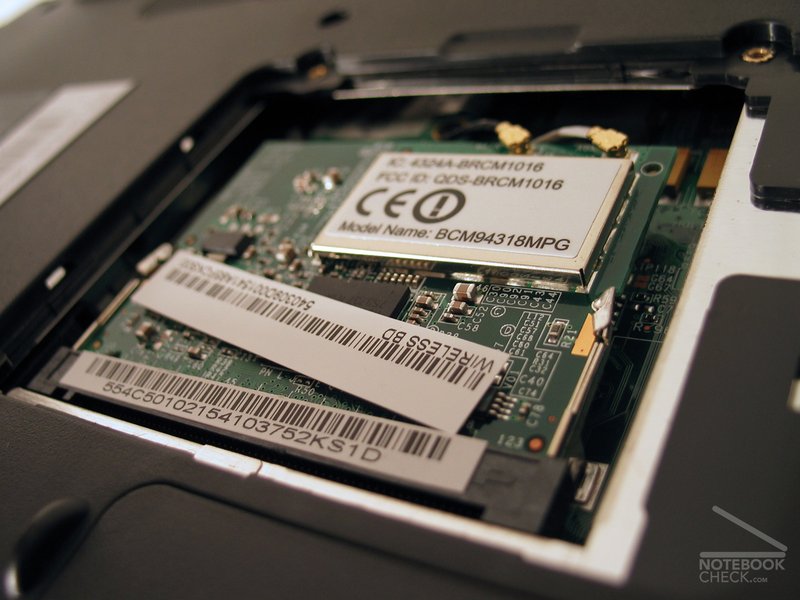

WLAN functions without problems

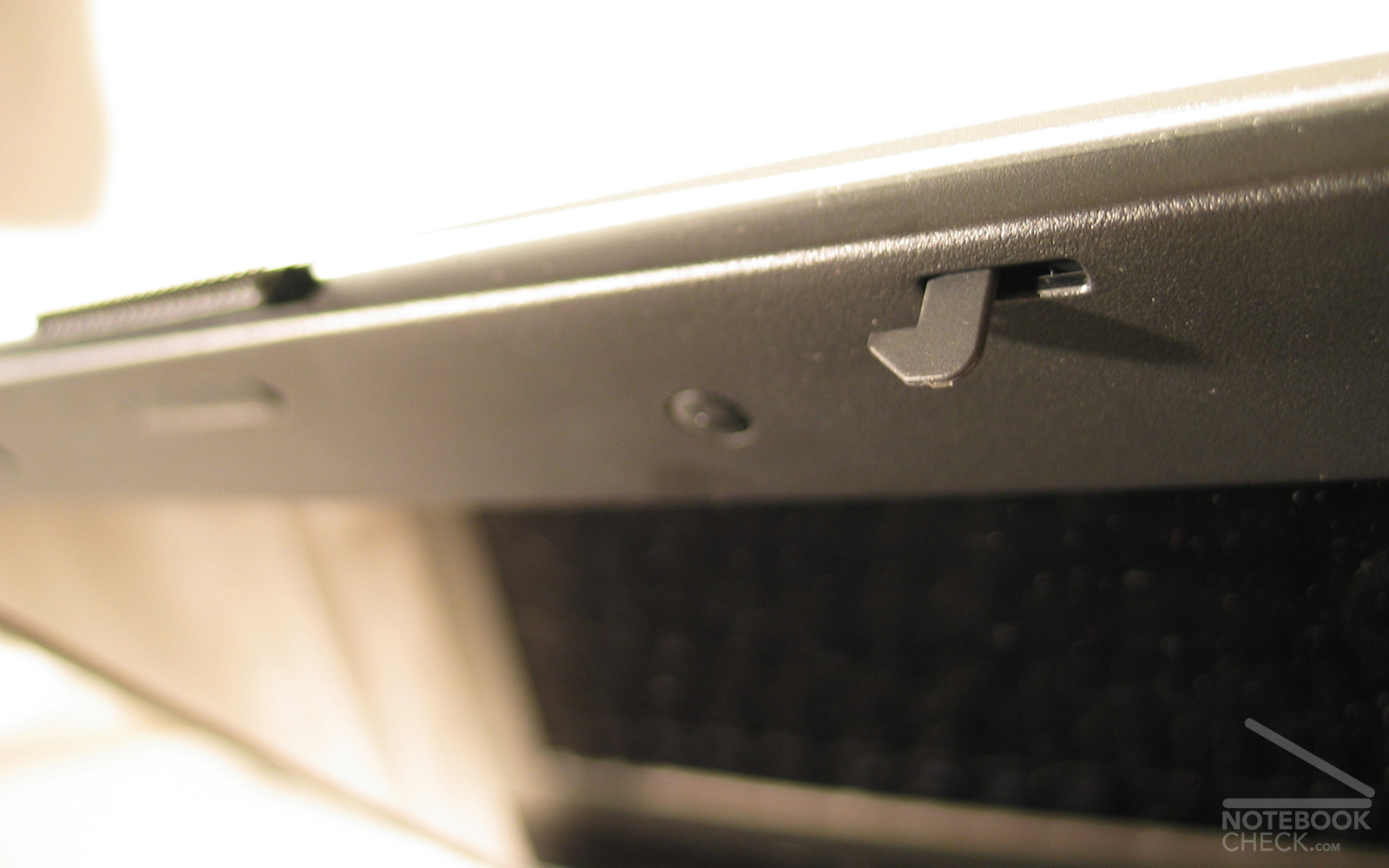

the catch hooks seem weak
the workmanship is average/good
good touchpad

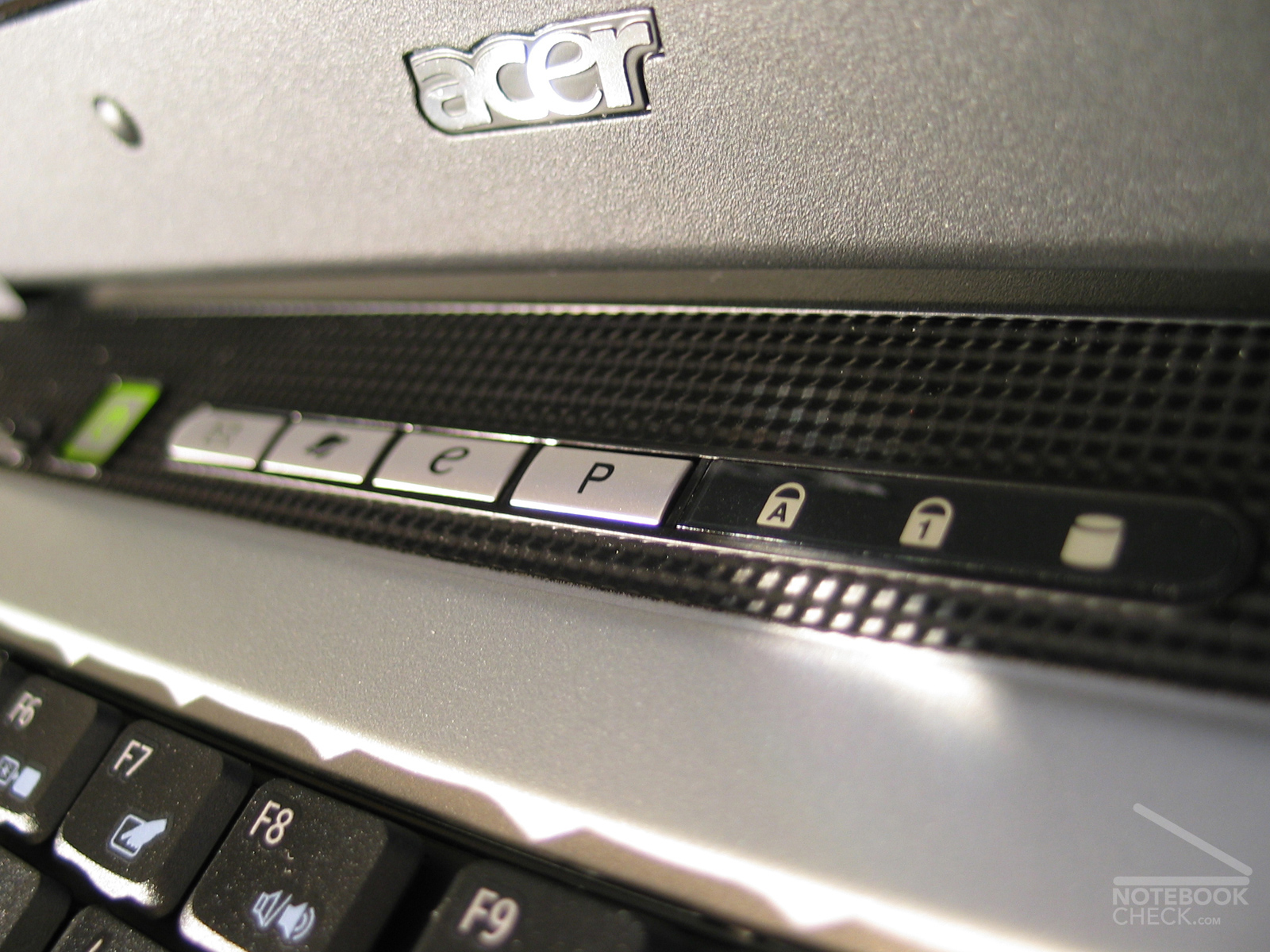

quick keys above the keyboard

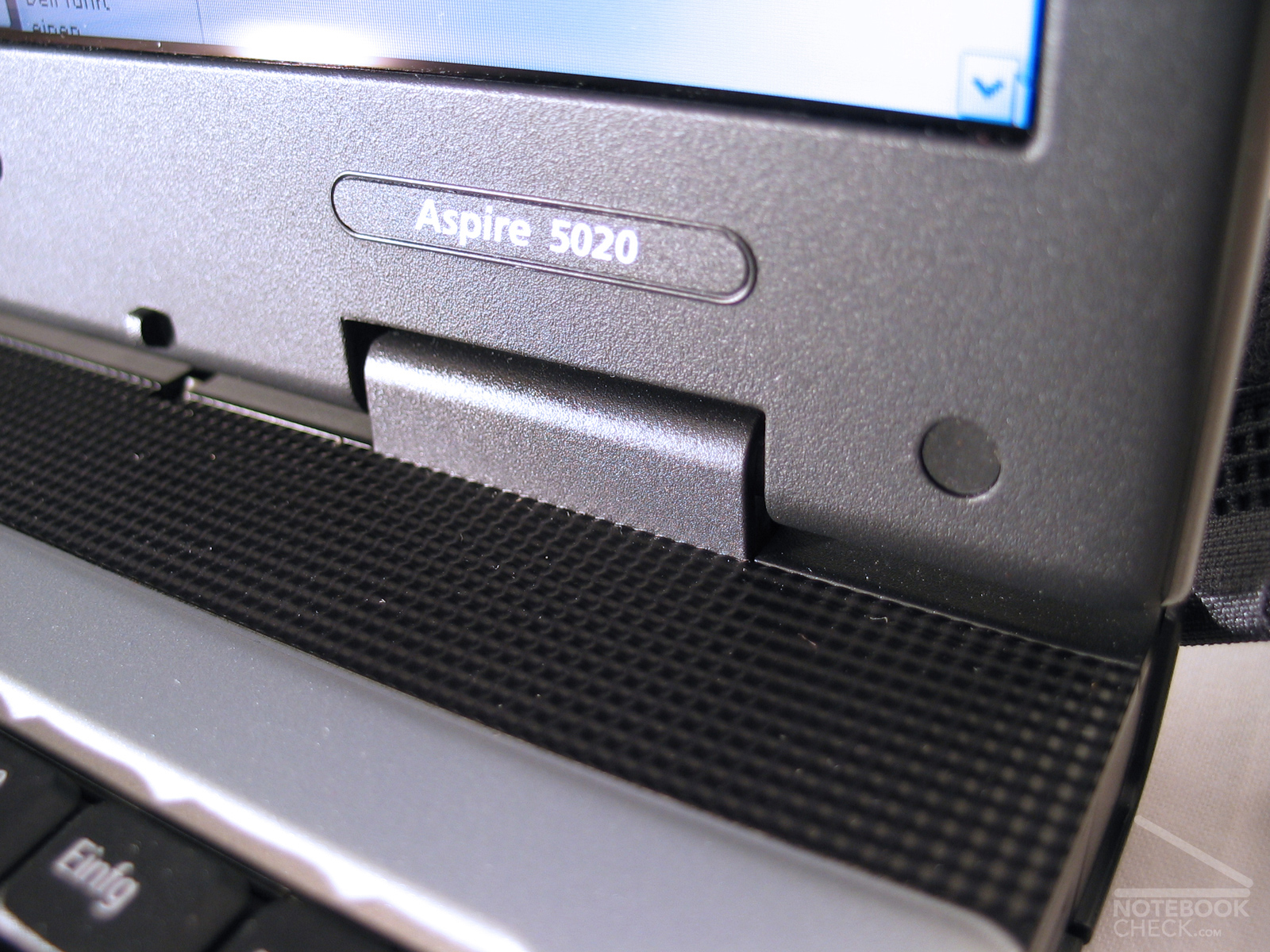

hinges function normally
keyboard tortions

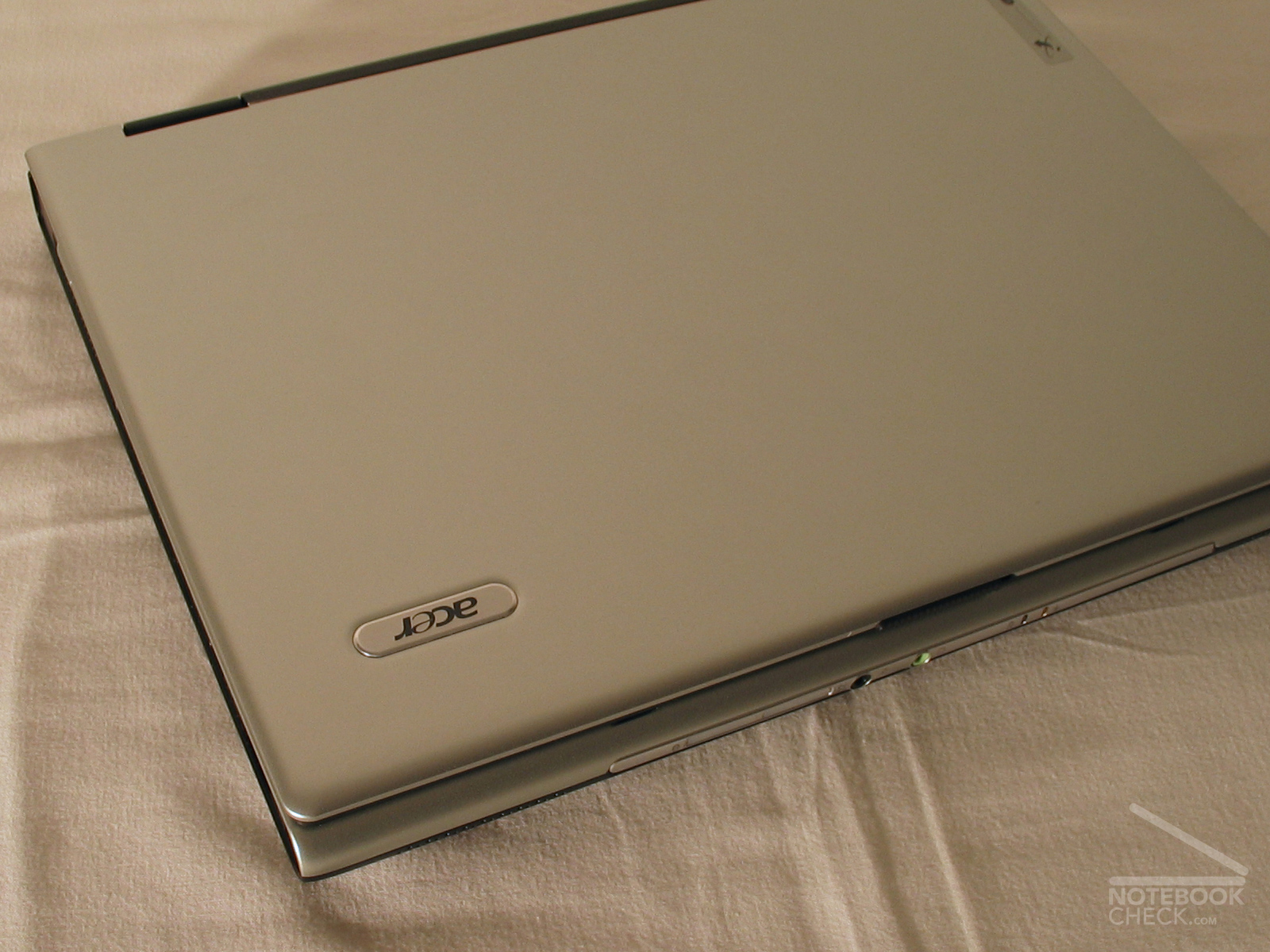

the materials seem modern

similar notebooks

Pro / Contra

Positive

  • bright display
  • good performance

Negative

  • continuously running ventilator
  • reflecting display
  • hard disk performance

equipment (data sheet)

Processor: AMD Turion 64 ML-34 1.8 GHz 1 MT L2 Cache

Main board: ATI Mobility RADEON XPRESS 200 chip set

Memory: 2 x 512 MT Samsung M4 70L6524CU0-CB3 PC2700U 2.5-3-3-7

Video card: ATI Mobility Radeon X700 128 MT (LX.A4605.061) and/or 256 MB(LX.AA505.010), (331 MHz memory -, 358 MHz core clock)

Display: 15.4 inch WXGA TFT 1280x800 pixel 16:10 widescreen

Hard disk: Seagate Momentus 4200,2 100GB ST9100822A 100GB 4200 U/min 12 ms (data sheet lt) 8 MB Cache

Sound card: Realtek AC'97

Connections: USB 2.0/FIREWIRE/MODEM/GB LAN/WLAN 802.11BG

Card reader: 6in1 Card reader

Network: Broadcom 802.11g WLAN, Realtek RTL8169/8110 Gigabit LAN, Texas Instruments IEE 1394 Firewire

DVD burner: DVD+/ RW DL

Mass: 3.07 kg

Akku: li-ions

Other: Windows XP Home, 12/24 months manufacturer warranty (Austria/Germany)
