Fujitsu-Siemens Amilo Si3655

Specifications

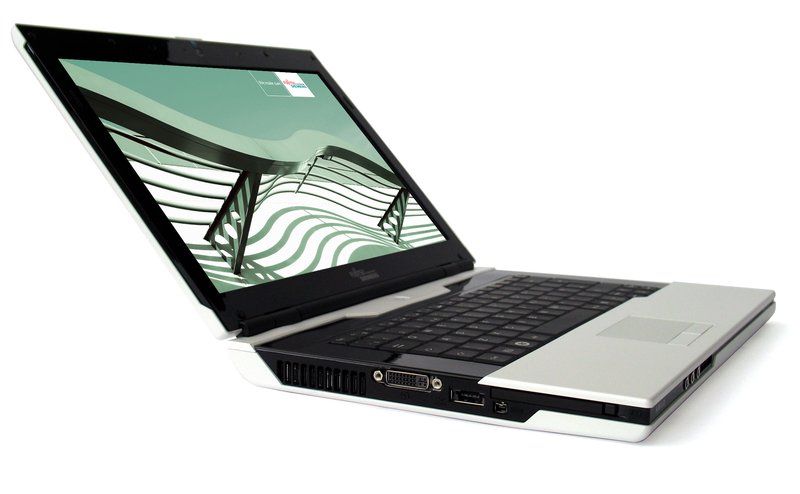

Fujitsu-Siemens Amilo Si3655
Fujitsu-Siemens Amilo Si3655 (Amilo S Series)
Graphics adapter
Intel Graphics Media Accelerator (GMA) 4500MHD - 32 MB VRAM, Core: 475 MHz, igdumdx32 7.15.10.1451 / Vista
Memory
4 GB
, DDR2 PC6400, 2x2048MB, max.4096MB
Display

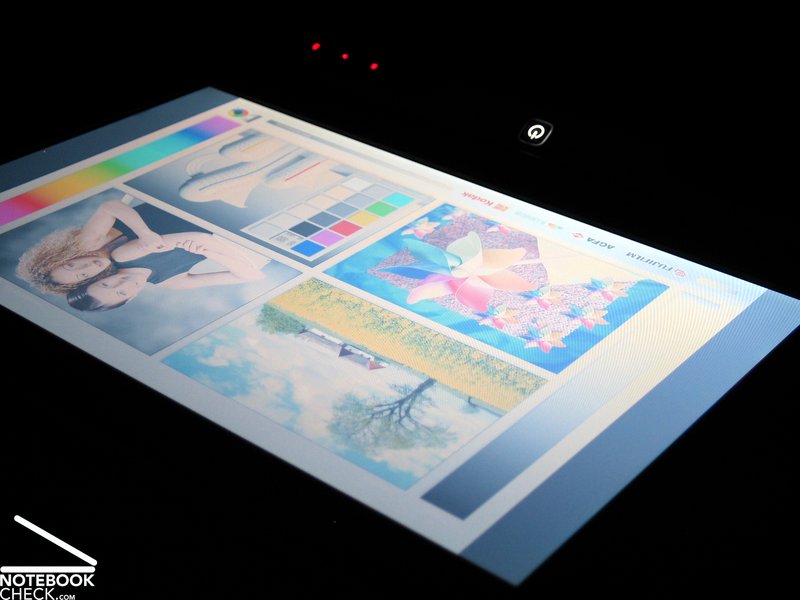

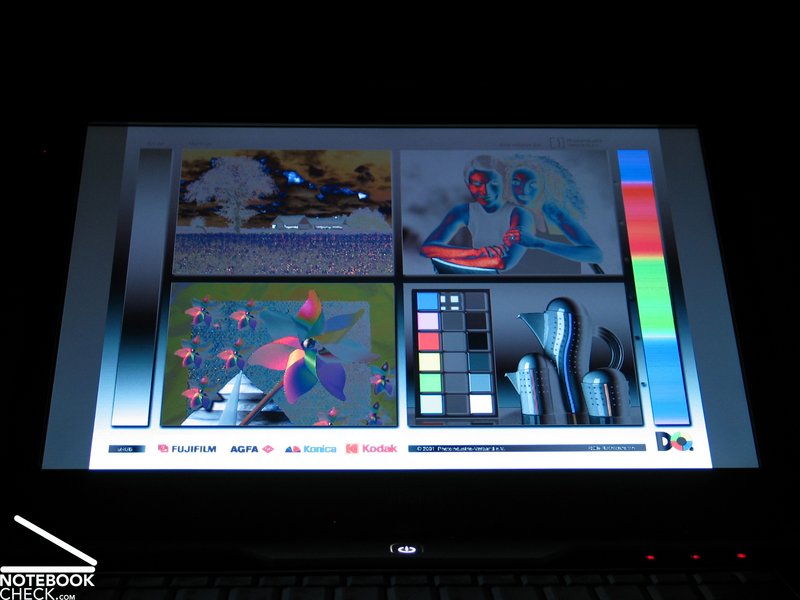

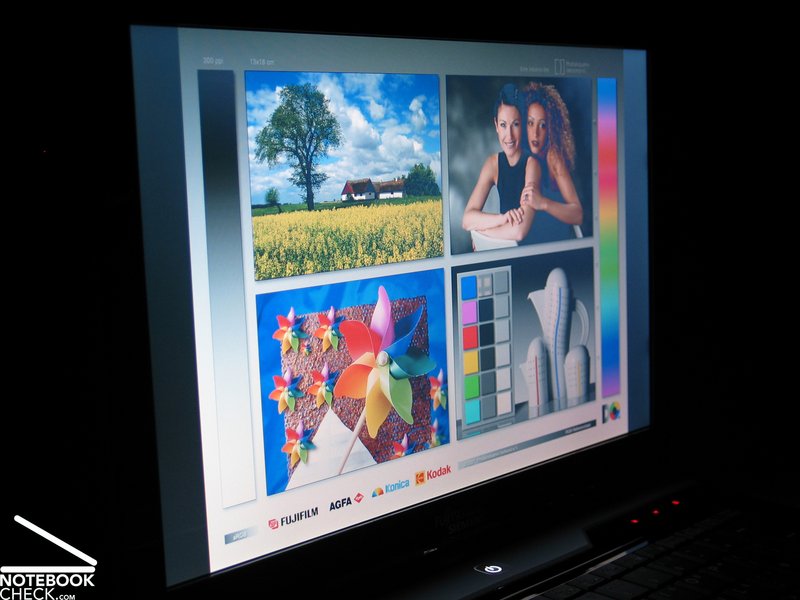

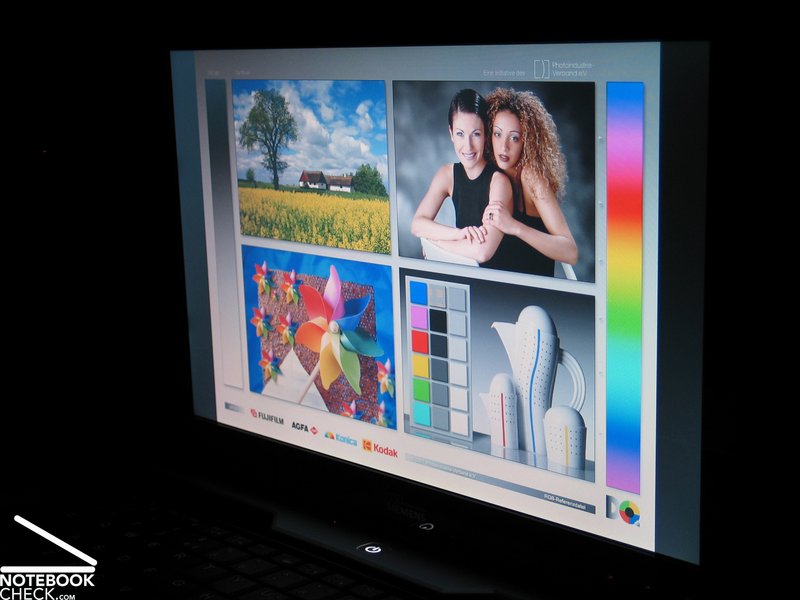

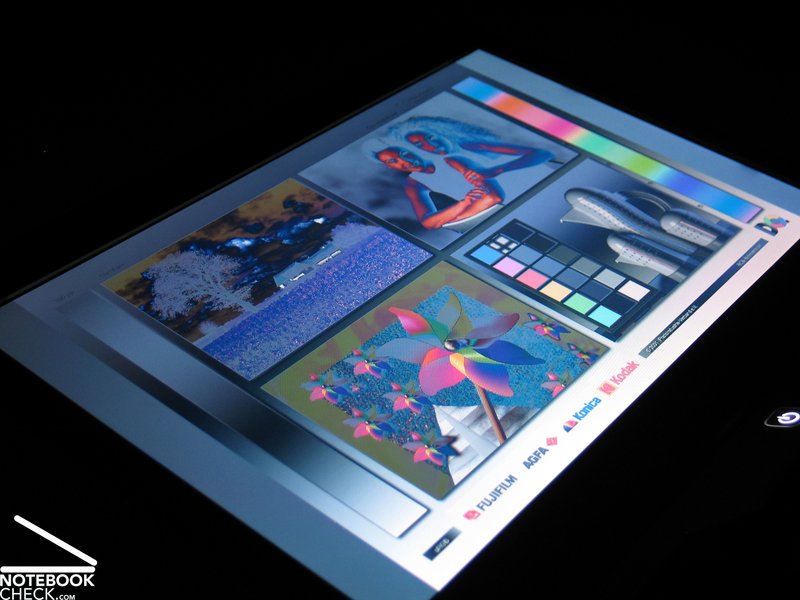

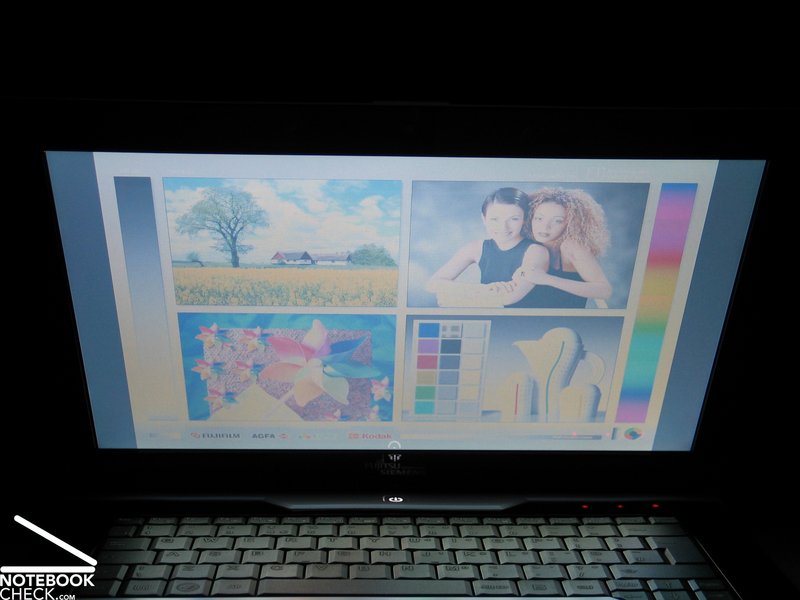

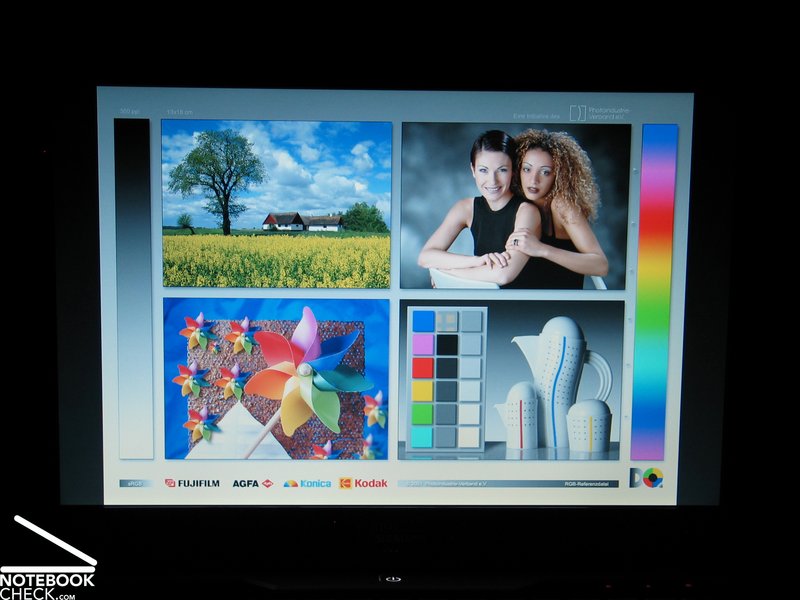

13.30 inch 16:10, 1280 x 800 pixel, WXGA TFT, glossy: yes
Mainboard
Intel GM45
Storage
300 GB - 5400 rpm, 300 GB
, 5400 rpm, FUJITSU MHZ2320BH G2
Soundcard
Realtek ALC888
Connections

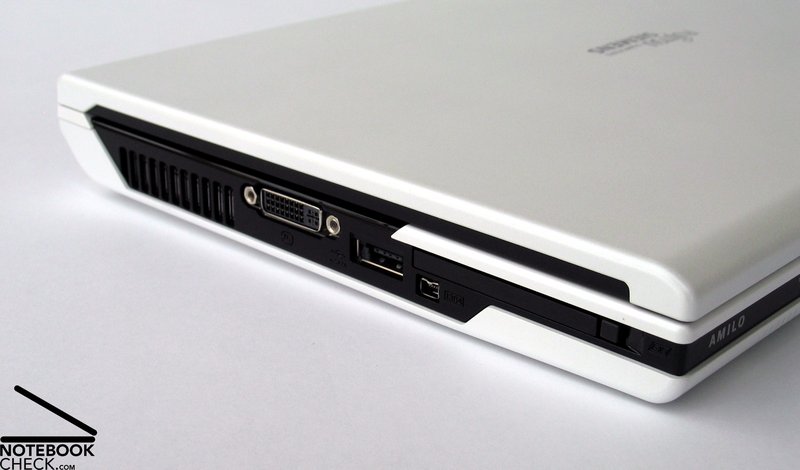

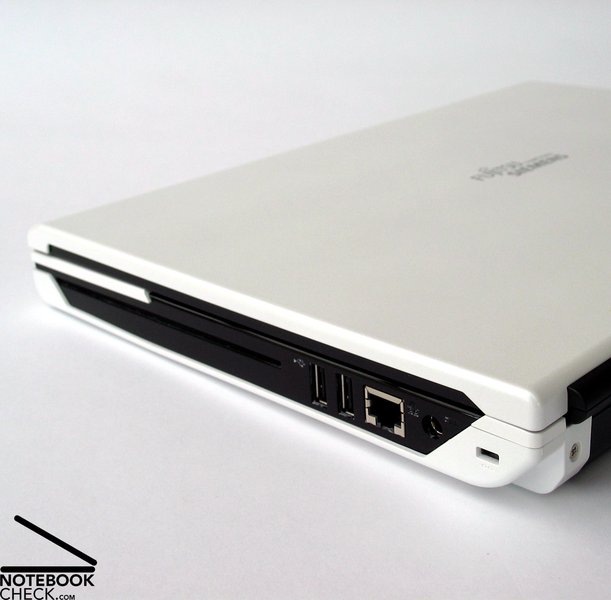

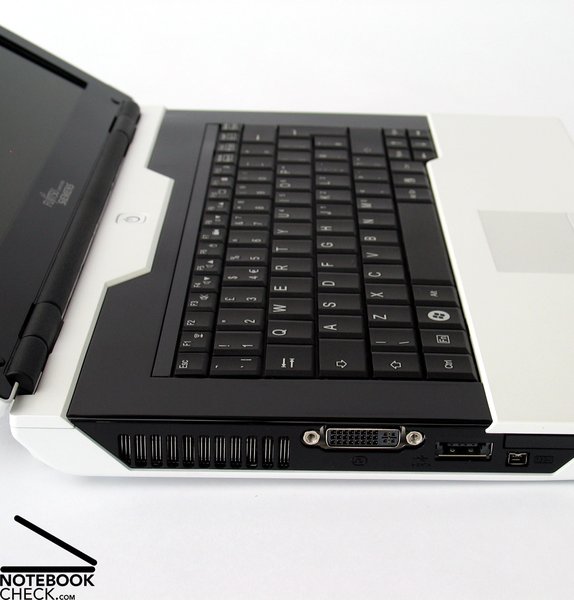

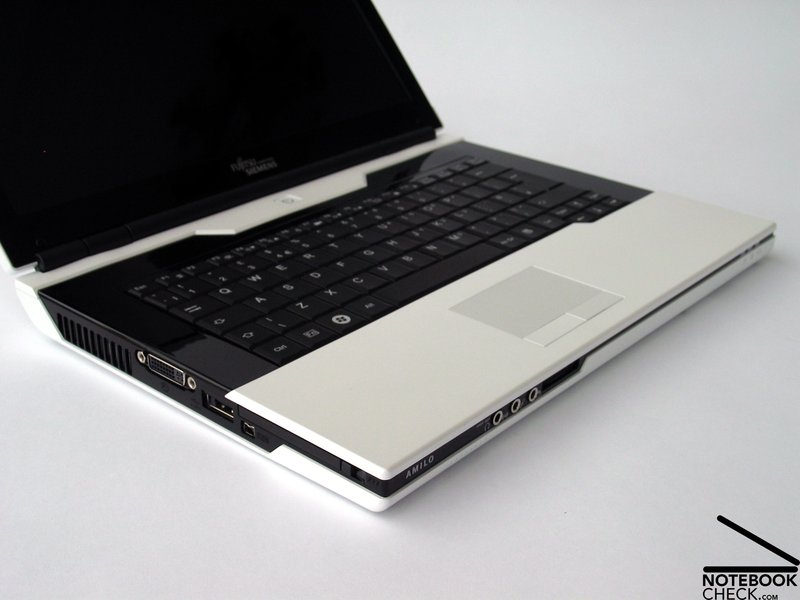

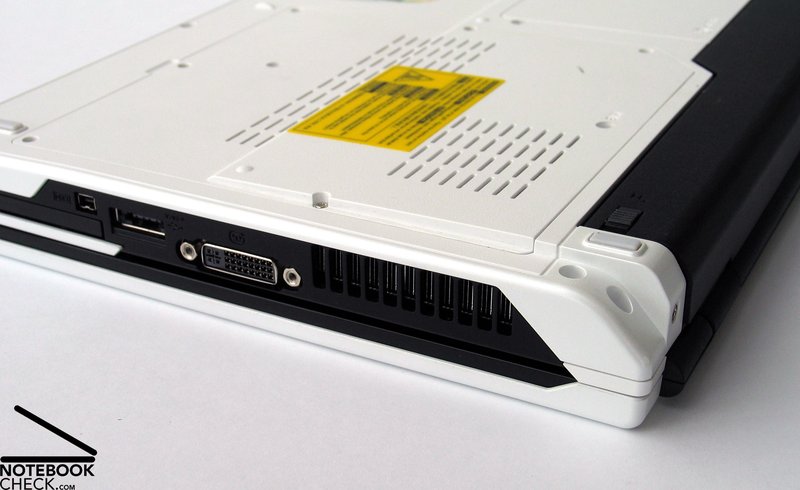

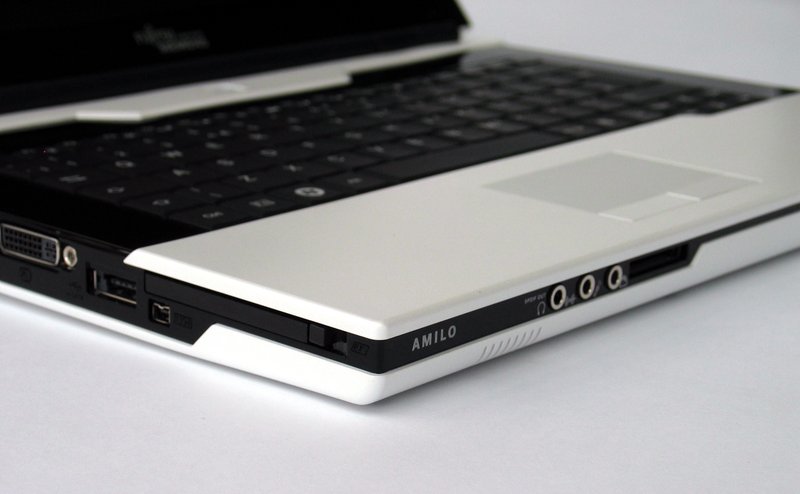

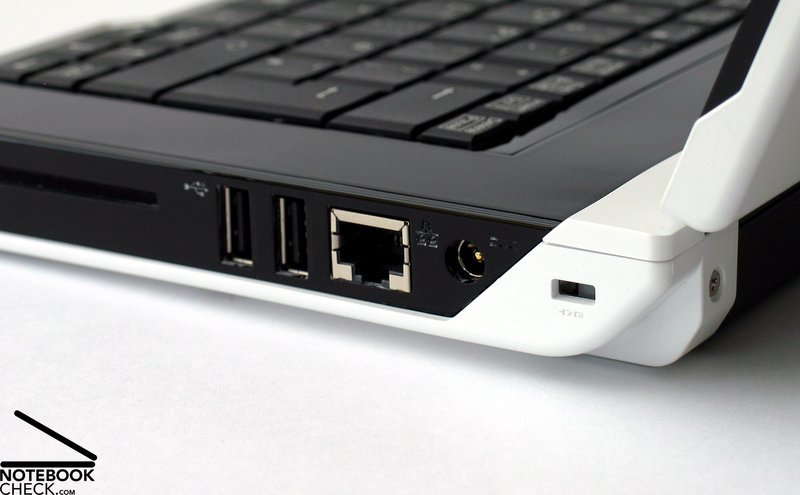

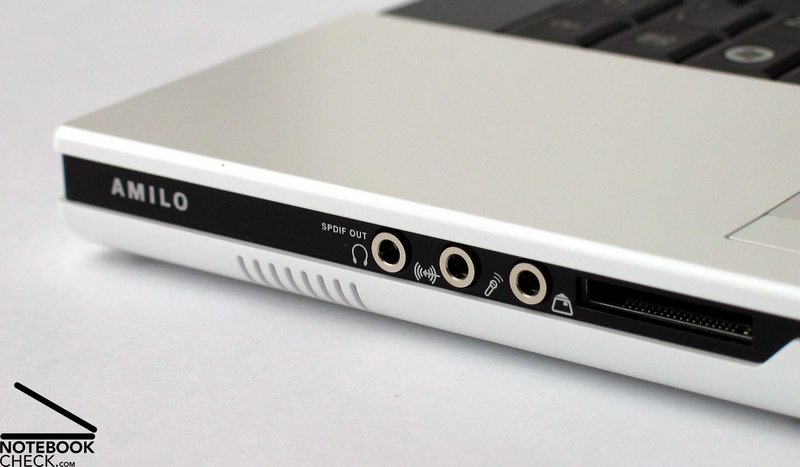

1 Express Card 54mm, 2 USB 2.0, 1 Firewire, 1 DVI, 1 Kensington Lock, 1 eSata, Audio Connections: Microphone, Headphones, S/PDIF, Card Reader: 15in1 (with adapter), eSATA
Networking

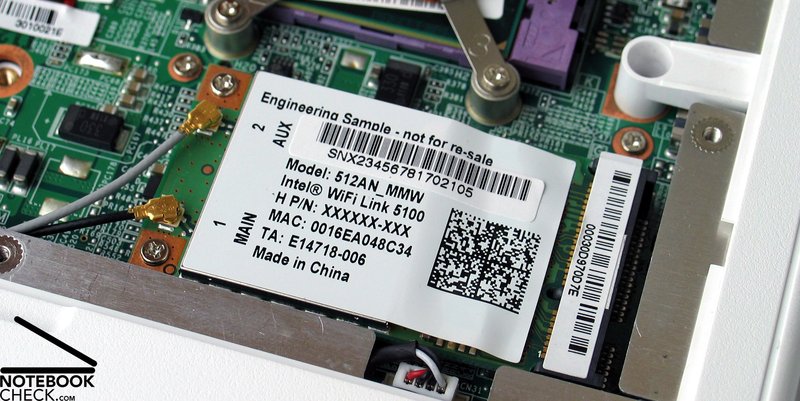

Intel 82567LF Gigabit Network Connection (10/100/1000MBit/s), Intel Wireless WiFi Link 5100 (a/b/g/n = Wi-Fi 4/), Bluetooth 2.1
Optical drive
Optiarc DVD RW AD-7640S
Size
height x width x depth (in mm): 39 x 232 x 319 ( = 1.54 x 9.13 x 12.56 in)
Battery

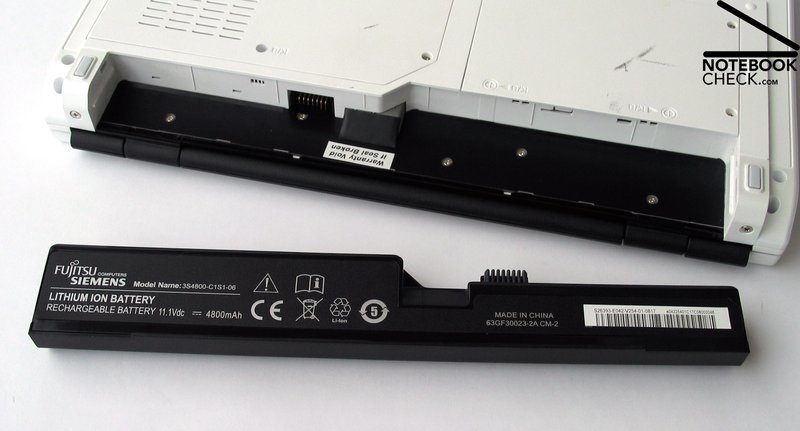

53 Wh Lithium-Ion, 11.1V, 4800mAh
Operating System
Microsoft Windows Vista Home Premium 32 Bit
Weight
2.28 kg ( = 80.42 oz / 5.03 pounds), Power Supply: 450 g ( = 15.87 oz / 0.99 pounds)
Price
0 Euro



Pricecompare

Average Score: 87% - good
Average of 3 scores (from 3 reviews)
price: 70%, performance: 73%, features: 83%, display: 75% mobility: 75%, workmanship: 83%, ergonomy: 84%, emissions: 92%

Reviews for the Fujitsu-Siemens Amilo Si3655

85% Review FSC Amilo Si3655 Notebook | Notebookcheck
Innovation. In many aspects the Fujitsu-Siemens Amilo Si3655 is an innovative notebook.This compact 13 inch subnotebook comes in a brand new Amilo design and is equipped with the latest development by Intel: the Centrino 2. In detail it is equipped with a Core 2 Duo T9400 CPU with 2.53 GHz combined with the new GM45 chip-set, and an integrated Intel GMA X4500HD video chip. The following article covers the potentials of the new Amilo series and of Intel's latest technology.
Fujitsu Siemens Computers Amilo Si 3655 Subnotebook
Source: Minitechnet German DE→EN Archive.org version
Single Review, online available, Long, Date: 12/20/2008
Rating: performance: 70% features: 80% display: 80% mobility: 60% workmanship: 80% ergonomy: 80% emissions: 100%
91% Amilo Si3655
Source: PC Praxis - 12/08 German
Single Review, , Length Unknown, Date: 12/01/2008
Rating: Total score: 91% price: 70%
85% Test Fujitsu-Siemens Amilo Si3655 Notebook
Source: Notebookcheck German DE→EN Archive.org version
Single Review, online available, Long, Date: 07/15/2008
Rating: Total score: 85% performance: 75% display: 73% mobility: 82% workmanship: 85% ergonomy: 86% emissions: 88%

Comment

Intel Graphics Media Accelerator (GMA) 4500MHD: Onboard (shared Memory) GPU built in the GM45, GE45 and GS45 chipset (Montevina). Because of two more shaders and a higher core clock, much faster than the old GMA X3100. Still not advisable for gamers (DirectX 10 games not playable or only with very low settings). The integrated video processor is able to help decode HD videos (AVC/VC-2/MPEG2) , e.g., for a fluent Blu-Ray playback with slow CPUs.

Only some 3D games with very low demands are playable with these cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


Intel Core 2 Duo: This is the Core Duo and Core Solo successor with a longer pipeline and 5-20% more speed without more power consumption. As an addition to the Core Duo design there exists a fourth decoder, an amplified SSE-unit and an additional arithmetical logical unit (ALU).

The Core 2 Duo for laptops is identical to the desktop Core 2 Duo processors but the notebook-processors work with lower voltages (0.95 to 1188 Volt) and a lower Frontside bus clock (1066 vs 667 MHz). The performance of equally clocked notebooks is 20-25% lower than Desktop PCs because of the lower Frontside bus clock and the slower hard disks.


T9400:

The T9400 is a fast middle class dual core CPU for laptops and basically a Core 2 Duo P9500 with a higher TDP of 35 Watt.

» Further information can be found in our Comparison of Mobile Processsors.


13.30":

There are hardly any tablets in this display size range anymore. For subnotebooks, on the other hand, it is the standard format.

The advantage of subnotebooks is that the entire laptop can be small and therefore easily portable. The smaller display also has the advantage of requiring less power, which further improves battery life and thus mobility. The disadvantage is that reading texts is more strenuous on the eyes. High resolutions are more likely to be found in standard laptops.

» To find out how fine a display is, see our DPI List.


Fujitsu-Siemens: Fujitsu, founded 1935, is a Japanese company specializing in semiconductors, air conditioners, computers (supercomputers, personal computers, servers), telecommunications, and services, and is headquartered in Tokyo. Fujitsu employs around 160,000 people and has 500 subsidiary companies. The partnership with Siemens AG was established in 1999 in the form of Fujitsu Siemens Computers (FSC), one of Europe's largest IT hardware suppliers, and owned 50/50 by Fujitsu and Siemens. 2009, this cooperation was terminated, FSC ended to exist. In future, no laptops will be sold with the brand "Fujitsu-Siemens" but only "Fujitsu".

Fujitsu-Siemens reviews


87%: This is an above-average rating. Nevertheless, it should not be forgotten that about one fifth of all tested models receive a better rating.


» Further information can be found in our Notebook Purchase Guide.
