HiSilicon Kirin 650 vs JLQ JR510

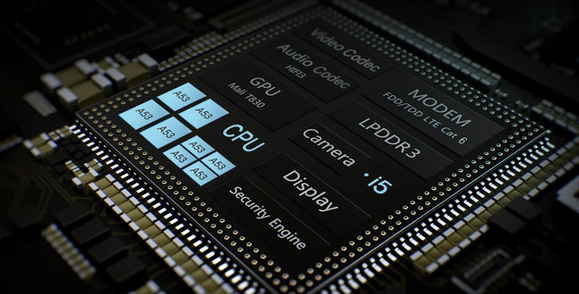

HiSilicon Kirin 650

The HiSilicon Kirin 650 is an ARM-based octa-core SoC for mid-range smartphones and tablets. It was announced early 2016 and features eight ARM Cortex-A53 cores. Four cores can be clocked with up to 1.7 GHz (power saving cores) and four with up to 2 GHz (performance cores). Furthermore, a ARM Mali-T830 MP2 graphics card (at 600 MHz with 40.8 GFLOPS), a 64-Bit LPDDR3 memory controller and a dual-sim capable LTE Cat. 6 (max. 300 MBit/s and GSM, WCDMA, UMTS, HSPA+) radio are integrated in the SoC.

The processor performance can be compared with the older Kirin 930 and therefore sufficient for daily usage as browsing and non demanding apps. High-end SoCs with Cortex-A57 or A72 cores however should be noticeably faster.

The SoC is produced in a modern 16nm FinFET process and is therefore very power efficient.

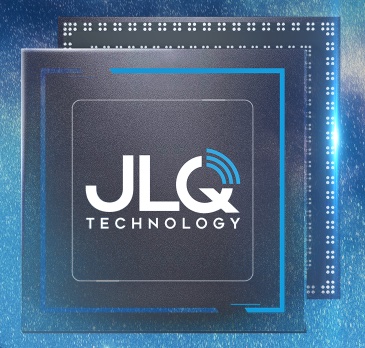

JLQ JR510

The JLQ JR510 is a lower mainstream SoC for (Android-based) smartphones and tablets by JLQ, a joint venture with Qualcomm and several Chinese companies.

The JLQ JR510 integrates eight ARM Cortex-A55 cores (similar to the Snapdragon 439) in two Clusters. 4 higher-clocked cores with up to 2 GHz and four power saving cores with up to 1.5 GHz.

The integrated graphics card is not an Adreno, but a ARM Mali G52MP1 (single cluster). Displays can be with resolutions up to 1080p/60Hz, for 720p 90 Hz is possible.

The JR510 also includes an AI accelerator with a theoretical performance of up to 1.23 TOPS. For connectivity, the SoC supports 4G (Cat4 / 7), Wi-Fi 5 (802.11ac), Bluetooth 5.0, FM and GNSS.
