VIA Nano QuadCore L4700

VIA Nano QuadCore L4700

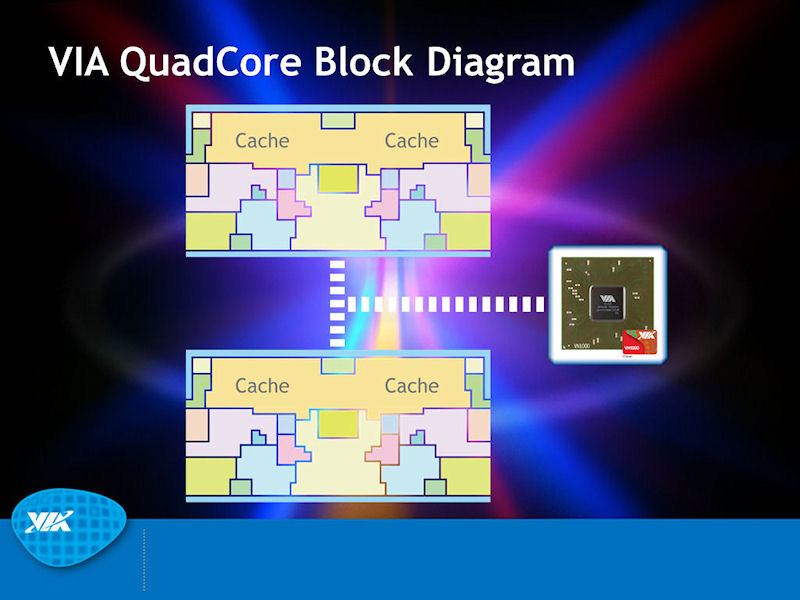

The VIA Nano QuadCore L4700 is a low-power 4-core processor for laptops. It is based on two VIA Nano dual core dies that are connected via the 1333MHz FSB (similar to the old Pentium D). Each core offers a 3-issue out-of-order design and is therefore faster than a similar clocked Atom core (2-issue in-order design). The L4700 has a base clock of 1.2 GHz and is able to overclock itself automatically to 1.46 GHz as long as the TDP is not fully used. To save power, the chip only offers aggressive clock gating but no power gating.

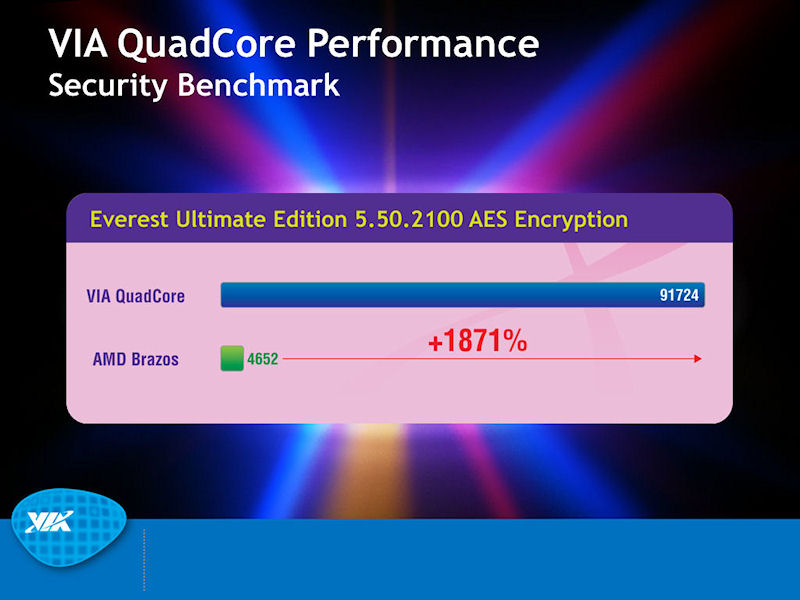

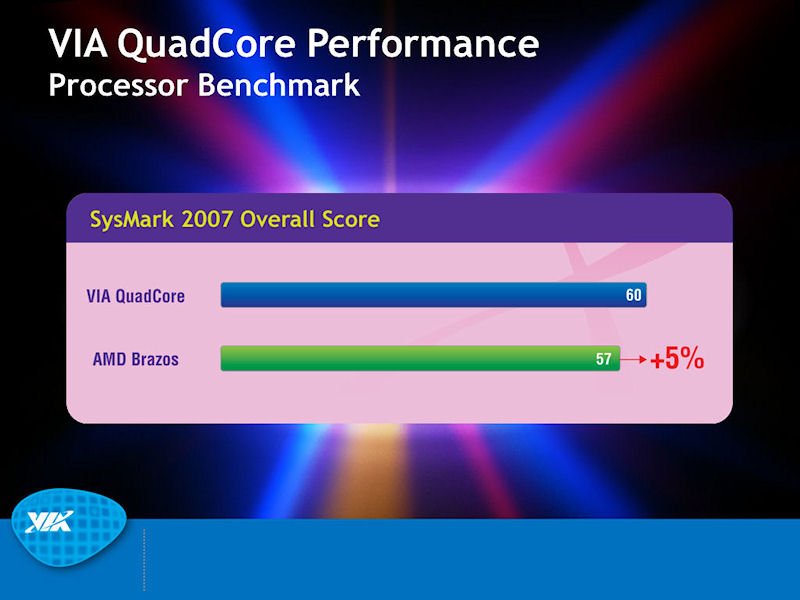

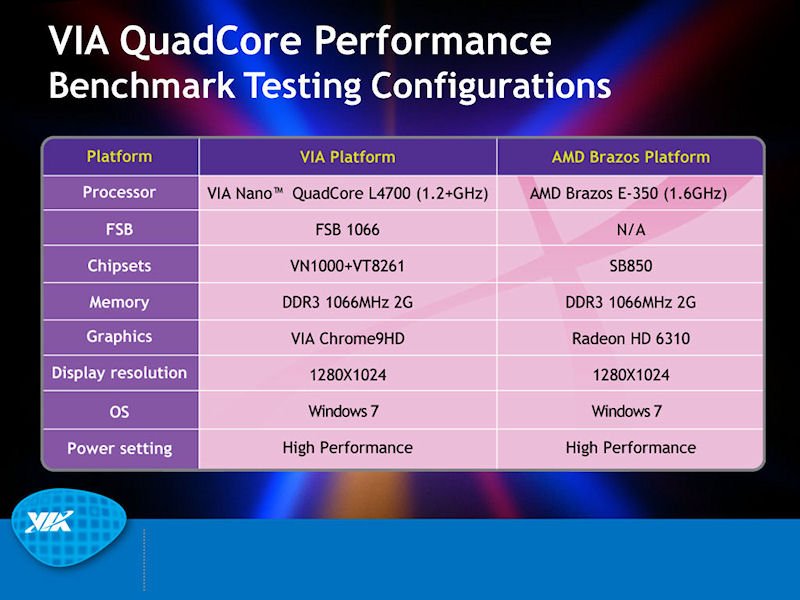

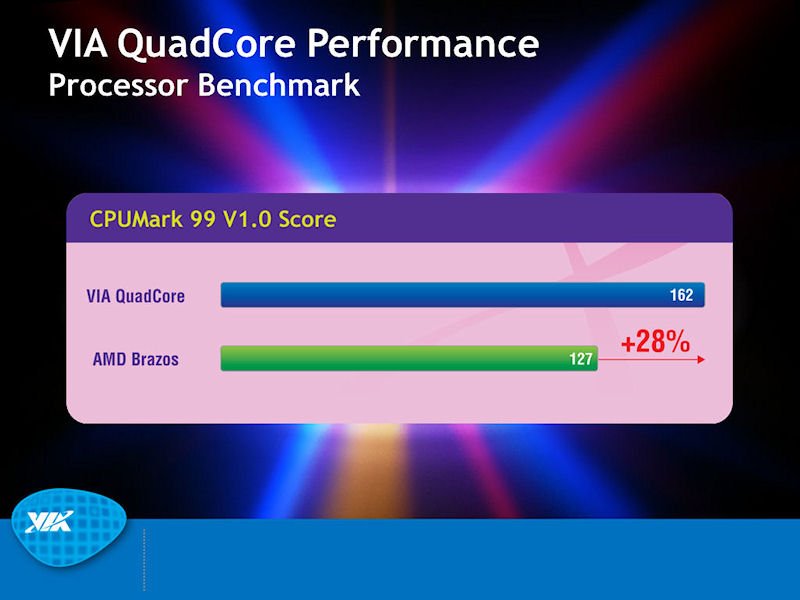

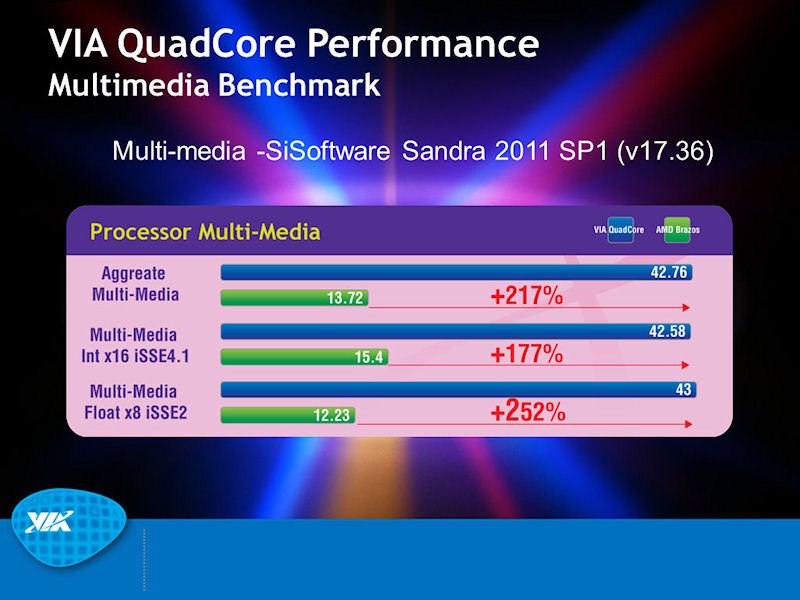

VIA published some benchmarks of the L4700 Quad-Core where it was positioned against the AMD E-350 dual-core. In all shown (multi-threaded) benchmarks, the L4700 clearly wins. However, no single thread benchmark was shown.

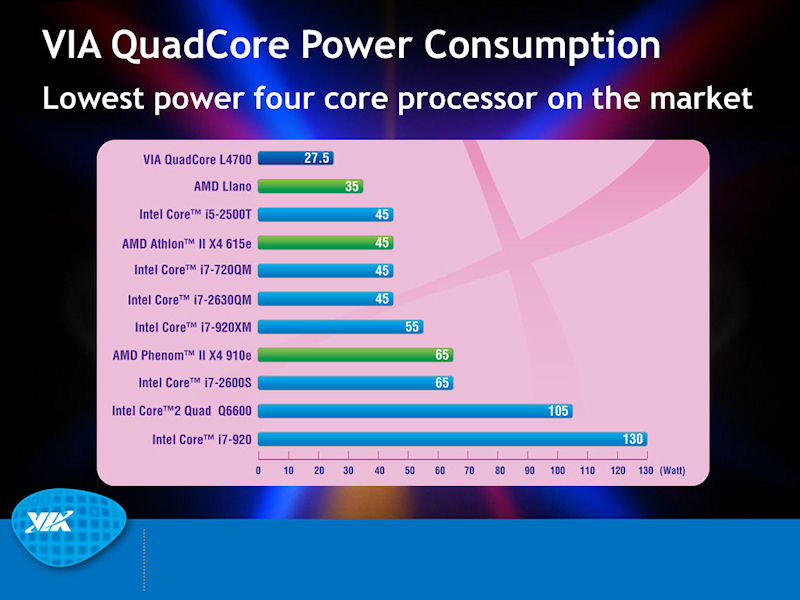

With 27.5 W TDP, the CPU isnt suited for very small netbooks (especially as 5W for the integrated graphics chipset have to be added).

SeriesVIA
CodenameCNQ
Clock Rate1200 - 1460 MHz
Front Side Bus1333 MHz
Level 1 Cache512 KB
Level 2 Cache4096 KB
Number of Cores / Threads4 / 4
Max. Power Consumption (TDP = Thermal Design Power)27.5 Watt
Manufacturing Technology40 nm
Die Size132 mm2
SocketBGA
Featuresx64, MMX, SSE4 compatible, VT-compatible, VIA PadLock security features
64 Bit64 Bit support
Hardware VirtualizationVT-compatible
Announcement Date05/17/2011

CPU Benchmarks

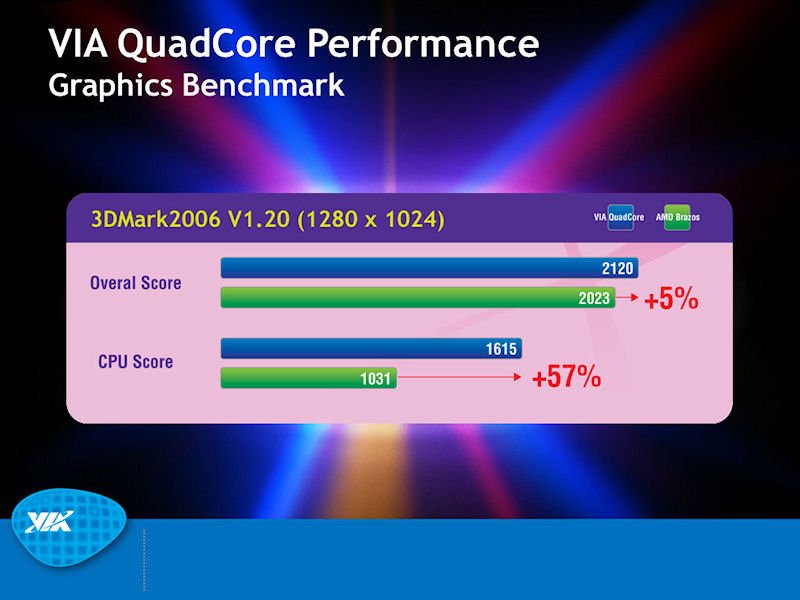

3DMark 06 - CPU:
0% 100%
min: 1615     avg: 1615 (17.08%)     max: 1615 Points

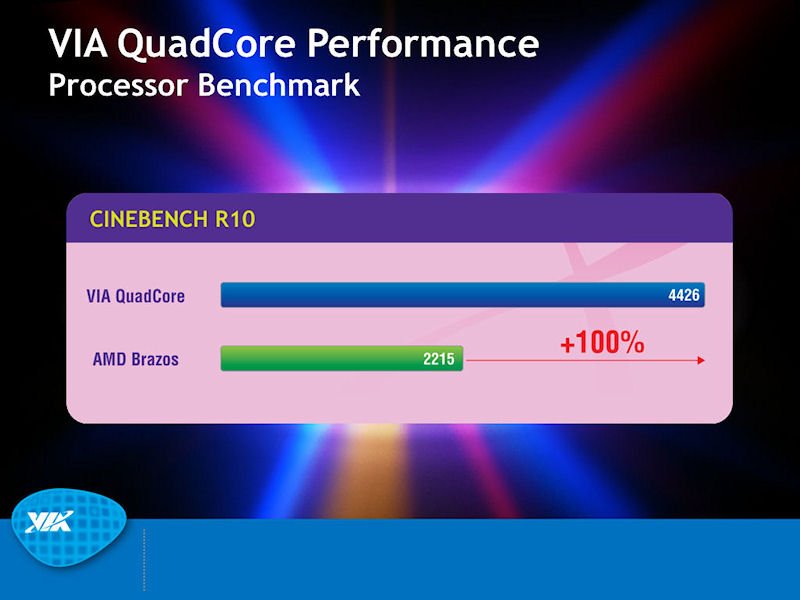

Cinebench R10: Rendering Multiple CPUs 64Bit
0% 100%
min: 4426     avg: 4426 (9.95%)     max: 4426 Points
- Range of benchmarks for this CPU
- Average benchmark score

:: No reviews found for this CPU (yet).
