Samsung ATIV 540U4E-K01US


Samsung ATIV 540U4E-K01US
Samsung ATIV 540U4E-K01US (ATIV Book 5 Series)
Graphics adapter
Intel HD Graphics 4000, Core: 350 MHz
4096 MB
14.0 inch 16:9, 1366x768 pixel, 10-point, AUO B140XTN03.1, TN LED, glossy: yes
Intel HM76 (Panther Point)
Seagate Momentus Thin ST500LT012-9WS142 + 24 GB SanDisk i100 SSD, 500 GB
, 5400 rpm
Intel Panther Point PCH - High Definition Audio Controller

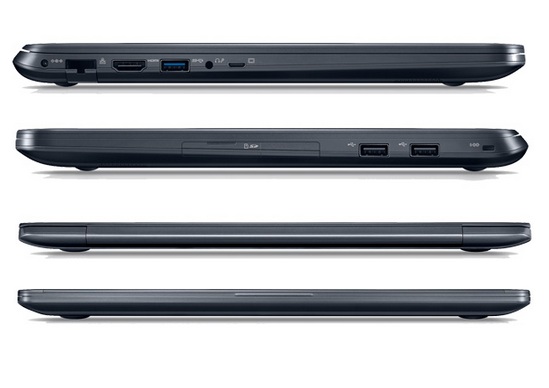

2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: Headphone/MIC combo, Card Reader: 3-in-1 (SD/SDHC/SDXC)
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Atheros AR9485WB-EG Wireless Network Adapter (b/g/n), Bluetooth 4.0
height x width x depth (in mm): 20.8 x 338 x 233.9 ( = 0.82 x 13.31 x 9.21 in)
0 Wh Lithium-Ion, 3780 mAh
Operating System
Microsoft Windows 8 64 Bit
Webcam: 0.9 MP
Additional features
Speakers: 2, SideSync , S Player, S Gallery, S Camera, Evernote, Samsung Recovery Solutions, Norton Internet Security (60-day trial), Norton Online Back-up (30-day trial)
1.96 kg ( = 69.14 oz / 4.32 pounds), Power Supply: 262 g ( = 9.24 oz / 0.58 pounds)
900 Euro


Average Score: 81.5% - good
Average of 2 scores (from 1 reviews)
price: - %, performance: 79%, features: 66%, display: 65% mobility: 90%, workmanship: 90%, ergonomy: 83%, emissions: 82%

Reviews for the Samsung ATIV 540U4E-K01US

83% Review Samsung ATIV Book 5 540U4E-K01US Ultrabook | Notebookcheck
Turn the page. The Samsung Ativ Book 5 is a slim, yet sturdy 14-inch touchscreen Ultrabook based on a previous-generation Ivy Bridge processor. How does the sleek looking system with its dual-core i5 CPU and integrated graphics card stack up against the competition?
80% Samsung ATIV Book 5 NP540U4E-K01US 14-inch
Source: Comp Reviews English
Samsung's ATIV Book 5 may not be the big redesign that the name implies but it takes a solid design and upgrades it with a new touchscreen display and some amazing battery life. There are a number of elements of the system though that drag down the system from being excellent including a dim display with viewing angle issues, just a single USB 3.0 port and only 4GB of memory.
Single Review, online available, Short, Date: 07/30/2013
Rating: Total score: 80%


Intel HD Graphics 4000: Processor graphics card in the high end Ivy Bridge models. Offers a different clock speed in the different CPU models (ULV to desktop quad core) and therefore a different performance.

Non demanding games should be playable with these graphics cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.

3337U: Ivy-Bridge-based ULV-CPU in Q1 2013. Offers a core clock of 1.8 - 2.7 GHz and an HD 4000 GPU (350 - 1100 MHz). The TDP is rated at 17 W.» Further information can be found in our Comparison of Mobile Processsors.


Above all, this display size is used for subnotebooks, ultrabooks and convertibles. For all three types, this size is quite large. The biggest variety of subnotebooks is represented with this size.

Large display-sizes allow higher resolutions. So, details like letters are bigger. On the other hand, the power consumption is lower with small screen diagonals and the devices are smaller, more lightweight and cheaper.

» To find out how fine a display is, see our DPI List.

1.96 kg:

This weight is typical for very big tablets, subnotebooks, ultrabooks and convertibles with a 11-13 inch display-diagonal.

Samsung: The Samsung Group is composed of numerous international businesses, all united under the Samsung brand in South Korea. The meaning of the Korean word Samsung is "tristar" or "three stars". The Samsung brand is one of the most important brands of South Korea. Samsung is an international notebook manufacturer of medium size according market shares and reviews.

In 2015 and 2016, Samsung had a market share of around 24-25% in the global smartphone market and was undisputed market leader. In the laptop sector, Samsung is on the 8th place in the global manufacturer rankings from 2014-2016 with 1.7-2.7%.


In 2016 Samsung slipped into a crisis due to exploding smartphone batteries and a failed recall action.

81.5%: This rating should be considered to be average. This is because the proportion of notebooks which have a higher rating is approximately equal to the proportion which have a lower rating.

» Further information can be found in our Notebook Purchase Guide.
