Panasonic ToughPad FZ-M1 Tablet Review

Sascha Mölck (translated by Bernie Pechlaner), 08/09/2015

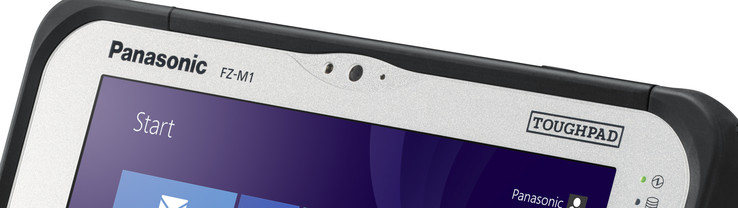

Takes a licking. Panasonic's Toughpad FZ-M1 is an extremely robust 7-inch Windows 8.1 tablet. The Core i5 processor is cooled passively, which prevents continuous top-notch performance.

Working For Notebookcheck

Are you a loyal reader of notebookcheck? Are you a techie who knows how to write? Then join our Team!

Especially wanted:
News Editor, Review Editor
(Smartphones)Details here

For the original German review, see here.

Panasonic's Toughpad-series consists of very robust tablets which are able to withstand most falls and are not affected much by dust and humidity. The series targets professional users; home users will likely lose interest immediately upon seeing the model's price. Our review tablet is the 7-inch model Touchpad FZ-M1. If the slate is a good choice is the subject of our review.

Our database doesn't contain any true competitors, so the tablets listed in the various tables below can't be considered to be equal to the FZ-M1 in any way. We only use them to evaluate the performance of the Panasonic Toughpad.

Panasonic ToughPad FZ-M1 (Toughpad FZ Series)
Processor
Graphics adapter
Intel HD Graphics 4200, Core: 200-850 MHz, Dual-channel, 10.18.10.3383
Memory
4096 MB
, DDR3, dual-channel, soldered on
Display
7.0 inch 16:10, 1280x800 pixel, capacitive, 10 touch points, LFP14, IPS, glossy: no
Mainboard
Intel Lynx Point-LP
Storage
Samsung MZNTE128HMGR-000SO, 128 GB
, 80 GB free
Soundcard
Realtek ALC269 @ Intel Lynx Point PCH - High Definition Audio Controller
Connections
1 USB 3.0 / 3.1 Gen1, Audio Connections: Audiokombo, Card Reader: MicroSD, 1 SmartCard, Sensors: Position sensor, ambient brightness, location, Barcode reader, TPM 1.2
Networking
Intel Dual Band Wireless-AC 7260 (a/b/g/n/ac), Bluetooth 4.0, Sierra Wireless EM7305 LTE
Size
height x width x depth (in mm): 18 x 203 x 132 ( = 0.71 x 7.99 x 5.2 in)
Battery
22 Wh Lithium-Ion, 7.2 V, 3220 mAh
Operating System
Microsoft Windows 8.1 Pro 64 Bit
Camera
Webcam: 2 MP (front), 5 MP (back)
Additional features
Speakers: Mono, Keyboard Light: no, Handle, stylus, Barcode Utilities, MS Office (trial), 36 Months Warranty
Weight
544 g ( = 19.19 oz / 1.2 pounds), Power Supply: 366 g ( = 12.91 oz / 0.81 pounds)
Price
1500 Euro



Case & Connectivity

With dimensions of 203 mm x 132 mm x 18 mm, the Toughbook is quite bulky - but that's a necessary compromise on has to accept when purchasing a fully-ruggedized tablet. The chassis is made out of plastic. While the back and front sport a silver-gray color, all other parts are black. The back of the unit allows for further expansion: our review slate shipped with a barcode as well as a SmartCard reader, but Panasonic's website also mentions an Ethernet and a serial port as options.

The right side is home to a flap which hides an audio combo-jack and an USB 3.0 port. The MicroSD card reader and the SIM card slot are located behind a hatch in the battery compartment. The LTE modem allows the user to connect to a cellular network to access the Internet or the company office. The battery can be removed using a lever - additional tools are not needed. The bottom houses a docking port which can connect to various optional docking stations designed for specific usage-scenarios.

The OS is Windows 8.1 Professional (64 Bit), although a downgrade to Windows 7 Professional (64 Bit) is possible as well. Recovery media is not included, but the pre-installed tool "Recovery Disk Creation" allows the user to create a recovery disk.

Input Devices

The Toughpad is equipped with a capacitive touchscreen which can recognize 10 inputs simultaneously. The touchscreen reacts quickly and we had no issues with its performance during the review period. Panasonic also includes a stylus, which makes handwritten input much easier.

Display

The Toughpad comes with a matte-reflective 7-inch touchscreen with a native resolution of 1280 x 800 pixels. Thanks to the brightness of 528 nits and the contrast ratio of 729:1 the tablet can be used outdoors without caveats. When we used a black background, we noticed light bleeding in several areas around the perimeter.

485
cd/m²
533
cd/m²
503
cd/m²
529
cd/m²
561
cd/m²
530
cd/m²
528
cd/m²
544
cd/m²
539
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 561 cd/m² Average: 528 cd/m²
Brightness Distribution: 86 %
Center on Battery: 561 cd/m²
Contrast: 729:1 (Black: 0.77 cd/m²)
ΔE Color 5.55 | - Ø
ΔE Greyscale 7.04 | - Ø
64% sRGB (Argyll) 41% AdobeRGB 1998 (Argyll)
Gamma: 2.46

The DeltaE-deviation is 5.55 as shipped, which is fairly close to the target value (DeltaE less than 3). There is no noticeable bluish hue.

CalMAN - Color Checker
CalMAN - Color Checker
CalMAN - Graylevels
CalMAN - Graylevels
CalMAN - Saturation
CalMAN - Saturation

The Toughpad is equipped with an IPS panel and the viewing angle stability is very high as a result. We were able to read the display content from nearly all positions. The tablet can be used outdoors as well as the display is more than bright enough for that task.

The Toughpad outdoors
The Toughpad outdoors

Performance

Panasonic doesn't really target home users with the Toughpad - the slate is designed for business applications. Modules allow the user to tailor the FZ-M1 to their needs. Our review tablet is equipped with a SmartCard reader (wirelss) as well as a barcode scanner and sells for about 2000 Euro (~$2195); a stripped-down version with Celeron-N2807 costs 1200 Euro (~$1315).

Discussion

Processor

At the heart of the tablet is Intel's dual-core Core i5-4302Y (Haswell) processor. The "Y" indicates that this particular CPU is very frugal: with a TDP of 11.5, the i5-4302Y is even more of a power-miser than a normal ULV processors (TDP: 15 watts). The Core i5-4302Y processor differs from the otherwise identically-constructed Core i5-4300Y processor in that it has a slightly lower power consumption during normal use. The processor operates at clock frequency of 1.6 GHz, although the Turbo can overclock a single core to 2.3 GHz.

Since the CPU is cooled passively, the performance is not constant and after a few minutes the i5-4302Y is subjected to heavy throttling to prevent it from overheating. We ran the Cinebench R11.5 benchmark test three times in the row: during the first run, the CPU more or less maintained its maximum frequency; during the second run, the speed dropped to 1.2 - 1.3 GHz; during the third run we saw speeds of less than 1 GHz. For this reason, we included breaks during the CPU benchmark tests to allow the CPU to cool down.

Cinebench R10 Shading 32Bit
5452
Cinebench R10 Rendering Single 32Bit
3310
Cinebench R10 Rendering Multiple CPUs 32Bit
6448
Cinebench R11.5 CPU Multi 64Bit
1.98 Points
Cinebench R11.5 OpenGL 64Bit
16.32 fps
Cinebench R11.5 CPU Single 64Bit
0.95 Points
Cinebench R15 CPU Single 64Bit
65 Points
Cinebench R15 CPU Multi 64Bit
185 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
18.3 fps
Help
Cinebench R15
CPU Single 64Bit (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
65 Points ∼35%
Toshiba Tecra Z40 A-147
HD Graphics 4400, 4200U, Hitachi Travelstar Z7K500 HTS725050A7E630
100 Points ∼54% +54%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
77 Points ∼42% +18%
Lenovo M30-70
HD Graphics 4400, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E380
68 Points ∼37% +5%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
76 Points ∼41% +17%
Dell Venue 11 Pro 5130-9356
HD Graphics (Bay Trail), Z3795, 64 GB SSD
37 Points ∼20% -43%
CPU Multi 64Bit (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
185 Points ∼12%
Toshiba Tecra Z40 A-147
HD Graphics 4400, 4200U, Hitachi Travelstar Z7K500 HTS725050A7E630
231 Points ∼15% +25%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
133 Points ∼9% -28%
Lenovo M30-70
HD Graphics 4400, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E380
170 Points ∼11% -8%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
191 Points ∼12% +3%
Dell Venue 11 Pro 5130-9356
HD Graphics (Bay Trail), Z3795, 64 GB SSD
131 Points ∼8% -29%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
0.95 Points ∼4%
Toshiba Tecra Z40 A-147
HD Graphics 4400, 4200U, Hitachi Travelstar Z7K500 HTS725050A7E630
1.11 Points ∼4% +17%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
0.82 Points ∼3% -14%
Lenovo M30-70
HD Graphics 4400, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E380
0.73 Points ∼3% -23%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
0.8 Points ∼3% -16%
Dell Venue 11 Pro 5130-9356
HD Graphics (Bay Trail), Z3795, 64 GB SSD
0.44 Points ∼2% -54%
Acer Aspire Switch 10E SW3-013
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash (32-bit test)
0.31 Points ∼1% -67%
CPU Multi 64Bit (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
1.98 Points ∼3%
Toshiba Tecra Z40 A-147
HD Graphics 4400, 4200U, Hitachi Travelstar Z7K500 HTS725050A7E630
2.49 Points ∼3% +26%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
1.45 Points ∼2% -27%
Lenovo M30-70
HD Graphics 4400, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E380
1.8 Points ∼3% -9%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
2.03 Points ∼3% +3%
Dell Venue 11 Pro 5130-9356
HD Graphics (Bay Trail), Z3795, 64 GB SSD
1.61 Points ∼2% -19%
Acer Aspire Switch 10E SW3-013
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash (32-bit test)
1.07 Points ∼1% -46%
Cinebench R10
Rendering Single 32Bit (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
3310 Points ∼47%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
2982 Points ∼42% -10%
Lenovo M30-70
HD Graphics 4400, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E380
2447 Points ∼35% -26%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
2813 Points ∼40% -15%
Dell Venue 11 Pro 5130-9356
HD Graphics (Bay Trail), Z3795, 64 GB SSD
1727 Points ∼25% -48%
Acer Aspire Switch 10E SW3-013
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
946 Points ∼13% -71%
Rendering Multiple CPUs 32Bit (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
6448 Points ∼19%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
4663 Points ∼13% -28%
Lenovo M30-70
HD Graphics 4400, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E380
5584 Points ∼16% -13%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
6285 Points ∼18% -3%
Acer Aspire Switch 10E SW3-013
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
2898 Points ∼8% -55%
Geekbench 3
32 Bit Multi-Core Score (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
4198 Points ∼26%
Apple iPad Mini 3
PowerVR G6430, A7, 16 GB eMMC Flash
2479 Points ∼15% -41%
Panasonic Toughpad JT-B1
SGX540, OMAP 4460, 16 GB iNAND Flash
796 Points ∼5% -81%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
3157 Points ∼19% -25%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
3779 Points ∼23% -10%
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
2118 Points ∼13% -50%
32 Bit Single-Core Score (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
2256 Points ∼48%
Apple iPad Mini 3
PowerVR G6430, A7, 16 GB eMMC Flash
1373 Points ∼29% -39%
Panasonic Toughpad JT-B1
SGX540, OMAP 4460, 16 GB iNAND Flash
427 Points ∼9% -81%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
1932 Points ∼41% -14%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
1792 Points ∼38% -21%
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
781 Points ∼17% -65%
Sunspider - 1.0 Total Score (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO (IE 11)
159.8 ms * ∼4%
Apple iPad Mini 3
PowerVR G6430, A7, 16 GB eMMC Flash
440 ms * ∼11% -175%
Panasonic Toughpad JT-B1
SGX540, OMAP 4460, 16 GB iNAND Flash
1096.4 ms * ∼27% -586%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB (IE 11)
137.7 ms * ∼3% +14%
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash (Chrome 43)
923 ms * ∼23% -478%
Acer Aspire Switch 10E SW3-013
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
888 ms * ∼22% -456%
Mozilla Kraken 1.1 - Total Score (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO (IE 11)
3138.4 ms * ∼5%
Apple iPad Mini 3
PowerVR G6430, A7, 16 GB eMMC Flash
5447 ms * ∼9% -74%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB (IE 11)
3254.1 ms * ∼5% -4%
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash (Chrome 43)
5410 ms * ∼9% -72%
Octane V2 - Total Score (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO (IE 11)
9793 Points ∼22%
Apple iPad Mini 3
PowerVR G6430, A7, 16 GB eMMC Flash
5722 Points ∼13% -42%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB (IE 11)
10118 Points ∼22% +3%
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash (Chrome 43)
6438 Points ∼14% -34%
Peacekeeper - --- (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO (IE 11)
1500 Points ∼24%
Panasonic Toughpad JT-B1
SGX540, OMAP 4460, 16 GB iNAND Flash
652 Points ∼11% -57%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB (IE 11)
1978 Points ∼32% +32%
Acer Aspire Switch 10E SW3-013
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
887 Points ∼14% -41%

* ... smaller is better

System Performance

A fast Solid State Disk makes for a responsive system; in addition, the RAM of the FZ-M1 runs in dual-channel mode. Nonetheless, the results of the PC Mark benchmark tests show the CPU/GPU combination to lag behind behind what should be possible. The culprit is the passive cooling, which doesn't allow the CPU and GPU to operate at their respective maximums. Theoretically, the PC Mark 8 scores should be about 600 - 700 points higher than they are.

PCMark 8 Home Score Accelerated v2
1419 points
PCMark 8 Creative Score Accelerated v2
1398 points
PCMark 8 Work Score Accelerated v2
2109 points
Help
PCMark 8 - Home Score Accelerated v2 (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
1419 Points ∼25%
Toshiba Tecra Z40 A-147
HD Graphics 4400, 4200U, Hitachi Travelstar Z7K500 HTS725050A7E630
2810 Points ∼50% +98%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
1783 Points ∼31% +26%
Lenovo M30-70
HD Graphics 4400, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E380
2023 Points ∼36% +43%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
2158 Points ∼38% +52%
PCMark 7 - Score (sort by value)
Toshiba Tecra Z40 A-147
HD Graphics 4400, 4200U, Hitachi Travelstar Z7K500 HTS725050A7E630
4126 Points ∼51%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
4015 Points ∼50%
Lenovo M30-70
HD Graphics 4400, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E380
2259 Points ∼28%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
3314 Points ∼41%

Mass Storage

Panasonic utilizes a Solid State Disk from manufacturer Samsung. The M.2 model offers a capacity of 128 GB, which leaves about 100 GB of user-accessible space. The rest is occupied by the OS and the recovery partition. The transfer rates are pretty decent.

Samsung MZNTE128HMGR-000SO
Sequential Read: 502.8 MB/s
Sequential Write: 138 MB/s
512K Read: 422.7 MB/s
512K Write: 137.8 MB/s
4K Read: 34.19 MB/s
4K Write: 92.6 MB/s
4K QD32 Read: 364.4 MB/s
4K QD32 Write: 135.8 MB/s

GPU Performance

Intel's HD Graphics 4200 handles the graphics duties. The GPU supports DirectX 11 and operates at speeds between 200 - 850 MHz. The results of the 3D benchmark show that the GPU doesn't fully reach its potential. The dual-channel RAM doesn't help here, either. Just like the CPU, the GPU can't maintain its maximum speed since there's no active cooling. We ran 3DMark several times - the third time around, the tablet only managed a score of 179 points.

Occasional gaming is possible but the fun doesn't last long, since the frame rates drop during longer sessions.

3DMark 11 Performance
709 points
3DMark Ice Storm Standard Score
33768 points
3DMark Cloud Gate Standard Score
2749 points
Help
3DMark 11 - 1280x720 Performance (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
709 Points ∼3%
Toshiba Tecra Z40 A-147
HD Graphics 4400, 4200U, Hitachi Travelstar Z7K500 HTS725050A7E630
782 Points ∼3% +10%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
487 Points ∼2% -31%
Lenovo M30-70
HD Graphics 4400, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E380
786 Points ∼3% +11%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
786 Points ∼3% +11%
3DMark
1920x1080 Fire Strike Score (sort by value)
Toshiba Tecra Z40 A-147
HD Graphics 4400, 4200U, Hitachi Travelstar Z7K500 HTS725050A7E630
500 Points ∼2%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
271 Points ∼1%
Lenovo M30-70
HD Graphics 4400, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E380
479 Points ∼2%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
482 Points ∼2%
1280x720 Sky Diver Score (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
862 Points ∼2%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
1237 Points ∼3% +44%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
2247 Points ∼5% +161%
1280x720 Cloud Gate Standard Score (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
2749 Points ∼7%
Toshiba Tecra Z40 A-147
HD Graphics 4400, 4200U, Hitachi Travelstar Z7K500 HTS725050A7E630
3789 Points ∼10% +38%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
2333 Points ∼6% -15%
Lenovo M30-70
HD Graphics 4400, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E380
3452 Points ∼9% +26%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
3603 Points ∼10% +31%
1280x720 Ice Storm Standard Score (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
33768 Points ∼17%
Toshiba Tecra Z40 A-147
HD Graphics 4400, 4200U, Hitachi Travelstar Z7K500 HTS725050A7E630
28516 Points ∼14% -16%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
21853 Points ∼11% -35%
Lenovo M30-70
HD Graphics 4400, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E380
32949 Points ∼17% -2%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
34508 Points ∼17% +2%
low med. high ultra
Trackmania Nations Forever (2008) 12146.9fps

Emissions & Energy

Temperature

The Toughpad during the stress test
The Toughpad during the stress test

The Toughpad handles our stress test (Prime95 and Furmark in parallel for at least one hour) the same no matter if the device is plugged or running on battery power: after a few seconds, the processor speed drops to 600 MHz and the GPU to 150 MHz. Despite the lower core speeds, we measured temperatures in excess of 50 degrees C in some areas. This result is not really surprising, since the chassis is rather thick and bulky and lacks cooling slots.

Max. Load
 46 °C51.8 °C51.2 °C
 36.7 °C40.6 °C47 °C
 36 °C40 °C43.6 °C
Maximum: 51.8 °C
Average: 43.7 °C
39.7 °C39.8 °C40.6 °C
49.2 °C36.1 °C34.5 °C
45.2 °C42 °C33.8 °C
Maximum: 49.2 °C
Average: 40.1 °C
Power Supply (max.)  38 °C | Room Temperature 24.7 °C | Voltcraft IR-360

Speakers

The single speaker is located on the left side on the back. The overall sound quality is actually better than we would have expected. Of course, the bass is lacking and the sound is muffled somewhat, since there are no openings for the sound to pass through. Nonetheless we have encountered plenty of tablets (as well as notebooks) which sounded worse.

Power Consumption

The Toughpad is equipped with a frugal processor, so the low power consumption of much less than 10 watts during idle shouldn't come as much of a surprise. During the stress test, we recorded a power consumption of only 12.5 watts. The reason: both the CPU and the GPU are subject to throttling.

Power Consumption
Off / Standbydarklight 0 / 0.2 Watt
Idledarkmidlight 4.2 / 5.4 / 5.7 Watt
Load midlight 9.4 / 12.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940

Battery Life

Our relevant WLAN test simulates browsing conditions. We activate the "balanced" profile and set they display to a brightness of 150 nits. The Toughpad shut down after 4 hours and 6 minutes.

Battery Runtime
WiFi Surfing v1.3 (IE 11)
4h 06min
Battery Runtime
WiFi (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
min ∼0%
HP Pro Slate 8
Adreno 330, 800 MSM8974, 16 GB eMMC Flash
min ∼0%
Apple iPad Mini 3
PowerVR G6430, A7, 16 GB eMMC Flash
533 min ∼20%
Panasonic Toughpad JT-B1
SGX540, OMAP 4460, 16 GB iNAND Flash
492 min ∼18%
Toshiba Tecra Z40 A-147
HD Graphics 4400, 4200U, Hitachi Travelstar Z7K500 HTS725050A7E630
426 min ∼16%
Dell Venue 11 Pro 7130
HD Graphics 4200, 4300Y, LiteOnIT LJT-256L6G-11 M.2 2260 256GB
280 min ∼10%
Lenovo M30-70
HD Graphics 4400, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E380
217 min ∼8%
Acer Aspire V3-371-36M2
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
394 min ∼15%
WiFi v1.3 (sort by value)
Panasonic ToughPad FZ-M1
HD Graphics 4200, 4302Y, Samsung MZNTE128HMGR-000SO
246 min ∼9%
HP Pro Slate 8
Adreno 330, 800 MSM8974, 16 GB eMMC Flash
613 min ∼23%

Pro

+ Matt-reflective display
+ IPS panel
+ High brightness
+ Fast SSD
+ Silent

Cons

- Throttling of CPU & GPU after short period
- Only lasted 4 hours during the WLAN test

Verdict

In Review: Panasonic Toughpad FZ-M1. Test model courtesy of Panasonic Germany.
In Review: Panasonic Toughpad FZ-M1. Test model courtesy of Panasonic Germany.

The Panasonic Toughpad FZ-M1 is a tablet for professionals. Various modules allow the user to adapt the slate for different applications. One of the options is a serial port, which is still used in some professional scenarios. Since the chassis is very sturdy, even occasional falls won't harm it. Despite the fact that the FZ-M1 is equipped with a Core i5 CPU, it hasn't been designed for power-hungry applications, since the passive (and therefore silent) cooling causes throttling after a few minutes of load. Panasonic might as well consider a Core M-processor for a potential successor. The IPS display is very bright and allows the use in various environments. The tablet doesn't post very long run times, but Panasonic offers a second battery with about twice the capacity of the base model.

All things considered, the Panasonic Toughpad FZ-M1 is a tablet which can handle the tasks it was designed without major problems.

Panasonic ToughPad FZ-M1 - 07/26/2015 v4(old)
Sascha Mölck

Chassis
88%
Keyboard
0 / 80 →
Pointing Device
89%
Connectivity
54 / 66 → 82%
Weight
82 / 88 → 88%
Battery
85%
Display
86%
Games Performance
61 / 68 → 90%
Application Performance
62 / 76 → 82%
Temperature
71%
Noise
100%
Audio
46 / 91 → 51%
Camera
57 / 85 → 67%
Average
73%
84%
Tablet - Weighted Average

Pricecompare

static version load dynamic
Loading Comments
Comment this article:
> Notebook / Laptop Reviews and News > Reviews > Panasonic ToughPad FZ-M1 Tablet Review
Sascha Mölck, 2015-08- 9 (Update: 2015-08- 9)
