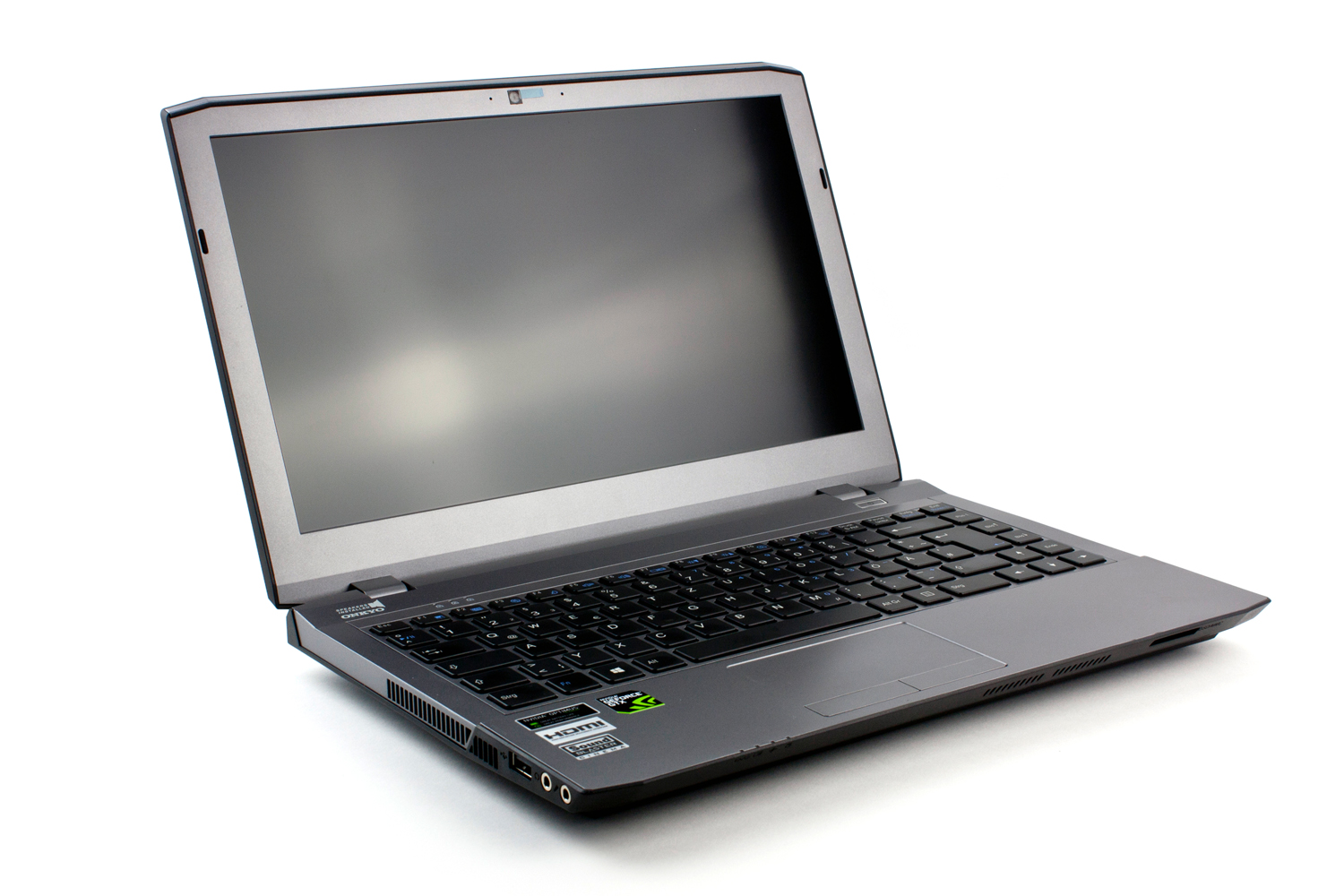

One K33-3E

Specifications

One K33-3E
W230ST Barbone
Processor
Intel Core i7-4702MQ 4 x 2.2 - 3.2 GHz (Intel Core i7), Haswell, 22 nm, TDP 37 W, 4 Kerne, 8 Threads, Turbo bis 3,2 GHz
Graphics adapter
NVIDIA GeForce GTX 765M - NVIDIA: 2.048 MB, Intel: shared MB VRAM, Core: 850 MHz, Memory: NVIDIA: 1.002 MHz, Intel: 800 MHz, NVIDIA: Kepler, 28 nm, GDDR5, 768 Pipelines, DirectX 11, Shader 5.0, GPU Boost 2.0; Intel HD Graphics 4600: 22 nm, 20 Pipelines, DirectX 11.1, Shader 5.0, NVIDIA: 9.18.13.1154 (ForceWare 311.54), Intel: 9.18.10.3131, NVIDIA Optimus
Memory
8 GB
, 1,600 MHz DDR3, 2 Module, dual-channel, Samsung M471B5173BH0-CK0
Display
13.30 inch 16:9, 1920 x 1080 pixel, Chi Mei CMN N133HSE-EA1, TFT, Full HD, LED Backlight, glossy: no
Mainboard
Intel HM87 (Lynx Point)
Storage
Toshiba HG5d THNSNH128GMCT, 128 GB
, mSATA SSD, 75.5 GB free
Soundcard
VIA VT1802P @ Intel Lynx Point PCH - High Definition Audio Controller
Connections
1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 1x micrphone, 1x headphone, Card Reader: 6-in-1 card reader (MMC, RSMMC, SD, mini SD, SDHC, SDXC), Intel Anti-Theft Technology, Intel Wireless Display (WiDi)
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Centrino Wireless-N 2230 (b/g/n = Wi-Fi 4/), Bluetooth 4.0
Size
height x width x depth (in mm): 32 x 330 x 227 ( = 1.26 x 12.99 x 8.94 in)
Battery
62 Wh Lithium-Ion, 6-cell, 5,600 mAh, 11.1 Volts, W230BAT-6, 0.32 kg
Operating System
Microsoft Windows 8 64 Bit
Camera
Webcam: 2,0 MP (BisonCam)
Additional features
Speakers: two Onkyo speakers, Sound Blaster Cinema, Keyboard: Chiclet, Keyboard Light: yes, 120W power supply unit (19.5 V, 6.15 A), Driver DVD, Microsoft Office (30-Day Trial), 12-36 Months Warranty
Weight
1.99 kg ( = 70.2 oz / 4.39 pounds), Power Supply: 470 g ( = 16.58 oz / 1.04 pounds)
Price
1050 Euro



Pricecompare

Average Score: 81% - good
Average of 1 scores (from 1 reviews)
price: - %, performance: 92%, features: 61%, display: 89% mobility: 61%, workmanship: 72%, ergonomy: 53%, emissions: 62%

Reviews for the One K33-3E

81% Review One K33-3E (Clevo W230ST Barebones) Notebook | Notebookcheck
Hot machine. One presents a gaming notebook with a Core i7 based on Intel's latest Haswell architecture, a powerful Nvidia GPU and a 13.3-inch Full HD display. But can the small device handle the heat without sacrificing the performance? Find out in our in-depth review.
Leichtes Spiel – Gaming-Notebook mit hoher Leistung und guter Mobilität
Source: Notebookjournal German DE→EN Archive.org version
Single Review, online available, Long, Date: 09/03/2013
Rating: performance: 90% features: 50% display: 90% mobility: 50% workmanship: 70% ergonomy: 30%

Comment

NVIDIA GeForce GTX 765M:

High-End Graphics cards as part of the Geforce 700M series based on the Kepler architecture.

Modern games should be playable with these graphics cards at low settings and resolutions. Casual gamers may be happy with these cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


Intel Core i7: The Intel Core i7 for laptops is based on the LG1156 Core i5/i7 CPU for desktops. The base clock speed of the CPUs is relatively low, but because of a huge Turbo mode, the cores can dynamically overclock to up to 3.2 GHz (920XM). Therefore, the CPU can be as fast as high clocked dual-core CPUs (using single threaded applications) but still offer the advantage of 4 cores. Because of the large TDP of 45 W / 55 W, the CPU is only intended for large laptops.


4702MQ: Haswell-based quad-core processor clocked at 2.2 GHz with Turbo Boost support up to 3.2 GHz. Offers an integrated HD Graphics 4600 GPU and a dual channel DDR3 memory controller.» Further information can be found in our Comparison of Mobile Processsors.


13.30":

There are hardly any tablets in this display size range anymore. For subnotebooks, on the other hand, it is the standard format.

The advantage of subnotebooks is that the entire laptop can be small and therefore easily portable. The smaller display also has the advantage of requiring less power, which further improves battery life and thus mobility. The disadvantage is that reading texts is more strenuous on the eyes. High resolutions are more likely to be found in standard laptops.

» To find out how fine a display is, see our DPI List.


81%: This rating is slightly above average, there are somewhat more devices with worse ratings. However, clear purchase recommendations look different.


» Further information can be found in our Notebook Purchase Guide.
