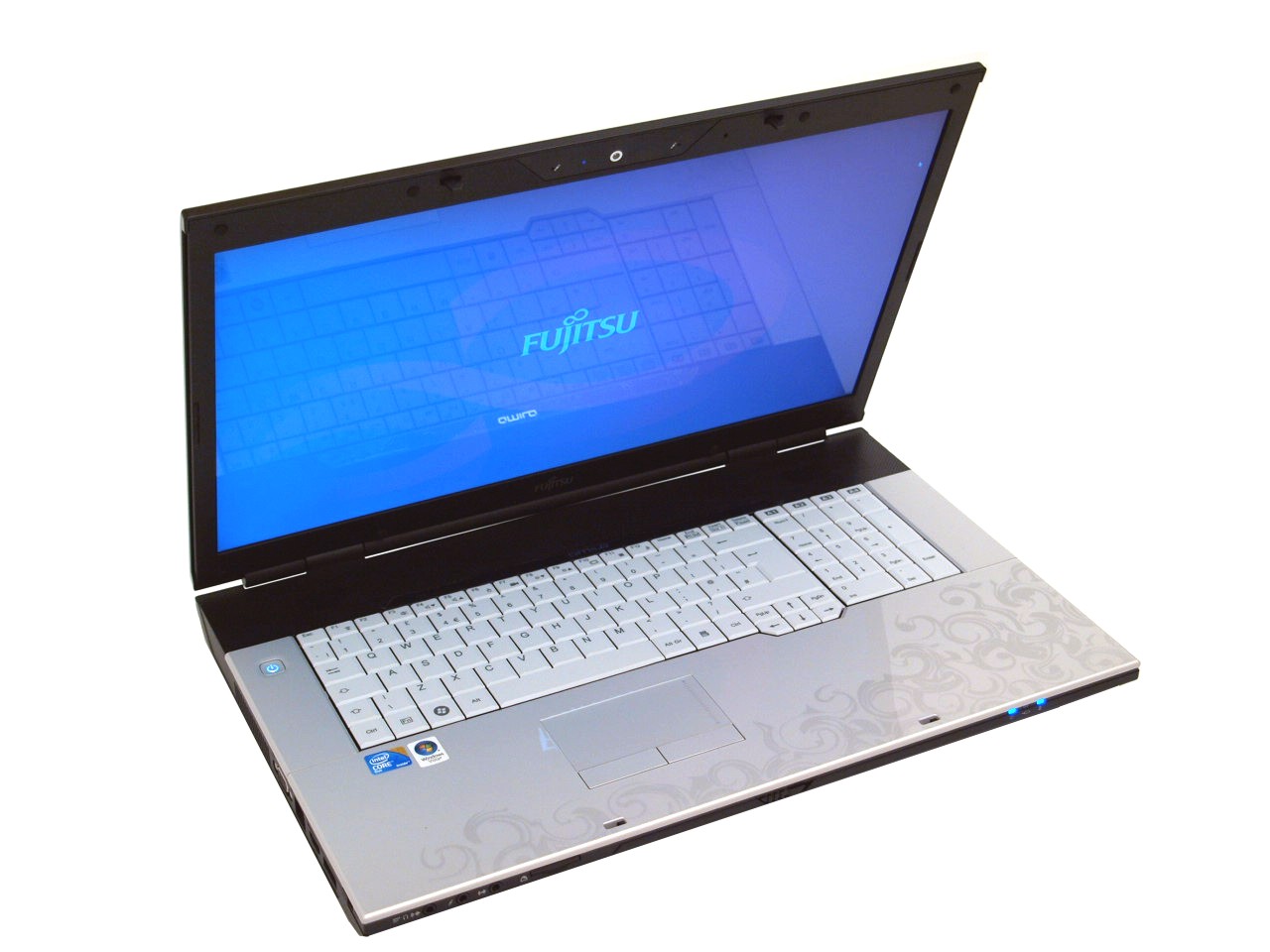

Fujitsu Amilo Pi 3660 EF9A

Specifications

Fujitsu Amilo Pi 3660 EF9A
Fujitsu Amilo Pi 3660 EF9A
Graphics adapter
NVIDIA GeForce GT 240M - 1024 MB VRAM, Core: 550 MHz, Memory: 790 MHz, nvlddmkm 8.16.11.8691 (ForceWar 186.91)/Win7 64
Memory
4 GB
, DDR2: PC2-6400 (400MHz)
Display
18.40 inch 16:9, 1680 x 945 pixel, Samsung SEC314B, glossy: yes
Mainboard
Intel PM45
Storage
Fujitsu MHZ2320BH G2, 320 GB
, 5400 rpm
Soundcard
Realtek ALC272 @ Intel82801IB ICH9-High Definition Audio Controller
Connections
1 Express Card 54mm, 2 USB 2.0, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 5.1 high definition audio via S/PDIF, microphone, stereo loudspeakers, Card Reader: 5-in-1, 1 eSATA/USB combination
Networking
Realtek RTL8168D/8111D Family PCI-E GBE NIC (10/100/1000MBit/s), Ralink RT2790 (b/g/n = Wi-Fi 4/), Bluetooth 2.1
Optical drive
TSSTcorp CDDVDW TS-L633A
Size
height x width x depth (in mm): 440 x 42 x 294 ( = 17.32 x 1.65 x 11.57 in)
Battery
54 Wh Lithium-Ion, 11.1 V, 4800 mAh
Operating System
Microsoft Windows 7 Home Premium 64 Bit
Camera
Webcam: 1:3 MP
Additional features
12 Months Warranty
Weight
3.44 kg ( = 121.34 oz / 7.58 pounds), Power Supply: 460 g ( = 16.23 oz / 1.01 pounds)
Price
800 Euro



Pricecompare

Average Score: 84% - good
Average of 3 scores (from 2 reviews)
price: 90%, performance: 89%, features: 84%, display: 72% mobility: 68%, workmanship: 82%, ergonomy: 84%, emissions: 92%

Reviews for the Fujitsu Amilo Pi 3660 EF9A

82% Review Fujitsu Amilo Pi 3660 EF9A Notebook | Notebookcheck
Elegant Entertainer in Desktop Replacement Size. The Fujitsu Amilo Pi 3660 lines itself in among the desktop replacement devices with a size of 18.4 inches. At the same time, Fujitsu positions it as an entertainer for the consumer end market. The large-size laptop tries to address them with an attractive design. But it doesn't only look elegant. Above this, its interiors promise a good application and graphic performance. In the following, we'll take a detailed look at the Amilo 3560's strengths and weaknesses.
82% Test Fujitsu Amilo Pi 3660 EF9A Notebook
Source: Notebookcheck German DE→EN Archive.org version
Single Review, online available, Long, Date: 01/17/2010
Rating: Total score: 82% performance: 87% display: 62% mobility: 68% workmanship: 82% ergonomy: 86% emissions: 91%
88% Ganz schön mitgenommen
Source: Computerbild - 24/2009 German
Comparison, online available, Very Long, Date: 11/01/2009
Rating: Total score: 88% price: 90% performance: 93% features: 80% display: 91% ergonomy: 80% emissions: 94%

Comment

NVIDIA GeForce GT 240M: The GeForce GT 240M is the successor of the GT 130M / 9600M and has now 48 instead of 32 shader cores. Therefore, the performance should be noticeable better. Because of the 40nm process, the TDP is still 23 Watt.

Non demanding games should be playable with these graphics cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


Intel Core 2 Duo: This is the Core Duo and Core Solo successor with a longer pipeline and 5-20% more speed without more power consumption. As an addition to the Core Duo design there exists a fourth decoder, an amplified SSE-unit and an additional arithmetical logical unit (ALU).

The Core 2 Duo for laptops is identical to the desktop Core 2 Duo processors but the notebook-processors work with lower voltages (0.95 to 1188 Volt) and a lower Frontside bus clock (1066 vs 667 MHz). The performance of equally clocked notebooks is 20-25% lower than Desktop PCs because of the lower Frontside bus clock and the slower hard disks.


T6600: Entry level Core 2 Duo dual core processor with a small 2MB level 2 cache and without virtualization functions.» Further information can be found in our Comparison of Mobile Processsors.


18.40": This display size is a standard format for desktop replacements (DTR). The DTR laptops are heavier to carry, need more power, but texts are easy to read and high resolutions are no problem. DTR are mainly intended for stationary desk use, where weight and energy hunger don't matter. In return, you enjoy the advantages of high resolutions (more details, better legibility).» To find out how fine a display is, see our DPI List.


3.44 kg:

A laptop with this weight is comparatively heavy and less designed for mobility than for use at the desk. Therefore, the devices tend to shine less with battery life than with a large screen and higher performance.


Fujitsu: Fujitsu is a Japanese technology group listed on the Nikkei 225 with origins dating back to 1935. Its products and services focus on information technology, telecommunications, semiconductors, networks, computer and communications products and advanced microelectronics.

In 1999, the cooperation with Siemens in the IT sector (servers, notebooks, desktop PCs, etc.) started under the Fujitsu-Siemens brand. 10 years later, this cooperation ended.


84%: This rating is slightly above average, there are somewhat more devices with worse ratings. However, clear purchase recommendations look different.


» Further information can be found in our Notebook Purchase Guide.
