F1 2018 Notebook and Desktop Benchmarks

Routine racing? Codemasters, like EA with its sports series, tends to make iterative changes to its racing simulations. Find out in this benchmark test the extent to which the hardware requirements have changed between F1 2017 and 2018.

Florian Glaser, 👁 Florian Glaser (translated by Alex Alderson), Published 09/01/2018 🇩🇪 🇫🇷 ...

Technology

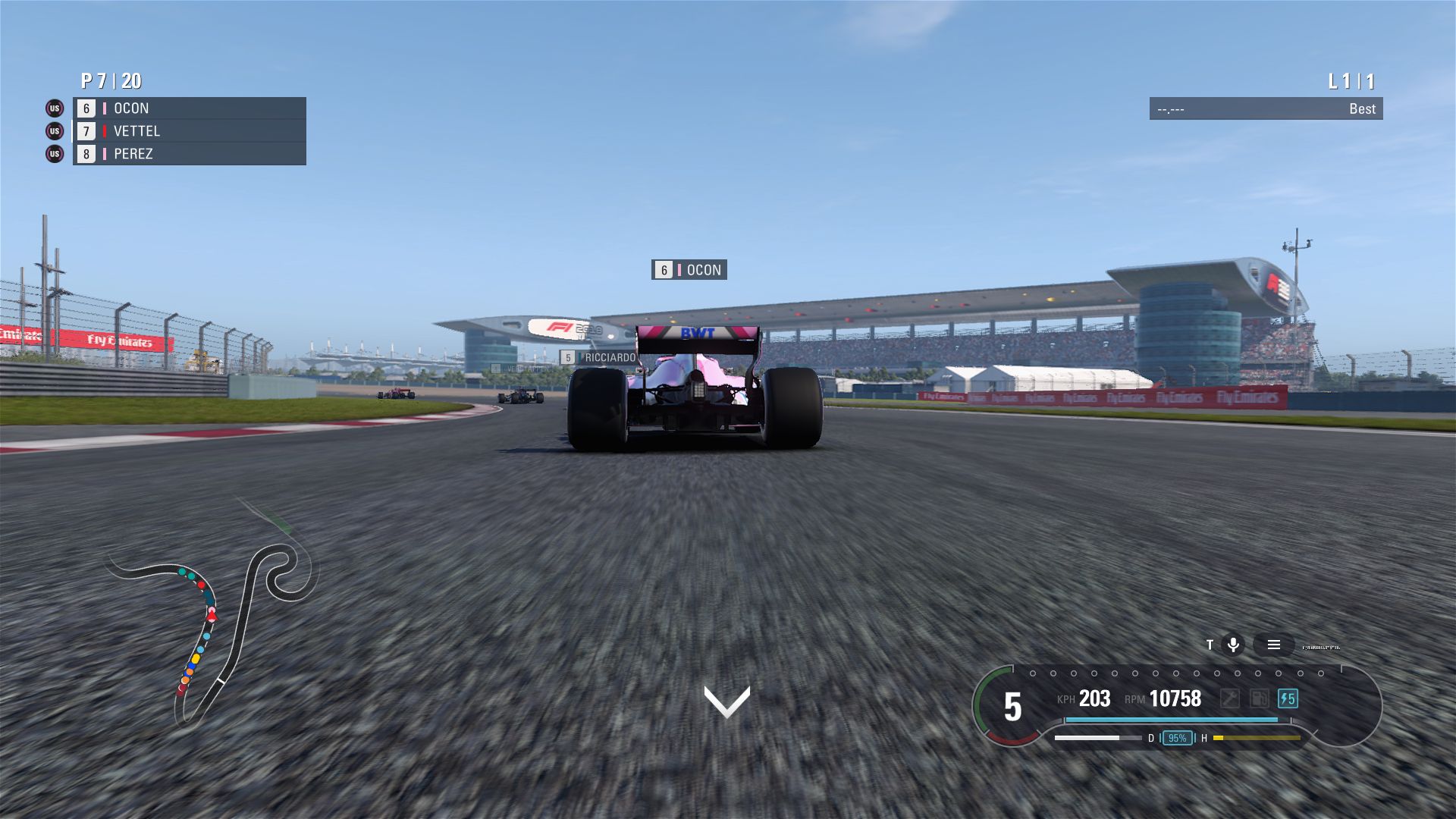

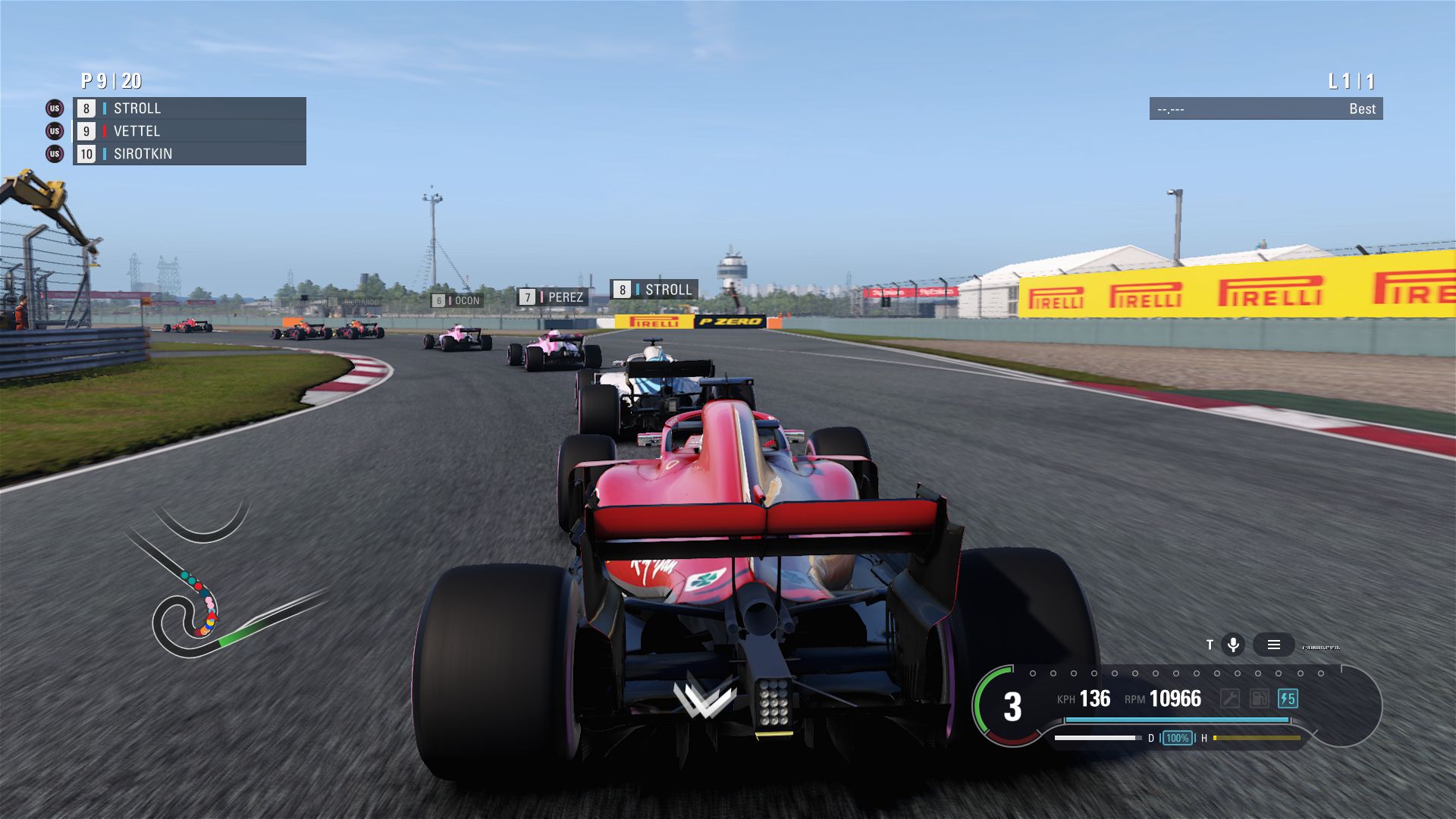

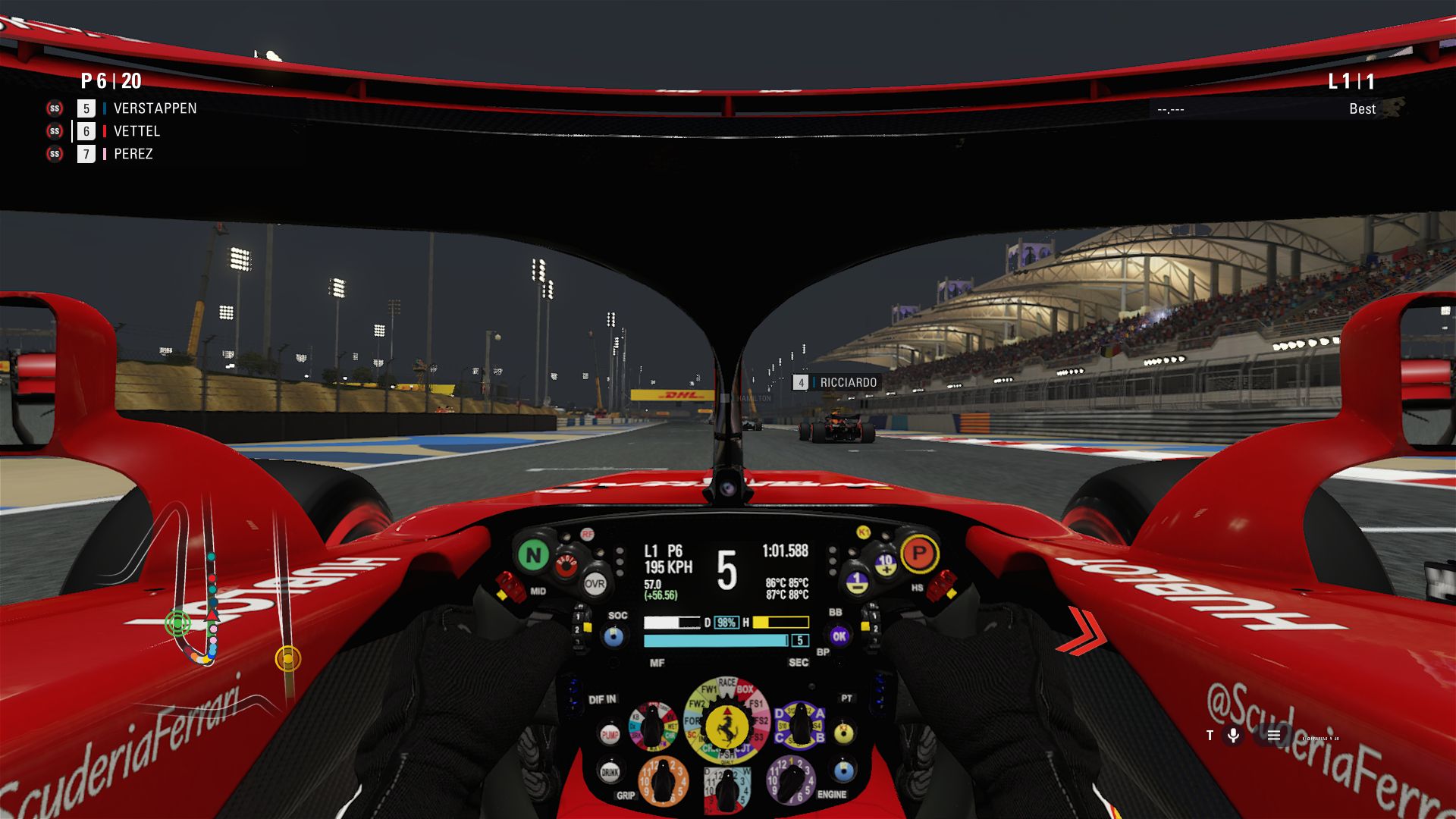

F1 2018, like its predecessor, is based on Codemasters’ EGO Engine 4.0. While the graphics are generally convincing with detailed vehicles and nice effects, the technical backbone seems somewhat outdated. Lighting and texture quality could be better, for example.

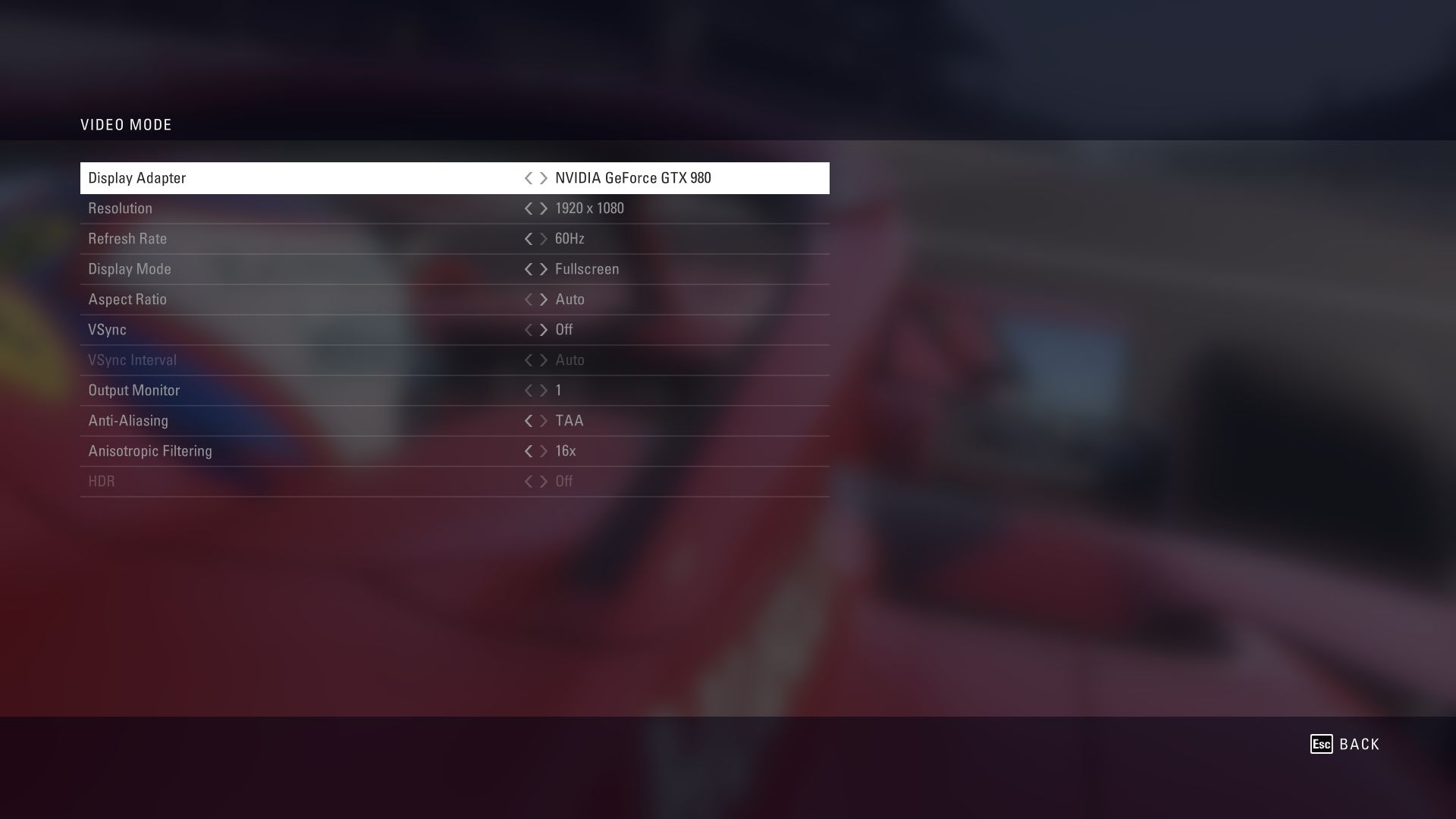

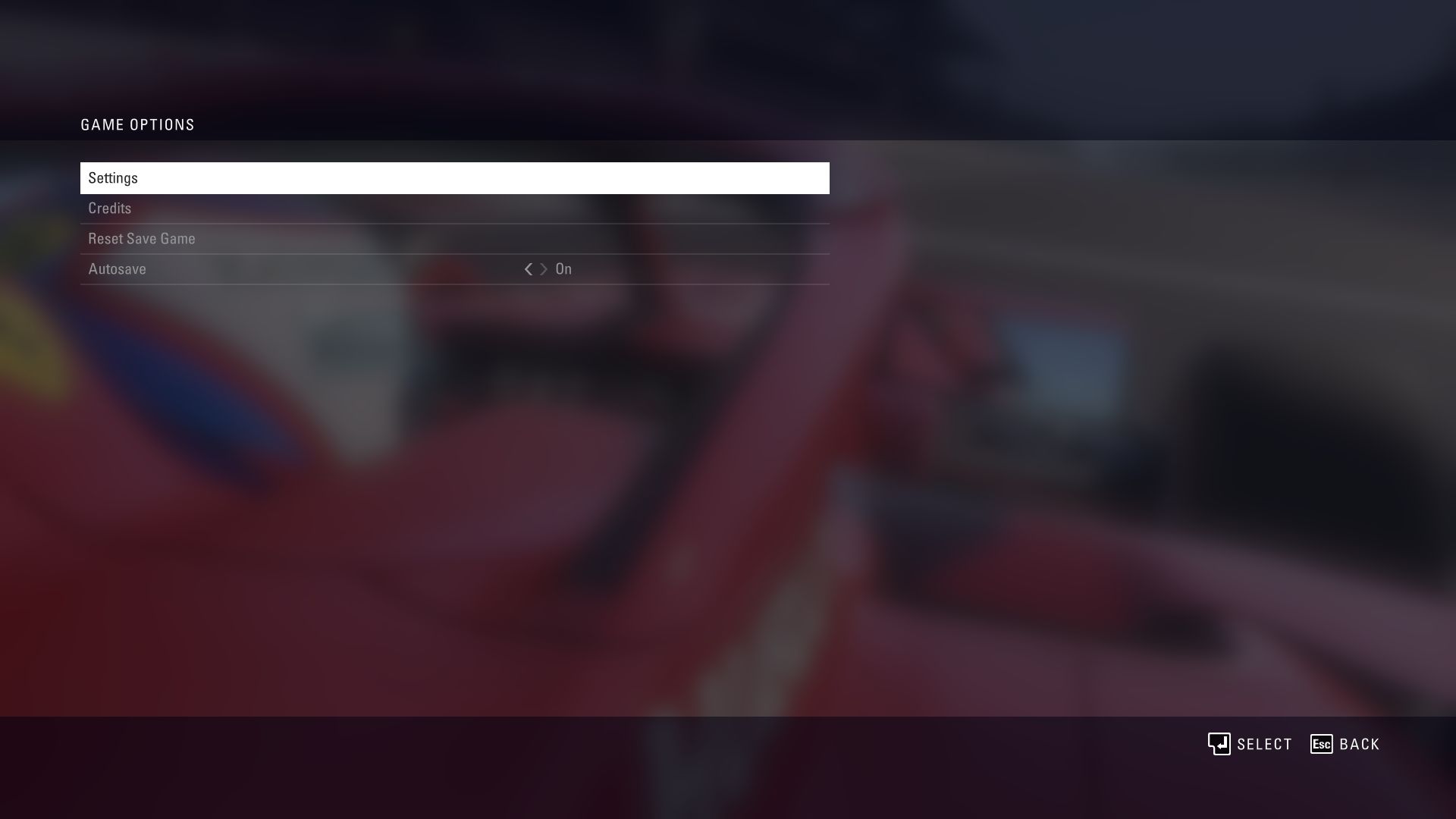

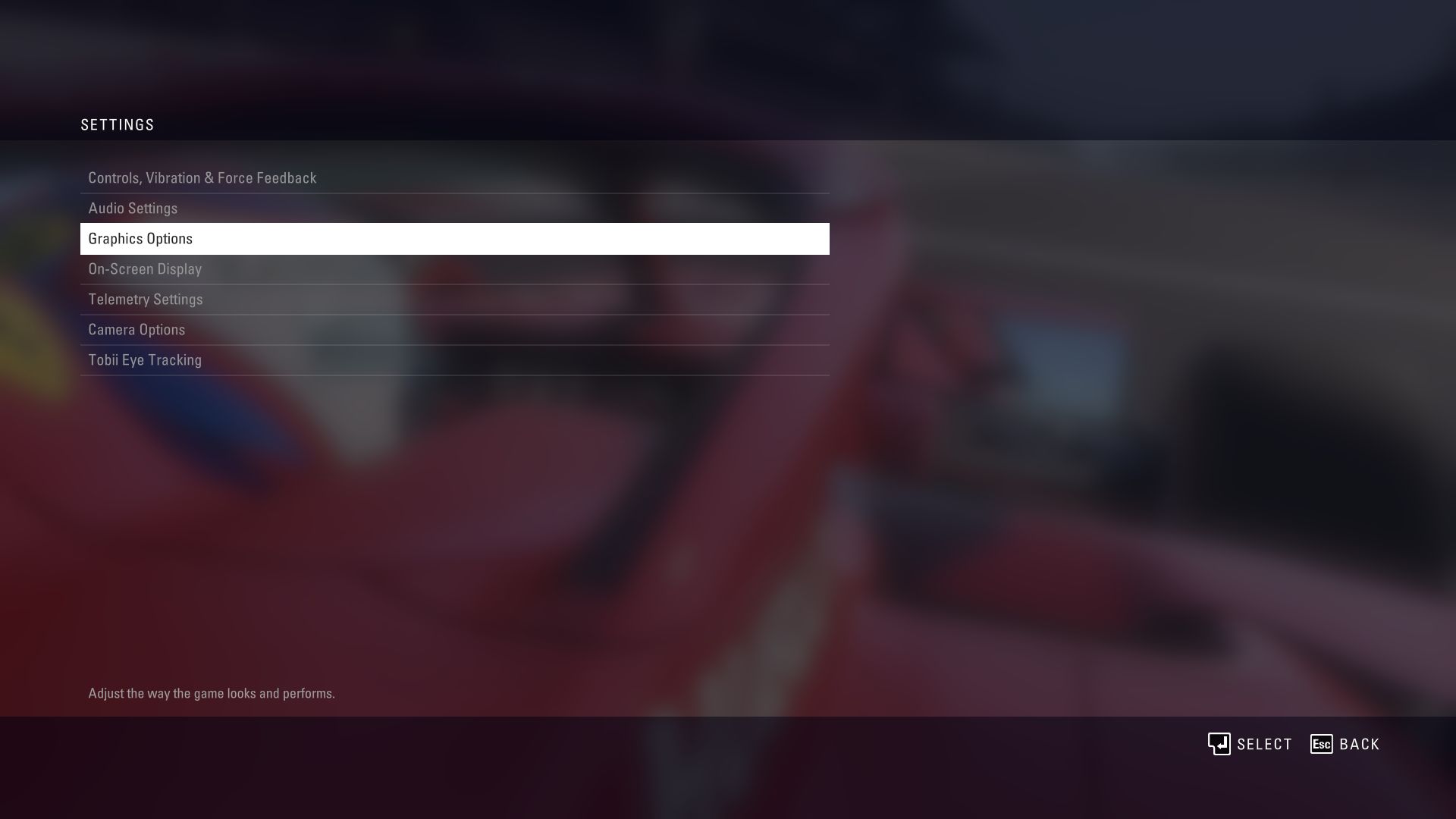

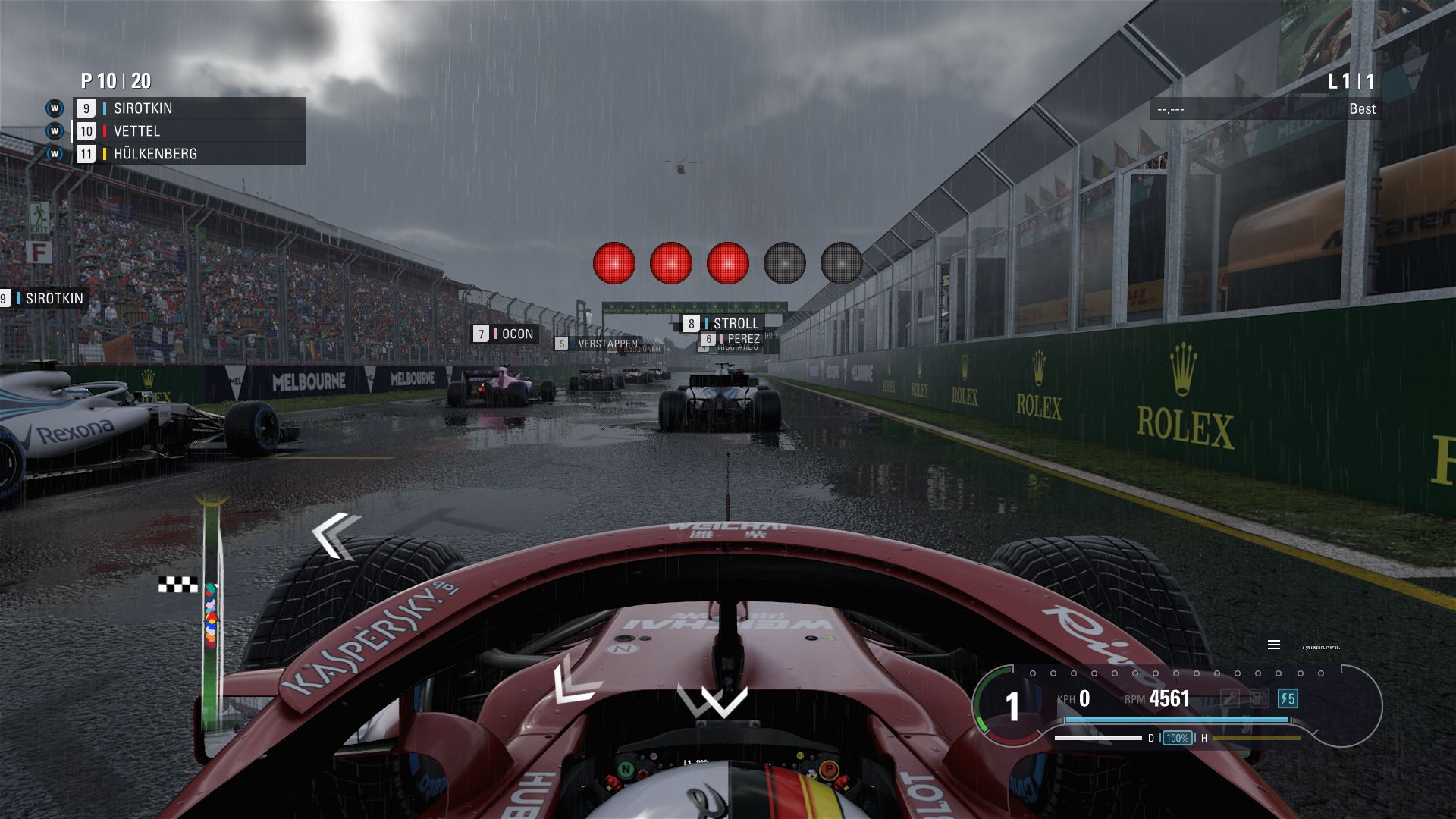

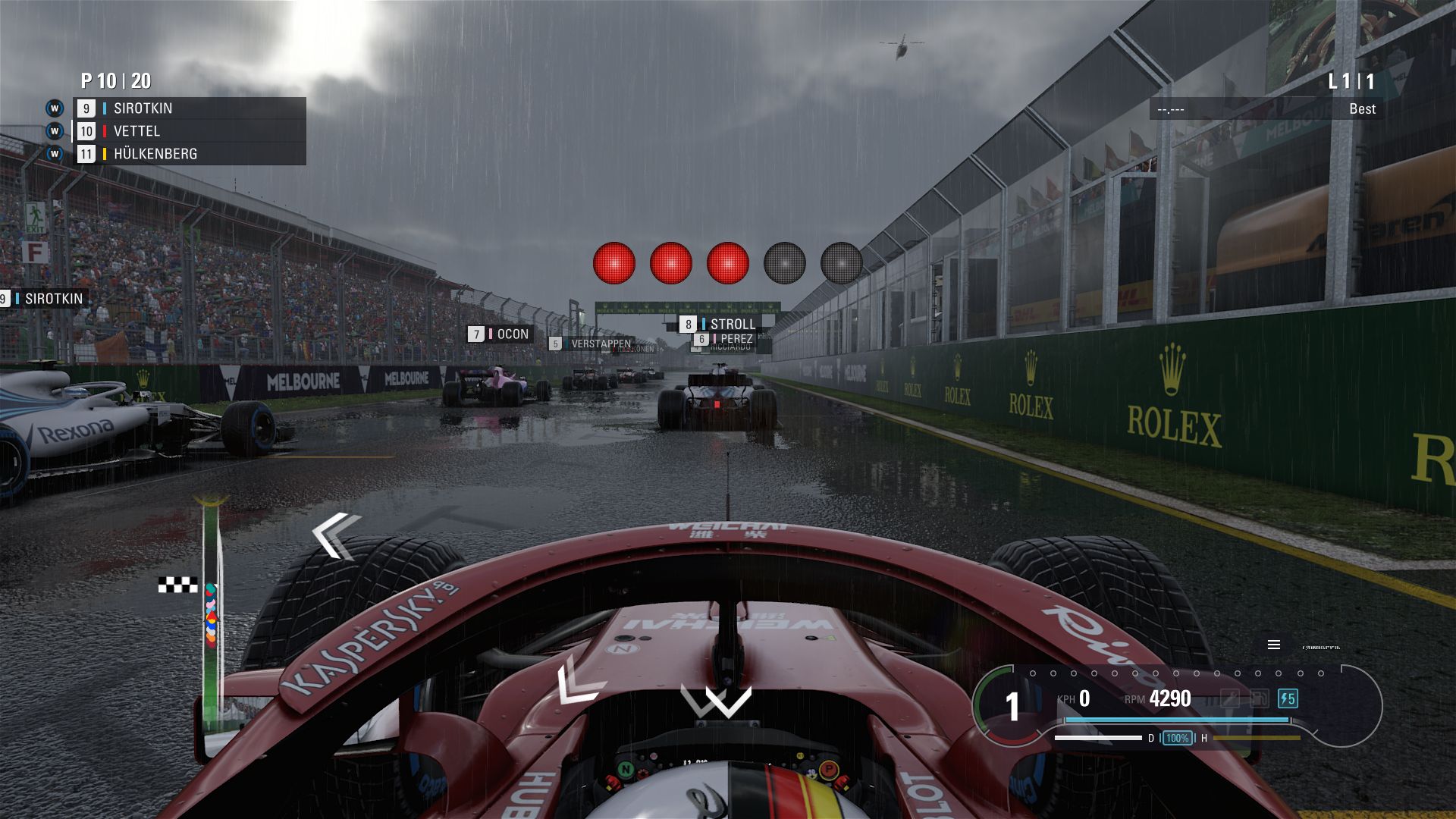

Positively, Codemasters has packed F1 2018 with an abundance of options that we first saw in F1 2017, albeit still arranged within a somewhat convoluted set of menus. Starting with the video menu, Codemasters has included not only resolution options, image modes, different aspect ratios and refresh rate controls but has also included HDR, anisotropic filtering, V sync and anti-aliasing. It is a shame that Codemasters still relies on TAA anti-aliasing, but it does a decent job generally.

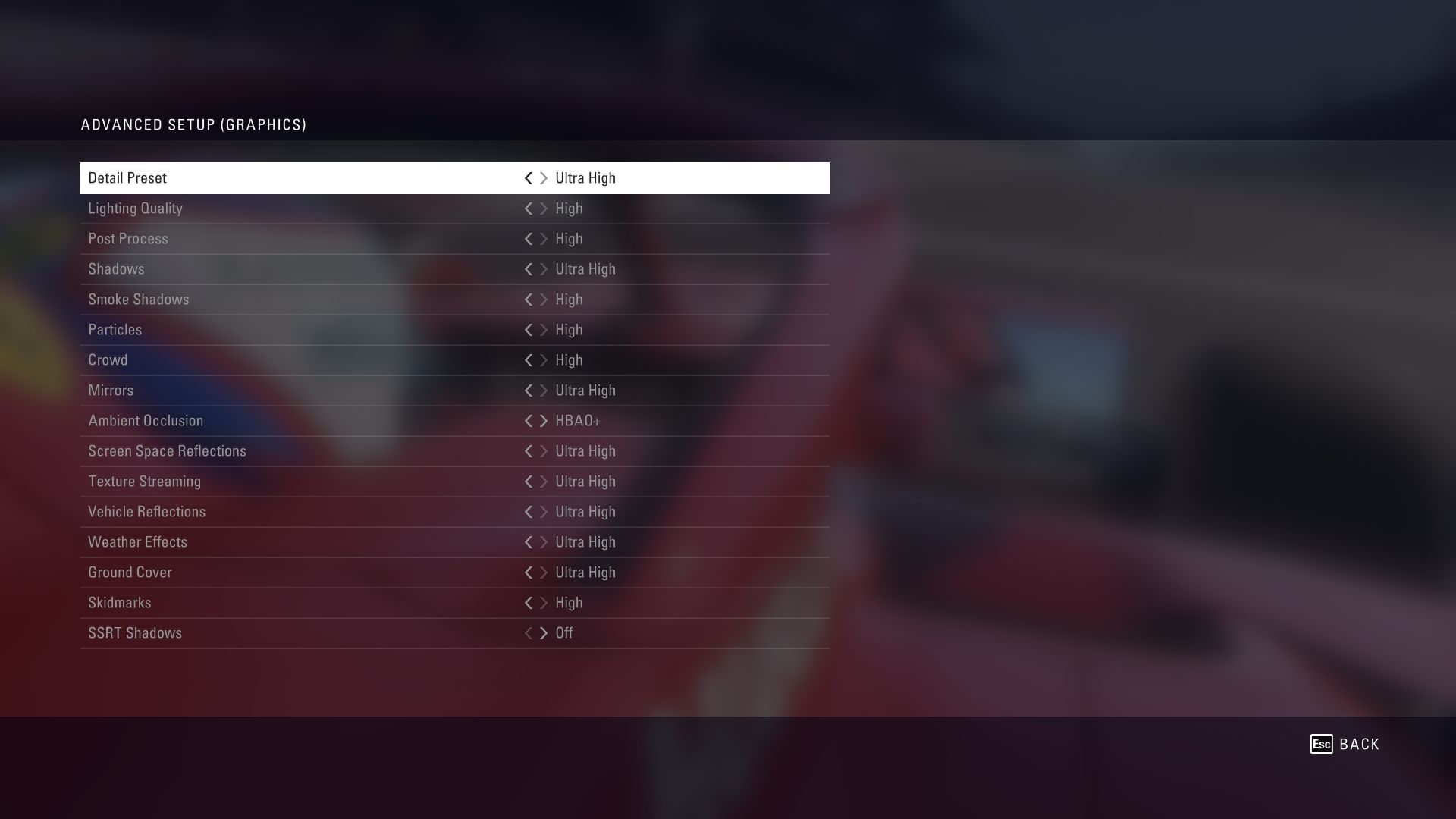

There are even more adjustments in the extended graphics sub-menu too. While there are 15 individual settings that allow for fine-tuning, there are also five graphics presets if you would rather keep things simple. The game loses its atmosphere when played at low settings, but the racetracks come alive when running at medium settings or higher. While the high and ultra-high presets naturally further improve the graphics of the game, the differences between presets are narrower than the change from low to medium settings.

Graphics changes are made directly without the need for a restart, which is a plus. Loading times are relatively small too. F1 2018 requires around 38 GB of storage space and has a 24 GB download file size.

Benchmarks

There are also numerous options in the built-in benchmark. As the screenshots above demonstrate, you can choose from different tracks, weather conditions and camera angles. These are complemented by a loop function for long-term benchmarks and an FPS counter. When the benchmark finishes, F1 2018 provides you with a host of information such as the minimum, average and maximum FPS among others. We benchmarked F1 2018 the same way we did with its predecessor, on a course based in Australia in the wet with the camera fixed to the cockpit.

According to the results of our benchmarks, the system requirements are practically identical to F1 2017. Anyone who can play last year’s version of the game should have no issues with playing F1 2018. Unfortunately, F1 2018 has the same bug that plagues other Codemasters racing games. The game cannot run at 3840x2160 on an external 4K monitor when being played on a notebook. The result is just a black screen. Despite running the latest drivers, the game often allowed us to only set the maximum resolution to 2560x1600.

It is worth bearing in mind that the CPU often bottlenecked high-end GPUs, which somewhat skewed some of the rankings.

Results

While F1 2018 has relatively modest minimum system requirements, Intel GPUs like the Intel HD Graphics 630 cannot run the game even at 1280x720 on ultra-low graphics. We would recommend using at least an Nvidia GeForce 940MX if you want to have a pleasant gaming experience. Likewise, we would recommend using either a GeForce MX150 or a GTX 950M if you want to play F1 2018 at 1920x1080. Similarly, you will need at least a GTX 1050 or a GTX 960M to play at high graphics and at least a GeForce GTX 1050 Ti or a GTX 970M if you would like to play at ultra-high graphics.

You will only need high-end GPUs for resolutions above 1920x1080. For example, we would recommend using at least a GeForce GTX 1060 or a GTX 980M for playing at 2560x1440 and a GeForce GTX 1070 or GeForce GTX 1080 for playing at 4K on notebooks.

F1 2018
3840x2160 Ultra High Preset AA:T AF:16x 2560x1440 Ultra High Preset AA:T AF:16x 1920x1080 Ultra High Preset AA:T AF:16x 1920x1080 High Preset AA:T AF:8x 1920x1080 Medium Preset AF:4x 1280x720 Ultra Low Preset
NVIDIA GeForce GTX 1080 Ti (Desktop), i7-7740X Nvidia GeForce GTX 1080 Ti Founders Edition	69 (64^min) fps ∼61% 108 (95^min) fps ∼62% 129 (113^min) fps ∼66% 168 (144^min) fps ∼78% 215 (180^min) fps ∼70% 248 (200^min) fps ∼75%
NVIDIA GeForce GTX 1080 (Desktop), 6700K Desktop PC	57 (53^min) fps ∼50% 90 (82^min) fps ∼51% 109 (87^min) fps ∼56% 143 (120^min) fps ∼67% 186 (150^min) fps ∼61% 213 (169^min) fps ∼65%
NVIDIA GeForce GTX 1080 Mobile, i7-7820HK Alienware 17 R4	78 (58^min) fps ∼45% 85 (71^min) fps ∼44% 96 (81^min) fps ∼45% 129 (99^min) fps ∼42% 156 (123^min) fps ∼47%
NVIDIA GeForce GTX 1070 (Desktop), 6700K Nvidia GeForce GTX 1070	47 (43^min) fps ∼42% 75 (66^min) fps ∼43% 97 (82^min) fps ∼50% 139 (122^min) fps ∼65% 175 (153^min) fps ∼57% 212 (171^min) fps ∼64%
NVIDIA GeForce GTX 1080 Max-Q, i7-7700HQ Acer Predator Triton 700	74 (67^min) fps ∼42% 95 (78^min) fps ∼49% 138 (118^min) fps ∼64% 173 (148^min) fps ∼57% 204 (156^min) fps ∼62%
NVIDIA GeForce GTX 1070 Mobile, 6820HK Asus G752VS	41 (36^min) fps ∼36% 64 (55^min) fps ∼37% 77 (63^min) fps ∼40% 111 (80^min) fps ∼52% 137 (90^min) fps ∼45%
NVIDIA GeForce GTX 980, 6700K Desktop PC	32 (29^min) fps ∼28% 54 (49^min) fps ∼31% 70 (61^min) fps ∼36% 103 (97^min) fps ∼48% 130 (119^min) fps ∼42% 204 (168^min) fps ∼62%
NVIDIA GeForce GTX 1060 (Desktop), 6700K Desktop PC	32 (29^min) fps ∼28% 52 (46^min) fps ∼30% 69 (59^min) fps ∼36% 106 (96^min) fps ∼49% 135 (117^min) fps ∼44% 204 (170^min) fps ∼62%
NVIDIA GeForce GTX 1060 Mobile, 6820HK MSI GT62VR	47 (42^min) fps ∼27% 61 (52^min) fps ∼31% 95 (84^min) fps ∼44% 119 (108^min) fps ∼39% 150 (119^min) fps ∼45%
AMD Radeon RX 480 (Desktop), i7-7740X i7-7740X Asus X299 Prime	29 (26^min) fps ∼26% 51 (45^min) fps ∼29% 65 (57^min) fps ∼34% 96 (85^min) fps ∼45% 110 (97^min) fps ∼36% 203 (166^min) fps ∼62%
NVIDIA GeForce GTX 980M, 6700HQ Asus G752VY	39 (33^min) fps ∼22% 50 (43^min) fps ∼26% 78 (69^min) fps ∼36% 100 (90^min) fps ∼33% 154 (128^min) fps ∼47%
NVIDIA GeForce GTX 970M, 6700HQ MSI GS60 6QE	31 (28^min) fps ∼18% 39 (33^min) fps ∼20% 64 (58^min) fps ∼30% 81 (70^min) fps ∼26% 138 (115^min) fps ∼42%
NVIDIA GeForce GTX 1050 Ti Mobile, i7-7700HQ MSI GE72 7RE-046	15 (13^min) fps ∼13% 28 (25^min) fps ∼16% 37 (33^min) fps ∼19% 62 (44^min) fps ∼29% 81 (72^min) fps ∼26% 146 (122^min) fps ∼44%
AMD Radeon RX 460 (Desktop), i7-7740X XFX RX-460P4DFG5 Double Dissipation 4 GB, Asus X299 Prime	13.7 (11^min) fps ∼12% 32.8 (28^min) fps ∼17% 51.2 (46^min) fps ∼24%
NVIDIA GeForce GTX 1050 Mobile, i7-7700HQ Asus GL753VD	24 (20^min) fps ∼14% 30 (26^min) fps ∼15% 47 (43^min) fps ∼22% 63 (55^min) fps ∼21% 104 (85^min) fps ∼32%
NVIDIA GeForce GTX 965M, 6700HQ MSI GE72 965M Ti	13.5 (9^min) fps ∼12% 25.1 (22^min) fps ∼14% 31.5 (26^min) fps ∼16% 54.4 (48^min) fps ∼25% 69 (61^min) fps ∼23% 122 (102^min) fps ∼37%
NVIDIA GeForce GTX 960M, i7-7700HQ MSI GL72 7QF	17 (14^min) fps ∼10% 21 (19^min) fps ∼11% 37 (33^min) fps ∼17% 48 (40^min) fps ∼16% 87 (74^min) fps ∼26%
NVIDIA GeForce GTX 950M, 6700HQ MSI PE60 2QD	14.9 (13^min) fps ∼9% 18.7 (16^min) fps ∼10% 32.4 (29^min) fps ∼15% 42.8 (37^min) fps ∼14% 77 (65^min) fps ∼23%
NVIDIA GeForce MX150, i7-7700HQ MSI PL62	17 (15^min) fps ∼9% 29 (27^min) fps ∼13% 37 (34^min) fps ∼12% 65 (56^min) fps ∼20%
NVIDIA GeForce MX150, i5-8550U Xiaomi Mi Notebook Pro i7	15 (14^min) fps ∼8% 27 (24^min) fps ∼13% 36 (32^min) fps ∼12% 62 (54^min) fps ∼19%
NVIDIA GeForce 940MX, 6700HQ MSI CX72 6QD	12 (8^min) fps ∼6% 16.9 (15^min) fps ∼8% 21.6 (19^min) fps ∼7% 37.6 (32^min) fps ∼11%
NVIDIA GeForce 940M, 5700HQ MSI GP62 2QD	16.6 (15^min) fps ∼8% 21.2 (19^min) fps ∼7% 39.1 (32^min) fps ∼12%
AMD Radeon R9 M280X, FX-7600P Asus N551ZU-CN007H	15.9 (13^min) fps ∼8% 24.3 (19^min) fps ∼11% 29.9 (24^min) fps ∼10% 34.6 (27^min) fps ∼10%
NVIDIA GeForce 920M, 2970M MSI CX61 2QC 2970M MS-16GD	12 (3^min) fps ∼4%
Intel UHD Graphics 620, i5-8550U Xiaomi Mi Notebook Pro i7	12 (5^min) fps ∼6% 12 (10^min) fps ∼6% 15 (13^min) fps ∼5% 31 (25^min) fps ∼9%
Intel HD Graphics 630, i7-7700HQ MSI PL62	12 (9^min) fps ∼4% 26 (22^min) fps ∼8%

Overview

Test Systems

Graphics Card		Processor	RAM	OS
Desktop PC I	MSI GeForce GTX 1080 (8GB GDDR5X) MSI GeForce GTX 1070 (8GB GDDR5) NVIDIA GeForce GTX 1060 (6GB GDDR5) NVIDIA GeForce GTX 980 (4 GB GDDR5)	Intel Core i7-6700K	2 x 8 GB DDR4	Windows 10 64 bit
Desktop PC II	NVIDIA GeForce GTX 1080 Ti (11 GB GDDR5X) ASUS GeForce GTX 980 Ti (6 GB GDDR5) XFX Radeon R9 Fury (4 GB HBM) Sapphire Radeon R9 290X (4GB GDDR5) Sapphire Radeon R9 280X (3GB GDDR5) MSI Radeon R7 370 (2GB GDDR5)	Intel Core i7-4790K	2 x 4GB DDR3	Windows 10 64bit
Alienware 17 R4	NVIDIA GeForce GTX 1080 (8GB GDDR5X)	Intel Core i7-7820HK	1 x 16GB DDR4	Windows 10 64bit
Asus G752VS	NVIDIA GeForce GTX 1070 (8GB GDDR5)	Intel Core i7-6820HK	2 x 16GB DDR4	Windows 10 64bit
MSI GT62VR	NVIDIA GeForce GTX 1060 (6GB GDDR5)	Intel Core i7-6820HK	2 x 8GB DDR4	Windows 10 64bit
MSI GE72	NVIDIA GeForce GTX 1050 Ti (4 GB GDDR5)	Intel Core i7-7700HQ	2 x 4 GB DDR4	Windows 10 64 Bit
Asus GL753VD	NVIDIA GeForce GTX 1050 (4GB GDDR5)	Intel Core i7-7700HQ	1 x 8GB DDR4	Windows 10 64bit
MSI GL62	NVIDIA GeForce GTX 1050 (2GB GDDR5)	Intel Core i7-7700HQ	2 x 4GB DDR4	Windows 10 64bit
Asus G752VY	NVIDIA GeForce GTX 980M (4GB GDDR5)	Intel Core i7-6700HQ	2 x 16GB DDR4	Windows 10 64bit
MSI GS60	NVIDIA GeForce GTX 970M (3GB GDDR5)	Intel Core i7-6700HQ	2 x 4GB DDR4	Windows 10 64bit
MSI GE72	NVIDIA GeForce GTX 965M (2GB GDDR5)	Intel Core i7-6700HQ	1 x 8GB DDR4	Windows 10 64bit
MSI GL72	NVIDIA GeForce GTX 960M (2GB GDDR5)	Intel Core i7-7700HQ	1 x 8GB DDR4	Windows 10 64bit
MSI PE60	NVIDIA GeForce GTX 950M (2GB GDDR5)	Intel Core i7-6700HQ	2 x 4GB DDR4	Windows 10 64bit
MSI PL62	NVIDIA GeForce MX150 (2GB GDDR5)	Intel Core i7-7700HQ	1 x 8GB DDR4	Windows 10 64bit
MSI CX72	NVIDIA GeForce 940MX (2GB DDR3)	Intel Core i7-6700HQ	2 x 8GB DDR4	Windows 10 64bit
MSI GP62	NVIDIA GeForce 940M (2GB DDR3)	Intel Core i7-5700HQ	1 x 8GB DDR3	Windows 10 64bit
MSI CX61	NVIDIA GeForce 920M (2GB DDR3)	Intel Celeron 2970M	1 x 8GB DDR3	Windows 10 64bit
ASUS N551ZU	AMD Radeon R9 M280X (4GB GDDR5)	AMD FX-7600P	2 x 4GB DDR3	Windows 10 64bit

4K Monitor	NVIDIA Drivers	AMD Drivers
2 x Asus PB287Q , Philips 328P6VJEB	ForceWare 398.82	Adrenaline 18.8.1
