Ace Magician AMR5 in review: Stylish Mini PC with a Ryzen 5 5600U and discreet RGB lighting

A great eye-catcher! Minipc Union offers a very compact PC based on an AMD Ryzen 5 5600U with the Ace Magician AMR5. The look of the AMR 5 is more reminiscent of a desktop PC, which sets it apart from the conventional design of most Mini PCs. Read on to find out what the compact computer can do in our detailed review.

Sebastian Bade, 👁 Sebastian Bade (translated by Stephanie Chamberlain), Published 09/13/2022 🇩🇪 🇸🇪 ...

AMD Cezanne (Zen 3) Desktop Mini PC Ryzen (Zen) Radeon

Minipc Union is a Chinese company that specializes in Mini PCs as well as all-in-one systems. At the moment, Minipc Union offers various products, among others. These include the Kamrui, Ouvislite, Nipogi, Snunmu and Ace Magician, which also includes the AMR5 that we'll examine in this review.

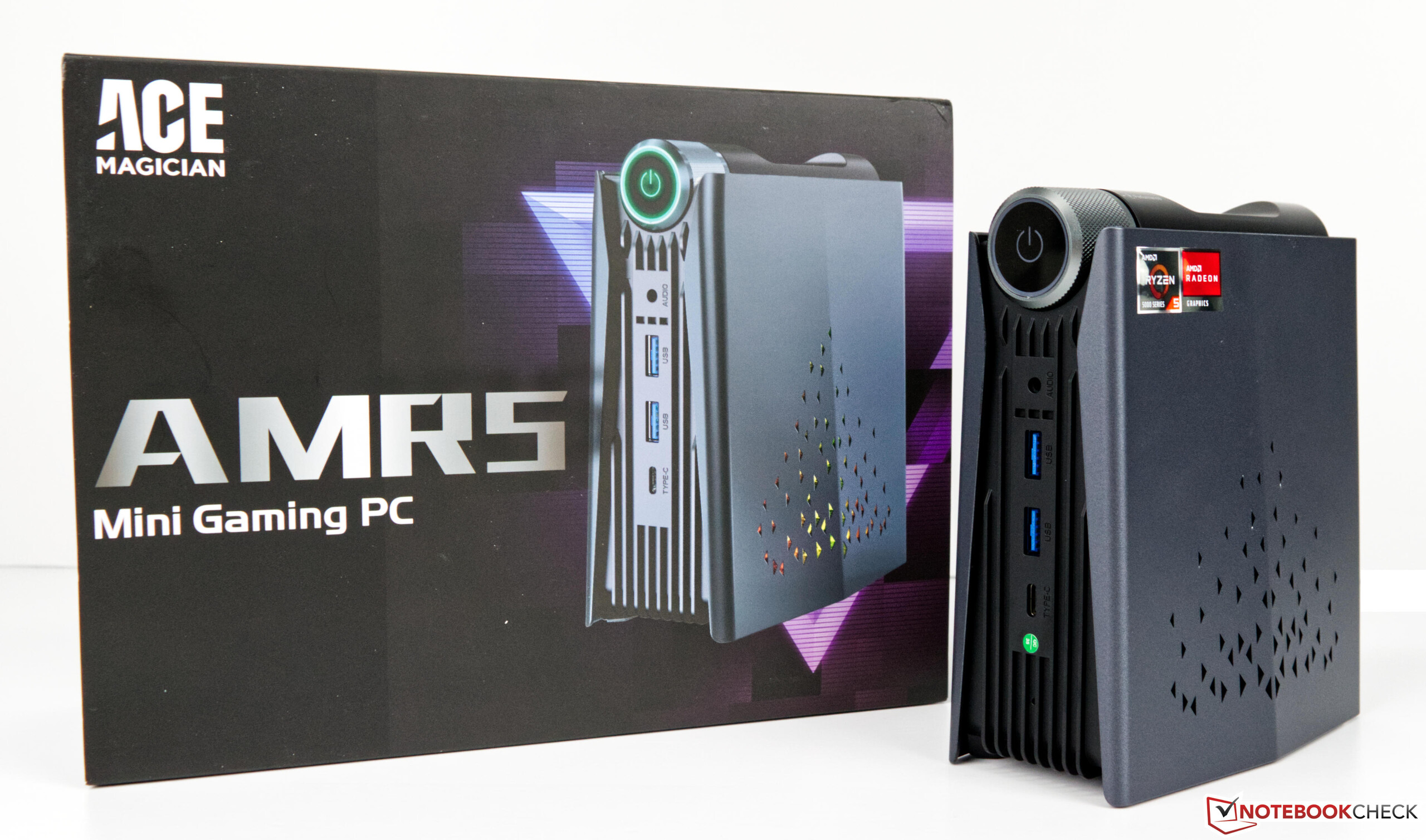

The Ace Magician AMR5 is a very compact Mini PC that is based on an AMD Ryzen 5 5600U. The same model was also available with an AMD Ryzen 5 4500U in the past. The AMD Radeon RX Vega 7, which we've often encountered in various laptops, is solely responsible for 3D calculations. The same is true for the Ryzen 5 5600U. It found its way into this compact PC due to its low emissions. There's 16 GB of RAM and a 512 GB SSD as mass storage device. In addition, Windows 11 Pro is preinstalled and activated.

The Ace Magician AMR5 can be purchased for 590 Euros (~$599) in the version that we reviewed. On the other hand, the model based on the AMD Ryzen 5 4500U is available for 560 Euros (~$569).

Ace Magician AMR5

Processor

AMD Ryzen 5 5600U 6 x 2.3 - 4.2 GHz, 28 W PL2 / Short Burst, 25 W PL1 / Sustained, Cezanne-U (Zen 3)

Graphics adapter

AMD Radeon RX Vega 7 - 2048 (shared Memory) MB VRAM, Memory: 1333 MHz, Adrenalin 22.8.2

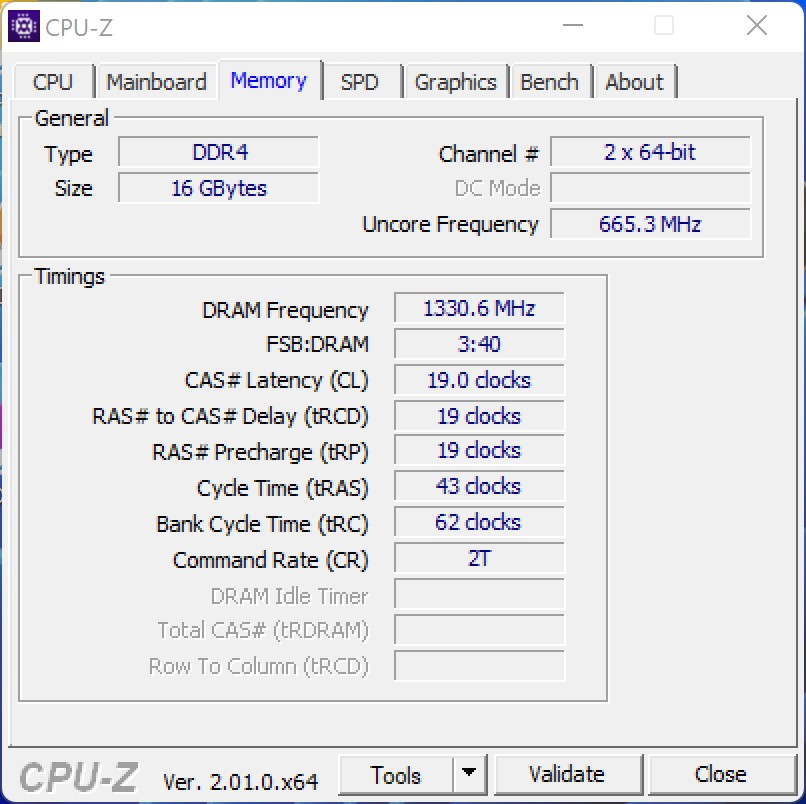

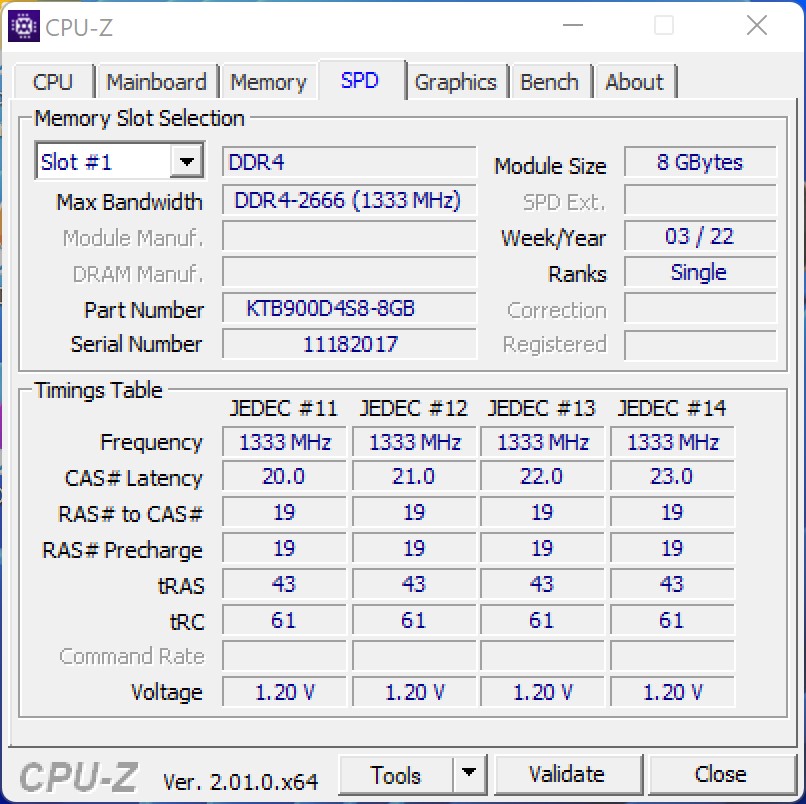

Memory

16 GB

, DDR4 2666, 2 out of 2 occupied, max 64 GB

Mainboard

AMD Promontory/Bixby FCH

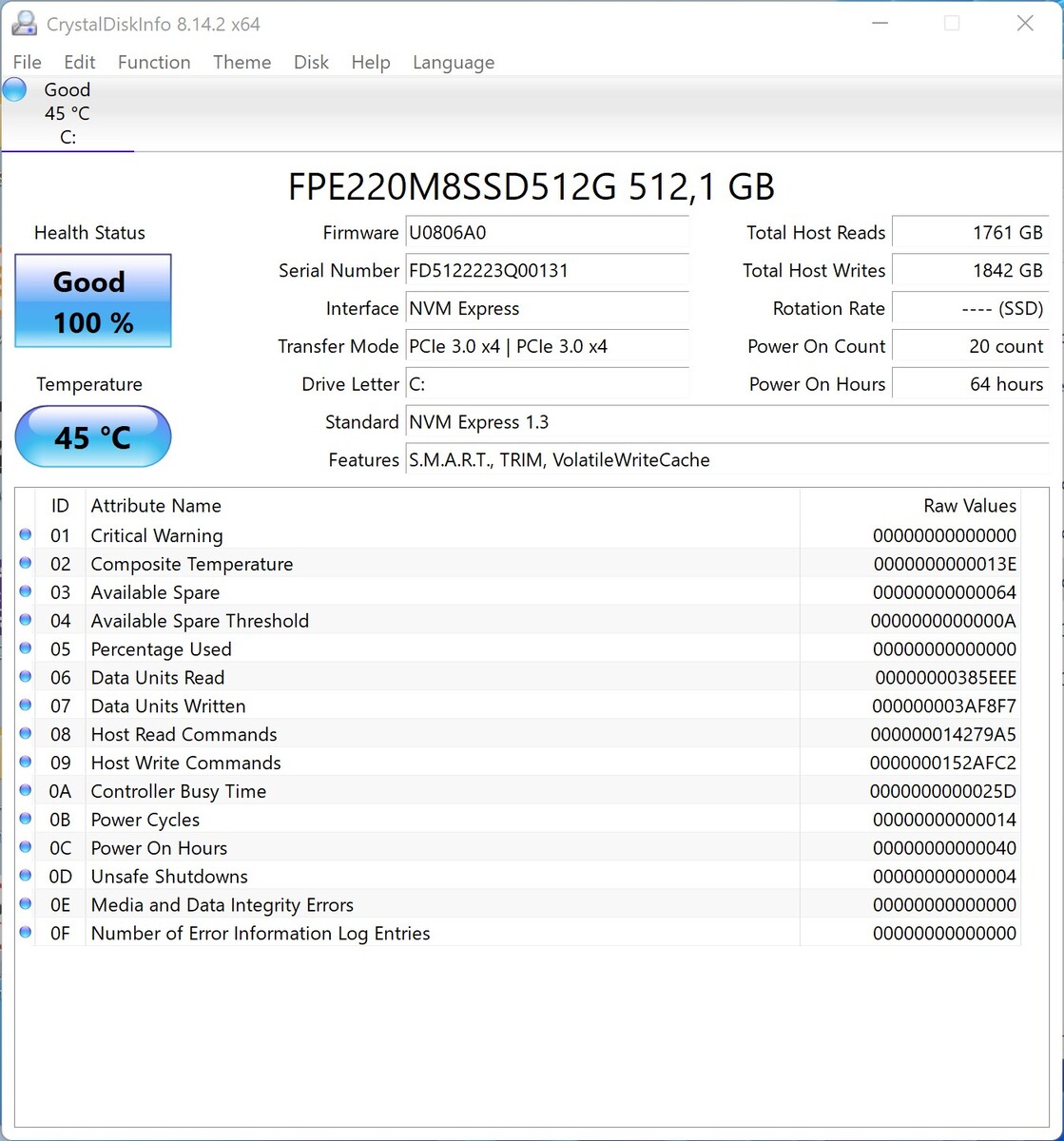

Storage

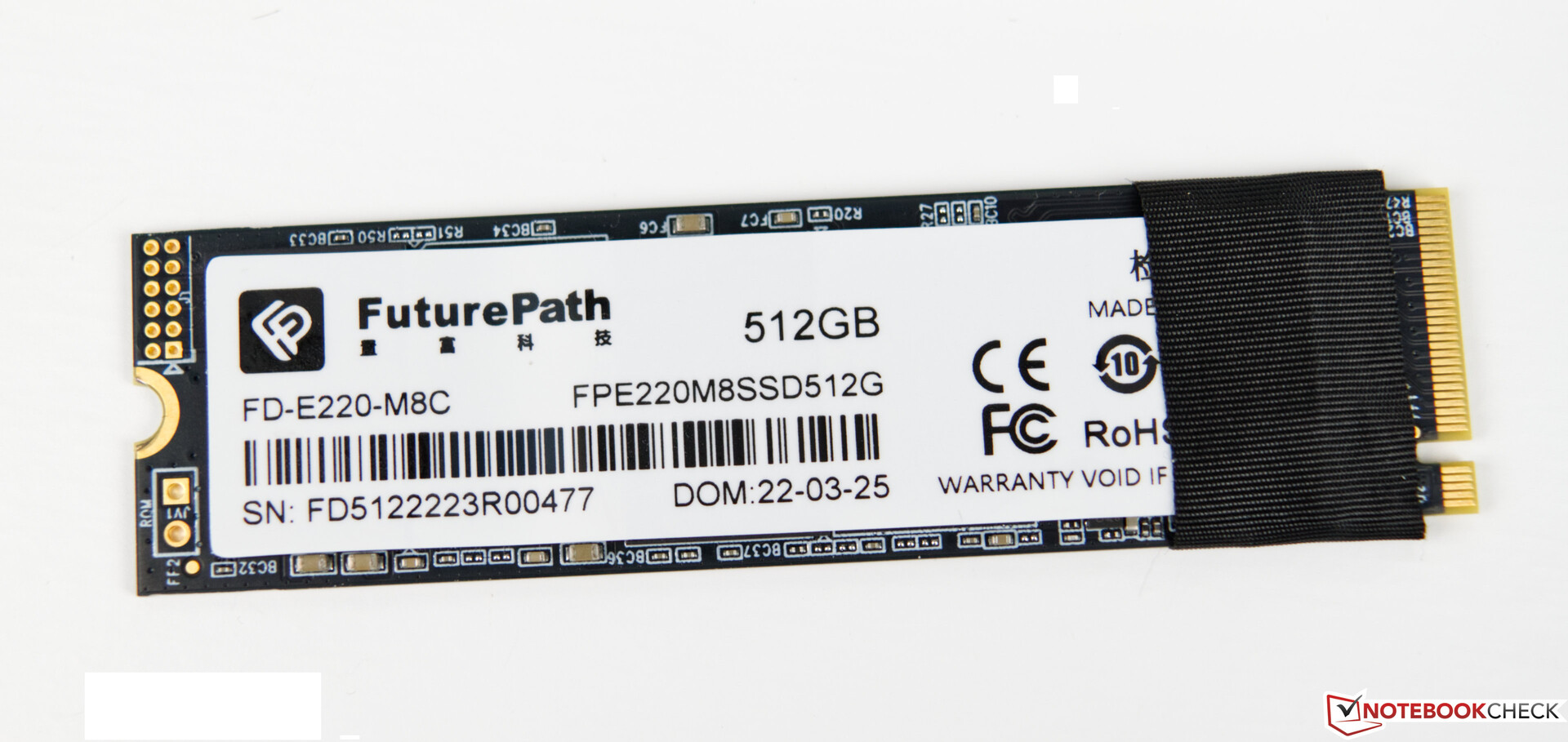

Future Path FPE220M8SSD512G, 512 GB

, M.2 2280, NVMe, 450 GB free

Soundcard

Realtek High Definition Audio

Connections

5 USB 3.0 / 3.1 Gen1, 1 HDMI, 2 DisplayPort

Networking

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 72 x 155 x 130 ( = 2.83 x 6.1 x 5.12 in)

Operating System

Microsoft Windows 11 Pro

Additional features

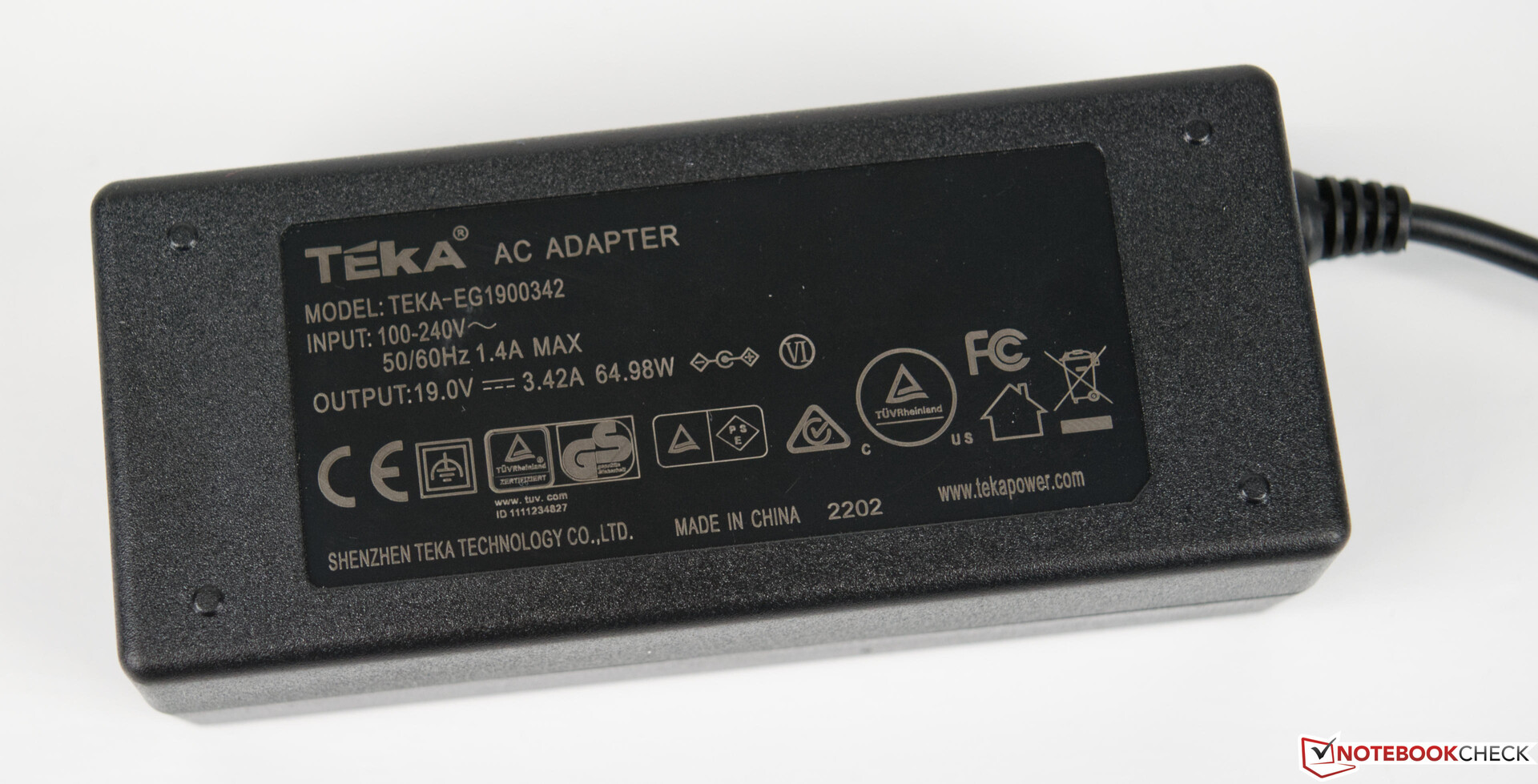

65-watt power adapter, 12 Months Warranty

Weight

628 g ( = 22.15 oz / 1.38 pounds), Power Supply: 241 g ( = 8.5 oz / 0.53 pounds)

Price

590 EUR

Links

Minipc Union homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Possible contenders in comparison

Date	Model	Weight	Height	Resolution
09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm	x
01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm	x
01/2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm	x
05/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm	x
04/2022	Beelink SER4 R7 4800U, Vega 8	494 g	40 mm	x
02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm	x

The Minipc Union Ace Magician AMR5 in detail

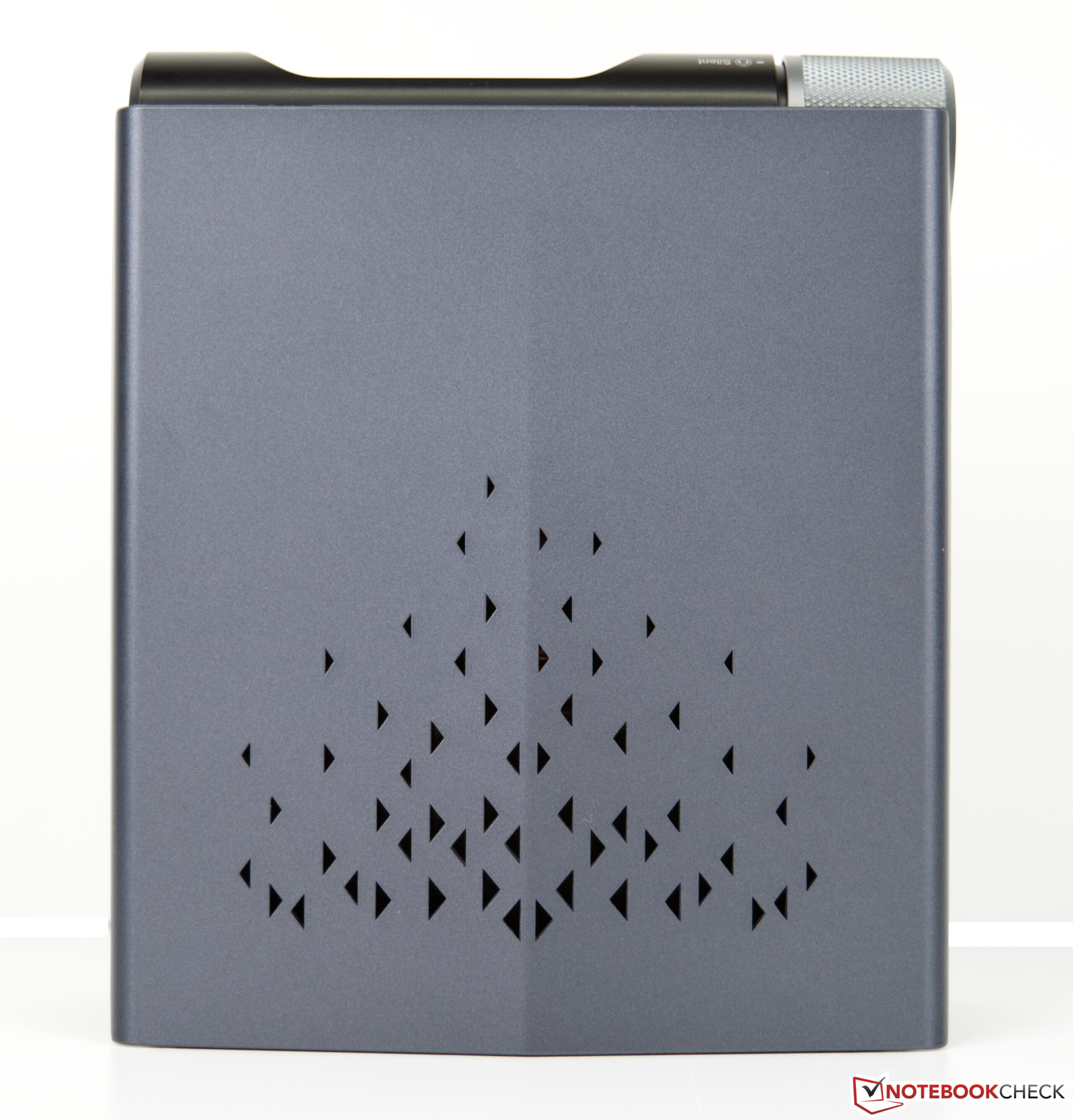

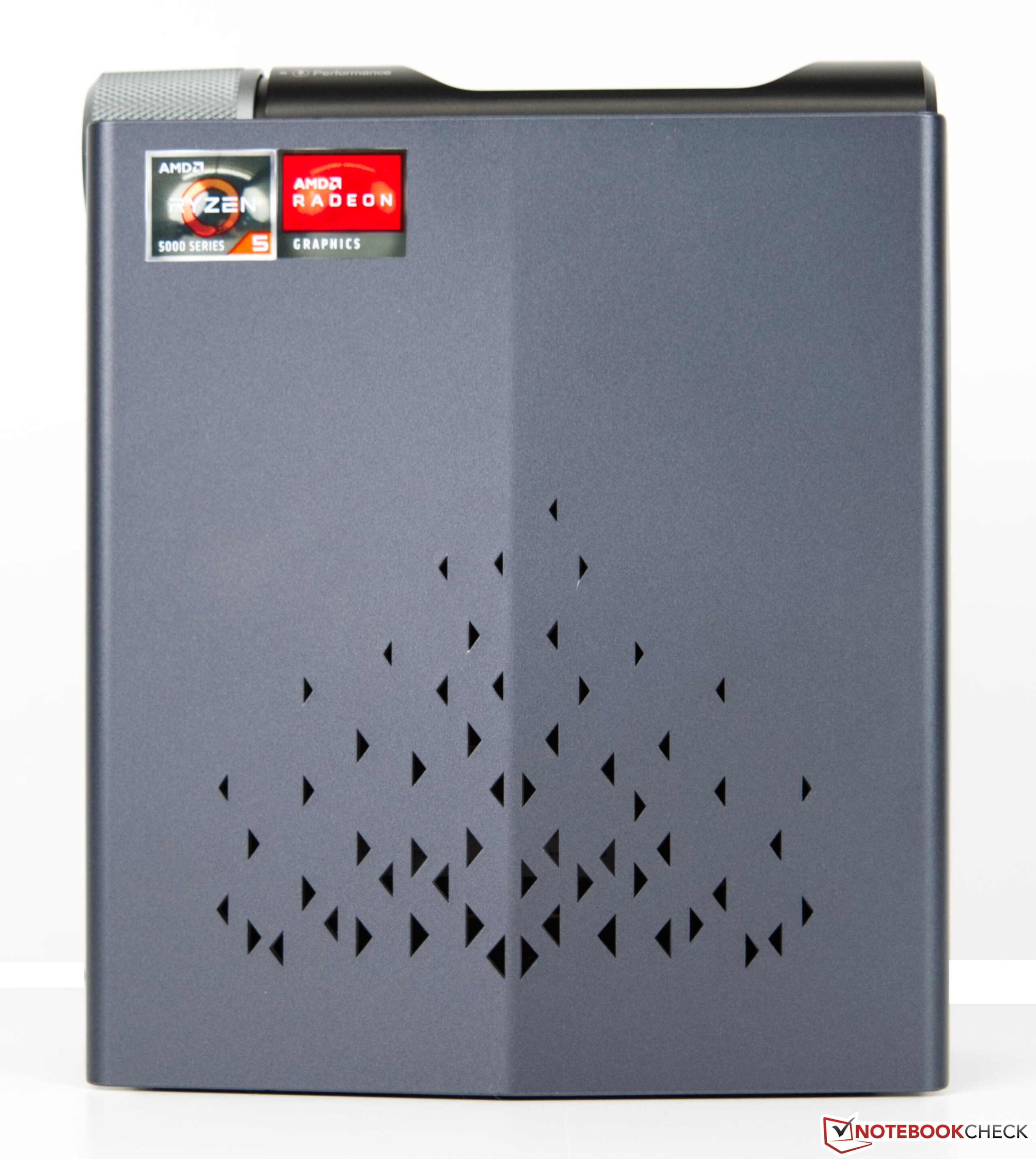

Case

If you picture a Mini PC, you'll probably always think of a compact square box. Here, the Ace Magician AMR5 takes a completely different approach that is oriented towards a tower PC in terms of looks. As a scaled-down version, the compact PC is only 16 centimeters tall. As for materials, there's only plastic, but the design is enhanced by the use of two color accents. The right side of the case, when viewed from the front, is held magnetically and can be removed quite easily. The RAM and SSD are hidden behind it, and they can be expanded if necessary. There's nothing to complain about in terms of sturdiness, despite the fact that aluminum hasn't been used. With a weight of 581 grams, the small computer is very light, which makes it fit on any desk. Additionally, the system can be enhanced visually with a few RGB effects.

Connectivity

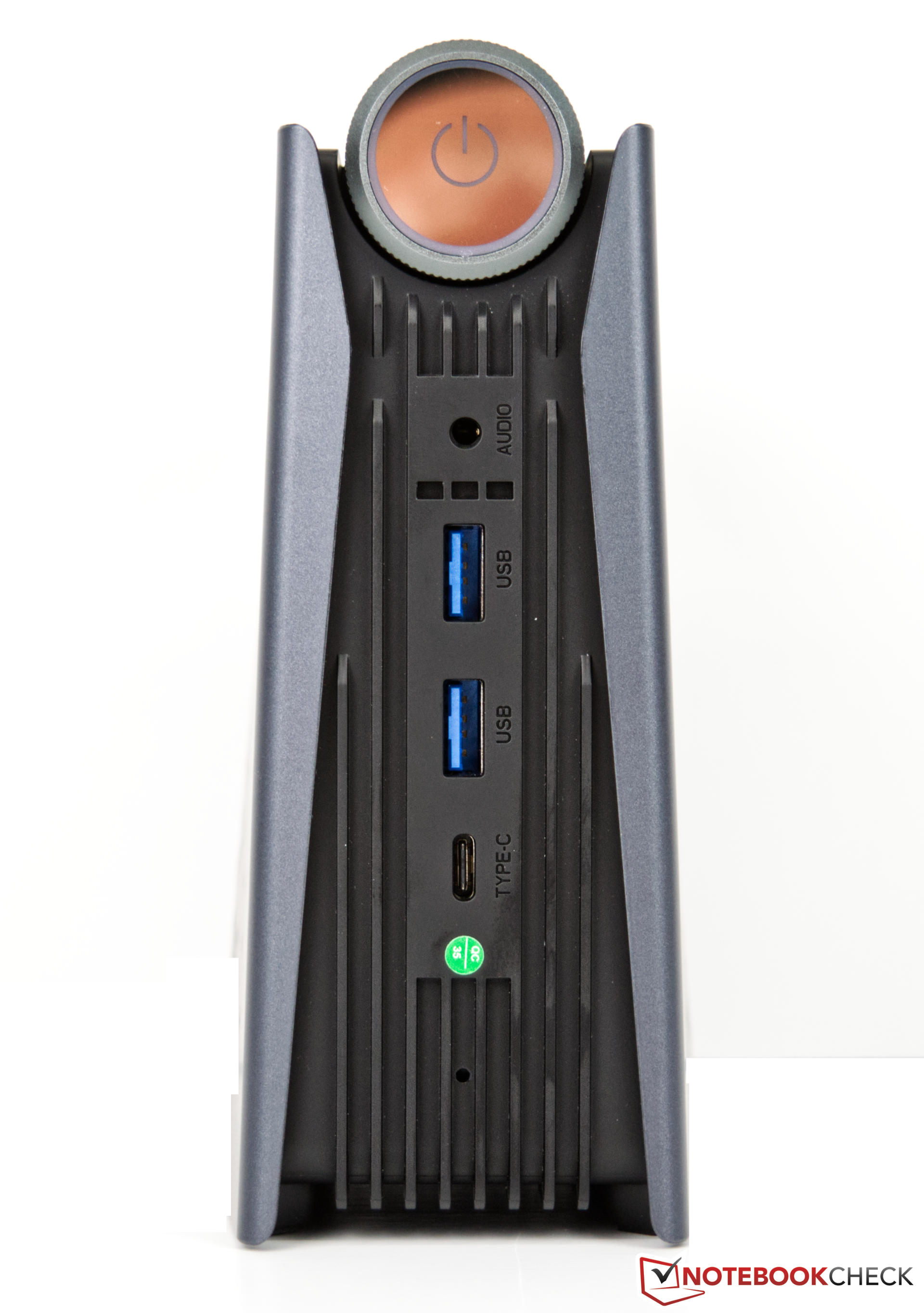

The Ace Magician AMR5 offers a large number of external interfaces. These are distributed across the front and back. Users will enjoy a total of five USB ports, one of which is a Type-C port that also supports video output. This means that the small PC can be used with three monitors at the same time. However, an SD card reader isn't included.

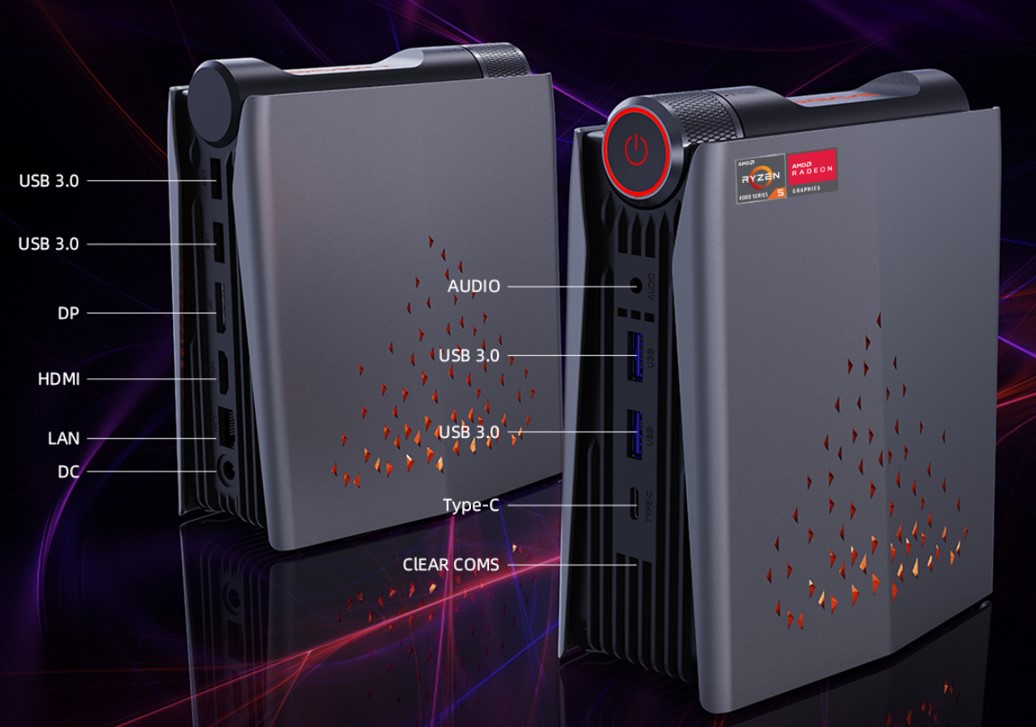

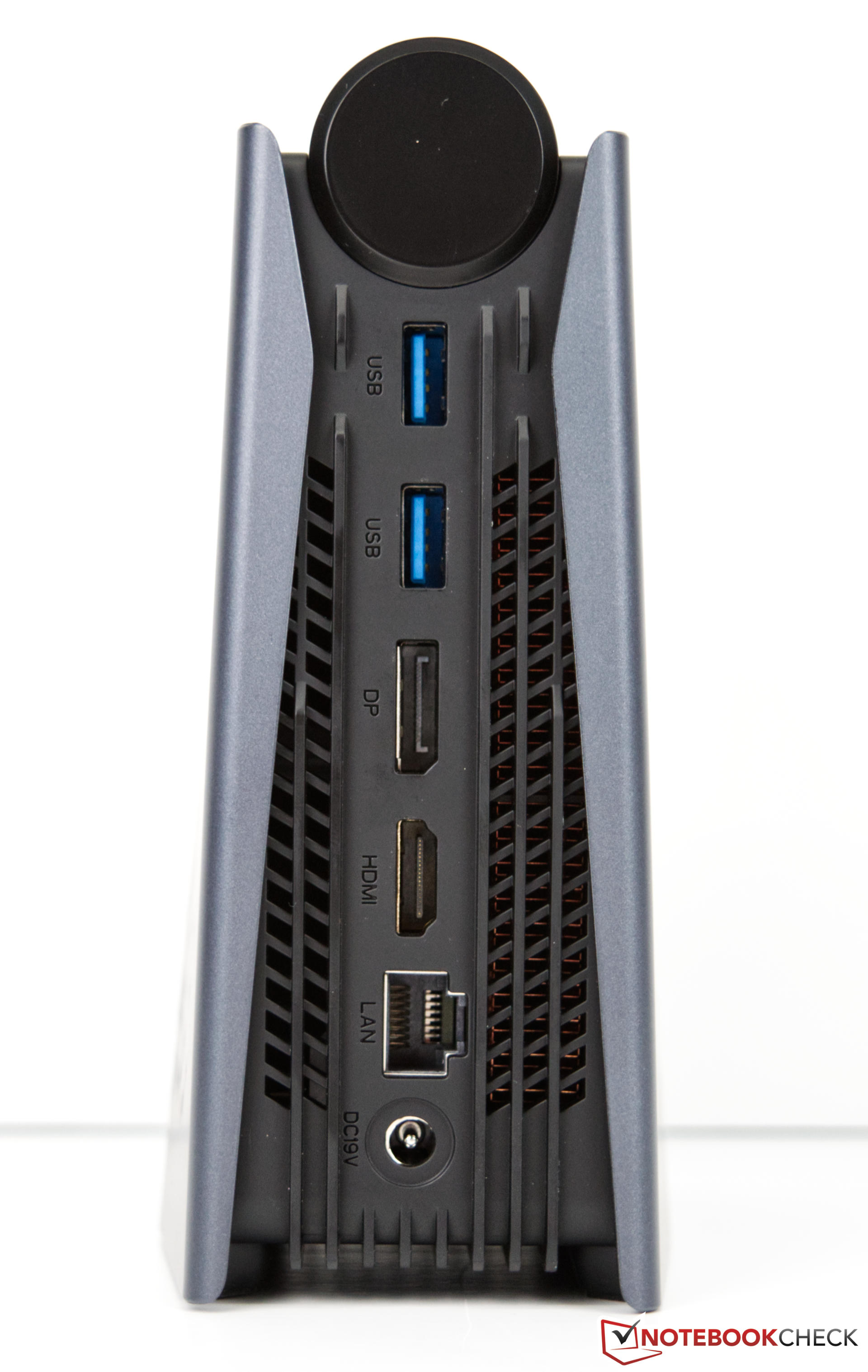

External ports on the Ace Magician AMR5 (source: Minipc Union)

Communication

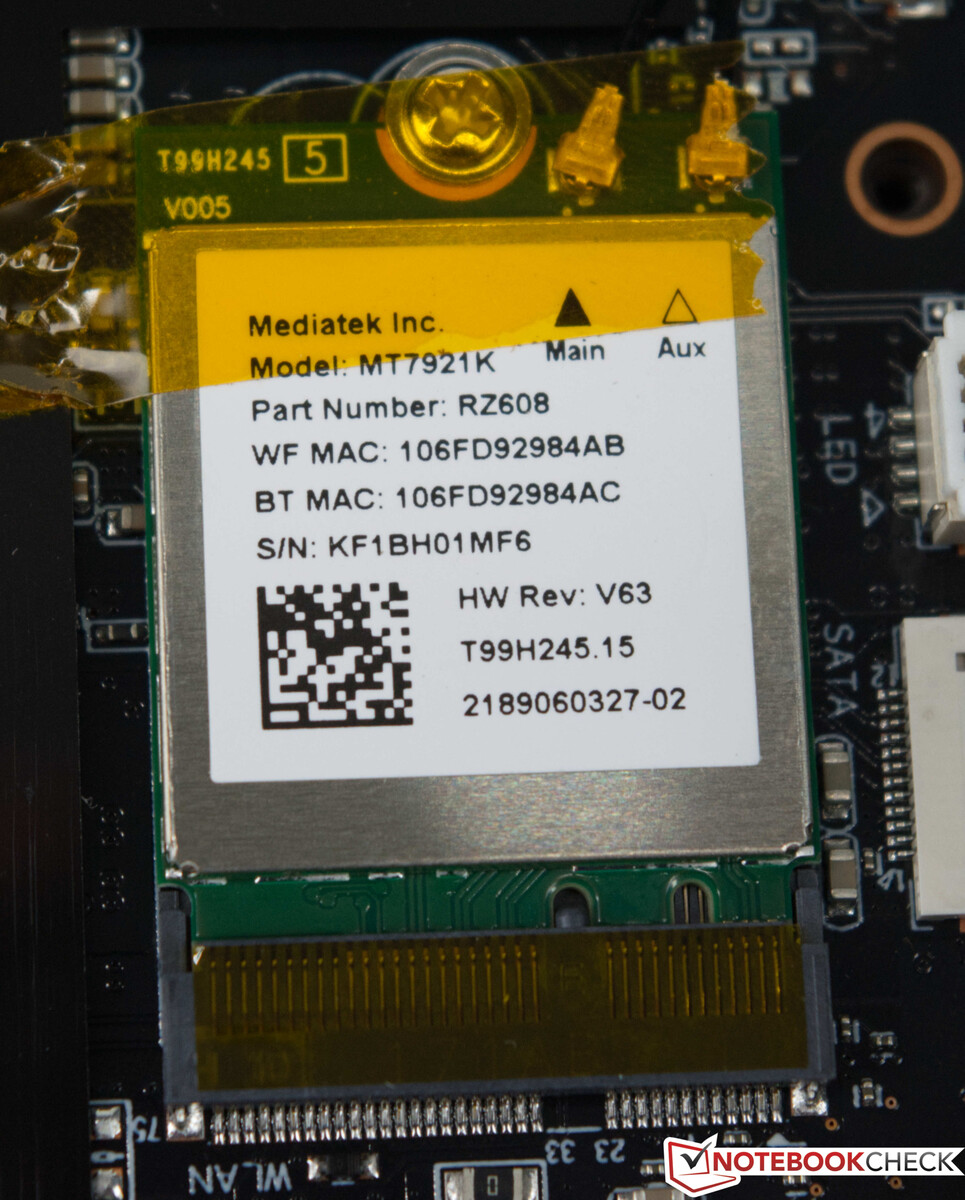

Minipc Union uses a MediaTek RZ608 WLAN module in its Ace Magician AMR5. We're already familiar with it, since the same model was also used in the Minisforum EliteMini B550. However, the transfer rates determined with the Ace Magician AMR5 look much more promising. Our review sample delivered fast and stable transfer rates in our test environment. We used our Asus ROG Rapture GT-AXE11000 for this test. The RJ45 port provides another alternative for wireless network communication. It's not possible to get more than 1 Gb/s here, though.

Networking
iperf3 receive AXE11000 6GHz
Average of class Mini PC (390 - 1771, n=39, last 2 years)	1196 MBit/s +32%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s
Average MediaTek RZ608 (430 - 961, n=16)	826 MBit/s -9%
Minisforum EliteMini TH50 MediaTek MT7921	776 (482^min - 881^max) MBit/s -14%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s -52%
iperf3 transmit AXE11000 6GHz
Average of class Mini PC (432 - 1764, n=40, last 2 years)	1162 MBit/s +20%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s
Minisforum EliteMini TH50 MediaTek MT7921	866 (502^min - 950^max) MBit/s -10%
Average MediaTek RZ608 (572 - 980, n=16)	825 MBit/s -15%
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s -41%

Minipc Union Ace Magician AMR5; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø951 (486-993)

Minipc Union Ace Magician AMR5; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø888 (450-913)

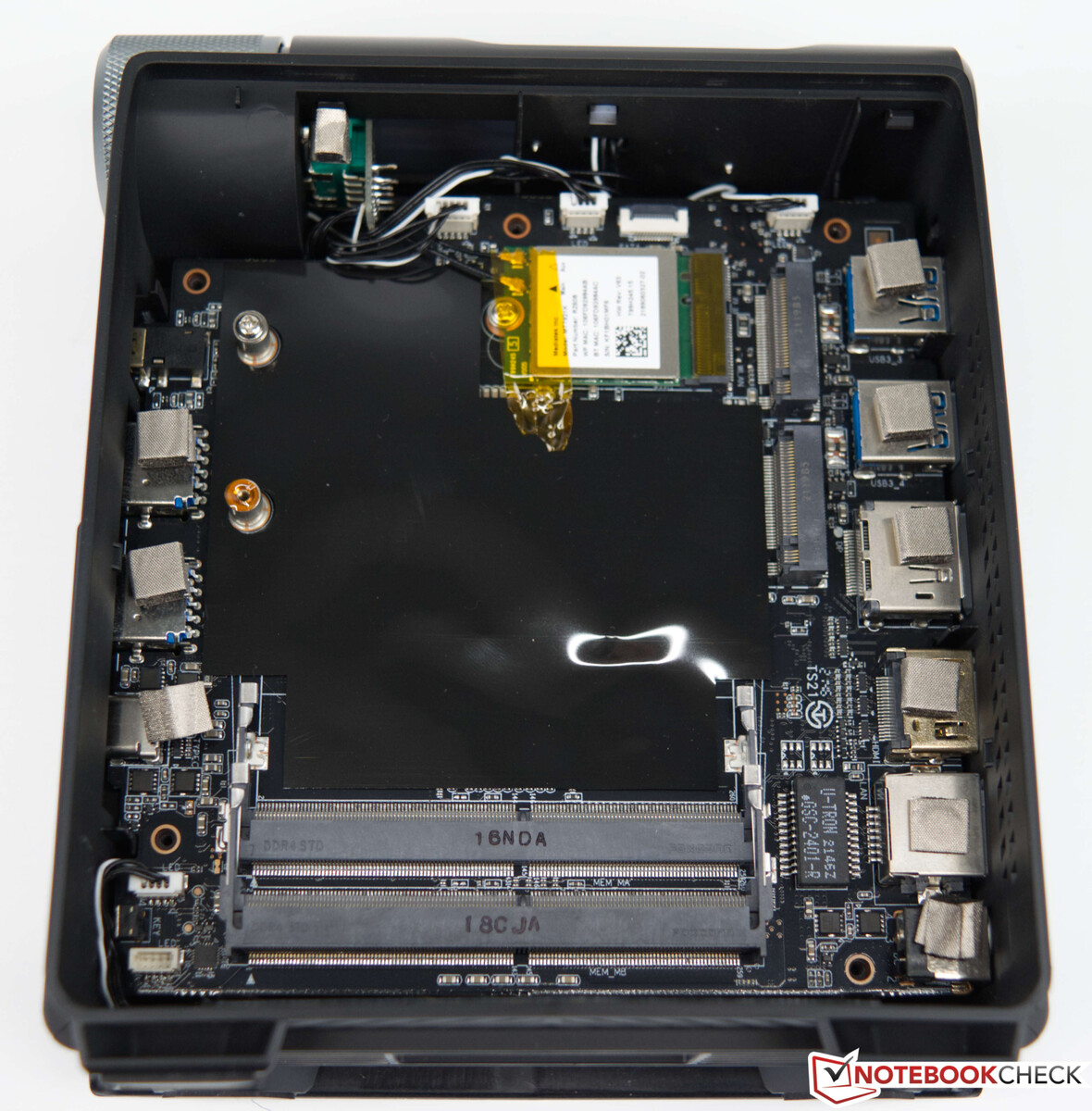

Maintenance

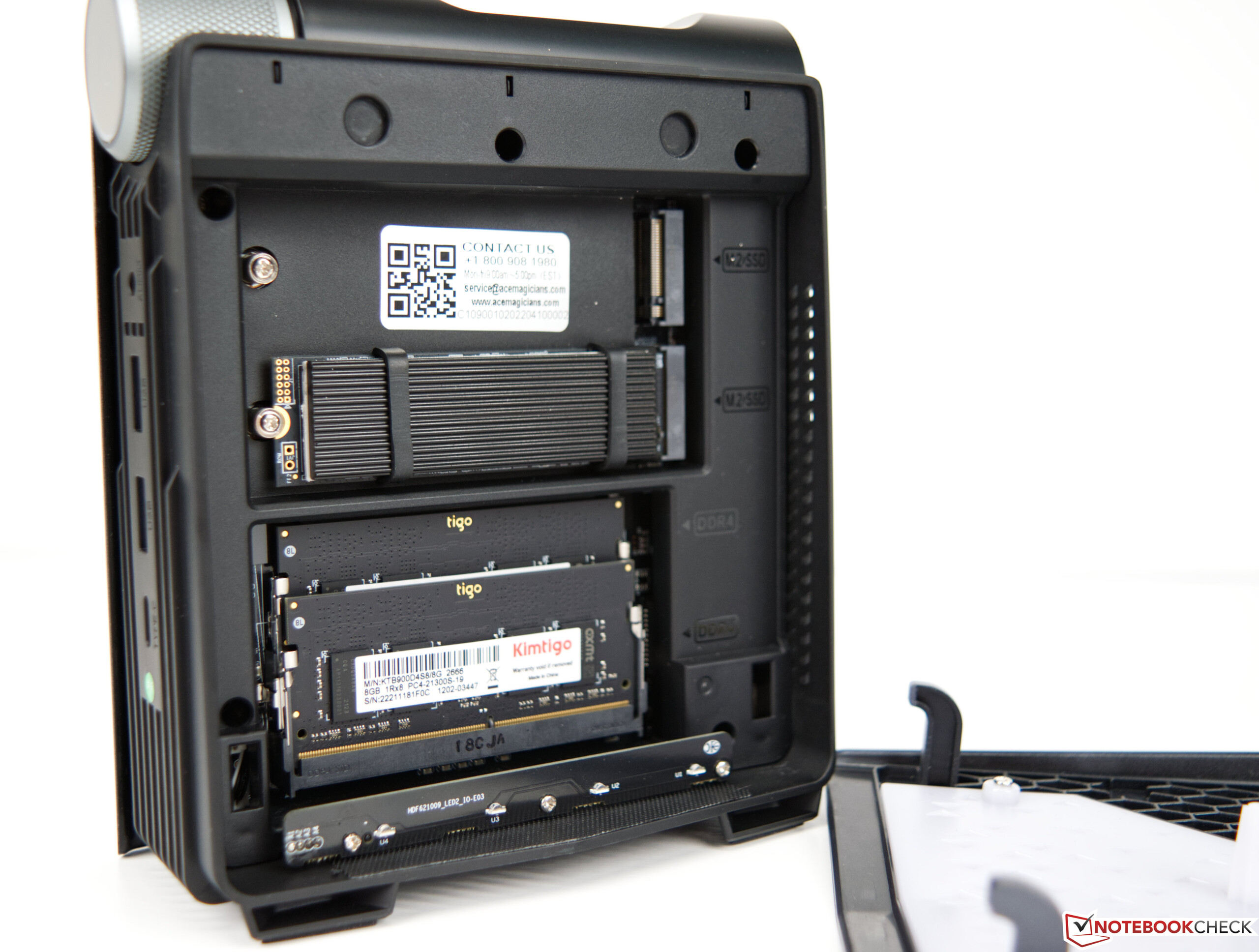

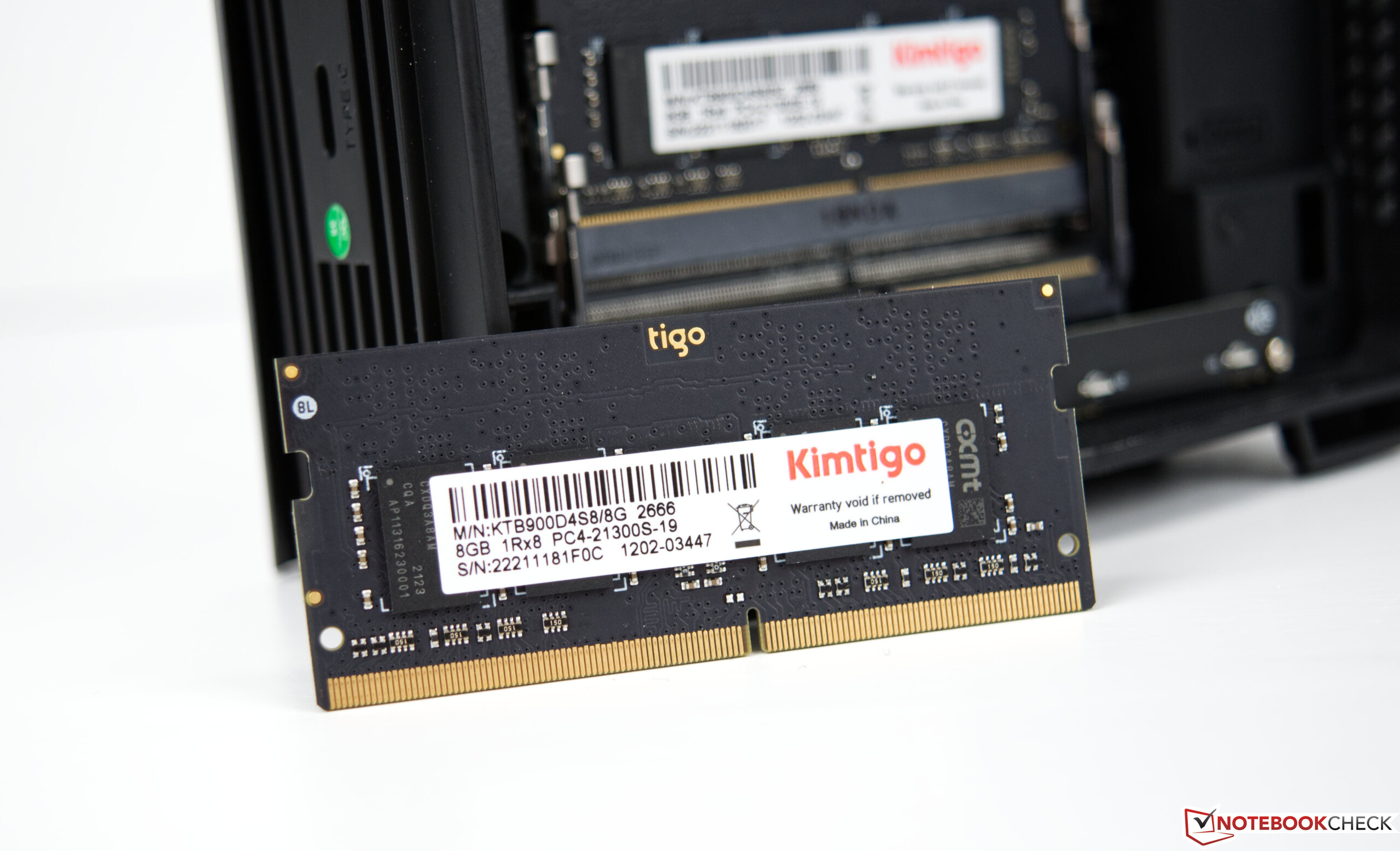

It's quite difficult to perform any maintenance work when it comes to accessing the CPU fan. However, users who want to expand or replace the RAM or SSD can easily access these components. The side cover can be removed without loosening any screws, and it's also equipped with a magnetic closure. We would've liked to see this option on the other side as well, in order to get to the SoC's active cooling unit faster. This was probably omitted because there are no upgrade options on that side. Therefore, if you want to access more components, you'll have to continue disassembling the device from the side that is already open.

Performance

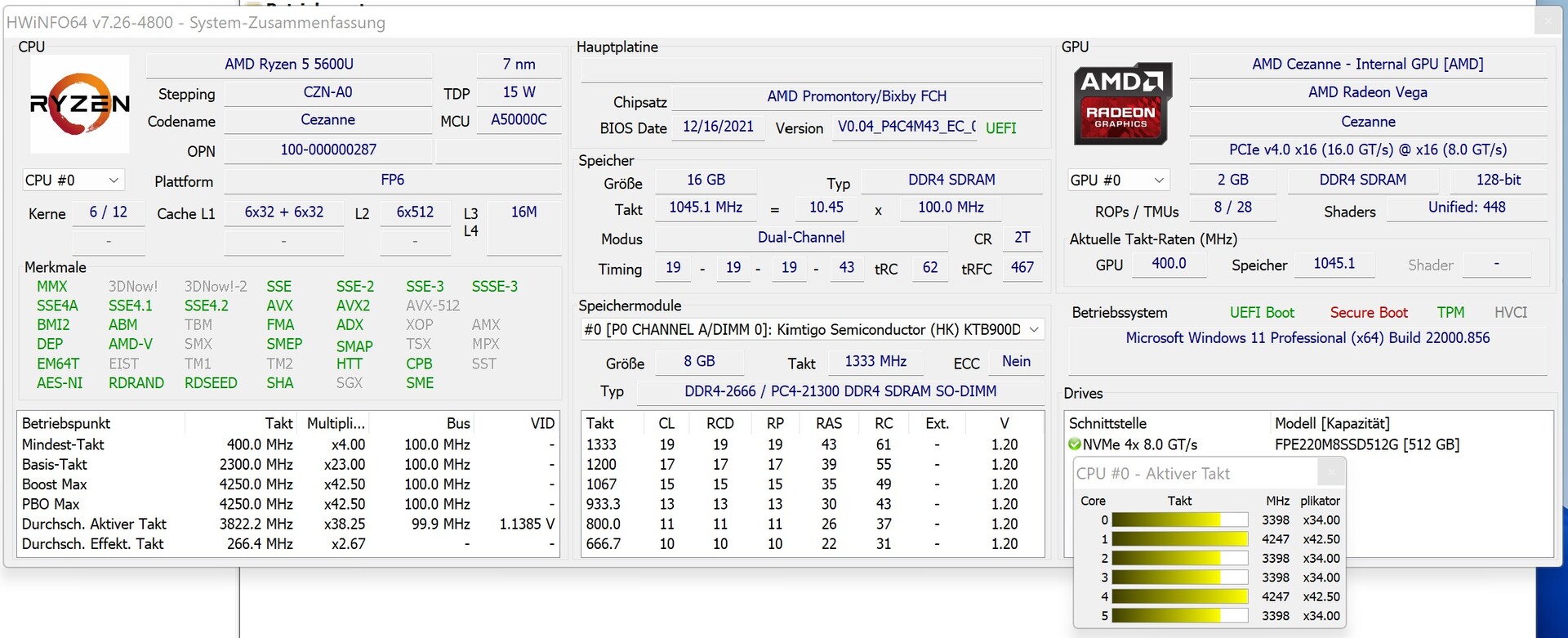

The AMD Ryzen 5 5600U SoC provides a solid foundation for multithreaded applications. With the 16 GB of built-in DDR4 RAM, you're well equipped for most applications, without constantly working at the limit. On the other hand, the 512 GB SSD can be criticized a bit more, since Minipc Union considers the Ace Magician AMR5 to be a compact gaming PC. But since games increasingly take up more and more storage space, a 1 TB SSD would have been a better choice, in our opinion.

Test conditions

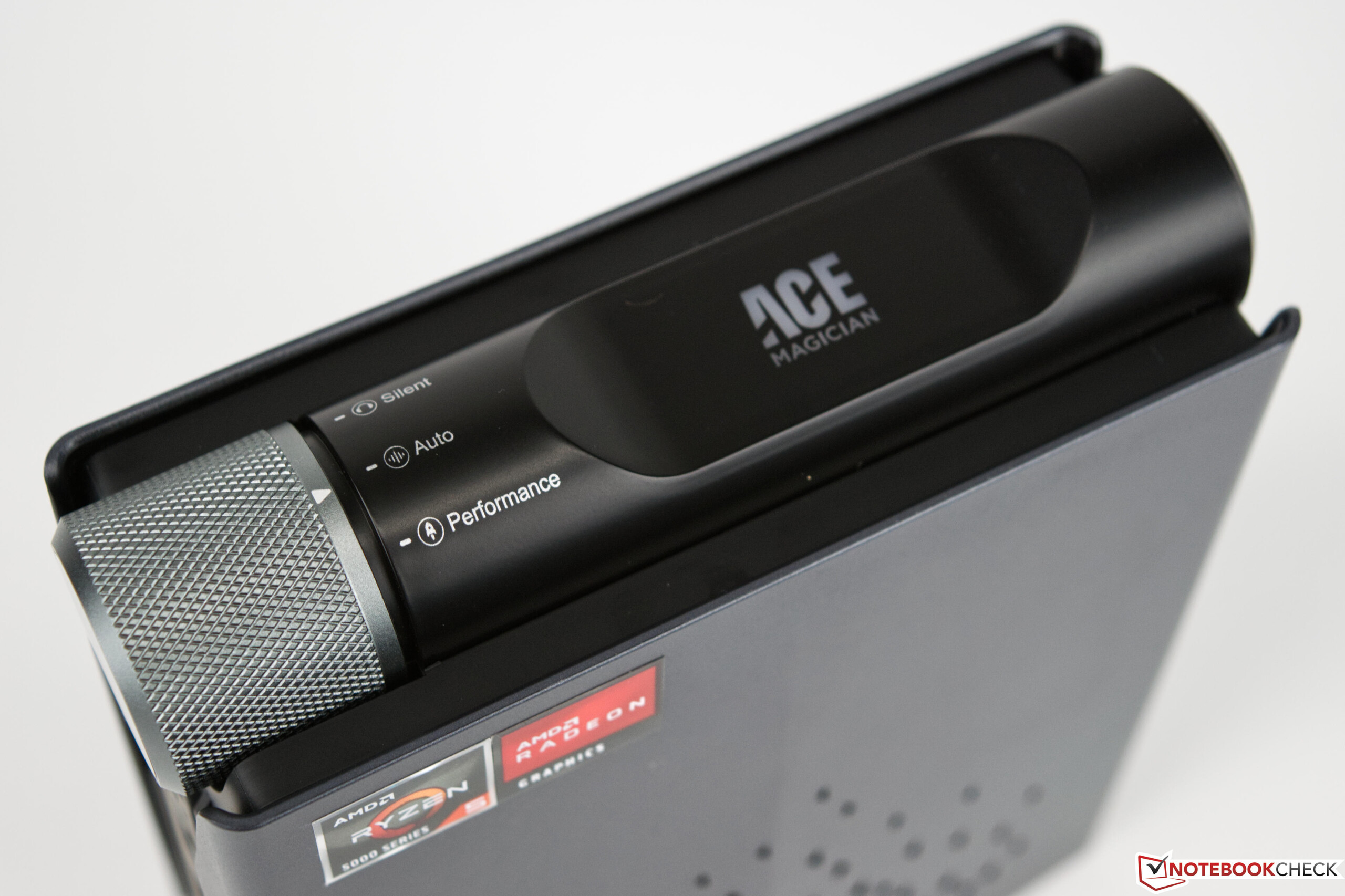

The Ace Magician AMR5 offers users the option to operate the device under three different settings. The settings can be changed via a rotary switch, which is also the power button. As a result, the SoC can be permanently operated at 12, 18 or 25 watts (Silent, Auto, Performance). We exclusively chose the Performance profile for this review in order to get the best possible results.

Processor

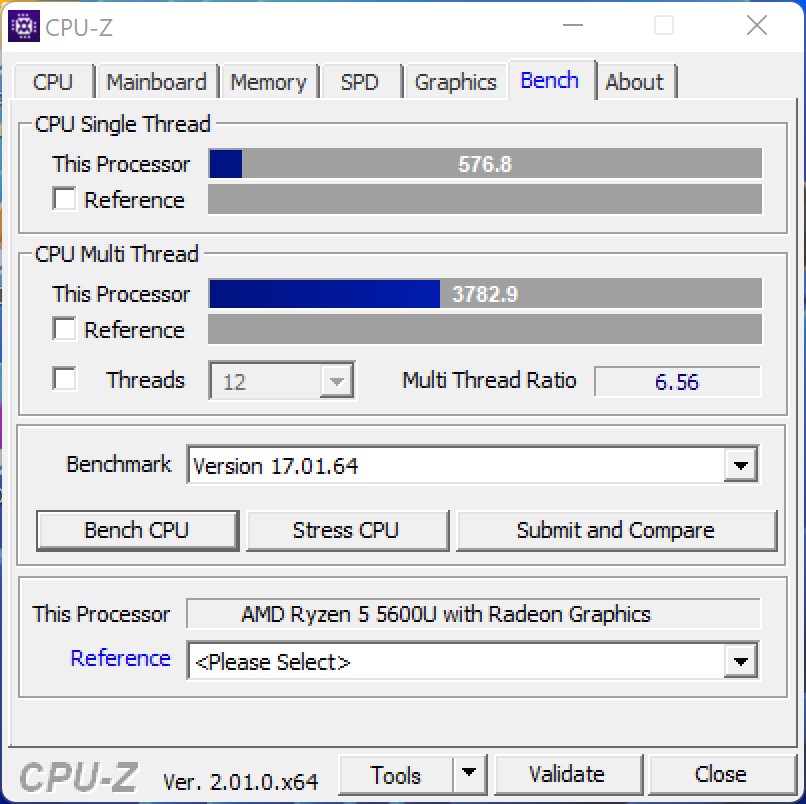

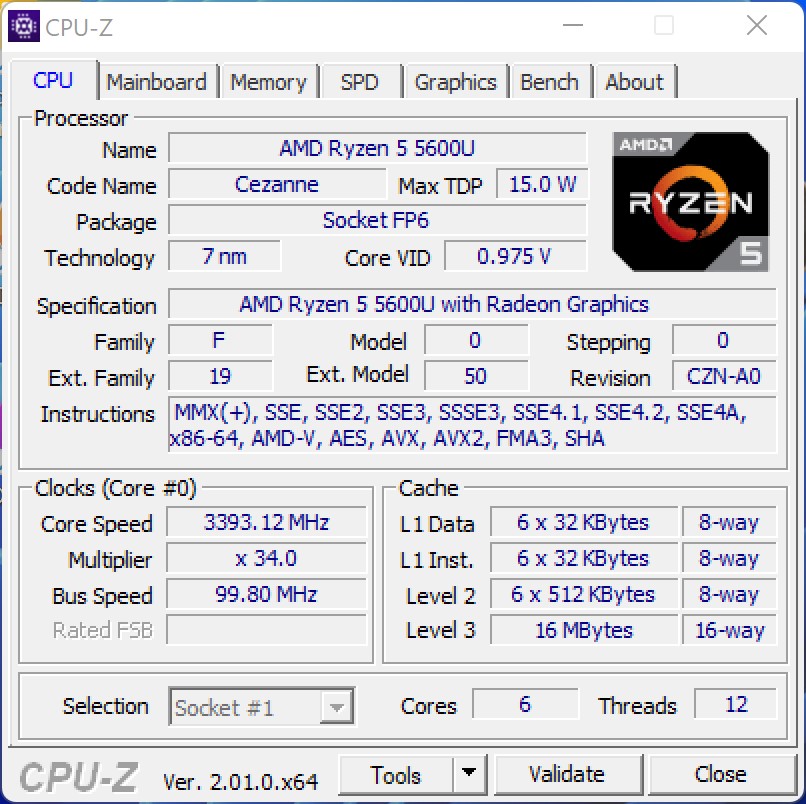

The built-in AMD Ryzen 5 5600U APU offers 6 Zen 3 cores with SMT, and it stems from the mobile sector. The APU, which is otherwise found in laptops, is frugal, something that benefits the compact design, since it doesn't require complex cooling. The SoC can be operated in three different modes. A maximum of 28 watts is available in Performance mode, although 25 watts is what can be maintained in the long run. The SoC can be throttled to 18 or 12 watts, respectively, the other modes. Naturally, this also impacts system performance. To illustrate this, we ran Cinebench R15 once in each of the three modes as the screenshots below show.

In a direct comparison with the competition, the Ace Magician AMR5 performs quite well, although the native octa-core CPU offers better multithread performance. However, the overall performance of the AMD Ryzen 5 5600U is slightly better than the average performance that we've been able to reach with this SoC so far. Nevertheless, you can still get more performance out of it by using slightly faster RAM, since the built-in RAM only clocked at 2,666 MHz.

More benchmarks on the processors can be found here.

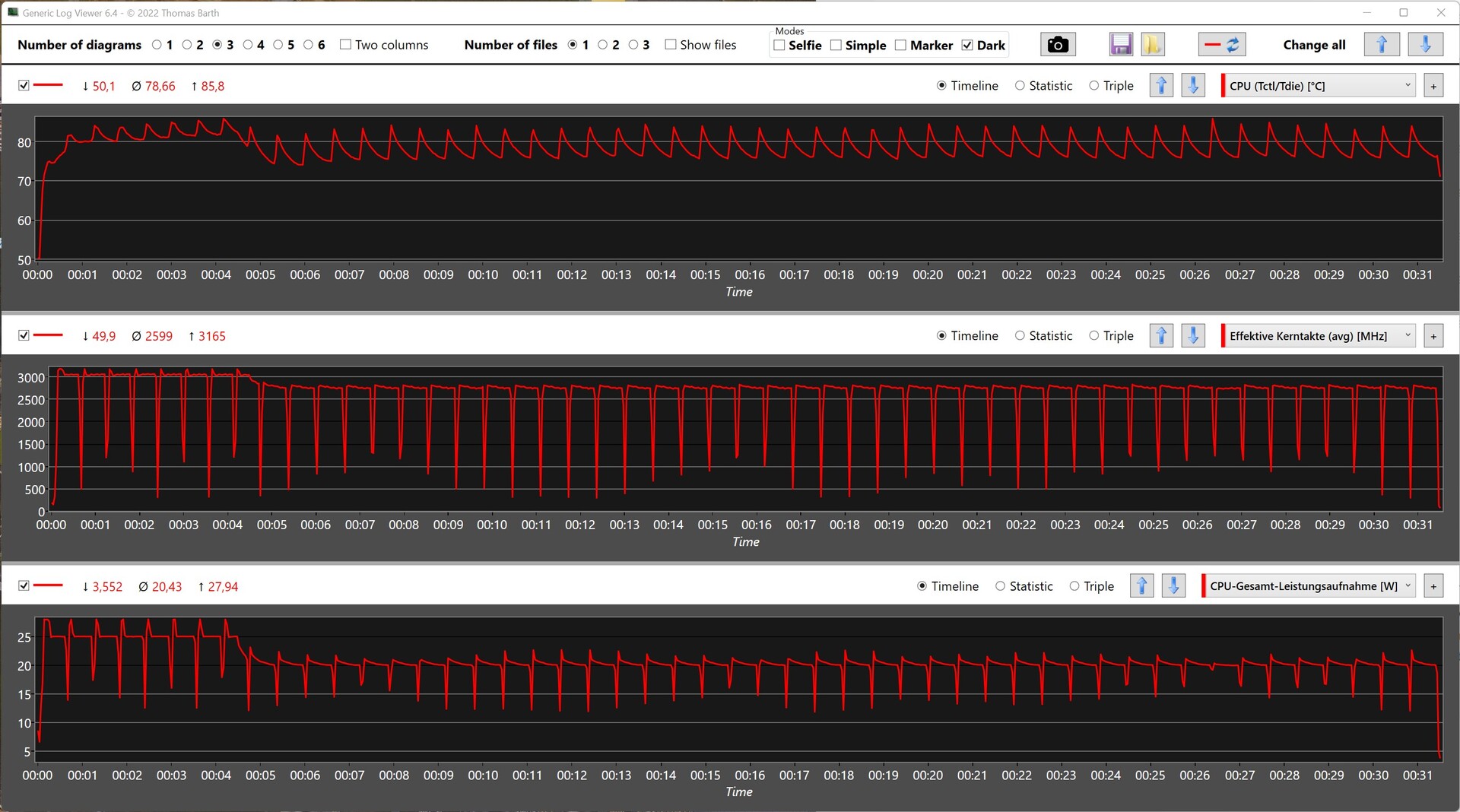

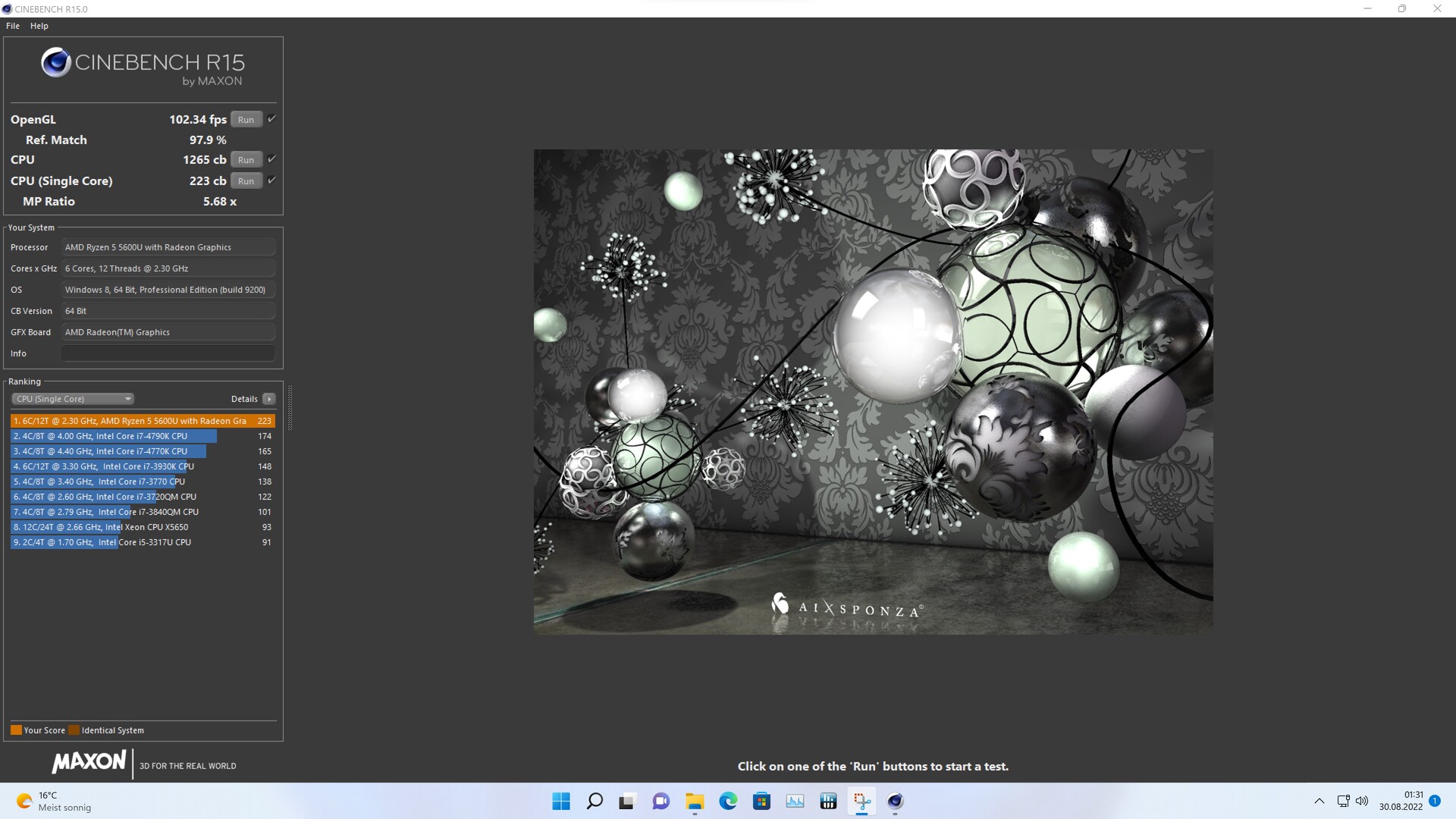

Cinebench R15 - Performance Mode (used for all tests)

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	46.8 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	46.7 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	46.5 pt
Beelink SER4 ^-16! AMD Ryzen 7 4800U, 1800 MHz	45.8 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.5 pt
Average AMD Ryzen 5 5600U	41.1 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	39.9 pt

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points
Average AMD Ryzen 5 5600U (220 - 223, n=6)	222 Points 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points -5%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	187 Points -16%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +76%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +57%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +52%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	1411 (1390.29^min - 1411.03^max) Points +12%
Average AMD Ryzen 5 5600U (1265 - 1546, n=6)	1347 Points +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points -25%

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points
Average AMD Ryzen 5 5600U (532 - 536, n=7)	534 Points 0%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	488 Points -9%
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +74%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +57%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +51%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	3248 Points +9%
Average AMD Ryzen 5 5600U (2345 - 3632, n=7)	3036 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points -22%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points
Average AMD Ryzen 5 5600U (2.61 - 2.64, n=3)	2.63 Points 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points -5%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +54%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +49%
Average AMD Ryzen 5 5600U (14.5 - 16, n=3)	15.1 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points -27%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +3%
Average AMD Ryzen 5 5600U (11098 - 11143, n=3)	11124 Points 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points +61%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +46%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +42%
Average AMD Ryzen 5 5600U (45363 - 50831, n=3)	47704 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points -7%

Blender - v2.79 BMW27 CPU
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * -29%
Average AMD Ryzen 5 5600U (328 - 481, n=6)	413 Seconds * -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds *
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	340 Seconds * +15%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +34%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +43%

wPrime 2.10
32m
Average AMD Ryzen 5 5600U (4.85 - 8.78, n=3)	6.34 s * -18%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +18%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +38%
1024m
Average AMD Ryzen 5 5600U (147.8 - 277, n=3)	193.8 s * -24%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +41%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +13%
Average AMD Ryzen 5 5600U (234 - 236, n=2)	235 fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +54%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +47%
Average AMD Ryzen 5 5600U (76 - 81, n=2)	78.5 fps +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s
Average AMD Ryzen 5 5600U (6346 - 6877, n=3)	6694 KB/s -3%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s -20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -38%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +40%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s -4%
Average AMD Ryzen 5 5600U (5.1 - 8.3, n=3)	7.03 GB/s -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s -21%
Twofish Mean 100MB
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +82%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +45%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +36%
Average AMD Ryzen 5 5600U (1.1 - 1.2, n=3)	1.133 GB/s +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s -16%
Serpent Mean 100MB
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +71%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +57%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +57%
Average AMD Ryzen 5 5600U (0.7 - 0.796, n=3)	0.759 GB/s +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s -25%

Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +27%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	6375 Points +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points -8%
Average AMD Ryzen 5 5600U (4506 - 6523, n=5)	5611 Points -9%
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points
Average AMD Ryzen 5 5600U (1334 - 1430, n=5)	1388 Points -3%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	1192 Points -17%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points +28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points
Average AMD Ryzen 5 5600U (5031 - 6479, n=3)	5876 Points -4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points -8%
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points
Average AMD Ryzen 5 5600U (1340 - 1383, n=3)	1365 Points -1%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points +11%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points
Average AMD Ryzen 5 5600U (5553 - 5918, n=3)	5775 Points -1%
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points +30%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points
Average AMD Ryzen 5 5600U (21830 - 25738, n=3)	24021 Points -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points -10%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	12541 Points -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points -8%
Average AMD Ryzen 5 5600U (7823 - 13130, n=6)	11018 Points -13%

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +46%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +40%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	40117 MIPS +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS
Average AMD Ryzen 5 5600U (32052 - 43071, n=6)	37855 MIPS -3%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS -31%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS +9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS
Average AMD Ryzen 5 5600U (5118 - 5260, n=6)	5198 MIPS -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS -6%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	4603 MIPS -12%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +57%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +44%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	10.4 fps +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps
Average AMD Ryzen 5 5600U (7.31 - 11.8, n=6)	9.72 fps -4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps -22%

R Benchmark 2.5 - Overall mean
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * -16%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	0.576 sec * -7%
Average AMD Ryzen 5 5600U (0.537 - 0.59, n=6)	0.555 sec * -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +8%

LibreOffice - 20 Documents To PDF
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	62.6 s * -23%
Average AMD Ryzen 5 5600U (49.3 - 57.5, n=6)	54 s * -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +1%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * +4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +5%

WebXPRT 3 - Overall
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points
Average AMD Ryzen 5 5600U (243 - 265, n=6)	255 Points 0%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	219 Points -14%

Mozilla Kraken 1.1 - Total
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	793 ms * -23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * -4%
Average AMD Ryzen 5 5600U (646 - 667, n=6)	656 ms * -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * +7%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +36%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +32%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +31%
Average AMD Ryzen 5 5600U (16412 - 20528, n=3)	18169 Points +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	17516 Points 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points -22%
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +39%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +33%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +32%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	17885 Points -1%
Average AMD Ryzen 5 5600U (14756 - 20872, n=6)	17757 Points -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points -24%
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +50%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +30%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points +28%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	6514 Points +20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points -4%
Average AMD Ryzen 5 5600U (3820 - 5685, n=6)	4931 Points -9%

* ... smaller is better

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	94.9 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	84.5 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	84.4 pt
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	64.6 pt
Average of class Mini PC	62.1 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	59.2 pt
Average AMD Ryzen 5 5600U	57.9 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51.4 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +50%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +48%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	10046 KRay/s +11%
Average of class Mini PC (561 - 27538, n=97, last 2 years)	9978 KRay/s +10%
Average AMD Ryzen 5 5600U (7902 - 10892, n=6)	9154 KRay/s +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s -18%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +75%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +51%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +49%
Average AMD Ryzen 5 5600U (55397 - 69193, n=6)	59694 Points +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	56388 Points -2%
Average of class Mini PC (3604 - 116903, n=97, last 2 years)	52513 Points -8%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points -45%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +75%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +50%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +48%
Average of class Mini PC (225 - 5096, n=97, last 2 years)	2294 MB/s +16%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +6%
Average AMD Ryzen 5 5600U (1906 - 2359, n=6)	2032 MB/s +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	1840 MB/s -7%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +56%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +45%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +41%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	78511 Points +17%
Average AMD Ryzen 5 5600U (67224 - 77176, n=6)	70668 Points +5%
Average of class Mini PC (8172 - 119569, n=97, last 2 years)	69137 Points +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points -22%

AIDA64 / FPU SinJulia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +54%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +47%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +44%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	11799 Points +42%
Average AMD Ryzen 5 5600U (7897 - 9215, n=6)	8412 Points +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points
Average of class Mini PC (408 - 15525, n=97, last 2 years)	7328 Points -12%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points -40%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +77%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +52%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +50%
Average AMD Ryzen 5 5600U (30542 - 38158, n=6)	32514 Points +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	28667 Points -9%
Average of class Mini PC (1958 - 62378, n=97, last 2 years)	27844 Points -11%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points -40%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +53%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +48%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s -2%
Average of class Mini PC (3691 - 177158, n=97, last 2 years)	75036 MB/s -4%
Average AMD Ryzen 5 5600U (34865 - 92244, n=6)	67096 MB/s -14%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	54686 MB/s -30%

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +72%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +53%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +48%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	593 MB/s +17%
Average of class Mini PC (74.8 - 1183, n=97, last 2 years)	581 MB/s +15%
Average AMD Ryzen 5 5600U (493 - 597, n=6)	527 MB/s +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s -19%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +82%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +55%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +55%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	5555 KRay/s +20%
Average of class Mini PC (308 - 14722, n=97, last 2 years)	5327 KRay/s +15%
Average AMD Ryzen 5 5600U (4104 - 5644, n=6)	4749 KRay/s +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s -13%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +58%
Average of class Mini PC (4408 - 44347, n=97, last 2 years)	24659 MPixel/s +27%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	24254 MPixel/s +25%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -24%
Average AMD Ryzen 5 5600U (7147 - 19395, n=6)	13587 MPixel/s -30%

The Ace Magician AMR5 in the Cinebench R15 Multi loop

A look at the efficiency of the built-in cooling system is provided by the Cinebench R15 continuous loop. After the 7th run, performance drops by about 10%. Still, with an average of 1,158 points, the Ace Magician AMR5 can complete this test with a pretty good result.

CPU measurements while running the Cinebench R15 loop

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Beelink SER4 AMD Ryzen 7 4800U, AMD Ryzen 7 4800U: Ø1404 (1390.29-1411.03)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

System performance

Once again, the Ace Magician AMR5 can keep up well with the benchmarks in terms of system performance. The gap to the faster octa-cores remains within limits and isn't really noticeable during daily tasks.

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	99.8 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	96.9 pt
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	96.8 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	94 pt
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	82.3 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	79.3 pt

PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +13%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +9%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +8%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	5257 Points -9%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points -11%
Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points -1%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points -2%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points -3%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points -8%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	9188 Points -12%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +7%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +4%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	7916 Points -17%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points -28%

Performance Rating - Percent
Morefine S500+, AMD Ryzen 9 5900HX ^-4! AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	93.4 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	81.1 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	78.5 pt
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX ^-4! AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	76.4 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	75.3 pt

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	64.5 fps +24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	61.8 fps +19%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	59.4 fps +14%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	52 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	37.3 fps -28%
1900x1060 Siemens NX (snx-02)
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	32.7 fps
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	21.1 fps -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	20.1 fps -39%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	18.6 fps -43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3.44 fps -89%
1900x1060 Showcase (showcase-01)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	18.4 fps +8%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	17.4 fps +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	17 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	14.4 fps -15%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	13.7 fps -19%
1900x1060 Medical (medical-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	14.8 fps +35%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	12.4 fps +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	12.2 fps +11%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	11.1 fps +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	11 fps
1900x1060 Maya (maya-04)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	39.2 fps +25%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	36.8 fps +17%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	31.4 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	31 fps -1%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	30 fps -4%
1900x1060 Energy (energy-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	2.19 fps +68%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1.3 fps
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	0.53 fps -59%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	0.52 fps -60%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	0.43 fps -67%
1900x1060 Creo (creo-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	37.2 fps +61%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	35.9 fps +55%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	34.6 fps +50%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	23.1 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	8.37 fps -64%
1900x1060 Catia (catia-04)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	41.2 fps +25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	37.7 fps +15%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	37.1 fps +13%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	34.4 fps +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	32.9 fps
1900x1060 3ds Max (3dsmax-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	47.5 fps +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	43.7 fps +10%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	40.8 fps +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	39.9 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	38.8 fps -3%

SPECviewperf 13
Solidworks (sw-04)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	71.7 fps +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	69.6 fps +16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	67.7 fps +12%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	60.2 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	49.7 fps -17%
Siemens NX (snx-03)
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	59.1 fps
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	38.2 fps -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	36.3 fps -39%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	33.6 fps -43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6.19 fps -90%
Showcase (showcase-02)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	18.4 fps +10%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	17.3 fps +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	16.8 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	14.1 fps -16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	13.8 fps -18%
Medical (medical-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	21.2 fps +45%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	19.2 fps +32%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	18.7 fps +28%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	14.6 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	13.1 fps -10%
Maya (maya-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	48.6 fps +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	44.6 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	39.3 fps -12%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	39.1 fps -12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	38.9 fps -13%
Energy (energy-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6.93 fps +17%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5.92 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3.64 fps -39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	0.88 fps -85%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	0.87 fps -85%
Creo (creo-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	50.4 fps +20%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	44.9 fps +7%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	42 fps
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	41.8 fps 0%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	34.2 fps -19%
Catia (catia-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	59.3 fps +26%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	52.9 fps +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	52.2 fps +11%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	49.3 fps +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	47 fps
3ds Max (3dsmax-06)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	47.5 fps +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	42.9 fps +8%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	40.5 fps +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	39.8 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	38.5 fps -3%

ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	4148 Points +29%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	3843 Points +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	3499 Points +8%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3414 Points +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	3225 Points
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	306 Points +37%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	276 Points +23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	235 Points +5%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	235 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	224 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	292 Points +38%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	272 Points +28%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	231 Points +9%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	220 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	212 Points
1024x600 Normal, Mandel Vector
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1280 Points +30%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1217 Points +24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1066 Points +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	982 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	763 Points -22%
1024x600 Normal, Mandel Scalar
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1115 Points +23%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1047 Points +16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	964 Points +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	906 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	853 Points -6%
1024x600 Normal, QJuliaRayTrace
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1205 Points +34%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1200 Points +33%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1123 Points +25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1002 Points +11%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	900 Points

LuxMark v2.0 64Bit
Sala GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	2320 Samples/s +134%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1287 Samples/s +30%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	993 Samples/s
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	948 Samples/s -5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	939 Samples/s -5%
Room GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	693 Samples/s +54%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	547 Samples/s +22%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	451 Samples/s 0%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	450 Samples/s
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	392 Samples/s -13%

CrossMark
Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points 0%
Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points -10%
Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points -2%
Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points -5%

Performance Rating | CrossMark

Performance Rating - Percent
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt

CrossMark
Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points 0%
Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points -10%
Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points -2%
Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points -5%

PCMark 10 Score		5761 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +39%
Average of class Mini PC (6481 - 70620, n=97, last 2 years)	42885 MB/s +22%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +20%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s +8%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s +7%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	37086 MB/s +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s
Average AMD Ryzen 5 5600U (19785 - 38102, n=6)	28327 MB/s -19%

AIDA64 / Memory Read
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +22%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +22%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	44706 MB/s +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s +14%
Average of class Mini PC (6914 - 71285, n=97, last 2 years)	43515 MB/s +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s
Average AMD Ryzen 5 5600U (22505 - 40126, n=6)	31392 MB/s -18%

AIDA64 / Memory Write
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +34%
Average of class Mini PC (6862 - 89318, n=97, last 2 years)	46630 MB/s +24%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	43768 MB/s +17%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -6%
Average AMD Ryzen 5 5600U (19884 - 40633, n=6)	30023 MB/s -20%

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * -5%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	94.7 ns * -4%
Average AMD Ryzen 5 5600U (88.2 - 96.2, n=6)	92.1 ns * -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns *
Average of class Mini PC (44.9 - 154.6, n=97, last 2 years)	88 ns * +4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * +19%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * +19%

* ... smaller is better

DPC latencies

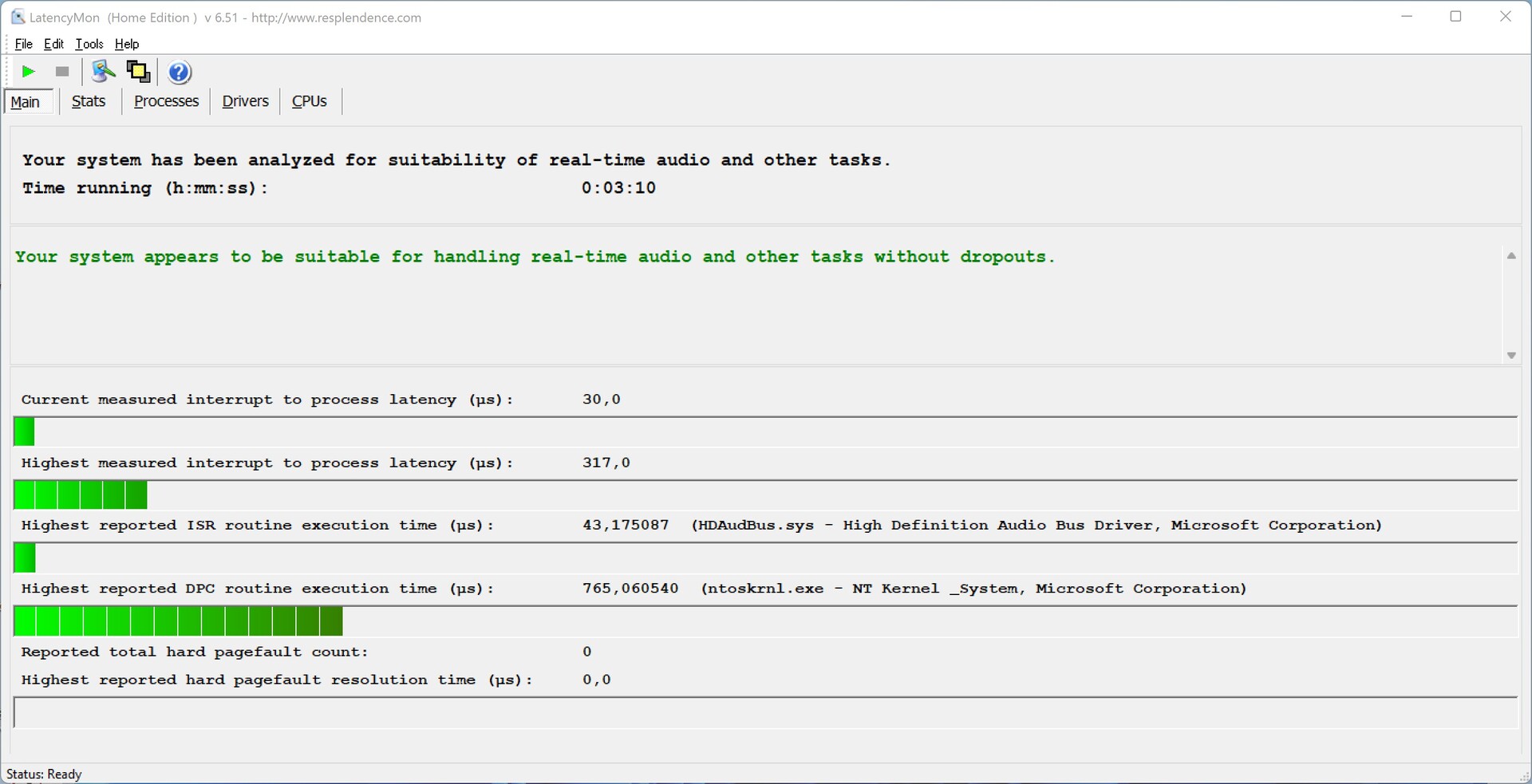

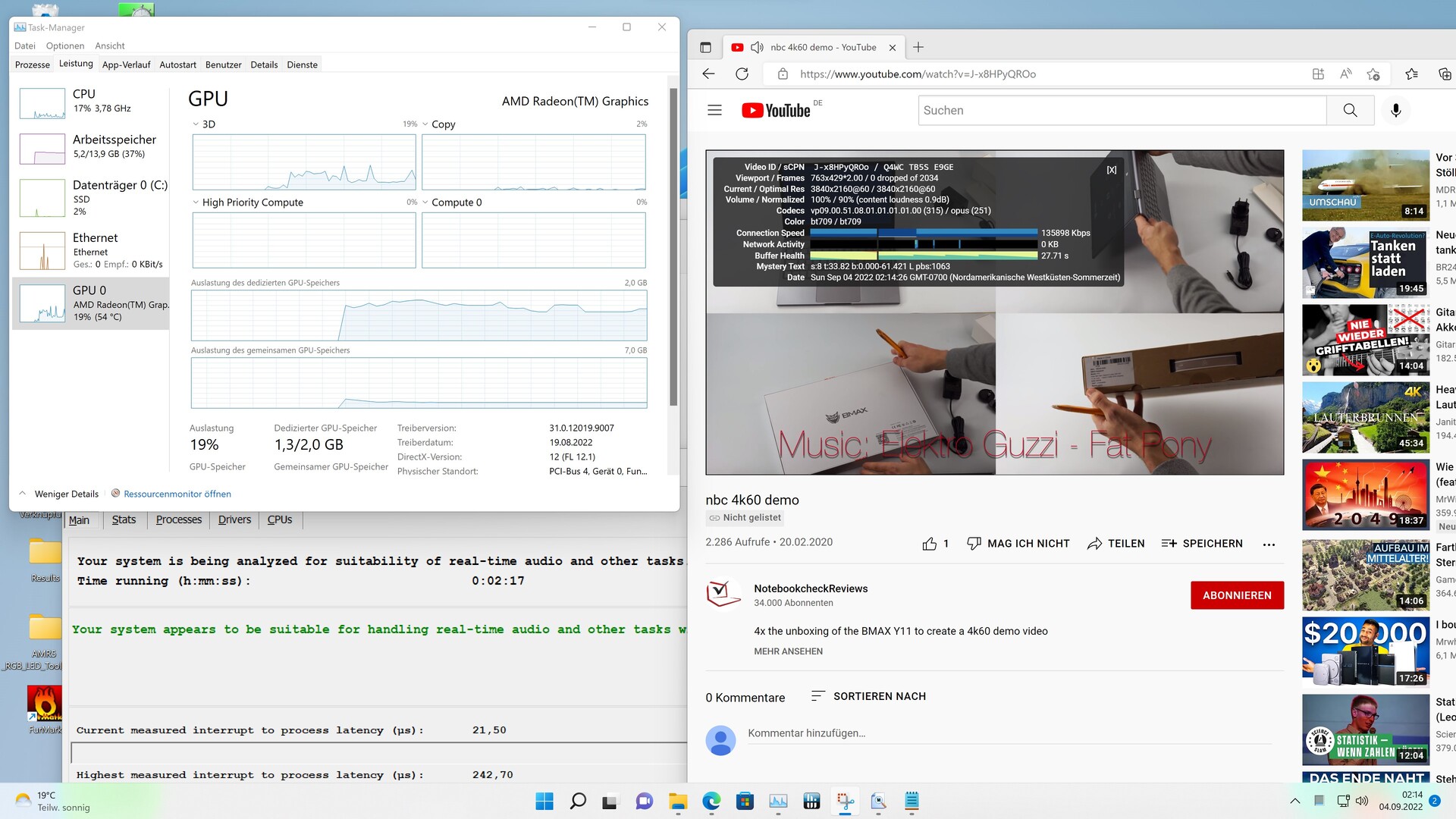

LatencyMon doesn't reveal any latency problems in the Ace Magician AMR5. There are no problems when playing the 4K YouTube video, browsing the Internet or under load with Prime95. The load on the AMD Ryzen 5 5600U's iGPU is about 20% when playing our 4K test video.

Maximum latency when opening multiple browser tabs and playing 4K video content.

Maximum latency after 10 seconds of Prime95

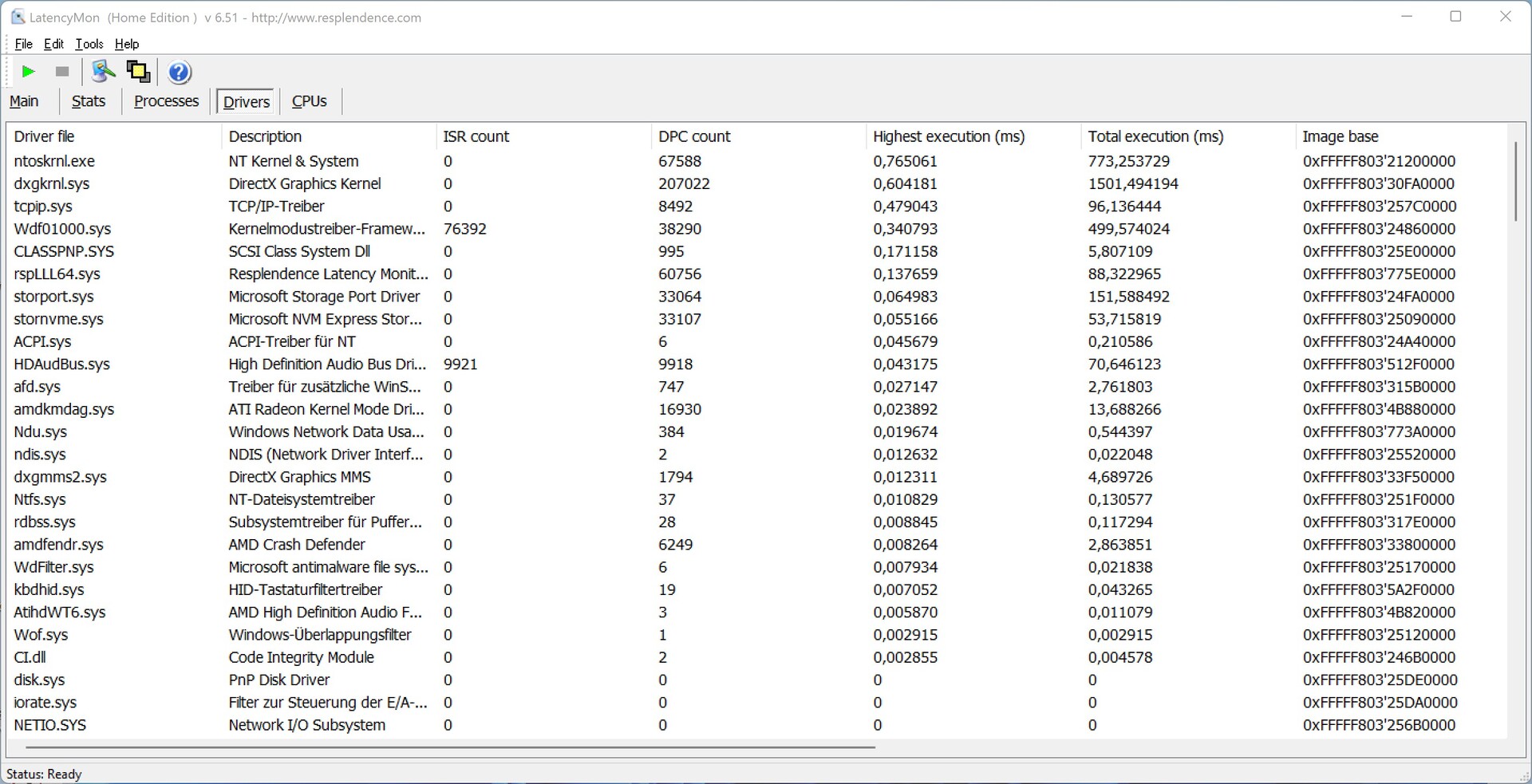

Drivers ranked by longest execution time

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -144%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -112%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * -45%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs *
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +54%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	336 μs * +56%

* ... smaller is better

Storage

Minipc Union equips the Ace Magician AMR5 with a 512 GB SSD. The model from Future Path makes use of the PCIe interface and is able to take the lead in the test with a good performance. The good 4K read rate makes it possible to load many small files quickly, which is an advantage during system startup. However, the stress test shows that this performance can't be entirely maintained over a long period of time. Despite the passive heat sink, the temperature under load seems to lead to performance having to be throttled every now and then. Unfortunately, there's no active cooling for the mass storage device. Unfortunately, with 512 GB, the model can only be recommended to a limited extent considering that it's being advertised as a gaming system. However, a second SSD can be easily installed.

For more comparisons and benchmarks, please refer to our HDD/SSD Benchmarks article.

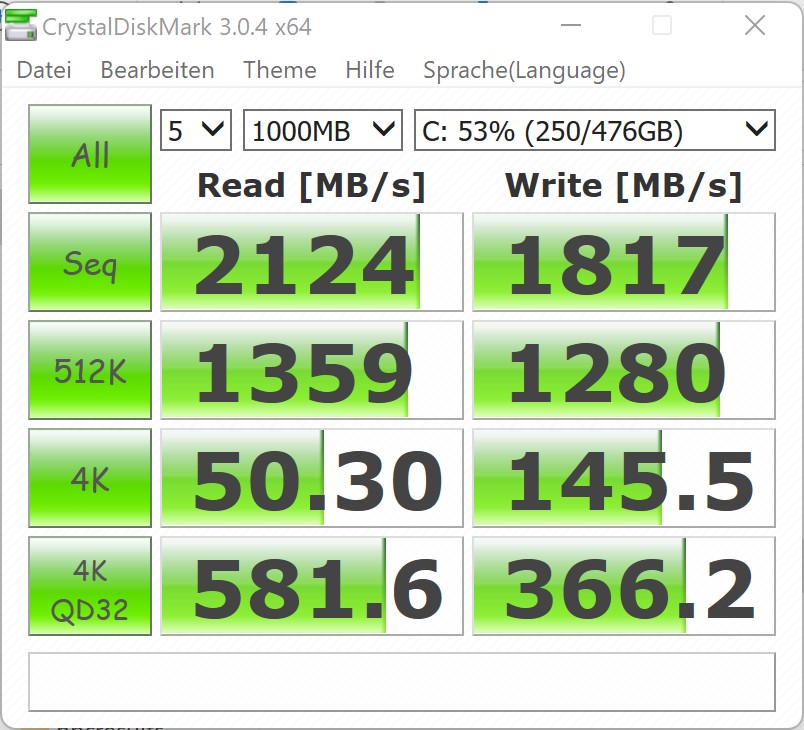

CrystalDiskMark 3.0

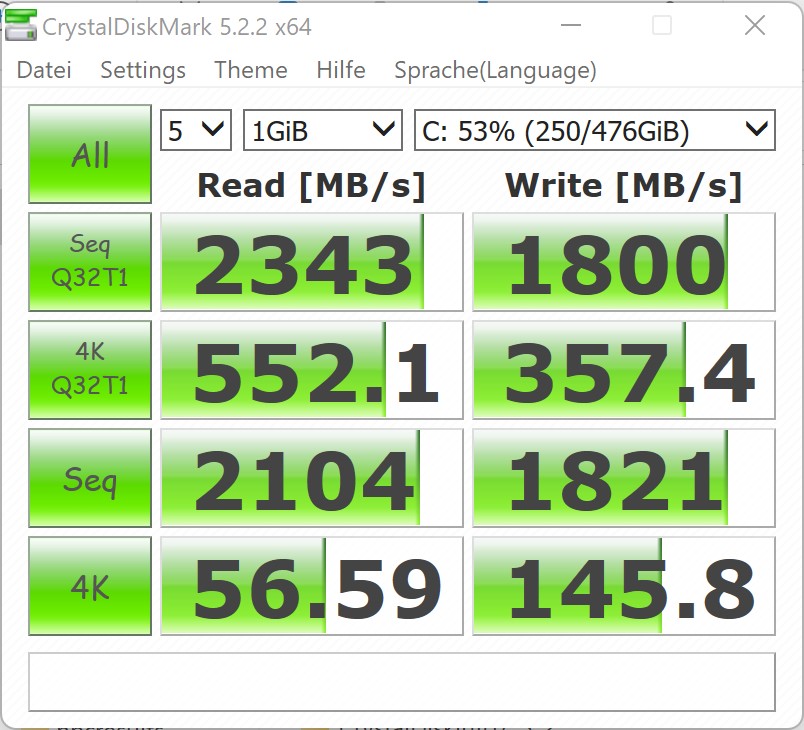

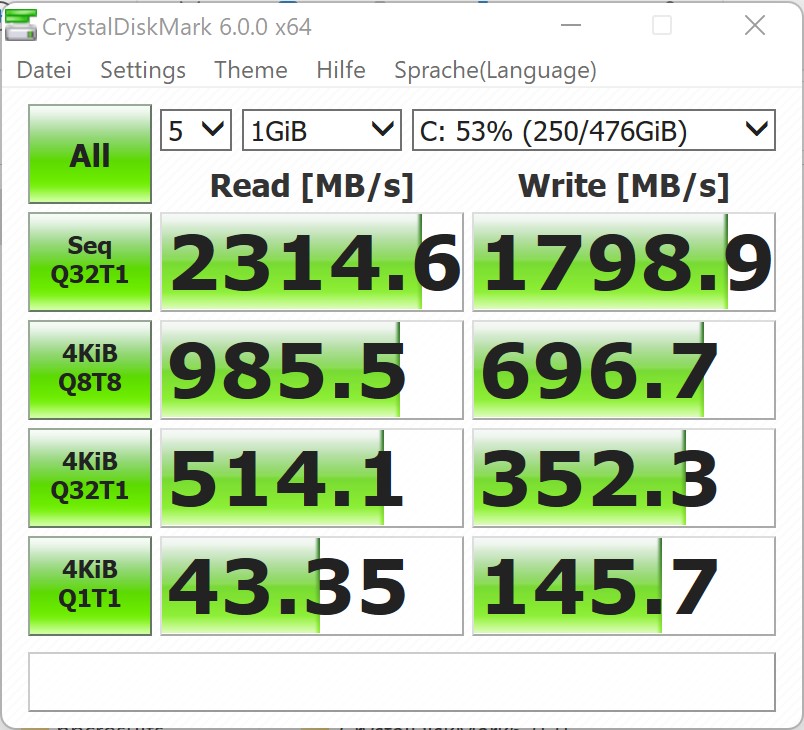

CrystalDiskMark 5.2 / 6

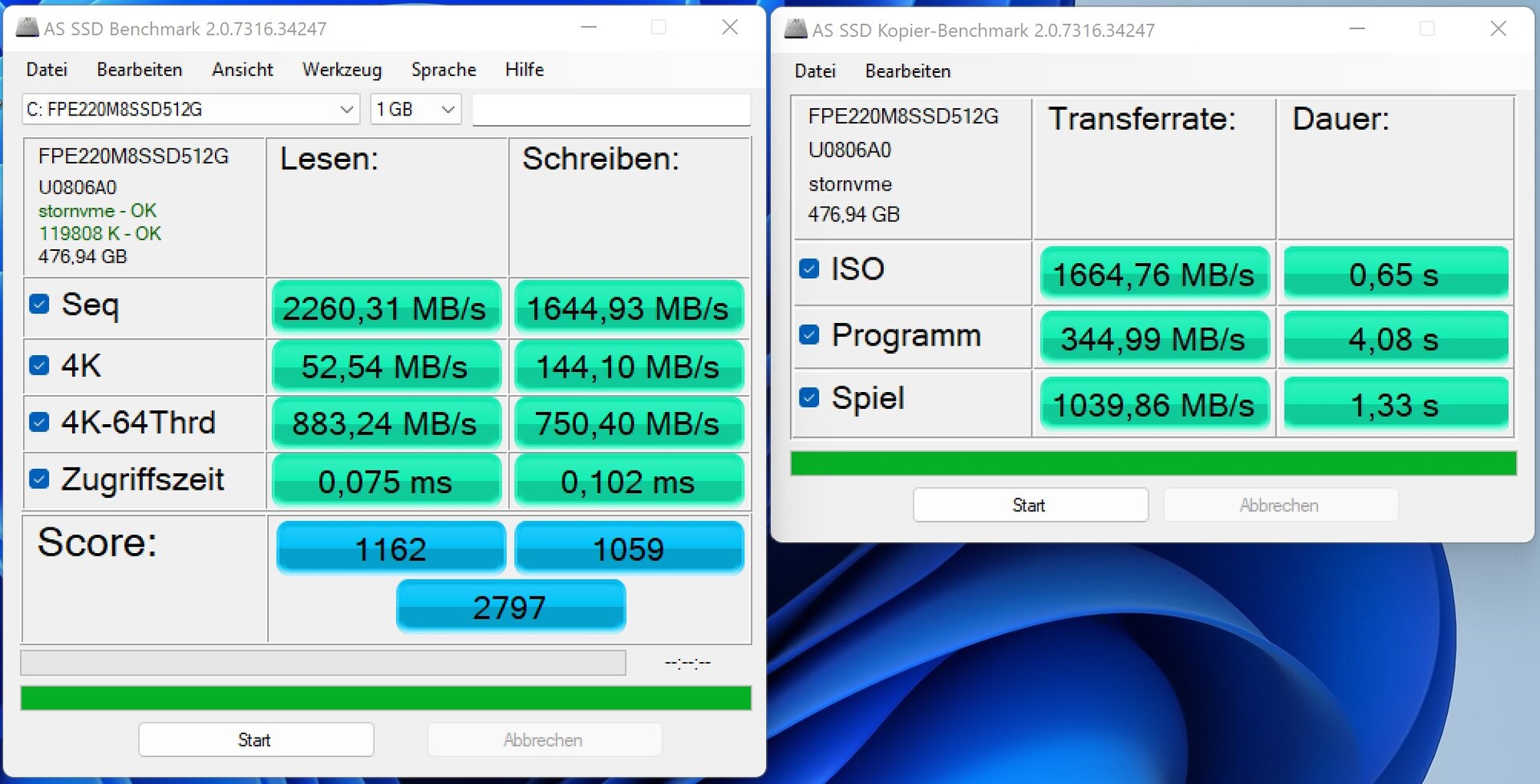

AS SSD

DiskSpd

Future Path FPE220M8SSD512G

Sequential Read: 2124 MB/s

Sequential Write: 1817 MB/s

512K Read: 1359 MB/s

512K Write: 1280 MB/s

4K Read: 50.3 MB/s

4K Write: 145.5 MB/s

4K QD32 Read: 581.6 MB/s

4K QD32 Write: 366.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	89.3 pt
Average Future Path FPE220M8SSD512G	77.7 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	77.5 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	74.2 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	64.2 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	61.9 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	58.9 pt
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	58.2 pt

DiskSpd
seq read
Average Future Path FPE220M8SSD512G (2014 - 2184, n=3)	2093 MB/s +1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s -2%
Average of class Mini PC (233 - 4168, n=96, last 2 years)	2028 MB/s -3%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s -18%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s -27%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1370 (1352.45^min - 1370.49^max) MB/s -34%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s -37%
seq write
Average of class Mini PC (222 - 5595, n=96, last 2 years)	2049 MB/s +14%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s
Average Future Path FPE220M8SSD512G (1598 - 1792, n=3)	1727 MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s -29%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s -34%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -45%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	971 (941.83^min - 970.77^max) MB/s -46%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s -69%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=96, last 2 years)	3155 MB/s +29%
Average Future Path FPE220M8SSD512G (2399 - 2525, n=3)	2456 MB/s 0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s -3%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s -11%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s -19%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1562 (1435.86^min - 1562.38^max) MB/s -36%
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=96, last 2 years)	2223 MB/s +26%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s
Average Future Path FPE220M8SSD512G (1602 - 1790, n=3)	1720 MB/s -3%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s -26%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s -32%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -45%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	970 (945.19^min - 970.14^max) MB/s -45%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s -69%
4k q1 t1 read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	62.4 (61.64^min - 62.4^max) MB/s +29%
Average of class Mini PC (5.67 - 86.6, n=96, last 2 years)	51.3 MB/s +6%
Average Future Path FPE220M8SSD512G (45.1 - 55, n=3)	49.4 MB/s +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s -2%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s -8%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s -21%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -39%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	200 (197.44^min - 200.13^max) MB/s -5%
Average Future Path FPE220M8SSD512G (194.7 - 210, n=3)	200 MB/s -5%
Average of class Mini PC (22 - 425, n=96, last 2 years)	184.7 MB/s -12%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s -20%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s -24%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -34%
4k q32 t16 read
Average of class Mini PC (26.1 - 2810, n=96, last 2 years)	1088 MB/s +10%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +7%
Average Future Path FPE220M8SSD512G (985 - 1005, n=3)	994 MB/s 0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s -19%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s -32%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	345 (343.07^min - 345.33^max) MB/s -65%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -68%
4k q32 t16 write
Average of class Mini PC (30.2 - 3983, n=96, last 2 years)	1084 MB/s +64%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +57%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +48%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +35%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	826 (804.5^min - 825.5^max) MB/s +25%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s
Average Future Path FPE220M8SSD512G (499 - 774, n=3)	644 MB/s -2%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s -20%

AS SSD
Score Total
Average of class Mini PC (151.3 - 9030, n=94, last 2 years)	3534 Points +26%
Average Future Path FPE220M8SSD512G (2797 - 2887, n=2)	2842 Points +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points -3%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points -20%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points -22%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1833 Points -34%
Score Read
Average of class Mini PC (61 - 3635, n=94, last 2 years)	1346 Points +16%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points
Average Future Path FPE220M8SSD512G (1152 - 1162, n=2)	1157 Points 0%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points -14%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points -26%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points -40%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	544 Points -53%
Score Write
Average of class Mini PC (88 - 4185, n=94, last 2 years)	1551 Points +46%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points +18%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points +9%
Average Future Path FPE220M8SSD512G (1059 - 1169, n=2)	1114 Points +5%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1028 Points -3%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points -6%
Seq Read
Average of class Mini PC (291 - 6620, n=94, last 2 years)	2804 MB/s +24%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s
Average Future Path FPE220M8SSD512G (2204 - 2260, n=2)	2232 MB/s -1%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -9%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -21%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1653 MB/s -27%
Seq Write
Average of class Mini PC (240 - 5783, n=94, last 2 years)	1949 MB/s +19%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s
Average Future Path FPE220M8SSD512G (1603 - 1644, n=2)	1624 MB/s -1%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s -24%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s -30%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -43%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	869 MB/s -47%
4K Read
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s +10%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	56.4 MB/s +7%
Average of class Mini PC (6.08 - 104.2, n=94, last 2 years)	55.3 MB/s +5%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s
Average Future Path FPE220M8SSD512G (39.7 - 52.5, n=2)	46.1 MB/s -12%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -47%
4K Write
Average of class Mini PC (30.9 - 366, n=94, last 2 years)	166.7 MB/s +16%
Average Future Path FPE220M8SSD512G (144.1 - 185.3, n=2)	164.7 MB/s +14%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	163.7 MB/s +14%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s +6%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s -1%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -16%
4K-64 Read
Average of class Mini PC (23.4 - 3035, n=94, last 2 years)	1010 MB/s +14%
Average Future Path FPE220M8SSD512G (883 - 892, n=2)	887 MB/s 0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s -19%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s -30%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s -47%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	321.8 MB/s -64%
4K-64 Write
Average of class Mini PC (32.8 - 3598, n=94, last 2 years)	1190 MB/s +59%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s +31%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +22%
Average Future Path FPE220M8SSD512G (750 - 824, n=2)	787 MB/s +5%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	778 MB/s +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s -1%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -105%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * -40%
Average of class Mini PC (0.022 - 0.489, n=94, last 2 years)	0.1031 ms * -37%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.085 ms * -13%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * -8%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms *
Average Future Path FPE220M8SSD512G (0.06 - 0.075, n=2)	0.0675 ms * +10%
Access Time Write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.137 ms * -34%
Average of class Mini PC (0.016 - 0.765, n=94, last 2 years)	0.1304 ms * -28%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * -1%
Average Future Path FPE220M8SSD512G (0.102 - 0.103, n=2)	0.1025 ms * -0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms *
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * +72%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +76%

* ... smaller is better

Continuous load read: DiskSpd Read Loop, Queue Depth 8

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB: Ø1499 (1411.27-1985.99)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Beelink SER4 Intel SSD 660p SSDPEKNW512G8: Ø1407 (1225.09-1439.28)

Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1: Ø1905 (1097.76-2359.4)

Graphics card

The AMD Ryzen 5 5600U comes with an AMD Radeon RX Vega 7 iGPU, which is solely responsible for the 3D performance. This is a big burden, considering that Minipc Union advertises the Ace Magician AMR5 as a compact gaming device. Based on our experience reviewing many laptops, it's clear to us what is roughly to be expected here.

Nevertheless, the AMD Radeon RX Vega 7 is able to deliver a good performance that is above our average rates. In comparison, however, our model competes increasingly with the Minisforum EliteMini TH50 here. Since the iGPU performance depends on the amount of RAM, it should be possible to increase performance by one or two percentage points by using faster modules.

For further comparisons and benchmarks, please refer to our GPU Benchmarks article.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	96.8 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	84.3 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	83.3 pt
Beelink SER4 ^-2! AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	82.2 pt
Minisforum EliteMini B550 ^-1! AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	76.8 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	72.9 pt
Average AMD Radeon RX Vega 7	71 pt

3DMark 11 - 1280x720 Performance GPU
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +27%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +16%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points +12%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	6036 Points +8%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points +3%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points
Average AMD Radeon RX Vega 7 (3353 - 6249, n=58)	5054 Points -10%

3DMark
1280x720 Sky Diver Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	14274 Points +70%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	13595 Points +62%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	12457 Points +49%
Average AMD Radeon RX Vega 7 (8008 - 12857, n=8)	10587 Points +26%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	8374 Points
1920x1080 Ice Storm Extreme Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	121736 Points +33%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	102227 Points +12%
Average AMD Radeon RX Vega 7 (76256 - 130476, n=13)	97550 Points +7%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	96874 Points +6%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	91576 Points
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	50500 Points -45%
1280x720 Cloud Gate Standard Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +25%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +10%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	27339 Points +4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points 0%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points -10%
Average AMD Radeon RX Vega 7 (13713 - 31437, n=43)	23324 Points -11%
1920x1080 Fire Strike Graphics
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +32%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +22%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	3927 Points +10%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points +5%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -6%
Average AMD Radeon RX Vega 7 (1772 - 4037, n=62)	3189 Points -11%
2560x1440 Time Spy Graphics
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1592 Points +44%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1412 Points +28%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1247 Points +13%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1241 Points +13%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1150 Points +4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points
Average AMD Radeon RX Vega 7 (496 - 1249, n=57)	991 Points -10%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition

Performance Rating - Percent
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	96.2 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	91.4 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	76.7 pt
Average AMD Radeon RX Vega 7	76.2 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	73.3 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	70.7 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +31%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +11%
Average AMD Radeon RX Vega 7 (14.2 - 20.9, n=4)	17.9 fps +1%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps -8%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps -16%
Extreme Preset DX11
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +36%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +25%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps +5%
Average AMD Radeon RX Vega 7 (15.9 - 19.8, n=4)	17.8 fps +4%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps -2%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +32%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +26%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps +3%
Average AMD Radeon RX Vega 7 (9.6 - 13.2, n=4)	11.6 fps +3%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps -6%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps +38%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps +11%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps
Average AMD Radeon RX Vega 7 (8.5 - 13.5, n=4)	11.4 fps -1%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps -7%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps -20%

Unigine Superposition
1280x720 720p Low
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	7768 Points +45%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	6430 Points +20%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	6189 Points +15%
Average AMD Radeon RX Vega 7 (5347 - 7180, n=4)	6142 Points +15%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	5998 Points +12%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	5361 Points
1920x1080 1080p High
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1995 Points +37%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1926 Points +32%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1702 Points +17%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1579 Points +8%
Average AMD Radeon RX Vega 7 (1274 - 1664, n=4)	1495 Points +2%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	1459 Points

3DMark 05 Standard		36912 points
3DMark 06 Standard Score		22493 points
3DMark Vantage P Result		17714 points
3DMark 11 Performance		5920 points
3DMark Ice Storm Standard Score		113920 points
3DMark Cloud Gate Standard Score		20395 points
3DMark Fire Strike Score		3229 points
3DMark Fire Strike Extreme Score		1456 points
3DMark Time Spy Score		1251 points
Help

... in comparison

Gaming performance

It's clear that users will have to put up with limitations when it comes to gaming performance, because the AMD Radeon RX Vega 7 quickly reaches its limits in modern games. However, those who like older and less demanding titles can definitely expect playable frame rates. In 720p and with low details, the Ace Magician AMR5 also handles modern games like F1 22. Nevertheless, you should be aware that the AMD Radeon RX Vega 7's performance can't keep up with that of a modern dedicated graphics card.

For more comparisons and benchmarks, please refer to our GPU Games article.

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.5 pt
Minisforum EliteMini HX90 ^-1! AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.4 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	78.3 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	76.2 pt
Average AMD Radeon RX Vega 7	68.4 pt

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	113.4 (25.6^min, 76.9^P1) fps -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps -13%
Average AMD Radeon RX Vega 7 (43.1 - 140.7, n=35)	89.5 fps -22%
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +30%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.1 (31.8^min, 66.7^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps -10%
Average AMD Radeon RX Vega 7 (38 - 123, n=33)	78.7 fps -17%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.8 (38.5^min, 43^P0.1, 53.7^P1) fps +45%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.5 (18.4^min, 24^P0.1, 61.8^P1) fps +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps +17%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	69 (13.2^min, 36.3^P0.1, 41.6^P1) fps +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps
Average AMD Radeon RX Vega 7 (25.5 - 105.8, n=50)	58.1 fps -6%
1366x768 Medium Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	56.5 (23.4^min, 24.6^P0.1, 31.8^P1) fps +43%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.4 (32.2^min, 36.1^P0.1, 43.2^P1) fps +33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.5 (31^min, 32.6^P0.1, 36.6^P1) fps +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.8 (1.9^min, 2.75^P0.1, 29.8^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.4 (20.2^min, 22.2^P0.1, 30.4^P1) fps
Average AMD Radeon RX Vega 7 (9.74 - 81.3, n=37)	34.1 fps -13%

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +41%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (19^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps
Average AMD Radeon RX Vega 7 (27 - 57, n=24)	40.5 fps -8%
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +38%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps +5%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps
Average AMD Radeon RX Vega 7 (13 - 27, n=23)	19.1 fps -9%

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +40%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (33^min) fps +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps
Average AMD Radeon RX Vega 7 (24 - 52, n=4)	39.8 fps 0%
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +45%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +40%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (5^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps
Average AMD Radeon RX Vega 7 (13 - 26, n=4)	20 fps 0%

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +5%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.9 (78^min) fps -1%
Average AMD Radeon RX Vega 7 (56.1 - 102.7, n=8)	82.3 fps -9%
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +28%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 (35^min) fps 0%
Average AMD Radeon RX Vega 7 (27 - 45.3, n=7)	38.9 fps -6%

F1 2021
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	122 (97^min, 96^P1) fps +29%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	105 (81^min, 78^P1) fps +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (74^min, 75^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.7 (75^min, 75^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	91.1 (72^min, 71^P1) fps -4%
Average AMD Radeon RX Vega 7 (71 - 107.9, n=13)	83.6 fps -12%
1920x1080 Medium Preset AA:T AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52 (42^min, 42^P1) fps +30%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.3 (40^min, 40^P1) fps +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.5 (34^min, 34^P1) fps +7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.3 (32^min, 32^P1) fps +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.9 (32^min, 32^P1) fps
Average AMD Radeon RX Vega 7 (29 - 45.8, n=12)	35.8 fps -10%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	127 (111.3^min) fps +14%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124.2 (110.5^min) fps +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps
Average AMD Radeon RX Vega 7 (32.9 - 137.7, n=58)	99 fps -11%
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	96.3 (79.3^min) fps +7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.2 (80.1^min) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps 0%
Average AMD Radeon RX Vega 7 (32.7 - 107.8, n=58)	76.7 fps -15%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.7 (46^min, 70^P1) fps +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps
Average AMD Radeon RX Vega 7 (34.8 - 95.3, n=41)	70.4 fps -12%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps +11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.4 (20.6^min, 27.8^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps
Average AMD Radeon RX Vega 7 (13.4 - 36.1, n=41)	27.1 fps -10%

	low	med.	high	ultra
GTA V (2015)	114.3	94.3	27.2	12
The Witcher 3 (2015)	61.8	39.4	19.6	13
Dota 2 Reborn (2015)	111	90.3	50.5	47.3
Rise of the Tomb Raider (2016)	43.3	30.4	18.1	14.6
Final Fantasy XV Benchmark (2018)	34.6	17.3	12.6
Far Cry 5 (2018)	44	21	20	18
Strange Brigade (2018)	80.1	30.2	25.5	21.7
Shadow of the Tomb Raider (2018)	50.3	18.8	17.1	14.7
Forza Horizon 4 (2018)	79	37	35	27
Far Cry New Dawn (2019)	40	20	19	18
Metro Exodus (2019)	37.9	15.9	11.9	10.2
Borderlands 3 (2019)	53.4	21.2	13.3	10.3
F1 2020 (2020)	90.4	41.2	30.8	22
F1 2021 (2021)	94.7	39.9	31.1	21
Far Cry 6 (2021)	40.3	18.9	15.8
Forza Horizon 5 (2021)	66	41
Farming Simulator 22 (2021)	98.9	41.8	30	23.9
Tiny Tina's Wonderlands (2022)	27	20.7	13.2	9.58
F1 22 (2022)	36.6	32.7	23.8	20.6

Emissions - Frugal, but audible

Noise emissions

The Ace Magician AMR5 is pleasantly quiet under low load and sometimes even completely silent. However, it becomes very audible under load, reaching peaks of up to 50.9 dB(A). The devices in this comparison do a much better job here, though. The maximum noise level drops to 35.9 dB(A) in Silent mode, which is a good result. Nevertheless, this comes at the expense of reduced performance.

Noise Level

Idle		31.5 / 32.6 / 33.8 dB(A)
HDD		0 dB(A)
Load		49.3 / 50.9 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Arta (15 cm distance) environment noise: 30.5 dB(A)

	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minisforum EliteMini HX90 R9 5900HX, Vega 8	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Beelink SER4 R7 4800U, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs
Noise		12%	6%	15%	10%	10%
off / environment *	30.5	30.8 -1%	30.1 1%	30.2 1%	23.4 23%	30.2 1%
Idle Minimum *	31.5			30.5 3%	33.2 -5%	30.8 2%
Idle Average *	32.6	31.6 3%	33.15 -2%	30.5 6%	33.2 -2%	32.1 2%
Idle Maximum *	33.8			30.5 10%	33.2 2%	32.9 3%
Load Average *	49.3			31.2 37%	38.6 22%	33.9 31%
Load Maximum *	50.9	33.4 34%	41.63 18%	35.1 31%	40.8 20%	41.4 19%
Witcher 3 ultra *					39.2

* ... smaller is better

Temperature

The Ace Magician AMR5's case doesn't heat up excessively, which is due to the material selection. In addition, the fan makes sure that waste heat is directly dissipated out of the case at the back, so that no excessive heat buildup develops. When the SoC is at its maximum of 28 watts, it reaches about 84 °C (~183 °F) for a short time at peak load. The temperature settles at around 75-78 °C (~167-172 °F) over the course of time.

The Ace Magician AMR5 in the stress test — Ace Magician AMR5

Energy consumption

The Ace Magician AMR5 is relatively frugal in terms of energy consumption, but Beelink shows that this can be done even better with the SER4. Nonetheless, the average of 46.4 watts is a good rate that a conventional desktop PC can't come close to. The external power adapter supplies a maximum of 65 watts and is of sufficient capacity. This leaves enough headroom for a second SSD.

Power Consumption

Off / Standby	0.85 / 2.5 Watt
Idle	8.4 / 8.7 / 9.3 Watt
Load	46.4 / 52 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minisforum EliteMini B550 R7 5700G, Vega 8	Beelink SER4 R7 4800U, Vega 8	Average AMD Radeon RX Vega 7	Average AMD Ryzen 5 5600U	Average of class Mini PC
Power Consumption		-50%	40%	16%	17%	-37%
Idle Minimum *	8.4	8.9 -6%	4.1 51%	4.66 ?(2.6 - 8.4, n=52) 45%	5.03 ?(3.6 - 8.4, n=6) 40%	9.8 ?(1.9 - 46.5, n=91, last 2 years) -17%
Idle Average *	8.7	9.6 -10%	4.1 53%	7.56 ?(4.8 - 10.7, n=52) 13%	7.4 ?(6.3 - 8.7, n=6) 15%	11.7 ?(1.9 - 63, n=90, last 2 years) -34%
Idle Maximum *	9.3	11.8 -27%	4.6 51%	8.95 ?(5.6 - 13.8, n=52) 4%	8.57 ?(7.5 - 9.3, n=6) 8%	14.7 ?(2.6 - 68.9, n=91, last 2 years) -58%
Load Average *	46.4	98.9 -113%	35.6 23%	38.7 ?(21.6 - 54.9, n=53) 17%	36 ?(27 - 46.4, n=6) 22%	51.9 ?(11.3 - 158.7, n=91, last 2 years) -12%
Load Maximum *	52	101.8 -96%	39.9 23%	51.9 ?(31 - 73.4, n=52) -0%	51.1 ?(44 - 68.4, n=6) 2%	86 ?(18.1 - 271, n=91, last 2 years) -65%
Witcher 3 ultra *			35.6

* ... smaller is better

Energy consumption with an external monitor

Minipc Union Ace Magician AMR5; Prime95 V2810 Stress (external Monitor): Ø42.1 (36.8-52.4)

Minipc Union Ace Magician AMR5; Cinebench R15 Multi (external Monitor): Ø44.8 (36.1-47.8)

Minipc Union Ace Magician AMR5; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø42.7 (40.4-51.9)

Minipc Union Ace Magician AMR5; Idle 1min (external Monitor): Ø9.27 (8.82-10.3)

Pros

+ sleek design

+ sturdy case

+ compact system

+ good system performance

+ lots of ports

+ fast SSD

+ triple display support

+ 3 customizable performance modes

+ RBG lighting

Cons

- no SD card reader

- no Thunderbolt 4

- not many adjustable RGB effects

- slow RAM

- only 512 GB of storage

Verdict - Modern connectivity packed into a sleek case

The Ace Magician AMR5 in review, provided by Minipc Union

Minipc Union doesn't offer a conventional ready-made Mini PC with the Ace Magician AMR5, because this model stands out from the crowd due to its slightly different design. The compact PC catches the eye by resembling conventional desktop PCs and providing subtle lighting. All the while, the model is very compact, lightweight, and it offers a modern SoC in the form of the AMD Ryzen 5 5600U. The hexa-core processor is frugal, and its solid performance ensures fast working speeds. At the same time, the speed of the built-in RAM is something that can be criticized. Valuable potential is being wasted here; the use of faster RAM could have narrowed the gap to the competition a bit.

Thanks to its size, the compact Ace Magician AMR5 fits on any desk. With its great RGB lighting, the compact computer catches the eye without looking garish.

When it comes to compact gaming PCs, we only see the Ace Magician AMR5 as an entry-level PC for playing simple or older titles. Unfortunately, the AMD Radeon RX Vega 7 lacks the necessary performance to render modern games smoothly in 1080p. As far as the port selection is concerned, there are many things that the manufacturer has done right. From the placement of the ports to the number of them, there's not much that we can criticize here. Ultimately, up to three displays can be used at the same time.

Small but nice features, such as the possibility to let the system run in various performance modes on-the-fly, work well and are rarely seen. If you don't need the hexa-core's full performance, you can confidently use Silent mode here. This saves energy and ensures low noise levels. However, we would have liked to see a few more options in the settings for the RGB lighting. The Ace Magician AMR5 is currently available for 590 Euros (~$598). A fair price, since the competition isn't necessarily available at lower prices at the moment.
