AMD E1 Micro-6200T

AMD E1 Micro-6200T

The AMD E1 Micro-6200T is a mobile dual-core SoC (codenamed "Mullins") for tablets, which has been presented in April 2014. In addition to 2 CPU cores clocked at 1.0 - 1.4 GHz (boost clock), the 28 nanometer chip also integrates a Radeon R2 GPU, a single-channel DDR3L-1066 memory controller and the Southbridge with various I/O-ports.

Architecture

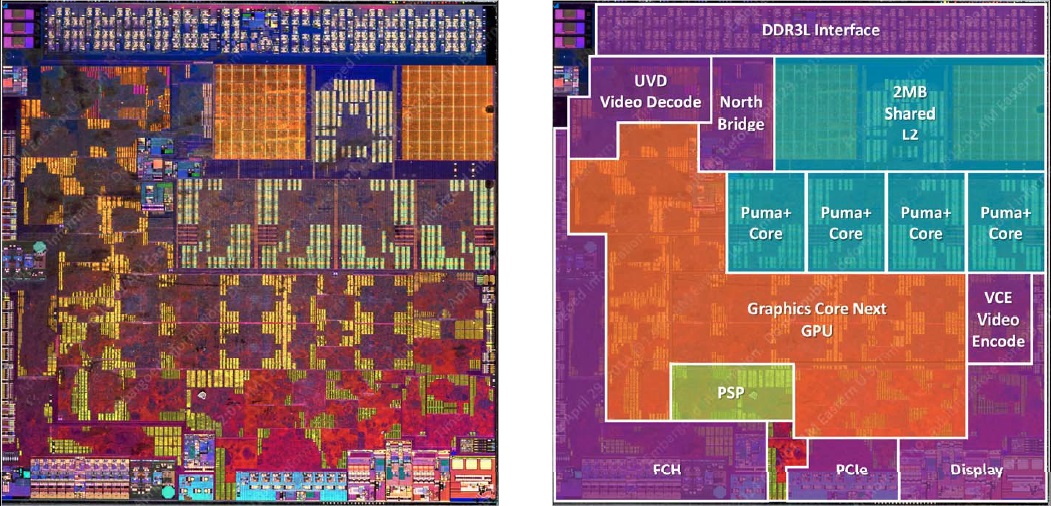

Both Beema (for notebooks) and Mullins (for tablets and compact subnotebooks, same die) are based on AMD's Puma+ architecture, which is the successor to the previous Jaguar design (Kabini and Temash APUs). Neither the performance per clock nor the feature set (including SSE up to 4.2, AVX and AES) have been modified. However, AMD managed to reduce the leakage current, enabling significantly higher (boost) clock speeds. This leads to a more responsive system and better overall performance. As its predecessor, the chip is manufactured in 28 nm.

Performance

As the E1 Micro-6200T offers just two cores at up to 1.4 GHz, the resulting performance is quiet low. Overall, the APU should be similar fast as the old E1-2500 (1.4 GHz), but clocks and performance may decrease in long-lasting multi-thread benchmarks. Only simple workloads like Office, Internet browsing and multimedia will be handled adequate.

Graphics

The SoC integrates a Radeon R2 GPU with 128 shaders, which is based on the GCN architecture and clocked at up to 300 MHz. On average, we expect the graphics performance to be slightly below Intel's HD Graphics (Ivy Bridge) and similar to a Radeon HD 8210. Current games (as of 2014) are thus hardly playable even in low settings, only a few older and less demanding titels should run fluently.

Power Consumption

The power consumption of the entire SoC is rated at 3.95 watts TDP (SDP: 2.8 W). Thus, the APU is suitable for passively cooled tablets.

SeriesAMD E-Series
CodenameMullins
Clock Rate1000 - 1400 MHz
Level 1 Cache128 KB
Level 2 Cache1 MB
Number of Cores / Threads2 / 2
Power Consumption (TDP = Thermal Design Power)3.95 Watt
Manufacturing Technology28 nm
FeaturesSSE (1, 2, 3, 3S, 4.1, 4.2, 4A), x86-64, AES, AVX, Single-Channel DDR3L-1066
GPUAMD Radeon R2 (Mullins/Beema/Carrizo-L) (? - 300 MHz)
64 Bit64 Bit support
Architecturex86
Announcement Date04/29/2014

Benchmarks

- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
